Canon REBEL SL1 EOS 100D User manual

CaHOH

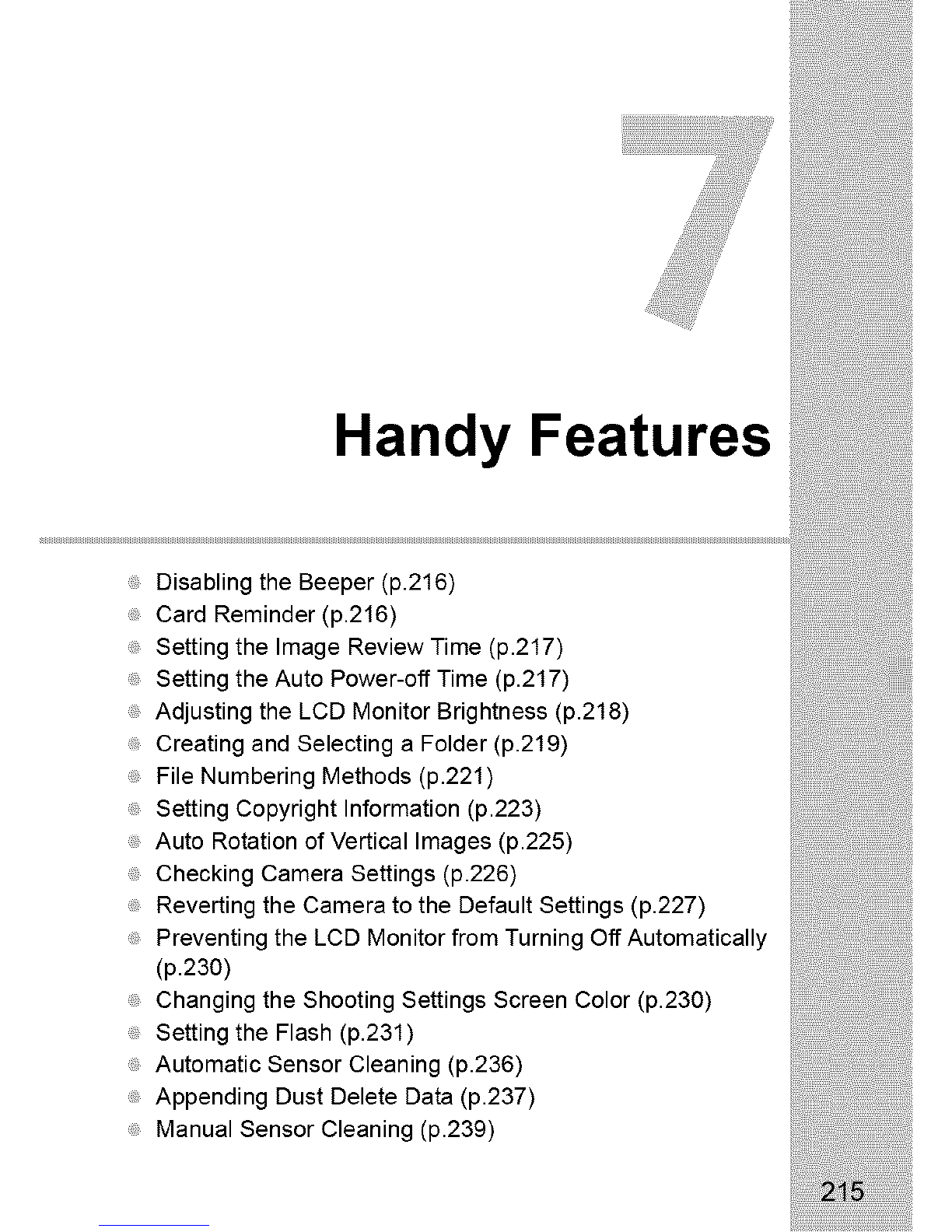

Handy Features
Disabling the Beeper (p.216)
Card Reminder (p.216)
Setting the Image Review Time (p.217)
Setting the Auto Power-off Time (p.217)
Adjusting the LCD Monitor Brightness (p.218)
Creating and Selecting a Folder (p.219)
File Numbering Methods (p.221)
Setting Copyright Information (p.223)
Auto Rotation of Vertical Images (p.225)

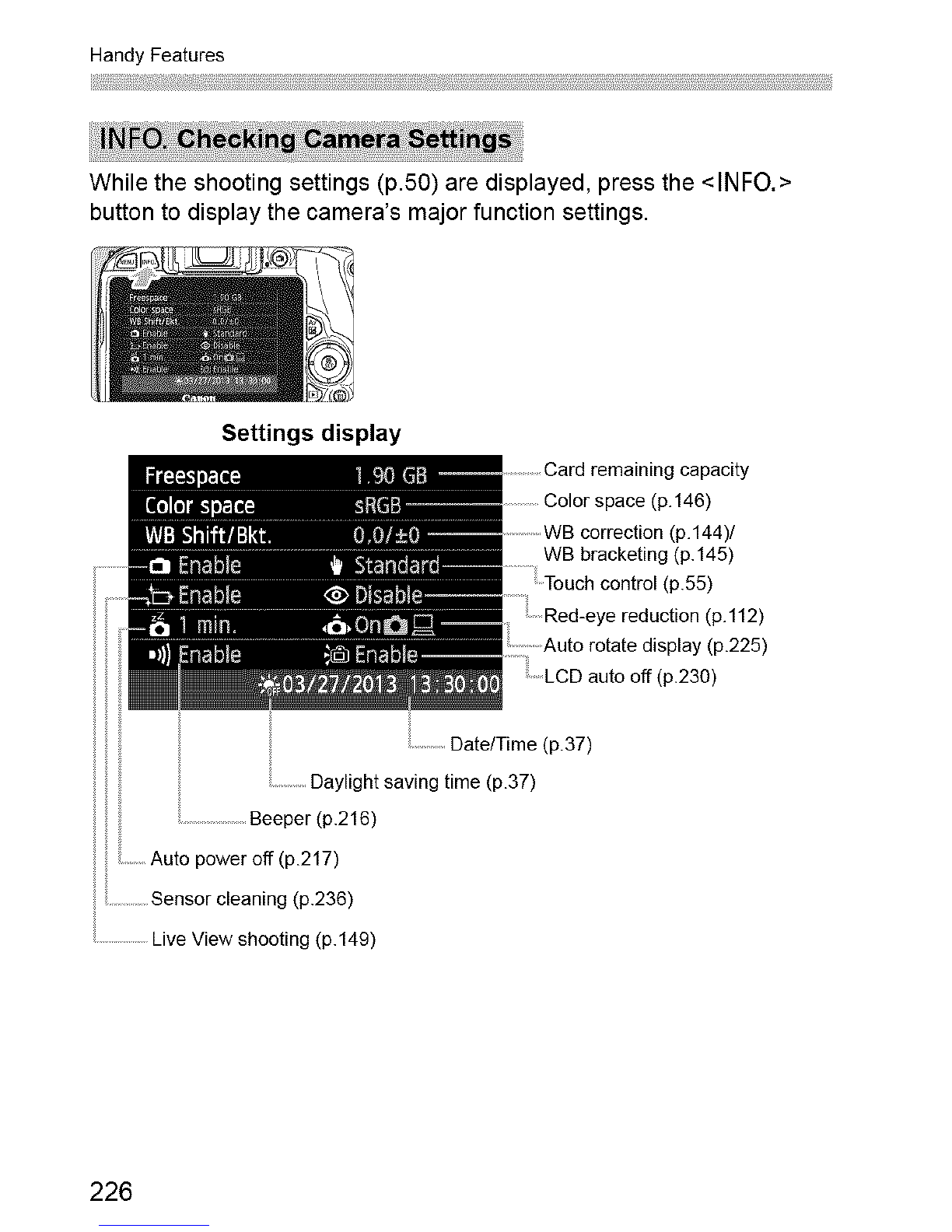

Checking Camera Settings (p.226)
Reverting the Camera to the Default Settings (p.227)

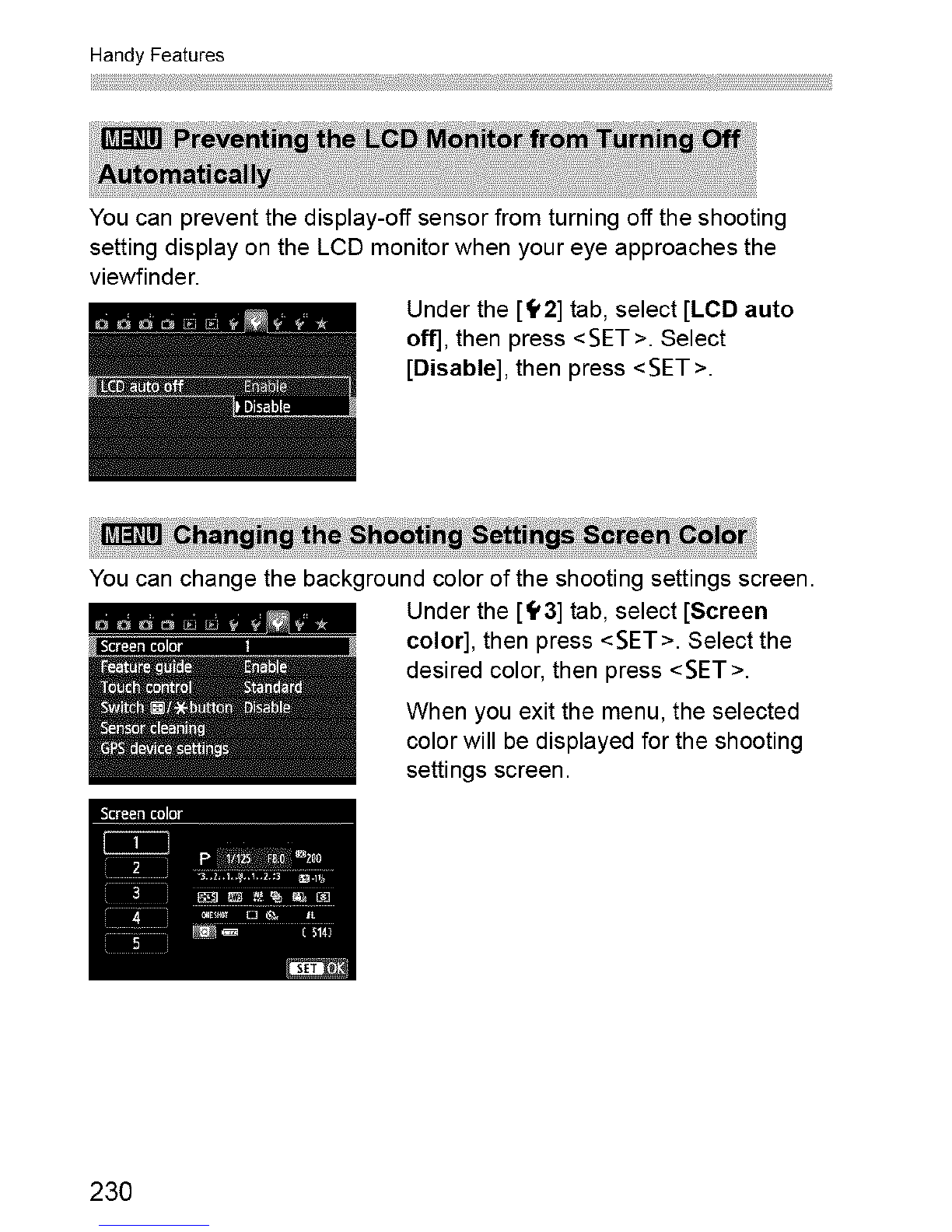

Preventing the LCD Monitor from Turning Off Automatically
(p.230)
Changing the Shooting Settings Screen Color (p.230)

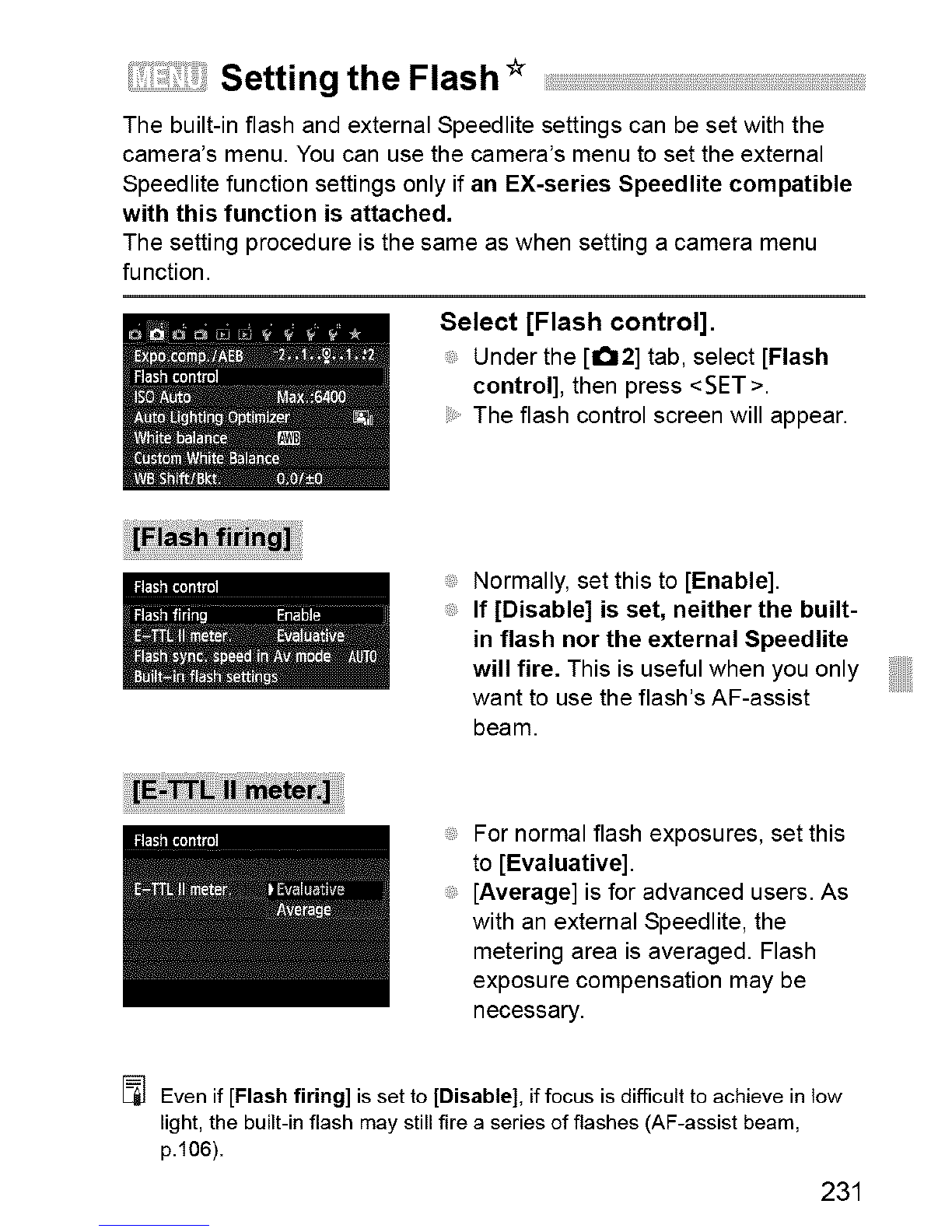

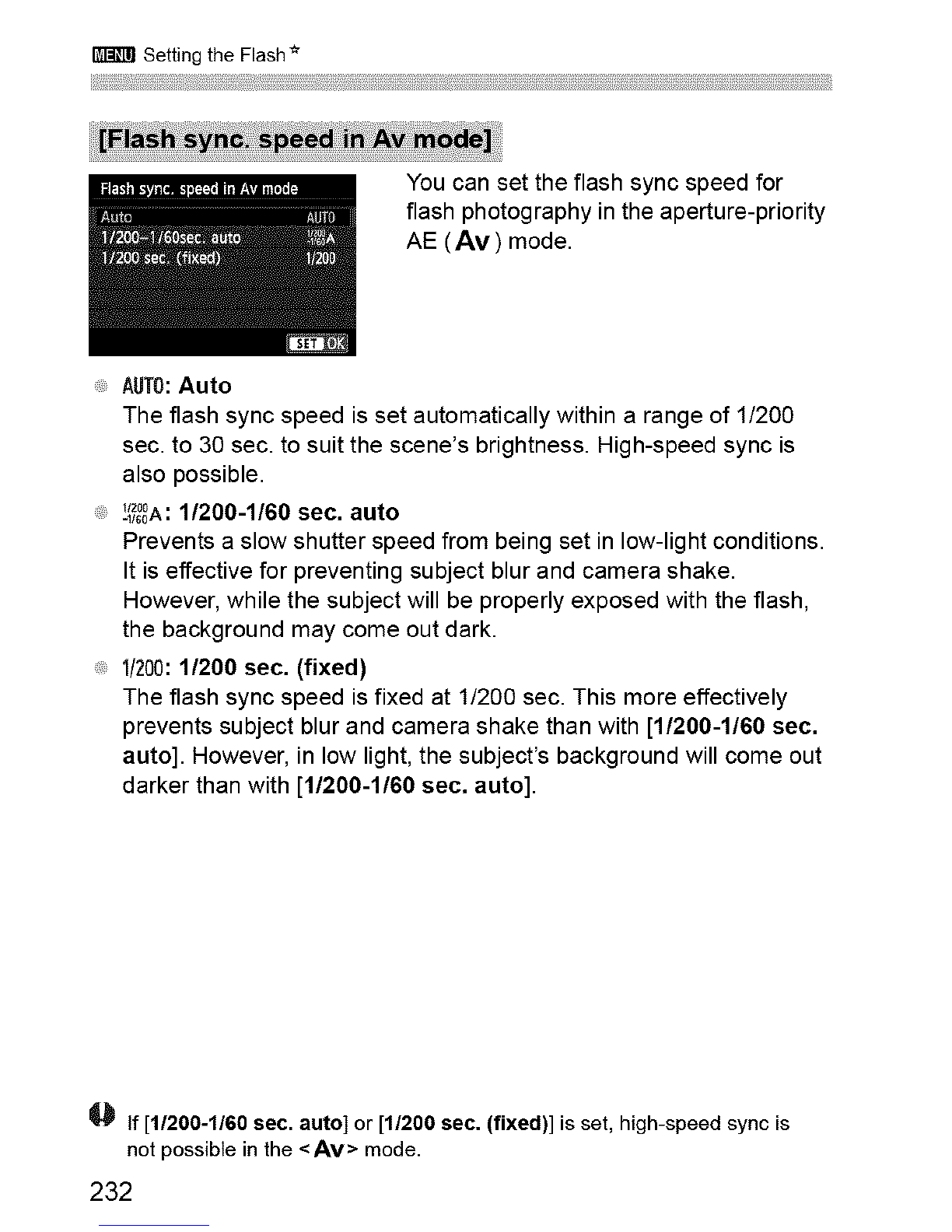

Setting the Flash (p.231)
Automatic Sensor Cleaning (p.236)
Appending Dust Delete Data (p.237)
Manual Sensor Cleaning (p.239)

Handy Features
You can prevent the beeper from sounding when focus is achieved,
during self-timer operation, and during touch screen operations.
Under the [1_1] tab, select [Beep], then
press <SET>. Select [Disable], then
press <SET>.
To silence the beeper only during touch
screen operations, select [Touch to ,_].
This setting prevents shooting if there is no card in the camera.
Under the [1_1] tab, select [Release
shutter without card], then press
<SET >. Select [Disable], then press
<SET>.
If there is no card inserted in the camera
and you press the shutter button, "Card"
will be displayed in the viewfinder, and
you cannot release the shutter.
216

Handy Features
You can set how long the image is displayed on the LCD monitor
immediately after capture. If [Off] is set, the image will not be displayed
immediately after image capture. If [Hold] is set, the image review will
be displayed up until the [Auto power off] time.
During image review, if you operate any camera controls such as
pressing the shutter button halfway, the image review will end.
Under the [1_11] tab, select [Image
review], then press <SET>. Select the
desired setting, then press <SET >.
To save battery power, the camera turns off automatically after the set
time of idle operation elapses. You can set this auto power-off time.
When the camera has turned off due to auto power off, you can turn it
on again by pressing the shutter button halfway or pressing any of the
following buttons: <MENU>, <INFO.>, <r-€-1>,<1:_11>,etc.
If [Disable] is set, either turn off the camera or press the <INFO.>
button to turn off the LCD monitor to save battery power.
Even when [Disable] is set, if the camera is not used for 30 min.,
the LCD monitor will turn off automatically. To turn on the LCD
monitor again, press the <INFO.> button.
Under the [_'2] tab, select [Auto power
off], then press <SET>. Select the
desired setting, then press <SET >.
217

Handy Features

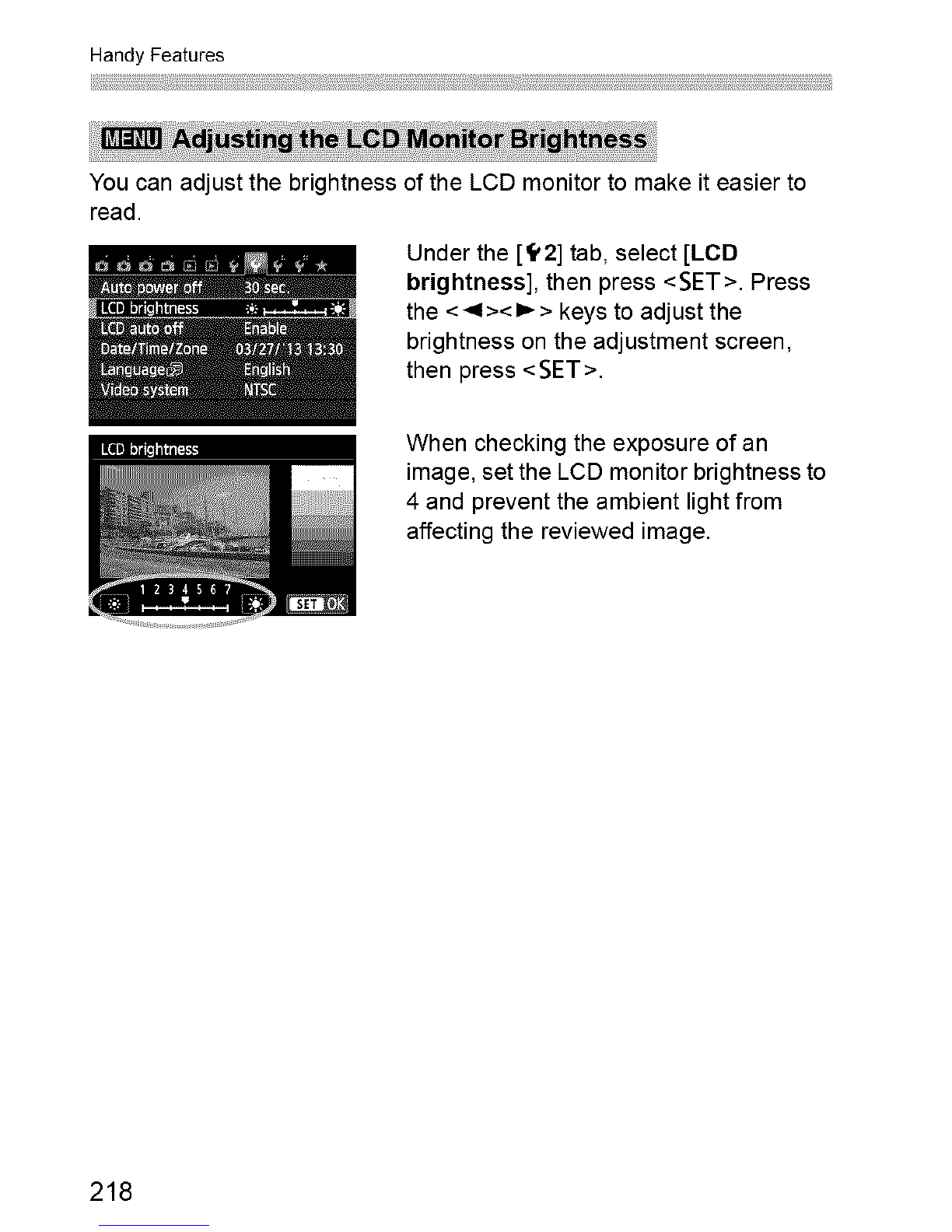

You can adjust the brightness of the LCD monitor to make it easier to
read.
Under the [_'2] tab, select [LCD
brightness], then press <SET>. Press
the < _1>< I_ > keys to adjust the
brightness on the adjustment screen,
then press <SET>.
When checking the exposure of an
image, set the LCD monitor brightness to
4 and prevent the ambient light from
affecting the reviewed image.
218

Handy Features
You can freely create and select the folder where the captured images
are to be saved.
This operation is optional since a folder will be created automatically for
saving captured images.
Creating a Folder
Select [Select folder].
Under the [_,1] tab, select [Select
folder], then press <SET>.
..........; Select [Create folder].
Select [Createfolder], thenpress
<SET>.
iiii!!ii!!!!ii iiiii
Create a new folder.
Select [OK], then press <SET>.
Anew folder with the folder number
increased by one is created.
219

Handy Features
Selecting a Folder
Lowest file number
Numberof imagesin folder
FOlder name
With the folder selection screen
displayed, select a folder and press
<SET>.
The folder where the captured
images will be saved is selected.
Subsequent captured images will be
recorded into the selected folder.
Highest file number
_] Folders
As with "100CANON" for example, the folder name starts with three digits
(the folder number) followed byfive alphanumeric characters. Afolder can
contain up to 9999 images (file number 0001 - 9999). When a folder
becomes full, a new folder with the folder number increased by one is
created automatically. Also, if manual reset (p.222) is executed, a new
folder will be created automatically. Folders numbered from 1go to 999 can
be created.
Creating Folders with a Computer
With the card open on the screen, create a new folder named "DClM'. Open
the DCIM folder and create as many folders as necessary to save and
organize your images. The folder name must follow the format
"100ABC_D". The first three digits are the folder number, from 100 to 999.
The final five characters can be any combination of upper- and lower-case
letters from Ato Z, numerals, and the underscore "_". The space cannot be
used. Also note that two folder names cannot share the same three-digit
folder number (for example, "100ABC_D" and "100W_XYZ'), even if the
other five characters in each name are different.
220

Handy Features
The image files will be numbered from 0001 to 9999 in the order the
images are taken, then saved in a folder. You can change how the file
number is assigned.
The file number will appear on your computer in this format:
IMG OOOl.JPG.
Under the [t'l] tab, select [File
numbering], then press <SET>. The
available settings are described below.
Select the option, then press <SET>.
[Continuous]: The file numbering continues in sequence even
after you replace the card or create a folder,
Even after you replace the card or create a new folder, the file
numbering continues in sequence up to 9999. This is convenient
when you want to save images numbered anywhere between 0001
to 9999 in multiple cards or folders into one folder in your computer.
If the replacement card or existing folder already contains images
recorded previously, the file numbering of the new images may
continue from the file numbering of the existing images on the card
or in the folder. If you want to use continuous file numbering, it is
recommended that you use a newly-formatted card each time.
File numbering after
replacing the card
Next sequential file number
File numberingafter
creating afolder
221

Handy Features

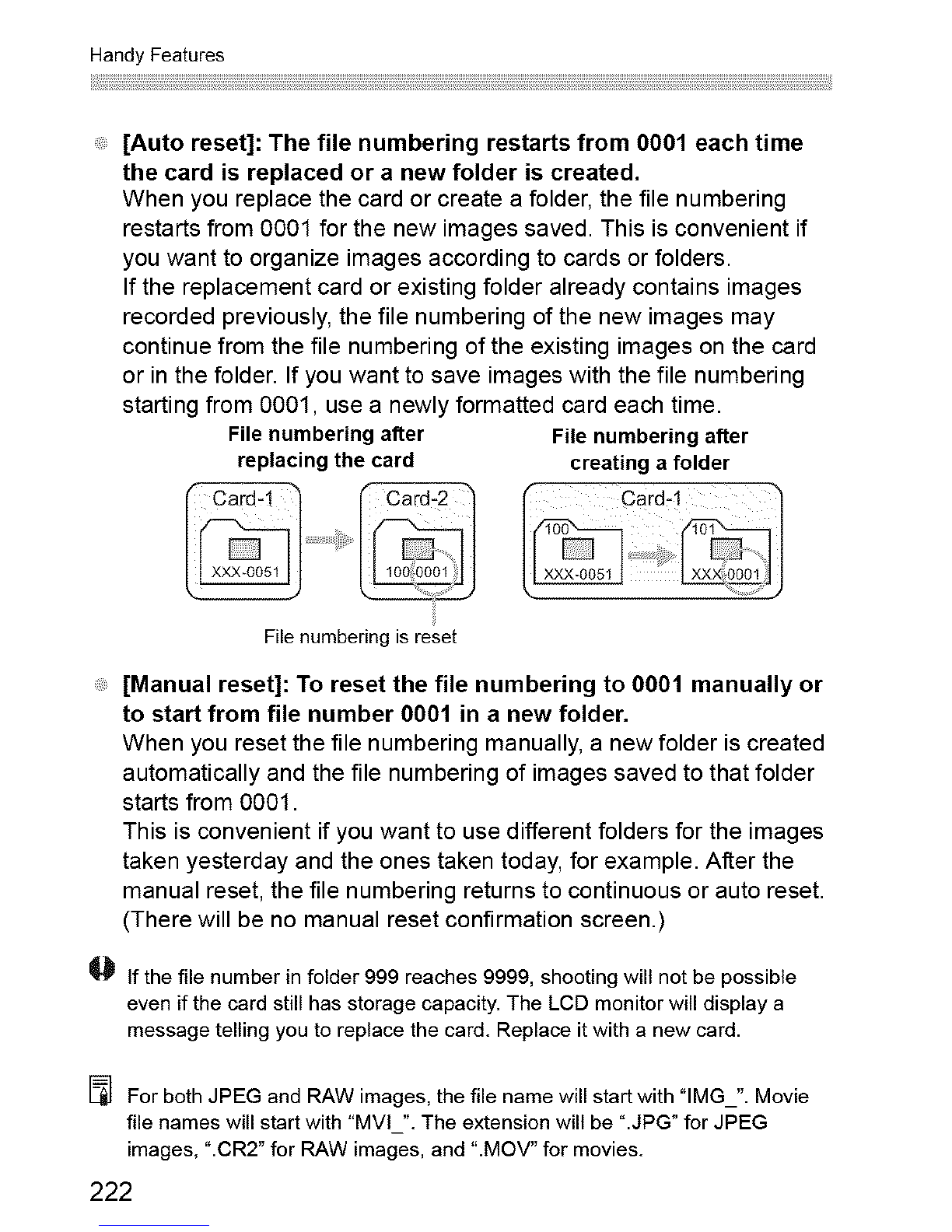

[Auto reset]: The file numbering restarts from 0001 each time
the card is replaced or a new folder is created,
When you replace the card or create a folder, the file numbering
restarts from 0001 for the new images saved. This is convenient if
you want to organize images according to cards or folders.
If the replacement card or existing folder already contains images
recorded previously, the file numbering of the new images may
continue from the file numbering of the existing images on the card
or in the folder. If you want to save images with the file numbering
starting from 0001, use a newly formatted card each time.
File numbering after File numbering after
replacing the card creating a folder
Filenumberingisreset
[Manual reset]: To reset the file numbering to 0001 manually or
to start from file number 0001 in a new folder,
When you reset the file numbering manually, a new folder iscreated
automatically and the file numbering of images saved to that folder
starts from 0001.
This is convenient if you want to use different folders for the images
taken yesterday and the ones taken today, for example. Af[er the
manual reset, the file numbering returns to continuous or auto reset.
(There will be no manual reset confirmation screen.)
If the file number in folder 999 reaches 9999, shooting wilt not be possible
even if the card still has storage capacity. The LCD monitor will display a
message telling you to replace the card. Replace it with a new card.
For both JPEGand RAW images,thefile name will start with "IMG_". Movie
file names will start with "MVI ". The extensionwilt be ".JPG" for JPEG
images, ".CR2"for RAW images, and ".MOV" for movies.
222

Handy Features

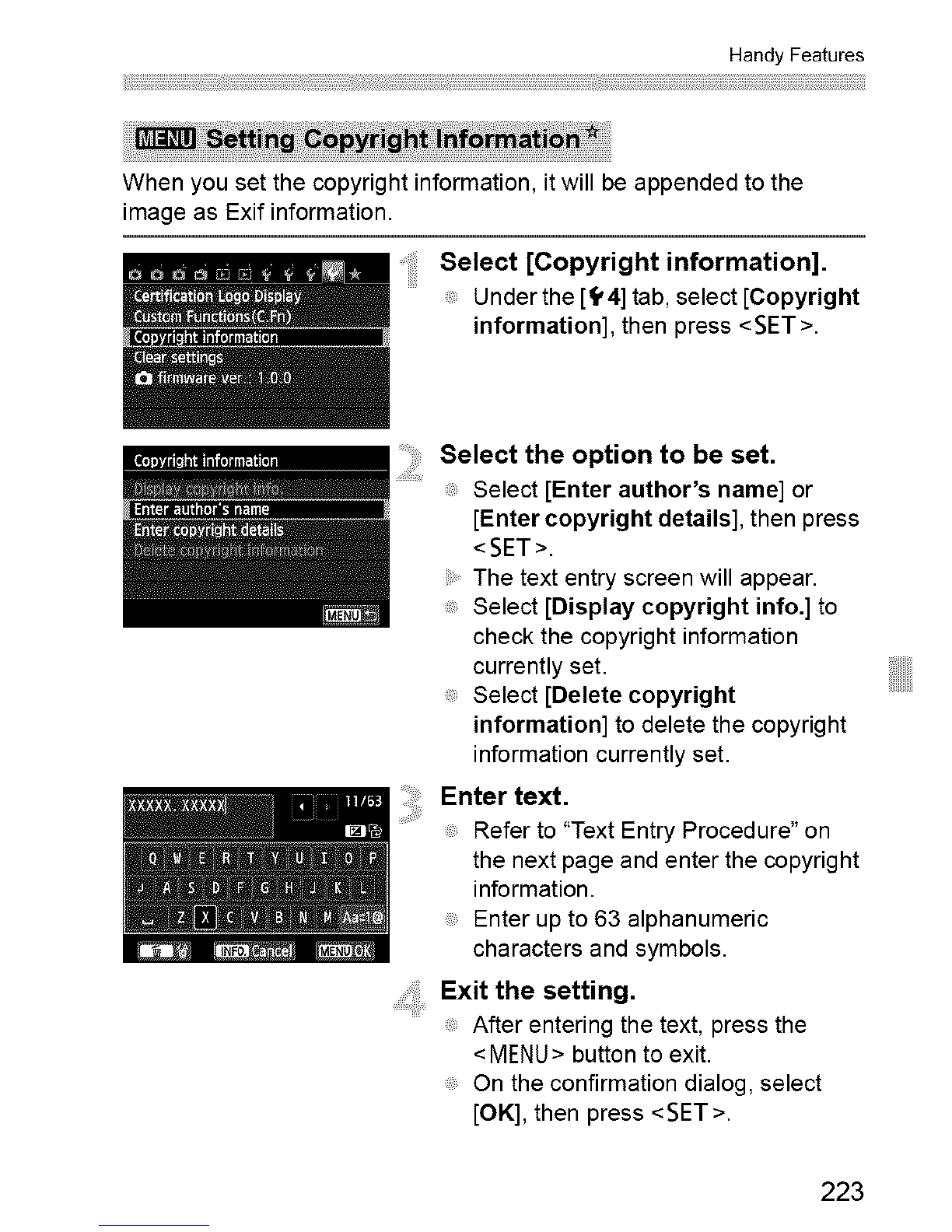

When you set the copyright information, it will be appended to the
image as Exif information.
Select [Copyright information].
Under the [_'4] tab, select [Copyright
information], then press <SET >.
Select the option to be set.
Select [Enter author's name] or
[Enter copyright details], then press
<SET>.
The text entry screen will appear.
Select [Display copyright info.] to
check the copyright information
currently set.
Select [Delete copyright
information] to delete the copyright
information currently set.
Entertext.
Refer to "Text Entry Procedure" on
the next page and enter the copyright
information.
Enter up to 63 alphanumeric
characters and symbols.
.... Exit the setting.
After entering the text, press the
<MENU> button to exit.
On the confirmation dialog, select
[OK], then press <SET>.
223

Handy Features
Text Entry Procedure
Changing the Entry Area:
Press the <Avl_> button to toggle
between the top and bottom entry
areas.
Moving the Cursor:
Press the <<> <1_> keys to move
the cursor.
Entering Text:
Inthe bottom area, press the <,;,> cross keys or turn the <_> dial
to select a character, then press <SET> to enter it.
Changing the Entry Mode:*
Select [Aa=l @] at the bottom right of the bottom entry area. Each
time you press <SET>, the entry mode will change as follows: Lower
case _ Numerals /Symbols 1 _ Numerals /Symbols 2 _ Upper
case.
* When [Touch control: Disable] is set, you can display all the available
characterson one screen.
Deleting aCharacter:
Press the <'_ > button to delete one character.
Exiting:
Press the <MENU > button, check the text, select [OK], then press
<SET>. The screen in step 2 will reappear.
Canceling the Text Entry:
Press the <INFO. > button, check the text, select [OK], then press
<SET>. The screen in step 2 will reappear.
You can also set or check the copyright information with EOS Utility
(provided software, p.366).
224

Handy Features
Vertical images are rotated automatically so they
are displayed vertically on the camera's LCD
monitor and on the computer instead of horizontally.
You can change the setting for this feature.
Under the [_'1] tab, select [Auto rotate],
then press <SET>. The available
settings are described below. Select the
option, then press <SET >.
[On I_1._D] : The vertical image is automatically rotated during playback
on both the camera's LCD monitor and on the computer.
[On [_ ] : The vertical image is automatically rotated only on the
computer.
[Off] : The vertical image is not automatically rotated.
The vertical image is not rotated during the image review
immediately after it is captured.
Pressthe <[] > button and the image playbackwilldisplay the rotatedimage.
[On I_1 [_] is set, but the image does not rotate during playback.
Auto rotate will not work with vertical images captured while [Auto
rotate] was set to [Off]. Ifthe vertical image istaken while the camera
is pointed up or down, the image may not be rotated automatically for
playback. In such a case, see "Rotating the Image" on page 247.
On the camera's LCD monitor, I want to rotate an image
captured when [On [_ ] had been set.
Set [On I_1,_D], then play back the image. Itwill be rotated.
The vertical image does not rotate on the computer screen.
The software used is not compatible with image rotation. Use the
software provided with the camera instead.
225

Handy Features
While the shooting settings (p.50) are displayed, press the <INFO.>
button to display the camera's major function settings.
Settings display
ig capacity
(p.144)/
WB bracketing (p.145)
Touch control (p.55)
reduction (p.112)
play (p.225)
auto off (p.230)
iiii!! .................Date,Time_p37_
................Daylight saving time (p.37)
................................Beeper (p.216)
Auto power off (p.217)
...................Sensor cleaning (p.236)
........................Live View shooting (p.149)
226

Handy Features
The camera's shooting settings and menu settings can be reverted to
their defaults. This option is available in Creative Zone modes.
Select [Clear settings].
Under the [_'4] tab, select [Clear
settings], then press <SET>.
Select [Clear all camera settings].
Select [Clear all camera settings],
then press <SET>.
iiii!!ii!!!!ii iiiii
Select [OK].
Select [OK], then press <SET>.
Setting [Clear all camera settings]
will reset the camera to the default
settings as shown on the next page.
Clearing all camera settings:
After the procedure above, select [Clear all Custom Func. (C.Fn)]
in [_'4: Clear settings] to clear all the Custom Function settings
(p.298).
227

Handy Features
Shooting settings
"_ (Kids)
One-Shot AF
Automatic
selection
[]
(Single shooting)
[_8_](Evaluative
metering)
AUTO (Auto)
Maximum 6400
Canceled
0 (Zero)
Unchanged
Unchanged
Recording Images
IL
Auto
Standard
Enable/Correction
data retained
Disable/Correction
data retained
sRGB
(Auto)
Canceled
Canceled
Canceled
_6i_ re_i#f! Disable
Standard
Continuous
Enable
Erase
228

Handy Featuresi!iii
Camera Settings
3osec.
Enable
Enable
2 sec.
Brightness
(10 images)
Onl_
":._H-+-t-+-H_
Enable
Unchanged
Unchanged
Unchanged
1
Enable
Standard
Disable
Unchanged
Disable
Disable
Unchanged
Disab,e
Live View shooting
Enable
+Tracking
Enable
Disable
Off
3:2
Mete i_ _i_ _ 16 sec.
229

Handy Features
You can prevent the display-off sensor from turning off the shooting
setting display on the LCD monitor when your eye approaches the
viewfinder.
Under the [{t2] tab, select [LCD auto
off], then press <SET>. Select
[Disable], then press <SET >.
You can change the background color of the shooting settings screen.
Under the [{t3] tab, select [Screen
color], then press <SET>. Select the
desired color, then press <SET >.
When you exit the menu, the selected
color will be displayed for the shooting
settings screen.
230

Setting the Flash _"
The built-in flash and external Speedlite settings can be set with the
camera's menu. You can use the camera's menu to set the external
Speedlite function settings only if an EX-series Speedlite compatible
with this function is attached.
The setting procedure is the same as when setting a camera menu
function.
Select [Flash control].
Under the [1_2] tab, select [Flash
control], then press <SET >.
The flash control screen will appear.
Normally, set this to [Enable].
If [Disable] is set, neither the built-
in flash nor the external Speedlite
will fire. This is useful when you only
want to use the flash's AF-assist
beam.
For normal flash exposures, set this
to [Evaluative].
[Average] is for advanced users. As
with an external Speedlite, the
metering area is averaged. Flash
exposure compensation may be
necessary.
Even if [Flash firing] isset to [Disable], iffocus isdifficult to achieve in low
light,the built-in flash may stillfire a series offlashes (AF-assist beam,
p.106).
231

Setting the Flash*
You can set the flash sync speed for
flash photography in the aperture-priority
AE (AM) mode.
AUTO:Auto
The flash sync speed is set automatically within a range of 1/200
sec. to 30 sec. to suit the scene's brightness. High-speed sync is
also possible.
!_6%°A:1/200 -1/60 sec, auto
Prevents a slow shutter speed from being set in low-light conditions.
It is effective for preventing subject blur and camera shake.
However, while the subject will be properly exposed with the flash,
the background may come out dark.
1/200:1/200 sec, (fixed)
The flash sync speed is fixed at 1/200 sec. This more effectively
prevents subject blur and camera shake than with [1/200-1/60 sec,
auto]. However, in low light, the subject's background will come out
darker than with [1/200-1/60 sec, auto].
_L_If [4/200-I/60 sec. auto] or [11200sec. (fixed)] is set, high-speed sync is
notpossible in the <Av > mode.
232

Setting the Flash _
You can set the functions in the table below. The functions displayed under
[External flash func. setting] will vary depending on the Speedlite model.
Select [Built-in flash settings] or
[External flash func. setting].
The flash functions will be displayed.
With [Built-in flash settings], the
highlighted functions can be selected
and set.
Sample screen
[Built-in flash settings]
.......................................Flash mode
(Flash
coverage)
exposure
bracketing
Flash exposure
compensation
[External flash func, setting] Shutter
synchronization
Built-in flash settings] and [External flash fun¢. setting] Functions
ii!_z_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i_;;_i
Fixed to E-TTL II
0
0
0
O
O
O
O
O
O
O
234
234
124
231
For [FEB] (Flash exposure bracketing),[Wireless functions] and [Zoom], refer
tothe Speedlite's instruction manual.
233
