About This Manual
In this manual, Windows XP Professional/Home Edition is referred to as Windows XP, and
Windows 2000 Professional is referred to as Windows 2000.
Where explanations are common to all operating systems, the screens used in the
examples are from Windows XP.
In this document, square brackets [ ] are used to indicate items such as button names and
icon names that appear on the computer screen.
Numbers in parentheses in this document indicate reference pages.
in this document indicates the sequence of operation as shown below.
Example: [View] menu [Sort] [File name]
In order to transfer images from Digital Photo Professional to Photoshop, you will need
Adobe Photoshop (third-party product). This manual shows how to transfer images to
Adobe Photoshop 7.0, as an example.
The explanations given below describe the type of content indicated by the respective icons.
: Marks information that should be read before use to prevent problems that would
interfere with the functioning of software and computer.
: Marks additional information that you will find helpful.
Please read the safety precautions carefully before using this product. Ensure that you use the
product correctly according to the procedures described in these instructions.
The following safety precautions are intended to instruct you in the safe and correct operation
of the product and its accessories to prevent injuries or damage to yourself, other persons and
property. Please read and ensure that you understand them before you proceed to the other
sections of these instructions.
Warning
Do not play the supplied CD-ROM(s) in any CD-ROM Player that does not support data CD-ROMs. The
extremely loud sound that may result from playing the CD-ROM(s) in an audio CD player (music player)
could damage the speakers. It is also possible to suffer hearing losses from listening with headphones to
the loud sounds of a data CD-ROM played on a music CD player.
How to Read the Manual and the Conventions Used
Safety Precautions

4
Main Features and Structure
Digital Photo Professional is software dedicated for EOS DIGITAL images that has high-speed
processing/editing functions, which meet the needs of professional or high-end amateur users
who mainly shoot RAW images. This software allows you to perform the following edits on images.

High-speed displaying/processing RAW images with Canon’s own high-performance algorithm.
Switching among the main window (displayed as thumbnails), the edit window, and the edit
image window to match the purposes of editing.
Real-time adjustments of images for satisfying professional digital workflow.
RAW images: White balance, Brightness, Dynamic range, and Color adjustment
RAW, RGB images (JPEG, TIFF images): Tone curve, Brightness, and Color adjustment
Supports a Color Management System.
Supports color space of sRGB, Adobe RGB, and Wide Gamut RGB.
Effectively converting and saving multiple RAW images in a single operation (batch-
processing).
Includes a comparison mode that allows you to adjust an image while comparing an edited
image with the original in the same window.
Editing multiple images while comparing each of them.
Saving and applying recipe data (the edit data from multiple functions).

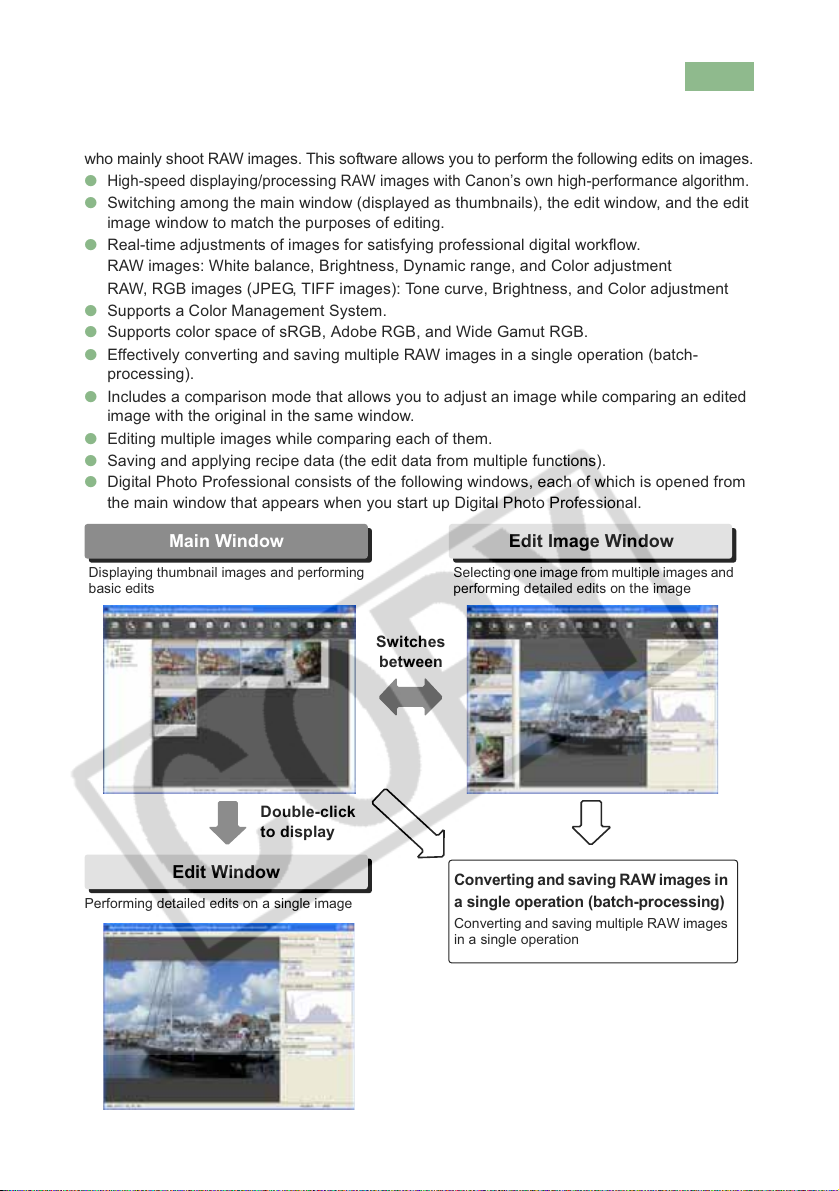

Digital Photo Professional consists of the following windows, each of which is opened from
the main window that appears when you start up Digital Photo Professional.
Edit Window
Edit Image WindowMain Window
Selecting one image from multiple images and
performing detailed edits on the image
Converting and saving RAW images in
a single operation (batch-processing)
Converting and saving multiple RAW images
in a single operation
Performing detailed edits on a single image
Switches
between
Double-click
to display
Displaying thumbnail images and performing
basic edits

5
Operation Flow
This section describes typical methods of operating Digital Photo Professional.
The main window allows you to perform the following edits on images:
RAW images JPEG/TIFF images
White balance —
Click white balance function
(RAW) —
Brightness (RAW) —
Click white balance function
Brightness
Start up Digital
Photo Professional (2-2).
Display an image in the main
window (2-5).
Perform the basic edits
on the image (2-14, 2-17).
Convert and save images in a
single operation (2-31).

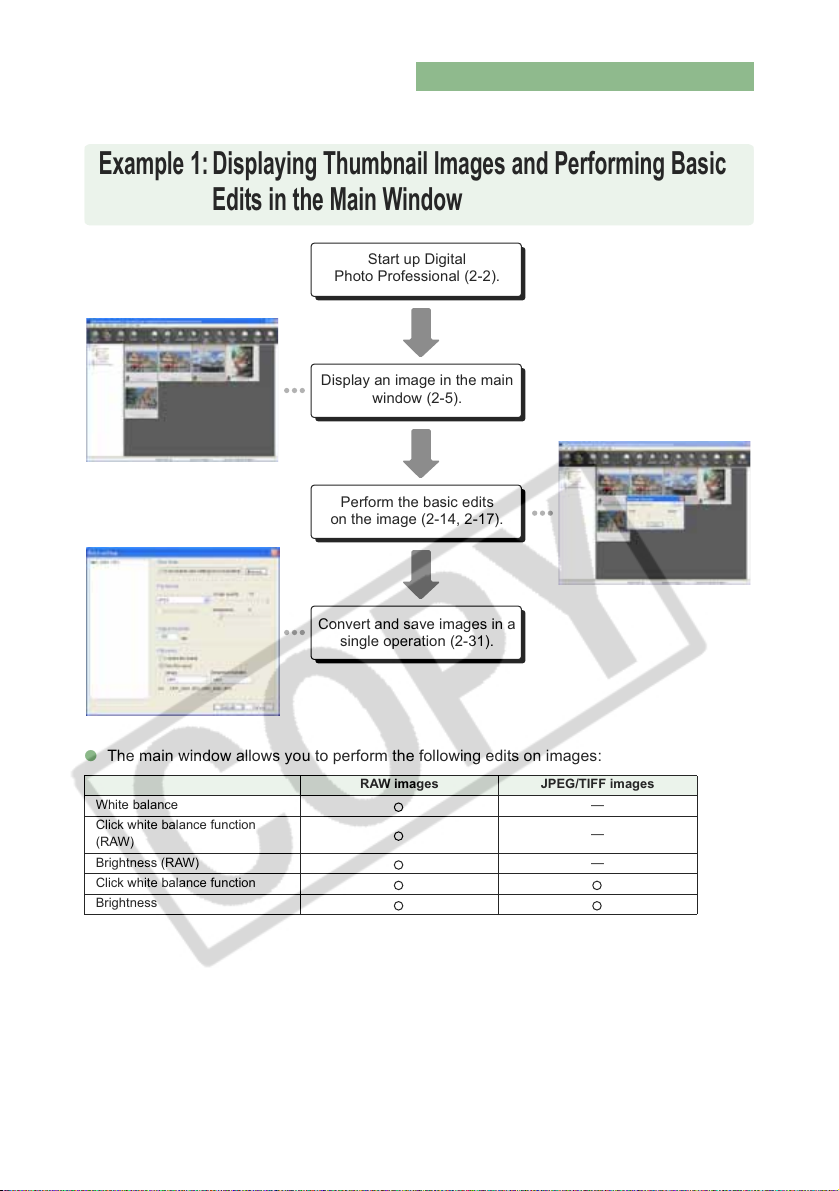

Example 1: Displaying Thumbnail Images and Performing Basic
Edits in the Main Window

Operation Flow
6
The edit window allows you to perform the following edits on images:
RAW images JPEG/TIFF images
Brightness (RAW) —
White balance —
Dynamic range —
Color —
Tone curve
Color

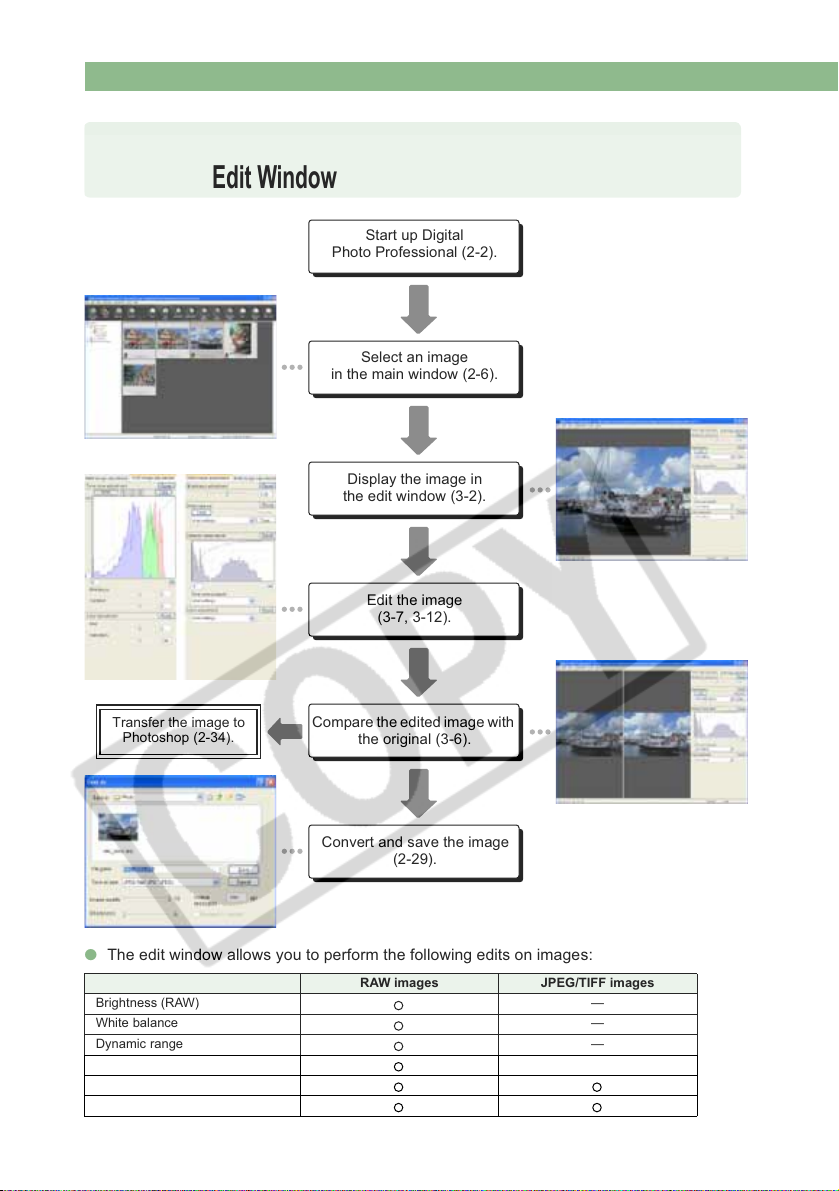

Example 2: Performing Detailed Edits on a Single Image in the
Edit Window
Start up Digital
Photo Professional (2-2).
Select an image
in the main window (2-6).
Display the image in
the edit window (3-2).
Edit the image
(3-7, 3-12).
Compare the edited image with
the original (3-6).
Convert and save the image
(2-29).
Transfer the image to
Photoshop (2-34).

Operation Flow
7
The edit image window allows you to perform the following edits on images:
RAW images JPEG/TIFF images
Brightness (RAW) —
White balance —
Dynamic range —
Color —
Tone curve
Color
Example 3: Selecting One Image from Multiple Images and Performing
Detailed Edits on the Image in the Edit Image Window
Start up Digital
Photo Professional (2-2).
Select images
in the main window (2-6).
Display the images in
the edit image window (4-2).
Edit the image (2-14,
2-17, 3-7, 3-12).
Compare the edited image with
the original (3-6).
Convert and save images in
a single operation (2-31).
Transfer the image to
Photoshop (2-34).

8
System Requirements
A CD-ROM drive is required for installation.
* Including the TIFF and JPEG images that are converted from RAW images and saved with
Digital Photo Professional.
OS Windows XP (Professional/Home Edition),
Windows 2000 Professional
Computer PC with one of the above OS preinstalled
CPU 750 MHz Pentium or better
(2 GHz Pentium 4 or better recommended)
RAM Minimum 256 MB (1 GB or more recommended)
Hard disk space At installation: 20 MB or more
During operation: 256 MB or more
Display Screen resolution: 1024 by 768 pixels or more
Color quality: Medium (16 bit) or more
Image Format File Extension
RAW images shot on an EOS-1Ds or EOS-1D camera .TIF
RAW images shot on an EOS-1D Mark II camera .CR2
DCF 1.0 or 2.0, Exif 2.2 or 2.21-compatible JPEG* or
JFIF images .JPG, .JPEG
Exif-compatible TIFF images* .TIF, .TIFF
Supported Image Formats

1
Installing the Software
This chapter describes how to install Digital Photo Professional in your
computer.
Installing Digital Photo Professional .......................................................1-2
When You Have Problems with Installation............................................1-6
If the Installer Panel Does Not Appear ...................................................1-6

1-2
Installing Digital Photo Professional
Check that your computer complies with the system requirements for the software (8), and
then install Digital Photo Professional as you follow the installation procedure.
1Start up your computer.
Exit any programs that are running.
2Insert the CD (Digital Photo Professional Disk).
The Installer panel appears.
If the Installer panel does not appear, see (1-6).
3Click the [English] button.
The display switches to the next
step.

Installing Digital Photo Professional
1-3
1
Installing the Software
4Click the [Install] button.

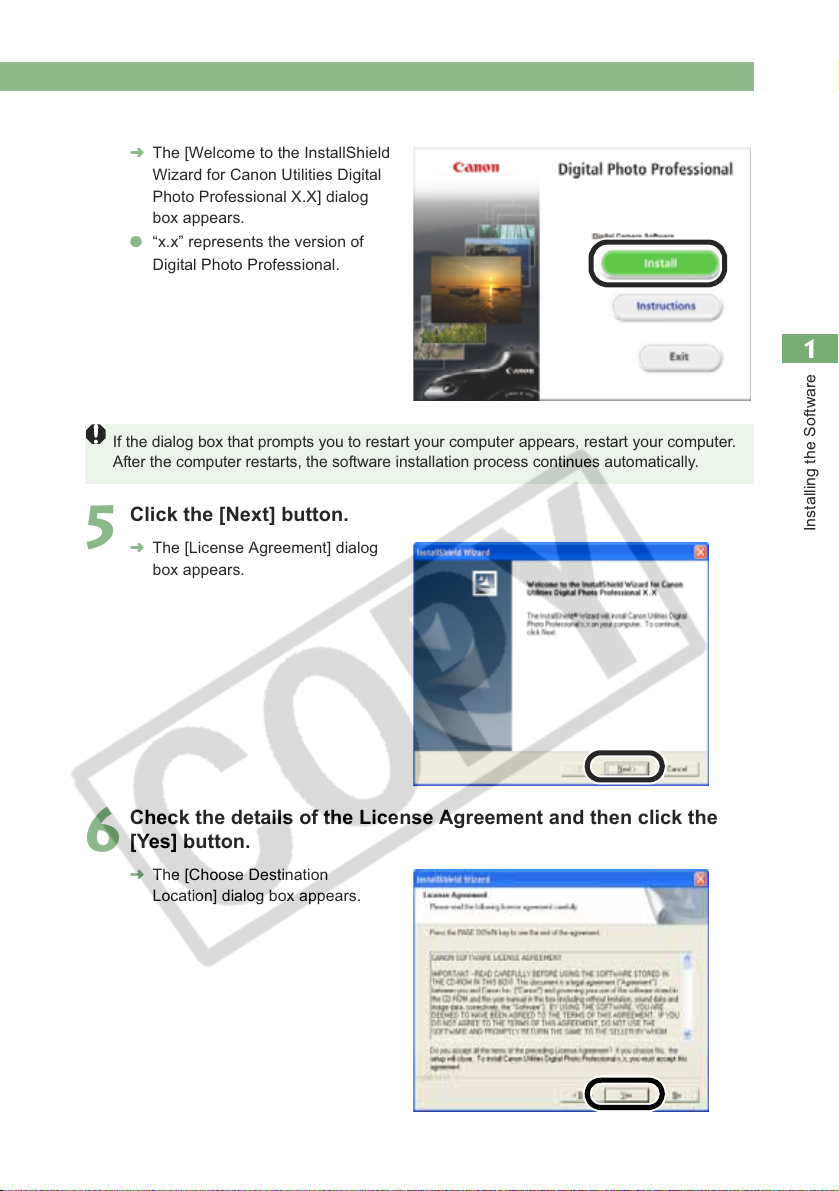

The [Welcome to the InstallShield
Wizard for Canon Utilities Digital
Photo Professional X.X] dialog
box appears.
“x.x” represents the version of
Digital Photo Professional.
If the dialog box that prompts you to restart your computer appears, restart your computer.
After the computer restarts, the software installation process continues automatically.
5Click the [Next] button.
The [License Agreement] dialog
box appears.
6Check the details of the License Agreement and then click the
[Yes] button.
The [Choose Destination
Location] dialog box appears.

Installing Digital Photo Professional
1-4
7Check the folder in which the software will be installed and then
click the [Next] button.
The installation begins. When the
installation finishes, the
[InstallShield Wizard Complete]
dialog box appears.
8Click the [Finish] button.
The Installer panel appears.
9Click the [Exit] button.
The Installer panel closes to end
the installation.

Installing Digital Photo Professional
1-5
1
Installing the Software
10

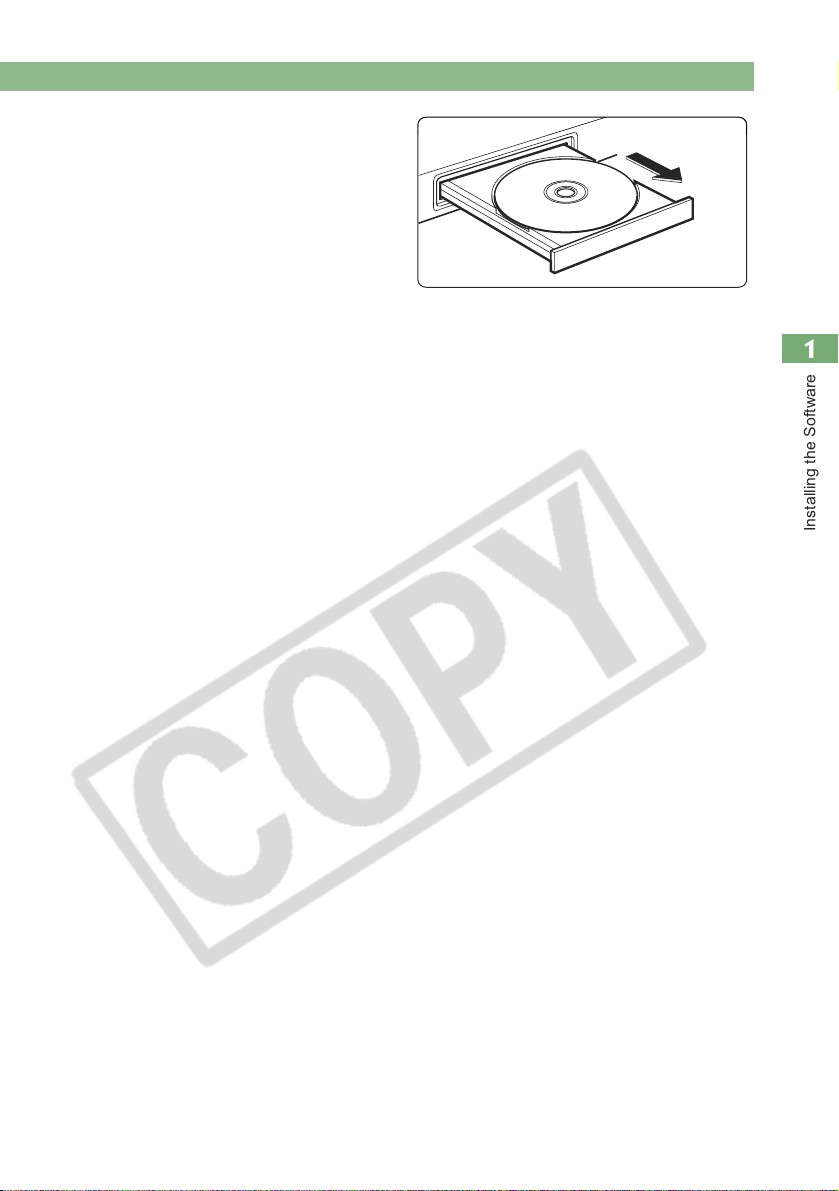

Remove the CD.

Installing Digital Photo Professional
1-6
If you have problems with installation, check the items listed below.
If you are using Windows XP Professional or Windows 2000, are you using
the computer under a user setting other than [Computer administrator] or
[Administrator]?
You cannot install software if a user setting other than [Computer administrator] or
[Administrator] is selected. Select the [Computer administrator] user setting in Windows
XP Professional or the [Administrator] user setting in Windows 2000. For detailed
information on selecting the user setting, refer to the manuals supplied with your
computer.
Is there sufficient hard disk space?
20 MB or more of hard disk space is required at installation, and 256 MB or more is
required during operation.
Are you using any operation system other than Windows XP and Windows
2000?
Digital Photo Professional cannot be installed in Windows Me or Windows 98 SE.
Click the [Start] button 

 [My Computer]. (In Windows
2000, double-click [My Computer] on the desktop.) Then
right-click the CD-ROM drive containing the CD


 select
[Open] from the menu that appears


 double-click the
[English] folder


 the icon on the right.
When You Have Problems with Installation
If the Installer Panel Does Not Appear

2
Displaying Thumbnail Images
and Performing Basic Edits in
the Main Window
This chapter describes the functions of the main window, and how to display
images and perform basic edits on them.
Starting up Digital Photo Professional .. 2-2
Displaying Images........................... 2-5
Selecting Images ............................. 2-6
Selecting All Images ...................... 2-6
Selecting Images According to
Conditions...................................... 2-7
Registering Frequent Use Folders with
the Menu........................................ 2-7
Organizing Frequent Use Folders ... 2-8
Deleting Images............................... 2-9
Selecting the Image Display Mode .. 2-10
Selecting the Thumbnail Size ...... 2-10
Image with Information Display ... 2-10
Displaying the Edit Window ......... 2-11
Displaying the Edit Image Window.. 2-11
Displaying Image Information ...... 2-12
Sorting Images ............................ 2-12
Hiding the Tree View Area........... 2-13
Hiding the Toolbar ....................... 2-13
Editing Images............................... 2-14
Rotating Images .......................... 2-14
Click White Balance Function...... 2-15
Adjusting the Brightness.............. 2-16
Editing RAW Images ......................2-17
Adjusting the White Balance ........2-18
Adjusting the Brightness...............2-23
Specifying Color Space ................2-24
Using Edits (Recipe Data) .............2-25
Saving the Recipes ......................2-25
Loading and Pasting Recipes.......2-25
Copying Recipes and Applying to Other
Images..........................................2-26
Reverting Edited Images to Their
Original Condition..........................2-27
Saving Edited Images ....................2-28
Saving without Renaming.............2-28
Saving and Renaming ..................2-28
Converting and Saving RAW Images
while Renaming Them..................2-29
Converting and Saving Images in a Single
Operation (Batch-processing) .......... 2-31
Printing Images ..............................2-33
Printing with Easy-PhotoPrint.......2-33
Transferring Images to Photoshop.. 2-34
Displaying Images in EOS Capture .. 2-34
Specifying the Preferences ...........2-35

2-2
Starting up Digital Photo Professional
Main Window
Click the [Start] button 

select [All Programs] ([Programs] in
Windows 2000) 

[Canon Utilities] 

[Digital Photo Professional] 


[Digital Photo Professional].
Alternatively, you can start up Digital Photo Professional by double-clicking the
[Digital Photo Professional] icon on the desktop.
Toolbar
Menu bar
Displays the [File], [Edit], [View], [Bookmark], [Adjustment], [Tools], and [Help] menus.
Path display
Displays the path of the drive and folder that contain the currently
displayed image.
Image display area
Tree View Area (2-5, 2-7)
* The above window shows all the information at once. In actual use, only the
information needed is displayed.
To exit Digital Photo Professional, select [File] menu [Exit].
Displays the coordinates of the cursor position and the RGB values (8-bit conversion) of an image
while operating the click white balance (2-15, 2-22).
Displays the total
number of images.
Displays the number of the
currently selected images.
Displays whether or not recipe data
is attached to the selected image.

Starting up Digital Photo Professional
2-3
2
Displaying Thumbnail Images and Performing Basic Edits in the Main Window

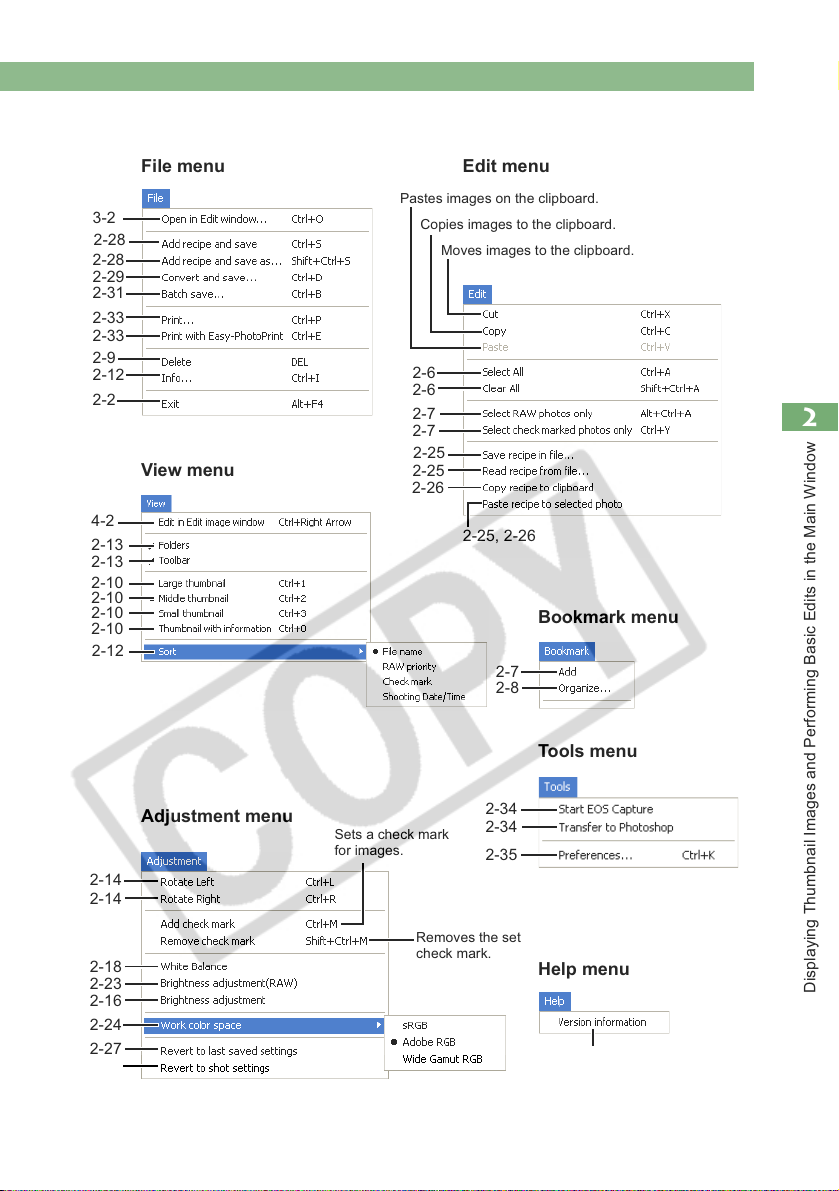

Menu Bar
2-28
2-25, 2-26
3-2
File menu Edit menu
Pastes images on the clipboard.
Copies images to the clipboard.
Moves images to the clipboard.
Bookmark menu
Tools menu
Help menu
View menu
Adjustment menu
2-28
2-29
2-31
2-33
2-9
2-12
2-2
4-2
2-13
2-13
2-10
2-10
2-10
2-10
2-14
2-14
2-18
2-23
2-16
2-24
2-27
2-27
2-6
2-25
2-7
2-8
2-34
Displays the version information of
Digital Photo Professional.
2-25
2-26
2-35
2-6
2-7
2-7
2-12
Sets a check mark
for images.
Removes the set
check mark.
2-34
2-33

Starting up Digital Photo Professional
2-4

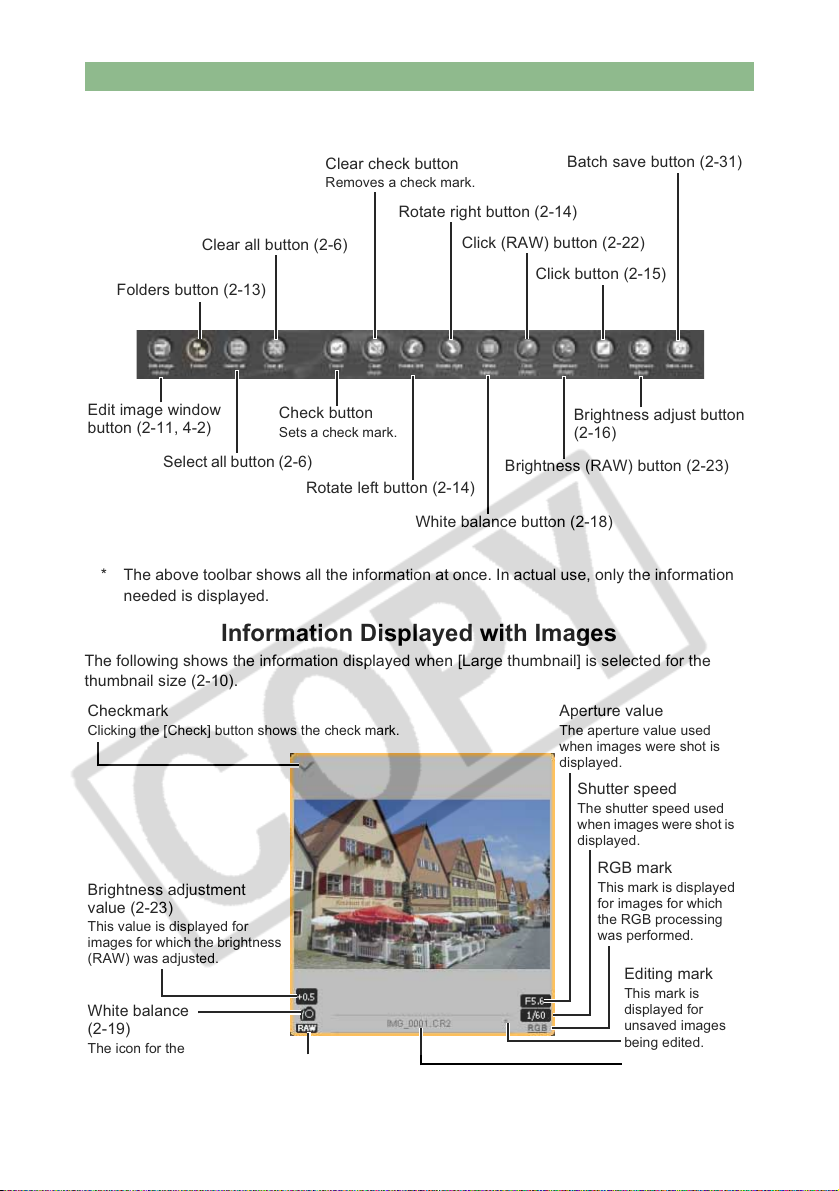

Toolbar
Information Displayed with Images
The following shows the information displayed when [Large thumbnail] is selected for the
thumbnail size (2-10).
* The above toolbar shows all the information at once. In actual use, only the information
needed is displayed.
Edit image window
button (2-11, 4-2)
Folders button (2-13)
Clear all button (2-6)
Clear check button
Removes a check mark.
Rotate right button (2-14)
Click (RAW) button (2-22)
Rotate left button (2-14)
Check button
Sets a check mark.
Select all button (2-6)
Brightness adjust button
(2-16)
Brightness (RAW) button (2-23)
White balance button (2-18)
Click button (2-15)
Batch save button (2-31)
Checkmark
Clicking the [Check] button shows the check mark.
Brightness adjustment
value (2-23)
This value is displayed for
images for which the brightness
(RAW) was adjusted.
White balance
(2-19)
The icon for the
specified white
balance is displayed
with RAW images only.
Recording format
The [RAW] symbol is displayed for RAW images.
(When [Small thumbnail] is selected, the [R] symbol is
displayed). No symbol is displayed for JPEG and TIFF images.
File name
RGB mark
This mark is displayed
for images for which
the RGB processing
was performed.
Aperture value
The aperture value used
when images were shot is
displayed.
Shutter speed
The shutter speed used
when images were shot is
displayed.
Editing mark
This mark is
displayed for
unsaved images
being edited.

2-5
2
Displaying Thumbnail Images and Performing Basic Edits in the Main Window
Displaying Images
You can display images saved in your computer on the main window.
Click the folder in which images are saved.
You cannot display images saved on a memory card in the camera. You must save images
to your computer using other software supplied with the camera or a third-party card
reader.
See “Supported Image Formats” (8) for image formats that you can display.
Images that cannot be displayed appear as [].
Images that were shot with the camera held vertically with [Auto rotate] setting to <ON>
are automatically displayed vertically.
You can display images saved on a memory card using a third-party card reader.

2-6
Selecting Images

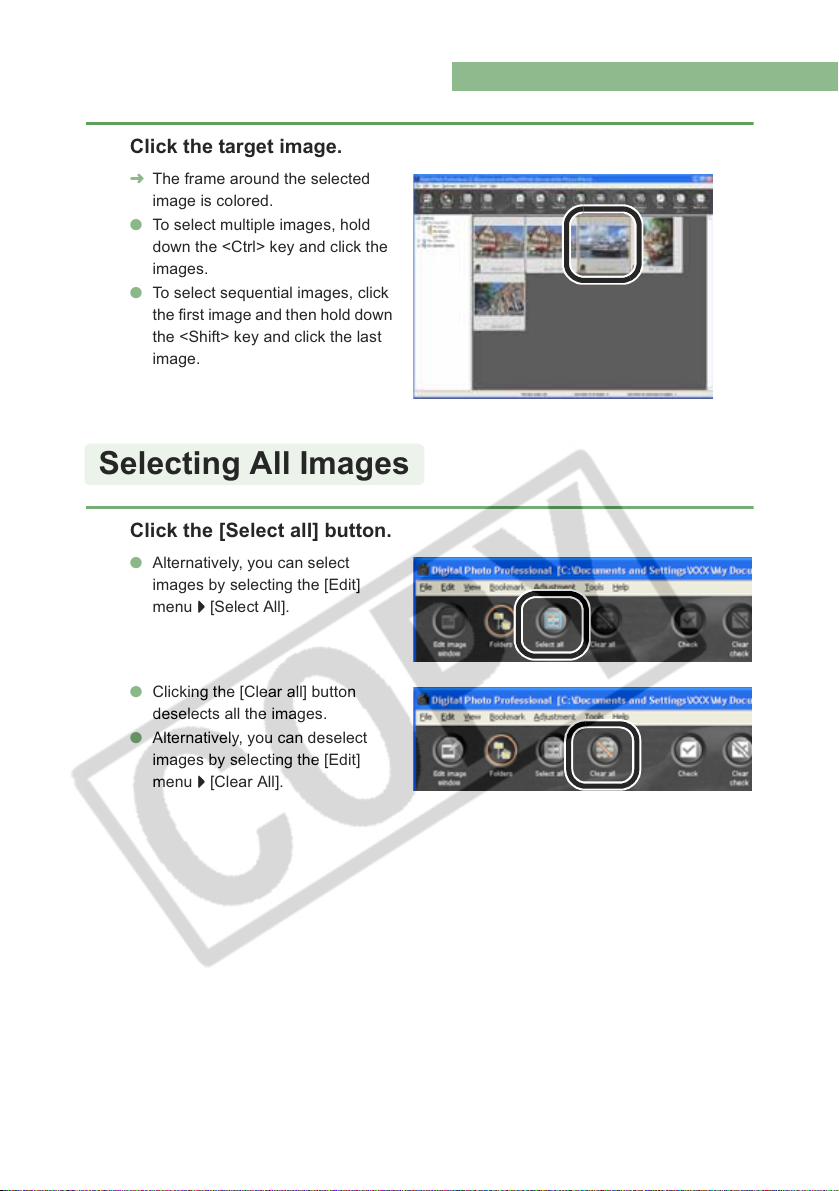

Click the target image.
The frame around the selected
image is colored.
To select multiple images, hold
down the <Ctrl> key and click the
images.
To select sequential images, click
the first image and then hold down
the <Shift> key and click the last
image.
Click the [Select all] button.
Alternatively, you can select
images by selecting the [Edit]
menu 

[Select All].
Clicking the [Clear all] button
deselects all the images.
Alternatively, you can deselect
images by selecting the [Edit]
menu 

[Clear All].
Selecting All Images
