CanyCom CMX222 User manual

Read this manual completely before operating or maintaining this machine.
Failure to follow safety precautions could result in serious injury or death.
Keep this manual for future reference by you and by all those who operate
and maintain this machine.
CHIKUSUI CANYCOM, INC.
90-1 Fukumasu, Yoshii-machi,
Ukiha-shi, Fukuoka, Japan 839-1396
Tel.[phone] Fax.[phone]
Original Instructions
(in English)
Ride-on Brushcutter
CMX222/CM223
Operator's Manual
5323 5321 004

http://www.canycom.co.jp/
■Sales Headquarters TEL [phone] FAX [phone]
■
Foreign Trade Center TEL [phone] FAX [phone]
All rights reserved. Unauthorized use or reproduction of this material is prohibited.
Authorized Dealer
CHIKUSUI CANYCOM, INC.

Notice to Users and Maintenance Personnel
• This machine can be very dangerous if the safety precautions in this manual
and on the labels attached to this machine are not followed. Read and
understand this manual and safety labels on machine thoroughly before using
this machine. Always follow the instructions and safety precautions, or serious
injury or death could result.
• This machine should only be used for its intended purpose: cutting grass and
bushes. Any other use could be dangerous.
• This machine may not be operated on public road or what is considered to
be public road. It is the sole responsibility of the operator to consult the local
regulations.
• Do not modify this machine, or do not operate this machine with the safety
covers removed or open. A serious accident could result.
Thank you for purchasing this machine.
This manual provides information needed for safe and effective use of this machine to those
who operate or maintain machine. Make sure to read and understand the manual thoroughly
before operating this product. Also make sure to read the separate operator's manual for
engine.
• Store this manual in a safe, accessible place for easy reference.

Warning Term Denition
Indicates an imminently hazardous situation which will result
in death or serious injury if the user does not follow the
procedures or the instructions.
Indicates a potentially hazardous situation which could result
in death or serious injury if the user does not follow the
procedures or the instructions.
Indicates a potentially hazardous situation which could result
in minor to moderate injury or damage to the machine if the
user does not follow the procedures or the instructions.
Indicates important information which needs particular
attention.
In this manual, the following four warning terms are used to signal the four levels of hazard
(or seriousness of possible accidents). Read and understand what they mean and always
follow the instructions in this manual.
Warning Terms Used in this Manual
NOTE
Notice to Owner
• Be sure that everyone who uses this machine, including those who rent or
lease this machine, receives a copy of this Operator's Manual and understands
the importance of reading and following the information in this manual.

Warranty and After-Sales Service
CHIKUSUI CANYCOM, INC. guarantees this product, based on the terms of warranty. A
copy of this warranty is reproduced in the back of this manual.
Warranty
Consult your local CANYCOM dealer or our company’s sales department regarding service
orders or any questions or problems that may arise when using this machine. Please make
sure to have the product name, serial number, and the make and type of engine handy at
the time of contact. The model and serial number can be found on the model label as shown
below, and the make and type of the engine can be found in Chapter 3 "Specications" of
this manual (Page15).
After-Sales Service
Location of Model Label Model Label
The replacement or repair parts for this product shall remain available for seven years after
the production of this type of machine is discontinued.
Availability of Spare Parts
5321M-0004-010E
Location of Model Label
5323M-0004-020E

Contents
1. Safety 1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2. Controls and Components 11
Name and Function of Controls . . . . . . . . . . . . . . . . . . . 11
3. Specications 15
Product Specications . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Contents of Tool Bag . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4. Operation 17
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Pre-start up Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Checking and Filling Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Adjusting Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adjusting Seating Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adjusting Seating Height (CMX222 Only). . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adjusting Seat Suspension (CM223 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Driving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Shifting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Shifting Between 2WD and AWD (CMX 222 Only) . . . . . . . . . . . . . . . . . . . . 29
Locking Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Parking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Inspecting Cutting Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Adjusting Cutting Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using Cutting Height Memory Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cutting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
5. Maintenance 39
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
List of Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . 43
Greasing Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Greasing Points (CMX222). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Greasing Points (CM223) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
List of Consumables and Spares . . . . . . . . . . . . . . . . . . 46

Removing and Installing Body Panels . . . . . . . . . . . . . . 48
Front Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Side Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Engine Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Upper Rear Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Lower Rear Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Seat Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Cutting Blade Shield. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Oil Filter Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Air Cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Spark Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Drive Train. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Transmission Oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Front Differential Oil (CMX222 Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Front Knuckle Oil (CMX222 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Center Gearbox Oil (CMX222 Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
HST (Hydrostatic Transmission) Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Suction Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Drive Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Cutting System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Cutting Blade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Blade Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Cutting Rotary Drive Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Cutting Rotary Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Light Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Warranty
Warranty Certicate is attached at the end of this manual.
* Have the warranty certicate signed after you have received and fully understood
the instructions for handling this machine and received the receipt.
Appendix
• Operator's Manual for the Engine
* Be sure to read and understand it together with this manual .
After Use Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Cutting System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
After Normal Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
After Cold Weather Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
6. Troubleshooting 78
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
7. Transporting 83
Hauling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Loading and Unloading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Hoisting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Safety 1
-1-
Safety Labels

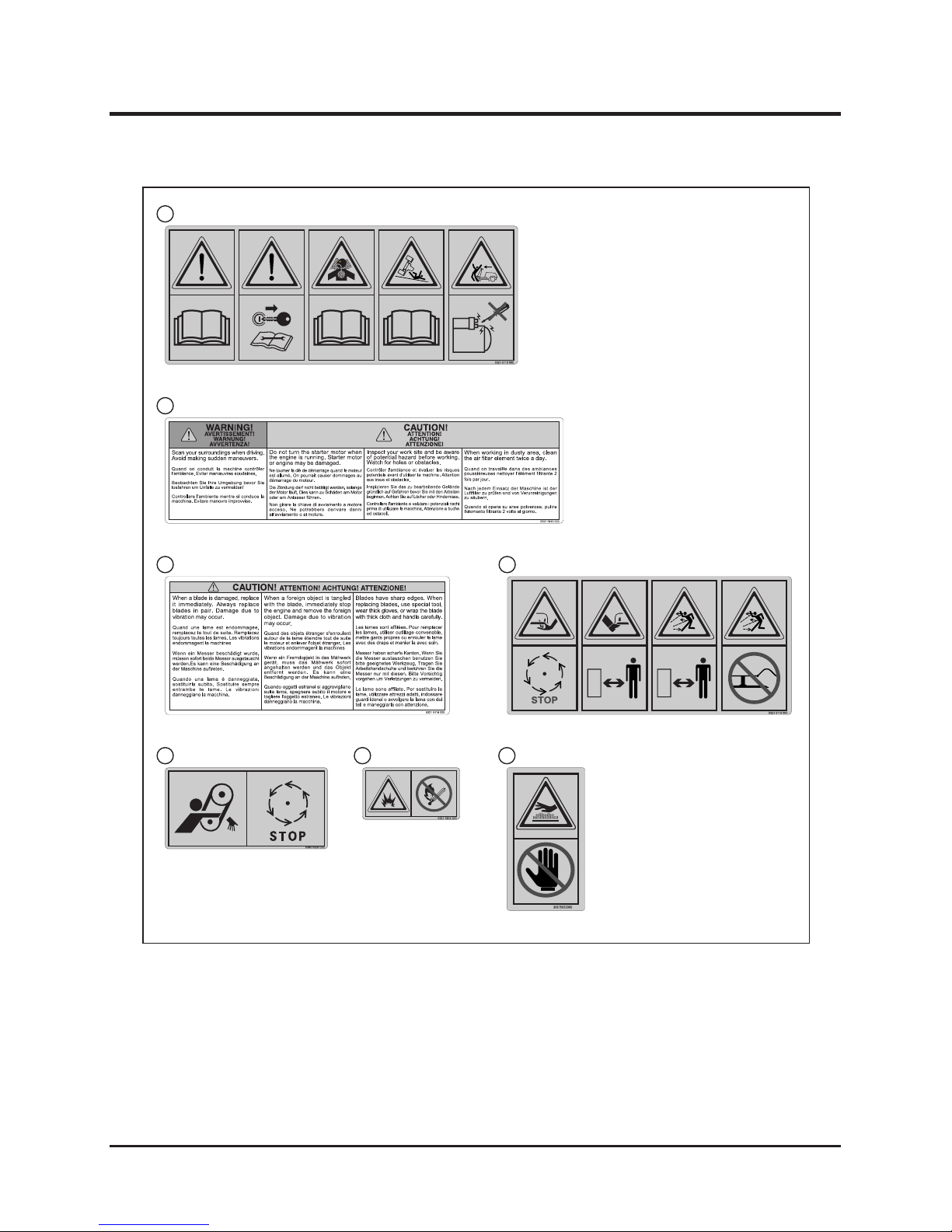

The safety labels shown on the next page are attached to the machine. See the illustration
below for the location and the illustration on the next page for the content of each label on
the machine.
• Locate all the warning labels attached to this machine. Read and follow the
instructions and precautions in them. Failure to do so could result in serious injury
or death to the operator or bystanders.
• Keep the labels clean and legible. Do not use solvents or gasoline to clean the
labels.
• Replace these labels immediately if they have been removed, have fallen off or
become illegible. Use the part number, on the label or shown in this manual, to
order a replacement label from your CANYCOM representative.
5
2
4
4
3
7
7
6
1
5323M-0101-011E

Safety
-2-
1
5321 5113 0001
5321 5115 0002
5321M-0101-020E
5321 5118 0003
5305 5326 0005
5321 5116 0004
5321 5114 0006 3667 5063 0007

Safety 1
-3-
Safety Mechanisms
This product is equipped with the following safety mechanisms.
Engine can be started only when parking brake is in [ (engaged)] position and cutting
rotary clutch in [OFF] position. This is to prevent unintended movement of machine or cutting
blade when starting engine.
Start Interlock Mechanism
Engine stops if operator is not seated while cutting blade is rotating. This is to reduce the
possibility of accident related to moving blade when machine is turned over.
Automatic Blade Stopping Mechanism
Automatic Vehicle Stopping Mechanism
When machine is operated by drive lever and seat is tilted backwards, drive lever returns to
[ (neutral)] position and machine stops. This is to reduce the possibility where operator is
caught by branches when he or she is cutting under the tree. Drive pedal is not linked to this
mechanism because it automatically returns to neutral when released.

Safety
-4-
1
This section contains safety precautions to follow when operating and maintaining the
machine. Read and understand the precautions in this section as well as throughout this
manual and follow them when operating or maintaining the machine. Failure to follow safety
precautions could result in property damage, serious injury or death to the operator or
bystanders.
Safety Precautions
All operators and mechanics should receive practical instructions from their employer or
renter. Such instructions should cover the following issues:
• It is essential to familiarize yourself with the controls, safety labels and the proper
use of the machine.
• Never allow people unfamiliar with these instructions to operate or service the
machine. Do not let anyone under 18 years of age to operate this machine. Local
regulations may restrict the minimum age for operating the machine. Consult your
local authority.
• The operator is responsible for the accidents or hazards caused to other people or
their property.
• This machine has a riding capacity for one person only. Do not carry passengers
other than the operator.
• Observe the weight limit of this machine: 120kg.
• Always keep in mind that care and concentration is required when working with
ride-on machines.
• Loss of control on a slope cannot be regained by the application of the brake. The
main reasons for loss of control are:
→ insufcient grip of tires.
→ excessive speed.
→ misjudging of the ground conditions, especially slopes.
Training

Safety 1
-5-
• Fuel is highly ammable. See Checking and Filling Fuel, page 17, for important
safety information on handling fuel.
• Always wear protective footwear, long trousers, hardhat, safety glasses and ear
protection when operating or servicing the machine. Proper clothing will minimize
the chance of injury. Do not operate the equipment if you have long hair, loose
clothing, or jewelry; all of which may get tangled in moving parts. Do not operate
the machine barefoot or with open sandals.
• Prepare beforehand the working rules and procedures such as signaling and trac
control for the work place. Following such rules will reduce the risk of accidents.
• Never handle fuel or grease, service the engine, or recharge the battery in the
presence of re or spark.
• Perform the daily pre-startup inspection (see Preparation, pages 17) before starting
the machine. Repair or replace damaged parts before starting the machine.
Preparation

Safety
-6-
1
Operation
• Do not operate the engine in a conned space where dangerous carbon monoxide
fumes can accumulate.
• Do not touch the engine, mufer or exhaust pipe while the engine is running or
soon after it has stopped. These areas will become very hot and can cause burns.
• Do not operate the machine under the inuence of alcohol or drugs. Do not operate
the machine when you are tired, ill, or not feeling well.
• Always check for obstacles before operating on new terrain. This includes overhead
obstacles such as the branches of a tree.
• Before starting the engine and moving the machine, scan around your surroundings
and make sure all persons and other vehicles are a safe distance away from the
machine.
• On a slippery surface, travel slowly and exercise caution to reduce the chance of
skidding or sliding out of control. Never operate on ice.
• Always make certain that there is no obstacle or a person behind the machine when
backing up. After conrming that it is safe to back up, move slowly and avoid sharp
turns.
• To reduce the risk of tip over, pay special attention when encountering an obstacle
or a slope, or when braking on a slope or during a turn. See Driving on a Slope on
page 8.
• Never attempt to drive over a large obstacle such as rock or fallen tree.
This machine is intended for cutting grass and bushes. Any other use may pose hazard or
cause damage to the machine.
The stability of the machine is affected by the speed, rate of steering, terrain and the
operator's weight. Always pay close attention to these factors or a loss of control or tip over
could occur, resulting in property damage, serious injury or death.
General Driving

Safety 1
-7-
• Always travel slowly and use extra caution when operating on unfamiliar terrain. Be
alert when traveling on changing terrain.
• Never operate on terrain that you are not comfortable with. Avoid terrain that is so
rough, slippery or loose that you feel like you could tip over.
• Do not operate the machine near the edge of a cliff, an overhang or a slide area. Pay
special attention after heavy rain or earthquake.
• Do not make sudden maneuvers. A sudden start, stop, or turn can make the
machine lose control and could cause a tip over. Be especially cautious when
traveling on soft or wet ground.
• Drive at a safe speed, taking into account the surface gradient, surface conditions
and load.

Safety
-8-
1
Driving on a Slope
• Always follow proper procedures for driving on a slope as described in this manual.
• Driving on a slope in a wrong manner can cause a loss of control or a vehicle tip
over. Check the terrain carefully before attempting to drive on a slope.
• Never drive on a slope that you are not comfortable with. Avoid a slope that is so
rough, slippery, or loose that you feel like you could tip over.
• When driving up a slope, proceed at a steady rate of speed and throttle position.
• Never move the throttle lever, the drive lever, the drive pedal or the steering wheel
suddenly.
• If the engine stalls or loses traction during a climb and cannot make it to the top
of the slope, do not try to turn the machine around. Carefully back down slowly,
straight down the slope.
• Drive straight up or down slopes. Avoid turning on a slope.
• When going over the top of a slope, go slow; an obstacle, a sharp drop, or another
vehicle or person could be on the other side of the crest.
• Avoid driving the machine across a slope.
• Before driving down a slope, stop and shift auxiliary transmission to [LOW] position.
Drive slowly. Use the engine speed to help keep the machine speed low.
• Never use on a slope steeper than 25 degrees for CMX222 or 15 degrees for
CM223.
• Driving on a slope can be dangerous. It can result in a tip over and cause
serious injury or death. Take the following precautions.

Safety 1
-9-
Parking
• Park the machine on a at, level and stable surface. Never park on a slope steeper
than 10 degrees. Avoid parking on a slope less than 10 degrees. If parking on a
slope less than 10 degrees is absolutely unavoidable, apply the parking brake and
block the wheels at the lower end of the machine.
→ Park the machine facing uphill
→ Do not park sideways on a slope.
• Never park on an instable surface. Do not park near the edge of a cliff.
• Observe all the previous precautions for driving, driving on a slope and cutting.
• Whenever you park the machine, apply the parking brake and stop the engine.
Remove the key whenever you leave the machine unattended to prevent
unauthorized use or accidental starting.
• Gasoline is extremely ammable and can be explosive. When parking the machine
indoors, make certain that the building is well ventilated and that the machine is not
close to any source of ame or spark, including appliances with pilot lights.
Cutting
When conducting cutting operation, take the following precautions.
• Always follow the proper procedures for cutting as described in this manual.
• Shutt off the work site. Post signs to inform of the cutting operation. Close off the
site with rope if necessary to keep people, especially children, off the work site.
• Pay attention to the surrounding area. Rotating cutting blade throws stones, rocks
and debris. This may cause property damage, injury, or death.
• Drive forward when cutting. This best prevents the cutting blades from throwing
stones, rocks, or debris.
• Pay attention to obstacles. This includes overhead obstacles such as the branches
of a tree.

Safety
-10-
1
Servicing
• Do not service the machine when the engine is running. If it is absolutely necessary
to run the engine while servicing, beware of the moving parts.
• Do not operate the engine in a conned space where dangerous carbon monoxide
fumes can accumulate.
• Make sure all hydraulic line connectors are tight and all hydraulic hoses and lines
are in good condition and leak-free.
• Keep your body and hands away from pinhole leaks or nozzles that eject hydraulic
uid under high pressure. Use paper or cardboard, not your hands, to search
for leaks. Hydraulic uid escaping under pressure can have sufcient force to
penetrate the skin and cause serious injury.
• Check all fuel lines on a regular basis for tightness and wear. Tighten or repair them
as needed.
• If the engine must be running to perform a service, keep hands, feet, clothing and
any part of the body away from any moving part, especially the cooling fan and the
belts at the back of the engine.
• Do not touch the engine, mufer, or exhaust pipe while the engine is running or
soon after it has stopped. These areas will be very hot and can cause burns.
• The engine must be shut off before checking or adding oil.

-11-
Controls and Components 2
Name and Function of Controls
Forward
Fuel Filler Cap
Steering Wheel
Cutting Blade Shield, Left
Cutting Blade Shield, Right
Tail Lamp
Rear Tire
Engine Cover
Tool Box
Front Cover
Front Tire
Head Lamps
Side Cover, Left
Cup Holder
Assist Grip
Side Cover, Right
Upper Rear Cover
Lower Rear Cover
5321M-0201-010E
Seat
Bumper
