Capture CA-SC-20200B User manual

2D BARCODE SCANNER
CA-SC-20200B
Quick Start Guide
All manuals and user guides at all-guides.com
all-guides.com

1
Getting Familiar with Your Device
Thank you for choosing Capture Bar Code Scanner. All Devices deliver
world-class performance for a broad range of applications to unleash your
productivity with ease.
This document provides an easy reference for installation and operation
purpose. The complete documentation is available at
eu.eetgroup.com/i/ca-sc-20200b-capture-coreded-2d-scanner
CA-SC-20200B
Power Indicator
Status Indicator
Trigger Switch
Scan Window
Beeper
Cable Release Hole
All manuals and user guides at all-guides.com

2

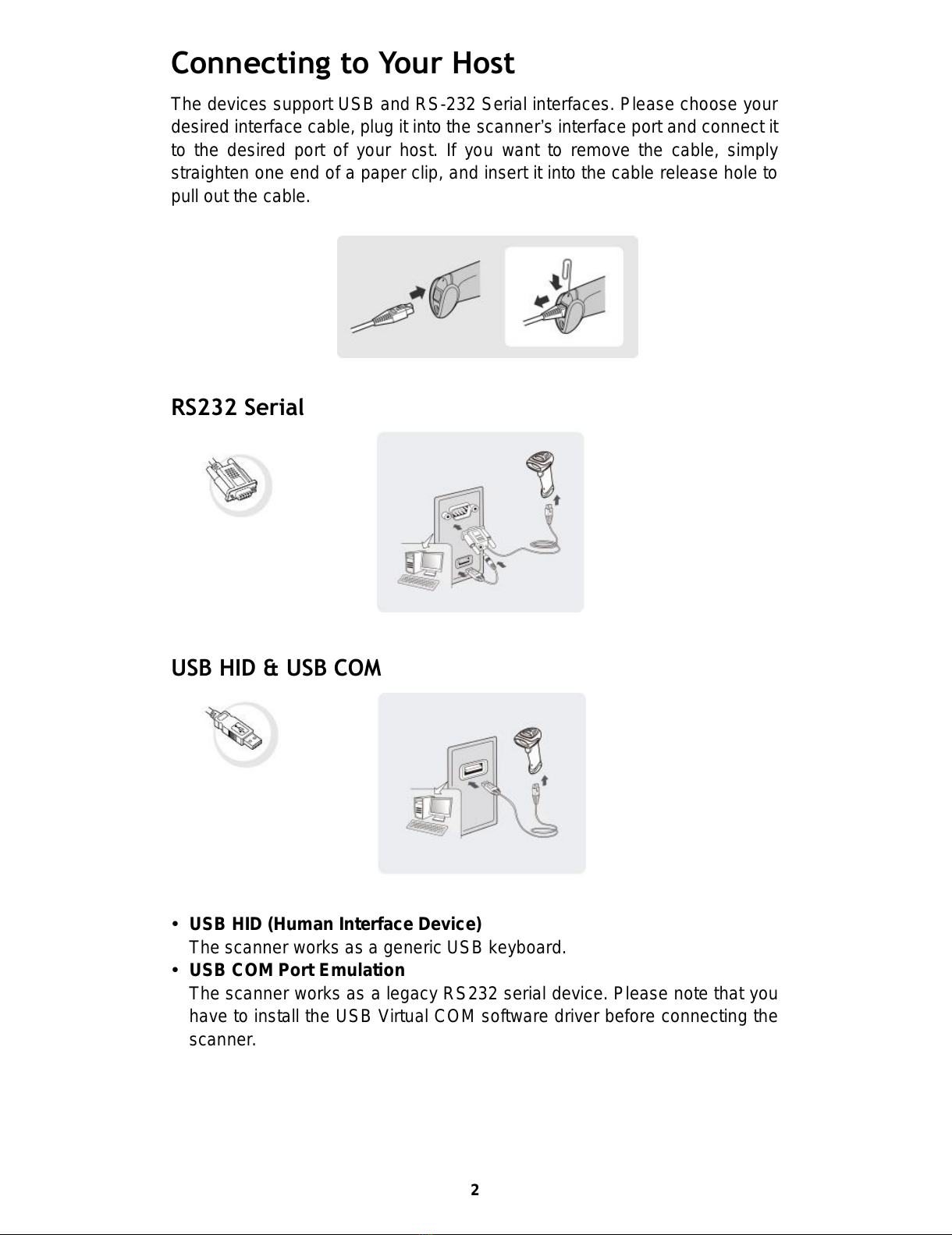

Connecting to Your Host
The devices support USB and RS-232 Serial interfaces. Please choose your
desired interface cable, plug it into the scanner’s interface port and connect it
to the desired port of your host. If you want to remove the cable, simply
straighten one end of a paper clip, and insert it into the cable release hole to
pull out the cable.
RS232 Serial
USB HID & USB COM
USB HID (Human Interface Device)
The scanner works as a generic USB keyboard.
USB COM Port Emulation
The scanner works as a legacy RS232 serial device. Please note that you
have to install the USB Virtual COM software driver before connecting the
scanner.
All manuals and user guides at all-guides.com

3

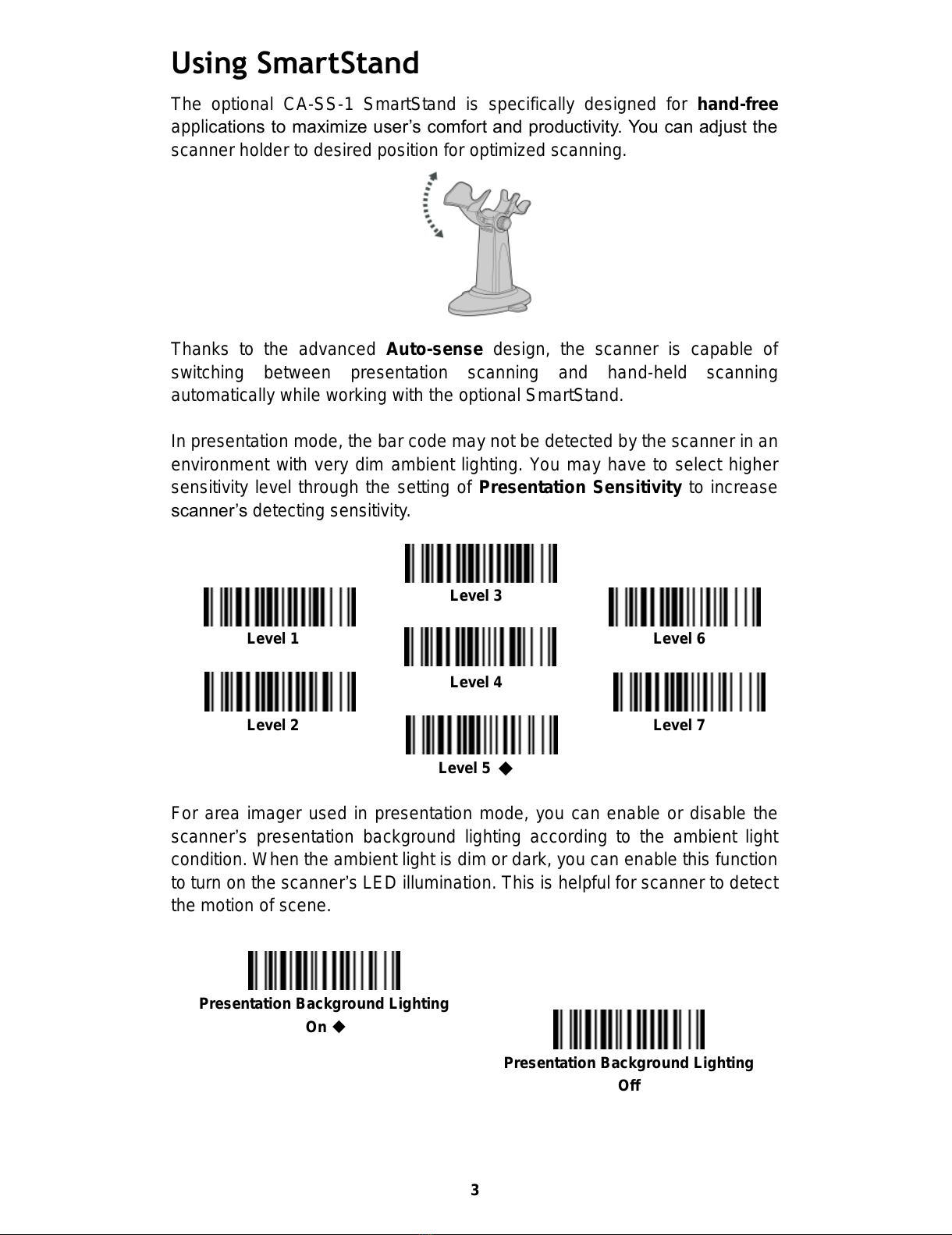

Using SmartStand
The optional CA-SS-1 SmartStand is specifically designed for hand-free
applications to maximize user’s comfort and productivity. You can adjust the
scanner holder to desired position for optimized scanning.
Thanks to the advanced Auto-sense design, the scanner is capable of
switching between presentation scanning and hand-held scanning
automatically while working with the optional SmartStand.
In presentation mode, the bar code may not be detected by the scanner in an
environment with very dim ambient lighting. You may have to select higher
sensitivity level through the setting of Presentation Sensitivity to increase
scanner’s detecting sensitivity.
Level 3
Level 1
Level 6
Level 4
Level 2
Level 7
Level 5 ◆
For area imager used in presentation mode, you can enable or disable the
scanner’s presentation background lighting according to the ambient light
condition. When the ambient light is dim or dark, you can enable this function
to turn on the scanner’s LED illumination. This is helpful for scanner to detect
the motion of scene.
Presentation Background Lighting
On ◆
Presentation Background Lighting
Off
All manuals and user guides at all-guides.com

4
Operation Modes area imager
Capture Area Imager supports various operation modes, including trigger,
presentation, alternative, level, force, toggle, diagnostic, low power and
multiple read modes. The details of each operation mode are listed below for
reference.
Trigger Mode
When trigger mode is selected, the scanner goes into standby state after
scanning the bar code. You must press the trigger switch to turn on the
scanner’s light source before scanning the bar code.
Presentation Mode
When presentation mode is selected, the scanner is preset to turn on the
background lighting to detect the bar codes. Once the scanner detects an
image similar to a bar code, it will try to decode the bar code immediately.
All manuals and user guides at all-guides.com

5
Alternative Mode
When alternative mode is selected, the scanner keeps the light source on till
the preset “light source on time”is up. After turning off the light source, you
must press the trigger switch to turn on the light source again. After each
good read, the timer counter of light source on time is reset. You do not have
to press the trigger switch frequently. This is very useful for multiple scanning.
Level Mode
When level mode is selected, the scanner continues to keep the light source
on till a bar code is decoded, or the preset “light source on time”is up.
When a bar code is decoded successfully, the scanner turns off the light
source immediately. After the scanner turns off the light source, you have to
press the trigger switch to turn on the light source again. If there is no
scanning operation performed during the preset “light source on time”, the
scanner will turn off the light source after the preset “light source on time”is
up.
All manuals and user guides at all-guides.com
all-guides.com

6
Force Mode
When force mode is selected, the light source of the scanner is forced on for
a continuing operation without having to press the trigger switch. This mode
is convenient for high speed scanning.
Toggle Mode
When toggle mode is selected, you must press the trigger switch to turn on
the scanner’s light source to start scanning. The scanner keeps the light
source on until you press the trigger switch again. This mode is very similar to
alternative mode but without the preset light source on time concern.
All manuals and user guides at all-guides.com

7

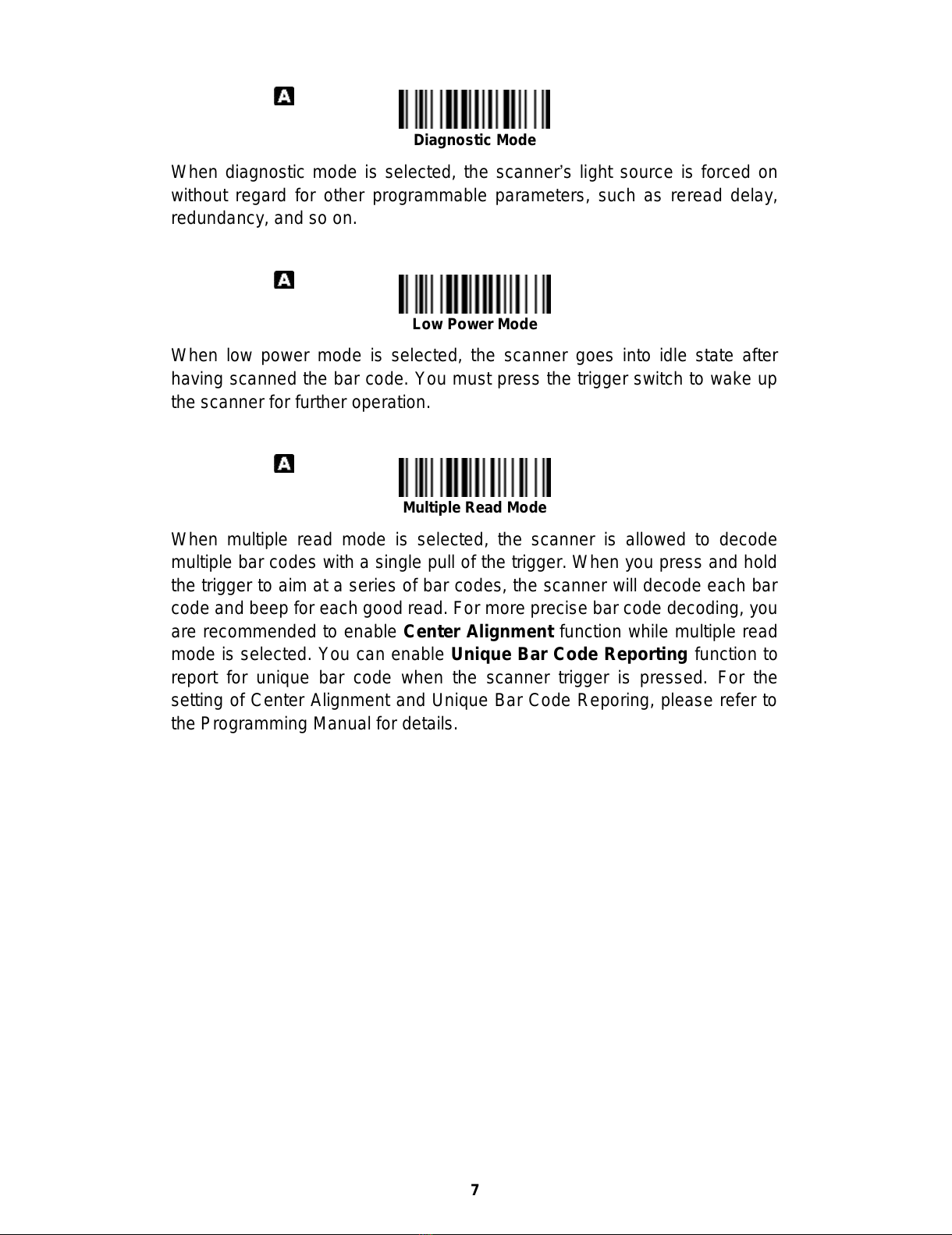

Diagnostic Mode
When diagnostic mode is selected, the scanner’s light source is forced on
without regard for other programmable parameters, such as reread delay,
redundancy, and so on.
Low Power Mode
When low power mode is selected, the scanner goes into idle state after
having scanned the bar code. You must press the trigger switch to wake up
the scanner for further operation.
Multiple Read Mode
When multiple read mode is selected, the scanner is allowed to decode
multiple bar codes with a single pull of the trigger. When you press and hold
the trigger to aim at a series of bar codes, the scanner will decode each bar
code and beep for each good read. For more precise bar code decoding, you
are recommended to enable Center Alignment function while multiple read
mode is selected. You can enable Unique Bar Code Reporting function to
report for unique bar code when the scanner trigger is pressed. For the
setting of Center Alignment and Unique Bar Code Reporing, please refer to
the Programming Manual for details.
All manuals and user guides at all-guides.com

8
Keyboard Interface Quick Set
- Record Suffix -
None
RETURN ◆
TAB
SPACE
ENTER
- Keyboard Layout -
USA ◆
France
Germany
United Kingdom-UK
Czech Republic
Spain (Spanish)
Denmark
Nertherlands
Italy
Sweden/Finland
Norway
All manuals and user guides at all-guides.com

9

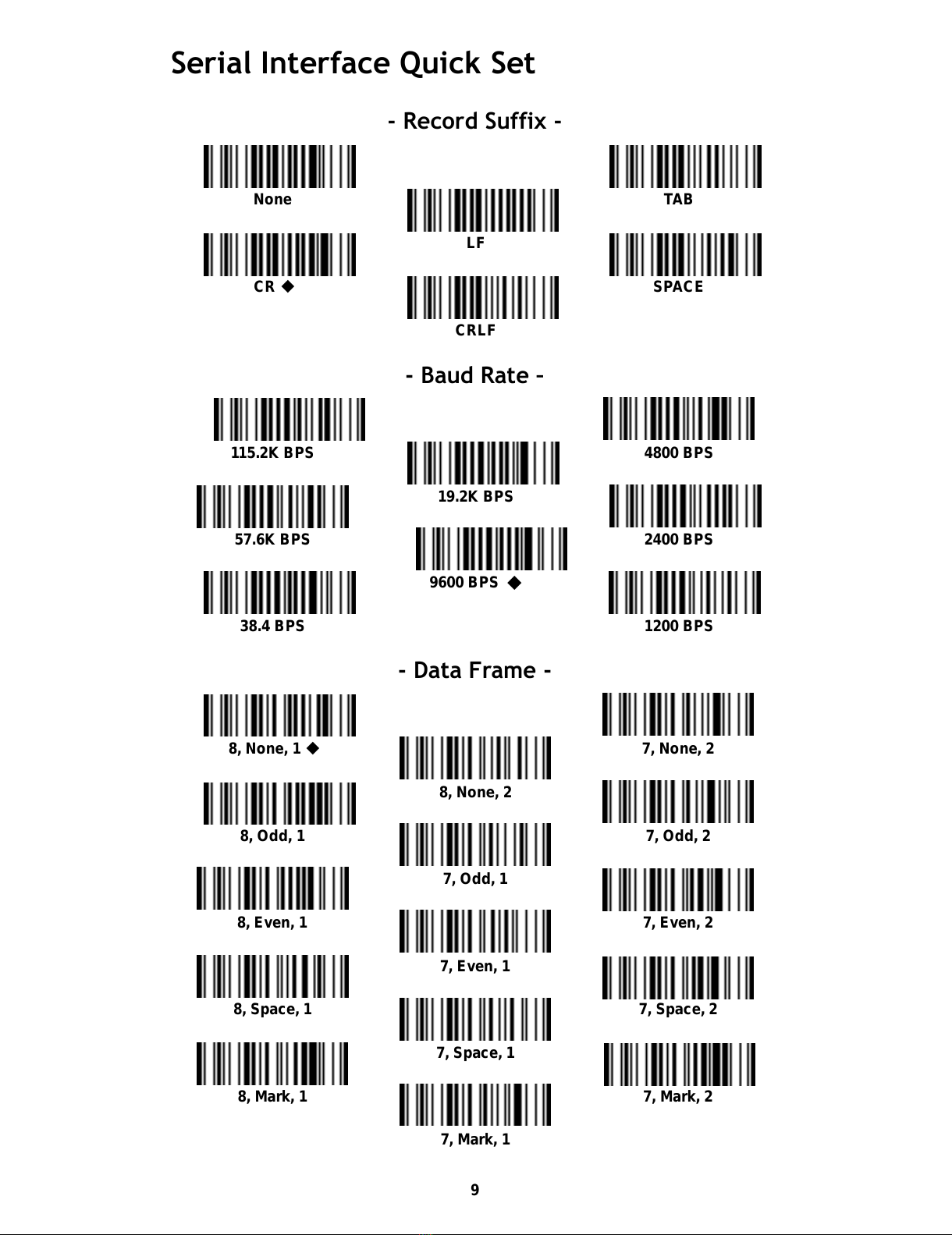

Serial Interface Quick Set
- Record Suffix -
None
TAB
LF
CR ◆
SPACE
CRLF
- Baud Rate –
115.2K BPS
4800 BPS
19.2K BPS
57.6K BPS
2400 BPS
9600 BPS ◆
38.4 BPS
1200 BPS
- Data Frame -
8, None, 1 ◆
7, None, 2
8, None, 2
8, Odd, 1
7, Odd, 2
7, Odd, 1
8, Even, 1
7, Even, 2
7, Even, 1
8, Space, 1
7, Space, 2
7, Space, 1
8, Mark, 1
7, Mark, 2
7, Mark, 1
All manuals and user guides at all-guides.com

10
System Commands
System Information
Master Default
PowerTool Host Link
User Default
Factory Default
Save User Default
Host Interface Quick Set
RS232 Serial
USB HID Turbo Mode
USB HID Standard Mode ◆
USB Com Port Emulation
All manuals and user guides at all-guides.com
all-guides.com

11

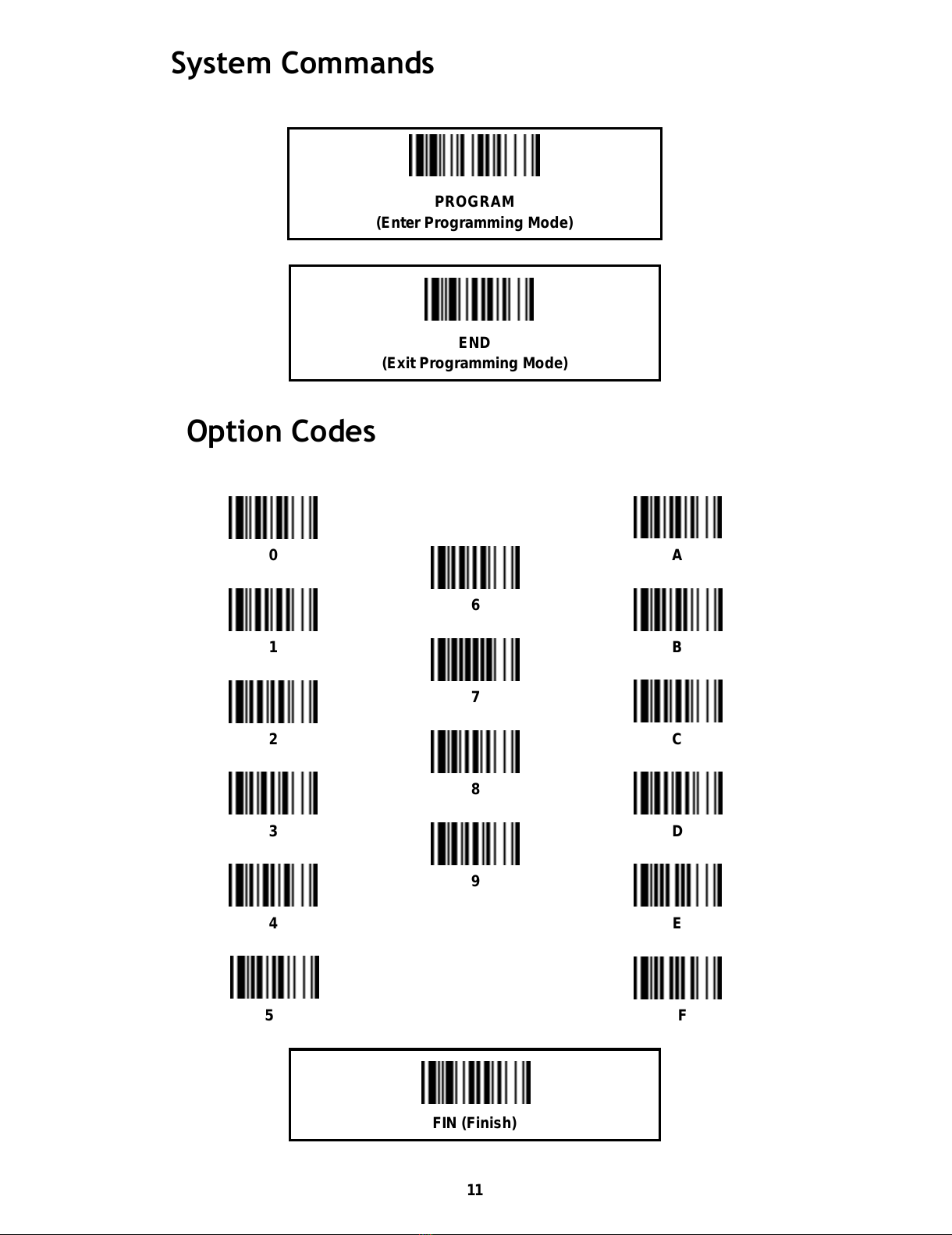

System Commands
PROGRAM
(Enter Programming Mode)
END
(Exit Programming Mode)
Option Codes
0
A
1
6
B
2
7
C
3
8
D
4
9
E
5 F
FIN (Finish)
All manuals and user guides at all-guides.com

12

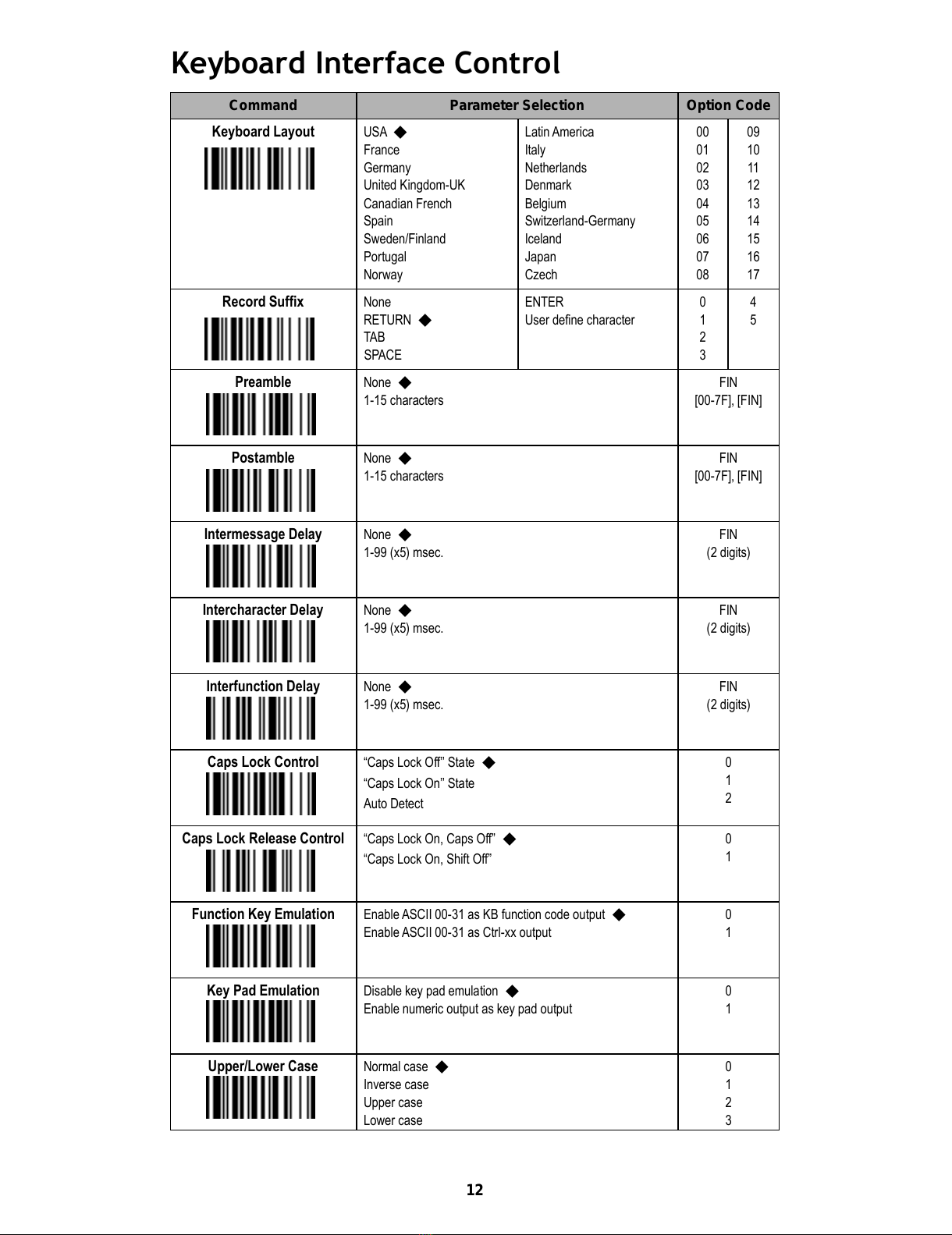

Keyboard Interface Control
Command
Parameter Selection
Option Code
Keyboard Layout
USA ◆
France
Germany
United Kingdom-UK
Canadian French
Spain
Sweden/Finland
Portugal
Norway
Latin America
Italy
Netherlands
Denmark
Belgium
Switzerland-Germany
Iceland
Japan
Czech
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
Record Suffix
None
RETURN ◆
TAB
SPACE
ENTER
User define character
0
1
2
3
4
5
Preamble
None ◆
1-15 characters
FIN
[00-7F], [FIN]
Postamble
None ◆
1-15 characters
FIN
[00-7F], [FIN]
Intermessage Delay
None ◆
1-99 (x5) msec.
FIN
(2 digits)
Intercharacter Delay
None ◆
1-99 (x5) msec.
FIN
(2 digits)
Interfunction Delay
None ◆
1-99 (x5) msec.
FIN
(2 digits)
Caps Lock Control
“Caps Lock Off’’ State ◆
“Caps Lock On’’ State
Auto Detect
0
1
2
Caps Lock Release Control
“Caps Lock On, Caps Off” ◆
“Caps Lock On, Shift Off”
0
1
Function Key Emulation
Enable ASCII 00-31 as KB function code output ◆
Enable ASCII 00-31 as Ctrl-xx output
0
1
Key Pad Emulation
Disable key pad emulation ◆
Enable numeric output as key pad output
0
1
Upper/Lower Case
Normal case ◆
Inverse case
Upper case
Lower case
0
1
2
3
All manuals and user guides at all-guides.com

13
Serial Interface Control
Command
Parameter Selection
Option Code
STX/ETX Control
Disable STX/ETX transmission ◆
Enable STX/ETX transmission
0
1
Record Suffix
None
CR ◆
LF
CRLF
TAB
SPACE
User define character
0
1
2
3
4
5
6
Preamble
None ◆
1-15 characters
FIN
[00-7F], [FIN]
Postamble
None ◆
1-15 characters
FIN
[00-7F], [FIN]
Handshaking Protocol
None ◆
RTS/CTS
ACK/ NAK
Xon/Xoff
0
1
2
3
Intermessage Delay
None ◆
1-99 (x5) msec.
FIN
(2 digits)
Intercharacter Delay
None ◆
1-99 (x5) msec.
FIN
(2 digits)
Interfunction Delay
None ◆
1-99 (x5) msec.
FIN
(2 digits)
Serial Response Time-out
None
200 msec.
500 msec. ◆
800 msec.
1 sec.
2 sec.
3 sec.
4 sec.
5 sec.
8 sec.
10 sec.
15 sec.
0
1
2
3
4
5
6
7
8
9
A
B
NAK Retry Count
3 times ◆
0~255 times
FIN
(3 digits)
Message String Breakdown
Keyboard interface output (PS/2, DOS/V, USB HID)
Preamble
Data Length
Prefix ID
Scanned Data
Suffix ID
Postamble
Record Suffix
1-15 char.
2-4 digits
1 or 3 char.
Variable
1 or 3 char.
1-15 char.
1 char.
Serial interface output (RS-232, USB COM Port Emulation)
STX
Preamble
Data Length
Prefix ID
Scanned Data
Suffix ID
Postamble
ETX
Record Suffix
1 char.
1-15 char.
2-4 digits
1 or 3 char.
Variable
1 or 3 char.
1-15 char.
1 char.
1 char.
All manuals and user guides at all-guides.com

14
Keyboard Function Code Table
No.
ANSI
ASCII
Key Function
Ctrl Output
No.
ANSI
ASCII
Key Function
Ctrl Output
00
NUL
00H
RESERVED
Ctrl + @
16
DLE
10H
F7
Ctrl + P
01
SOH
01H
CTRL (Left)
Ctrl + A
17
DC1
11H
F8
Ctrl + Q
02
STX
02H
ALT (Left)
Ctrl + B
18
DC2
12H
F9
Ctrl + R
03
ETX
03H
SHIFT
Ctrl + C
19
DC3
13H
F10
Ctrl + S
04
EOT
04H
CAPS LOCK
Ctrl + D
20
DC4
14H
F11
Ctrl + T
05
ENQ
05H
NUM LOCK
Ctrl + E
21
NAK
15H
F12
Ctrl + U
06
ACK
06H
ESC
Ctrl + F
22
SYN
16H
INS (Insert) (Edit)
Ctrl + V
07
BEL
07H
F1
Ctrl + G
23
ETB
17H
DEL (Delete) (Edit)
Ctrl + W
08
BS
08H
BACK SPACE
Ctrl + H
24
CAN
18H
HOME (Edit)
Ctrl + X
09
HT
09H
TAB
Ctrl + I
25
EM
19H
END (Edit)
Ctrl + Y
10
LF
0AH
F2
Ctrl + J
26
SUB
1AH
PAGE UP (Edit)
Ctrl + Z
11
VT
0BH
F3
Ctrl + K
27
ESC
1BH
PAGE DOWN (Edit)
Ctrl + [
12
FF
0CH
F4
Ctrl + L
28
FS
1CH
UP (Edit)
Ctrl + \
13
CR
0DH
ENTER (CR)
Ctrl + M
29
GS
1DH
DOWN (Edit)
Ctrl + ]
14
SO
0EH
F5
Ctrl + N
30
RS
1EH
LEFT (Edit)
Ctrl + 6
15
SI
0FH
F6
Ctrl + O
31
US
1FH
RIGHT (Edit)
* see note
The last character in the Ctrl Output column is varied for different countries.
HEX/ASCII Reference Table
H
L
L
0
1
2
3
4
5
6
7
0
NUL
DLE
SPACE
0
@
P
`
p
1
SOH
DC1
!
1
A
Q
a
q
2
STX
DC2
"
2
B
R
b
r
3
ETX
DC3
#
3
C
S
c
s
4
EOT
DC4
$
4
D
T
d
t
5
ENQ
NAK
%
5
E
U
e
u
6
ACK
SYN
&
6
F
V
f
v
7
BEL
ETB
'
7
G
W
g
w
8
BS
CAN
(
8
H
X
h
x
9
HT
EM
)
9
I
Y
i
y
A
LF
SUB
*
:
J
Z
j
z
B
VT
ESC
+
;
K
[
k
{
C
FF
FS
,
<
L
\
l
|
D
CR
GS
-
=
M
]
m
}
E
SO
RS
.
>
N
^
n
~
F
SI
US
/
?
O
_
o
DEL
Example: ASCII “A”→HEX “41” ; ASCII “a”→“61”
: High Byte of HEX Value : Low Byte of HEX Value
All manuals and user guides at all-guides.com
