Car Solutions QNAVI4-MAIN-N1.1 User manual

Car-solutions.com
www.car-solutions.com
[email protected]

Index
1. General spec
2. System Diagram
3. Components
4. Setting up Dip S/W
5. Setting up FACTORY MENU
6. Cautions before Installation
7. Installation Diagram
8. Installation
9. Quality Warranty
Car-solutions.com
www.car-solutions.com
[email protected]

Do not modify, dismantle or unintended
operation this system outside Q-roi After Sales.
Damage occurred by unintended operation
may cause Q-roi After Sales service void.
Warning
Always wear seatbelt. When the vehicle is
suddenly stop can cause injury.
Remove dust, oil, and waste on the display.
Incidental damages (including, without
limitation, consequential damages due to the
use of this unit and the dead loss of business
profit, changes, loss of memory contents, etc)
will not be taken responsibility.
•Any function that requires your prolonged
attention should only be performed after
coming to a complete stop. Always
stop the vehicle in a safe location before
performing these functions. Failure to do so
may result in an accident.
The engine is off while the system operates for
long time, battery may be discharged.
This product is not a substitute for your
personal judgment. Any route suggested by
this navigation system may never supersede
any local traffic regulation. Do not follow route
suggestions if the navigation system instructs
you to perform an unsafe or illegal maneuver.
Warning
Warning / Precautions!
Car-solutions.com
www.car-solutions.com
[email protected]

1. General Spec
OS Android 4.2.2 (Jelly Bean)
CPU Telechips TCC8930 (1GHz Cortex A9 DualCore)
Display OEM LCD
Internal Memory DDR3 1GB RAM + 8GB eMMC
External Memory SDHC Slot Support (up to 64GB)
Function
A/V Input x 3,
Rear Cam Input x 1,
CAN(Controller Area Network) x 2,
Mic x 1,
External Speaker x 1 (mono),
External Audio Out x 1(Car Aux),
Output LVDS ( thru Video Interface),
RGB (thru Sub-Board)
Touch Type Resistive Touch
GPS SiRF
Resolution 800*480 or 1024*480
USB USB 2.0 x 5 (USB x 4, OTG USB x 1)
Input Voltage 12V
Temperature operating 0 C to 60 C
Storage -20 C to 60 C
Languages multi-languages
Car-solutions.com
www.car-solutions.com
[email protected]

2. System Diagram
Application
Processor
DDR3
1GB
eMMC
Flash
Memory
8GB
Video
Decoder
Audio
Decoder
/Encoder
Image Scaler
LVDS
Transmitter
Microprocessor
With
2 CAN ports
CAN
Transceivr
CAN
Transceive
USB HUB
Audio Amp.
Touch
Screen
Controller
LCD Display
Rear Camera
DVD Player
Other Composite
Video Signal
Speakers
Touch
Screen
Button CAN
data
Steering wheel
CAN data
USB Devices
- USB memory
- Hard Disc
- Wifi dongle
- BlueTooth dongle
- 3G / LTE dongle
- Other USB
Accessories
Microphone
Car-solutions.com
www.car-solutions.com
[email protected]

3. Components
MODE switch cable* 1ea
(HARETC0001)
USB cable * 2ea
(HARETC0027)
REAR CAMERA cable * 1ea
(HARETC0002)
Speaker * 1ea
(SPEAKE0001)
AV/BT Cable * 1ea
(HAVCAB0020)
GPS Antenna * 1ea
(GPSANT0006)
Multi cable * 1ea
(HARETC0068)
Power cable 16P * 1ea
(HPOWER0041)
Microphone cable * 1ea
(MICPHO0001)
TOUCH cable * 1ea
(HTOUCH0007)
3G dongle * 1ea(Option)
(ETCETC0116)
WIFI dongle * 1ea(Option)
(ETCETC0110)
Sub-board * 1ea
(QCPASS0482)
LVDS cable* 1ea
(HALVDSC0024)
LCD cable * 1ea
(HLCDCA0015) AUDI15 sub-board * 1ea
(QCPASS0594)
Car-solutions.com
www.car-solutions.com
[email protected]

4. Setting up Dip Switch(Main board)
※ ON : DOWN / OFF : UP
: A6, A7, A8 High Resolution Monitor
(8inch)
: A6, A7, A8 Low Resolution Monitor
(5.8inch)
※Please make sure to disconnect the power cable of the interface and reconnect
the power cable again to apply the dip switch setting whenever changing DIP switch.
Otherwise, DIP switch setting will not be applied.
: A6, A7, A8 2015year
(Use AUDI15 sub-board)
Car-solutions.com
www.car-solutions.com
[email protected]

5. Setting Factory Menu
※APPS→FACTORY SETTING
①Put Password and change program upgrade and set-up of
external device. (Only Installers are authorized)
※Please contact the manufacturer to get Password.
Car-solutions.com
www.car-solutions.com
[email protected]

5. Setting up Factory Menu
①
③
②
④
⑤
①CAR MODEL : No use
②DVD TYPE : Only for DVD connected to A/V
(Connect IR-AV1 to DVD to use DVD as touch Screen)
③CMMB SELECT : Select DTV model ( Only Chinese)
④SETTING
- GEAR CHECK TYPE : Detecting rear camera via either CAN or Rear Lamp.
- REAR CAM : Put “On” – External rear camera
Put “Off “ – OEM Camera
- SAFE MODE : Either Enable or Unable to watch Video while driving
- MODE SWITCH : NO use
⑤SAVE & EXIT : Save and Reboot
Car-solutions.com
www.car-solutions.com
[email protected]

6. Cautions before Installation
Ignition key should be taken off before starting installation, interface
power connection must be the last step in installation.
Power cable should be separated when connecting interface.
Should be no any electronic devices or magnetic pole around
installation place.
All steps of installation should be done by well-trained specialist.
Dismantling without manufacturer’s permission can not be
guaranteed, (No permission to break attached label on the board.)
Kindly check all parts are in the box, when receiving the product, if
anything missing, inform to the supplier or manufacturer.
Install GPS away from electromagnetic devices such as black boxes,
Hi-Pass and etc.
Advisable to Install GPS at the edge of dash board or a front window
or a rear window.
Install GPS antenna mounted on window or roof facing to Sky .
According to our sales policy, any problems caused by user’s
mistake, careless can not be guaranteed.
Car-solutions.com
www.car-solutions.com
[email protected]

7. Installation Diagram
SD Card
POWER cable
ACC
CAN1-H
N.C
AUX-GND
A OUT(R)
CAN2-H
GND
N.C
A OUT(L)
CAN1-L
CAN2-L
FRONT
SAFE
REAR
MMI
AUX-ON
REAR CAM
POWER
cable
GPS
SPK
Speaker
REAR (12V OUT)
GND
TOGGLE
MIC
Original LCD cable
TO I/F
TO SYS
TO
TOUCH
SUB BOARD
TO
MONITOR
LVDS cable
Provided Touch In cable
Provided LCD cable
※1. Remove Original LCD cable from Radio system and
Connect it to Sub-Board “To monitor".
2. Connect Provided LCD cable to Behind of Radio system
<Behind of Radio System> <Behind of Monitor>
For
Switching Mode
Car-solutions.com
www.car-solutions.com
[email protected]

8. Installation
8.1 Connection of CAN Wire
* Connect CAN1-H(Yellow + White) of Provided Power cable to
CAN-High(Brown + Orange) of Car.
* Connect CAN1-L(Yellow) of Provided Power cable to
CAN-Low(Green + Orange) of Car
※You will be able to find the bunch of cable behind Radio System
Car-solutions.com
www.car-solutions.com
[email protected]

8. Installation

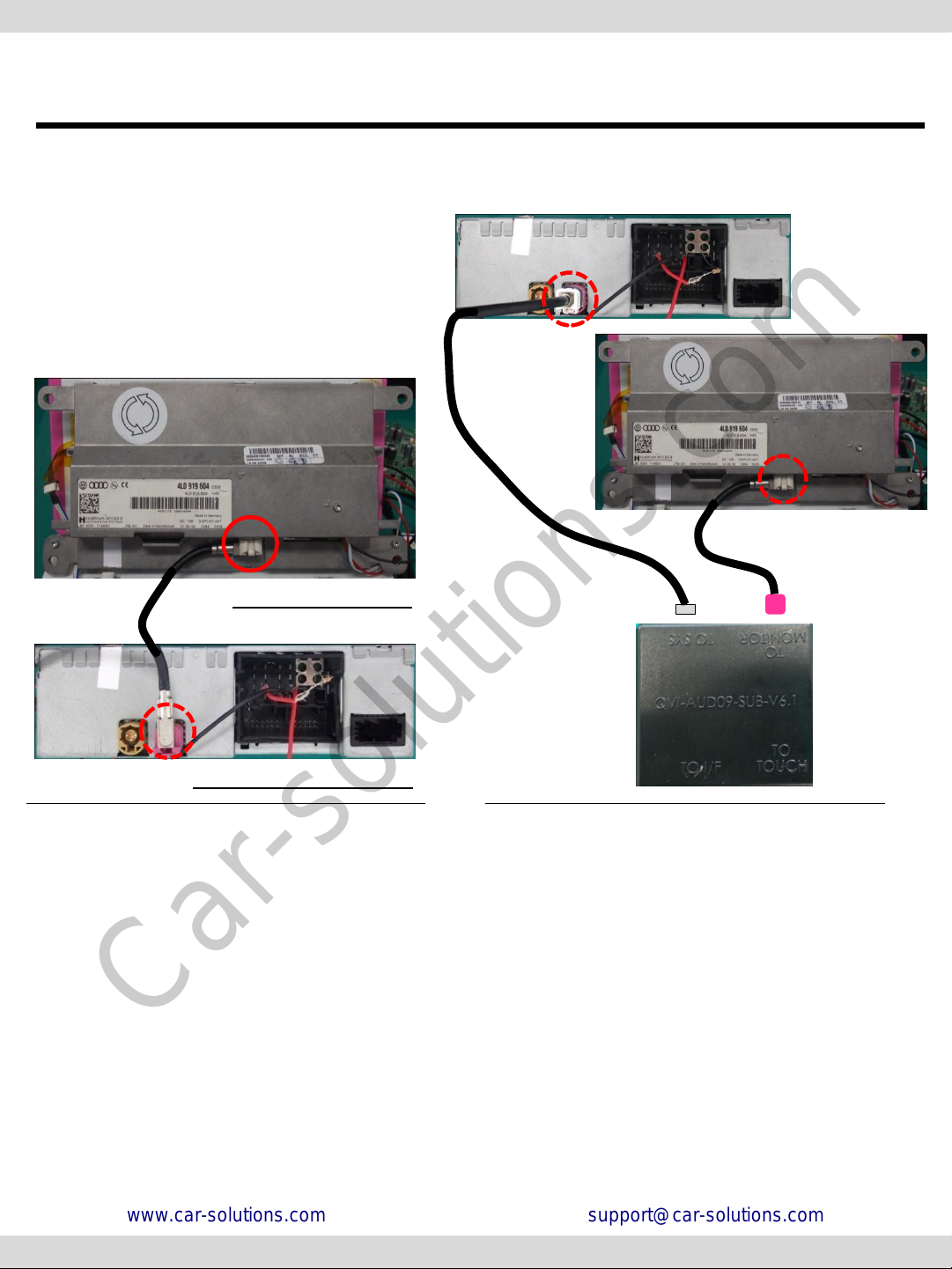

8.2 Connection of LCD cable after dismantling a monitor
①Please refer to the photo
(After dismantling a monitor
and command).
You can see that the OEM
cable connected to back
side of the monitor has
connected to back side of
the Radio System.
②Remove OEM LCD cable
from the Radio System and
Connect to ‘To monitor’ of
Sub-board.
③Connect provided LCD
cable to the ports where ‘To
SYS’ of sub-board & OEM
LCD cable of Radio System.
Behind Command
Behind Monitor
Remove
Car-solutions.com
www.car-solutions.com
[email protected]

This product has been tested and have passed under our strict
quality control. If the failure occurred due to the carelessness of
workmanship within one year after the purchase, we are
responsible to repair free of charge.
Please bring this warranty to dealer whom you purchased this
product from at the repair time. Should this warranty not
presented, repair charged will be on customer. Please keep this
warranty card.
Warranty
Product
name QROI
Warranty
period
1 year Purchase
date
(yy/mm/dd)
Customer
Address
TEL
Name
Dealer
Address
Name
