G2300 Instruction Guide 1 | P a g e
CAROLINA · MILANO
Full HD 1080P Security Night
Vision Hidden Spy Camera
Instruction Guide
Model G2300
CAROLINA · MILANO

G2300 Instruction Guide 2 | P a g e
CAROLINA · MILANO
Important safety instructions
Exercise with caution when using your G2300 camera.
Always be aware of your surroundings and avoid injury to yourself and others.
Apply the following precautions with your camera to avoid fire or explosion:
•DO NOT try to open, puncture, disassemble drop, crush, bend, deform, microwave,
incinerate, paint the camera or any other activity not listed in this Instruction Guide.
•DO NOT insert any foreign objects into any opening on the camera, e.g. USB port.
•DO NOT use for any reason the camera if it has been damaged e.g. affected by
water, cracked, or deformed.
•DO NOT Disassemble or puncture the integrated camera’s battery, since this can
cause an explosion or fire.
•DO NOT dry the camera with an active heat source such as a hair dryer, microwave
oven or oven.
•DO NOT place direct flame sources, such as gas flames or lighted candles near the
camera.
•DO NOT handle the camera charger or the USB cable plugs with wet hands.
•During charging, place it in a well ventilated location, away from heat sources.
Failure to comply with these precautions can result in electric shock.
Only use chargers marked: Output 5V with 1A up 2.1A.
If you are not familiar with the charger’s specifications (voltage and current), use the
supplied USB cable to charge the camera from your computer.
DO NOT place the Camera in close proximity to strong magnetic forces and keep distance
from objects that transmit strong radio-waves. Avoiding this precaution, may result in a
faulty or degraded camera performance.
DO NOT place the Camera close to high temperature source or subjected to direct sunlight.

G2300 Instruction Guide 3 | P a g e
CAROLINA · MILANO
Contents
Welcome................................................................................................................................................. 6
Set Content............................................................................................................................................. 6
G2300 Main Features ............................................................................................................................. 6
G2300 Camera layout............................................................................................................................. 7
Camera operating modes ....................................................................................................................... 8
Camera light indicators .......................................................................................................................... 8
Getting started ....................................................................................................................................... 9
Insert the Micro SD memory card ...................................................................................................... 9
Battery charging ................................................................................................................................. 9
Turning-on/off the G2300 camera ..................................................................................................... 9
Configuring the camera’s options via WiFi and App ........................................................................ 10
Settings for Video Recording ........................................................................................................ 12
Setting for Capture (taking Photos)..............................................................................................13
System Settings ............................................................................................................................13
Setting the Wireless Network (Wi-Fi)...........................................................................................14
Operating the Camera with a Memory Card........................................................................................ 16
Taking a photo..................................................................................................................................16
Recording a Video Start/Stop ........................................................................................................... 16
Start Recording............................................................................................................................. 16
Stop Recording ............................................................................................................................. 16
Recording a Video with Infrared Night Vision Start/Stop ................................................................16
Start Recording............................................................................................................................. 16
Revert from Video with Infrared Night Vision to regular recording.............................................17
Stop Infrared Night Vision Recording...........................................................................................17
Operating the Camera with the Sports DV App ...............................................................................17
Connecting your Device to the G2300 Camera ............................................................................ 17
Getting to know the Sport DV App PLAY Screen and Commands ................................................ 19
Monitoring, Taking Photos & Recording with the “Sports DV” App ................................................19
Monitoring.................................................................................................................................... 19
Taking Photos ...............................................................................................................................20
Recording Videos.......................................................................................................................... 20
Viewing Photos and Videos with the “Sports DV” App .................................................................... 20
Viewing Photos and Videos from the Camera’s TF Memory card................................................20

G2300 Instruction Guide 4 | P a g e
CAROLINA · MILANO
Viewing Photos and Videos from the Device ...............................................................................20
Copy Camera Videos and Photos to the computer ..............................................................................21
Operating the camera without a memory card ................................................................................... 22
Turning-on the camera in No Memory card installed mode............................................................ 22
Monitoring, Taking Photos & Recording with the “Sports DV” App ................................................22
Monitoring.................................................................................................................................... 22
Taking Photos ...............................................................................................................................23
Recording Videos.......................................................................................................................... 23
Viewing Photos and Videos with the “Sports DV” App .................................................................... 23
Viewing Photos and Videos from the Device ...............................................................................23
Troubleshooting ...................................................................................................................................24
App does not reconnet to the camera .............................................................................................24
Technical Specifications........................................................................................................................25

G2300 Instruction Guide 5 | P a g e
CAROLINA · MILANO
CAROLINA · MILANO G2300 Full HD 1080P Night Vision Action camera Instruction Guide
Copyright © 2019 Carolina Milano
All rights reserved. No part of this guide may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, without the prior written permission of the Publisher.
Every effort has been made in the preparation of this guide to ensure the accuracy of the information
presented.
First published: March 2019
Production reference: 1191016
Published by Carolina Milano
www.carolinamilano.com

G2300 Instruction Guide 6 | P a g e
CAROLINA · MILANO
Welcome
Congratulations on the purchase of the CAROLINA MILANO G2300 Full HD 1080P Night Vision
Action camera.
This Camera is perfect for capturing all those important actions events and memorable moments in
clear Full HD with 155° wide angle lens.
Before using the camera, please read this instruction guide
Set Content
The G2300 Night Vision Action Camera set includes the following:
1 x G2300 Camera
1 x Waterproof Camera case
1 x Magnetic Bracket
1 x Bike Handle Bar Pole mounts
1 x Base Mount Strap Handle
1 x USB Cable
G2300 Main Features
G2300 Night Vision Action Camera main Features
FH 1080P Video recording
12MP image capturing
Record during charging
Night Vision
155 wide angle
Waterproof case enabling to protect the camera in extreme conditions to dive up to 96 ft.
Wi-Fi

G2300 Instruction Guide 7 | P a g e
CAROLINA · MILANO
G2300 Camera layout
G2300 Camera in its Waterproof protective case

G2300 Instruction Guide 8 | P a g e
CAROLINA · MILANO
Camera operating modes
1. Charged standalone
a. Full camera capabilities
b. Operating time with built-in battery: up 90 min
2. With USB Charger (AC outlet)
a. Full camera capabilities
b. Operating time: Indefinitely
3. With USB Battery Bank Charger
a. Full camera capabilities
b. Operating time: with 10,000 mAh battery pack –about 35 hours
4. With USB Connector to computer
a. Charging only (cannot record or take photos)
b. File copy from camera to computer
Camera light indicators
Red
Fixed light - Power on / standby /Battery fully charged
Flashing light –Charging / low power
Blue
Fixed light –Taking a photo
Flashing light –Video recording
Yellow
Fixed light –Infrared video recording
Green
Fixed light –Wi-Fi is on and ready for remote connection
Flashing light –Camera is connected to a device

G2300 Instruction Guide 9 | P a g e
CAROLINA · MILANO
Getting started
Insert the Micro SD memory card
Insert the Micro SD memory card 4GB up to 32GB class 10 (not included)
to the SD card socket on the camera as shown in the image.
Use flat item like a credit card to insert the memory card.
Battery charging
Connect the supplied USB cable to the camera.
(Micro USB connector) and plug the USB end to a USB charger or Computer.
Remark:
Connecting the camera to a computer USB port enables only charging and
file coping.
Charging status:
Flashing Power LED –charging the battery
Steady Power LED –the battery is fully charged
Charging time for a new battery is 2-3 hours (depends on the charger)
Turning-on/off the G2300 camera
Note:
If charged from a Computer USB port, you must disconnect the camera from the computer in
order to turn it on
ON- Press on the Power button for 2-3 seconds and the Power led will turn on
OFF- Press on the Power button for 2-3 seconds and the Power led will turn off

G2300 Instruction Guide 10 | P a g e
CAROLINA · MILANO
Configuring the camera’s options via WiFi and App
With this application you will customize the camera’s settings
1. Download the following Application “Sports DV” from your Application store
(Apple iOS or Android)
or use QR read Application on your device to find the Application on your store
2. Turn on the camera
3. Turn on the camera’s Wi-Fi
i. Click on the Mode button for 3 seconds
ii. verify that green Wi-Fi indicator is on
4. from your device, connect to the following Wi-Fi network that starts with
SQ23_…(like SQ23_D0EE) (can be changed later)
5. Type the following password: 12345678 (can be changed later)
6. On your device, run the Sports DV Application
7. Verify that you are connected , your device will display this screen:
i. If you encounter a connection issue:
check the Troubleshooting Chapter
App does not reconnect to the camera

G2300 Instruction Guide 11 | P a g e
CAROLINA · MILANO
8. Click the Settings icon (right bottom)

G2300 Instruction Guide 12 | P a g e
CAROLINA · MILANO

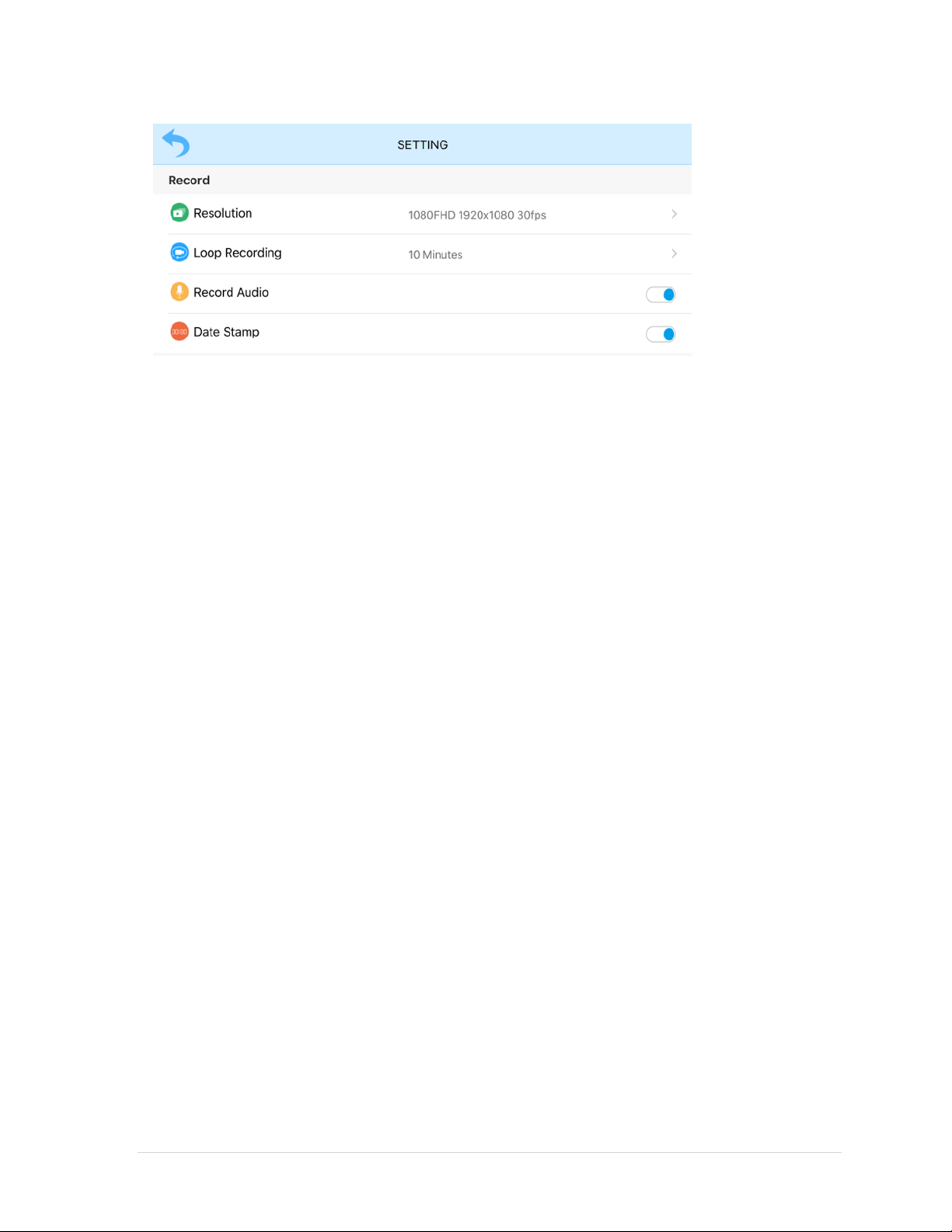

Settings for Video Recording
Resolution
Select the required video recording resolution:
1080FHD 1920x1080 30fps
1080P 1440x1080 30fps
720P 1280x720 30fps
9. Loop Recording
Select the required video loop recording:
Off
3 Minutes
5 Minutes
10 Minutes
10. Record Audio
Select the required settings
Yes –Blue icon
No –Grey icon
11. Time Stamp
Select the required settings
Yes –Blue icon
No –Grey icon

G2300 Instruction Guide 13 | P a g e
CAROLINA · MILANO

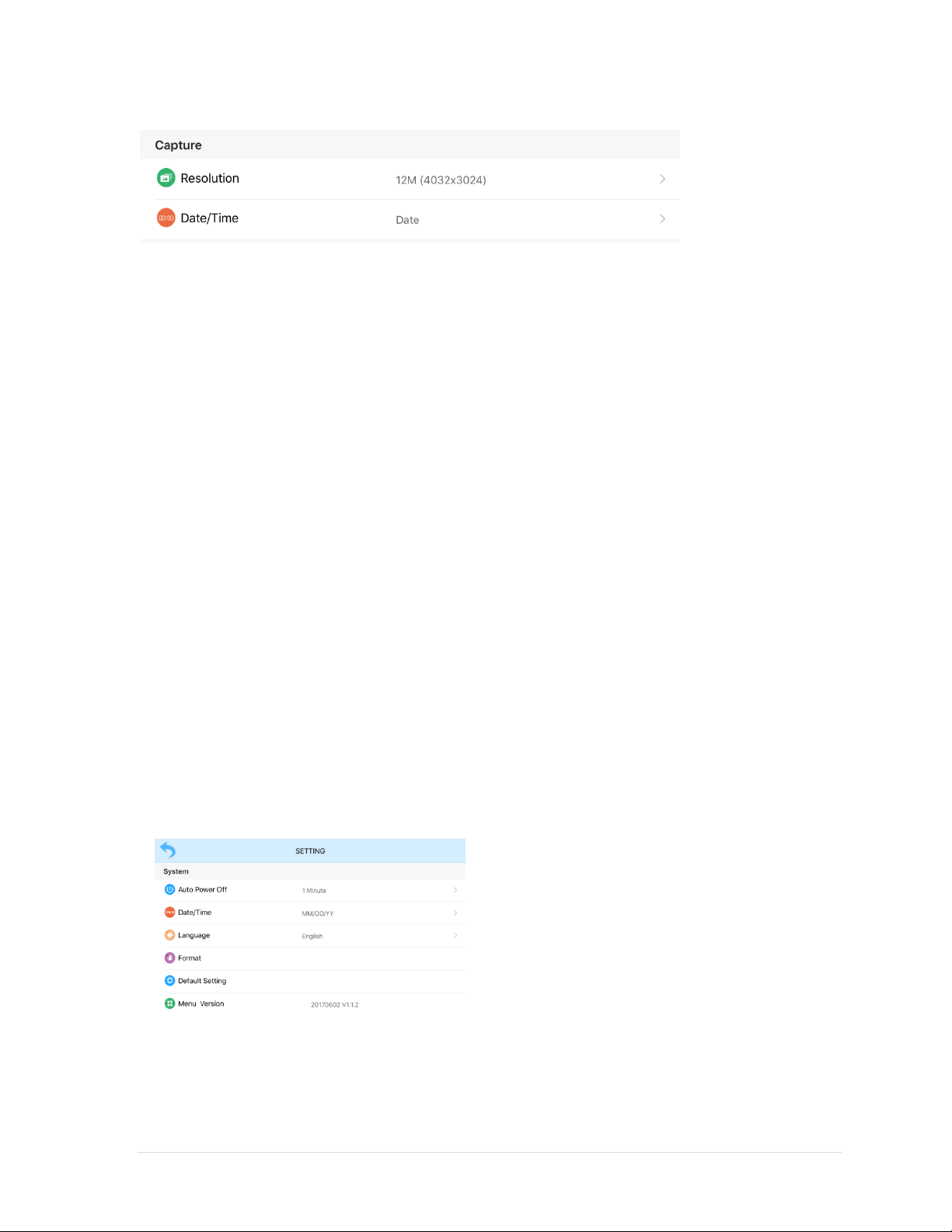

Setting for Capture (taking Photos)
Resolution
Select the image resolution:
12M (4023X3024
10M (3648X2736
8M *3264X2448
5M (2592X1944)
3M (2048X1536)
2MHD1920X1080
1.3M (1280X960)
Date/ Time
Select the following options:
Off
Date
Date/Time
System Settings
Auto Power off
Off
1 Minute

G2300 Instruction Guide 14 | P a g e
CAROLINA · MILANO
2 Minutes
5 Minutes
Date/Time
YY/MM/DD
MM/DD/YY
DD/MM/YY
Language
English
Chinese
Format
Be careful with this option since if you select Yes this option will initialize the memory card
and will remove all the info from the memory card
Click Green V for Yes
Click Red X for No
Default Settings
Be careful with this option since if you select Yes this option will reset the camera settings
to the original factory default settings
Click Green V for Yes
Click Red X for No
Setting the Wireless Network (Wi-Fi)
WifiName
The default camera’s wifi name is SQ23 it is recommended to change the wifi name
Click wifiName
Type the new wifi name (eg. abc)

G2300 Instruction Guide 15 | P a g e
CAROLINA · MILANO
Click OK (Green V)
Do not change the Wi-Fi password at this time
Turn off the camera
Turn on the camera
Click on Mode for 3 second
Wi-Fi is on with the new name:
Password
To change the Wi-Fi password click on Password
Type the new password (must be 8 characters)
Click OK (Green V)
Turn off the camera
Turn on the camera
Click on Mode for 3 second
Connect to the camera’s Wi-Fi with the new password
Wi-Fi’s password is on with the new name:

G2300 Instruction Guide 16 | P a g e
CAROLINA · MILANO
Operating the Camera with a Memory Card
Press Power button to turn on the camera - constant Red light indicates that the camera is in
standby status
Note:
Depending on the Auto Power Off settings configured, if no action taken during standby,
the camera will automatically turn off
Taking a photo
From standby status, Shortly press the Power button
Blue light flash once
Picture taken and saved
Camera retunes to standby status
Recording a Video Start/Stop
Start Recording
From standby status, Shortly press (1sec) the Mode button
Blue light starts flashing
Starting Video recording
For loop recording –continue recording as required
Stop Recording
Shortly press (1sec) the Mode button
Camera retunes to standby status
Recording a Video with Infrared Night Vision Start/Stop
Start Recording
From standby status, Shortly press (1sec) the Mode button
Blue light starts flashing
Starting regular Video recording
For the second time, Shortly press (1sec) the Mode button
A constant Yellow light turns on
Starting Infrared Night Vision Video recording
For loop recording –continue recording as required

G2300 Instruction Guide 17 | P a g e
CAROLINA · MILANO
Revert from Video with Infrared Night Vision to regular recording
Long press (3sec) the Mode button
Blue light starts flashing
Continue with regular Video recording
Stop Infrared Night Vision Recording
Shortly (1sec) press the Mode button
Camera retunes to standby status
Operating the Camera with the Sports DV App
Please note: the Wi-Fi range up to 50ft.
Connecting your Device to the G2300 Camera
1. Turning-on the G2300 camera
Press on the Power button for 2-3 seconds and the Power led will turn on
2. Turn on the Wi-Fi
Click on the Mode button for 3 seconds
Verify that green Wi-Fi indicator is on
3. Connect to the camera’s Wi-Fi
from your device, connect to the camera’s wifi as you have configured in the getting started
section of this guide
4. Type the Wi-Fi password
Type the Wi-Fi password as you have configured in
the getting started section of this guide

G2300 Instruction Guide 18 | P a g e
CAROLINA · MILANO
5. Run the Camera’s App
On your device, run the Sports DV Application
6. Wait for the connection to complete (V on the screen - as shown in this snapshot)
7. Click PLAY to start monitoring

G2300 Instruction Guide 19 | P a g e
CAROLINA · MILANO
Getting to know the Sport DV App PLAY Screen and Commands
Clicking PLAY on the App will open the following screen: 5 icons to the left and 5 icons to the right
Left Screen Icons
1. Return to Start Screen
•Tap on the Return icon to return to start screen
2. Device side commands
3. Take a photo, save on device
4. Record Video, save on device
5. View saved Photos and Videos on Device
Right Screen Icons
1. Camera’s Battery status
•Icon displays battery & charging status
2. Camera’s TF Memory Card side commands
3. Take a photo, save on Camera
4. Record Video save on Camera
5. View saved Photos and Videos on Camera TF Memory Card
Monitoring, Taking Photos & Recording with the “Sports DV” App
Note: in order to monitor, record video and take photos, the Sports DV App must be on all the
session, hence if you will switch to another app on your device the recording will be terminated.
For Loop recording start the recording procedure directly on the camera as described on the first
page of “Operating the Camera with a Memory Card” chapter
Monitoring
Clicking PLAY will automatically start the monitoring session.
Screen command menu will be displayed on both sides of the screen.
For full screen monitoring, tap on the screen once and the commands menu will slide out of the
screen
To redisplay the commands menu, tap the screen once

G2300 Instruction Guide 20 | P a g e
CAROLINA · MILANO
Taking Photos
Taking Photos on the Camera’s TF Memory card (Right side Commands)
Tap on the Camera icon and the image will be captured and saved on the Camera’s memory card
Taking Photos on the Device (Left side Commands)
Tap on the Camera icon and the image will be captured and saved on the Device
Recording Videos
Recording Videos on the Camera’s TF Memory card (Right side Commands)
Tap on Video Camera icon to start recording
Camera icon indicating red dot and record time on the screen
Tap on Video Camera icon to stop recording
Camera icon returns to monitoring state
Recording Videos on the Device (Left side Commands)
Tap on Video Camera icon to start recording
Camera icon indicating red dot and record time on the screen
Tap on Video Camera icon to stop recording
Camera icon returns to monitoring state
Viewing Photos and Videos with the “Sports DV” App
Viewing Photos and Videos from the Camera’s TF Memory card
1. Tap on the Folder icon
2. Select the image or video to view
3. Tap Play to view
Viewing Photos and Videos from the Device
1. Tap on the Folder icon
2. Tap Picture to view Photos or Video to view Videos
3. Select the Photo or Video to view
