Carrier 39HXC Manual

INSTALLATION, OPERATION AND
MAINTENANCE INSTRUCTIONS
Translation of the original document
39HXC - 39HXE- 39HXEZ - 39HXV

CONTENTS
1 - FOREWORD..................................................................................................................................................................................3
1.1 - GENERAL INFORMATION .......................................................................................................................................................3
1.2 - PROTECTION AGAINST ELECTROCUTION ..........................................................................................................................3
1.3 - USE...........................................................................................................................................................................................3
2 - RECEIPT .......................................................................................................................................................................................4
3 - HANDLING ....................................................................................................................................................................................5
4 - DESCRIPTION OF THE UNIT & TECHNICAL CHARACTERISTICS ..........................................................................................7
4.1 - DESCRIPTION OF THE UNIT ..................................................................................................................................................7
4.2 - LOCATION OF COMPONENTS ...............................................................................................................................................9
4.3 - TECHNICAL CHARACTERISTICS ......................................................................................................................................... 11
5 - INSTALLATION AND INSTALLATION CONNECTIONS ............................................................................................................16
5.1 - OUTDOOR INSTALLATION (39HXC, 39HXE and 39HXEZ models only).............................................................................. 16
5.2 - 39 HXEZ 100 and 150: PROCEDURE FOR ROOF ASSEMBLY............................................................................................17
5.3 - 39HXEZ / Verication of pressures .........................................................................................................................................30

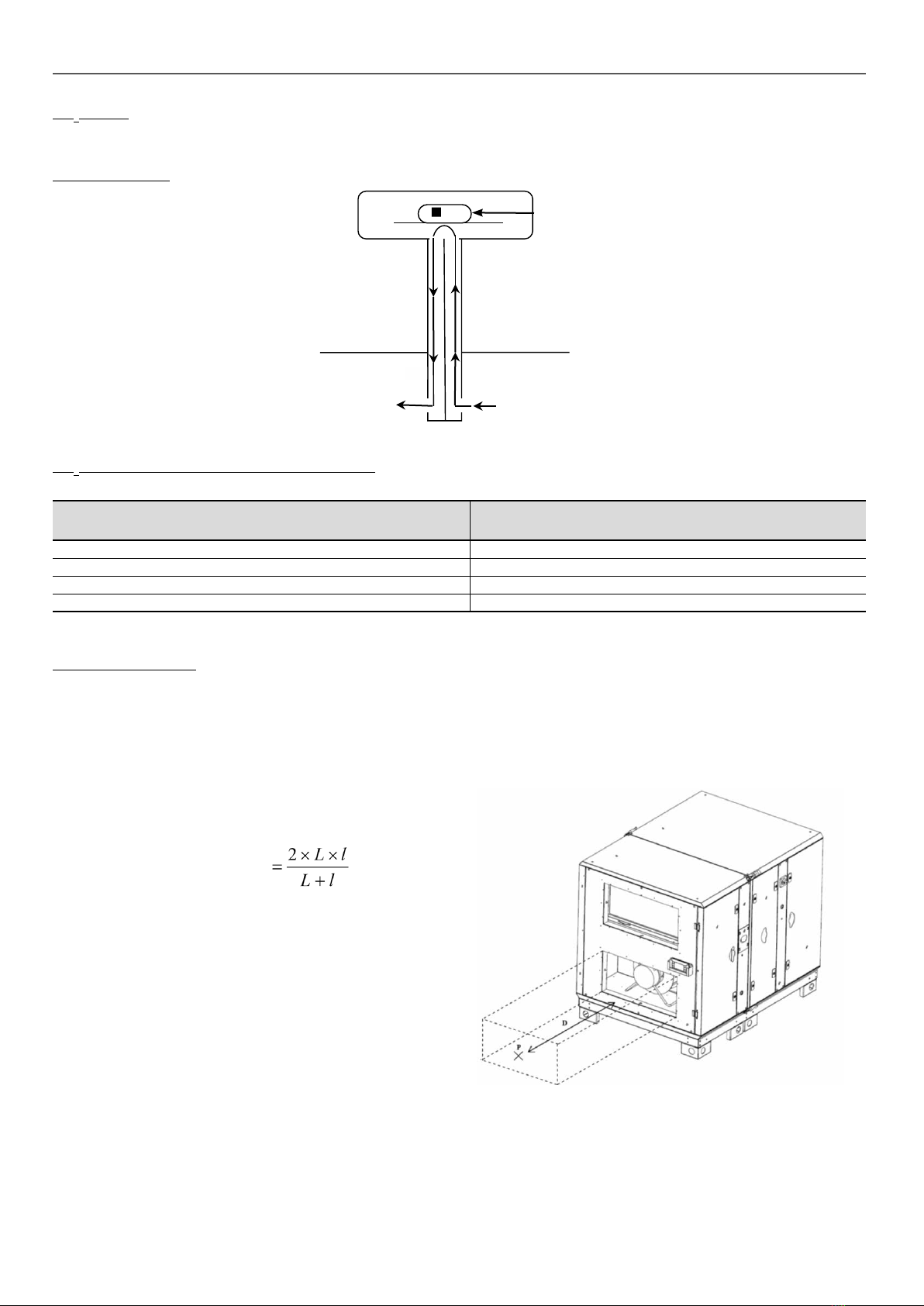

5.4 - Maintenance / Space in front of the units................................................................................................................................ 31
6 - SYSTEM START-UP....................................................................................................................................................................32
7 - MAINTENANCE/SERVICE INTERVALS ..................................................................................................................................... 33
7.1 - FILTERS.................................................................................................................................................................................. 33
7.2 - FAN MOTOR ASSEMBLY .......................................................................................................................................................34
7.3 - HEAT RECOVERY UNIT......................................................................................................................................................... 34
7.4 - ELECTRICS BOX....................................................................................................................................................................34
7.5 - ELECTRIC HEATERS ............................................................................................................................................................35
7.6 - HYDRAULIC COILS................................................................................................................................................................35
7.7 - SERVICE INTERVALS ............................................................................................................................................................ 35
8 - PROBLEMS/CAUSES/SOLUTIONS...........................................................................................................................................35
9 - TESTS AND GUARANTEES.......................................................................................................................................................35
2
The images in these documents are solely for illustration and are not contractual. The manufacturer reserves the right to change the design at any time without notice.

1 - FOREWORD
1.1 - GENERAL INFORMATION
Installation, start-up and maintenance operations for this equipment may be dangerous if certain factors particular to this installation,
such as the presence of electrical and live components and the installation location, are not taken into account.
Only authorised, qualied installers and technicians, who have undergone specic training on the product in question, are permitted
to install and start up this equipment.
During any servicing operations, all the recommendations and instructions given in the maintenance brochures, on the labels or in the
instructions accompanying the equipment must be observed, along with any other applicable safety instructions.
-Observe all the regulations in the safety codes.
-Wear safety goggles and working gloves
-Handle heavy and bulky equipment with care when lifting, handling and setting down.
During normal use, this unit is intended to operate under the following site conditions:
-Maximum altitude: 1000 m,
-Minimum and maximum temperatures: -10 °C + 40 °C,
-Overvoltage category: III
-Pollution degree: 3
1.2 - PROTECTION AGAINST ELECTROCUTION
Only personnel qualied in accordance with the IEC (International Electrotechnical Commission) recommendations must be allowed
to access the electrical components. It is particularly recommended that all the electrical supplies to the unit are switched o󰀨 before
any work is carried out. Cut the main power supply using the disconnect switch or circuit breaker.
Important: the control system includes electronic components. These may cause or be subject to electromagnetic disturbance
if they are not installed and used in accordance with these instructions.
Before carrying out any work on the frequency inverters (heat recovery wheel, etc.), disconnect the power supply and ensure
that these are not live. After disconnection, you must wait 5 minutes before starting work (necessary for the capacitors to
discharge).
Important: this equipment has been found to comply with the essential requirements of the following directives:
-Electromagnetic compatibility: 2014/30/EU
-Low voltage directive: 2014/35/EU
-Machinery Directive: 2006/42/EC
-Directive concerning the restriction of the use of hazardous substances in electrical and electronic equipment (RoHS):
2011/65/EU
1.3 - USE
This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capabilities, or by
persons with insu󰀩cient experience or knowledge, unless they are being supervised by a person responsible for their safety or have
received instructions on the use of the appliance from such a person.
Children should be supervised to ensure that they do not play with the unit.
3

For your safety, we recommend the use of PPE (Personal Protective
Equipment)
2 - RECEIPT
The installation and maintenance operations must be performed by qualied and experienced personnel.
Follow the operating precautions to the letter when working on the unit. Labels have been placed on the unit to remind you of
the safety instructions.
As a general rule, follow all applicable safety regulations and standards.
Damage to the 39HX dual-ow air handling unit will be disregarded in case of failure to follow the instructions in this document.
Each unit has a name plate bearing an identication number. This number must be quoted in all correspondence.
In accordance with Article 133-3 of the French Code of Commerce, the recipient is entirely responsible for checking the condition of
the goods received. In the event of missing items, the customer must provide the exact number of parcels delivered. Any damaged or
missing items must be specied on the delivery note in the presence of the driver before signing the delivery note. These comments
must be conrmed to the carrier by registered letter within 3 business days. The comments "conditional" and "pending unwrapping"
shall have no value. The customer must unwrap the goods in the presence of the driver. Claims must be made at the time of delivery
and be described in detail.
The unit must be stored in its packaging and sheltered from weather.
39HXC, 39HXE, 39HXEZ and 39HXV
• The 3 sizes of the 39HXV model and the size 1000 of the 39HXC, 39HXE and 39HXEZ models are packaged units, delivered
mounted on feet.
• Sizes > 1000 for the 39HXC, 39HXE and 39HXEZ models are multi-block units, delivered assembled. The blocks can be split
in order to facilitate their passage through doorways (see splitting procedure in the HANDLING part).
• Sizes 100 and 150 of the 39HXEZ model are delivered in 2 blocks. You are responsible for assembling these yourself on site.
Quick connectors enable the electrics for these blocks to be connected quickly and easily.
4

3 - HANDLING

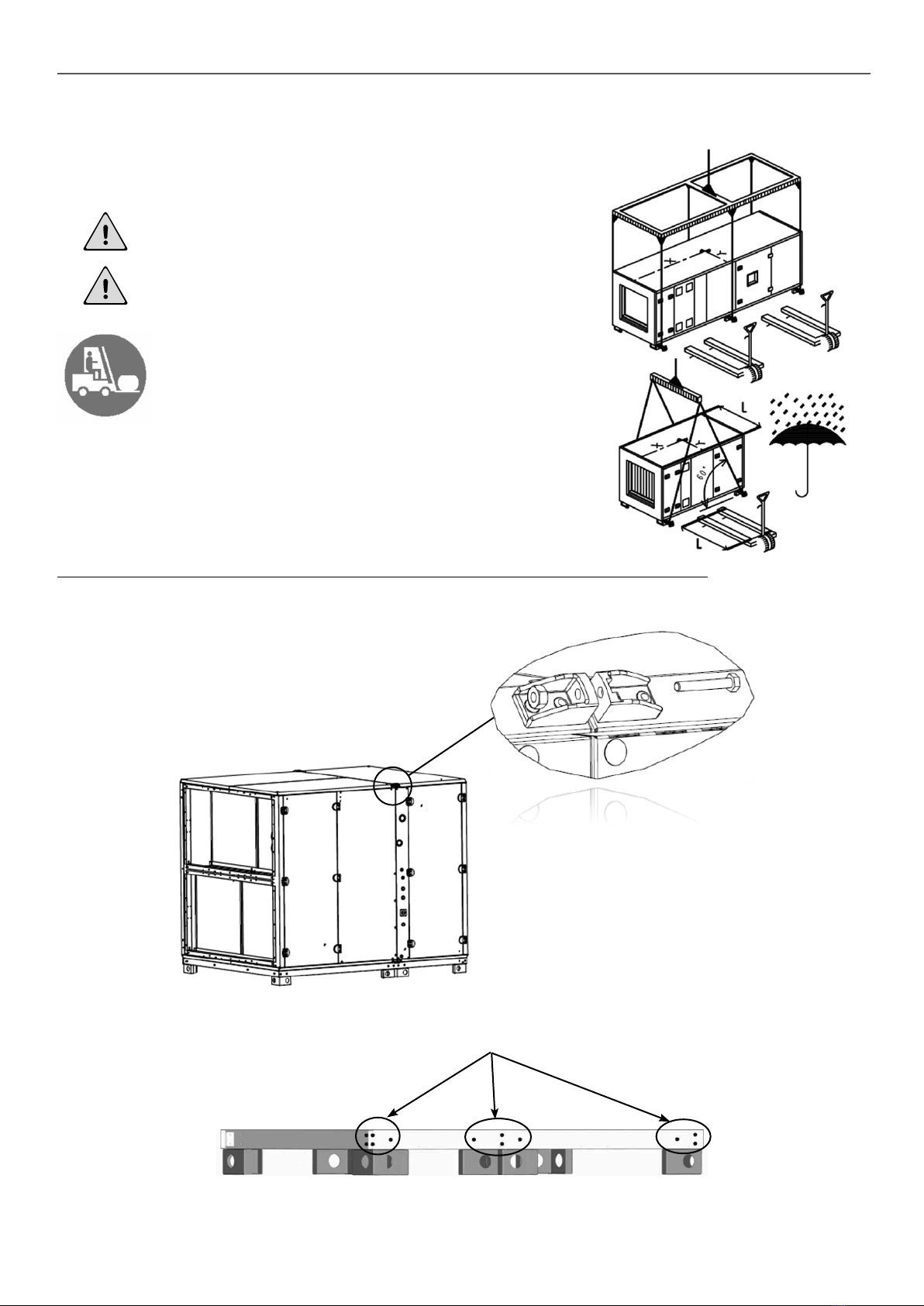

The unit can be handled by slings, lifting beam or stacker.
In all cases, the lifting point has to be at the base of the unit. For packaged units or assembled multi-block units, the centre of gravity
is at the centre of the unit.
This operation will be performed by qualied personnel.
The unit must be handled with care, and only in the horizontal
position. If the unit is handled by a lifting beam + slings, tubes
need to be placed in the holes provided in the support feet.
Ensure that the crane hook adapter is large enough to prevent
the belts applying any pressure to the AHU casing. Furthermore,
ensure that the steel tubes are secured to prevent any movement.
If the above-mentioned lifting methods cannot be used, the unit
may be lifted using a forklift truck, taking great care not to dent
the lower panel (use forks of a su󰀩cient length).
Follow the applicable handling rules.
39HXC, 39HXE and 39HXEZ models

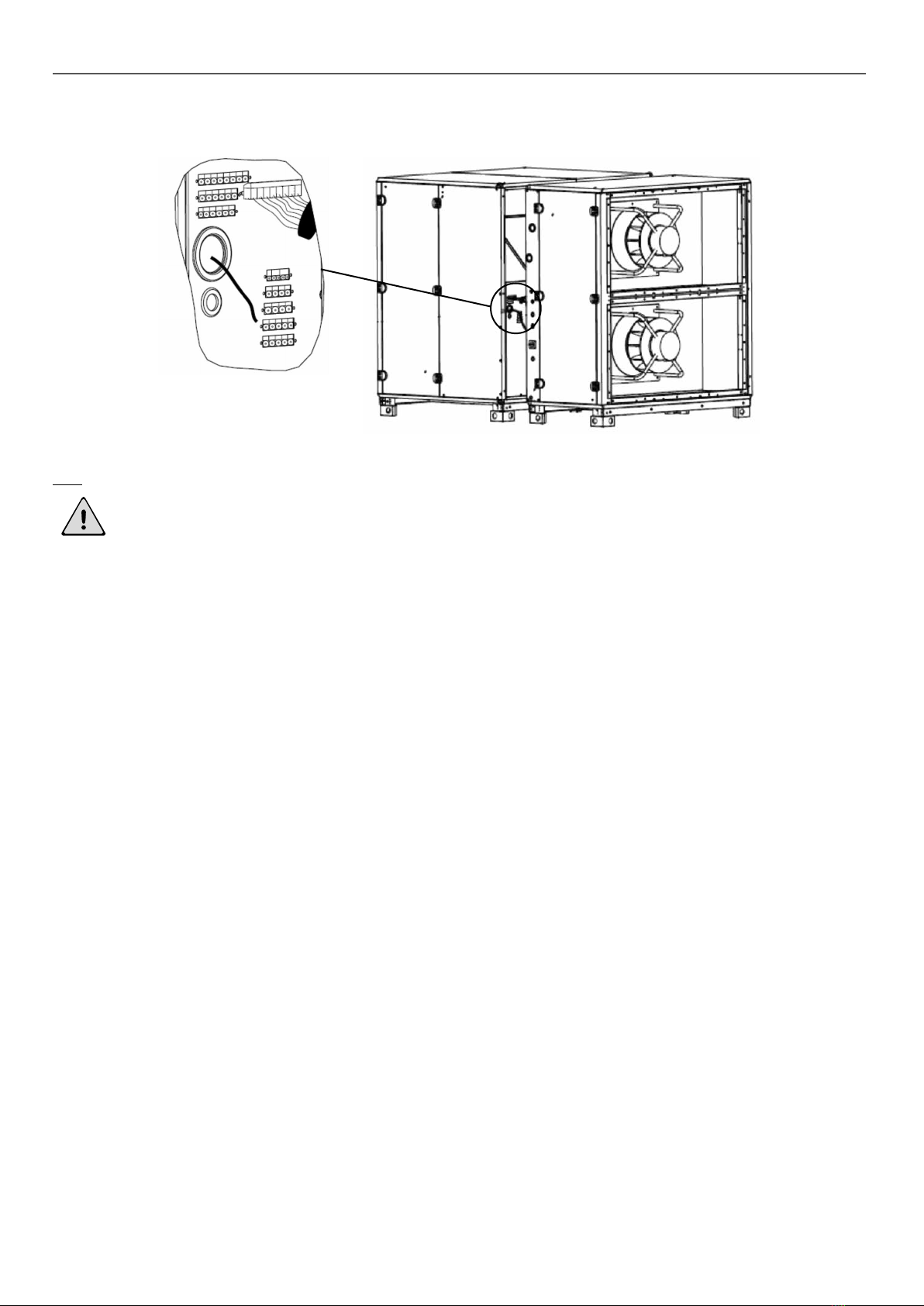

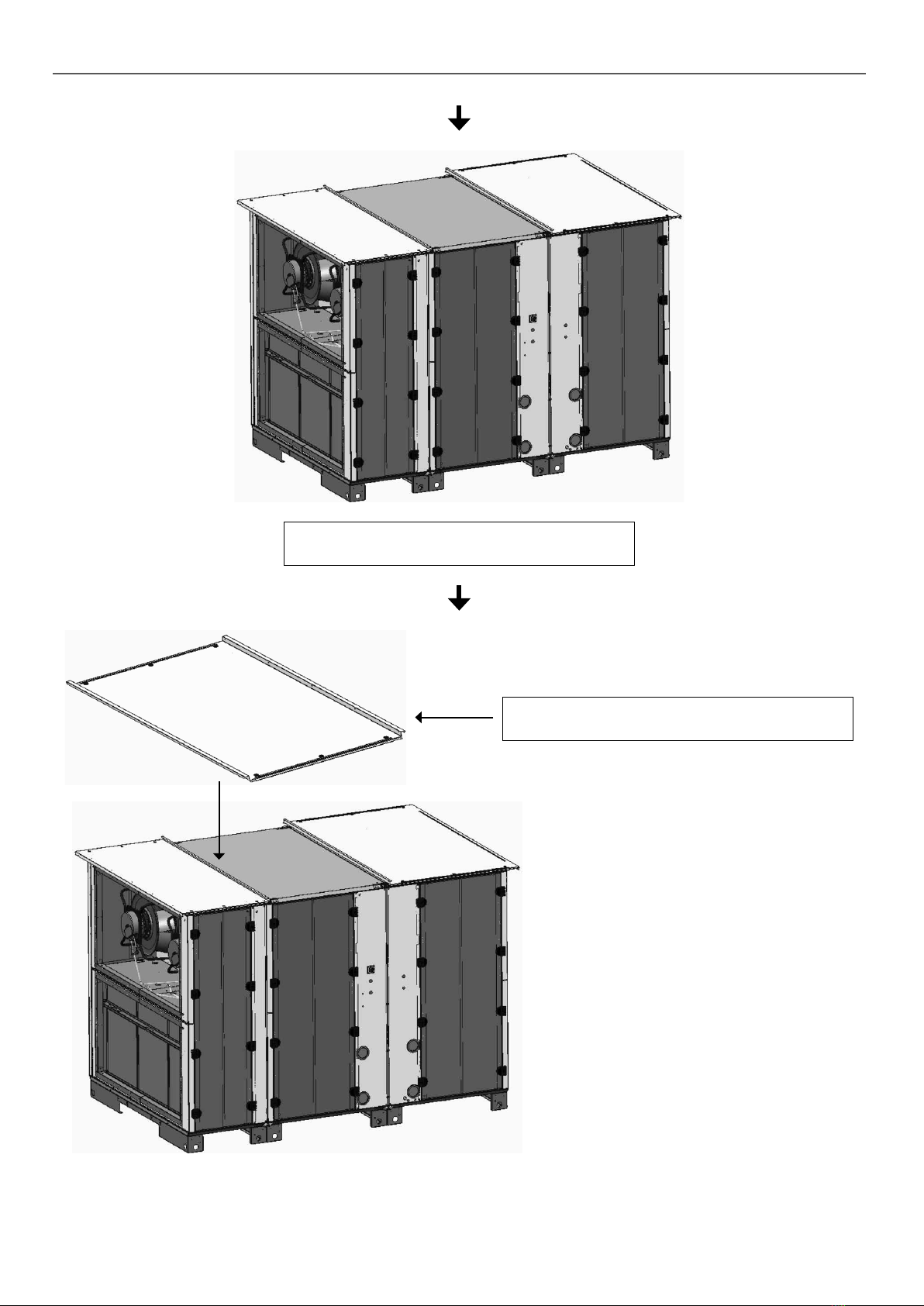

Procedure for uncoupling 39HX multi-blocks or assembling the 2 blocks for the 39HXEZ 100 & 150
1 Remove the 4 nuts and screws
2 Undo the screws on each beam and remove them.
C
5

3 Disconnect the electrical connectors on the control and disconnect switch.
4 You can now separate the blocks.
Note: Follow the procedure in reverse to re-couple the blocks, particularly for the 39HXEZ100 & 150.
When uncoupling the blocks, ensure that the 18X10 PVC gasket located between the blocks remains correctly in place
to guarantee a perfect seal. If necessary, t one.

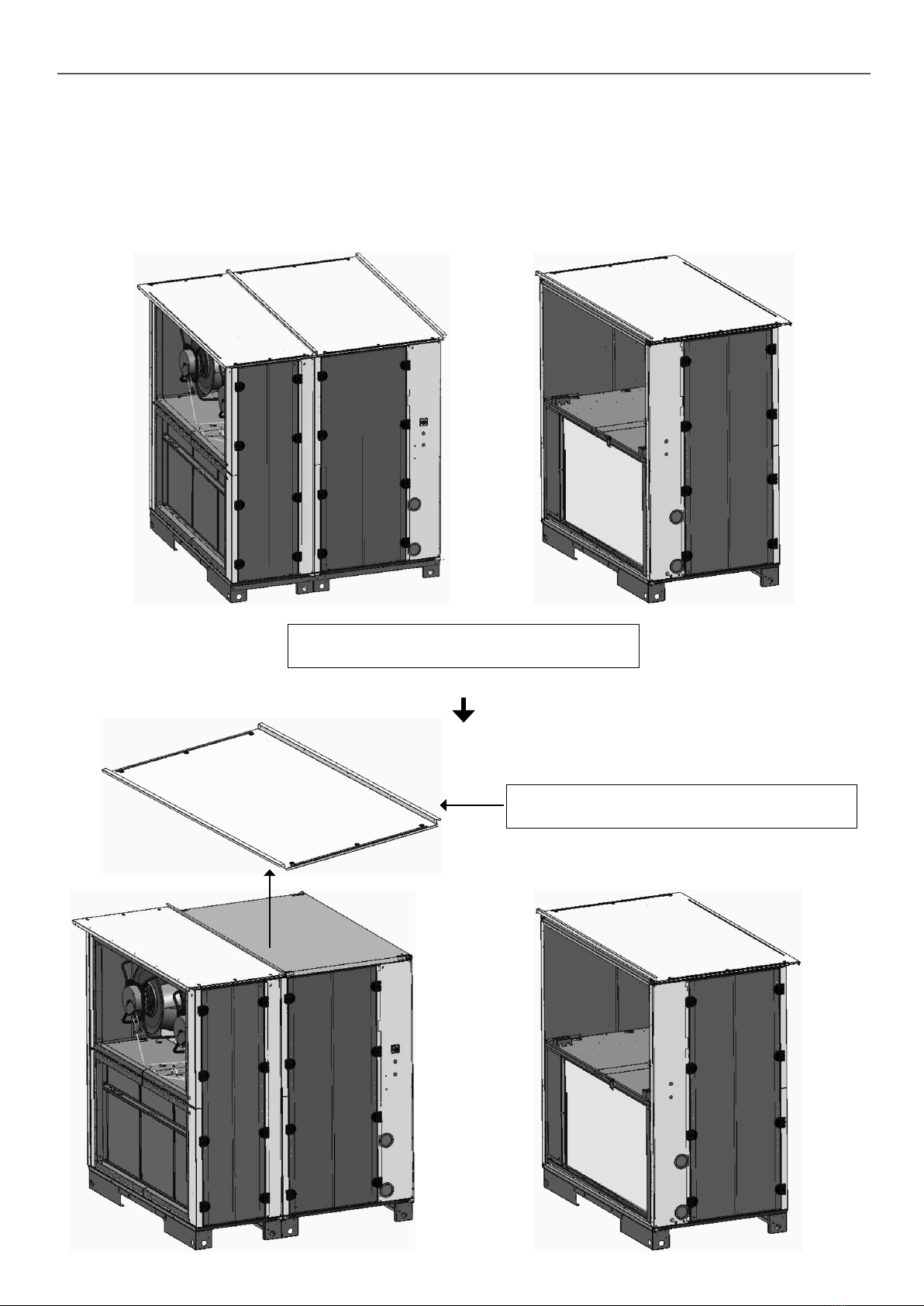

NB: if there is a roof, remove it rst in accordance with the instructions given on the roof tting plan (see technical specications).
39HXC, 39HXE, 39HXEZ and 39HXV models
These models are placed directly on a at, smooth oor. The atness value must be the best possible, around one per thousand.
Under normal conditions of use, there is no need to x the unit to the oor.
The unit's support feet must be standing fully on their contact surface. It is important to allow su󰀩cient service space to facilitate
maintenance operations.
3 - HANDLING
6

4 - DESCRIPTION OF THE UNIT & TECHNICAL CHARACTERISTICS
4.1 - DESCRIPTION OF THE UNIT

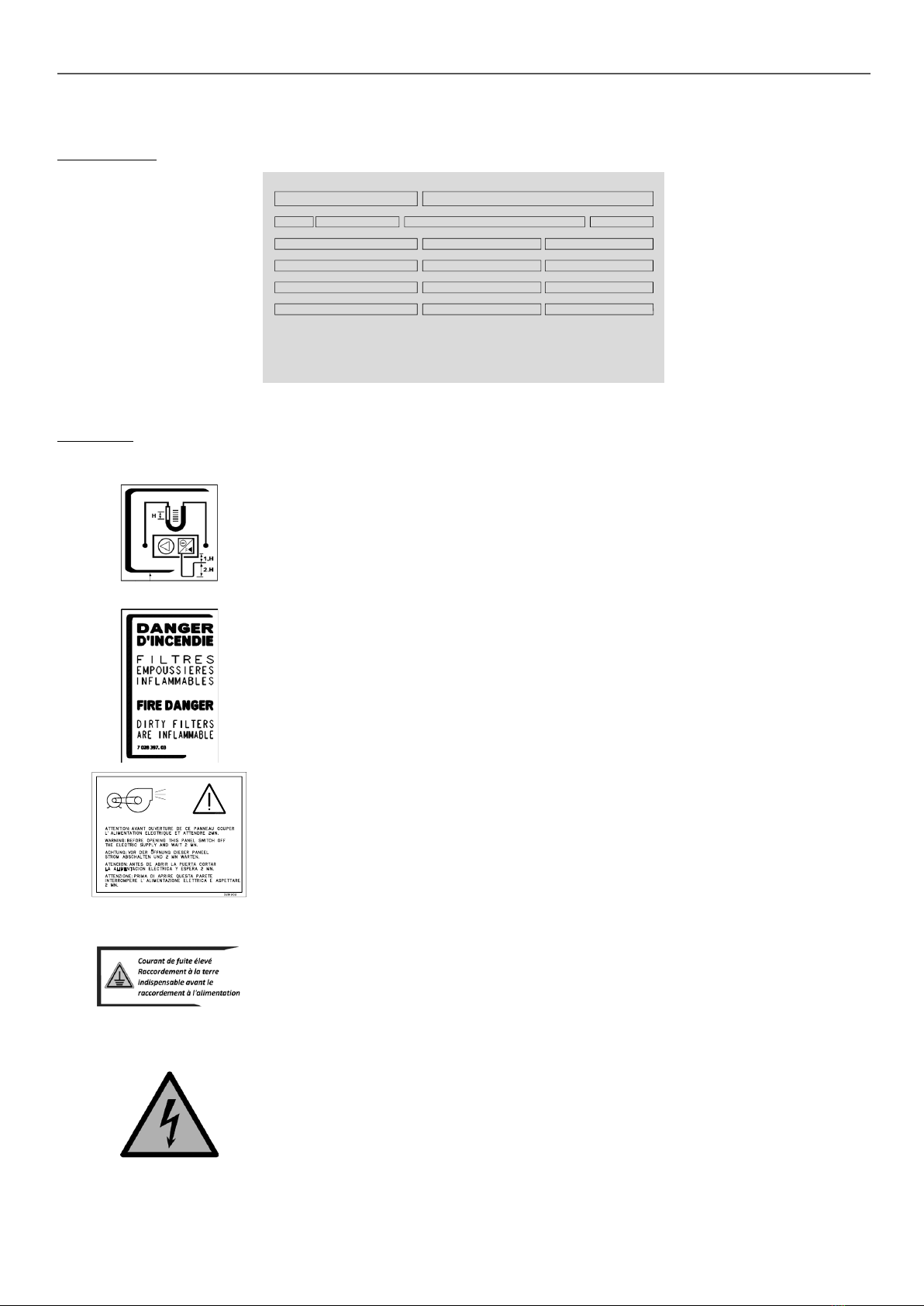

Firm data plate
02380021/0001
7219278.405377
182 KG
0.75 KW
230/400V 50HZ 2P
XXXXXXXXXXXXXXX
CTA 22 FDY
TENSION / VOLTAGE
P.ABSORBEE / INPUT
INTENSITE / CURRENT
POIDS / WEIGHT SERVICE
Réf. Produit / Item Ref.
An / Year N. Serie : Serial Nbr
ELEC. ELEMENT
P.ABSORBEE / INPUT
BATTERIE + / HEAT
REGIME
Désignation / Description
Composant / Composant
BATTERIE FRD
REGIME
FLUIDE / FLUID
N° Déclaration CE
Repère / Part
This is xed on the unit and shows the unit's specications as well as the order number and code.
Pictograms
Condensate drain siphon.
Monitor the cleanliness of the lters
Danger: fan
Grounding compulsory
Danger: electrics box
7

Weights and dimensions tables
39HXE
Size Dimensions (mm) Weight of Unit 1 (kg) +/- 10% Weight of Unit 2 (kg) +/- 10% Total weight* +/- 10% (kg)
Height Length Width
010 958 1360 810 - - 201
020 1158 510 + 800 1010 169 140 309
030 1359 800 + 800 1210 246 186 432
040 1659 800 + 800 1510 327 231 558
050 1659 800 + 800 1510 369 235 604
060 1959 800 + 800 1810 427 275 702
075 1959 800 + 800 1810 473 278 751
100 2090 1100 + 1100 1920 505 450 955
150 2340 1100 + 1200 2192 650 600 1250
39HXEZ
Size Dimensions (mm) Weight of Unit 1 (kg) +/- 10% Weight of Unit 2 (kg) +/- 10% Total weight* +/- 10% (kg)
Height Length Width
010 958 1480 810 - - 273
020 1158 800+800 1010 261 121 382
030 1359 1264+800 1210 403 153 556
040 1659 1264+800 1510 472 182 654
050 1659 1264+800 1510 521 183 704
060 1959 1407+800 1810 541 201 742
075 1959 1407+800 1810 607 204 811
100 2090 1822+1100 1920 763 302 1065
150 2340 1822+1200 2192 913 444 1357
39HXC
Size Dimensions (mm) Weight of Unit 1 (kg) +/- 10% Weight of Unit 2 (kg) +/- 10% Total weight* +/- 10% (kg)
Height Length Width
010 958 1580 810 - - 200
020 1158 1150 + 800 1010 200 150 350
030 1359 1264 + 800 1210 275 190 465
040 1659 1264 + 800 1510 350 230 580
060 1959 1407 + 850 1810 460 305 765
39HXV
Size Dimensions (mm) Weight (kg) +/- 10%
Height Length Width
007 1385 1313 730 202
015 1758 1593 832 330
020 1901 1735 832 389
Additional box
Size of additional casing Correspondence with 39HX
model
Dimensions of the additional
box Weight of the additional box (kg)
139HXC/HXE/HXEZ 010
39HXV 007 589x400x810 49
239HXC/HXE/HXEZ 020
39HXV 015 & 020 689x400x1010 62
339HXC/HXE/HXEZ 030 759x400x1210 68
439HXC/HXE/HXEZ 040 & 050 909x400x1510 88
539HXC/HXE/HXEZ 060 & 075 1059x400x1810 112
The dimensions in the tables above include all the components attached to the casing (hinges, collars, feet).
4 - DESCRIPTION OF THE UNIT & TECHNICAL CHARACTERISTICS
8

4.2 - LOCATION OF COMPONENTS
39HXE
B
G
D
F H
E
I
C
B
E

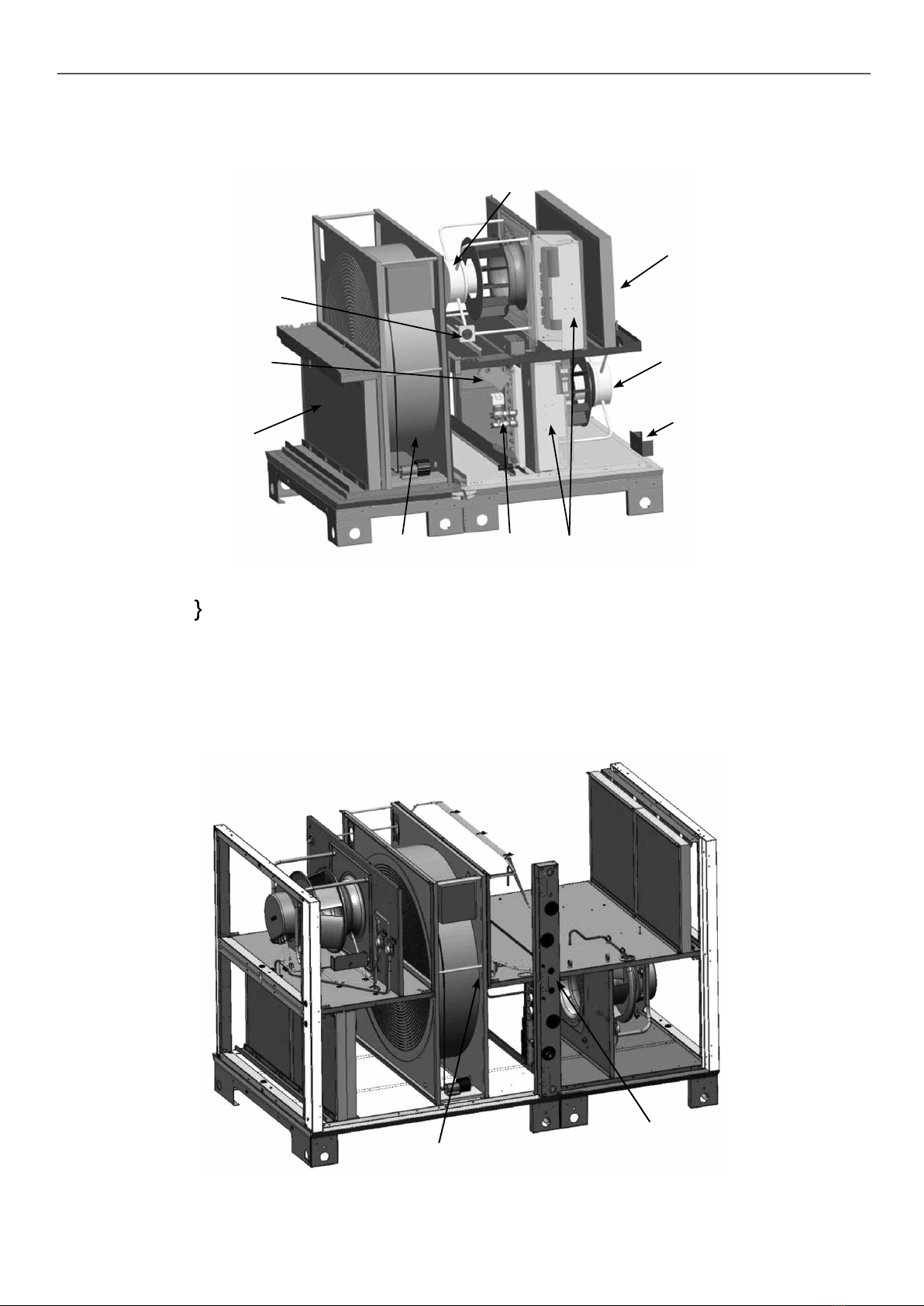

1 Fan motor assembly
2 General switch (on outer casing)
3 Controller electric box
3 Power electric box
4 Filter
5 Rotary heat exchanger
6 39HX Control display
7 Internal coil + valve mounting
8
Mixing option (damper + servomotor)
9 Purge sector on the wheel
10 Pressure connections P22 & P11
39HXEZ
J
K
Depending on the unit configuration
4 - DESCRIPTION OF THE UNIT & TECHNICAL CHARACTERISTICS
9

39HXC
B
C
B
D
E
G
H
H
F
1 Fan motor assembly
2 Plate heat exchanger
3 Drain pan
4 General switch (on outer casing)
5 Electrics box (control and power)
6 Damper
7 Filters
39HXV

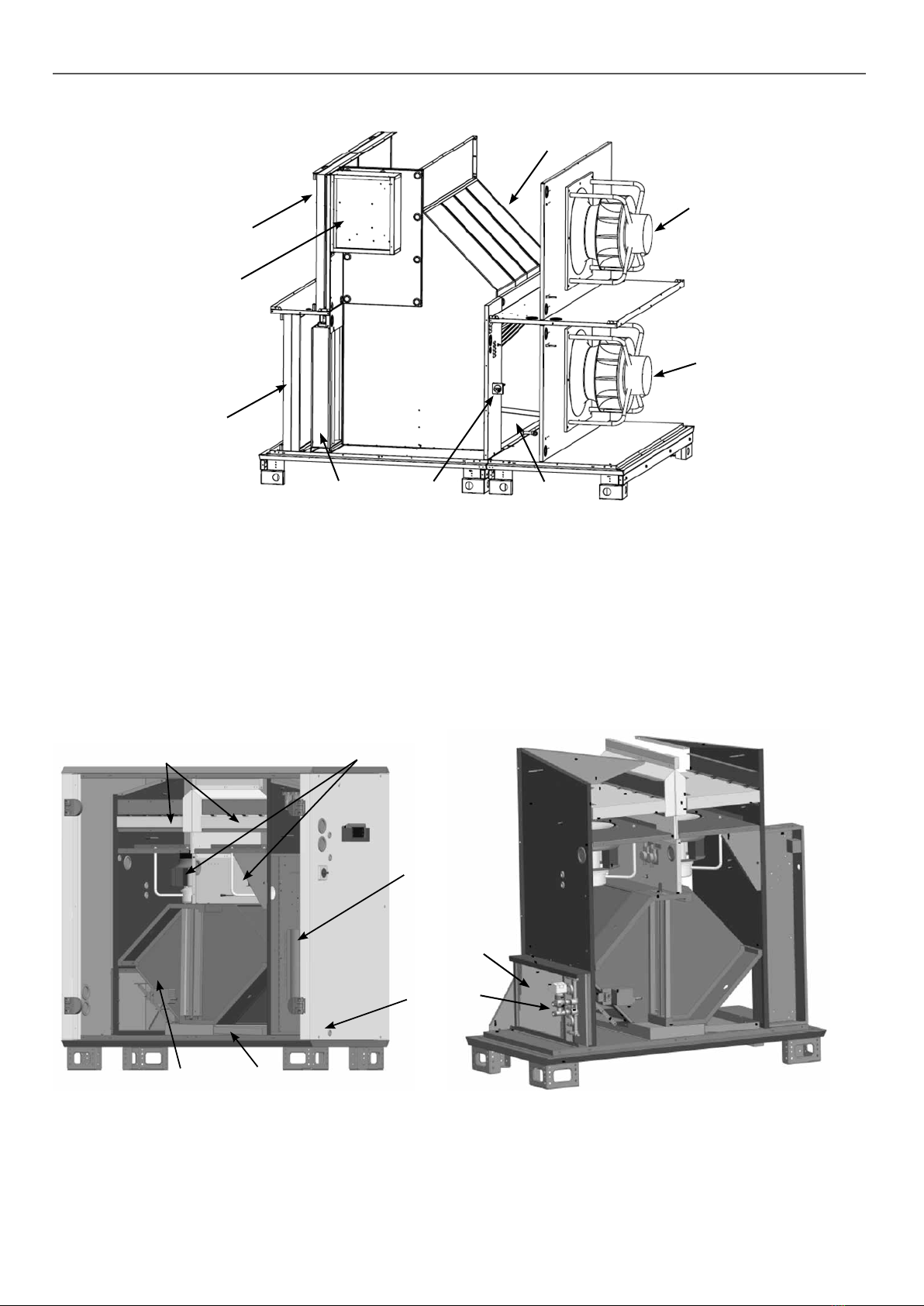

1 Fan motor assemblies
2 Plate heat exchanger
3 Filters
4 Power and controller electric box
5 Condensate drain
6 Condensate drain pan
7 Coil
8 Valve assembly
DB
E
F
G
C
I
H
4 - DESCRIPTION OF THE UNIT & TECHNICAL CHARACTERISTICS
10

Additional coil box
1 Coil
2 Valve assembly
C
B
4.3 - TECHNICAL CHARACTERISTICS
Air ow rates
39HXC
Size 39HXC
Minimum ow rate (m³/h) Nominal ow rate (m³/h) Maximum ow rate (m³/h)
010 300 1000 1200
020 500 2000 2200
030 700 3000 3700
040 900 4500 5100
060 1400 6000 6600
Operating limit temperature: -20°C/+ 60°C with preheating coil
39HXE and 39HXEZ
Size
39HXE and 39HXEZ
Minimum ow rate (m³/h) Nominal ow rate (m³/h) Maximum ow rate (m³/h) Maximum ow rate without
cooling coil (m³/h)
010 300 1000 1200 1450
020 500 2000 2500 2800
030 700 3000 3700 4500
040 900 4500 5700 5700
050 900 5000 5700 7000
060 1400 6000 8500 8500
075 1400 7500 8500 11000
100 2500 10 000 14 000 14000
150 3000 15 000 18 000 18000
Operating limit temperature: -30°C/+ 60°C
39HXV
Size Minimum ow rate (m³/h) Nominal ow rate (m³/h) Maximum ow rate (m³/h)
007 300 700 1200
015 700 1500 2000
020 700 2000 2600
Operating limit temperature: -20°C/+ 60°C with preheating coil
4 - DESCRIPTION OF THE UNIT & TECHNICAL CHARACTERISTICS
11

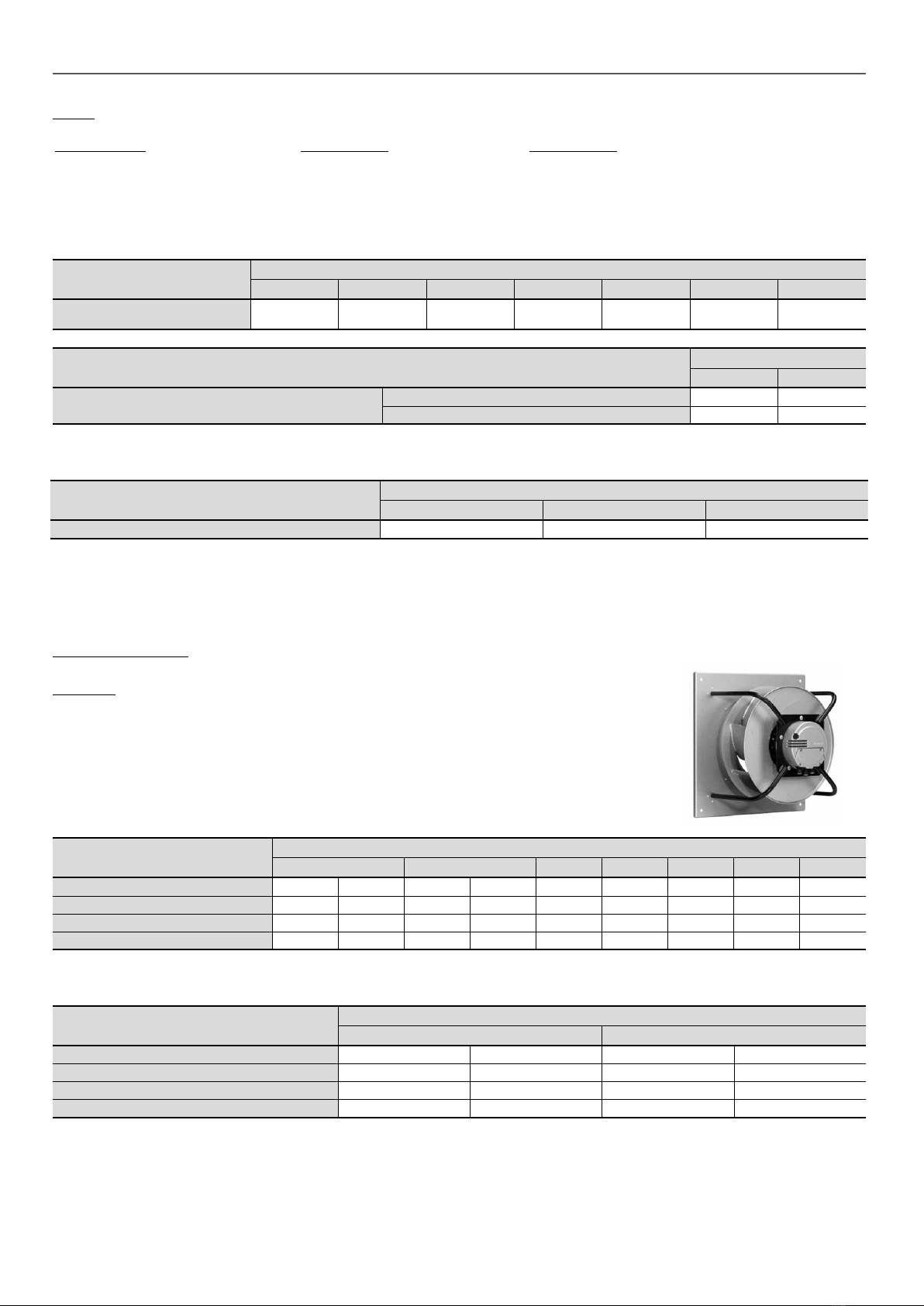

Filters
M5 HEE lter: F7 HEE lter: F9 HEE lter:
Thickness: 48
Fire rating: M1
Thickness: 48
Fire rating: M1
Thickness: 48
Fire rating: M1
39HXC, 39HXE and 39HXEZ lters
Sizes
010 020 030 040 050 * 060 075 *
Filter Dimensions x Number of
cells/air ow
(704x327x48)
x1
(452x435x48)
x2
(552x535x48)
x2
(466x685x48)
x3
(466x685x48)
x3
(566x835x48)
x3
(566x835x48)
x3
Sizes
10 000 * 15 000 *
Universal dimensions 592 x 592 x 48 3 3
287 x 592 x 48 3 4
39HXV lters
Sizes
007 015 020
Filter Dimensions x Number of cells/air ow (330x597x48) x1 (471x697x48) x1 (541x697x48) x1
Dual ltration
When dual-stage ltration is installed, the two stages of cells are installed on the same runner. This assembly is available on the
39HXC, 39HXE, 39HXEZ and 39HXV models.
Fan motor assembly
EC motor
This fan motor assembly is a direct coupling "Plug fan" with rotation speed
adjustment via the hand-held micro-terminal, or by automatic adaptation
to a given setpoint.
The 39HX is equipped with 2 fan motor assemblies (1 at the intake and 1 at the exhaust), and there are 4
fan motor assemblies for sizes 100 & 150 of the 39HXE and 39HXEZ models
39HXC, 39HXE and 39HXEZ
Sizes
010 020 030 040 & 050 060 & 075 100 150
Turbine type 250 (Alu.) 250 (PP) 280 (Alu.) 280 (PP) 355 (Alu.) 400 (Alu.) 450 (Alu.) 450 (Alu.) 500 (Alu.)
Number of fans per AHU 222222244
Nominal capacity (kW) 2x 0.5 2x 0.5 2x 1.04 2x 1.05 2x 1.9 2x 2.5 2x 2.9 4x 2.9 4x 3.8
Rated current (A) 2x 2.2 2x 2.3 2x 1.64 2x 1.6 2x 3 2x 3.8 2x 4.5 4x 4.5 4x 5.9
39HXV
Sizes
007 015 & 020
Turbine type 250 (Alu.) 250 (PP) 280 (Alu.) 280 (PP)
Number of fans per AHU 2222
Nominal capacity (kW) 2x 0.5 2x 0.5 2x 1.04 2x 1.05
Rated current (A) 2x 2.2 2x 2.3 2x 1.64 2x 1.6
4 - DESCRIPTION OF THE UNIT & TECHNICAL CHARACTERISTICS
12

Heat recovery unit
"Contra Flow" plate heat recovery unit (for the 39HXV model)
equipped with a condensate drain pan, a motorised by-pass and controlled
by the 39HX Control.
Rotary heat exchanger (39HXE and 39HXEZ model)
with variable speed, controlled by the 39HX Control.
39HXEZ model: equipped with a purge sector
Options and accessories
Support feet and accessories (39HXV, 39HXC, 39HXE & 39 HXEZ only)
To obtain a greater clearance height, t the adjustable feet (30 to 100 mm) underneath the standard feet.
Reinforcement
plate
Cylinder
100
65,5
150,5
Air ow
4 - DESCRIPTION OF THE UNIT & TECHNICAL CHARACTERISTICS
13

CO2sensor
The CO2 sensor must be positioned on the return air duct, so that it can measure the CO2 level emitted from the part(s) treated.
This sensor is supplied as a spare part and the manual for this is included in its packaging.
Operating principle
CO2sensor
To congure the CO2 level activation threshold, refer to the information on air quality for the town/city in which the AHU is installed.
CO2 concentration scale and the e󰀨ects on humans:
(Our CO2 sensor has an operating range of 0 to 2000 ppm)
CO2concentration E󰀨ect on humans
380 - 480 ppm Normal atmospheric level
600 - 800 ppm Correct level for enclosed spaces
1000 - 1100 ppm Tolerable level for enclosed spaces
5000 ppm Upper limit for 8 hours of exposure
* CO2 sensor (sensor in duct): refer to the attached supplier manual
Duct pressure sensor
The optional constant pressure mode is available in two versions
-Constant pressure on intake: the air intake fan is controlled to maintain the supply air duct pressure. The extraction fan copies
the intake air ow. It is possible to create an o󰀨set between these two ow rates by conguring the M factor between 0.5 and 1.5
(see control manual).
-Constant pressure on both ow rates: each fan is controlled independently according to the pressure of the associated duct
network. The intake and exhaust ow rates are not connected.
Two pressure values can be congured: Nominal pressure and Reduced pressure.
The ducted pressure sensor must be positioned on the duct
network at a distance: D = 2 Dh (hydraulic Ø)
• If the duct is circular, Dh = Ø of the duct
• If the duct is rectangular DH
4 - DESCRIPTION OF THE UNIT & TECHNICAL CHARACTERISTICS
14

To guarantee that the ducted pressure sensor operates correctly, it must be autozeroed before its system is started up.
To do this, power up the sensor, disconnect the tubing from the 2 pressure connections, marking their positions, and press the "Autozero"
button found inside the unit. Ret the two pressure tubes in their respective positions.
This autozero should be checked once a year.
Autozero button
Changeover thermostat for mixed coil
The customer is responsible for installation on the hydraulic system.
The Changeover thermostat installed on the pipe must be integrated into the hydraulic pipe insulation
Technical characteristics
Min. WINTER temperature: 28 °C
Min. SUMMER temperature: 18 °C
Breaking capacity: 5(3) A.
Cable length: 2500 mm
29
Ø 1/2" or 7/8"
21
BLACK wire (winter)
IVORY wire (shared)
BLUE wire (do not use)
Damper
The damper is not protected against the weather if the canopy option has not been selected.
4 - DESCRIPTION OF THE UNIT & TECHNICAL CHARACTERISTICS
15

5 - INSTALLATION AND INSTALLATION CONNECTIONS
The installation of the equipment must comply with the regulations and standards of the recipient country
The additional box must be positioned in the duct so that the temperature sensor is on the downstream side (air supply)
Special recommendations:
• Connections must not place mechanical stresses on the unit.
• Keep all inspection doors closed while the unit is operating
• If tted outdoors (39HXC, 39HXE and 39HXEZ models only), the units must be installed so as to withstand the climate conditions
in the installation location (risk of snow: height from ground/risk of wind: suitable xings, swan-neck type electrical connection
to the unit, etc.).
Flexible sleeve
Ensure all electrical components are earthed.
5.1 - OUTDOOR INSTALLATION (39HXC, 39HXE and 39HXEZ models only)
The installation of a 39HX dual-ow unit outdoors requires a roof and a canopy to be tted; these are usually supplied mounted* and
adapted to suit each conguration.
(* Supplied in kit form if delivery of the elements assembled is not possible)
Fitting the roofs:
The roofs of 39HX units are designed to provide su󰀩cient protection against adverse weather conditions, as they overlap the edge of
the unit by 80 mm.
Fitting procedure:
1 Fix the foam seal along the length of the unit. (50 x 20 foam seal).
2 Fix the roof panel(s) along the entire length of the unit.
50x20 foam gasket bonded for roof
curvature
3 Assemble the roof on the unit as per the following diagram
Ø 4.8 self-drilling screw
Roof
Side rail
Ø 22.2 blanking cover
Ø 4.8 sealed rivet or Ø 4.2 self-
drilling screw + sealed washer
16

5.2 - 39 HXEZ 100 and 150: PROCEDURE FOR ROOF ASSEMBLY
■ The 39HXEZ 100 & 150 are delivered in two blocks: a Wheel Block & an FMA Block, with a roof attached to each block
■ Procedure for assembling the roof
1. Remove the roof from the Wheel block (retaining the screw and cap)
2. Assemble the blocks
3. Reposition the roof from the Wheel Block, taking care to ensure the roofs interleave correctly
4. Secure the roof to the block
Delivery of two separate blocks: WHEEL Block + FMA Block
Removal of the WHEEL Block roof
5 - INSTALLATION AND INSTALLATION CONNECTIONS
17

Removal of the WHEEL Block roof
Retting of the WHEEL Block roof
5 - INSTALLATION AND INSTALLATION CONNECTIONS
18

Assembly of the two Blocks with their roofs
5 - INSTALLATION AND INSTALLATION CONNECTIONS
19

Assembling the canopy:
The upper panel will be assembled on the two side panels using screws, washers and nuts or sealed rivets. Also t the protective screen
during assembly, either on the damper or on the panel, as applicable (see illustrations)
Sealed rivet
Canopy without damperCanopy with damper
Screen
Screen
11 20
20 11
N x E
A
D
M x F
Ø 6
Screen
39HXE and 39HXEZ A B C C2 D N x E M x F Weight (kg)
010 687 274 329.5 311 650 2X135 - 2,5
020 787 304 429 411 750,5 2X185 - 3,4
030 1189 358 580 562 1152 2X260 3X340 5,4
040 / 050 1489 390 670 652 1452 2X305 6X220 7
060 / 075 / 100 1789 528 860 842 1752 2X400 5X324 12,2
150 2050 428 870 851 2013 2X400 6X324 10
5 - INSTALLATION AND INSTALLATION CONNECTIONS
20
