Carrier 30AWH-025QI User manual

P/N : 60WHD025-540020
Hydro Unit(Indoor Unit)
30AWH-025QI
Outdoor Unit
30AWH-025QO
| Inverter Hybrid Boiler |
(Original instruction)
Installation
Manual
Please read carefully before installation to ensure that
installation is performed correctly.
This manual can be downloaded from the website.
http://www.carrier.co.kr/support/aircon_manual.asp
Installation
Manual

Carrier's 110 years innovation and
inverter technology provides the
following advantages.
Features of Product
The dual inverter cascade compression technology provides high efciency
solution and reduces energy consumption significantly compared to
convertional fossil fuel and heater boilers.
│ │
Dual inverter
cascade
ECO friendly R410A and R134a refrigerants are used in the cascade
system.
│ │
ECO Green
system
It is possible to produce stable hot water up to 80℃ at -15℃
ambient temperature and possible to produce hot water up to 80℃
at -20℃ ambient temperature.
│ │
Applicable in
extremely cold
climate
The operation, setting control and operation monitoring can be managed
by a smart phone (Android).
│ │
Smart remote
control (optional)
Both of inverter compressors in outdoor unit and a hydro unit are self
controlled inaccordance with ambient temperature and ow temperature.
│ │
Intelligent energy
saving operation
In case of malfunction, the self-diagnosis function displays error
messages on the wired remote controller.
│ │
Self-diagnosis
function
Repeat hours, quiet mode, outing mode are adopted for user
convenience.
│ │
Improved convenient
operation
Carrier's advanced energy saving inverter technology always
ensures a comfortable indoor environment.
│ │
Inverter control
operation
Compact split system using high efficiency brazed plate heat
exchanger requires minimized space and provides easy installation
and maintenance
│ │
Requires minimum
installation area
The built-in cooling fan in the indoor unit enables quiet operation.
│ │
Built-in cooling fan
External output contact(s) is available as an option, if a
connection with an external device is necessary.
│ │
Provides external
output contacts
(optional)

Table of Contents
Installation Guide
Safety precautions ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Names of parts ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Scope of operation ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Troubleshooting and checklist ‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Checklist prior to installation ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Selection of installation Place ‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Precautions during transportation ‥‥‥‥‥‥‥‥‥‥‥‥‥
Installation of indoor/outdoor unit ‥‥‥‥‥‥‥‥‥‥‥‥‥
Water piping connection ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Refrigerant piping connection ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Flaring and fastening ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Evacuating and gas teak test ‥‥‥‥‥‥‥‥‥‥‥‥
Specifications of indoor / outdoor unit / piping connection /
Refrigerant charging ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Wiring connection ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Error codes / Checklist prior to test operation‥‥‥‥‥‥
Test operation after installation‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Refrigerant Recovery Operation ‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Maintenance of brazed plate heat exchanger ‥‥‥‥‥‥‥‥
Control of water quality ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Other precautions and disposal of waste electronics ‥‥‥‥‥‥
2
12
14
15
16
18
23
24
25
29
32
34
35
37
41
42
45
46
48
49
Operating Method
Things You Must
Be Aware of
Wait!! This product uses 3-phase, 400V 50Hz electricity.
You must furnish a separate power supply if 400V
electricity is not available. This appliance can be used by
children aged from 8 years and above and persons with
reduced physical, sensory Or mental capabilities or lack
of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without
supervision.

Inverter Hybrid Boiler
2
Safety Precautions
-These instructions are intended to prevent damages resulting from unexpected
accidents by ensuring the operation of the equipment in a safe and correct manner.
So, please observe the instructions.
Explanation of illustrated marks
This symbol indicates the mandatory obligations or requirements. The thing
that is mandatory is specied in the symbol using a picture or phrase.
Mandatory
This symbol indicates prohibition. The thing that is prohibited is specied
in the symbol using a picture or phrase.
Prohibited
This symbol indicates caution. The thing that must be paid attention to is
specied in the symbol using a picture or phrase.
Caution
Failure to observe this notice may cause injury or damage to property
Caution
Failure to observe this notice may cause death or serious injury.
Warning
When performing installation
You must use correctly rated
breaker or fuse.(non-installation
may cause an electric shock)
Grounding work is mandatory.
However, do not use a gas pipe, water
pipe or a telephone line for grounding.
(Improper grounding work may cause
a failure or electric shock.)
Mandatory
Warning
Mandatory
Caution : Expenses incurred in relation to circuit breaker
work will be charged to the user, as such expenses are
not included in the basic installation expenses.
You MUST
install it.
Circuit breaker
Explanation of illustrated marks

Installation Manual
3

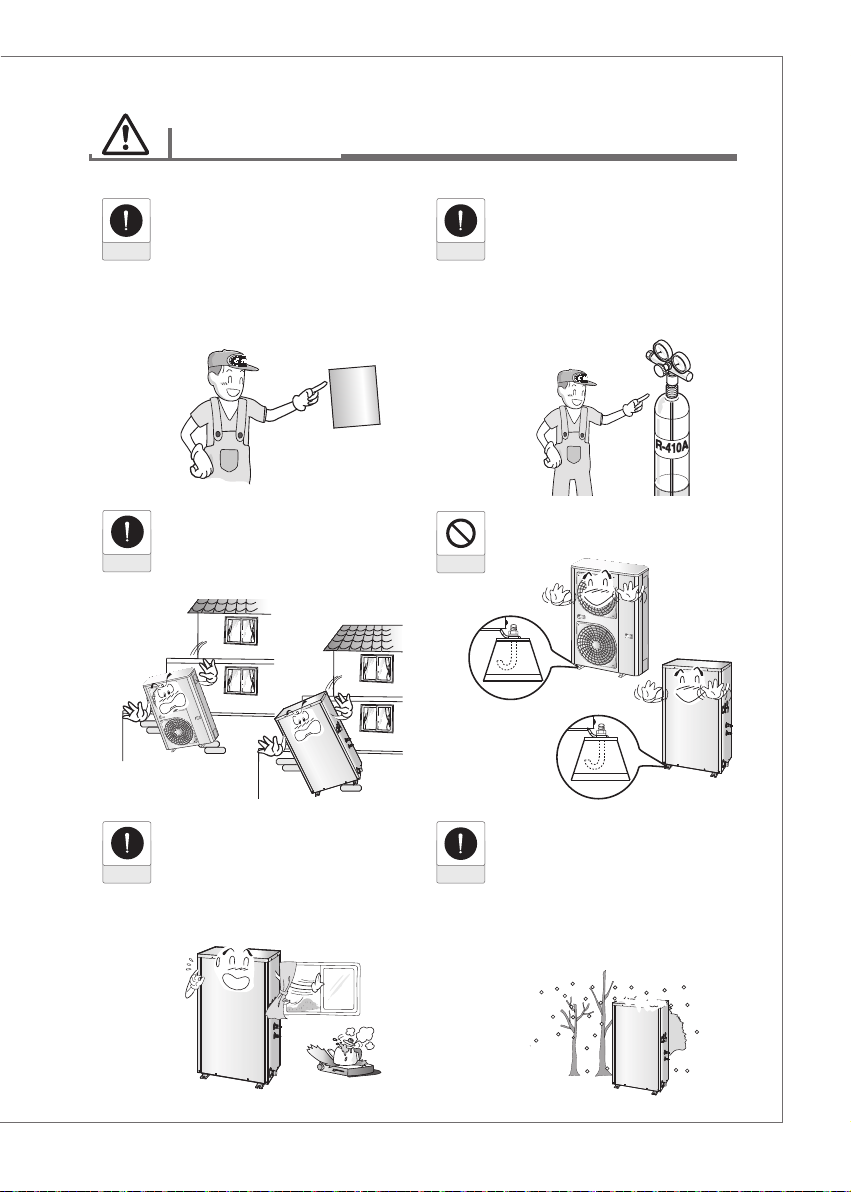

Warning
Do not reinstall or modify a xed
safety device.
Prohibited
Ventilate the indoor room in case of gas
leakage during installation or relocation.
(Toxic gas is generated when the leaked refrigerant
gas reacts to re, which may cause an accident.)
You must install the indoor unit in an
indoor place in which the temperature
does not go below 0℃. (Exposure to snow,
rain or a temperature below 0℃ may cause moisture
generation or freezing inside the product, which may
result in damages to the product space. An indoor
place in which the temperature stays in a range from
15 to 25℃ is the optimal place for installation.)
Installation
Electrical work should be performed by
a qualified technician in accordance with
the instructions specied in this installation
guide. In addition, a designated circuit
diagram should be used. (Inappropriate power
cable and/or faulty electrical work may cause a re or
electric shock.)
Fix the product firmly on the groud
oor in preparation for a strong wind or
earthquake. (may cause death, injury or
property damages)
Mandatory
Mandatory
A designated amount of refrigerant should
be charged in the product in the event of
installation or relocation. (Overcharging or use
of a mixture with other refrigerant except specified
refrigerant can cause abnormality in the refrigerant
cycle, which may lead to a re or explosion.)
MandatoryMandatory
Mandatory
MANUAL

Inverter Hybrid Boiler
4
Caution: Extra installation and
relocation fees and expenses are
charged to the customer.
Mandatory
Mandatory
ProhibitedProhibited
Prohibited
Prohibited
Do not modify or extend the power
cable in the middle. (may cause an
explosion or re)
Do not install the outdoor unit on a
moving base or a place where it can
fall down. (The outdoor unit may fall down
to the ground and may cause damages to
individuals or to property. In addition, an outdoor
unit that has fallen down may not be repairable.)
Do not install the product in a place
that is exposed to direct sunlight or
moisture
Do not install the product near
any fire sources or in a potential
ammable gas leakage area. (Gas
that has leaked and accumulated around
the product may cause an explosion or re.)
Installation should only be performed
by a qualied professional installation
agency. (may cause a failure, electric shock,
re or leakage.)
In an area with a pedestrian path,
connect the drain hose to the
drainage (The condensate can freeze,
which may disturb with the passage)
Gas
leakage
Warning
Installation
Safety Precautions

Installation Manual
5
Do not install the product in a place
that is too close to a heat source.
(may cause damage to the product)
Prohibited
Do not allow the wire connection
to be loosely fastened.
Prohibited
Make sure the product is level
when installing it. (Imbalance
may cause vibration and
leakage)
Mandatory
Leveling
off
Leveling
off
Install the product in a place
that can withstand the load
of the product. (may cause
vibration and/or leakage)
Mandatory
Warning
Installation
ProhibitedProhibited
Avoid excessive turning or
bending of the piping connection
, as well as excessive height
and/or distance gap.
Avoid excessive bending of
piping connection or drain hose

Inverter Hybrid Boiler
6
Do not
disassemble
Do not allow dust to come into the
end of the pipe or expose the pipe to
moisture before connection work.
Do not disconnect the refrigerant
connection after installation.
This may cause refrigerant leakage.
Prohibited
Prohibited
Prohibited
Do not install the product in a place
in which the air outlet of the indoor/
outdoor unit faces the wind.
Do not install the outdoor units
too close each other in parallel.
Warning
Installation
ProhibitedProhibited
Partial insulation of the piping
connection should be avoided.
Poor insulation may cause
condensate to fall on pedestrians.
Do not allow the air inlet and outlet
of the indoor/outdoor unit to become
blocked by an obstacle.
Do not install the product on a soft
ground floor or on ground with weeds.
Even
ground
Even
ground
Air inlet
Air outlet
Safety Precautions

Installation Manual
7
Mandatory
Do not install the outdoor unit in a
place where air discharged from the
outdoor unit may disturb pedestrians.
(When installing on the road, install the outdoor
unit at a height of 2m or higher.)
2m or higher
Install the product in a well-ventilated
location with no obstacles, in which
the noise generated from the product
does not affect your neighbors.
Mandatory
Warning
Installation
Caution : Use a dedicated power supply.
Mandatory Mandatory
Power supply to the product should
be a dedicated circuit at a correct
voltage.
(Supplying power to the outdoor unit through
a separate power cable branching off from the
terminal block of the indoor unit and connection
to a different voltage from the rated voltage may
cause a failure and re.)
Use a circuit breaker and fuse with
the specied capacity.
(Use of an inappropriate circuit breaker or fuse
or use of a steel or copper wire may cause a
failure of the product or re.)
Rated
capacity

Inverter Hybrid Boiler
8
Caution
Installation
Provide for sufcient protection devices against electrical noise when installing
the product in a hospital or communication base station.
(Inverter equipment, personal generator, high frequency medical equipment, and electronic
communication equipment may cause abnormalities or failures to the product.
On the other hand, the product may adversely affect medical equipment or broadcasting equipment, as
it generates disturbance noises.)
Mandatory
Take appropriate action to prevent
children from touching the product or
inserting a tool into the product.
(may cause damage to the child or the product)
Prohibited

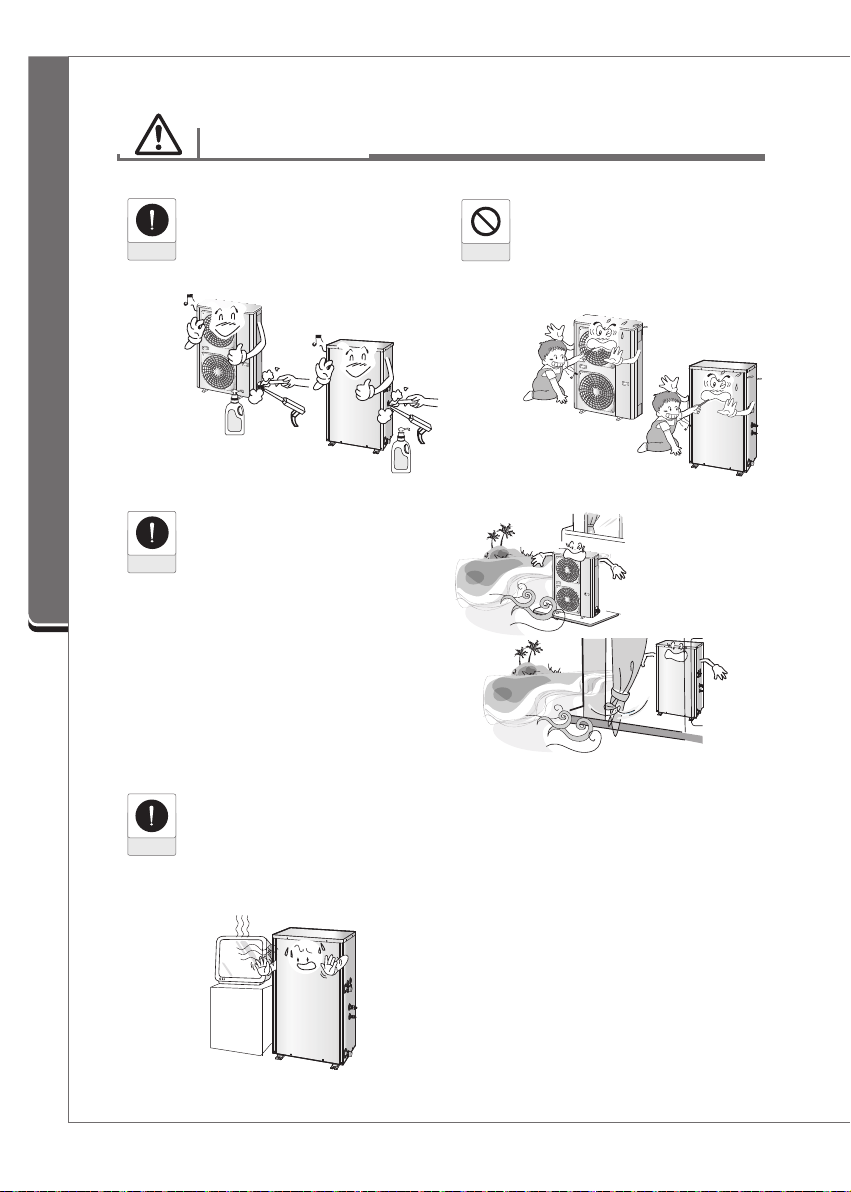

Do not install the product where it will be
exposed to sea wind directly.
(Salinity may cause corrosion or failure.)
Check gas leakage after installation,
relocation or repair of the product.
(may cause a failure)
Mandatory
Mandatory
비
누
물
비
누
물
Safety Precautions

Installation Manual
9
Precautions for installation of domestic hot water tank
Warning
Installation
Mandatory
Check leakage of the tank itself before installation if existing tank is used.
Be careful not to let your body touch the heating pipe directly.
(It may cause a burn.)
An expansion tank with insufcient capacity may provide poor heating performance.
The structure should be able to withstand the tank load when installing the boiler.
(including the load of water in the tank)
The domestic hot water tank should be level.
Piping should be arranged horizontal or vertical simply and accurately.
Do not allow foreign substances to enter the domestic hot water tank
Do not use eye bolts for transportation as materials for piping connection.
Clean the pipes before starting the plumbing work.
Make sure the sizes of the hot water suppy and return piping are identical.
If the room to be heated is located higher than the domestic hot water tank, use
a circulation pump with a check valve or a lifting check valve to prevent natural
convection.
As the maximum use pressure of the domestic hot water tank is 1kgf/㎠, the
expansin tank may be installed at elevations up to 10m.
Insulation should be applied to all exposed pipes to prevent freezing and bursting and heat loss.
(Without heat retaining treatment, damages to the insulation, electric short or freezing and
bursting may occur by dew condensation, which may result in human or property damages.)
Mandatory
Mandatory
Mandatory
Mandatory
Mandatory
Mandatory
Mandatory
Mandatory
Mandatory
Mandatory
Mandatory
Mandatory

Inverter Hybrid Boiler
10
Precautions for installation of domestic hot water tank
Warning
Installation
Make sure there is no leakage on piping or overow from the expansion tank.
(Pipe leakage or overow of expansion tank may cause the supply of dissolved
oxygen, which will accelerate the corrosion of pipe.)
Relling water in the domestic hot water tank should be carried out through the
expansion tank.
You must put anticorrosive agent to prevent the corrosion of domestic hot water
tank and pipes.
Make sure the domestic hot water tank is grounded.
Use a professional service provider when disposing of the boiler after replacement.
(Illegal or arbitrary disposal may cause safety accidents, injuring the elderly or
children)
You must install a water softener when using groundwater with minerals, such
as limestone or calcium, or when using saline water near the beach.
(Failure to do so may cause or accelerate a corrosion of the product or its parts.)
Mandatory
Mandatory
Mandatory
Mandatory
Mandatory
Mandatory
Safety Precautions

Installation Manual
11
Warning
Warning
Installation
When installing a remote controller
When using anticorrosive agent, please observe the following:
How to use anticorrosive agent
①Do not mix with oxidizing agent.
②Keep away from heat, flame, spark or other ignition sources.
③A person who is not aware of the hazardousness of anticorrosive agent must not
handle or distribute anticorrosive agent.
④Keep out of reach of children or the elderly.
⑤Do not use the empty container of anticorrosive agent for other purposes.
⑥ Dispose of or return the empty container or vessel of anticorrosive agent to your
nearest dealer.
⑦Rinse the empty container 3 times or more with water.
⑧Be careful not to inhale, consume or allow your eyes or body to come into contact with
anticorrosive agent as it has hazardous and dangerous characteristics as specified in
the Article 41 of the Industrial Safety and Health Act.
①After installing the boiler, shake and fill the anticorrosive agent into the boiler before
filling water.
②Rinse the anticorrosive agent container with water.
③The use life of anticorrosive agent is 1 year (refill it once a year).
④Fill anticorrosive agent after installing the domestic hot water tank. When refilling
anticorrosive agent, close the water supply valve and open the drainage valve to
discharge the water in the tank, fill anticorrosive agent and then open the water supply
valve to fill with water.
①You must call the authorized service center or a professional installation agency for
installation.
- Poor installation may cause a fire, electric shock, explosion or damage.
②Contact the authorized service center or a professional installation agency to reinstall
the installed product.
- Poor installation may cause a fire, electric shock, explosion or damage.
③Do not disassemble, repair or modify the product arbitrarily.
- This may cause a fire or electric shock.

Inverter Hybrid Boiler
12
Names of parts
Outdoor unit
Indoor Unit
Air inlet
Electrical part casing cover
Air outlet
Refrigerant pipe connection
(gas pipe: ø15.8, liquid pipe : ø9.5)
Communication cable
Power cable
Water outlet pipe (25A)
Refrigerant pipe connection (gas pipe: ø15.8)
Refrigerant pipe connection (liquid pipe : ø9.5)
Water inlet pipe (25A)

Installation Manual
13
Domestic hot water tank
1
2
3
Domestic hot water tank
● The domestic hot water tank stores thermal heat generated by heat pump.
Expansion tank
● The expansion tank is a device that absorbs the volume expansion of water
consistent with the increase of water temperature.
● Valves should not be used when installing an expansion tank, and insulation
should be provided to prevent freezing and bursting.
Freeze and burst protection
● When the flow temperature goes below 6℃, the circulation pump (heating
pump, domestic hot water pump) is automatically activated and circulates
water in the piping to prevent damage to the boiler caused by freezing.
Water return pipe
Hot water return
Water supply pipe
Domestic hot water tank temperature
sensor, low water level sensor
Hot water supply
Pressure relief pipe
Expansion tank

Inverter Hybrid Boiler
14
Scope of operation
Scope of operation
1
4
3
2
5
6
7
Scope of operation
①The temperature range within which normal operation of the product can be ensured
is as follows:
Ambient temperature of the outdoor unit: -20
℃
~ 40
℃
Ambient temperature of the hydro unit 5
℃
~ 40
℃
environment out of the temperature limits for a long time, the system may detect an
error and stop operation.
Time delay
● When restarting the system, the compressor starts 3 minutes after the power is restored.
(however, the time delay is 5 minutes in the event of a shutdown through self diagnosis)
Heating features
● A warm-up time is required prior to the start of heating operation when the outdoor
temperature is 10℃or below.
● The heating performance may be deteriorated if the outdoor temperature is very low.
We recommend that you use an auxiliary heating source if the room temperature is
insufficient in the winter season.
Defrost operation
● If the heat exchanger of outdoor unit becomes frosted during the heating operation,
the fan of outdoor unit will stop while defrosting heat exchanger of outdoor unit.
● When the heat exchanger is completely defrosted, the heating operation is put back
on track automatically.
Power outage recovery function
● When the power is cut during operation, the product recalls the most recent operating
conditions and automatically applies these when the power is restored.
Normal operation
● You can hear the sound of refrigerant flowing in the product when the product is in
operation or stops operation.
● The outdoor unit fan may not operate during the heating operation, which may be
observed in the defrost mode.
Minimum operating time
● It takes 7 minutes for the compressor to stop its operation once it is activated in a
normal condition.

15
Installation Manual
Troubleshooting and how to maintain
Reference
①The items marked should be cleaned and checked by a trained installer
in accordance with the installation manual.
Troubleshooting
Periodic Checklist
What to check
Annually Every 6 months
Indoor Unit Outdoor Unit Domestic Hot
Water Tank Indoor Unit
Surface cleaning of the outdoor unit
●
Cleaning of the BPHE on the water side in the indoor unit ①
●
Removal of dust on electric parts using compressed air ①
●●●
Fastening status of electric wire connections ①
●●●
Cleaning of outdoor fan ①
●●●
Fastening status between the outdoor fan and the motor ①
●●●
Cleaning of the strainer on the water inlet side ①
● ●
Water ow rate ①
●
Leakage on the water pipe and thermal storage tank
connections
● ●
Water quality ①
●
Relling of anticorrosive agent ①
●
Case What to check Handling
When the product
does not work
● Is the circuit breaker activated, or the fuse out? ● Check the circuit breaker or replace the fuse.
● Are you experiencing a blackout situation? ● Start the product when the power is restored.
● Has an "Er" sign on the room temperature
display, or "##" sign on the domestic hot water
tank display been displayed for more than 1
hour?
● Contact the authorized service center.
● Is the voltage too low? ● Check the voltage specications.
When the heating is
insufcient
● Is the temperature set appropriately? ● Adjust settings again where necessary.
● Is there any window or door that is open? ● Close the window or door.
● Is the outdoor unit blocked or clogged? ● Remove obstacles.
When the product
stops during
operation
● Has an "Er" sign on the room temperature
display, or "##" sign on the domestic hot water
tank display been displayed for more than 1
hour?
● Contact the authorized service center.
※If your problem persists even after you have taken action in accordance with the aforementioned instructions,
please contact your dealer or authorized service center.
※ Carrier's products feature state-of-the-art AI (artificial intelligence). In the event of an error in the product, the “Er” or “##” sign
appears repeatedly on the temperature display, and the product performs self-diagnosis and restarts automatically. If the
error code is displayed continuously for more than 1 hour, please contact the authorized service center.

Inverter Hybrid Boiler
16
Checklist prior to installation

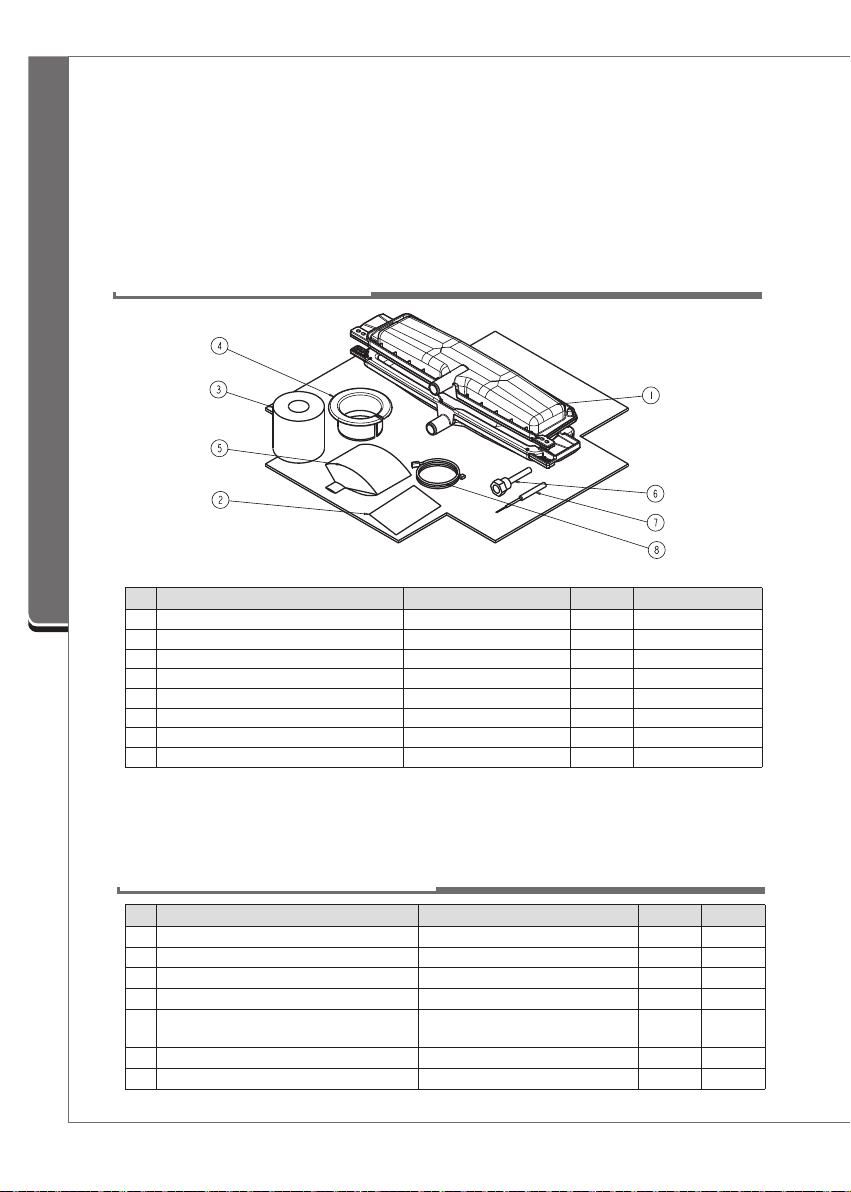

Installation kits materials
NO Component name Specications Quantity Remarks
1 Drain Pan PP 2
2 Drain Pan installation Manual PAPER 1
3 Finishing tape PVC FILMa, 30M IVORY 1
4Pipe nishing materials CN25 1
5 Other materials SCREW, GROMMET 1
6Domestic hot water tank temperature sensor well WELL, PT1/2 1
7Domestic hot water tank temperature sensor 10Kohm, L200 1
8 Connector for error output 12PIN, L300 1
Installation materials (optional)
NO Component name Specications Quantity Remarks
1Refrigerant connection pipe OD 9.52mm X 10m 1liquid pipe
2Refrigerant connection pipe OD 15.8mm X 10m 1gas pipe
3Insulator for refrigerant pipes ID 14 X T7 X 5m 2
4Insulator for refrigerant pipes ID 14 X T7 X 5m 2
5Indoor/outdoor unit connection power cable
(3-phase power cable) 2.5 ㎟X 5G X 11m 1
6Indoor/outdoor unit communication cable CVV-SB(shield cable) 1.5㎟X 2C X 11m 1
7Copper pipe processed article PAPER PIPE, ID230 X T3 1
● Installation should be performed by the authorized service center or by a professional
installation agency that has been certified by Carrier.
● This product requires a seperate power supply (400V 50Hz 3-phase 4-wire AC electricity).
A dedicated circuit must be used in the power supply of the hybrid boiler.
● Make sure all of the following components are in place before installing the product.

Installation Manual
17
Installation materials (local procurement)
No Component name Specicat ions
Quantity
(2 holes)
Remarks
1Refrigerant connection pipe OD 9.52mm 1 Liquid pipe
2Refrigerant connection pipe OD 15.8mm 1 Gas pipe
3Insulator for refrigerant piping ID 14 X T8 1
4Insulator for refrigerant piping ID 14 X T8 1
5Indoor unit power cable
(3-phase power cable)
4.0 ㎟X 4C (excluding ground wire) or 5G 1 Cable length ＜ 20m
6.0 ㎟X 4C (excluding ground wire) or 5G Cable length ≥ 20m
6
Indoor/outdoor unit connec-
tion power cable
(3-phase power cable)
2.5 ㎟X 4C (excluding ground wire) or 5G 1 Cable length ＜ 20m
4.0 ㎟X 4C (excluding ground wire) or 5G 1 Cable length ≥ 20m
7Power cable (thermal storage
pump, heating pump) 1.0㎟X 2C 1
8Communication cable CVV-SB (shield cable) 1.5㎟X 2C 1
9Domestic hot water tank Local sourcing (output : less than 80W) 1
10 Heating Pump Local sourcing (output : less than 80W) 1
11
Domestic hot water tank tem-
perature sensor connection
cable
Heat shrinkable tube + CVV-SB (shield cable) 1
12 Wired remote controller con-
nection cable UTP(Cat.5e) 1
13 Domestic hot water tank Local sourcing 1
14 Expansion tank Local sourcing 1
15 Ball top Procured in the market 1
16 Ball valve Use pressure: 10Kg, diameter: 25A, material:bronze 6
17 Ball valve (for cleaning a
brazed plate heat exchanger) Use pressure: 10Kg, diameter: 15A, material:bronze 2
18 Check valves Use pressure: 10Kg, diameter: 25A, 50 mesh or
higher, material:bronze 2
19 Filter (strainer) Use pressure: 10Kg, diameter: 25A, material:bronze 1
20 Air vent Use pressure: 10Kg, diameter: 15A, material:bronze 1
21 Water drainage Copper or stainless steel pipe 125A
22 Pipe insulator PE heat insulator (with a thickness of 20mm or higher) 1
Note) The specied wire should be used when extending the domestic hot water tank temperature sensor.
In addition, wire tubing should be used to protect wires.
After removing the wire clothing to extend the wire, the connection area should be covered with a heat
shrinkable tube.
Note) For power cable, use an IEC 60245-4 IEC57 or higher, or an H05RN-F wire or higher.
Note) The length of the main power cable refers to the length from the main panel board to the hydro unit,
and should be less than 50 meters in principle.
If the length of the main power cable exceed 50 meters, please contact a Carrier dealer.
Note) The grounding wire should be of at least the same thickness as the power cable.

Inverter Hybrid Boiler
18
Base mount
Anti-vibration rubber
Well
ventilated
area
at least
30cm
at least 20cm
at least 1m
at least 1m
Fixing bolt/washer
Product LEG
Selection of installation location
Indoor Unit
● Select a location that can withstand the vibration and weight of the indoor unit.
● The product must be installed indoors (a location in which the product will not be exposed to
snow, rain and a temperature below 0℃)
In an environment with a temperature below 0℃, water will freeze and may cause damage to the
product.
● A location free from flammable gas leakage and fire sources
● A location in which it is easy to connect to the pipe of outdoor unit and perform water piping and
electrical work
● Electric wiring should be carried out by a qualified, experienced service technician who is familiar
with safety procedures and equipped with proper tools and test instruments.
● A sufficient space not to experience any disturbance or difficulty in air flow is required.
● Do not install the product in a location where it will be exposed to hot air or direct sunlight.
● Do not install the product in a location with a saline atmosphere or exposed to sulphate gas.
● Do not place any obstacle in front of the inlet or outlet of indoor unit.
● A location with excellent drain performance
● A location at least 3 meters away from any object that generates electric noises
