Carrier 30AWH-025QI User manual

User's
Manual
P/N : 60WHD025-540010
Hydro Unit (Indoor unit)
30AWH-025QI
Outdoor unit
30AWH-025QO
| Inverter Hybrid Boiler |
Please read carefully before use and follow the
instructions correctly.
Please retain this user’s manual for future reference
after reading it carefully.
This manual can be downloaded from the website.
http://www.carrier.co.kr/support/aircon_manual.asp
User's
Manual

Carrier's 110 years innovation and
inverter technology provides the
following advantages.
Features of Product
The dual inverter cascade compression technology provides high efciency
solution and reduces energy consumption significantly compared to
convertional fossil fuel and heater boilers.
│ │
Dual inverter
cascade
ECO friendly R410A and R134a refrigerants are used in the cascade
system.
│ │
ECO Green
system
It is possible to produce stable hot water up to 80℃ at -15℃
ambient temperature and possible to produce hot water up to 80℃
at -20℃ ambient temperature.
│ │
Applicable in
extremely cold
climate
The operation, setting control and operation monitoring can be managed
by a smart phone (Android).
│ │
Smart remote
control (optional)
Both of inverter compressors in outdoor unit and a hydro unit are self
controlled in accordance with ambient temperature and ow temperature.
│ │
Intelligent energy
saving operation
In case of malfunction, the self-diagnosis function displays error
messages on the wired remote controller.
│ │
Self-diagnosis
function
Repeat hours, quiet mode, outing mode are adopted for user
convenience.
│ │
Improved convenient
operation
Carrier's advanced energy saving inverter technology always
ensures a comfortable indoor environment.
│ │
Inverter control
operation
Compact split system using high efficiency brazed plate heat
exchanger requires minimized space and provides easy installation
and maintenance
│ │
Requires minimum
installation area
The built-in cooling fan in the indoor unit enables quiet operation.
│ │
Built-in cooling fan
External output contact(s) is available as an option, if a
connection with an external device is necessary.
│ │
Provides external
output contacts
(optional)

Table of Contents
Prior to Use
2
9
11
14
15
16
17
Operating Method
Things to
Be Aware of
-The purpose of these instructions is to prevent damages from
unexpected accidents by ensuring the equipment in a safe and correct
manner. For this reason, please follow the instructions carefully.
Explanation of illustrated marks
This symbol indicates mandatory obligations or
requirements. What must be obeyed or complied with
is specied in the symbol using a picture or phrase.
Mandatory
This symbol indicates a prohibition. The thing that is
prohibited is specied in the symbol using a picture
or phrase.
Prohibition
This symbol indicates caution. The thing that must
be paid attention to is specied in the symbol using a
picture or phrase.
Caution
Failure to observe this notice may result in injury or
damage to property.
Caution
Failure to observe this notice may result in death or
serious injury
Warning
Safety Precautions ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
How to use a wired remote controller ‥‥‥‥‥‥‥‥‥‥‥
How to operate a wired remote controller ‥‥‥‥‥‥‥‥‥‥
Scope of operation ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Troubleshooting and Checklist ‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Checklist before making a request for technical support ‥‥‥‥
Disposal of waste electronics ‥‥‥‥‥‥‥‥‥‥‥‥‥
Wait! This product uses 3-phase 4-wire 400V 50Hz electricity.
You will need to furnish a separate power supply if 400V
electricity is not available.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Explanation of illustrated marks

Inverter Hybrid Boiler
2
Mandatory
Wet Hand
Prohibited
Do not touch the main power
switch with a wet hand
(may cause electric shock and failure)
Prohibited
Where the fan
is located
Extra installation and relocation
fees and expenses will be charged
to the customer.
Do not pull the power cable.
(may cause re or electric shock if it is
damaged)
Warning
When using the product
Do not staple the power cable
or prevent it from being under a
heavy item.
(Broken internal wires in the power
cable may cause a re)
Do not allow water to run into
electric parts. Install away from
water sources.
(may cause a failure or electric shock)

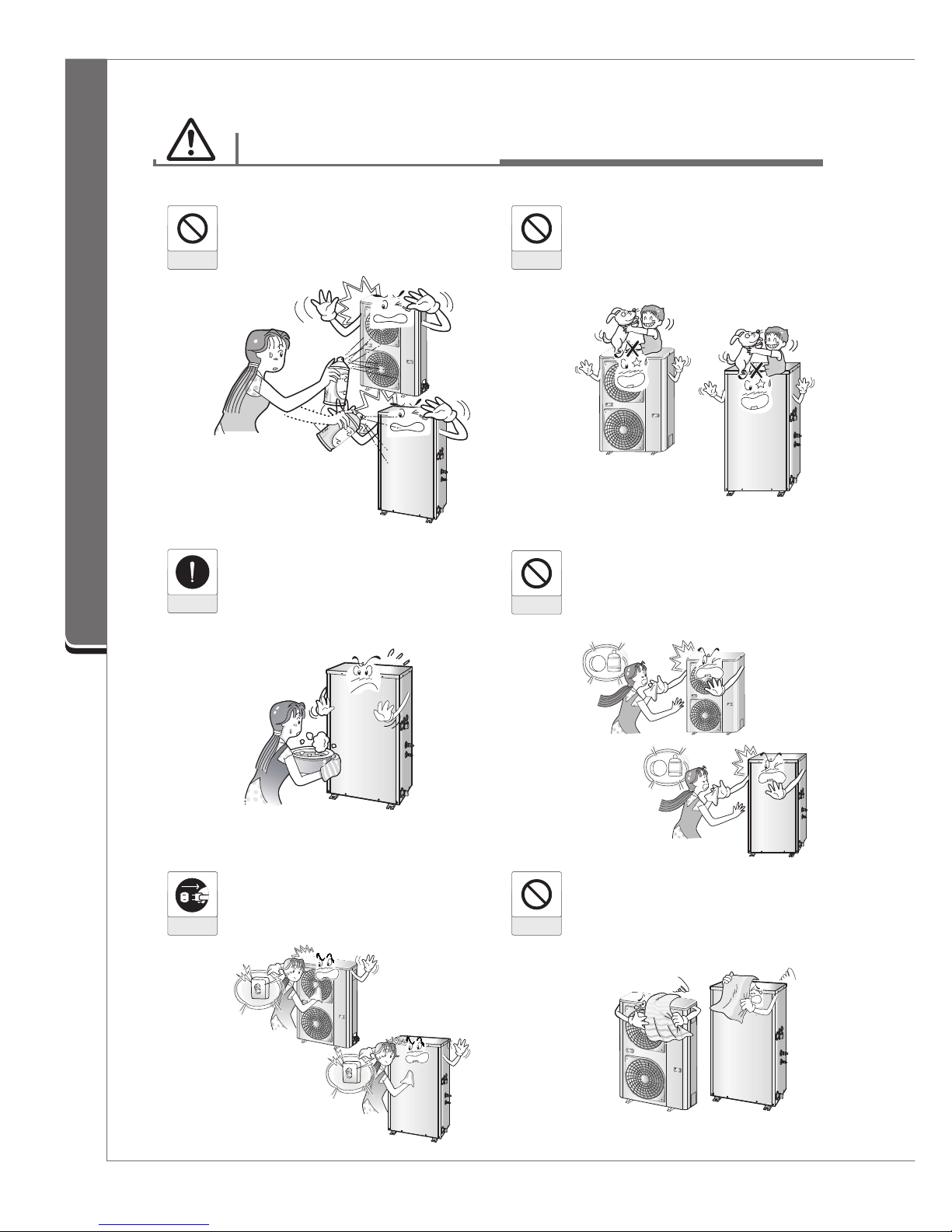

Precautions for Safe Use
Do not put your finger or a stick
into the air inlet and outlet while the
equipment is in operation.
(may cause an injury, as the fan inside
the equipment is rotating at a high
speed. In particular, children should not
be allowed access to the unit)
Prohibited
ProhibitedProhibited
Caution
For installation, removal or reinstallation,
always contact the dealer or
an authorized service center.
(may cause a failure, leakage, electric shock
or re where the installation is faulty)

User's Manual
3
Power Off
If you notice a strange smell or
sound coming from the product, stop
the operation, turn off the power and
contact the authorized service center.
(may cause failure, electric shock
or fire if you continue operating the
product in the presence of such
abnormalities)
Make sure the power cable is securely
connected to the connection terminals.
(Insecure connection may cause a re or
electric shock)
Prohibited
Do not turn off the power switch
or pull out the power cable during
operation.
(may cause a re or electric shock)
Prohibited
↑on
↓off
Power Off
In the event of a lightning storm, turn
off the power and pull the power plug
out. (may cause a failure)
↑on
↓off
Warning
When using the product
Mandatory
If the power cable is damaged, call
the authorized service center for
repair : do not attempt to replace it
by yourself.

Inverter Hybrid Boiler
4
Caution
When using the product
Do not spray insecticide or
flammable materials during
operation. (may cause failure)
Prohibited
Mandatory
Prohibited
Do not step up or put anything
on the product.
(may cause failure, electric shock or
injuries from falling)
Do not disassemble, repair or
modify the product arbitrarily. (may
cause a re or electric shock)
Do not use a wax, thinner or solvent
when cleaning the product.
(Use a dry cloth to avoid a failure or
electric shock)
Power Off
You must stop the product and
turn off the power before cleaning
the product.
Do not block the inlet or outlet of
air ow.
(may cause failure or an accident)
Precautions for Safe Use
Prohibited
Prohibited

User's Manual
5
Caution
When using the product
off
Power Off
Turn off the main power switch if you are
not planning to use the product for an
extended period of time.
(can prevent an unexpected accident.)
Do not turn the power off during the winter
season, even if the boiler is not in use.
(may cause freezing or bursting of water piping)
Prohibited
Prohibited
Caution
Ventilate the product room from
time to time when operating it with
a stove or heating elements, etc.
(may cause a re or electric shock)
Do not touch the n of heat exchanger.
(sharp edges could cause injury)
Check if the installation stand is
damaged at least once a year.
Mandatory
When the product is soaked
(ooded or submerged) in water,
contact an authorized service
center for repair before using it
again. (risk of re or electric shock)

Inverter Hybrid Boiler
6
Caution
When using the product
Mandatory
Mandatory
Do not place any heat source near
the product.
(may cause a re or electric shock)
Do not turn off the hydro unit by
switching off the main power supply.
(may cause a failure, re or electric shock)
Do not modify the protection device
or change its settings.
(may cause a re or explosion if other
protective devices such as pressure
switch or temperature switch are
disconnected or forced to operate, or
other components are used)
Do not place the power cable
near any heat source.
(may cause a re or electric shock)
Prohibited
Prohibited
Prohibited
Precautions for Safe Use
Mandatory
Do not drink the water from the
hydro unit.
(may cause a stomachache)
Open the window for ventilation
before turn the product on in case
of a gas leakage.
(may cause an explosion or re)

User's Manual
7
Mandatory
Mandatory
Mandatory
Mandatory
Mandatory
Mandatory
Ensure that any interruption to the power supply
during winter is resolved as quickly as possible, as
an extended blackout in the winter season affect
the anti-freeze function.
(deactivated anti-freeze function may cause freezing and
bursting of tubes and pipes in the product)
Caution
When using the product
When installing a new domestic hot water tank
● Put an anticorrosive agent at the time of installation, and fill or replace the anticorrosive agent
annually.
- Failure to use an anticorrosive agent may accelerate pipe corrosion.
- Pipe corrosion may be accelerated due to the supply of dissolved oxygen resulting from
leakage on the pipe fittings, circulation pump leakage, overflow from expansion tank, even
if an anticorrosive agent is filled into the tank.
● Please make sure there is no pipe leakage, overflow from expansion tank.
- Pipe leakage, overflow from tank expansion may result in the supply of dissolved oxygen,
which will lead to acceleration of pipe corrosion.
● Use a professional service provider when disposing of the boiler after replacement.
- Illegal or arbitrary disposal may cause safety accidents, affecting the elderly or children.
Be careful not to let your skin touch the outlet of the heating section.
- It may cause a burn.
You must install a water softener when using a groundwater with minerals
such as limestone or calcium, or when using saline water near the beach.
- Failure to use soft water may cause or accelerate the corrosion of the
product or its parts.
Put or replace anticorrosive agent annually.
- Failure to use an anticorrosive agent may accelerate the pipe corrosion.
Be careful not to cause pipe leakage, overow from expansion tank.
- Pipe leakage, overow from expansion tank may result in the supply of
dissolved oxygen, which will lead to acceleration of pipe corrosion.
Use a professional service provider when disposing of the boiler after
replacement.
- Illegal or arbitrary disposal may cause safety accidents, affecting the elderly
or children.

Inverter Hybrid Boiler
8
Warning
Caution
When you use the product
When you use the product
Precautions when using the remote controller
Precautions when using the remote controller
● Do not place any heat source near the product.
- It may cause a fire.
● Do not spill water inside the product.
- It may cause an electric shock or failure.
● Do not apply an impact to the product.
- It may cause a failure.
● Do not apply an impact to the product with a sharp, pointed object.
- It may cause damage to components, which may lead to a failure.
● Do not clean it with a strong detergent solvent. Wipe with a soft cloth.
- Use of a strong detergent solvent may cause a fire or product deformation.
● Do not apply hard pressure on the screen, or push 2 buttons at the same time.
- It may cause a failure or malfunction.
● Do not touch it with a wet hand, or pull the connection cable.
- It may cause a failure or electric shock.
Precautions for Safe Use

9
User's Manual
Inverter Hybrid Boiler
Room
Repeat
Time Silent
Thermal Storage
Tank
Outing Cancel
Smart
Registration
WPS Network
RST
How to use a wired remote controller
Button names of wired remote controller
● Buttion functions of remote controller
NO KEY INPUT PRINT Function Description
SW01 Temperature/Time
Adjust ▲ ▲1STEP INCREASE (TEMP, TIME, ETC)
SW02 Temperature/Time
Adjust ▼ ▼1STEP DECREASE (TEMP, TIME, ETC)
SW03 ON/OFF Operation On/Off
SW04 Room Temperature
Setting Mode ROOM Sets the room temperature
SW05
Domestic hot water tank
Temperature
Setting Mode
DHW Sets the temperature of the Domestic hot water tank
SW06 Repeat Time Mode REPEAT Repeats the operation of the system at intervals
specied by the user
SW07 Silent Mode SILENT Activates the silent mode
SW08 Outing Mode OUTING Activates the outing mode
SW09 Cancel Mode CANCEL Deactivates the repeat time/silent/outing mode
SW10 RESET RESET Wired remote controller RESET
SW11 LCD TEST -LCD RESET
Operating Mode Display
Set Temperature/Current
Temperature Display
Operating Status Display
Temperature /
Repeat Time adjust Button
Room Temperature Setting
Silent Operation Setting
Repeat Operation Time Setting
Note) This function applies to smart remote control (optional)
Power supply Display
Operation on/off
Domestic hot water tank
Temperature Setting
Outing Operation Setting
Cancel
Reset

Inverter Hybrid Boiler
10
Display of wired remote controller
● Descriptions of LCD Display
Name Test
Operation
Heating
Operating
Repeat
Time Silent Outing
ICON
Name
Room Temperature/
Room Temperature
Settings
Repeat
Time
Domestic Hot Water Tank
Temperature /
Domestic Hot Water Tank
Temperature Settings
ICON
Name
Outdoor Unit
Compressor
Operating
Hydro Unit
Compressor
Operating
Domestic
Hot Water
Pump
Heating
Pump Defrost Anti- freeze
Low
Level
ICON
Power
ON/OFF Power Input Status (the LCD display will be blank when there is no power supply)
Repeat Operation
Heating Operation
Test Operation
Room Temperature/
Room Temperature
Settings
Silent Operation
Outing Operation
Domestic Hot Water Tank Temperature /
Domestic Hot Water Tank Temperature Settings
Low Level Warning
Compressor 1 (Outdoor Unit)
Operation
Anti-freeze Operation
Compressor 2 (Hydro Unit)
Operation
Defrost Operation
Repeat Time
How to use a wired remote controller
Domestic Hot Water Pump Operation
Heating Pump Operation

11
User's Manual

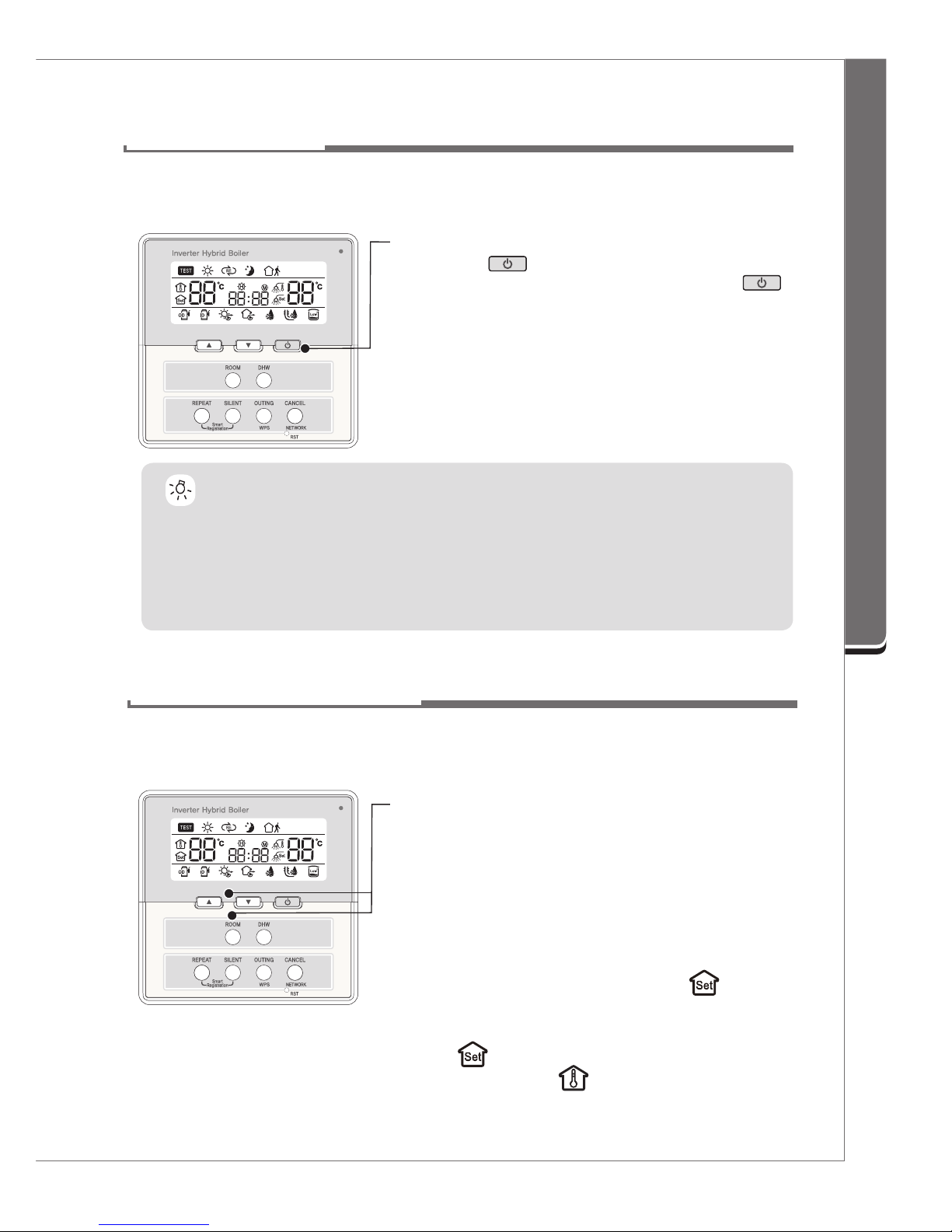

Heating operation
How to operate a wired remote controller
This function increases the flow temperature in the indoor unit (hydro unit).
It provides heat to indoors through the floor heating coil or radiators.
Reference
- Heating operation will not be activated when the desired temperature is set below the
current temperature reading.
- Default setting of room temperature and the domestic hot water tank temperature are
25℃and 80℃, respectively.
- Automatic heating operation refers to the operation of the heating system which selects
the operating mode (heating, thermal storage, thermal storage and heating at the same
time) based on the automatic detection of the domestic hot water tank temperature and
the room temperature by the system itself.
Room temperature settings
● To set the room temperature, press the ROOM button first,
and then press the TEMP/TIME adjust buttons (▲, ▼) to
adjust the temperature settings.
(only available in an indoor environment where a wired
remote controller is installed)
- You can adjust the temperature setting by 1℃ per one
time pressing in a range from 17 to 30℃.
- How to set the room temperature
: When you push the Room button, a " " display is
prompted, and the temperature reading flickers at
1-second intervals.
: The " " display disappears 3 seconds after setting is
completed and the " " display is activated.
In addition, the temperature displays the current room
temperature.
This function sets the desired room temperature. The current room temperature is displayed
3 seconds after changing the room temperature settings.
Inverter Hybrid Boiler
Room
Repeat
Time Silent
Thermal Storage
Tank
Outing Cancel
Smart
Registration
WPS Network
RST
Inverter Hybrid Boiler
Room
Repeat
Time Silent
Thermal Storage
Tank
Outing Cancel
Smart
Registration
WPS Network
RST
● The automatic heating operation is activated when pressing
the ON/OFF( ) button.
● The operation stops when you press the ON/OFF( )
button once again during operation.
(However, when heating pump is controlled by existing
remote controller of existing electric heater boiler, only the
Thermal storage operating is running)

Inverter Hybrid Boiler
12
Repeat time operation
- To set the interval, press the REPEAT button, and then press the
--TEMP/TIME adjust button to adjust the time interval.
- When you push the REPEAT button, the display
is prompted and flickers at a 1-second interval and the " "
signal appears on the operating mode display.
- You can set the repeat interval as follows:
Press the REPEAT button → The segment( ) of the operation( )
flickers at a 1-second interval → Set the desired heating pump
operation time using the (▲, ▼) buttons → Press the REPEAT
button again → The segment( ) of the stop( ) flickers at a
1-second interval → Set the desired heating pump stop time using
the (▲, ▼) buttons → Press the REPEAT button again (setting
complete)
- You can adjust the operation and stop time setting range from 0 to
99 minutes. If your input exceeds the adjustable range, the value
starts from 0 again.
- If you press the CANCEL button during Repeat Time mode or while
setting the Repeat Time, the settings you've changed are canceled.
The repeat time operation means the function that sets the
operation and stop time of the heating pump by a consumer.
Domestic hot water tank temperature Setting
● To set the domestic hot water tank temperature, press the DHW
button first, and press the TEMP/TIME adjust buttons (▲, ▼) to
adjust the temperature setting.
- You can adjust the temperature setting by 1℃per one time
pressing in a range from 35 to 80℃.
- How to set the domestic hot water tank temperature
: When you push the DHW button, a " " display is
promted, and the temperature reading flickers at a 1-second
interval.
: The " " display disappears 3 seconds after the setting is
completed and the " " display is activated.
In addition, the temperature displays the current domestic hot
water tank temperature.
- Adjust the domestic hot water temperature depending on the
season as appropriate.
Silent operation
● When you press the SILENT button, the revolutions of the
compressor are limited to 70rps.
- " " appears on the operating mode display.
- Silent mode is canceled when you press the SILENT
button again or press the CANCEL button while in silent
mode.
This function restricts the revolutions of the compressor.
Inverter Hybrid Boiler
Room
Repeat
Time Silent
Thermal Storage
Tank
Outing Cancel
Smart
Registration
WPS Network
RST
Inverter Hybrid Boiler
Room
Repeat
Time Silent
Thermal Storage
Tank
Outing Cancel
Smart
Registration
WPS Network
RST
Inverter Hybrid Boiler
Room
Repeat
Time Silent
Thermal Storage
Tank
Outing Cancel
Smart
Registration
WPS Network
RST
How to operate a wired remote controller

User's Manual
13
● Error Display
- Error codes for the indoor/outdoor unit are as follows.
Appears on the
room temperature
display
Appears on the
domestic hot water
tank temperature
display
Error in the
outdoor unit
Error in the
indoor unit
Er Error code is ickering is ickering
①Example of indoor unit error ②Example of outdoor unit error
● A wired remote controller error is displayed
on the repeat time display.
Example of wired remote controller error
● A Initial communication error of the wired
remote controller is displayed on the
indoor temperature display.
Outing operation
Cancel
Error code display
● Outing mode is activated when you press the OUTING button.
- " " appears on the operating mode display.
- The domestic hot water tank temperature and the room
temperature for outing mode are set to 80℃and 20℃,
respectively.
- Outing mode is canceled when you press the OUTING button
again or press the CANCEL button while in outing mode.
● If you press the CANCEL button, the repeat time, silent and / or
outing function in operation is deactivated.
- The repeat time, silent or outing operation configured
is deactivated and the current settings return to room
temperamre setting or domestic hot water tank temperature
prior to the activation of the repeat time, silent or outing mode.
An error code will be displayed on the wired remote controller in the event of an error in the
indoor or outdoor unit.
Please contact a professional installation agency or the authorized service center.
Inverter Hybrid Boiler
Room
Repeat
Time Silent
Thermal Storage
Tank
Outing Cancel
Smart
Registration
WPS Network
RST
Inverter Hybrid Boiler
Room
Repeat
Time Silent
Thermal Storage
Tank
Outing Cancel
Smart
Registration
WPS Network
RST
Inverter Hybrid Boiler
Room
Repeat
Time Silent
Thermal Storage
Tank
Outing Cancel
Smart
Registration
WPS Network
RST
Comp
1
Comp
2

Inverter Hybrid Boiler
14
Scope of operation
Scope of operation
1
4
3
2
5
6
7
Operating conditions
①The temperature range that will ensure the normal operation of the product is as follows.
Ambient temperature of
the outdoor unit -20
℃
~ 40
℃
Ambient temperature of
the hydro unit 5
℃
~ 40
℃
②If the product operates in an environment out of the temperature limits for an
extended period of time, the system may detect an error and stop operation.
Time delay
● When restarting the system, the compressor starts 3 minutes after the power is restored.
(however, the time delay is 5 minutes in the event of a shutdown through self diagnosis)
Minimum operating time
● It takes 7 minutes for the compressor to stop its operation once it is activated in
normal conditions.
Heating features
● A warm-up time is required prior to the start of heating operation when the outdoor
temperature is 10℃or less.
● The heating performance may be deteriorated if the outdoor temperature is very low.
We recommend that you use an auxiliary heating source if the room temperature is
insufficient in the winter season.
Defrost operation
● If the heat exchanger of outdoor unit becomes frosted during the heating operation,
the fan of outdoor unit will stop while defrosting heat exchanger of outdoor unit.
● When the heat exchanger of outdoor unit is completely defrosted, the heating
operation is put back on track automatically.
Power outage recovery function
● When the power is cut during the operation, the product will remember the last operating
conditions and automatically apply these conditions when the power is restored.
Normal operation
● You can hear the sound of refrigerant flowing in the product when the product is in
operation or stops operation.
● The outdoor unit fan may not operate during the heating operation, which may be
observed in the defrost mode.
