Carrier AquaSnap 30AWH-R User manual

Installation and operation manual
R32 Air-to-water Monobloc Wired controller

1 Presentation..........................................................................................................................................................1
1.1 Interface introduction....................................................................................................................................2
1.2 Button introduction.......................................................................................................................................4
2 User operation.......................................................................................................................................................5
2.1 Clock setting................................................................................................................................................5
2.2 ON-OFF setting...........................................................................................................................................6
2.3 Mode setting................................................................................................................................................7
2.4 Current setpoint setting................................................................................................................................8
2.5 Home/away/ecosetting...............................................................................................................................10
2.6 DHW schedule setting................................................................................................................................11
2.7 Button lock setting......................................................................................................................................13
3 Conguration.......................................................................................................................................................14
 3.1 Userparameterconguration.....................................................................................................................14
 3.2 Technicalparameterconguration.............................................................................................................16
4 Parameterandstatuschecking.........................................................................................................................19
5 Error code............................................................................................................................................................21
Acronyms
IDU Indoor unit
ODU Outdoor unit
DHW Domestic hot water
EH Electrical heater
IAT Indoor ambient temperature
OAT Outdoor ambient temperature
LWT Leaving water temperature
EWT Entering water temperature
Tw-in Entering water temperature of BPHE
Tw-out Leaving water temperature of BPHE
BPHE Brazed Plate Heat Exchanger
Contents

1
English
1. Presentation
Thiswiredcontrollerisusedtocontroltheoperationoftheunitandcongurationofthesystem.Itcanalsobeusedtocheck
the system running parameter and display the status of system via the LCD screen.
The wired controller communicates with the IDU (Indoor unit) board with certain protocols and detect the communication
status in real time. The IDU board will activate the communication fault alarm once it loses communication. However, it will
not send the alarm if you do not connect the wired controller to the IDU board with the system power on. Hence, if the wired
controller is not necessary, please do not connect it before the system is powered on.
The wired controller will shut down its screen for saving energy without needing to press for 35s (except the technical
parameterconguration),andwillwakeupifyoupressanybutton.
Application of the wired controller:
j Power supply: Take power supply from IDU board (12V power supply);
kWorking temperature range: -300C~500C
lWorking humidity range: RH10%~95%
Wired controller can be installed inside your home or on the unit itself for split types. This manual provides guidelines on
howtousethisinterfacee󰀨ectively.
Ifyouhaveanyquestionsregardingthedisplayanditsconguration,pleasecontactyourinstallerformoreinformation.
Caution:
• Do not press the button of wired controller for 5s after power on.
1. Presentation

2

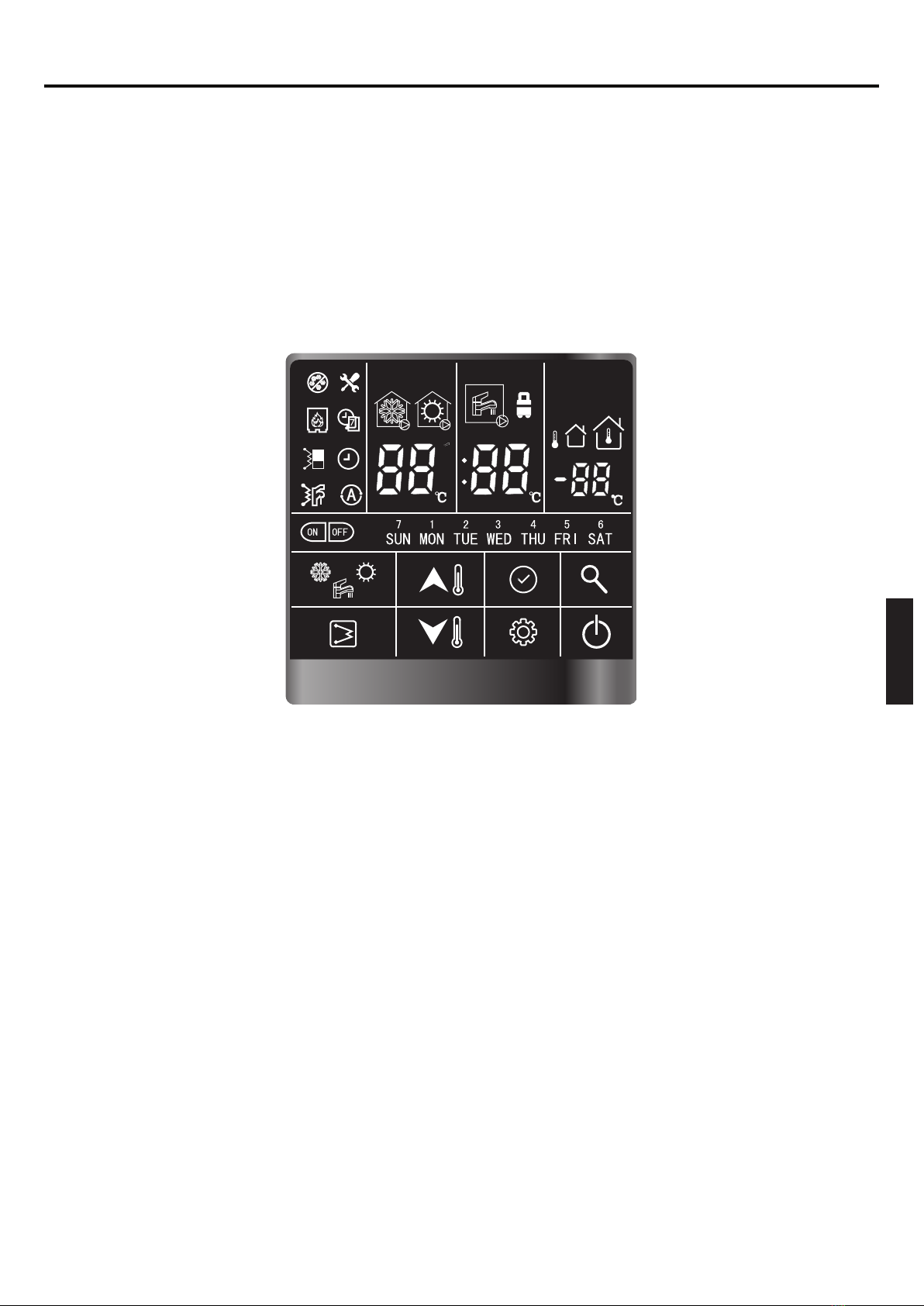

1.1. Interface introduction
1.1.1 Button Overview
1. Presentation
Denition Description
j Mode button Used to change the running mode
k Electric heater button Usedtomanuallyswitchon/o󰀨theDHWEHs
l Up button Used to change the value of the parameter or turn the page during system
congurationorcommissioning
m Down button Used to change the value of the parameter or turn the page during system
congurationorcommissioning
n Setting button Usedtosetuser/technicalparameterconguration
o Conrmbutton Usedtoconrmthecurrentsetting
p ON/OFF button Usedtoturnon/o󰀨theunit
q Query button Usedtoquerytheoperationparameterorcongurationparameter

3
1. Presentation
Non-operating
cooling mode
Non-operating heating
mode
Non-operating DHW
mode
Operating cooling
mode
Operating heating
mode Operating DHW mode
Anti-frozen
protection Main water loop EHs DHW EHs
External heat
source (boiler) Weekly timer Clock
Timer on Timero󰀨 Alarm
Air purge mode OTA (water setpoint
control)
IAT (air setpoint
control)
LED display (Left)
LWT/time display
(hour)/alarm
LED display
(Middle)
DHW temp./time
display (minute) LED display
(Right)
IAT/OAT
(OAT is reserved)
Days of week
Constant light: Eco
mode
Flash: Away mode
"Always light:
It can not achieve Anti-
legionella setting point "
Note :
1.Thehomescreendisplaymayverydependingonunitcongurationandscreensetting.
2. If anti-legionella can not achieve setting point, it needs to repower to reset.
1.1.2 Overview of Icons
English

4
ON/OFF
1.Pressthisbuttontoturntheunitonando󰀨.
Conrm
1.Pressthisbuttontoconrmthesettingtoexittheinterfaceofparametersettingorquery.
Mode
1. Press this button to change the mode: cooling-heating-cooling.
2. Press and hold this button to activate the anti-legionella mode manually.
Query
1.Pressthisbuttontocheckthecongurationandrunningparameters.
2. Refer to section 3, parameter and status check, for details.
EHs
1. While operating in heating mode, press this button to activate/deactivate the main water
loop EHs manually.
2. While operating in DHW mode, press this button to activate/deactivate the DHW EHs
manually.
3. Press and hold this button to start force-defrosting, and the wired controller will display “dF”
for 5s.
Up
Down
Setting
1.Userparameterconguration:pleaserefertothecongurationsection.
2.Technicalparameterconguration:pleaserefertothecongurationsection.
1.2. Button introduction
Thiswiredcontrollerhas8buttonsforthesetpointcontrol,conguration,parametercheck,etc.Detailsofeachbutton
are given in the table below:
1. Presentation
1. Temperature setting
jWhileinstandbymode,forthersttime,pressthisbuttontochangethesetting
 valueofLWT;presstheconrmbuttonorwaitfor5swithoutpressinganybuttonforDHW
temperature setting.
kWhileoperatingincooling/heatingmode,forthersttime,pressthisbuttontochangethe
settingvalueofLWT;presstheconrmbuttonorwaitfor5swithoutpressinganybuttonfor
DHW temperature setting.
lWhileoperatingDHWmode,forrsttime,pressthisbuttontochangethesettingtemperature
ofDHW;presstheconrmbuttonorwaitfor5swithoutpressinganybuttonforsettingthe
value of LWT.
2. Time correction and timer setting
jRefertodetailsforconguration.

5
English
2.1.Clocksetting
Before usage, it is necessary to set the time and date of the wired controller. Please follow the steps below to set the
clock accurately:
1.Pressthe“setting”button,thenpress“conrm”buttontoenterdaysettings;thedatewillashatthismoment.
2. Next, press the “up” or “down” button to change the date, if necessary;
3.Aftersettingthedate,pressthe“conrm”buttontoentertimesettings.Thehourwillashatthismoment.
4. Next, press the “up” or “down” button to set the correct time in hours;
5.Aftersettingthehour,pressthe“conrm”buttontoenterthe“minutes”setting;theminuteswillashatthismoment.
2. User operation

6
6. Next, press the “up” or “down” button to set the correct time in minutes;
7. Pressthe“conrm”buttontoconrmandexitclocksettings.Youcanalsopressthe“settings”buttontogotothenext
parameter.(Refertotheuserparametercongurationforthefulldetailsonparameterssetting)
Example: Friday, 3:05:31
2.2.ON-OFFsetting
1.Pressthisbuttontoturntheunitonando󰀨.Themodeiconwilllightupatthismoment.
2. User operation

7
2.3.Modesetting
1. Press this button to change the mode: cooling-heating-cooling.
Example:
Mode Cooling Mode Heating
Occupancy Home Occupancy Home
Temp. control Water setpoint control Temp. control Water setpoint control
Current LWT 170C Current LWT 180C
Current DHW temp. 250C Current DHW temp. 250C
English
2. User operation

8
2.4. Currentsetpointsetting
Herearetwosetpointcontrols:(Refertothetechnicalparameterconguration,item1fordetailedsettings)
j Water setpoint control; the unit is controlled by water setpoint;
k Air setpoint control: the unit is controlled by the air setpoint, and it requests to install the wired controller in the room.
There is an IAT sensor built inside the wired controller to detect the room temperature. Here are the steps to change the
water setpoint control:
j While in standby mode or operating cooling/heating mode:
i. First press “up” or “down” button to change the setting of LWT;
 ii. Thenpresstheconrmbuttonorwaitfor5swithoutpressinganybuttontoDHWtemperaturesetting.Next,press
the “up” or “down” button to change the setting of DHW.
kWhile operating in DHW mode:
i. First press the “up” or “down” button to change the temperature of DHW;
 ii.Presstheconrmbuttonorwaitfor5swithoutpressinganybuttontoenterthesettingvalueofLWT.Next,press
the “up” or “down” button to change the setting of LWT.
2. User operation

9
Herearethestepstochangetheairsetpointcontrol:
j While in standby mode or operating in cooling/heating mode:
i. First press the “up” or “down” button to change the air setpoint;
  ii.Next,presstheconrmbuttonorwaitfor5swithoutpressinganybuttontochangetheDHWtemperaturesetting.
Next, press the “up” or “down” button to change the DHW.
k While operating in DHW mode:
i. First press the “up” or “down” button to change the temperature of DHW;
ii.Presstheconrmbuttonorwaitfor5swithoutpressinganybuttontoenterthesettingvalueofLWT.Next,press
the “up” or “down” button to change the air setpoint.
English
2. User operation

10

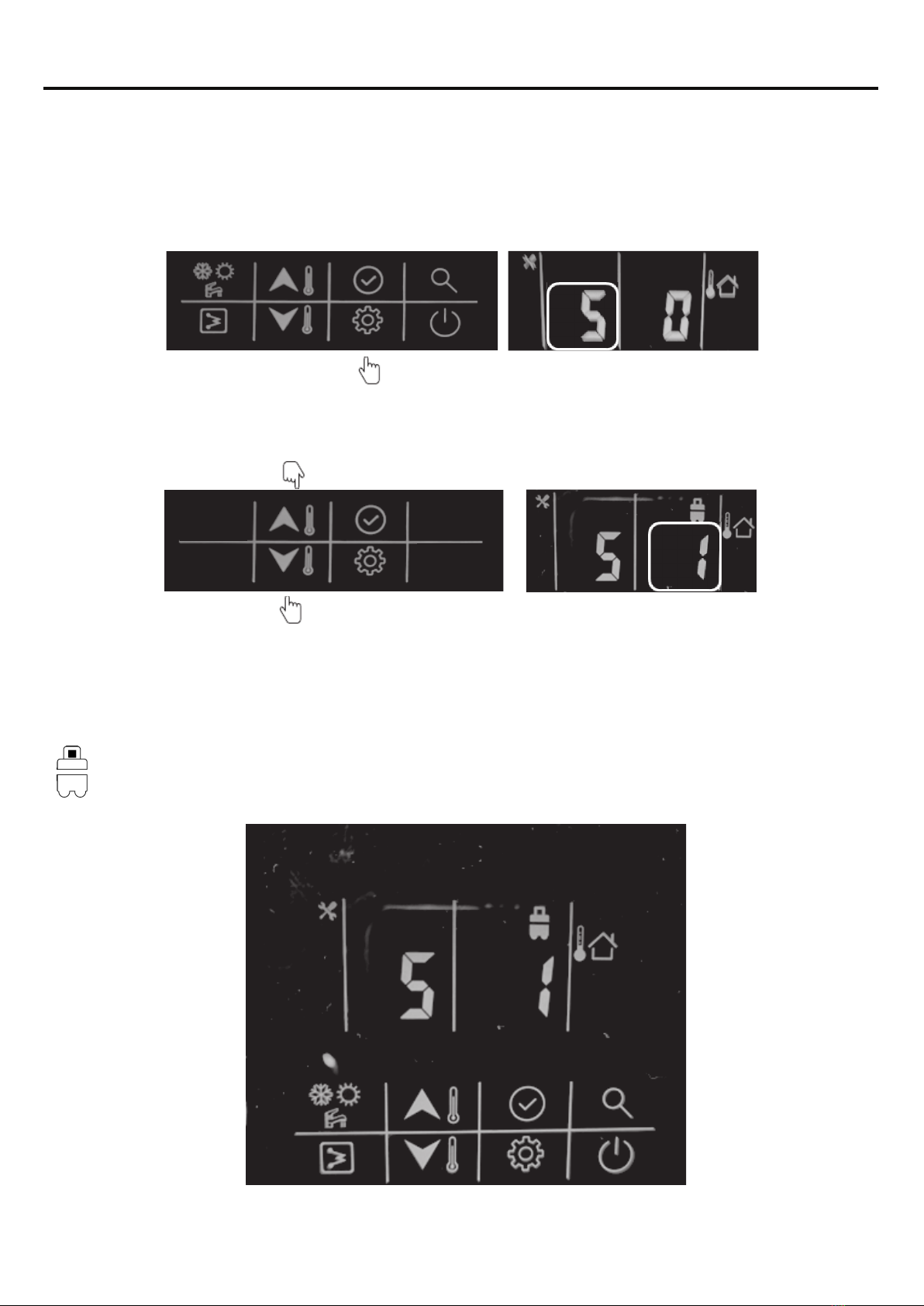

2.5. Home/away/ecosetting
Tooptimizetheenergye󰀩ciencyofthebuilding,youcanselecttheoccupancymodemanuallyaccordingtothefollowing
steps.Eachoccupancymodeisassociatedwithapre-denedtemperaturerange.
j Press the “setting” button to item 5: Select Occupancy mode
k Press the “up” or “down” button to change the value. (0-Home; 1-Eco; 2-Away)
lNext,press“conrm”toconrmandexitusersettingoryoucanalsopressthe“setting”buttontogotothenextitem.
(Refertotheuserparametercongurationforthefullparametersettingdetails)
Example: Eco mode:
This icon lights up on selecting eco mode.
2. User operation

11
2.6. DHWschedulesetting
This schedule is used to set the operating of DHW mode automatically according to the timed schedule. Please follow the
steps below to set the DHW schedule:
j Press the “setting” button to item 1: DHW schedule setting.
k Pressandholdthe“conrm”button;theicon“on”willash,thenpressthe“conrm”buttontoconrm,theicon“on”
will light up constantly;
l Press and hold the “down” button to enter the date settings, then press “up” or “down” to select the day,
press“conrm”toconrmdaysettings,afterthat,theiconofthatdaywilllightupconstantly;
m Press and hold the “down” button to enter the hour settings, then press “up” or “down” to select the time in hours;
press“conrm”.
English
2. User operation

12
n Press and hold the “down” button to enter minute settings, then press “up” or “down” button to select the time in
minutesandpress“conrm”.
o Pressandholdthe“down”buttontosetthetimero󰀨,thenpressthe“down”buttontoenterhoursettings.Pressthe
“up”or“down”buttontoselectthetimeinhoursandpress“conrm”.
p Press and hold “down” button to enter minute settings, then press “up” or “down” to select the time in minutes and
press“conrm”.
q Pressandhold“conrm”buttontoconrmandexitusersettings.Youcanalsopress“settings”buttontogotothenext
item.(Refertotheuserparametercongurationforallparametersettings).
Example:
The unit will operate the DHW mode at 22:00 from Monday to Friday and will exit the DHW mode automatically at 6:00 from
Tuesday to Saturday.
ScheduleofDHWmode
Day Monday Tuesday Wednesday Thursday Friday Saturday Sunday
√ √ √ √ √ × ×
Time on 22:00 22:00 22:00 22:00 22:00 22:00 22:00
Timeo󰀨 6:00 6:00 6:00 6:00 6:00 6:00 6:00
2. User operation

13
2.7. Buttonlocksettings
Used to lock the button of wired controller in case of touching by mistake; double press the “settings” button to unlock.
jPress the “setting” button to go to item 9: wired controller button lock.
k Press the “up” or “down” button to set the value (0-unlock; 1-lock)
l Next, press “conrm” button to conrm and exit user setting or you can also press “settings” button
togotonextitem.(Refertotheuserparametercongurationforallparametersettings)
English
2. User operation

14
This wired controller can be used to congure the system setting during installation and operation. Here follow two
congurationsections:userparameterscongurationandtechnicalparametersconguration,pleasecheckthedetailsin
3.1 & 3.2.
3.1. Userparameterconguration
Pressthe“settings”buttontoentertheuserparameterscongurationinterfaceandpressthisbuttontopagedownthe
setting items from 0-9 as circuit. Use the “up” or “down” button to change the value of each item.
Detailsoftheuserparameterscongurationtablearegivenbelow:(TheNo.inthetablebelowwillbedisplayedintheleft
LED tube except “0”)
No. Item Description
j Pressthe“settings”buttonandthenpress“conrm”toenterdatesettingsand
then press “up” or “down” button to change the date if necessary;
k Next,press“conrm”toenterhoursettings,press“up”or“down”tosetthecorrect
time in hours;
l Next,press“conrm”toenterminutesettingsandpress“up”or“down”buttonto
set the correct time in minutes.
m Press“conrm”toconrmandexitclocksettings.
Youcanalsopress“settings”buttontogotothenextparameter.
j Pressandholdthe“conrm”button,theicon“on”willash,thenpress“conrm”,
and the “on” icon will light up constantly;
kPress and hold the “down” button to enter day settings, then press “up” or “down”
buttontoselecttheday,press“conrm”,andtheiconwillremainlitup;
lPress and hold the “down” button to enter hour settings, then press “up” or “down”
toselectthetimeinhours,press“conrm”.
m Press and hold the “down” button to enter minute settings, then press “up” or
   “down”toselectthetimeinminutesandpress“conrm”.
n Press and hold the “down” button to set the timer o󰀨, then press the “down”
button to enter hour settings, then press “up” or “down” button to select the time
inhours,andpress“conrm”.
oPress and hold “down” button to enter minute settings, then press “up” or “down”
toselectthetimeinminutes,pressthe“conrm”buttontoconrm;
p Pressandhold“conrm”toconrmandexitusersettings.Youcanalsopressthe
“settings” button to go to the next item.
This is used to record the settings if power is shutdown, and the system will recover
the previous status once power is back.
jPress “up” or “down” button to set the value;
0- With power memory (default);
1- Without power memory
3 WIFI Status Reserved
jPress the “up” or “down” button to set the value;
0- Do not start air purge mode
1- Start air purge mode
If choosing 0, then press the “settings” button to go to the next item;
   Ifchoosing1,thenpressthe“conrm”buttontoexitthesettingsandunitwillstart
3.Conguration
Clock settings
Schedule of DHW
0
1
Power memory setting2
Air purge mode4

15
the air purge mode; during the air purge mode, wired controller will be displayed
“PA”, and only the “ON/OFF” button are valid to exit this mode.
jPress “up” or “down” button to set the value;
k Thenpress“conrm”buttontoconrmandexitusersettingsoryoucanalso
press “settings” button to go to the next item.
0 - Home; 1- Eco; 2- Away
This is used to set up night mode for low noise during the night-time.
Press “up” or “down” button to set the value:
0 - Without night mode
1 - With night mode
  Ifchoosing0,press“conrm”andexitusersettingsoryoucanalsopress“settings”
button to go to the next item;
If choosing 1, then follow the steps below:
j Press“conrm”buttontosetthestarttimersetting,thenpress“up”or“down”
button to set the time in hours;
k Press“conrm”toenterminutesetting,thenpress“up”or“down”buttontoset
the time in minutes;
l Press the “conrm” button to enter the stop timer setting, then press “up” or
“down” button to set the time in hours;
m Press“conrm”buttontoenterminutesettings,thenpress“up”or“down”button
to set the time in minutes;
n Next,press“conrm”toconrmandexitusersettingsoryoucanalsopressthe
“settings” button to go to the next item.
Anti-legionella Press the “up” or “down” button to set the value;
temperature setting Temperature range: 60-700C, default as 600C.
j Pressandhold“conrm”buttontoenterdaysettings,press“down”buttontoset
theday,thenpressthe“conrm”buttontoconrm,afterwhichtheiconoftheday
will remain lit up.
kPress and hold the “down” button to enter hour settings, then press “up” or “down”
buttontoselectthetimeinhour,pressthe“conrm”buttontoconrm.
lPress and hold the “down” button to enter minute settings, then press “up” or
“down”buttontoselectthetimeinminutesandpress“conrm”.
m Pressandholdthe“conrm”buttontoconrmandexitusersettingsoryoucan
also press “settings” button to go to the next item.
Used to lock the button of wired controller in case children touch by mistake; double
press the “settings” button to unlock.
jPress the “up” or “down” button to set the value;
k Next,pressthe“conrm”buttontoconrmandexitusersettingsoryoucanalso
press the “settings” button to go to the next item.
0- Without lock
1- With lock
English
3.Conguration
Occupancy mode
setting
5
Night mode setting6
Anti-legionella timer starts8
Lock of wired controller9
7

16
3.2. Technicalparameterconguration
Pressandholdthe“setting”buttontoenterthetechnicalparametercongurationinterfaceandpressthe“setting”buttonto
turndownthesettingitemsfrom0-25.Youcanuse“up”or“down”buttontochangethevalueofeachitem.
Detailsoftheuserparametercongurationaregivenbelow:
No. Item Description
0 Control setpoint type 0 - Water setpoint control
1 - Air setpoint control
1 Controller selection 0 - Wired controller
1 - Dry contact
0 - Main water loop EHs + DHW EHs + boiler
1 - Main water loop EHs + DHW EHs
2 - DHW EHs + boiler
3 - Main water loop EHs + boiler
4 - DHW EHs only
5 - Boiler only
6 - Main water loop EHs only
7 - Non back up
0 - Non climate curve
1 - Climate curve
After setting 1 with climate curve, please follow the below steps:
jAfter choosing 1, enter heating climate setting, press “up” or “down” to choose from
climatecurves1-13,ifchoosingbetween1-12,press“conrm”andthengotostep
l;ifchoosing13,press“conrm”andthengotostepk;.
kCustomized heating curve value input:
a. Press “up” or “down” to set the value of MinOAT;
   b.Press“conrm”buttontosetMaxOAT,press“up”or“down”toset
the value of MaxOAT;.
   c.Press“conrm”tosetMinWSP,press“up”or“down”tosetthe
value of MinWSP;
   d.Press“conrm”tosetMaxWSP,press“up”or“down”tosetthe
value of MaxWSP;
   e.Press“conrm”togotostepl.
l Press the “up” or “down” button to set the heating climate o󰀨set from -5~50C,
default as 00C;thenpress“conrm”togotosteppo
m Enter cooling climate settings; press the “up” or “down” button to choose between
climatecurves1-3,ifchoosing1-2,press“conrm”,thengotostepo; if choosing
3,press“conrm”togotostepn.
nCustomized heating curve value input:
a. Press “up” or “down” to set the value of MinOAT;.
  b.Press“conrm”tosetMaxOAT,press“up”or“down”tosetthevalueof
MaxOAT;
  c.Press“conrm”tosetMinWSP,press“up”or“down”tosetthevalueof
MinWSP;
3.Conguration
Back up function2
Climate curve selection3

17
  d.Press“conrm”\tosetMaxWSP,andpress“up”or“down”tosetthevalueof
MaxWSP;
  e.Press“conrm”togotostepo.
o Pressthe“up”or“down”buttontosettheheatingclimateo󰀨setfrom-5~50C, default
as 00C;thenpress“conrm”toconrmandexitor“setting”buttontogotothenext
item.
4 Capacity test setting Reserved
0 - Normal open
1 - Normal closed
0- Disable
1 - Power limitation (night mode)
2 - Load-shed
3 - DHW request
4 - Anti-legionella request
5 - HDW priority
10 DO1 0 - Disable
1 - Unit in alarm
2 - Unit in standby
11 DO2 3 - Unit running
4 - Unit in cooling
5 - Unit in heating
12 DO3 6 - Unit in DHW
7 - Unit in defrost
8 - Unit controlled by Modbus
 Ecomodecooling Ifairsetpointischosen,itisairsetpointo󰀨set,otherwise,itiswatersetpointo󰀨set
 setpointo󰀨set 0~100C, default as 20C
 Awaymodecooling Ifairsetpointischosen,itisairsetpointo󰀨set,otherwise,itiswatersetpointo󰀨set
 setpointo󰀨set 0~100C,, default as 40C15
 Ecomodeheating Ifairsetpointischosen,itisairsetpointo󰀨set,otherwiseitiswatersetpointo󰀨set
 setpointo󰀨set -20~00C, default as -20C
 Awaymodeheating Ifairsetpointischosen,itisairsetpointo󰀨set,otherwise,itiswatersetpointo󰀨set
 setpointo󰀨set -20~00C, default as -40C
Eco mode DHW -10~00C, default as -50C
 setpointo󰀨set
Minimum OAT -26~100C, default as -260C
for heating
Booster OAT -20~150C, default as -140C
Threshold
Heat pump 0~120min, default 60min
warmup time
Booster Delta 1~200C, default 100C
temperature
0 – No bi-zone function
1- Bi-zone function for heating mode only
2-Bi zone function for both cooling and heating modes
English
3.Conguration
6 DI1
7 DI2
8 DI3
9 DI4
Second zone setting22
3-way valve type select
5
13
14
15
16
17
18
19
20
21

18
NOTE:
DI: Customized input, dry contact;
DO: Customized output, 230V contact;
All the settings will be changed only by resetting and never by repowering.
 WaterpumpΔT ΔTdefaultas50C, can be adjusted from 3.50C~80C, with precision 0.50C
control setting
  0-ΔTcontrol
1 - Force to on
2-Forcetoo󰀨
If the item 24 (last setting item) is set to 1 – force to on, then you can set this item 25,
in this case you can choose the value from 0-99, which means the water pump speed
is from 1%-100%
0- 1% speed
1- 2% speed
…
99 - 100% speed
3.Conguration
Water pump
speed setting
25
Water pump control
type setting
24
23
