Carrier KSACN0401AAA User manual

Wired Remote Controller
7 Day Programmable
Ductless Systems
KSACN0401AAA (High Wall/Floor Console Models)
KSACN0501AAA (Ducted/Cassette Models)
INSTALLATION INSTRUCTIONS
NOTE: Read the entire instruction manual before installing the unit.

2
TABLE OF CONTENTS
PAGE
SAFETY CONSIDERATIONS 2...............................................
COMPATIBILITY TABLES 5.................................................
INSTALLATION ACCESSORY 6..............................................
INSTALLATION 8..........................................................
WIRE THE INDOOR UNIT 11................................................
APPENDIX 14.............................................................
SPECIFICATION 21........................................................
TECHNICAL INDICATION AND REQUIREMENT 21............................
SAFETY CONSIDERATIONS
Read these instructions thoroughly and follow all warnings or cautions included in the literature and
attached to the unit. Consult local building codes and National Electrical Code (NEC) for special
requirements.
Recognize safety information. This is the safety−alert symbol !
! . When you see this symbol on the
unit and in instructions or manuals, be alert to the potential for personal injury. Understand these signal
words: DANGER, WARNING, and CAUTION. These words are used with the safety−alert symbol.
DANGER identifies the most serious hazards which will result in severe personal injury or death.
WARNING signifies hazards which could result in personal injury or death. CAUTION is used to
identify unsafe practices which may result in minor personal injury or product and property damage.
NOTE is used to highlight suggestions which will result in enhanced installation, reliability, or
operation.

3
EQUIPMENT DAMAGE HAZARD
Failure to follow this caution may result in equipment damage or improper operation.
Excessive torque can break the flare nut depending on installation conditions.
CAUTION
!
EQUIPMENT DAMAGE HAZARD
Failure to follow this warning could result in personal injury or death.
Before beginning any modification or installation of this kit, ensure the main electrical
disconnect is in the OFF position. Ensure power is disconnected to the fan coil unit. On
some systems both the fan coil and the outdoor unit may be on the same disconnect. Tag
the disconnect switch with a suitable warning label. There may be more than one to
disconnect.
CAUTION
!
INSTALLATION
Entrust the distributor or authorized professionals to install the unit. Installation by
unskilled persons may lead to improper installation, electric shock, or fire.
Re−installation must be performed by authorized professionals.
Non−compliance may lead to electric shock or fire.
CAUTION
!

4
NOTE: Save this manual for future reference.
SThis manual provides a detailed description of the precautions that the user should be
mindful of during operation.
STo ensure correct service of the wired controller, read this manual carefully before
using the unit.
SKeep this manual, after reading it, for future reference.
NOTE:
1. Do not install the unit in a location vulnerable to flammable gas leaks. Once flammable gases
are leaked and left around the wire controller, a fire may occur.
2. Do not operate with wet hands or allow water to enter the wire controller, otherwise an electric
shock may occur.
3. The wiring should be a compatible connection cable for the current wired controller.
Otherwise, electric leakage or heating may occur and result in a fire.
4. The specified cables shall be applied in the wiring. No external force may be applied to the
connection wire terminal. Otherwise a wire cut and heating may occur and result in a fire.

5
COMPATIBILITY TABLES
Table 1—Wired Controller: KSACN0401AAA
HIGH WALL* FLOOR CONSOLE**
40MAQB09B--1 619PAQ009BBMA 40MHHQ09---1 40MHHC09---1 40MBFQ09---3
40MAQB12B--1 619PAQ012BBMA 40MHHQ12---1 40MHHC12---1 40MBFQ12---3
40MAQB09B--3 619PEQ009BBMA 40MHHQ09---3 40MHHC09---3
40MAQB12B--3 619PEQ012BBMA 40MHHQ12---3 40MHHC12---3
40MAQB18B--3 619PEQ018BBMA 40MHHQ18---3 40MHHC18---3
40MAQB24B--3 619PEQ024BBMA 40MHHQ24---3 40MHHC24---3
40MAQB30B--3 619PEQ030BBMA
40MAQB36B--3 619PEQ036BBMA
NOTE: *Compatible with indoor units 40MAQ/619P*B starting with Serial Number 0216V10001.
** Compatible with indoor units starting with Serial Number 0117V10001.
Units built prior this serial number would require a Control Board Replacement on the Indoor unit.
Table 2—Wired Controller: KSACN0501AAA
CASSETTE DUCTED STYLE
40MBQB09C--3 619REQ009CBMA 40MBQB09D--3 619REQ009DBMA
40MBQB12C--3 619REQ012CBMA 40MBQB12D--3 619REQ012DBMA
40MBQB18C--3 619REQ018CBMA 40MBQB18D--3 619REQ018DBMA 40MBDQ18---3
40MBCQ09---3 40MBQB24D--3 619REQ024DBMA 40MBDQ24---3
40MBCQ12---3 40MBQB36D--3 619REQ036DBMA 40MBDQ36---3
40MBCQ18---3 40MBQB48D--3 619REQ048DBMA 40MBDQ48---3

6
INSTALLATION ACCESSORY
PREPARATION BEFORE INSTALLATION
1. Confirm the following required parts have been supplied (see Table 3).
Table 3—Parts
No. NAME QTY. REMARKS
1Wired controller 1
2Installation and owner's manual 1
3Screws 3M4X20 (for mounting on the wall)
4Wall plugs 3For mounting on the wall
5Screws 2M4X25 (for mounting on the switch box)
6Plastic screw bars 2For fixing on the switch box
7 Battery 1
8The connection cable 119 feet (6 meters)
9Adapter Board 1Required for High Wall 40MAQ/619P*B
10 Display Board 1Required for High Wall 40MAQ/619P*B
NOTE:
Extension wire available through RCD (Replacement Components). Part Number: 17401204000769.
For 40MHH High Wall follow the instructions on the installation manual of the indoor unit.
2. Prepare the following assemblies on site.
Table 4—Assemblies
No. NAME QTY. (EMBEDDED
INTO WALL)
SPECIFICATION (ONLY
FOR REFERENCE) REMARKS
1Switch box 1
2Wiring tube (insulating sleeve and
tightening screw) 1

7
WIRED CONTROLLER INSTALLATION PRECAUTION
1. This manual provides the wired controller installation method. Refer to the wiring diagram in
this installation manual to wire the wired controller with the indoor unit.
2. The wired controller works in a low voltage loop circuit. Do not connect directly to 208/230V
and 460V. Do not wire this kind of wire into a loop. Wiring clearance between the configured
tubes should range 11.81−19.69 inches (30−50 cm) or above.
3. The shielded wire of the wired controller must be properly grounded.
NOTE: Upon completion of the wired controller connection, do not use a tramegger to test the
insulation.
CONTROLLER DIMENSIONS
123mm
(4.8”)
120mm
(4.7”)
18.5mm
(0.7”)
83.5mm
(3.3”)
46mm
(1.8”)
62mm
(2.4”)
Fig. 1 - Wired Remote Controller Dimensions
red
black
yellow
brown
red
black
yellow
brown
Insert of the
mainboard CN40
Wire controller Indoor unit mainboard
4-Core Shield Cable, the length
is decided by installation
-----------------------------------
-----------------------------------
-----------------------------------
-----------------------------------
Fig. 2 - Wiring Connection Diagram

8
INSTALLATION
KSACN0401AAA
Adapter board
Display board
4-core shielding wire
The connection
cable
CN101

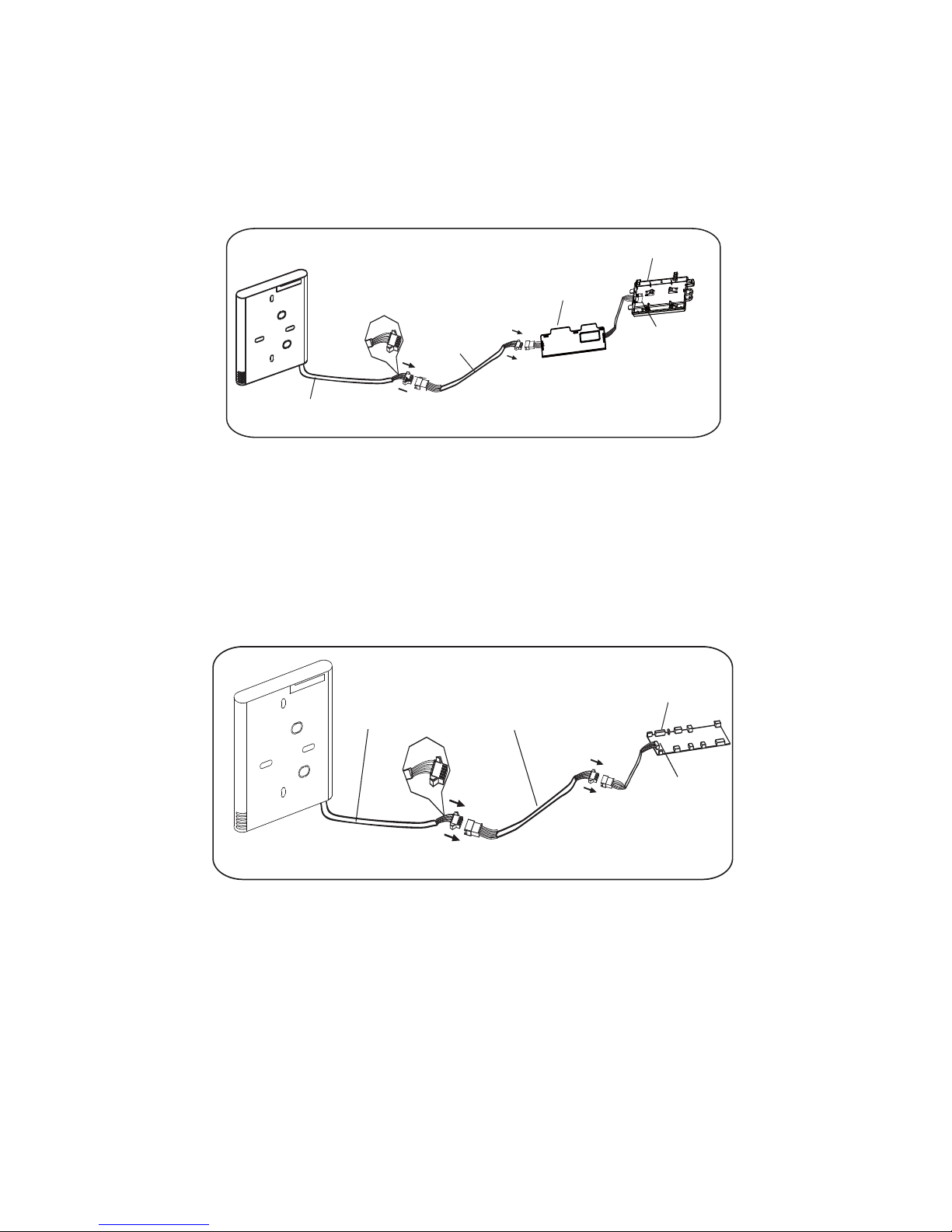

Fig. 3 - Installation of KSACN0401AAA for High Wall Indoor Models
1. Install the Adapter Board and the Display Board on the High Wall (See the Appendix for
instructions).
2. Connect the female joint of the wires group from the adapter board with the male joint of the
connective wires group. Next, connect the other side of the adapter board with the display
board (see Fig. 3).
3. Connect the other side of the connective wires group with the male joint of the wires group
leads from the wire controller (see Fig. 3).
Mainboard
4-core shielding wire
KSACN0501AAA
The connection cable
CN40
Fig. 4 - Installation of KSACN0501AAA for Cassette, Ducted Indoor Models
1. Connect the female joint of the wires group from the mainboard with the male joint of the
connective wires group (see Fig. 4).
2. Connect the other side of the connective wires group with the male joint of the wires group
leads from the wire controller (see Fig. 4).

9
WIRED CONTROLLER UPPER PART REMOVAL
1. Insert a flat screwdriver into the slots in the lower part of the wire controller (2 places).
2. Remove the upper part of the wire controller (see Fig. 5).
Slots
Fig. 5 - Slots
NOTE: The PCB is mounted in the upper part of the wired controller. Be careful not to
damage the board with the screwdriver.

10
FASTEN THE WIRED CONTROLLER BACK PLATE
1. For surface mounting, fasten the back plate on the wall with the 3 screws (M4x20) and plugs
(see Fig. 6).
Back plate
Screws (M4×20)
Fig. 6 - Fasten Back Plate
2. For switch box mounting, fasten the back plate on the switch box with 2 screws (M4x25) and
fasten it on the wall with 1 screw (M4x20) (see Fig. 7).
Back plate
Screws (M4×20)
Fig. 7 - Flush Mounting
NOTE: Place on a flat surface. Be careful not to distort the wire controller’s back plate by
over−tightening the mounting screws.

11
BATTERY INSTALLATION
Fig. 8 - Battery Installation
1. Place the battery in the unit and ensure the positive side of the battery is in accordance with the
polarity markings (see Fig. 8).
2. Set the correct time before operating. Batteries in the wired controller can maintain the correct
time during a power failure. When the power is restored and the displayed time is not correct,
replace the battery.
WIRE THE INDOOR UNIT
There are three methods:
1. From the rear
PCB
1

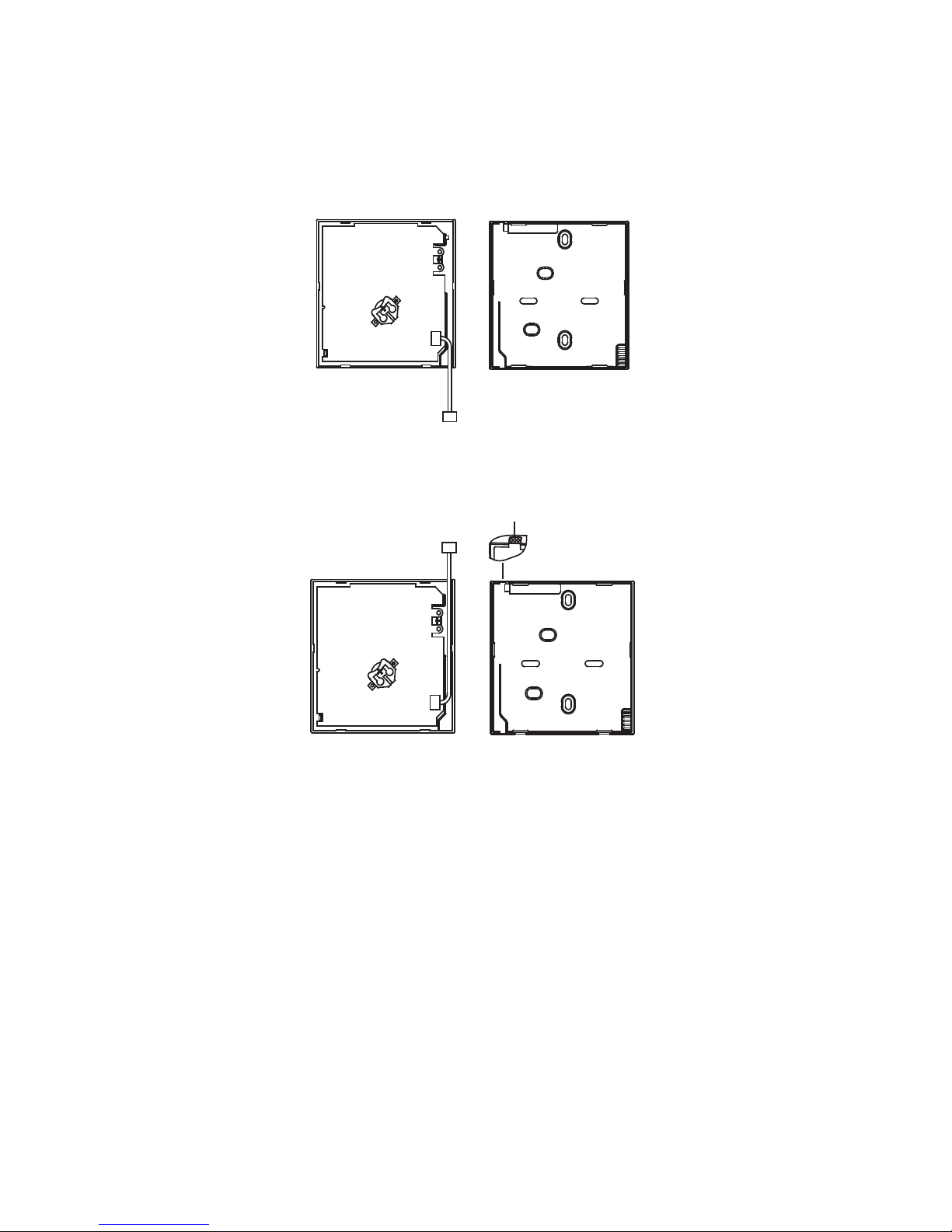

Fig. 9 - From the rear

12
2. From the bottom
PCB
Fig. 10 - From the bottom
3. From the top
PCB
1
Fig. 11 - From the top
4. Notch the part for the wiring to pass through with a nipper tool.
NOTE: DO NOT allow water to enter the remote control. Use the trap and putty to seal the
wires.

13
Putty
Putty
Putty
Trap
Trap
Trap
Fig. 12 - Seal the wires
REATTACH THE WIRED CONTROLLER’S UPPER PART
1. While adjusting and mounting the upper case, avoid clamping the wiring during installation
(see Fig 13).
Fig. 13 - Buckle the upper case
IMPORTANT: All the pictures in this manual are for illustration purposes only. Your wire
controllermay differ slightly.

14
APPENDIX
INSTALL THE WIRE CONTROLLER KIT
1. Open the front panel.
Fig. 14 - Front Panel
2. Disconnect the wire from the main controller board.
Fig. 15 - Main Controller Board

15
3. Identify the components. Fig. 16 shows, from left to right, the wired controller, adapter board
and the display board.
Fig. 16 - Wired Controller, Adapter Board, and Display Board
4. Identify connections on the Display Board.
SCN201 is the display board connection to the main board wire (on the display board).
Fig. 17 - CN201 Connection to the Main Control Board

16
SCN101 is the display board connection to the Adapter board wire (on the display
board).
Fig. 18 - CN101 Connection to the Adapter Board
5. Uninstall the display board from the front panel. Keep the display board holder.
Fig. 19 - Display Board Holder

17
6. Carefully bend and break off the rectangular section (upper left section with two diagonal
holes) from the display board.
Fig. 20 - Display Board
NOTE: Break off the upper left hand rectangle (section with the two holes marked with a red
rectangle).
7. Replace the old display board (for the New Display board provided) and secure with the clips.
To uninstall the clips, push the clips inward.
NOTE: There are 4 clips just above the numeric display (88) which run the length of the holder.
Fig. 21 - Display Board Installed on the Display Board Holder

18
8. Before assembling mounting back on the Front Panel, remove the display board’s screen cover.
Fig. 22 - Display Board Screen Cover
9. Connect the Wires to the Adaptor Board.
a. Connect the wire coming from the Display board to the Adapter Board (this connection
consists of 5 wires).
Fig. 23 - Adaptor Board to Display Board Connection

19
b. Connect the wire coming from the Wired Remote Controller to the Adapter Board (this
connection consists of 4 wires).
Fig. 24 - Wired controller port
10. Once the ports are connected, install the cover.
Fig. 25 - Transformer Board

20
11. Mount the new display board and Adapter board to the Front Panel.
12. Connect the wired remote controller to the display board and the Adapter board.
Fig. 26 - Front Panel with New Display Board and Adapter Board
13. Connect the wire from the main controller board (see Fig. 2).
