CasaCam CM825735 User manual

1
7” Wireless System with Night Vision Camera
CM825735
USER MANUAL

2
Table of Contents
1. What’s Included in the Box? ...................................................................................................3
2. Overview...................................................................................................................................3
2.1 Wireless Receiver (7”Touchscreen Monitor) ............................................................................................... 3
2.2 Camera........................................................................................................................................................... 4
3. Set up the Hardware ................................................................................................................5
3.1 Monitor.......................................................................................................................................................... 5
3.2 Camera........................................................................................................................................................... 5
3.2.1 General................................................................................................................................................ 5
3.2.2 Placement Considerations .................................................................................................................. 6
3.2.3 Install Cameras.................................................................................................................................... 6
4. System Operation ....................................................................................................................6
Live Screen Icons (Single channel)....................................................................................................................... 6
Live Screen Icons (Quad)...................................................................................................................................... 7
5. Menu .......................................................................................................................................10
5.1 Camera Setup............................................................................................................................................... 10

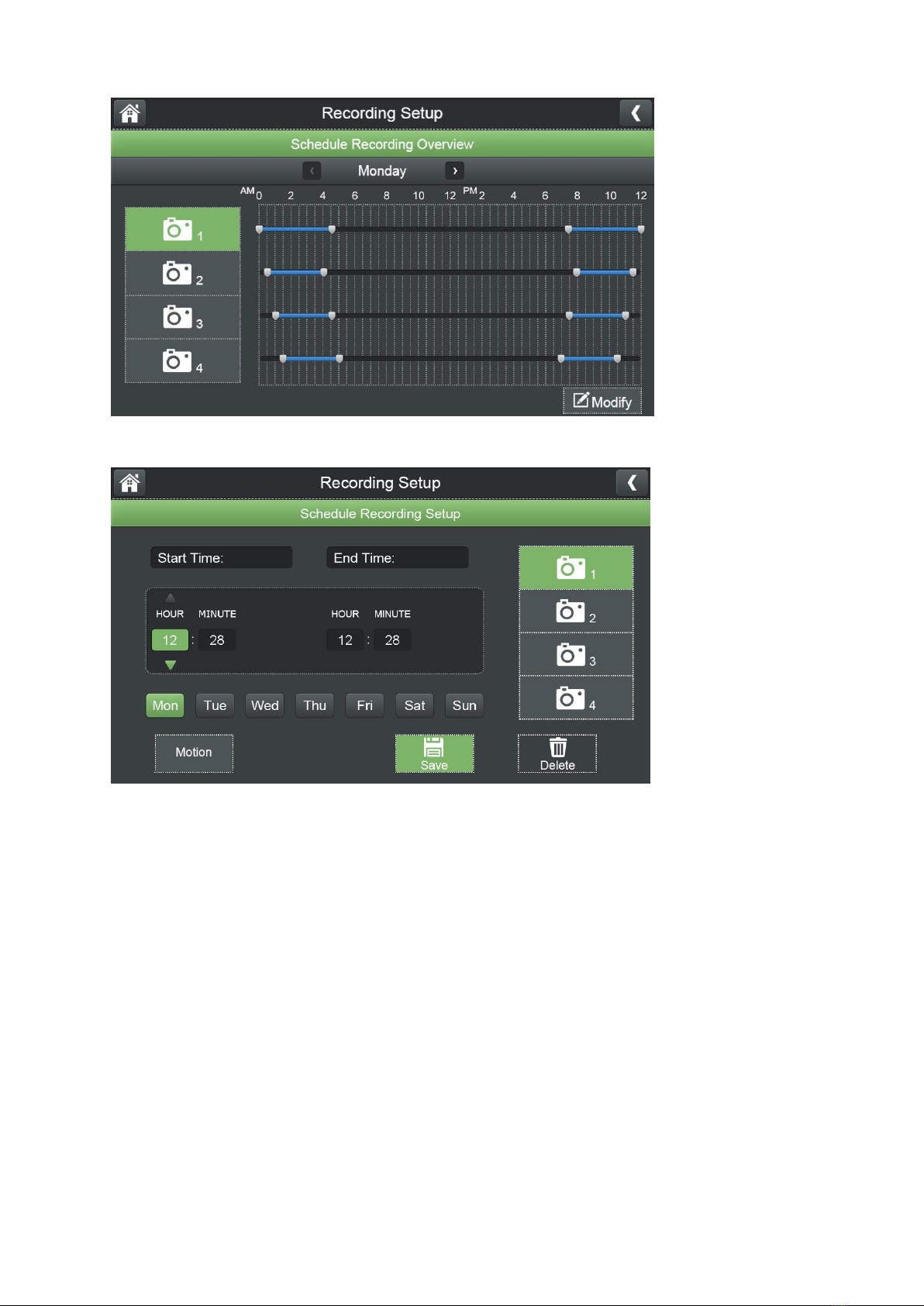

5.2 Recording Setup..................................................................................................................................... 11
5.3 System Settings...................................................................................................................................... 13

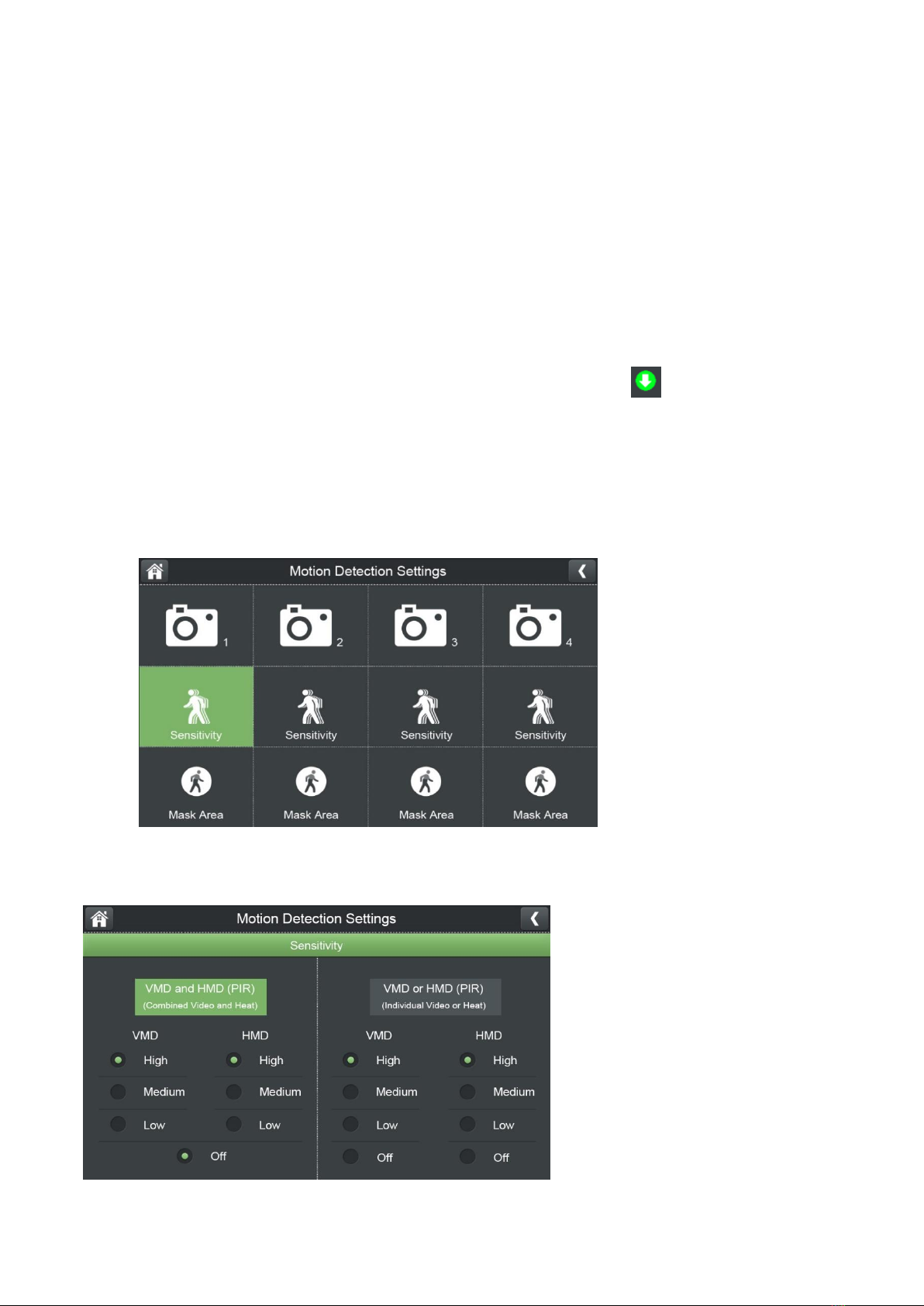

5.4 Motion Detection Settings..................................................................................................................... 14
5.5 Alert ....................................................................................................................................................... 15
5.6 Light Settings.......................................................................................................................................... 16
6. Adding New Cameras ............................................................................................................16
7. Monitor Basic Operation (Quick Guide) ...............................................................................17
8. Operating the DeluxeCam App..............................................................................................18
8.1 Android ........................................................................................................................................................ 19
8.1.1 Add Camera ...................................................................................................................................... 19
8.1.2 Operating the APP............................................................................................................................. 19
8.1.3 Settings in the APP............................................................................................................................ 20
8.2 iPhone / iPad (iOS)....................................................................................................................................... 20
8.2.1 Add Camera ...................................................................................................................................... 20
8.2.2 Operating the APP............................................................................................................................. 22
8.2.3 Settings in the APP............................................................................................................................ 22
9. Maintenance ...........................................................................................................................23
10. Technical Data........................................................................................................................23
11. Important Safety Instructions................................................................................................24
12. Trouble Shooting....................................................................................................................25
12.1 Forget Password......................................................................................................................................... 25
12.2 Not Recording............................................................................................................................................ 25
12.3 Cannot Connect to the App ....................................................................................................................... 25
12.4 Out of Range.............................................................................................................................................. 26
13. FCC Statement .......................................................................................................................26

3
1.What’s Included in the Box?
2.Overview
2.1 Wireless Receiver (7”Touchscreen Monitor)

4
2.2 Camera
Item
What it is
What it does
1
Microphone
Captures the sound on camera side and transmits the sound from
camera to monitor.
2
Lens
Catches the video in front of the lens and transmits video from
camera to Monitor.
3
IR LED
Infrared LEDs provide viewing in no/low light conditions.
4
PIR sensor
Detects motion in front of the lens and emits detection signal to
transmitter.
5
Speaker
Produces the sound transmitted from the monitor.
6
Camera antenna
Receives & Sends signals to or from the Monitor.

5
7
Bracket
Use the bracket to mount the camera on a wall or other flat
surfaces.
8
Pair button
The pair button is located on the back of the camera. Press pair
button when monitor is in pairing mode.
9
Deterrent light
Deterrent light flashes when motion detected.
3.Set up the Hardware
3.1 Monitor
1. Flip out the stand on the back of the monitor and position the antenna.
2. Insert the Micro SD memory card into the card slot on the monitor until you
hear a “click”.
3. Connect an AC adapter to the power input on the back of the monitor.
Connect the other end of the adapter to a standard indoor power outlet.
4. Push and hold the power button to turn on the monitor.
5. The monitor displays the start up UI for a few seconds and then transitions to
the LIVE view.
3.2 Camera
3.2.1 General
The cameras included with your monitor are weatherproof and have an IP66
rating. Water can be sprayed on them and they will still work; however, the
cameras cannot be submerged.
The cameras can be exposed directly to the rain, it is recommended that, if they
are used outdoors, they should be mounted under some type of cover like a patio
overhang or eave. As rainwater drops on the camera glass, it may create spots
that will reflect the light from the infrared LEDs used for night vision, thus causing
lower quality video.
Also, as dust, grime, and cobwebs accumulate on the camera glass, they can
reflect light from the infrared LED and might lower video quality. Periodically

6
clean the lens glass with a soft cloth is recommended.
3.2.2 Placement Considerations
Consider the following when placing cameras:
• The clearest line-of-sight between the camera and monitor is best.
• Walls, especially brick and concrete will shorten the transmission distance.
• Placement next to windows allows better transmission.
• Optimized motion detection range is 6-18 feet for the camera. The farther away
an object is, the less accurate the motion detection.
• Avoid having a direct light source in the view of the camera, including street
lights, ceiling or floor lamps, spotlights in the driveway, etc.
• Rainfall, pool water ripples/reflections, tree/shrub leaves blowing in the wind –
and the shadows they create –can generate motion detection false alarms.
3.2.3 Install Cameras
When positioning the camera, better to bring the monitor along with; it’s much
easier to get the camera into the right position with the display.
1. Position the camera where you want it, plug it into power, and check video on
the monitor. Move the camera if the view is not what you want.
2. Hold the base of the camera stand where you want to mount it and mark the
location of the screw holes.
3. Use the included screws and anchors to attach the base to the wall or ceiling.
4. Adjust the screws on the bracket to make sure your camera point to the right
position.
4.System Operation
Live Screen Icons (Single channel)
In single channel, touch live view area (not operation icon), it will switch to quad/split display.

7
Live Screen Icons (Quad)
In split/quad display, touch live view area (not operation icon), it will switch to related single
channel display.
Signal Strength: Shows how strong the camera's signal is. Signal ranges from 4
bars down to 0 bars (out of range).
Camera Number: Displays the current channel number you are currently viewing. If
viewing multiple cameras in quad/split display, the camera indicator will appear above each
video display.

8

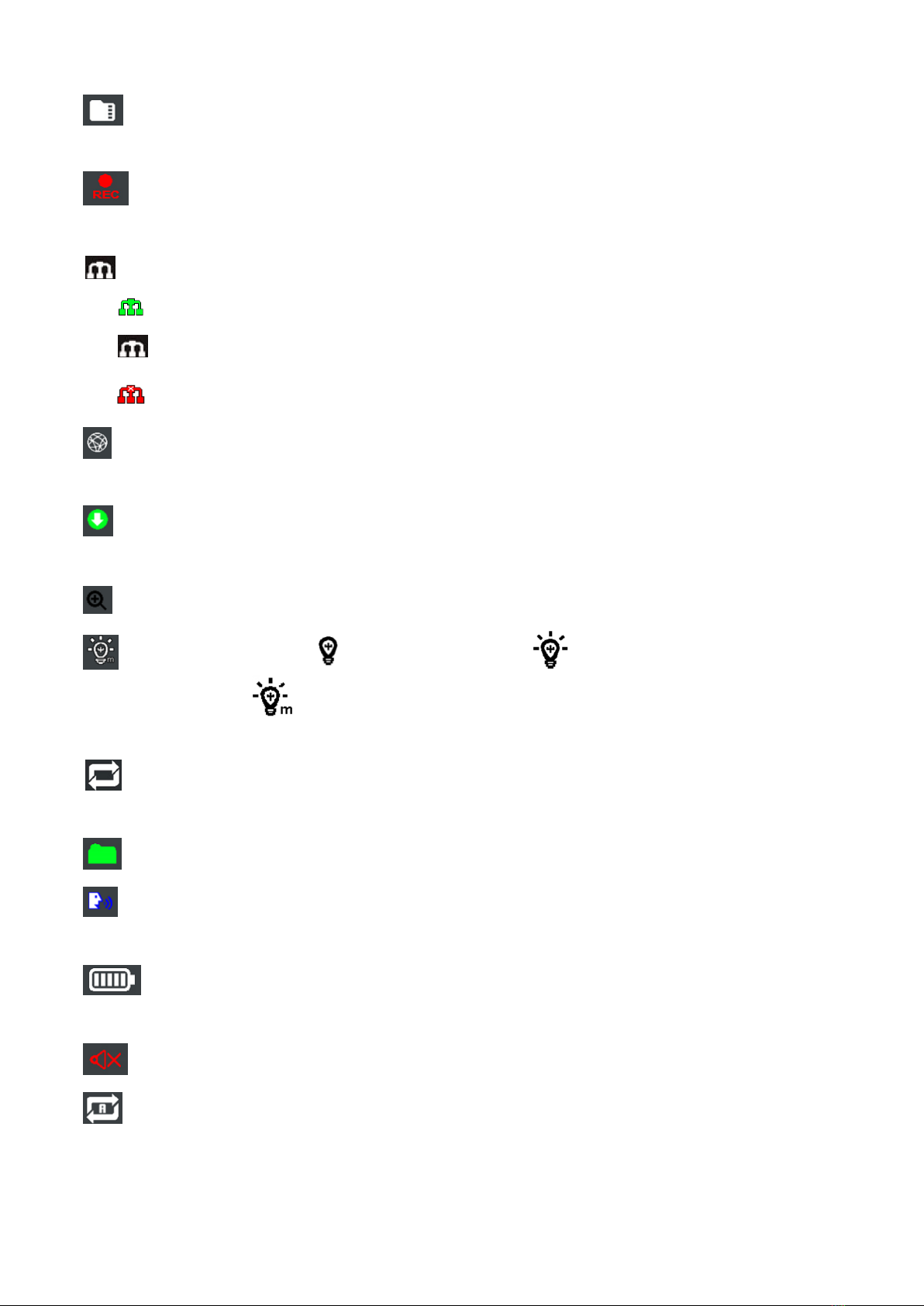

SD Card Indicator: Displays if an SD card is inserted into the monitor. If green,
recording space is available. If red, the SD card is full.
Recording Indicator: When this icon flashes red, it indicates that recording is in
progress.
Network Connection Status:
Green- Monitor is connected to the internet.
White- Monitor is connected to router, but router not connected to the internet.
Red- Monitor is not connected to router.
Remote Connection: This icon shows someone is remote connecting to the system
via App.
Firmware Download Available: If this icon appears, means there is new firmware
available in the server, you can go to menu to upgrade firmware from server.
Zoom Indication: Means it is in zoom display mode.
Spotlight Indication: Means spotlight is off, means spotlight is on by motion
trigger or schedule, means spotlight is turned on manually. Only available when
connected to spotlight camera.
SD Card Overwrite: If this icon appears means the SD card is allowed to overwrite
files when it is full.
New Record Indicator: Means there is unread new recordings.
Talk: Displays when TALK is pressed. Press and hold TALK at the right side of the
monitor to talk back through the camera. Release TALK to wait for a reply.
Battery Level: Indicates the LCD monitor's battery life:
Flashing Red - Low battery
Mute: Means audio for this channel is off (mute), touch this icon can turn on the audio.
Audio cycle: This icon appears only at quad or split mode, touch this icon (this icon
will change to green) will set the audio in cycle mode, each channel will turn on audio
for 10 seconds and then turn on audio for next channel. Touch again to turn off cycle

9
mode, icon change to red
Short cut: Touch this button to show following shortcut menu buttons.
Channel button: Touch this button to change channel.
Menu: Touch this to open the main menu
LED Light: This icon appears when white spotlight camera is paired to the system.
touch this button to turn on camera LED light manually, when LED is on it shows :
touch again to turn off manually, icon shows
Siren: Touch this button will activate siren at camera side, touch and hold the button
to continue the siren, release to stop siren.
Zoom: Touch this button will go to zoom display, select five areas: top left, top right,
bottom left, bottom right and center to zoom specific area. Touch button to exit zoom
mode.
Manual recording: Touch this button to start manual recording, will display
and flash at the top of the monitor, touch again to stop recording.
Playback: Touch this button to open calendar for you to select recordings from
different date.
Channel loop: Touch this button will set monitor in channel auto switch mode,
monitor will display from channel 1—channel 2—channel3—channel4 and cycle, will
be displayed on the lower left of the monitor.
Motion Recording Indicator: Indicates motion recording status. You can go to

10
monitor, Menu==Recording Setup==Motion Recording On/Off to turn on/off auto recording
for each camera.
SEQ Display Mode: Displays when the monitor is in auto switch mode; it will change
channels automatically.

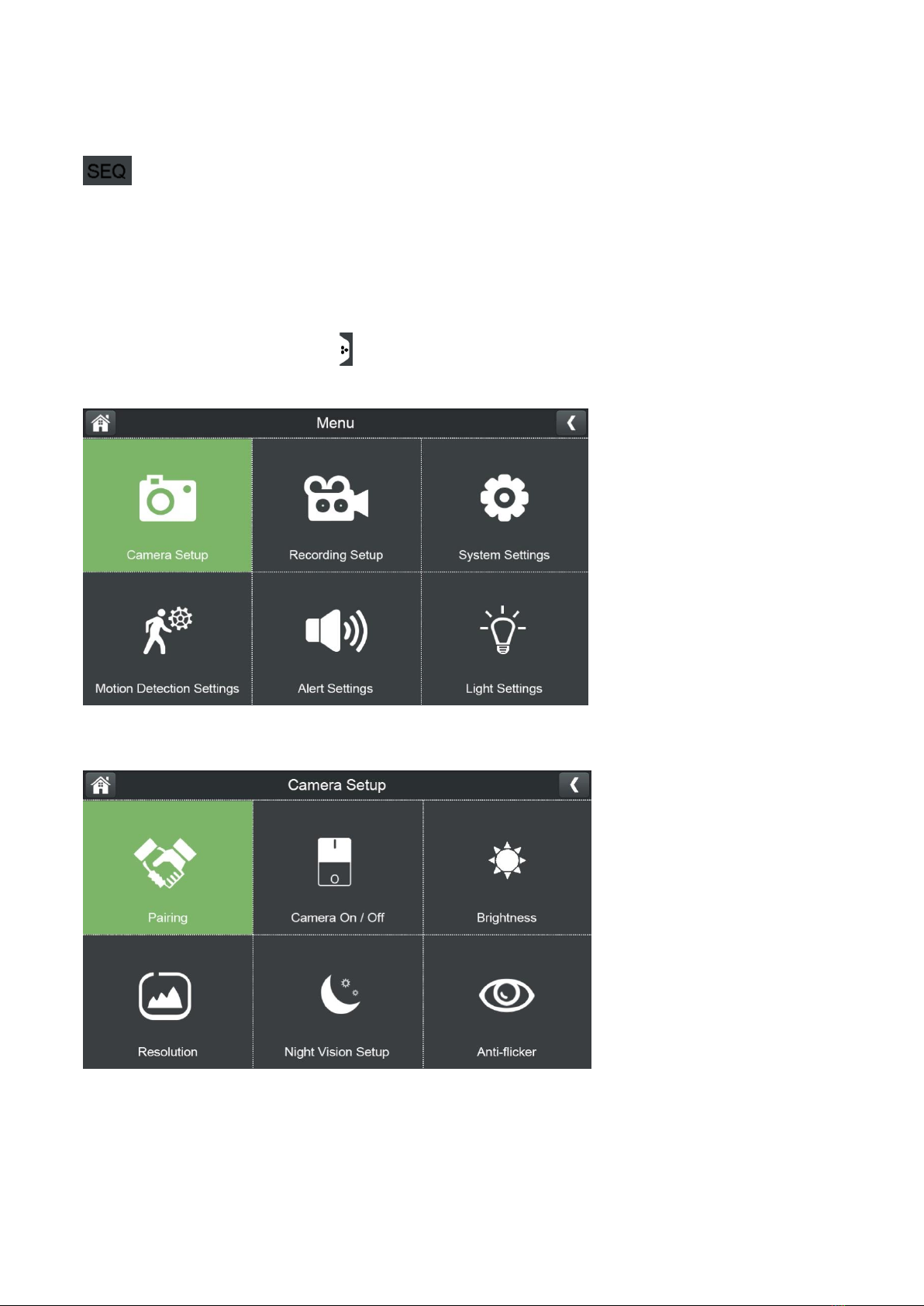

5.Menu
In live view or quad, touch to get shortcut buttons, touch the menu button to
open the main menu.
5.1 Camera Setup
1. Pairing.
This system comes with cameras already paired. Use Pairing to assign these
cameras to different channels or to pair additional new cameras to the
monitor.
