CasaCam BC200 User manual

1

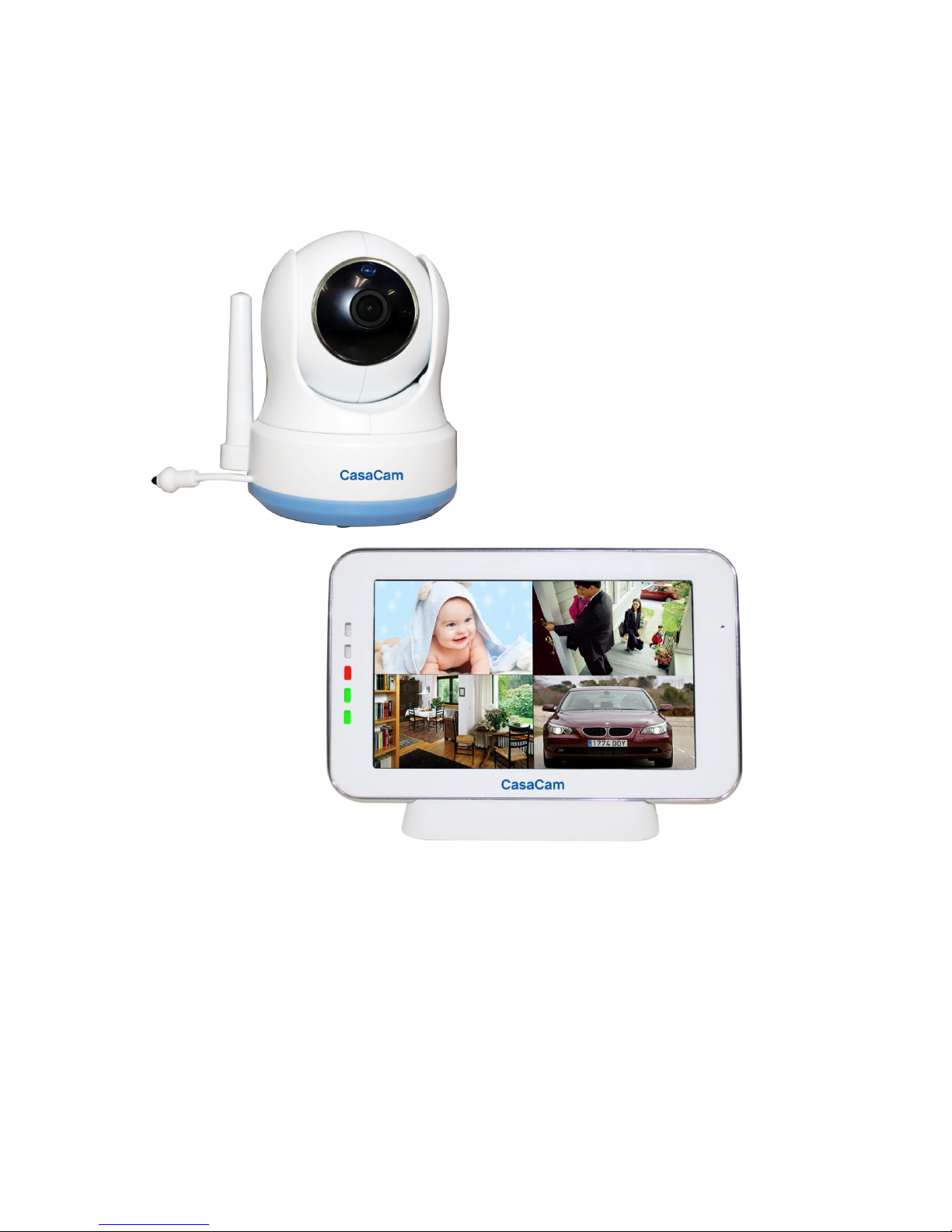

5 InchWirelessTouchMonitorwithP/THDCamera
BC200WilrelessP/THDCamera
BM200M5 InchWirelssTouchMonitor

2
WARNING
STRANGULATIONHAZARD‐Keepcordoutofchild'sreach.NEVERplacecameraorcordswithin3
feetofcriborplaypen.NeveruseextensioncordswithACAdapters.OnlyusetheACAdapters
provided.
•Someadultassemblyorinstallationrequired.
•Thisproductcontainssmallpartsthatmaycausechoking.Keepsmallpartsawayfromchildren.
•ThisproductisNOTintendedtoreplacepropersupervisionofchildren.YouMUSTcheckyour
child’sactivityregularly,asthisproductwillnotalertparentstosilentactivitiesofachild.
•Beforeusingthisproduct,readandfollowallinstructionscontainedinthisbooklet,andreadand
followallinstructionsandwarningsontheproduct.
•NEVERusethetransmitterormonitornearwater,includingnearabathtub,sink,laundrytub,wet
basement,etc.
•Thisproductisintendedforindooruseonly.
•Thisproductisnotintendedforuseasamedicalmonitoranditsuseshouldnotreplaceadult
supervision.
•Thetransmitterdetectsnormalsoundlevelswithinarangeof2to3meters(6to10feet)froma
child.Ifthechildmovesoutsideofthisrange,ifmaynotbeabletodetectsoundsfromhimorher.
•Itisessentialthatyouchecktheoperatingrangeandconditionofthetransmittermonitoroninitial
installationandonaregularbasisafterthat.
•Checkreceptionregularly.Testmonitorbeforeuseandafterchangingcameralocation.
•Donottakeaparttheproductbyyourself.
•Topreventoverheating,keeptheproductandACpoweradaptersawayfromanydirectsunlight
andheatsourcessuchasradiators,heatregisters,cookingdevices(e.g.,stovesandovens)andother
appliancesthatproduceheat(e.g.,amplifiers,televisionsandstereos).
•Ensurethattheproductiswellventilatedduringuse.Avoidcontactwithpillowsandfurniturethat
mayblockventilation.
•UseonlytheACadaptersprovidedwiththeproduct,asotheradaptersmaydamagetheproduct.
Plugtheadaptersonlyintostandardhouseholdcurrent(100~240voltsAC).PlacetheACadapters
avoidingpinchpointsotherwiseyoucandamagetheadapters.
•WhenanACadapterispluggedintoapowersource,DONOTtouchtheexposedendoftheAC
adapter’scord.
•DonotuseextensioncordswiththeACpoweradapterstoavoidentanglement.
•Imagesandsoundsaretransmittedbytheproductoverpublicairwavesandtransmissionsmaybe
pickedupbyotherunits.(Althoughthetransmissiondistanceis100morlonger,itmayvary
dependingonwhetherthereareobstaclesbetweenthecameraandthemonitor.)
•Cautionifyouusethesystemtowatchayoungchild,donotplacethecamerawherethechildcan
reach.
•Whenusingthesystemwithonlybatterypowerandthechargeislow,thenthepictureandor
soundmayaffected.IfthisoccursthenpleaseconnecttheACpoweradapter.
Thetransmissionrangeofthewirelesssignalmayweakenifheavyobstructionssuchasaconcrete,
brick,ormetalwallsarebetweenthecameraandmonitor,orifthereareseveralWi‐Firoutersand
devicesinyourenvironment.
ToavoidinterferencewithRFsignal,keepyourcellphoneatleast3ftawayfromtheCameraand

3

Monitor.

CAUTION
Riskofexplosionifbatteryisreplacedbyanincorrecttype.
Disposeofusedbatteriesaccordingtotheinstructions.


Features:
z5’’portableLCDmonitor
z2.4GHzdigitalwirelesstechnology
zSystemexpandableupto4cameras,signaldisplayorquaddisplay
zMultiplelanguageselection
zHD(720P)camerawithnightvisionandsoundtrigger
zLullabyandtemperaturedisplay
z2wayaudio‐monitorcantalkbacktocamera
zNightlight
zDigitalzoom,pan&tilt
zRechargeableLithiumbatteryforportableuse
zExtendedbatterylifewithPowerSavemode
zSecure,long‐rangedigitalwirelesssignalupto900ft
zCamerawithmountingbracketforwall/ceilingmounting
What'sIncluded




4





ProductOverview
WirelessCamera




WirelessMonitor







5





GettingStarted
InstallingtheMonitor&Camera

1. Fullychargethemonitorviapoweradapterorchargingcradlebeforeuse.Cameramustbe
pluggedinatalltimes.
2. Placethecamerainthepreferredposition.Youcanplaceitonthetable/cabinet,ormountitona
wallviamountingframe.
3.Pressthepowerbuttonforabout4‐5secondtoturnonthemonitor.
4.Pressandholdtheon/offbuttontoswitchthecameraon.

PairingtheMonitor&Camera
Theunitsalreadycomepairedforyourconvenience.
Ifyouhaveadditionalcamera,pairyourcameraasfollow:
1.Poweronwirelessmonitorandwirelesscamera.
2.Touchtheliveviewscreenonthemonitortomakethesettingsiconappear.
3.Pressthe[]buttononthemonitor.
4.Press[]iconandselectcameranumber.
(Themonitorwillsearchforthecamerawhensettopairingmode.Acountdownclockwillappearat
themiddleofthescreenandwillstartcountingfrom30to0).
5.Pressthe[PAIR]buttonfoundonthebottomofthecamera.
6.Ifthemonitorsuccessfullypairswiththecamerawithinthe30seconds,itwillautomaticallyswitch
tothecamera'scurrentview.

IndicatorDescription
LiveView

6


1. Signalindicator:Showsthestrengthofthesignalbeingreceivedfromthecamera.Ifan'x'
showsuponthesignalbar,thenthesystemis"outofrange".
2. DigitalClock:Displaysthetimethatissetonthemonitor.
3. Cameranumber:Indicateswhichcameraisbeingdisplayedonthecurrentscreen
4. Zoommode:IndicatesZoommode.x1/x1.5/x2
5. MonitorSpeakerMute:Indicatesthemonitor'sspeakerismuted
6. BatteryPowerLevel:Showsthestatusofthebattery
•BatteryStatus
AbatterychargestateindicatorwithintheLCDwillshowthelevelofchargeindicatingfivestates,
includingalert(flashingredbatteryoutline),1/4,1/2,3/4andfull.
FlashingRedBatteryFrame
¼BatteryfillRed
½BatteryfillWhite
¾BatteryfillWhite
FullBatteryfillWhite(thepowersupplyisnotconnected)
FullBatteryfillWhiteandlightningbolticonalternately(thepowersupplyisconnected)
Whenthepowersupplyisconnectedthelightningbolticondisplayedoverthecentre.
7. TemperatureDisplay: Showsthetemperatureoftheroom.
8. Feedtimecounter: Acountdownclockofthefeedtime.
9. NightLightOn/Off: Indicatesifthenightlightisonoroff.Youcancontrolthenightlighton
thecameraremotelyormanually
10. QuadMode:Pressthisbuttontoswitchtoquadmode.Whentwocamerasarepaired,there
willbetwodisplays.Iftherearemorethantwocameraspaired,therewillbefourdisplays.Up
to4camerascanbepaired.Youcan’tlistentotheaudiofromcameras.

7

11. TalkBack:  Pressthisbuttonwhiletalking.
Note:
a) “TalkBack”buttononlyappearonsinglecameraLiveViewmode
b) PressandholdTalkBackbutton,canactivatetalkbackfunction
c) Ifcameraunitwasplayinglullaby,itthenitwillbepaused.
d) Thecameraspeakerloudnesssettingissameaslullabyplaylevel.(selectMenu>Sound>Camera
Volume)
e) IfreleaseTalkBackbutton,thengobacktoLiveViewmode.IfCamerapreviouslylullabyhas
beenturnedon,thenitwillresumeplaylullabyagain.

OperationKey
Bytappinganypositiononthescreenthen“Operation”keyscomeout
Ifusertapesscreenwithouttouchinganyfunctionkey(ortimeisoutafter10seconds),thenitwill
backtoLiveViewmode.

1. MenuSetting: Menusettingincludesmonitorandcamerasettings
2. MonitorVolume: adjustthemonitorvolume
3. ZoomIn/Out: Youcanhaveacloserlookviathisbutton
4. Lullaby: PresstheLullabyicontoturnlullabiesON/OFF.Plays4pre‐programmedsongs
5. NavigationControls:UsethisicontoremotelyPan/Tiltthecamera



8

MenuPage

1. Pair/UnpairCamera：Youcanconnectupto4camerastoyoursystem.
2. VOX: SettheVOXsensitivitytodetectloworhighsoundlevels.
3. Date&Time&Timer: Setupthesystemdate&time&feedtimer.
4. Language:Settinglanguageforthemonitor.
5. Brightness: Youcanadjustthebrightnessofeachindividualcamera.
6. Temperature: YoucansetCelsiusorFahrenheit.
7. Camera&AlarmVolume: Youcanadjustthecameraandalarmvolume:5beingtheloudest
and0beingmute.
8. Default: Resetthemonitorbacktoitsfactorysettings.
9. Back: Savethesettingsandreturntopreviouspage.
10. Home: ReturntoLiveView.







9
Specification
Kit
OperatingFrequencyRange2.4GHz
TXPower17dBm
RXSensitivity‐88dBm
TypeofSpreadSpectrum
Used
FHSS
TypeofModulationUsedGFSK
DataRate4Mbps
CommunicationRange300M
Thetransmissionrangeofthewirelesssignal
mayweakenaccordingtoyourenvironment.
Camera
Imagesensortype1/4"ColorCMOSImagesensor
EffectivePixel1280(H)x1024(V)
Powerrequirement5VDC1.5A
ImageResolution10fps@1280*720
Lens3.95mmF2.2
ViewingAngle(Diagonal)55°(FOV)
IRLED/NightVisionRange5m940nm
Operationtemperature‐10~40°C
Monitor
LCDPanelsize5"touchpanel
LCDResolution800x480
OperatingTe mperature14°F~104°F(‐10~40°C)
OperatingHumidity0%~85%
Powerrequirement5VDC1.5A

FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of
the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly
approved by the party.
Responsible for compliance could void the user’s authority to operate this
equipment. (Example- use only shielded interface cables when connecting to
computer or peripheral devices).
This equipment complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
The SAR limit adopted by USA and Canada is 1.6 watts/kilogram (W/kg) averaged
over one gram of tissue. The highest SAR value reported to the Federal
Communications Commission (FCC) and the Industry Canada (IC) for this device
type when it is tested for use at the properly worn on the body is 0.084 W/kg.
The device complies with the RF specifications when the device is used near your
ear or at a distance of 0 mm from your body. Ensure that the device accessories
