CASAINC WF-HXJ240R User manual

Safety and warnings
1
Table of Contents
1.
WARNINGS ..............................................................................................................................................................3
2.
WELCOME................................................................................................................................................................4
3.
BEFORE YOU START ................................................................................................................................................................. 4
4.
SAFETY AND WARNINGS..........................................................................................................................................5
SAFETY SYMBOLS .................................................................................................................................................................................................................... 5
ELECTRICAL SHOCK HAZARD ................................................................................................................................................................................................. 6
TIPPING HAZARD .................................................................................................................................................................................................................... 6
EXPLOSION HAZARD............................................................................................................................................................................................................... 7
FIRE HAZARD........................................................................................................................................................................................................................... 7
POISONING HAZARD ..............................................................................................................................................................................................................8
HOT SURFACE HAZARD.......................................................................................................................................................................................................... 8
OTHER SAFETY TIPS................................................................................................................................................................................................................ 8
5.
GAS SUPPLY REQUIREMENTS.................................................................................................................................11
SAFETY TIPS FOR GAS OPERATION ....................................................................................................................................................................................11
6.
DIMENSIONS AND CLEARANCES.............................................................................................................................12
TOP HOOD AND CABINET SPECIFICATIONS........................................................................................................................................................................21
7.
ELECTRIC POWER SUPPLY REQUIREMENTS ............................................................................................................22
8.
ELECTRICAL GROUNDING INSTRUCTIONS............................................................................................................................................................................27
9.
CONNECT RANGE TO GAS SUPPLY..........................................................................................................................27
AFTER INSTALLATION............................................................................................................................................................................................................28
10 FIRST USE.................................................................................................................................................................29
CONDITIONING THE OVEN ...................................................................................................................................................................................................29
11.
COOKTOP SAFETY GUIDELINES ............................................................................................................................... 29
SURFACE BURNER IGNITION ...............................................................................................................................................................................................30
SIMMER AND BOIL ...............................................................................................................................................................................................................31
FLAME SIZE............................................................................................................................................................................................................................31
POWER FAILURE ...................................................................................................................................................................................................................31
COOKTOP ...............................................................................................................................................................................................................................31
BURNER GRATES...................................................................................................................................................................................................................31
OVEN BURNER USE ...............................................................................................................................................................................................................32
BROIL BURNER USE...............................................................................................................................................................................................................32
OVEN COOKING GUIDELINES ...............................................................................................................................................................................................32
12.
OVEN FUNCTION....................................................................................................................................................... 34
NATURAL AIRFLOW BAKE ...................................................................................................................................................................................................34
INFRARED BROIL ...................................................................................................................................................................................................................34
CONVECTION BAKE...............................................................................................................................................................................................................34
CONVECTION ROAST ............................................................................................................................................................................................................35
CONVECTION DEFROST ........................................................................................................................................................................................................35

Safety and warnings
2
DEFROSTING ..........................................................................................................................................................................................................................35
CONVECTION DEHYDRATION...............................................................................................................................................................................................35
13 BROILER OPERATION..............................................................................................................................................36
PREHEATING ..........................................................................................................................................................................................................................36
TO BROIL ...............................................................................................................................................................................................................................36
SETTING BROIL ......................................................................................................................................................................................................................36
BROILING GUIDELINES..........................................................................................................................................................................................................37
14.
CLEANING INSTRUCTIONS........................................................................................................................................39
DO’S.......................................................................................................................................................................................................................................39
DON’TS...................................................................................................................................................................................................................................39
CLEANING BURNER CAPS AND BRASS FLAME SPREADERS .............................................................................................................................................. 39
CLEANING SIDE RACKS..........................................................................................................................................................................................................40
CLEANING OVEN SHELVES ....................................................................................................................................................................................................40
CLEANING BROIL/ROAST PAN AND SLOTTED GRID ...........................................................................................................................................................40
CLEANING BAKE AND BROIL BURNERS ...............................................................................................................................................................................41
CLEANING PORCELAIN SURFACES........................................................................................................................................................................................41
CLEANING THE OVEN GLASS WINDOW...............................................................................................................................................................................41
CLEANING THE OVEN DOOR GASKET ..................................................................................................................................................................................41
CLEANING STAINLESS STEEL SURFACES ..............................................................................................................................................................................41
15.
REMOVING AND REPLACING THE OVEN DOOR ......................................................................................................42
REMOVING THE OVEN DOOR...............................................................................................................................................................................................43
REPLACING THE OVEN DOOR ...............................................................................................................................................................................................43
16.
TROUBLESHOOTING GUIDE....................................................................................................................................44
COOKTOP .............................................................................................................................................................................................................................. 44
Oven ......................................................................................................................................................................46
17.
WARRANTY & SERVICE...........................................................................................................................................48
18.
Appendix 1 Oven Knob Installation ........................................................................................................................52
Appendix 2 Oven Handle Installation......................................................................................................................53
Appendix 3 Rubber Pad Installation on Back Panel .................................................................................................55

3
Safety and warnings
1. Warnings
These are the most critical warnings summarized below.
 If the instructions in this manual are not followed exactly, a
fire or explosion may result, causing property damage,
personal injury or death.
 Do not store or use gasoline or other flammable substances
and liquids near this or other appliance,
 Never use this appliance as a space heater to warm a room.
 Installation of this appliance must be done by a qualified,
service agency or gas supplier.
What to do if you smell gas
 Do not light any appliance
 Do not touch an electrical switch
 Immediately call the gas supplier from a neighbor’s phone
 Open a window and leave the area
 Follow the gas supplier’s instructions
 If you cannot reach the gas supplier, call the fire department

Safety and warnings
5
4. Safety and Warnings
Safety Symbols
Symbol
Definition
This will alert you to potential personal or property safety
hazards. Obey all safety rules to avoid any property damage,
personal injury or death
WARNING indicates a potentially hazardous situation, which, if
not avoided, could result in serious injury or death
CAUTION indicates a moderate hazardous situation, which, if
not avoided, could result in minor or moderate injury
CAUTION –when used without the safety alert symbol, indicates
a potentially hazardous situation, which, if not avoided, could
result in property damage
IMPORTANT used for installation, operation and maintenance
information that are not related to safety.

Safety and warnings
6
Electrical Shock Hazard
✓Before removing a faulty oven light bulb, make sure you turn OFF the
power to the range at the main fuse or circuit breaker panel. If youdon’t
know how to do this, contact an electrician.
✓Do not remove the kick panel or the back panel. Due to electrical wires
behind it, both panels should only be removed by a qualifiedtechnician.
✓This appliance is equipped with a three-prong grounding plug for your
protection against shock hazard and should be plugged directly into a
properly grounded power outlet. Do not under any circumstances cutor
remove the grounding prong from this plug.
Failure to follow this advice may result in death or electrical shock.
Tipping Hazard
All ranges can tip and cause injuries to adults and children. To prevent
tipping, install the anti-tip device supplied with your range. Follow all
installation instructions.
✓ Even after the safety device is installed, do not step, lean or sit on the
oven door or place any heavy objects on it. Doing so may result in
personal injury.
Make sure anti-tip device is installed as follows:
1. Slide the range forward.
2. Install the anti-tip device as described in the instructionsheet
3. Safely tilt the front section of the range and slide the range slowly back against the wall.
4. The rear pins should slide under the bracket.
Do not use the appliance until it has been secured.
Failure to follow this advice may result in serious injury.
Anti-tip device for WF-HXJ240R

Safety and warnings
7
Explosion Hazard
✓If you smell gas, do not use the appliance. Open a window or door to let
the gas escape, then follow the instructions on the inside front cover of
this manual.
✓Do not use water on grease fires. A violent steam explosion mayresult.
✓Turn all burners off, then smother fire or flame with a dry chemical or
foam-type extinguisher. Do not try to smother with flammableblankets.
✓Do not heat unopened food containers such as cans. Build-up of
pressure may cause container to burst and result ininjury.
Failure to follow this advice may result in injury or death
Fire Hazard
✓Never use your appliance as a space heater. Persons could be injured or
a fire could start.
✓Keep the area around the appliance free from combustible materials (e.g.
wall coverings, curtains, drapes), gasoline and other flammable vapors
and liquids.
✓ Clean the stove and burners regularly.
Do not let cooking grease or other flammable materials accumulate on the
surfaces or near the appliance.
✓Do not hang any articles (e.g. dish towels) off the oven handle. Some fabrics may ignite ormelt
from the heat.
✓ Never leave the cooktop burners unattended when in use. Boil over causes smoking and greasy
spillovers that may ignite.
✓Never spray an aerosol cleaner on or around the appliance while burners are lit, Be sure all the
controls are turned off and the appliance is cool. The aerosol gas and chemicals in such
cleaners could, in the presence of heat, ignite or cause metal parts tocorrode.
✓ Do not store flammables near cooktop
Flammable materials should not be stored in an oven or near the cooktop. An accident could
cause a serious fire.

Safety and warnings
8
Poisoning Hazard
✓Never cover any slots, holes or passages in the oven bottom or cover an
entire rack or the oven floor with materials such as aluminum foil. Doing
so blocks airflow through the oven and may cause carbon monoxide
poisoning. Aluminum foil linings may also trap heat, causing a fire hazard.
✓Clean the appliance with caution. If a wet sponge or cloth is used to wipe
spills on a hot cooking area, be careful to avoid steam burn. Some
cleaners can produce noxious fumes if applied to a hot surface. Follow
the directions of the cleaner manufacturer.
✓Never use this appliance as a space heater to heat or warm the room. Doing
carbon monoxide poisoning and overheating of the appliance.
Failure to follow this advice may result in poisoning or death.
Hot Surface Hazard
Accessible parts may become hot during use.
✓Do not touch burners, areas near burners, the grill, griddle, grease drip-
pans, heating elements or interior surfaces of oven. These may be hot
enough to cause burns even though they are dark in color. During and
after use, do not touch, or let clothing or other flammable materials
contact these parts and surfaces until they have had sufficient time to
cool. Other parts and surfaces of the appliance may become hot enough
to cause burns - among these areas are the grates, back trim and oven
vents at the back of the cooktop, front edge, surfaces adjacent to the
cooktop, and the oven door.
✓Use only dry potholders. Moist or damp potholders on hot surfaces may result in burns from
steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.
✓Let hot grease cool before attempting to handle it.
Failure to follow this advice could result in burns andscalds.
Other Safety Tips
✓ Read instructions before use
Read all the instructions before using theappliance.
Use the appliance only for its intended purpose as
described in these instructions.
✓ Install the stove properly
Be sure your stove is properly installed and
grounded by a qualified technician.
so may result in

Safety and warnings
9
✓ Do not install or operate stove if damaged.
Do not operate the appliance if it is damaged or not
working properly. If you received a damaged product,
contact your dealer or installer immediately.
✓ Know how to turn off power in emergency
Be sure to have the installer show you where and
how to turn off the power supply to the range (i.e.
location of the main fuse or circuit breaker panel)
and where and how to turn off the gas supply to the
range in an emergency.
✓ Do not leave children alone near stove
Children should not be left alone or unattended in
the area where the appliance is in use. They should
never be allowed to play with the appliance or to sit
or stand on any part of the appliance.
✓ Do not store toys or candy over the stove
For safety reasons, do not store items of interest to
children in cabinets above a range or at the back of
the range –children climbing on the range to reach
items could be seriously injured.
✓Don’t wear lose clothing that could catch fire
Loose-fitting or hanging garments should never be
worn while using the appliance.
✓ Do not repair or replace parts yourself (unless
recommended)
Do not repair or replace any part of the appliance
unless specifically recommended in the manual. All
other servicing should be referred to a qualified
technician. Technicians must disconnect the
appliance from the power supply before any
servicing.
✓ Careful opening oven door
Use care when opening the oven door by allowing
warm air or steam escape before removing or
replacing food.
✓Keep oven vent ductsunobstructed.
✓Do not touch hot oven shelves
Protect your hands from burning by making sure the
oven is cool before sliding oven shelves into oven. If
a shelf must be removed while the oven is hot, do
not let oven mitts or potholder contact the base of
the oven or hot heating elements in the oven.
✓ Protect oven gasket
Do not clean the oven gasket or use any oven-
cleaning products on it. It is essential for a good seal,
which ensures that the oven operates efficiently.
Care should be taken not to rub, damage or move it.
✓ Protect glass oven doors
Do not use harsh/abrasive cleaners, scourers or
sharp metal scrapers to clean the oven door glass
since they scratch the surface, which may result in
the glass shattering.
✓ Never step on oven door or place a heavy object
(like a Turkey) on it
✓ Check for gas leaks
When the appliance installed, check for gas leaks
according to the instruction before use.
✓ Ventilation hood is mandatory
This appliance should not be operated without a
properly sized and operational ventilation hood.
✓ Use proper gas conversion kit
This stove might be used for natural gas or liquid
propane. If you are not sure whether the unit is used
for NG or LP, please contact your dealer or
CASAINC customer service for verification. For LP
conversion, please use conversion kit for your certain
model. Please have a certified technician install the
unit and kit (technical support is available during
normal business hours). If planning to resell unit,
please indicate whether it is natural gas or has LP kit
installed.
✓ Do not reach for items over the stove when it is lit Be
careful when reaching for items stored in cabinets
above theappliance.
✓Read all instructions before using the product to
ensure proper and safe operation. Install or locate
the product only in accordance with the provided
Installation Instructions.
✓ Do not attempt to adjust, repair, service orreplace
any part of your appliance unless it is specifically
recommended in this guide.
✓ Do not use the range as a space heater.
✓ Do not leave children unattended in the area where
the range is in use. Never allow children to sit or
stand on any part of the range. Do not let children
play with the range.
✓ All servicing should be referred to aqualified
technician.
✓Have the technician show you the location of the gas
shut off valve and how to shut it off in an emergency.

Safety and warnings
10
✓ Always disconnect power to appliance before any
type of servicing.
✓Do not use abrasive or caustic cleaners or
detergents on this appliance. They may cause
permanent damage to the surface.
✓When cooking, set the burner controls so that the
flame heats only the bottom of the utensil anddoes
not overlap at the sides of theutensil.
✓ Utensils (pots and pans) that conduct heat slowly, i.e.
glass pots, should be used in conjunction with
burner flames at a low or medium setting.
✓Turn off all controls and wait for appliance parts to
cool down before touching them. Do not touch the
burner grates or surrounding areas until cool.
✓ Do not use water on grease fires.
✓ Clean appliance with caution.
✓Always turn pot handles to the side or back of the
range. Do not turn handles towards the area where
they are easily burned. Handles should not extend
over the adjacent burners.
✓Use the range only for cooking tasks as outlined in
this manual. When using the range, do not touch the
grates, burner caps, burner bases, or any other
parts in proximity to the flame. These components
may be hot enough to cause burns.
✓ Use dry pot holders. Moist or damp pot holders on
hot surfaces may result in burns from steam
✓ Do not use a towel or other bulky cloth.
✓Do not heat unopened food containers.
Buildup of pressure may cause the container to
explode and result in injury.
✓ During and after use, do not touch interior surfaces
of the oven until cool
✓Do not let pot holder touch hot surfaceareas

Dimension and Clearance
11
5. Gas SupplyRequirements
Installation of this range must conform with local codes, or in the absence of local codes, with
national Fuel Gas Code，ANSIZ223.1 / NFPA 54.
In Canada, installation must conform to the current natural Gas Installation /code, CAN 1-1.1-M81
and with local codes where applicable.
This range has been design-certified according to ANSIZ21.1a, latest edition.
Reading
LP in. w.c.
NG (Natural Gas)
in. w.c,
Maximum gas pressure
13.0.
10.0
Appliance Regulator Setting for outlet
pressure
10.0
5.0
Safety Tips for Gas Operation
✓ Keep appliance area clear and free from combustible materials, gasoline, and otherflammable
vapors.
✓ Do not obstruct the flow of combustion air into the range and ventilation air away from the
range.
✓ Ventilation: it is a must that the unit be set under a powered, vented exhaust hood of
sufficient size and capacity.
✓ Before installing the range, you must locate and secure the included anti-tip bracket to thewall
for your range.
✓ The use of cabinets for storage above the appliance may result in a potential burn hazard.
Combustible items may ignite; metallic items may become hot and cause burns. If a cabinet
storage is to be provided, the risk can be reduced by installing a range hood that projects
horizontally a minimum of 5" (12.7cm) beyond the bottom of the cabinets.

Dimension and Clearance
12
✓The appliance shall not be used for space heating. This information is based onsafety
considerations.
✓All openings in the wall behind the appliance and in the floor under the appliance shallbe
sealed.
6. Dimensions and Clearances
✓ The range may be installed flush to the rear wall.
✓You may install a non-combustible material, such as tile, on the rear wall above the range and
up the vent hood.
✓It is not necessary to install non-combustible materials behind the range below the countertop
height.
✓The minimum distance from the side of the range above the counter top to combustible
sidewalls must be at least 10 inches.

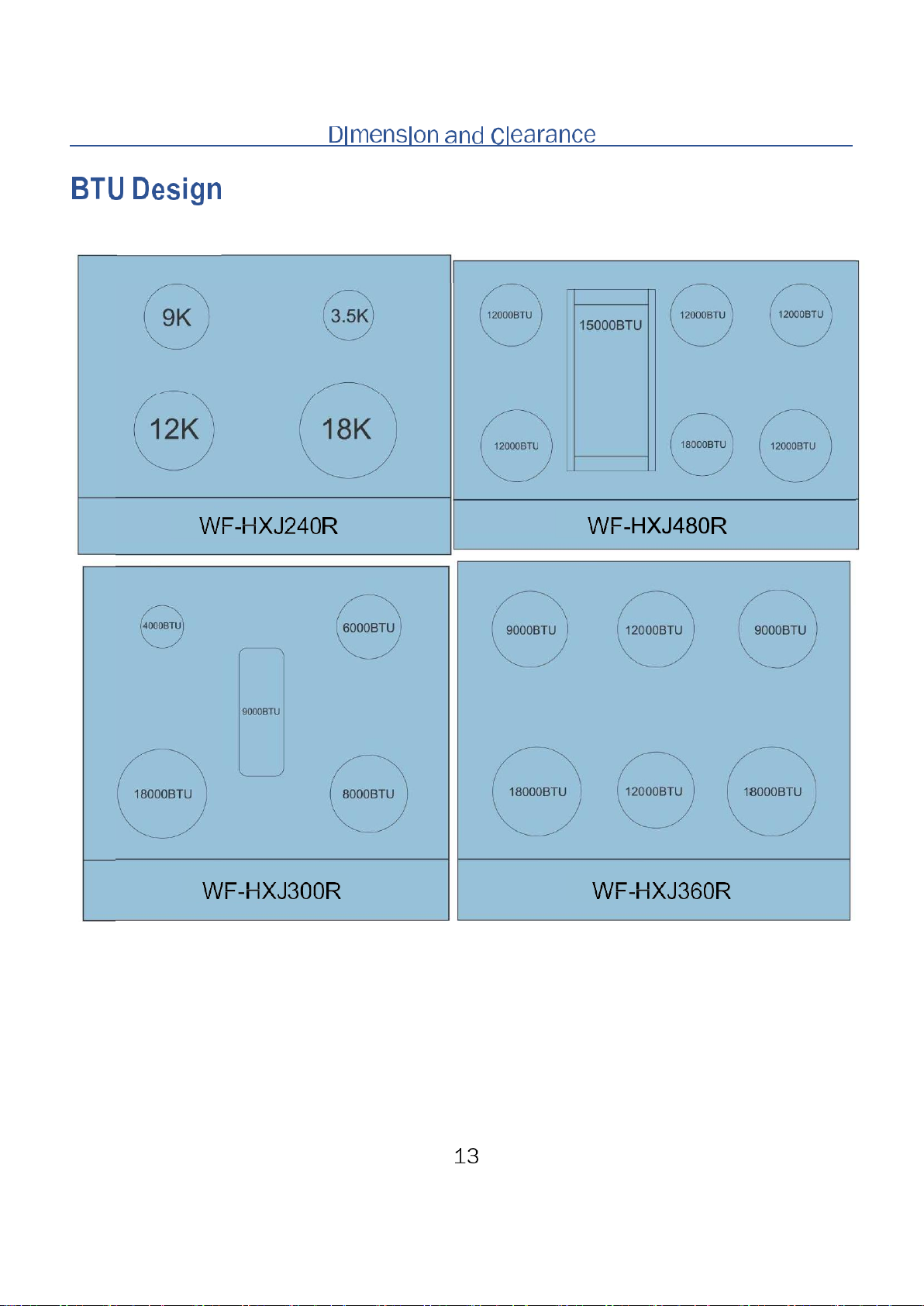

Dimension and Clearance
18
30”Gas Range Clearance

Dimension and Clearance
36” Gas Range Clearance
19
