Casio TV-5100B Troubleshooting guide

R
(with price)
Page
Specifications.............................................................................................1
Block Diagram ...........................................................................................2
Adjustment
Linear PCB..........................................................................................3
Printed Circuit Boards................................................................................8
Wiring Diagram........................................................................................10
Electrical Parts List ..................................................................................11
Mechanical Parts List...............................................................................18
Exploded View / Disassembly..................................................................19
IC and Transistor Lead Identification and Internal Circuitry.....................20
Schematic Diagrams and Waveforms .....................................................23
POCKET TELEVISION
AUGUST 1994
TV-5100B
INDEX

SPECIFICATIONS
— 1 —
Item Specification
1. Reception channels VHF : 2 ~ 13 ch UHF : 14 ~ 69 ch
2. Power voltage DC 6.0 V
3. Power consumption Approx. 3.0 W
4. Current consumption Approx. 500 mA
5. Battery life (with alkaline batteries) Approx. 2.0 hours
Batteries : 4 AA size batteries
6. Power supply Car adaptor : CA-K65
AC adaptor : AD-K65, 64
Earphone jack : 3.5ø mini
7. Connection terminals External power jack : 6.0 V DC IN
External antenna jack : 3.5ø mini
Audio / Video jack : 3.5ø
8. Screen size 1.8 inches
9. No. of Picture element 61,380 (220 ×279) dots
10. Dimensions 92 mm (H) ×105 mm (W) ×80 mm (D)
3-11/16" (H) ×4-1/5" (W) ×3-1/5" (D)
11. Weight 290 g excepting batteries
10.2 oz excepting batteries
12. Standard accessories Test batteries (R6 x 4)
13. Options AC adaptor :AD-K65, 64
Car adaptor :CA-K65
RF connector :CF-13
Antenna matching device :AS-35S
14. Body color Black

— 2 —

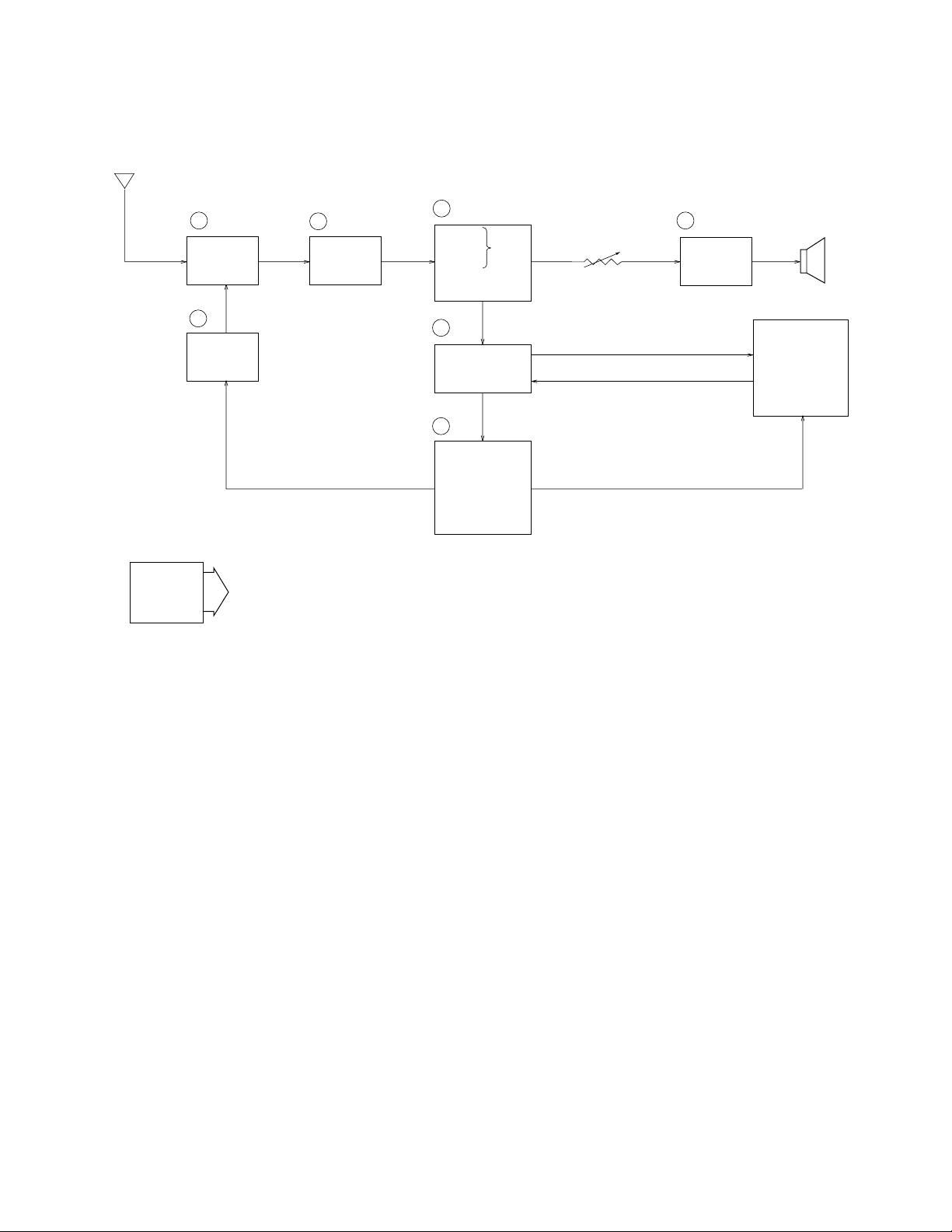

Antenna
1 TU200 2 Q200 3 IC200
7
Tuning
Voltage
Generator
VR600
Volume
Control
4 IC600 Speaker
IC300
IC700
LCD
Chroma
Circuit
Display
Control
Auto-Tuning
Control
5
6
VCC2 (4.5±0.02V)
VCC7 (25.9~31.3V)
VCC6 (10.8~12.0V)
VEE1 (–8.5~–7.5V)
VEE2 (–19.8~–17.2V)
IC270
Power
Supply
Audio
Amp.
IF Amp.Tuner
Video
Sound Det.
FM
AFT Circuit
AGC Circuit
Det
1— Color Tuner: TU200 TEPU5-02
Selects a desired radio wave and changes it to the video IF signal.
2— Video IF Amp.: Q200 2SC4670
Amplifies the video IF signal output from the tuner TU by 10 times (20 dB).
3— Video Det./Sound Det./FM Det./AFT/AGC: IC200 M51348FP
Eliminatesthe carrier wavein the video IF signal,and picks upthe video signal and thesound IF signal.
Also, the sound signal is picked up from the sound IF signal by FM detection.
4— Audio Amp.: IC600 NJM2070M
Sound amplification.
5— Chroma Circuit: IC300 IR3P90B
Generates the tricolor (red, green, and blue) from the video signal.
6— Display Control/ Auto-Tuning Control : IC700 MSM6770GS
Controls the display.
7— Tuning Voltage Generator: IC270 BA10358F
Generates the tuning voltage with the tuning pulse (TU) output from 6.
BLOCK DIAGRAM

— 3 —
Adjustment And Test Point Locations
Top View
T201
T200
ADJUSTMENT
LINEAR PCB
Items To Be Adjusted
Item Measuring Instrument
VCC2-1 voltage setting Voltmeter
Video detection coil adjustment TV signal generator, pattern generator, oscilloscope,
low-pass filter
AFT coil adjustment Sweep generator, oscilloscope, voltmeter
Contrast adjustment TV signal generator, pattern generator, oscilloscope
AGC adjustment TV signal generator, pattern generator, IF levelmeter
Clock adjustment Voltmeter

— 4 —
VR100
TP4
TP3
TP6
TP7
TP5
TP8
TP1
VR301
VR311
VR325
VR748
VR204
VR330
VR308
Pad IF TP2
VCC2-1 Voltage Setting
Input Input Input Output Output
Connection Point Signal Connection Point
Adjust Result
Adjust for 4.50 ±0.02 V
reading on voltmeter.
Voltmeter
VR100
Set
Output
Voltmeter
TP1
TP1
Equipment Connection / Adjustment Procedure
Bottom View
TV-5100

— 5 —

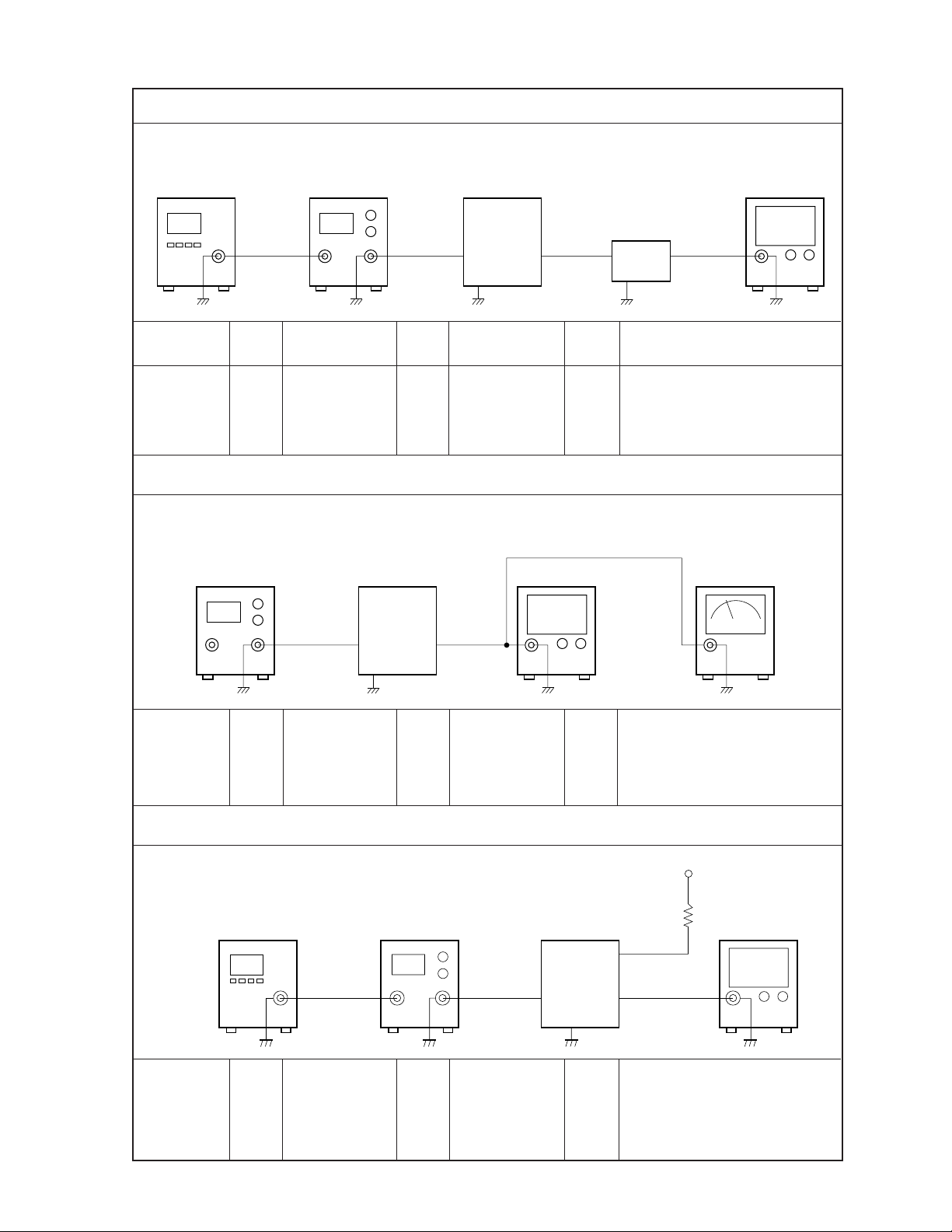

Video Detection Coil Adjustment
TP2 VR301 TP5
Pattern
generator
Signal
generator
Color bar
45.75 MHz
70 dBµOscilloscope Adjust step form wave to read
2.5 ±0.1 Vp-p.
* Open soldering pad IF.
Contrast Adjustment
TP2 T201 TP4
Adjust for 1.4 ±0.2 V reading
on voltmeter.
Confirm that the marker is at
the middle of S-curve on oscil-
loscope.
Sweep
generator Set Oscilloscope Voltmeter
Output
Input
* Open soldering pad IF.
TP2 TP4
AFT Coil Adjustment
Pattern
generator
Signal
generator
TP2 T200 TP3
Low-pass filter
Oscilloscope
Color bar
45.75 MHz
45 ±3 dBµAdjust for DC level at mini-
Input Input Input Output Output
Connection Point Signal Connection Point
Adjust Result
* Open soldering pad IF.Signal
generator
Pattern
generator Set Low-pass
filter
Oscilloscope
Input Output
TP3
TP2
Voltmeter
Oscilloscope
Sweep
generator
45.75±5 MHz
(Sweep) Marker:
45.75 MHz
70 dBµ
TV-5100
TV-5100
Set
Pattern
generator Signal generator
Input
TP2 Output
TP5
Oscilloscope
VCC2-3(5V)
10 kohm
CP302
TV-5100

— 6 —
Pulse BPulse A
Color Adjustment
* Open soldering pad IF.
Input Input Input Output Output
Connection Point Signal Connection Point
Adjust Result
Pattern
generator
Signal
generator
Color bar
45.75 MHz
70 dBµ
TP2 VR311 Oscilloscope TP5
Signal
generator
Pattern
generator Oscilloscope
Input
TP2 Output TP5
Adjust VR311 so that the
difference
between pulse
A and B is less
than 0.1V.
Pulse BPulse A
Tint Adjustment
* Open soldering pad IF.
AGC Adjustment
Pattern
generator
TV Signal
generator TP7 VR204 IF levelmeter TP2
Pattern
generator
Signal
generator
Color bar
45.75 MHz
70 dBµ
TP2 VR325 Oscilloscope TP5
Adjust VR325 so that the
difference
between pulse
A and B is less
than 0.1V.
Signal
generator
Pattern
generator IF levelmeter
Input
TP7 Output TP2
Signal
generator
Pattern
generator Oscilloscope
Input
TP2 Output TP5
Color bar
65 ±5 dBµAdjust for 84 ±1 dBµ
reading on the IF levelmeter
TV-5100
Set
TV-5100
Set
TV-5100
Set

— 7 —

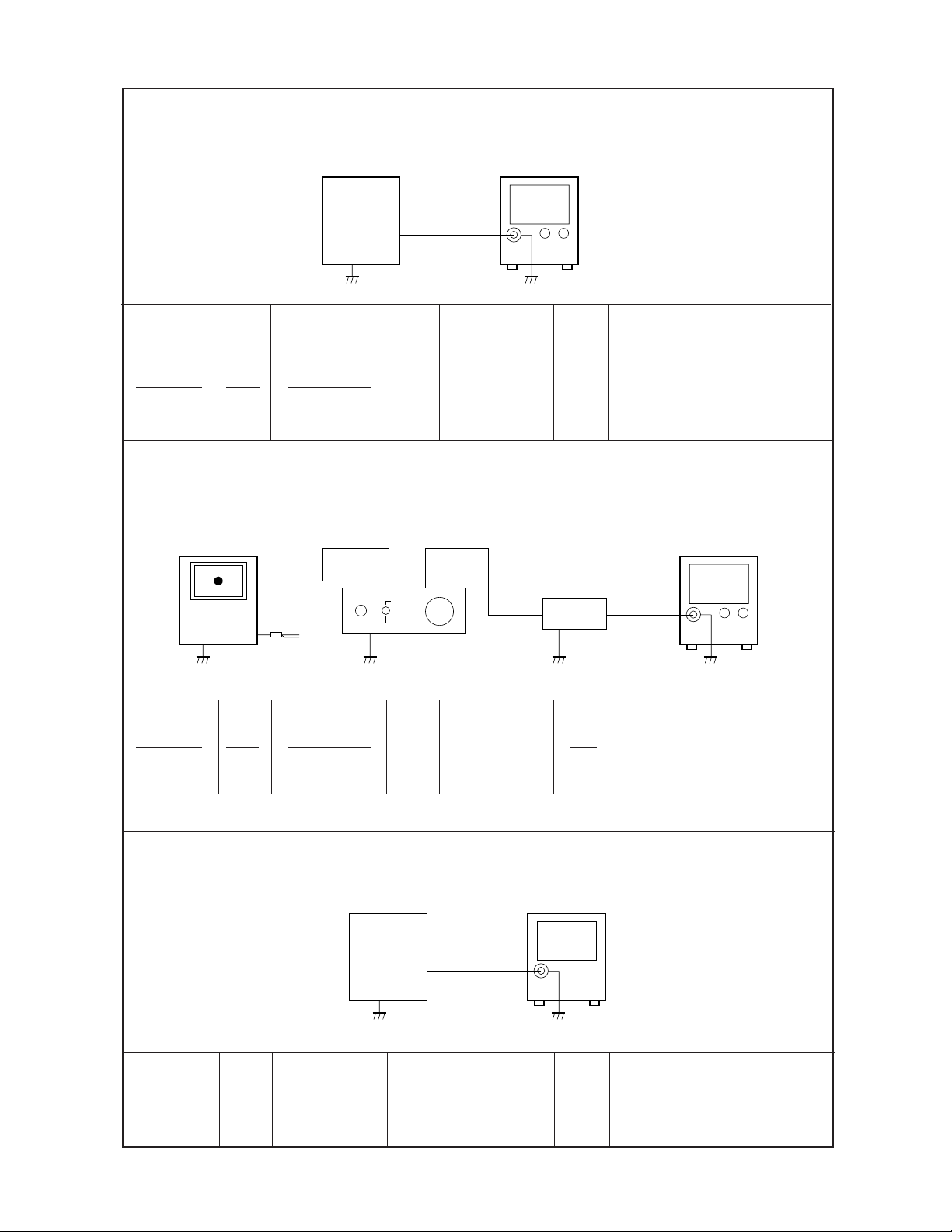

Vcom Adjustment
Input Input Input Output Output
Connection Point Signal Connection Point
Adjust Result
VR330
Free-running Frequency Adjustment
Oscilloscope
Output
TP8
Adjust VR328 so that square-
wave to read 6.0 ±0.1V.
AdjustVR330so thathighlevel
of the square-wave is at 0.0
±0.25V.
Oscilloscope TP8
VR328
VR330
Photo sensor
amp.
Band pass filter
Oscilloscope
Frequency
Counter
VR748 TP6
Photo senser amp. Oscilloscope
AV-C1
ON
OFF
H
M
L
Band-pass
filter
diode
* Place a photo diode on the middle of the display plate.
Output
TP6
Frequency
Counter
Adjust for a reading of 15.73 ±
0.01 KHz.
Adjust for ripple at minimum.
TV-5100
Set
TV-5100
Set
TV-5100
Set

— 8 —
C202
T201 T200
F203
TU200
T
T
F200
R222
C246
F202 F201
C319C304
C300
C118
C110
C100 C120
T100
JK100
L102
L101
C114
C116
C112
C606
C603 C215
C600
C302
VR343
SW
100
FU
100
IC700
+
OM-675
H300
JK250
JK600
R727
R728
R737
R714
C772
IC701
R342
R600
R601
C156
D180
R736 R734 C373
C150
C160
C162
C130
C774
C771
R741
R739 R740
R729
C210
C207 C208
R208 C242
L201
R717 R718
R704
C336
VR640
C788
C786
R756
R760
R761
C781
L756
C787 R757
JK200
CN700
C927
T950
C925L950
PRINTED CIRCUIT BOARDS
TOP VIEWS
Linear
BL

— 9 —
R105
TM100
VR100
R606
R280
R100
R160
C158
Q101
D150
D160
C137
DB+
R117
Q111
C140 R113
C180
Q204 R282
C285
IC600
R620
C335
C334
R346 C375
R231
C333 R301 VR301
VR748
R312
VR330
C317 R330
R329
R334
R328
R327
C315
C642
R642
C641
IC300
C299
R275
R276
Q270
IC270
R270
C270
R271
R201
R203
R205
R206
C236
C240
R204 C239 IC200
C243
C248
C249
L200
R200
C237
R202
Q200
R207
C245+C205
R210 C230
+C201
+C200
R241 C217
R272
R286
R285
C261
R250
Q751
R246 R738
R731
L307
L333L340
L740
R732
+C308
C770 R346
R749
C792
R211 C287 C271
C264
C263 C262
R214
R212
VR204 R223
R236C259
R227
L202 R247
R225 R230
C257
R229
R759
Q750C791
C794 R758
C790
C793
R770 C751
R777 C746
R723
R720 R722
D715
L753
C773
R733
C310
L300C345
R316
R750
R751
+C725
L780
C359 R331
C354
R326
C355 VR311
C341C339
C337
R314R313
R302
C332
VR328
R333
R343 C252
C365
C368 R347
R344
C376
R349
R348
C374 R345
R281 C152D152 R115 C145
R110
Q110
R108
D158
D154
C154 R107
C630
D110
C105
D100
R640
R643
R240
R209
R332
C347
R324
R318
C352
C363
R323
C358
C356
C353
R322
C357
VR325
R325
BOTTOM VIEWS
Linear
C796 SW700
SW701
R795 R796
FU901 FU900
R953
Q951
R950
Q950
BL

— 10 —
41
41
WIRING DIAGRAM
TOP VIEWS
BL PCB
Linear PCB

Linear PCB No. 1 FOB Japan
N Item Code No. Parts Name Specification M N.R.Yen R
Unit Price
Capacitors
C100 2807 6595 Electrolytic ECE-V0JV101Z-P 10 33 C
N C105 2895 0728 Tantalum SK-0J225M-R 20 22 C
N C110 2803 7345 Electrolytic 25RV2-10-T 20 20 C
N C112 2807 6896 Electrolytic ECE-V1CA470S-P 20 23 C
C114 2807 6595 Electrolytic ECE-V0JV101Z-P 10 33 C
C116 2807 6595 Electrolytic ECE-V0JV101Z-P 10 33 C
N C118 2803 6421 Electrolytic ECE-V1CA220SR 20 20 C
N C120 2807 7169 Electrolytic ECE-V1VA220S-P 20 23 C
C130 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C137 2897 2135 Ceramic UMK107B682K-T 20 4 C
C140 7103 5861 Ceramic GR39CH471J50PT 10 10 C
N C145 2845 4053 Ceramic 10N1HB152K-T1 20 3 C
C150 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C152 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C154 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C156 2892 0059 Ceramic GR40Y5V103Z50PT 10 9 C
C158 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C160 2892 0059 Ceramic GR40Y5V103Z50PT 10 9 C
N C180 2845 4473 Ceramic UMK212F104Z-T 20 4 C
N C200 2895 0630 Tantalum SK-1V104M-R 20 22 C
N C201 2895 0630 Tantalum SK-1V104M-R 20 22 C
N C202 2807 6791 Electrolytic ECE-V0JA470S-R 20 20 C
C205 2895 1589 Tantalum ECST1CY335R 10 27 C
N C207 2807 6791 Electrolytic ECE-V0JA470S-R 20 20 C
N C208 2807 6791 Electrolytic ECE-V0JA470S-R 20 20 C
C210 2807 6609 Electrolytic ECE-V1CA100S-R 10 19 C
N C215 2807 6840 Electrolytic ECE-V0JA470N-P 10 37 C
N C217 2895 0721 Tantalum SK-1E474M-R 20 22 C
C230 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C236 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C237 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C239 2845 4914 Ceramic 10N1HCH050C-T1 20 3 C
C240 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C242 2845 4074 Ceramic 10N1HCH150J-T1 20 3 C
C243 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C245 2897 1134 Ceramic GR39W5R103K50PT 10 5 C
C246 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C248 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C249 2897 1057 Ceramic GR40Y5V474Z16PT 10 16 C
N C252 2897 2142 Ceramic UMK107B822K-T 20 4 C
N C257 2845 4081 Ceramic 10N1HCH270J-T1 20 3 C
C259 2897 1134 Ceramic GR39W5R103K50PT 10 5 C
N C261 2897 2065 Ceramic GR39PH560G50PT 20 9 C
C262 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C263 2897 2065 Ceramic GR39PH560G50PT 20 9 C
N C264 2845 4165 Ceramic 10N1HCH0R5C-T1 20 3 C
C270 2897 1134 Ceramic GR39W5R103K50PT 10 5 C
C271 2897 1365 Ceramic GR39Y5V473Z50PT 10 5 C
C285 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C287 2845 4935 Ceramic 10N1HB332K-T1 20 3 C
C299 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
Notes: N – New parts
M – Minimum order/supply quantity
R – Rank
ELECTRICAL PARTS LIST
— 11 —

Linear PCB No. 2 FOB Japan
N Item Code No. Parts Name Specification M N.R.Yen R
Unit Price
N C300 2807 6791 Electrolytic ECE-V0JA470S-R 20 20 C
C302 2807 6609 Electrolytic ECE-V1CA100S-R 10 19 C
N C304 2807 6896 Electrolytic ECE-V1CA470S-P 20 23 C
N C308 2895 0714 Tantalum SK-1C105M-R 20 22 C
N C310 2895 0714 Tantalum SK-1C105M-R 20 22 C
N C315 2895 0721 Tantalum SK-1E474M-R 20 22 C
N C317 2895 1589 Tantalum ECST1CY335R 20 22 C
N C319 2807 6896 Electrolytic ECE-V1CA470S-P 20 23 C
C332 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C333 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C334 2897 1792 Ceramic TMK107F104Z-T 10 4 C
N C335 2897 1792 Ceramic TMK107F104Z-T 10 4 C
C336 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C337 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C339 2897 1792 Ceramic TMK107F104Z-T 10 4 C
C341 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C345 2845 2674 Ceramic 10N1HCH560J-T1 10 4 C
N C346 2845 3794 Ceramic 10N1HB222K-T1 20 3 C
N C347 2897 2121 Ceramic TMK107B153K-T 20 6 C
N C352 2845 4928 Ceramic 10N1HCH151J-T1 20 4 C
C353 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C354 2897 1960 Ceramic EMK107B473K-T 20 6 C
C355 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C356 2845 4921 Ceramic 10N1HCH160J-T1 20 3 C
C357 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C358 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C359 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C363 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C365 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C368 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C373 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C374 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C375 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C376 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C600 2807 6602 Electrolytic ECE-V0JA220S-R 10 19 C
N C603 2807 6742 Electrolytic ECE-V0JA101S-P 20 23 C
N C606 2807 6742 Electrolytic ECE-V0JA101S-P 20 23 C
C630 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
C641 2897 1120 Ceramic GR39W5R102K50PT 10 4 C
N C642 2897 2128 Ceramic TMK212B104K-T 20 9 C
N C725 2895 2023 Tantalum SK-1V224M-R 20 22 C
N C746 2897 1792 Ceramic TMK107F104Z-T 20 4 C
C751 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C770 2845 4802 Ceramic EMK316F225Z-T 20 16 C
N C771 2845 3794 Ceramic 10N1HB222K-T1 20 3 C
C772 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C773 2845 4802 Ceramic EMK316F225Z-T 20 16 C
C774 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C781 2897 1722 Ceramic UMK107B562K-T 20 4 C
N C786 2845 4081 Ceramic 10N1HCH270J-T1 20 3 C
N C787 2845 4081 Ceramic 10N1HCH270J-T1 20 3 C
C788 2897 1099 Ceramic GR39Y5V103Z50PT 10 4 C
N C790 2897 1792 Ceramic TMK107F104Z-T 20 4 C
N C791 2897 1792 Ceramic TMK107F104Z-T 20 4 C
Notes: N – New parts
M – Minimum order/supply quantity
R – Rank — 12 —

Linear PCB No. 3 FOB Japan
N Item Code No. Parts Name Specification M N.R.Yen R
Unit Price
N C792 2897 1792 Ceramic TMK107F104Z-T 20 4 C
N C793 2897 1792 Ceramic TMK107F104Z-T 20 4 C
N C794 2897 1792 Ceramic TMK107F104Z-T 20 4 C
Connector
N CN700 3501 8316 Connector 52559-2090 5 70 C
Diodes
D100 7101 1194 Chip MA111(TX) 10 18 C
D110 2315 0158 Chip, Zener MA3051-L(TX) 10 30 C
D150 7101 1194 Chip MA111(TX) 10 18 C
D152 2390 1379 Chip, Schottoky MA729-(TX) 10 30 C
D154 2390 1379 Chip, Schottoky MA729-(TX) 10 30 C
D158 7101 1194 Chip MA111(TX) 10 18 C
D160 2390 1470 Chip MA143A-(TX) 10 16 C
D180 2390 1190 Chip ERA15-01Y 10 9 C
D715 2390 1379 Chip, Schottoky MA729-(TX) 10 30 C
Filters and Traps
F200 3025 0182 SAW Filter SAF45MA60Z 1 140 C
F201 3025 0714 SIF Filter SFSL4.5MDB12 1 33 C
F202 3851 1057 Ceramic Discriminator CDSL4.5MC30C12 1 42 C
F203 3850 1259 SIF Trap TPS4.5MB 1 50 C
Fuse
N FU100 3632 0469 Fuse PI-251001(F10)1A 5 52 B
Oscillator
H300 2590 1239 Crystal HC-49 1 110 C
ICs IC200 2114 1827 Linear M51348FP-T1 1 190 B
IC270 2116 0119 OP AMP BA10358F-T1 10 39 B
IC300 2114 2709 Linear IR3P90B-1 1 670 B
IC600 2114 2464 Linear NJM2070M-T1 1 65 B
IC700 2011 7784 LSI MSM6770GS-VK-675 1 300 B
IC701 2114 3458 IC S-81230SG-QB-T1 1 50 B
Jacks
N JK100 3501 8281 Jack HEC0811-010010 10 43 C
JK200 3501 5439 Jack HSJ1456-01-210 1 27 C
JK250 3501 3773 Jack HSJ6063-01-410 1 88 C
JK600 3501 5439 Jack HSJ1456-01-210 1 27 C
Inductors
L101 3013 1022 Chip NLC453232-101K-TP 1 28 C
N L102 3013 1624 Chip NLC322522-331K-TP 20 27 C
L200 3013 1393 Chip LK2125-R82K-TP 1 26 C
L201 3013 1393 Chip LK2125-R82K-TP 1 26 C
L202 3013 0728 Chip MLF2012C180K-TP 1 30 C
L300 3013 1204 Chip MLF2012C330K-TP 1 29 C
L307 3013 1043 Chip NLC322522-101K-TP 1 28 C
L333 3013 1043 Chip NLC322522-101K-TP 1 28 C
L340 3013 1043 Chip NLC322522-101K-TP 1 28 C
L740 3013 1043 Chip NLC322522-101K-TP 1 28 C
L753 3013 1043 Chip NLC322522-101K-TP 1 28 C
L756 3013 1204 Chip MLF2012C330K-TP 1 29 C
L780 3013 1043 Chip NLC322522-101K-TP 1 28 C
Transistors
Q101 2253 0133 Chip 2SD1819A-R 10 12 B
Q110 2253 0133 Chip 2SD1819A-R 10 12 B
Q111 2253 0308 Chip 2SD1119-R(TX) 10 37 B
Notes: N – New parts
M – Minimum order/supply quantity
R – Rank — 13 —

Linear PCB No. 4 FOB Japan
N Item Code No. Parts Name Specification M N.R.Yen R
Unit Price
Q200 2252 0994 Chip 2SC4670-(TX) 10 23 C
Q204 2251 0189 Chip 2SB1218A-R(TX) 10 10 C
Q270 2259 1435 Chip DTC144EUWT106 10 9 C
Q750 2251 0189 Chip 2SB1218A-R(TX) 10 10 C
Q751 2259 1834 Chip DTA143TUWT106 10 15 C
Resistors
R100 2795 3360 Chip, Jumper MCR03EZHJ000 20 2 C
R105 2797 1995 Chip resistor ERJ-3GEYJ332V 20 10 C
R107 2797 1827 Chip resistor ERJ-3GEYJ333V 20 2 C
R108 2797 2464 Chip resistor ERJ-3GEYJ274V 20 2 C
R110 2791 1131 Chip resistor ERJ-6GEYJ271V 20 3 C
R113 2797 2044 Chip resistor ERJ-3GEYJ222V 20 2 C
R115 2797 1813 Chip resistor ERJ-3GEYJ101V 20 2 C
R117 2795 3360 Chip resistor MCR03EZHJ000 20 2 C
R160 2791 1692 Chip resistor ERJ-6GEYJ680V 20 3 C
N R200 2797 3689 Chip resistor ERJ-3GEYJ220V 20 2 C
R201 2797 1813 Chip resistor ERJ-3GEYJ101V 20 2 C
R202 2797 2247 Chip resistor ERJ-3GEYJ822V 20 2 C
R203 2797 2429 Chip resistor ERJ-3GEYJ392V 20 2 C
R204 2797 2394 Chip resistor ERJ-3GEYJ561V 20 2 C
N R205 2797 3689 Chip resistor ERJ-3GEYJ220V 20 2 C
R206 2795 3360 Chip jumper MCR03EZHJ000 20 2 C
R207 2797 2387 Chip resistor ERJ-3GEYJ391V 20 2 C
R208 2797 1869 Chip resistor ERJ-3GEYJ182V 20 2 C
R209 2797 2303 Chip resistor ERJ-3GEYJ103V 20 2 C
R210 2797 2065 Chip resistor ERJ-3GEYJ472V 20 2 C
R211 2797 1764 Chip resistor MCR03EZHJ104 20 2 C
R212 2797 2044 Chip resistor ERJ-3GEYJ222V 20 2 C
R214 2797 1862 Chip resistor ERJ-3GEYJ473V 20 2 C
R222 2797 2373 Chip resistor ERJ-3GEYJ470V 20 2 C
R223 7102 2193 Chip resistor ERJ-3GEYJ184V 20 2 C
R225 2795 3360 Chip jumper MCR03EZHJ000 20 2 C
R227 2795 3360 Chip jumper MCR03EZHJ000 20 2 C
R229 2797 1869 Chip resistor ERJ-3GEYJ182V 20 2 C
R230 2797 2394 Chip resistor ERJ-3GEYJ561V 20 2 C
R231 2797 2450 Chip resistor ERJ-3GEYJ153V 20 2 C
R236 2797 2464 Chip resistor ERJ-3GEYJ274V 20 2 C
R240 2797 2303 Chip resistor ERJ-3GEYJ103V 20 2 C
R241 2797 2457 Chip resistor ERJ-3GEYJ124V 20 2 C
R246 2797 2380 Chip resistor ERJ-3GEYJ331V 20 2 C
R247 2797 2044 Chip resistor ERJ-3GEYJ222V 20 2 C
R250 2797 2303 Chip resistor ERJ-3GEYJ103V 20 2 C
R270 2797 1827 Chip resistor ERJ-3GEYJ333V 20 2 C
R271 2797 2898 Chip resistor ERJ3GEYF473V 20 3 C
N R272 2797 3668 Chip resistor ERJ3GEYF512V 20 3 C
R275 2797 2030 Chip resistor ERJ-3GEYJ223V 20 2 C
R276 2797 1862 Chip resistor ERJ-3GEYJ473V 20 2 C
R280 2797 2030 Chip resistor ERJ-3GEYJ223V 20 2 C
R281 2797 2436 Chip resistor ERJ-3GEYJ562V 20 2 C
R282 2797 2394 Chip resistor ERJ-3GEYJ561V 20 2 C
R285 2797 2093 Chip resistor ERJ-3GEYJ271V 10 10 C
R286 2797 1764 Chip resistor MCR03EZHJ104 20 2 C
R301 2797 1862 Chip resistor ERJ-3GEYJ473V 20 2 C
R302 2797 2681 Chip resistor ERJ-3GEYJ393V 20 2 C
Notes: N – New parts
M – Minimum order/supply quantity
R – Rank — 14 —

Linear PCB No. 5 FOB Japan
N Item Code No. Parts Name Specification M N.R.Yen R
Unit Price
N R312 2797 3339 Chip resistor ERJ-3GEYF302V 20 3 C
R313 2797 1827 Chip resistor ERJ-3GEYJ333V 20 2 C
R314 2797 2681 Chip resistor ERJ-3GEYJ393V 20 2 C
R316 2797 1820 Chip resistor ERJ-3GEYJ105V 20 2 C
R318 2797 2093 Chip resistor ERJ-3GEYJ271V 10 10 C
R322 2797 1827 Chip resistor ERJ-3GEYJ333V 20 2 C
R323 2797 2912 Chip resistor ERJ-3GEYF563V 20 3 C
R324 2797 2898 Chip resistor ERJ-3GEYF473V 20 3 C
R325 2797 1827 Chip resistor ERJ-3GEYJ333V 20 2 C
R326 2797 2226 Chip resistor ERJ-3GEYJ563V 20 2 C
R327 2797 2436 Chip resistor ERJ-3GEYJ562V 20 2 C
R328 2797 2247 Chip resistor ERJ-3GEYJ822V 20 2 C
R329 2797 2226 Chip resistor ERJ-3GEYJ563V 20 2 C
R330 2797 2226 Chip resistor ERJ-3GEYJ563V 20 2 C
R331 2795 3360 Chip jumper MCR03EZHJ000 20 2 C
N R332 2797 3780 Chip resistor ERJ-3GEYJ335V 20 2 C
R333 2797 2681 Chip resistor ERJ-3GEYJ393V 20 2 C
R334 2797 2303 Chip resistor ERJ-3GEYJ103V 20 2 C
R342 7103 6792 Chip resistor ERJ-3GEYJ913V 20 2 C
R343 2797 2226 Chip resistor ERJ-3GEYJ563V 20 2 C
R344 2797 2912 Chip resistor ERJ-3GEYF563V 20 3 C
R345 2797 2891 Chip resistor ERJ-3GEYF363V 20 3 C
R346 2797 2877 Chip resistor ERJ-3GEYF243V 20 3 C
R347 2797 2884 Chip resistor ERJ-3GEYF333V 20 3 C
R348 2797 2877 Chip resistor ERJ-3GEYF243V 20 3 C
R349 2797 2884 Chip resistor ERJ3GEYF333V 20 3 C
R600 2797 2674 Chip resistor ERJ-3GEYJ151V 10 10 C
N R601 2797 2527 Chip resistor ERJ-3GEYJ512V 20 2 C
R606 2795 0294 Chip jumper MCR18EZHJ000 20 3 C
R620 2791 0696 Chip resistor ERJ-6GEYJ470 20 4 C
R640 7103 6792 Chip resistor ERJ-3GEYJ913V 20 2 C
R642 2795 3360 Chip jumper MCR03EZHJ000 20 2 C
N R643 7102 2201 Chip resistor ERJ-3GEYJ244V 20 2 C
R704 2797 2303 Chip resistor ERJ-3GEYJ103V 20 2 C
R714 2795 3360 Chip jumper MCR03EZHJ000 20 2 C
R717 2795 3360 Chip jumper MCR03EZHJ000 20 2 C
R718 2795 3360 Chip jumper MCR03EZHJ000 20 2 C
R720 2795 3360 Chip jumper MCR03EZHJ000 20 2 C
R722 2795 3360 Chip jumper MCR03EZHJ000 20 2 C
R723 2795 3360 Chip jumper MCR03EZHJ000 20 2 C
R727 2797 2065 Chip resistor ERJ-3GEYJ472V 20 2 C
N R728 2797 3773 Chip resistor ERJ-3GEYJ511V 20 2 C
R729 2797 2065 Chip resistor ERJ-3GEYJ472V 20 2 C
R731 2797 2065 Chip resistor ERJ-3GEYJ472V 20 2 C
R732 2797 1855 Chip resistor ERJ-3GEYJ102V 20 2 C
R733 2797 1855 Chip resistor ERJ-3GEYJ102V 20 2 C
R734 2797 2065 Chip resistor ERJ-3GEYJ472V 20 2 C
R736 2797 2065 Chip resistor ERJ-3GEYJ472V 20 2 C
R737 2797 2065 Chip resistor ERJ-3GEYJ472V 20 2 C
R738 2797 2065 Chip resistor ERJ-3GEYJ472V 20 2 C
R739 2797 2016 Chip resistor ERJ-3GEYJ225V 20 2 C
N R740 2797 3766 Chip resistor ERJ-3GEYF394V 20 3 C
N R741 2797 2527 Chip resistor ERJ-3GEYJ512V 20 2 C
R749 2797 2436 Chip resistor ERJ-3GEYJ562V 20 2 C
Notes: N – New parts
M – Minimum order/supply quantity
R – Rank — 15 —

Linear PCB No. 6 FOB Japan
N Item Code No. Parts Name Specification M N.R.Yen R
Unit Price
R750 2797 1988 Chip resistor ERJ-3GEYJ183V 20 2 C
R751 2797 2443 Chip resistor ERJ-3GEYJ682V 20 2 C
R756 2797 1855 Chip resistor ERJ-3GEYJ102V 20 2 C
R757 2797 1855 Chip resistor ERJ-3GEYJ102V 20 2 C
N R758 2797 3353 Chip resistor ERJ-3GEYF393V 20 3 C
R759 2797 2898 Chip resistor ERJ-3GEYF473V 20 3 C
R760 2797 1876 Chip resistor MCR03EZHJ224 20 2 C
R761 2797 1876 Chip resistor MCR03EZHJ224 20 2 C
R770 2797 1764 Chip resistor MCR03EZHJ104 20 2 C
R777 2795 3360 Chip jumper MCR03EZHJ104 20 2 C
Switch
SW100 3412 0938 Switch ESD-11V231 1 45 C
Coils and Converter
N T100 3065 0497 DC-DC Converter LC12U-33 5 73 C
N T200 3841 1211 Coil S5E-02 5 62 C
N T201 3841 1204 Coil S5E-01 5 62 C
Thermister
TM100 2775 1085 Chip 157-102-53031-TP 1 26 C
Tuner
TU200 1013 5511 Tuner TEPU5-02 1 760 C
Variable Resistors
N VR100 2775 1645 Semi-Fixed Resistor EVM-1XSX50B23 20 28 C
N VR204 2775 1484 Semi-Fixed Resistor EVM-1XSX50B24 20 28 C
N VR301 2775 1491 Semi-Fixed Resistor EVM-1XSX50B54 20 28 C
N VR311 2775 1491 Semi-Fixed Resistor EVM-1XSX50B54 20 28 C
N VR325 2775 1491 Semi-Fixed Resistor EVM-1XSX50B54 20 28 C
N VR328 2775 1491 Semi-Fixed Resistor EVM-1XSX50B54 20 28 C
N VR330 2775 1491 Semi-Fixed Resistor EVM-1XSX50B54 20 28 C
VR343 2765 0623 Volume RK09H11T20KB 5 64 C
VR640 2765 0462 Volume RK09H11T50KB 5 80 C
N VR748 2775 1477 Semi-Fixed Resistor EVM-1XSX50B14 20 28 C
Notes: N – New parts
M – Minimum order/supply quantity
R – Rank — 16 —

BL PCB FOB Japan
N Item Code No. Parts Name Specification M N.R.Yen R
Unit Price
Capacitors
C796 2892 0059 Chip GR40Y5V103Z50PT 10 9 C
C925 2825 0392 TF ECQ-V1H154JL 10 19 C
N C927 2813 3472 Ceramic DE0705SL820J2K 20 13 C
Connector
CN702 3501 7182 Connector 52287-0411 1 22 C
Fuses
FU900 3632 0308 Temperature EYP-1BF102L 1 27 B
FU901 3632 0308 Temperature EYP-1BF102L 1 27 B
Coil L950 3013 0756 Choke RCH-875-101K 5 55 C
Lamp
LA900 3851 1337 Fluorescent 8.61AD1P2-CA4 1 340 B
Transistors
Q950 2253 0308 Transistor 2SD1119-R(TX) 10 37 B
Q951 2253 0308 Transistor 2SD1119-R(TX) 10 37 B
Resistors
R795 2791 0305 Chip ERJ-6GEYJ472V 20 3 C
R796 2791 0305 Chip ERJ-6GEYJ472V 20 3 C
R950 2792 0500 Chip MCR18EZHJ471 20 2 C
R953 2792 0110 Chip ERJ-6GEYOR00V 20 3 C
Switches
N SW700 3412 1239 Switch SKHHAJ 20 12 C
N SW701 3412 1239 Switch SKHHAJ 20 12 C
Transformer
N T950 3012 1141 Inverter trans EW12H-01-CU 1 120 B
Notes: N – New parts
M – Minimum order/supply quantity
R – Rank — 17 —

FOB Japan
N Item Code No. Parts Name Specification Q N.R.Yen R
Unit Price
N 1 6609 2004 Speaker ass'y K412107*1 1 100 C
2 6607 4720 Cushion A-K614 K410316-7 1 7 C
N 3 6609 1530 Battery spring A-K610 K412012-1 10 35 C
N 4 6609 1520 Flat cable A-K610 K311586-1 1 29 C
5 6601 1700 Insulation tape A-K60 K4117-3 2 3 C
N 6 6630 5552 BL unit K211264*1 1 2,010 B
N 6-1 6609 2070 Shield case E-K610 K311634-1 1 28 C
N 6-2 6609 2080 Insulation plate B-K610 K41212-1 1 6 C
6-3 6607 0690 Insulation plate D-K508 K410441-3 1 7 C
6-4 6606 6201 Adhesive tape C-K502 K410903A-3 1 3 C
N 6-5 6609 2240 Shield case F-K610 K311674-1 1 26 C
N 6-6 6609 1330 Shield case C-K610 K311528-1 1 40 C
N 6-7 6609 1350 Reflection tape A-K610 K412014-1 1 13 C
N 6-8 6609 1340 Shield case D-K610 K311529-1 1 43 C
6-9 3851 1337 Fluorescent lamp 8.61AD1P2-CA4 1 340 B
6-10 3632 0308 Temperature fuse EYP-1BF102L 2 27 B
N 7 6630 5683 Battery cover ass'y K412106*1 1 520 C
8 6609 1320 Switch knob A-K610 K311527-1 1 20 C
N 9 6630 5684 Upper case ass'y K211263*1 1 630 C
N 9-1 6020 7658 Battery spring B1 G513 P408A-1 1 25 C
9-2 6606 4920 Battery spring C-K603 K410883-1 1 14 C
9-3 6020 7666 Battery spring B2 G513 P409A-1 1 23 C
N 9-4 6609 1400 Blind tape A-K610 K412066-1 1 16 C
N 9-5 6609 1390 Adhesive tape A-K610 K412015-1 1 18 C
10 6609 1360 Tuning button A-K610 K311521-1 1 20 C
N 11 6609 1480 Adhesive tape B-K610 K412016-1 2 15 C
N 12 6609 1490 Insulation plate A-K610 K412018-1 1 8 C
N 13 2725 0966 Display Unit TAD18T1001NB 1 4,000 B
N 14 6609 1370 Earth plate A-K610 K412013-1 1 30 C
N 15 6609 1410 Spacer for Display A-K610 K211183-1 1 55 C
N 16 6609 1270 Lower case A-K610 K110739-1 1 120 C
N 17 6606 2130 Stand A-K331 K310518-1 1 36 C
18 3851 1470 Rod antenna VR70100GA 1 180 C
N 19 6630 5685 PCB-K610B-L ass'y K211266*1 1 10,880 B
19-1 6604 7630 Insulation plate A-K332 K4670-17 1 3 C
N 19-2 6603 7100 Insulation plate B-K420 K4330-16 1 2 C
20 6609 1280 Display plate BAM-K610 K412011-2 1 160 C
N 21 6609 1300 Rating plate BAM-K610 K412010-2 1 10 C
22 5112 0868 Tapping screw (+) BT3, 1.7x5Bk 6 3 X
23 5860 0301 Tapping screw (+) BT3, 1.7x5Ni 3 3 X
24 5860 0805 Tapping screw (+) BT3,1.7x10Bk 2 3 X
25 5860 1477 Tapping screw (+) BT3,1.7x3.5Bk 1 1 X
N 26 6609 1290 Screw A-K610 K412031-1 1 3 X
Notes: N – New parts
M – Minimum order/supply quantity
R – Rank
MECHANICAL PARTS LIST
— 18 —

— 19 —
8
9-1
9-2
9-3
9
10
9-4
11
12
13
14
11
15
1
5
16
17
18 19-2
19
2
3
4
5
6-2
6-1
7
6
6-3
6-5
6-6 6-7
6-8
19-1
6-9
23
25
22
22
22
22
24
26
24
20
9-5
6-4
6-10
6-9
21
EXPLODED VIEW / DISASSEMBLY
Disassembly
1. Slide the battery cover 7.
2. Remove five screws L, N and P.
3. Remove the rod antenna H.
4. Remove the lower case F.
