SERVICE MANUAL
& PARTS LIST
(WITHOUT PRICE)
QW-4314
MODULE NO.
R
REF. NO. S/M-905
AUG. 2005
G-540D G-740D

CONTENTS
Page
1. SPECIFICATIONS: MODULE QW-4314 .................................................... 1
2. OPERATION CHART: MODULE QW-4314 ............................................... 2
3. DRAWINGS: MODULE QW-4314
3-1. LCD DIAGRAM ............................................................................................. 5
3-2. CIRCUIT DIAGRAM ...................................................................................... 6

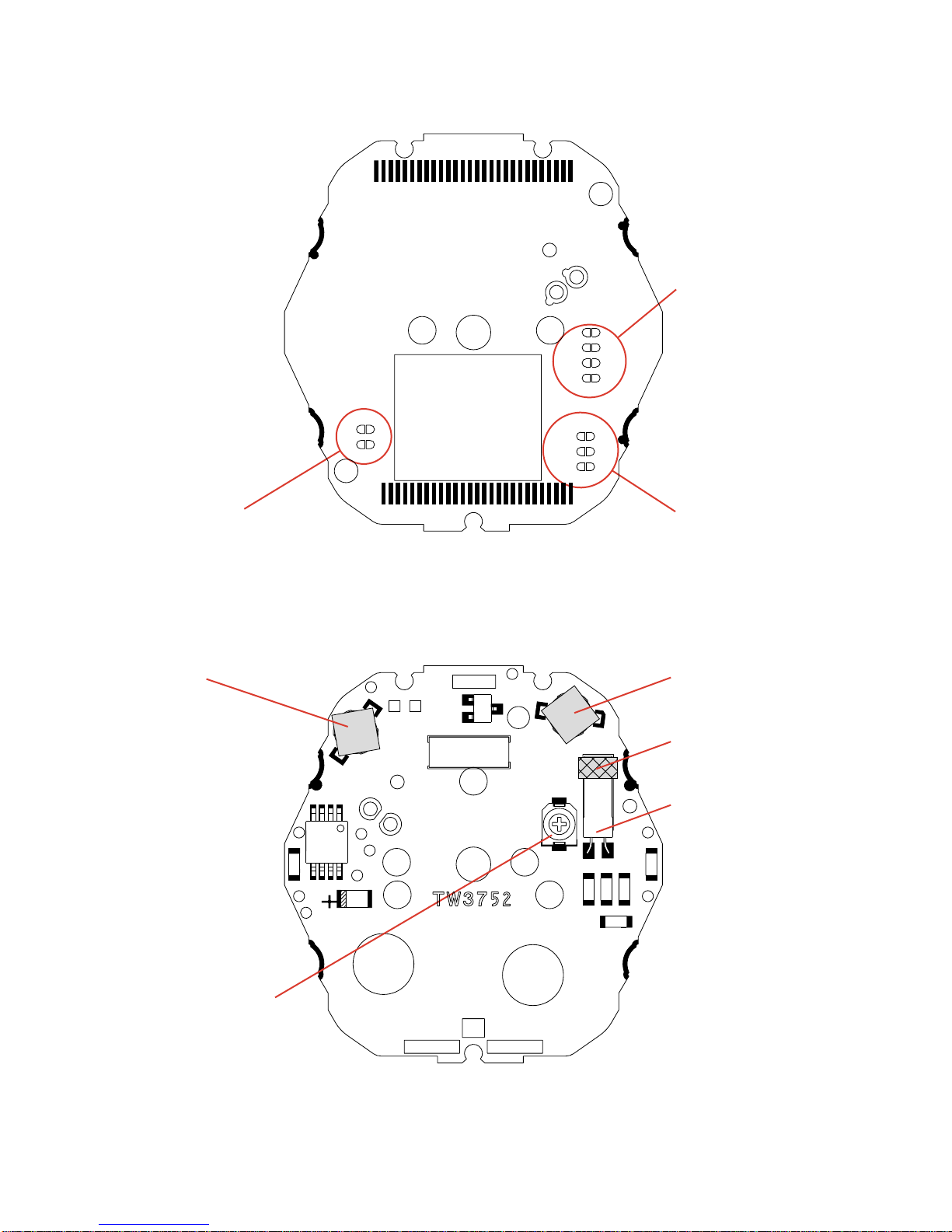

3-3. CHECKING TERMINALS AND COMPONENTS ..........................................7

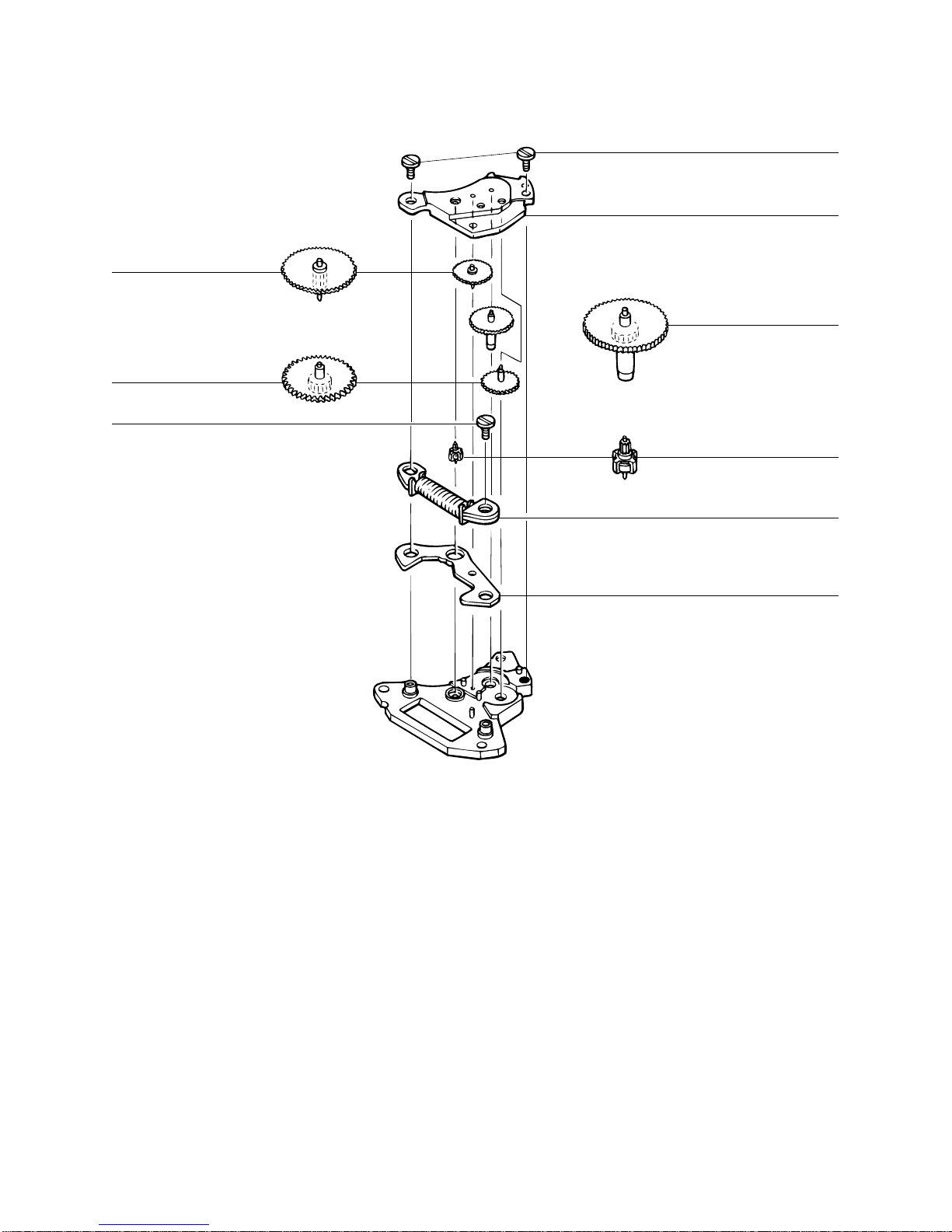

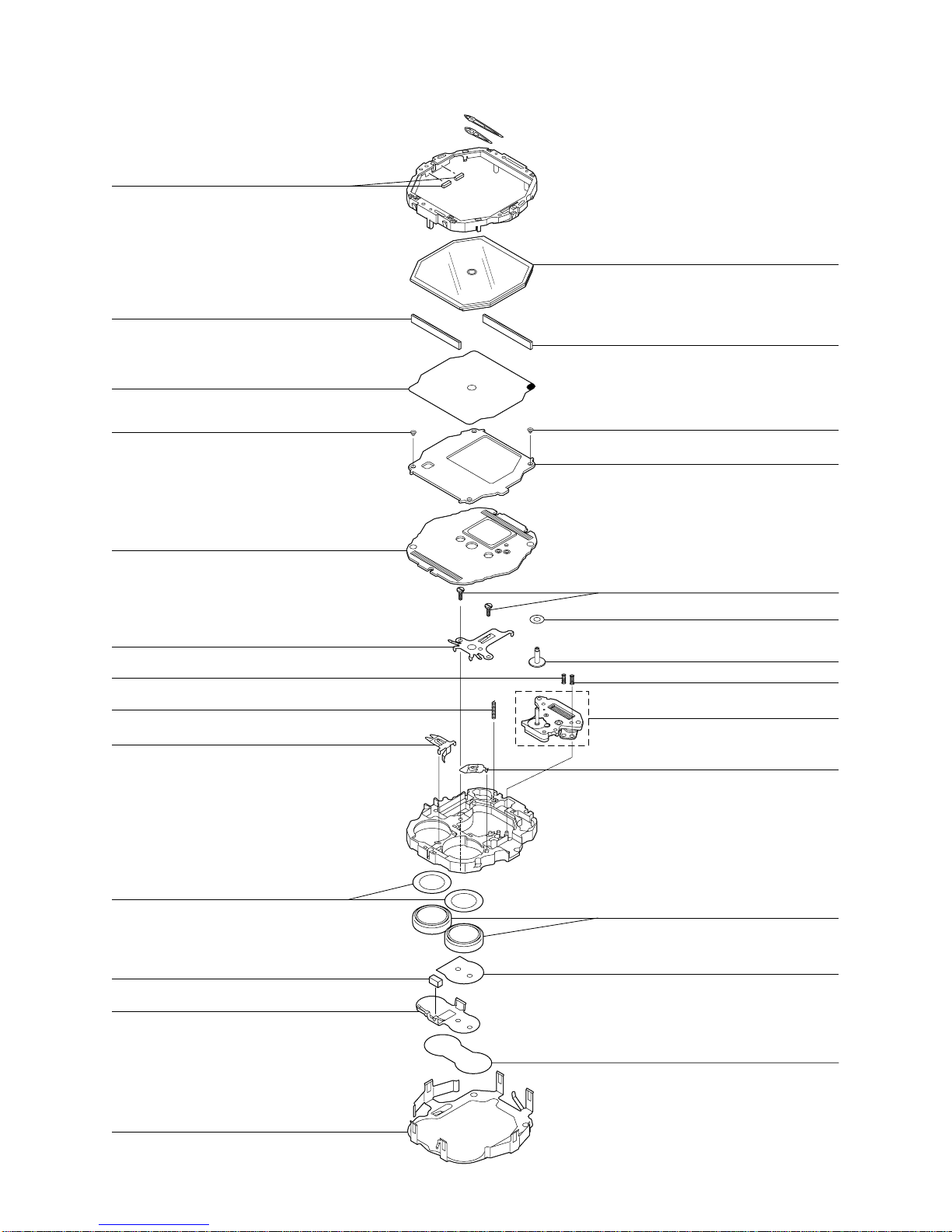

4. EXPLODED VIEW: MODULE QW-4314 .................................................... 8
5. PARTS LIST: MODULE QW-4314 ............................................................ 10
6. PRECAUTIONS FOR REPAIR: MODULE QW-4314

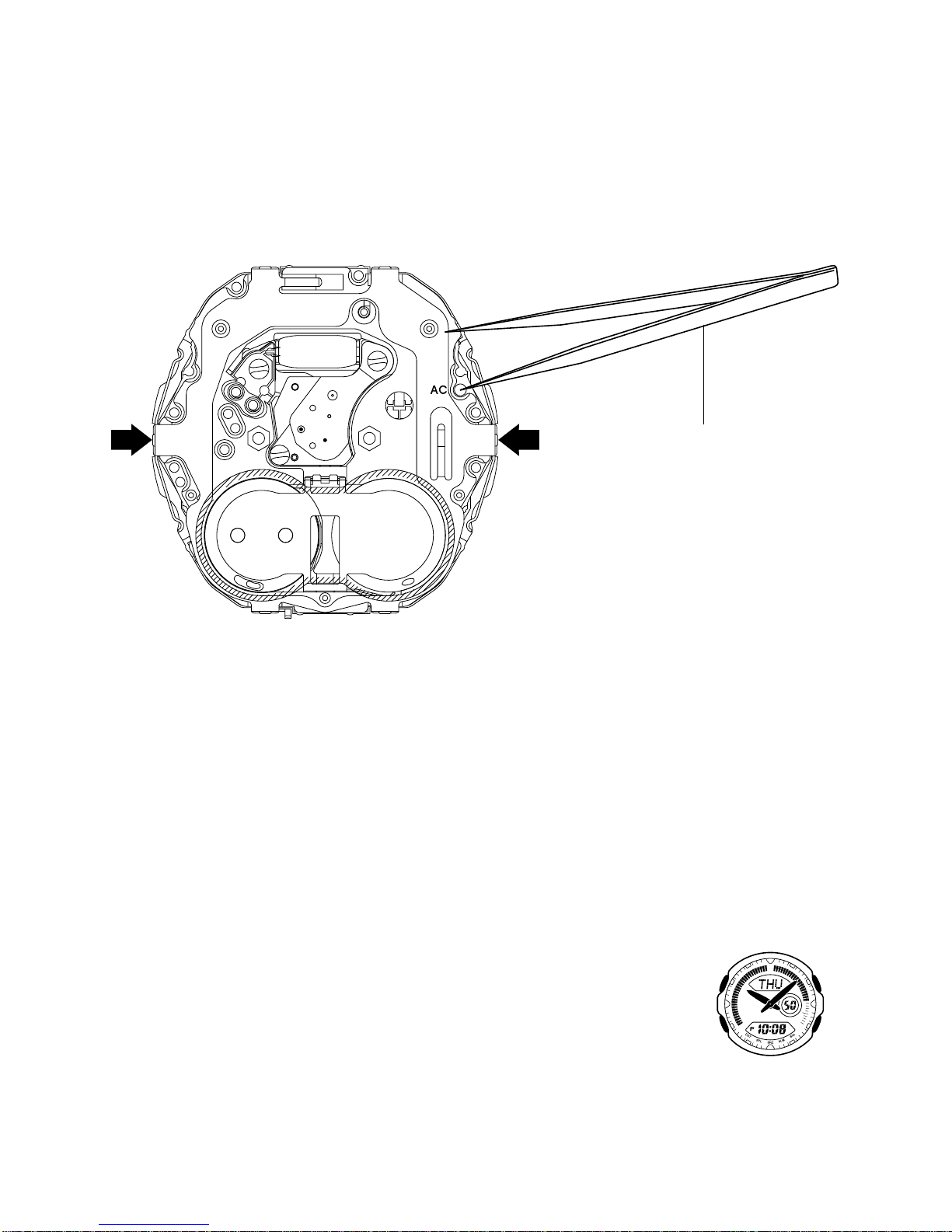

6-1. AC (ALL CLEAR) AND REMOVING OF MODULE ..................................... 12
6-2. ACCURACY CHECKING .............................................................................12

— 1 —
Battery SR927W ×2
Battery life Approx. 2 years
Current consumption 1.42 µA maximum
Alarm system Piezo plate on Cover/Back
Accuracy ±15 sec./month
Accuracy setting system Trimmer capacitor
Accuracy checking See page 12
Functions: • Electro-luminescent backlight
Afterglow
• World time
29 time zones (27 cities), city code display, daylight saving on/off
• 1/100-sec. stopwatch
Measuring capacity: 59'59.99"
Measuring modes: Elapsed time, split time, 1st-2nd place times
• Countdown timer
Input range: 1 sec to 60 mins
Unit: 1 sec
Others: Auto-repeat, time up alarm
• Daily alarm
5 independent daily alarms (4 one-time alarms and 1 snooze alarm)
• Horly time signal
• Auto-calendar (to year 2039)
• 12/24-hr format
• Regular timekeeping
Analog: 2 hands (Hr, min.)
Digital: Hr, min, sec, pm, month, date, day
1. SPECIFICATIONS: MODULE QW-4314
Item Detail

— 2 —

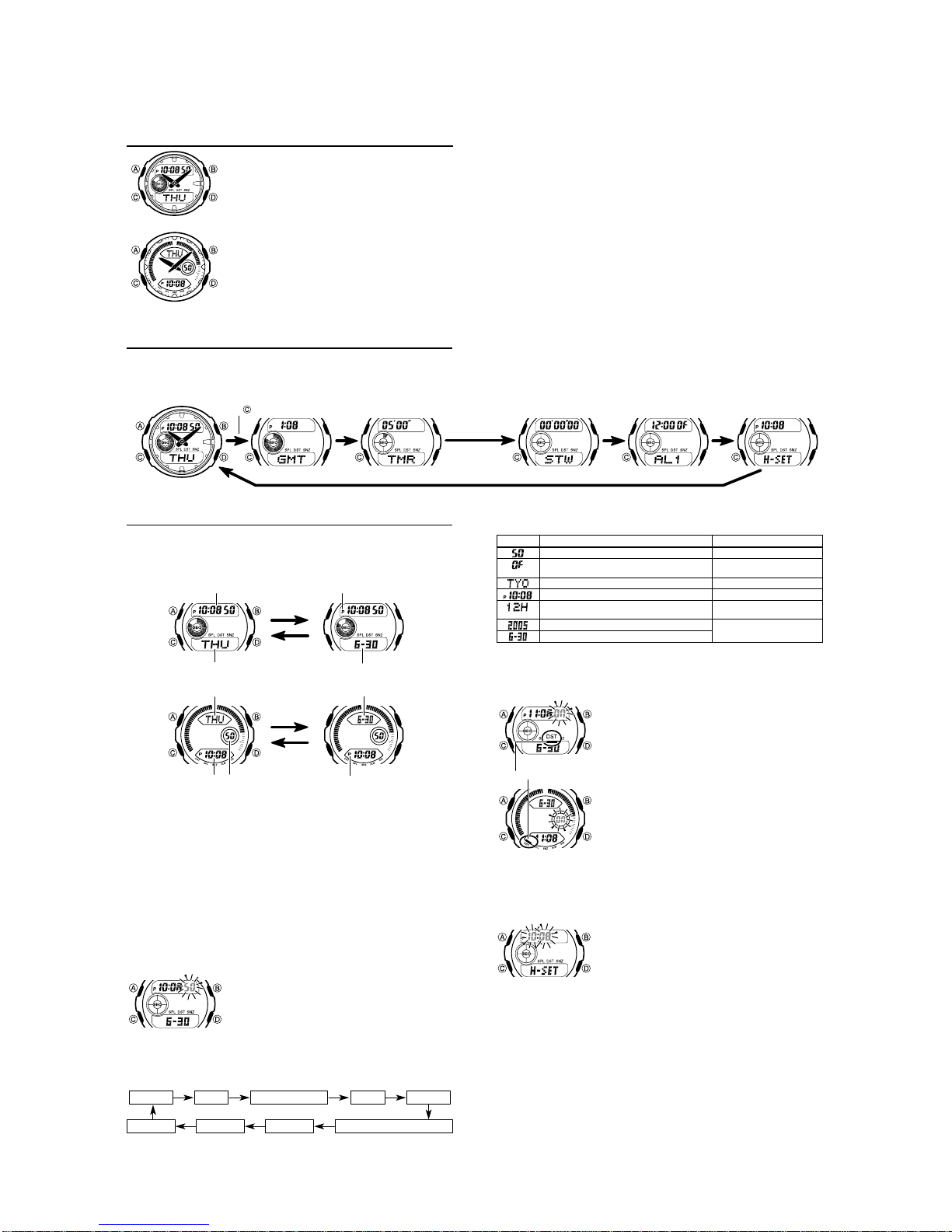

2. OPERATION CHART: MODULE QW-4314
About This Manual
•The operational procedures for Modules 3750 and 4314
are identical. All of the illustrations in this manual show
Module 3750.
•Depending on the model of your watch, display text
appears either as dark figures on a light background or
light figures on a dark background. All sample displays
in this manual are shown using dark figures on a light
background.
•For the sake of simplicity, the sample displays in this
manual do not show the analog hands of the watch.
•Button operations are indicated using the letters shown
in the illustration.
•Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the “Reference”section.
Module 3750
Module 4314
Timekeeping Mode World Time Mode Countdown Timer Mode Stopwatch Mode Alarm Mode Hand Setting Mode
Press .
General Guide
•Press Cto change from mode to mode.
•In any mode, press Bto illuminate the display.
Timekeeping
This watch features separate digital and analog timekeeping. The procedures for
setting the digital time and analog time are different.
•In the Timekeeping Mode, you can press Dto change the display format as shown
below.
[Module 3750]
Hour : Minutes Seconds PM indicator
Da
y
of Week Month – Da
y
[Module 4314]
Hour : Minutes PM indicator
Day of Week Month
– Day
Seconds
Digital Time and Date
Use the Timekeeping Mode to set and view a digital display of the current time and date.
When setting the digital time, you can also configure settings for summer time
(Daylight Saving time or DST), your Home City code (the code for the city where you
normally use the watch), and the 12/24-hour format.
•This watch is preset with a number of city codes, each of which represents the time
zone where that city is located. When setting the digital time, it is important that you
select the correct city code for your Home City. If your location is not included in the
preset city codes, select the preset city code that is in the same time zone as your
location.
•Note that all of the times for the World Time Mode city codes are displayed in
accordance with the digital time and date settings you configure in the Timekeeping
Mode.
•After you correctly set your Home City time and date, you can set the watch up for
timekeeping with a different city code simply by changing the Home City code in the
Timekeeping Mode.
To set the digital time and date
1.In the Timekeeping Mode, hold down Auntil the
seconds start to flash, which indicates the setting
screen.
2.Press Ctwice to move the flashing to the Home City
code setting (see the illustration below), and then use
Band Dto select the code you want.
•Make sure you select your Home City code before
changing any other setting.
•For full information on city codes, see the “City Code
Table”.
3. Press Cto move the flashing in the sequence shown below to select the other
settings.
Seconds DST Home City Code Hour Minutes
Day Month Year 12/24-Hour format
DST indicator
Module 3750
Module 4314
Screen To do this:
Reset the seconds to
00
Toggle between Daylight Saving Time (
ON
)and
Standard Time (
OF
)
Change the Home City code
Change the hour or minutes
Toggle between 12-hour (
12H )and 24-hour
(
24H )timekeeping
Change the year
Change the month or day
Do this:
Press D.
Press D.
Use D(east)and B(west).
Use D(+) and B(–).
Press D.
Use D(+) and B(–).
4. When the setting you want to change is flashing, use Band Dto change it as
described below.
5. Press Ato exit the setting screen.
•See “Digital Time Daylight Saving Time (DST) Setting”below for details about the
DST setting.
Digital Time Daylight Saving Time (DST) Setting
Daylight Saving Time (summer time) advances the digital
time setting by one hour from Standard Time. Remember
that not all countries or even local areas use Daylight
Saving Time.
To toggle the Timekeeping Mode digital time between
DST and Standard Time
1.IntheTimekeepingMode, holddown Auntiltheseconds
start to flash, which indicates the setting screen.
2.Press Conce to display the DST setting screen.
3.Press Dto toggle between Daylight Saving Time (
ON
displayed) and Standard Time (
OF
displayed).
4.Press Ato exit the setting screen.
•The DST indicator appears on the Month –Day screen
to indicate that Daylight Saving Time is turned on.
Setting the Analog Time
Perform the procedure below when the time indicated by the analog hands does not
match the time of the digital display.
To adjust the analog time
1.In the Timekeeping Mode, press Cfive times to enter
the Hand Setting Mode.
2.Hold down Auntil the current digital time starts to
flash, which indicates the analog setting screen.
3.Press Dto advance the analog time setting by
20 seconds.
•Holding down Dadvances the analog time setting at
high speed.
•If you need to advance the analog time setting a long way, hold down Duntil the
time starts advancing at high speed, and then press B. This locks the high-
speed hand movement, so you can release the two buttons. High-speed hand
movement continues until you press any button. It will also stop automatically
after the time advances 12 hours or if an alarm (daily alarm or countdown beeper)
starts to sound.
4. Press Ato exit the setting screen.
•The watch will automatically adjust the minute hand slightly to match its internal
second count when you exit the setting screen.
•To return to the Timekeeping Mode, press C.

—3 —
Module 3750
Module 4314
DST indicator
City code Current time for
the selected
city code
Module 3750
Module 4314
World Time
World Time digitally displays the current time in 27 cities
(29 time zones) around the world.
•All of the operations in this section are performed in the
World Time Mode, which you enter by pressing C.
To view the time in another city
In the World Time Mode, press Dto scroll eastwardly
through city codes.
•For full information about city codes, see the “City Code
Table”.
•If the current time shown for a city is wrong, it probably
means there is a problem with your Timekeeping Mode
time and/or Home City code settings. Go to the
Timekeeping Mode and make the necessary
adjustments.
To toggle a city code time between Standard Time and Daylight Saving Time
1.In the World Time Mode, use Dto display the city code
whose Standard Time/Daylight Saving Time setting you
want to change.
2.Hold down Afor about two seconds to toggle between
Daylight Saving Time (DST indicator displayed) and
Standard Time (DST indicator not displayed).
•The DST indicator is on the display whenever you
display a city code for which Daylight Saving Time is
turned on.
•Note that the DST/Standard Time setting affects only the
currently displayed city code. Other city codes are not
affected.
•Note that you cannot switch between Standard Time
and Daylight Saving Time while
GMT is selected as the
city code.
Seconds
Minutes
Module 3750
Module 4314
Countdown Timer The countdown timer can be set within a range of one
minute to 60 minutes. An alarm sounds when the
countdown reaches zero. The countdown timer also has
an auto-repeat feature and a progress beeper that signals
the progress of the countdown.
•All of the operations in this section are performed in the
Countdown Timer Mode, which you enter by pressing
C.
Configuring the Countdown Timer
The following are the settings you should configure before
actually using the countdown timer.
Countdown start time; Auto-repeat on/off; Progress
beeper on/off
•See “To configure the countdown timer” for information
about setting up the timer.
Auto-repeat
When auto-repeat is turned on, the countdown automatically restarts from the
countdown start time when it reaches zero. If left running, the countdown is repeated
a total of eight times, after which it stops automatically.
When auto-repeat is turned off, the countdown stops when it reaches zero and the
display shows the original countdown start time.
•Pressing Dwhile an auto-repeat countdown is in progress pauses the current
countdown. You can resume the auto-repeat countdown by pressing D, or you can
press Ato reset to the countdown time starting value.
Countdown Timer Beeper Operations
The watch beeps at various times during a countdown so you can keep informed
about the countdown status without looking at the display. The following describes the
types of beeper operations the watch performs during a countdown.
Countdown End Beeper
The countdown end beeper lets you know when the countdown reaches zero.
•When the progress beeper is turned off, the countdown end beeper sounds for
about 10 seconds, or until you press any button to stop it.
•When the progress beeper is turned on, the countdown end beeper sounds for
about one second.
Progress Beeper
When the progress beeper is turned on, the watch uses beeps to signal countdown
progress as described below.
•Starting from five minutes before the end of the countdown, the watch emits four
short beeps at the top of each countdown minute.
•30 seconds before the end of the countdown, the watch emits four short beeps.
•The watch emits a short beep for each of the last 10 seconds of the countdown.
•If the countdown start time is six minutes or greater, the watch emits a short beep for
each second of the final 10 seconds before the five-minute point is reached. Four
short beeps are emitted to signal when the five-minute point is reached.
To configure the countdown timer
1.While the countdown start time is on the display in the
Countdown Timer Mode, hold down Auntil the current
countdown start time starts to flash, which indicates the
setting screen.
•If the countdown start time is not displayed, use the
procedure under “To use the countdown timer” to
display it.
2. Press Cto move the flashing in the sequence shown
below to select other settings.
Start Time Auto-repeat
Progress Beeper
Setting
Start Time
Auto-repeat
Progress Beeper
Screen Button Operation
Use D(+) and B(–) to change the setting.
•You can set a start time in the range of 1 to 60 minutes in
1-minute increments.
Press Dto toggle auto-repeat on ( displayed) and off
(displayed).
Press Dto toggle the progress beeper on (
ON ) and off
(
OF ).
3. When the setting you want to change is flashing, use Band Dto change it as
described below.
4. Press Ato exit the setting screen.
•You can also perform steps 1 and 2 of the above procedure whenever you need to
view the current auto-repeat and progress beeper settings.
To use the countdown timer
Press Dwhile in the Countdown Timer Mode to start the
countdown timer.
•The countdown timer operation continues even if you
exit the Countdown Timer Mode.
•Press Dwhile a countdown operation is in progress to
pause it. Press Dagain to resume the countdown.
•To completely stop a countdown operation, first pause it
(by pressing D), and then press A. This returns the
countdown tme to its starting value.
Minutes
Seconds 1/100
second
Module 3750
Module 4314
Stopwatch
The stopwatch lets you measure elapsed time, split times,
and two finishes.
•The display range of the stopwatch is 59 minutes,
59.99 seconds.
The stopwatch continues to run, restarting from zero
after it reaches its limit, until you stop it.
•The stopwatch measurement operation continues even
if you exit the Stopwatch Mode.
•Exiting the Stopwatch Mode while a split time is frozen
on the display clears the split time and returns to
elapsed time measurement.
•All of the operations in this section are performed in the
Stopwatch Mode, which you enter by pressing C.
To measure times with the stopwatch
Elapsed Time
Start Stop Re-start Stop Clear
Start Split Split release Stop Clear
Start Split Stop Split release Clear
Split Time
Two Finishes
First runner
finishes.
Display time of
first runner.
Second runner
finishes. Display time of second runner.
Alarm
number
Alarm time (Hour : Minutes)
On/Off status
Module 3750
Module 4314
Alarms You can set five independent Daily Alarms. When an
alarm is turned on, the alarm tone sounds when the alarm
time is reached. One of the alarms is a snooze alarm,
while the other four are one-time alarms.
You can turn on an Hourly Time Signal that causes the
watch to beep twice every hour on the hour.
•There are six screens in the Alarm Mode. Four are for
one-time alarms (indicated by numbers from
AL1 through AL4 ), one is for a snooze alarm
(indicated by
SNZ ), and one is for the Hourly Time
Signal (indicated by
SIG ).
•All of the operations in this section are performed in the
Alarm Mode, which you enter by pressing C.
To set an alarm time
1.In the Alarm Mode, use Dto scroll through the alarm
screens until the one whose time you want to set is
displayed.
•To set a one-time alarm, display one of the screens indicated by an alarm number
from
AL1 through AL4 . To set the snooze alarm, display the screen indicated
by
SNZ .
•The snooze alarm repeats every five minutes.
2. After you select an alarm, hold down Auntil the hour setting of the alarm time
starts to flash, which indicates the setting screen.
•This operation automatically turns on the alarm.
3. Press Cto move the flashing between the hour and minute settings.
4. While a setting is flashing, use D(+) and B(–) to change it.
•When setting the alarm time using the 12-hour format, take care to set the time
correctly as a.m. (no indicator) or p.m. (Pindicator).
5. Press Ato exit the settin
g
screen.

—4 —
Alarm on
indicator
On/Off status
Snooze alarm
indicator
Module 3750
Module 4314
Alarm Operation
The alarm sounds at the preset time for about 20 seconds, regardless of the mode the
watch is in. In the case of the snooze alarm, the alarm operation is performed a total
of seven times, every five minutes, or until you turn the alarm off.
•To stop the alarm tone after it starts to sound, press any button.
•Performing any one of the following operations during a 5-minute interval between
snooze alarms cancels the current snooze alarm operation.
Displaying the Timekeeping Mode setting screen
Displaying the
SNZ setting screen
To test the alarm
In the Alarm Mode, hold down Dto sound the alarm.
To turn an alarm on and off
1.In the Alarm Mode, use Dto select an alarm.
2.Press Ato toggle it on (ON displayed) and off
(OF displayed).
•Turning on a one-time alarm (AL1through AL4)
displays the alarm on indicator on its Alarm Mode
screen.
•Turning on the snooze alarm (SNZ) displays the alarm
on indicator and snooze alarm indicator on the Alarm
Mode snooze alarm screen.
•In all modes, the alarm on indicator is shown for any
alarm that is currently turned on.
•The alarm on indicator flashes while the alarm is
sounding.
•The snooze alarm indicator flashes during the 5-minute
intervals between alarms.
To turn the Hourly Time Signal on and off
1.In the Alarm Mode, use Dto select the Hourly Time
Signal (SIG).
2.Press Ato toggle it on (ON displayed) and off
(OF displayed).
•The Hourly Time Signal on indicator is shown on the
display in all modes while the Hourly Time Signal is
turned on.
Reference
This section contains more detailed and technical information about watch operation.
It also contains important precautions and notes about the various features and
functions of this watch.
G
raphic
The following describes the information indicated by the graphic in each mode.
Graphic
Module 3750 Module 4314
On/Off
status Hourly time signal
on indicator
Module 3750
Module 4314
Mode
Timekeeping
World Time
Countdown Timer
Stopwatch
Alarm
Hand Setting
Graphic
Timekeeping Mode seconds
Timekeeping Mode seconds
Countdown time minutes
Stopwatch time seconds
No indication
No indication
Auto Return Feature
If you leave a screen with flashing digits on the display for two or three minutes
without performing any operation, the watch automatically exits the setting screen.
Scrolling
The Band Dbuttons are used in various modes and setting screens to scroll
through data on the display. In most cases, holding down these buttons during a scroll
operation scrolls through the data at high speed.
Initial Screens
When you enter the World Time orAlarm Mode, the data you were viewing when you
last exited the mode appears first.
Timekeeping
•Resetting the seconds to 00 while the current count is in the range of 30 to 59
causes the minutes to be increased by 1. In the range of 00 to 29, the seconds are
reset to 00 without changing the minutes.
•With the 12-hour format, the P (PM) indicator appears on the display for times in the
range of noon to 11:59 p.m. and no indicator appears for times in the range of
midnight to 11:59 a.m.
•With the 24-hour format, times are displayed in the range of 0:00 to 23:59, without
any indicator.
•The year can be set in the range of 2000 to 2039.
•The watch’s built-in full automatic calendar makes allowances for different month
lengths and leap years. Once you set the date, there should be no reason to change
it except after you have the watch’s batteries replaced.
World Time
•The World Time Mode times are calculated from the current Home City time setting
in the Timekeeping Mode, using the Greenwich Mean Time (GMT) differentials
associated with each city code.
•The GMT differential is a value that indicates the time difference between Greenwich
Mean Time and the time zone where a city is located.
•GMT differential is calculated by this watch based on UniversalTime Coordinated
(UTC) data.
Backlight Precautions
The backlight uses an EL (electro-luminescent) panel that causes the entire display to
glow for easy reading in the dark. In any mode, press Bto illuminate the display for
about two seconds.
•The electro-luminescent panel that provides illumination loses power after very long
use.
•The illumination provided by the backlight may be hard to see when viewed under
direct sunlight.
•The watch may emit an audible sound whenever the display is illuminated. This is
due to vibration of the EL panel used for illumination, and does not indicate
malfunction.
•The backlight automatically turns off whenever an alarm sounds.
•Frequent use of the backlight shortens the battery life.
– – ––11.0 Pago Pago
HNL Honolulu –10.0 Papeete
ANC Anchorage –09.0 Nome
LAX LosAngeles –08.0 San Francisco, Las Vegas, Vancouver, Seattle/Tacoma,
Dawson City
DEN Denver –07.0 El Paso, Edmonton
CHI Chicago –06.0 Houston, Dallas/Fort Worth, New Orleans,
Mexico City, Winnipeg
NYC New York –05.0 Montreal, Detroit, Miami, Boston, Panama City,
Havana, Lima, Bogota
CCS Caracas –04.0 La Paz, Santiago, Port Of Spain
RIO Rio De Janeiro –03.0 Sao Paulo, Buenos Aires, Brasilia, Montevideo
– – ––
02.0
– – ––01.0 Praia
GMT +00.0 Dublin, Lisbon, Casablanca, Dakar,Abidjan
LON London
PAR Paris +01.0 Milan, Rome, Madrid,Amsterdam, Algiers,
Hamburg, Frankfurt, Vienna, Stockholm, Berlin
CAI Cairo +02.0 Athens, Helsinki, Istanbul, Beirut, Damascus,
JRS Jerusalem Cape Town
JED Jeddah +03.0 Kuwait, Riyadh, Aden, Addis Ababa, Nairobi, Moscow
THR Tehran +03.5 Shiraz
DXB Dubai +04.0 Abu Dhabi, Muscat
KBL Kabul +04.5
KHI Karachi +05.0 Male
DEL Delhi +05.5 Mumbai, Kolkata
DAC Dhaka +06.0 Colombo
RGN Yangon +06.5
BKK Bangkok +07.0 Jakarta, Phnom Penh, Hanoi, Vientiane
HKG Hong Kong +08.0 Singapore, Kuala Lumpur, Beijing, Taipei, Manila,
Perth, Ulaanbaatar
TYO Tokyo +09.0 Seoul, Pyongyang
ADL Adelaide +09.5 Darwin
SYD Sydney +10.0 Melbourne, Guam, Rabaul
NOU Noumea +11.0 Port Vila
WLG Wellington +12.0 Christchurch, Nadi, Nauru Island
City City GMT Other major cities in same time zone
Code Differential
City Code Table
*Based on data as of December 2004.

— 5 —
3. DRAWINGS: MODULE QW-4314
3-1. LCD DIAGRAM
L 3
x16y1
e3
x16y5 x16y4 x16y3 x16y2
m15
m10 m55
m27
m9
m8
m7
m6
m5
ALM
m50
m51
g0
c1
g1
f1
b0
m11
m28
m29
m35
m36
m37
m38
m39
c0
m52
a0
f0
b1
a1
m4
m12
m26
m25
SPL
m40
m41
m42
m43
m44
m20
m53
m3
m2
m1
m0
d0
m13
m56
m57
m58
m59
SNZ
m24
m23
m22
m21
m54
e0
d1
e1
m30
m16
m17
m18
m19
m45
m46
m47
m48
m49
SIG
m14
m31
m32
m33
m34
col d3 b4
min
SEG. COM.
f3
g3c4 a3 LC5LC4LC3LC2LC1
L 4
L 5
L 6
L 7
L 8
L 9
L10
L11
L12
L13
L14
L15
L16
L17
L18
L19
L20
L21
L22
L23
L24
L27
L26
L25 a5g5
x7y2
x3y1
x3y5
x4y3
x2y2
x1y4
x10y1
x5y4 x5y3 x4y2
x2y5 x3y4
x1y1
x13y1
c2d5
x12y4 x12y3
x12y5
x14y2 x14y1
x1y2x1y3
x1y5
x3y3 x3y2
x6y1
x4y1
pm1
x4y5 x4y4
x2y4 x2y3
x15y2x15y3x15y4
x15y5 x15y1
x14y5 x14y4 x14y3 x13y2x13y3x13y4
x13y5 x12y1
x11y5 x11y4 x11y3 x11y2
f5sec
DST1
x10y3
x10y5
x12y2
e5
g2
e2
c3
a2
f2
b3
b5
f4
a4
d2
d4
c5
e4
g4
x11y1
x7y1
x9y4
x0y2
x8y5
x0y5
x8y1
x0y4
x6y5
x0y1x0y3
L31
L32
L33
L34
L35
L29
SEG. COM.
L28
x10y2
x5y5 x5y2
x10y4
x2y1
L30
x9y1
x7y5 x8y3
x6y2
x7y3
x5y1
x8y2
x7y4
x9y3
x9y5
x6y3
x8y4 x9y2
x6y4
b2
LC5LC4LC3LC2LC1
L36
L37
L38
L39
L40
L41
L42
L43
L44
L45
L46
L47
L48
L49
L50
L51
L52
L48 L30 L31 L32 L33 L34 L35 L36 L37 L38 L39 L42 L28 L26 L29
LC3 LC2 LC1 L25 L24 L23 L22 L21 L20 L19 L18 L17 L16 L15 L14 L13 L12 L11 LC5 LC4L27
L47 L41 L43 L44
L 5 L 4 L 3
L49 L50 L51 L52
m59
m0
x16
x0
y5
y1
DST1
SPL
SNZ
ALM
SIG
f0
e0
d0
c0
g0 b0
a0
f1
e1
d1
c1
g1 b1
a1
sec
col
min
f2
e2 d2 c2
g2 b2
a2
f3
e3 d3 c3
g3 b3
a3
f4
e4 d4 c4
g4 b4
a4
f5
e5 d5 c5
g5 b5
a5
pm1

— 6 —
3-2. CIRCUIT DIAGRAM
LSI
TOTAL 93 PINS
BONDING 89 PINS
GND VDD2
BAT1
VCHVDD3 VC1 VC2
C3
C2 C4
XTB
Xtal
L3 - - - - L52 LC1 - - - LC5
CT
LCD (4.5V 1/3b 1/5d)
LD1
S1
S2
S3
VDD1
C1
BD
LL1
Tr1
XT
T1
T2
KI1
KI2
KI3
KI4
KI9
KI6
KI7
KI8
KI5
N1
S4
PZ
VOSC
C5
SDO
AC
✽1
KC4
LD3KC3
LD2KC2
KC1
N2
N3
✽3
✽2
N4
✽3
Z
✽2
✽2
✽2
CSB
✽3
✽3
+
SA
SK
KS
✽2
SDI SCK
✽1✽2
L1 L2
(O1) (O2)
CLF1
E’
Cel
EL
INV
LL2
L+
VOUT
L-
GND
CLF2
V+
BACK
FRONT
✽4✽4✽4✽4
✽1
✽1
✽1
✽5
✽6
BAT2
C6
An.B
✽1. GND-KI6: Open (No Soldering)
GND-KI7: Open (No Soldering)
KC2-KI2 : Short (Soldering)
KC3-KI2 : Short (Soldering)
KC4-KI2 : Short (Soldering)
✽2. Latch type key
✽ 3.
Short (Soldering) (N trimming)
✽4. No bonding
✽5. KC2 is used in this module.
✽ 6. KC3 is used in this module.

—7 —
3-3. CHECKING TERMINALS AND COMPONENTS
Short pad for switching modules
Short pad for N trimming
Short pad for switching modules
CAPACITOR/TRIMMER
(10097666)
CUSHION 506
(72119631) CUSHION 506
(72119631)
CUSHION 6
(72110064)
OSCILLATOR/CRYSTAL
(71106323)
15. PCB ASS'Y
(76408837)
L–
GND
AC
GND GND
LL1
GND GND
VC1
BD
VDD2
VDD2
GND
KI1
KI3
VC2
GND
LL1 LL1
LL1
LD1
GND
L– L+
VDD2
CLF1
CLF2
LD1
V
XT
KI5
KI1
XTB
XT
GND
VOUT
GND
CLF1
CLF2
VDD2
VC1
VOUT
KI4
L+
GND GND
GND
KI5
VDD3 VCH
VOSC
L1
L2
VDD1
VCH
L2
L1
GND
VDD2 VDD2
VDD2
GND
KI4
L1
KI1
KI3
VOUT
GND
KI6
KI7GND
GND
KI5
LC5 L 3 L 4 L 5 L 6 L 7 L 8 L 9 L10 L11 L12 L13 L14 L15 L16 L17 L18 L19 L20 L21 L22 L23 L24 L25 LC1 LC2 LC3 LC4
L27 L28 L26 L52 L51 L50 L49 L48 L47 L46 L45 L44 L43 L42 L41 L40 L39 L38 L37 L36 L35 L34 L33 L32 L31 L30 L29
KI2
KI2
LD3KC3
LD2KC2
KC4 KI2
N4
GND
GND
GND
N2
N1
N3
GND
L2

— 8 —
4. EXPLODED VIEW: MODULE QW-4314
11 (10072412)
5 (72119576)
22 (10014294)
8 (10109743)
19 (72332809)
15 (76408837)
23 (72019512)
16 (72311874)
21 (72300665)
10 (10058549)
9 (10058503)
7 (10062885)
24 (10058551)
13a (10195965)
13b (10195966)
13c (10195967)
25 (72240652)
26 (72350893)
21 (72300665)
1 (76406418)
3 (72255063)
18 (10123237)
Battery Silver Oxide
(SR927W)
11 (10072412)
20 (10109741)
22 (10014294)
PCB Ass'y 17 (72078852)
12 (10059371)

—9 —
EXPLODED VIEW: ANALOG BLOCK OF MODULE QW-4314
71-2 (72270273)
5
2
1-2 (72270273) 9
8
4
3
1
1-1 (10055369) 6
9~ 1: Disassemble order
1~ 9: Reassemble order

5. PARTS LIST: MODULE QW-4314
Note: 1. Prices and specifications are subject to change without prior notice.
2. Spare parts are classified as follows according to their importance in after-sales service.
A Rank ---------------------------------------- Very Important
B Rank ---------------------------------------- Important
C Rank ---------------------------------------
-
Less important
3. Batteries in Bulk pack on the tray will be supplied from our Overseas Spare Parts Section under charge basis.
Batteries in Blister pack will be supplied from our Sales Department.
4. As for order/supply of spare parts, refer to the separate publication "GUIDE BOOK for spare parts supply".
Item Code No. Parts Name S
p
ecification A
pp
licable Q R
76408798 MODULE/WITH MOVEMENT QW-4314AT-01TK G-540D-2AV 1 A
G-740D-4AV 1 A
76408975 MODULE/WITH MOVEMENT QW-4314AT-02TK G-740D-9AV 1 A
76408976 MODULE/WITH MOVEMENT QW-4314AT-03TK G-540D-9AV 1 A
1 76406418 ANALOG BLOCK QW-2738MV-82TK QW-4314AT Common 1 A
2 10097666 CAPACITOR/TRIMMER CTZ2E-25C-W2-P QW-4314AT Common 1 B
3 72255063 CONTACT/BATTERY(-) 123 Q34950B-2 QW-4314AT Common 1 C
4 72110064 CUSHION 6 Q4914A-1 QW-4314AT Common 1 C
5 72119576 CUSHION 466-A Q48342A-1 QW-4314AT Common 2 C
6 72119631 CUSHION 506 Q49364-1 QW-4314AT Common 2 C
7 10062885 CUSHION 2700-1 Q468959A-1 QW-4314AT Common 1 C
8 10109743 EL YEL-2700-A-01 QW-4314AT Common 1 A
9 10058503 HOLDER/BATTERY 2700 Q369608B-1 QW-4314AT Common 1 C
10 10058549 HOLDER/HOUR WHEEL 2700 Q369581A-1 QW-4314AT Common 1 C
11 10072412 INTERCONNECTOR/ 2700-3 Q469240-1 QW-4314AT Common 2 C
12 10059371 LABEL/ 2700 Q370072-1 QW-4314AT Common 1 C
13a 10195965 LCD B4314-11THP QW-4314AT-01TK 1 A
13b 10195966 LCD B4314-12THNP QW-4314AT-02TK 1 A
13c 10195967 LCD B4314-13THP QW-4314AT-03TK 1 A
14 71106323 OSCILLATOR/CRYSTAL DT-26S11 QW-4314AT Common 1 B
15 76408837 PCB ASS'Y RJQ526953*002V01TK QW-4314AT Common 1 A
16 72311874 PLATE/TERMINAL 1898 Q360027-1 QW-4314AT Common 1 C
17 72078852 SCREW/FLAT 737 Q430508A-1 QW-4314AT Common 2 C
18 10123237 SHEET/INSULATION 2700-1 Q468958-1V02 QW-4314AT Common 1 C
19 72332809 SHEET/INSULATION 747-2 Q432462A-1 QW-4314AT Common 2 C
20 10109741 SPACER/ 2737 Q256042-1 QW-4314AT Common 1 C
21 72300665 SPRING/COIL 1349-1 Q450872-1 QW-4314AT Common 2 B
22 10014294 SPRING/COIL 2306-1 Q466513A-1 QW-4314AT Common 2 B
23 72019512 SPRING/COIL 943-1 Q428722-1 QW-4314AT Common 1 B
24 10058551 SUPPORTER/PCB ASSY 2700 Q152162B-1 QW-4314AT Common 1 C
25 72240652 WASHER Q421691-1 QW-4314AT Common 1 C
26 72350893 WHEEL/HOUR1760 Q359353-1 QW-4314AT Common 1 C
For the prices and minimum order/suppl
y
quantities of the above parts, refer to the Parts Price List P.P.L.-621.
Notes: Q - Used quantity
R - Rank — 10 —

PARTS LIST: ANALOG BLOCK OF MODULE QW-4314
Note: 1. Prices and specifications are subject to change without prior notice.
2. Spare parts are classified as follows according to their importance in after-sales service.
A Rank ---------------------------------------- Very Important
B Rank ---------------------------------------- Important
C Rank ---------------------------------------
-
Less important
3. Batteries in Bulk pack on the tray will be supplied from our Overseas Spare Parts Section under charge basis.
Batteries in Blister pack will be supplied from our Sales Department.
4. As for order/supply of spare parts, refer to the separate publication "GUIDE BOOK for spare parts supply".
Item Code No. Parts Name Specification Applicable Q R
110058887 ANALOG BLOCK QW-2700MV-82 QW-4314AT Common 1A
1-1 10055369 COIL ASSY Q369455*1 QW-4314AT Common 1A
1-2 72270273 SCREW/1300-1 Q436969A-1 QW-4314AT Common 3B
For the prices and minimum order/suppl
y
quantities of the above parts, refer to the Parts Price List P.P.L.-621.
Notes: Q - Used quantity
R - Rank
— 11 —

— 12 —
6. PRECAUTIONS FOR REPAIR: MODULE QW-4314
6-1. AC (ALL CLEAR) AND REMOVING OF MODULE
1. Perform AC (ALL CLEAR) when inserting a new battery, or else the memories and/or counters may
give erratic displays.
Touch the AC contact and the main plate with the metallic tweezers.
The contact should be made for about two seconds.
6-2. ACCURACY CHECKING
Check the accuracy of the module with the quartz timer after switching the module to “ACCURACY
CHECKING MODE”.
The operations are shown below:
A) SWITCHING TO “ACCURACY CHECKING MODE”
While pressing the Abutton, press Cand Dbuttons at the normal time keeping mode.
Then all the segments are displayed and the LCD drive signals are changed to the static drive signal
of “32 Hz” so that you can check the accuracy with the quartz timer.
B) CANCELLATION OF THE “ACCURACY CHECKING MODE”
Press any button except for Dbutton.
Then the display is returned to its original state.
NOTE: The “ACCURACY CHECKING MODE” will
automatically return to the regular mode in 1 ~ 2
hour(s) without any operation.
Metallic tweezers
QW-4314
C
A
D
B

CASIO COMPUTER CO.,LTD.
Overseas Service Division
6-2, Hon-machi 1-Chome
Shibuya-ku, Tokyo 151-8543, Japan
