Cavius 4002-001 User manual

PLEASE READ THIS USER GUIDE CAREFULLY
CARBON MONOXIDE (CO) ALARM
THE WORLD’S SMALLEST

1.
PLEASE READ THE USER
GUIDE CAREFULLY BEFORE
INSTALLATION AND RETAIN
FOR FUTURE USE.
CAVIUS Carbon Monoxide (CO) Alarm
Part Code: 4002-006
Model: 4002-001
Recess Kit Part Code: 11010
For large text option and maintenance guide visit
cavius.co.nz/resources
cavius.com.au/resources
Yellow LED
Fault Indicator
Test/Hush
button
Red LED
Alarm Indicator
Green LED
Power Indicator
Sounder

2. 3.
The best locations in your home to install
the CO alarm:
• Ideally,aCOalarmshouldbeinstalled
 ineveryroomcontainingafuel-burning
appliance.
• Nearbedroomsandlivingareas.
• Oneachlevelofyourhome.
• 1-3metersawayfromallfuelburning
appliances.
• Ateyeleveltoallowoptimummonitoringof
the indicator lights.

4. 5.
Areas where NOT to install CO alarms:
• Inanenclosedspacee.g.inacupboard.
• Whereitcanbeobstructede.g.behind
a curtain.
• Directlyaboveasink.
• Nexttoadoororwindow.
• Nexttoanextractorfan.
• Nexttoanairventorothersimilar
ventilation openings.
• Inanareawherethetemperaturemaydrop
below -10°C or exceed 40°C.
• Wheredirtanddustmayblockthesensor.
• Inadamporhumidlocation.
• Intheimmediatevicinityofacooking
appliance.

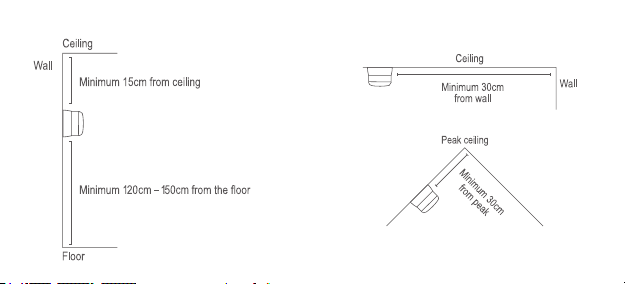

Placement:
The CO alarm is designed to be installed on
the wall or a ceiling.
A CO alarm does not replace a smoke alarm.

6. 7.

8. 9.
MARK UP
SCREWHOLES
WITHAPEN
USE THE
ENCLOSED
SCREWSAND
PLUGS FOR
INSTALLATION
CLICK THE CO ALARM
FIRMLYINTO
THE BASE TO ACTIVATE
Installation of CO alarm:
Info: The label on the product
must not be removed due to
importantinformation.
Option 1 – Standard base
1. Use the mounting
 baseringtomarkthe
screw holes on the ceiling.

10. 11.
Option 2 – Recess Kit
1. Place the Cover Ring on the area where
youwishtoinstalltheCOalarm,tracearound
theinsideofthering.
2.Usingyourholesaw(44mm-48mm),cuta
holeintothesurface.CAUTION: Ensure there
isnowiringoranyelectricalequipmentbehind
thesurfaceyouaredrillingyourholeinto.
INSERTRECESSKIT
MOUNTINGBASEINTO
THEHOLEANDSECURE
WITHSCREWS
PLACECOVERRING
AROUNDTHERECESS
KITMOUNTINGBASE
CLICK THE CO
ALARMFIRMLYINTO
THE BASE TO ACTIVATE
HOLE SAW
DRILL REQUIRED.
44mm-48mm

12. 13.
Hush function:
Hushingofthealarmisonlypossiblewhen
underalevelof200ppm.Ifyoucannot
hushthealarm,pleaserefertopage16for
instructions.
WhenthealarmisunderCOalarmwarning,
itcanbesilencedfor10minutesbypressing
thehushbutton(whichistheentirebottomof
the alarm).
Ifabatteryfaultoccurs,thealarmcanalsobe
silencedforupto8hoursbyashortpresson
theHUSHbutton.Thisfunctioncanonlybe
carriedoutonceduringafault.
Normal mode:
Innormalmode,thePOWERindicator
(GreenLED)willashevery60seconds.
Alarm mode:
WhenadangerousconcentrationofCOis
detected,thealarmwillgointo‘AlarmMode’.
Itwillbeindicatedbyaseriesofrepeated
tonesandtheredLEDwillashevery0.5
seconds.

14. 15.
Test function:
Afterinstallationandatleastonceperquarter,
testyouralarmtomakesureitisoperating
correctly.
Whenthebottombuttonispressedthealarm
willsound,oncethebuttonisreleased,the
alarmwillconductaself-testofthesensor
andbatteryforapproximately9seconds.
DuringthisdelayallthreeLEDswillash
insequence.Theresultofthetestwillbe
indicated once the test is completed.
Ifthetestpasses,thealarmindicationwillbe
triggeredforonesoundsweepandthegreen
LEDwillashfor3seconds.Ifthetestfails,a
faultindicationwillbegiven(Seepage17).
Afterthetestfunctionisperformed,thealarm
willneedtorecoverfor60secondsbefore
another test can be conducted (to allow the
sensor chamber to resettle).
Thealarmwillalsoconductaself-testevery
24hours,whichtestsforafaultysensor,drift
or short circuit.
TIP:Itissafetocoverthesoundoutputhole
withyourngerduringthetestingtominimize
the sound level emitted.

16. 17.
What to do if the alarm sounds:
• Keepcalmandopenalldoorsand
windows.
• Ifthealarmcontinuestobeactivated,then
evacuate the premises.
• Getmedicalhelpforanyonesueringthe
 eectsofcarbonmonoxidepoisoning.
• Calltheappropriateemergencynumber.
Fault warnings:
Batteryfault:Whenthebatteryislowthe
alarmwillbeeponceevery60secondsand
theyellowLEDwillash.
Sensorfault:Sensorfaultisindicatedbytwo
veryshortbeepsevery60secondsandthe
yellowLEDwillash.YourCOalarmwillnot
respond to CO.
Endoflife:Theendofsensorlifeisindicated
bythreeshortbeepsevery60secondsand
theyellowLEDwillash.YourCOalarm
needs to be replaced.

18. 19.
Maintenance:
• Checkifthealarmsoundsandindicators
 ashproperlybypressingtheTEST
 buttonatleastonceperquarter.
• Youralarmshouldbecleanedonceper
 quartertoremovedustanddirt.Itcanbe
 wipedwithadampedcloth.Neveruse
detergents or other solvents to clean the unit.
• Neverattempttodisassembletheunitor
clean inside.
• Commonlyoccurringmaterials,vapoursor
 gasesfromcleaninguids,polishes,paints
 etcmayaectthereliabilityofthealarmin
the short or long term.
• Whenhouseholdcleaningsuppliesor
 similarcontaminantsareused,thearea
should be ventilated.
• Pleasedonotexposetorainormoisture,
 donotknockordropthedetectorand
opening or tampering with the alarm could
 causemalfunction.
Other information:
Donotpaintthealarm.Notethelocalcountry
regulations regarding CO alarms.
Disposal: Please dispose the product
properlyattheendoflife.Thisiselectronic
wastewhichshouldberecycled.

20. 21.

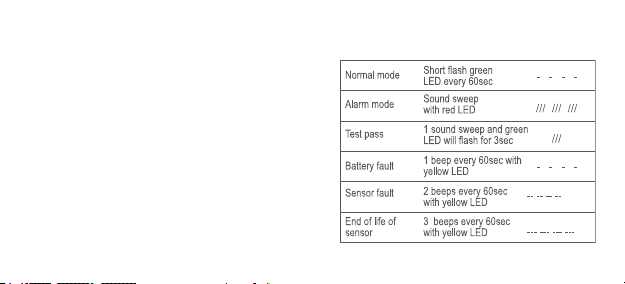

VISUAL AND SOUND PATTERNS:TECHNICAL INFORMATION:
Diameter:40mmHeight:38mm
Type of alarm:TypeBapparatuswithelectro-
chemical CO sensor.
Battery:Poweredbyanon-replaceable
3VCR123Lithiumbatterywith10-yearlife
(included).
IMPORTANT:Donottrytoreplacethebattery.
Replacetheproductifthebatteryfails.
Product Life:10yearsaftermanufacturing
date.
Complies to standards:EN50291-1:2018,
EN50291-2:2010,EN50270,EN50271,
EN60335,RoHs,REACH.
Working condition:-10to+40C,30to95%
non-condensing.
Storage/Transport:-20to+50C,10to95%
non-condensing.

22. 23.
CARBON MONOXIDE (CO) ALARM
This CAVIUS carbon monoxide (CO) alarm
is designed and tested to detect CO in
private homes, camping trailers, mobile
homes, caravans and boats. It will provide
early warning of the presence of CO.
127277rev1
EN50291-1:2018 / EN50291-2:2010
INFORMATION ABOUT
CARBON MONOXIDE:
GeneralCarbonMonoxideInformation:
Carbonmonoxide(CO)isknownasthe‘silent
killer’becauseitisodourless,tastelessand
colourless. It can kill in only a few minutes.
AllpeopleareatriskofCOpoisoning.
Unbornbabies,infantsandchildren,the
elderly,peoplewithchronicheartdisease,
anaemia,orrespiratoryproblemsaregenerally
moreatriskthanothers.
BreathingCOcancauseheadache,dizziness,
vomiting,andnausea.IfCOlevelsarehigh
enough,youmaybecomeunconsciousordie.

24. 25.
Developed & Manufactured by:
Aps
Julsøvej16-DK8600Silkeborg
cavius.com-[email protected]
ManufacturedinP.R.C.
Distributor information:
for New Zealand-CAVIUSNanoLtd.
58aPoplarLane,Papamoa3187,NZ.
www.cavius.co.nz
for Australia - CAVIUS Australia
14/30OctalStreet,Yatala,QLD4207,Australia.
www.cavius.com.au
Warranty:
CAVIUSprovidesa10-yearwarrantyagainstdefectinfaultymaterial
andworkmanshipfromthedateofpurchase,onalldevices.
Thewarrantyappliestoreasonableandnormalconditionsofuse
only.Itdoesnotincludedamageasaresultofmisuse,incorrect
installation,accidentaldamage,neglect,unauthoriseddeconstruction
ordismantlingandanyairborneorothercontaminationhoweverthis
mayhaveoccurred.
Ifthisproducthasanacknowledgeddefectitmustbereturnedto
thenationalCAVIUSdistributoratthepurchaserscostwiththeproof
ofpurchase.
Iftheproducthasbecomedefectivewithinthe10-yearwarranty,
CAVIUSAPS,Denmarkwillrepairorreplacetheunitwithoutcharge
andsendbacktothepurchaser,viathenationaldistributoratthe
distributors cost.
Theguaranteeexcludeslabourcosts,freightcosts,servicecostsand
anyincidentalandconsequentialdamages.Donotattempttorepair
orservicethisproductasthiswillinvalidatethewarranty.
