CBD-Tech ChiTu L M1 User manual

ChiTu L M1
Manual
CBD-Tech
Controller Board

Confidential 1 / 73 2020/06/28
Release Version
First edition
Issued in May 2020
Copyright Statement
©Shenzhen CBD-Tech Co., Ltd All rights reserved.
This user manual includes but is not limited to all the information contained in it. It is protected by copyright
law. Without the permission of Shenzhen CBD-Tech Co., Ltd. ("CBD-Tech"), it may not be arbitrarily copied,
translated or other uses.
Disclaimer
This user manual is provided to you in the state of "current status" and "under current express conditions".
To the extent permitted by law, CBD-Tech does not provide any express or implied warranties and
guarantees for this manual, including but not limited to commercial marketability, suitability for a specific
purpose, without infringing the rights of any other person, and any use of this use The manual may not
guarantee the use of this manual, and Transborder does not guarantee the accuracy or reliability of the
results obtained by using this manual or any information obtained through this manual.
The user shall bear all risks of using this manual.
The user clearly understands and agrees that neither CBD-Tech, CBD-Tech’s authorized person and its
directors, employees, agents or related companies need to be responsible for this manual, for the use of
this manual, or for any blame. Derivation, incidental, direct, indirect, special, punishment, or any other loss
(including but not limited to loss of profits, business interruption, data loss, or other money) that may arise
due to the inability to use this manual or any part of it due to Genesis Loss) is responsible, regardless of
whether CBD-Tech is informed of the possibility of the aforementioned loss.
Since some countries or regions may not allow the full exemption of liability or the limitation of liability for
the above losses, the above limitation or exclusion clause may not apply to you.
CBD-Tech will not be responsible for any loss of objects and property caused by man-made wrong
operation, any wrong operation not performed according to the instruction manual, or other force majeure
reasons such as natural disasters.

Confidential 2 / 73 2020/06/28
The user knows that CBD-Tech has the right to modify this manual at any time. Once the product
specifications or drivers are changed, this manual will be updated accordingly. For detailed instructions
on updating this user manual, please visit the official website: http://www.cbd-3d.com
The ownership and intellectual property rights of the third-party product names or contents mentioned in
this manual are owned by the respective product or content owners, and are protected by the current
intellectual property-related laws and international treaties.
When the following two situations occur, this product will no longer be subject to CBD-Tech's warranty
and service:
1) This product has been repaired, changed specifications, replaced parts or other actions that were not
authorized by CBD-Tec h.
2) The serial number of this product is ambiguous or lost.

Confidential 3 / 73 2020/06/28
Menu
Menu ...................................................................................................................................... 3
Safety Information.................................................................................................................. 4
About this user manual .......................................................................................................... 5
Packing list............................................................................................................................. 7
Specification list ..................................................................................................................... 8
Summary .................................................................................................................................. 9
Read first................................................................................................................................ 9
Standby power LED ............................................................................................................. 10
1.1 Controller board overview...............................................................................................11
1.2 Controller board Layout ................................................................................................. 12
1.3 Component overview ..................................................................................................... 13
Installation Flow..................................................................................................................... 16
2.1 Installation overview ...................................................................................................... 16
2.2 Regular installation ........................................................................................................ 17
2.4 Firmware update............................................................................................................ 28
User guide .............................................................................................................................. 33
3.1 Function list.................................................................................................................... 33
3.2 Icon overview................................................................................................................. 34
3.3 Page structure ............................................................................................................... 35
3.4 Page description ............................................................................................................ 36
3.5 Function guider .............................................................................................................. 44
Others ..................................................................................................................................... 73
4.1 Contact Us & After sale.................................................................................................. 73

Confidential 4 / 73 2020/06/28
Safety Information
Electrical safety
• To avoid possible electric shock and serious damage, please unplug the power cord of the printer
or controller board from the power socket before any operation.
• When you want to add a hardware device to the system or remove the hardware device from the
system, be sure to connect the cable of the device before connecting the power cord.
• Before you connect or disconnect any cables from the controller board, make sure that all power
cords have been unplugged in advance.
• Make sure that the voltage setting of the power supply has been adjusted to the voltage standard
used in the country / region. If you are unsure of the supply voltage in your area, please ask the
nearest local power company staff.
• If the power supply is damaged, do not try to repair it by yourself. Please refer it to professional
technical service personnel.
Operational safety
• Before you install the controller board and add hardware devices, be sure to read the relevant
information provided in this manual in detail.
• Before using the product, make sure that all cables and power cords are properly connected. If you
find any major flaws, problems or loopholes, please contact your dealer as soon as possible.
• In order to avoid electrical short-circuits, be sure to store all unused screws, paper clips, and other
parts, and do not leave them on the controller board or printer.
• Dust, moisture and severe temperature changes will affect the service life of the controller board,
so try not to place them in these places.
• Do not place the main unit of the printer in a place prone to shaking.
• If you have any technical problems in the use of this product, please contact a professional
technician.

Confidential 5 / 73 2020/06/28
About this user manual
The product manual contains all the information you need when installing the CBD-Tech ChiTu L M1
series controller board.
User manual layout
The user manual is composed of the following chapters:
Chapter 1: Introduction to the hardware structure
In this chapter, you can find many excellent features of ChiTu L M1 series controller boards
that offered by ChiTu systems. With concise and easy-to-understand instructions, you can
quickly master the various features of the ChiTu L M1 series.
Chapter 2: Software Function Description
This section describes how to use each button in the firmware program to control the
controller board. In addition, the use timing and parameter setting of each setting value of the
firmware program will be introduced in detail.
Chapter 3: After-sales support
This chapter mainly introduces the official channels for product after-sales and technical
support.
Conventions used in this guide
In order to ensure that you complete the controller board settings correctly, please pay attention to
the special meanings of the following symbols.
DANGER/WARNING: remind you to pay attention to your own safety when doing a certain job.
CAUTION: Remind you to take care not to damage the controller board components when doing
a certain job.
IMPORTANT: This symbol indicates that you must complete the installation or configuration of one
or more software and hardware in the manner described in the manual.
NOTE: Provide tips and other additional information that will help you complete a job.

Confidential 6 / 73 2020/06/28
Where to find more information
You can get the product information you use and the update information of software and hardware
through the two channels provided below.
1. CBD-Tech website
You can go to official website: http://www.cbd-3d.com to get all kinds of information about ChiTu
Systems products.
2. Other documents
In addition to the standard accessories listed in this manual, other documents may be included
in your product packaging box, such as the product warranty document attached by the dealer.
Caution! This product enjoys a one-year product warranty period. If you tear or replace the original factory
warranty serial number label, you will cancel the warranty rights and will not provide maintenance services.

Confidential 7 / 73 2020/06/28
Packing list
Please check the package once you get it, whether all the item listed below are complete.
If any of the accessories listed above are damaged or missing, contact your dealer as soon as
possible.
The above illustrations are for reference only, the actual product specifications may vary depending
on the model.
Item Description
Controller Board ChiTu L M1 Series
Touch Screen 2.8/3.5/4.3/5.0/7.0 inch
FFC Cable 0.5-40 FFC
Others
User manual、Connector

Confidential 8 / 73 2020/06/28
Specification list
Model
ChiTu L M1
Time to market
2020
Size*(mm)
120 * 85 * 20
Weight(g)
75
Touch Screen Size(inch)
2.8/3.5/4.3/5.0/7.0
Supported Panel(inch)
Tianma-TM089CFSP01(8.9 inch 4K Mono)
Microprocessor Chip
ARM STM32F4 Series
Stepper Motor Chip
Trinamic TMC2209
Flash Memory Chip
64M EtronTech EM Series
eMMC
4GB eMMC 5.1
Voltage/Current
12~24V 5~12A
Environmental parameters
/
LCD Resin Panel
1 port, type MIPI
USB
1 port，USB 2.0 Type-A
Ethernet
1 port
Others
/
Recommended format
CHITUBOX
Supported format
ctb
Firmware version
Subject to actual batch
Basic
Information
Parameter
Information
Other
Information

Confidential 9 / 73 2020/06/28
Summary
Read first
The integrated circuits of board are easily damaged by static electricity. Be sure to make the following
precautions before you change any setting:
Before installing the controller board, please put it in an anti-static mat or anti-static bag.
When handling the controller board, avoid touching any metal leads or connectors
It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic components
such as a controller board. If you do not have an ESD wrist strap, keep your hands dry and first touch
a metal object to eliminate static electricity.
Prior to installation, make sure the chassis is suitable for the controller board.
Prior to installation, do not remove or break controller board S/N (Serial Number) sticker or warranty
sticker provided by your dealer. These stickers are required for warranty validation
Always remove the AC power by unplugging the power cord from the power outlet before installing
or removing the controller board or other hardware components.
When connecting hardware components to the internal connectors on the controller board, make
sure they are connected tightly and securely
To prevent damage to the controller board, do not allow screws to come in contact with the controller
board circuit or its components
Make sure there are no leftover screws or metal components placed on the controller board or within
the printer casing.
Turning on the power during the installation process can lead to damage to system components as
well as physical harm to the user
If you use an adapter, extension power cable, or power strip, ensure to consult with its installation
and/or grounding instructions

Confidential 10 / 73 2020/06/28

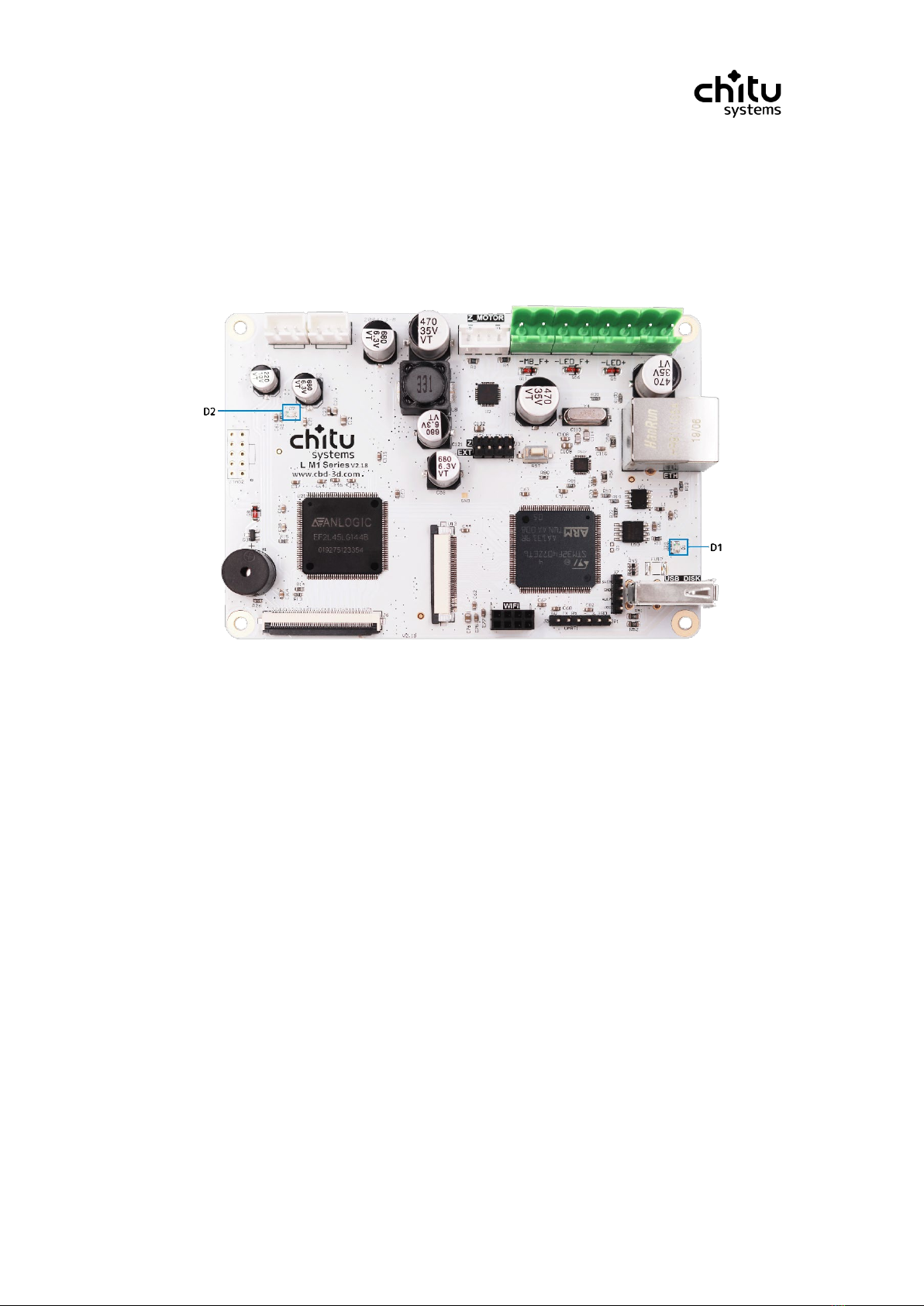

Standby power LED
The controller board comes with a standby power LED that lights up to indicate that the system is
ON, in sleep mode，or in soft-off mode. This is a reminder that you should shut down the system and
unplug the power cable before removing or plugging in any controller board component. The illustration
below shows the location of the onboard LED

Confidential 11 / 73 2020/06/28
1.1 Controller board overview

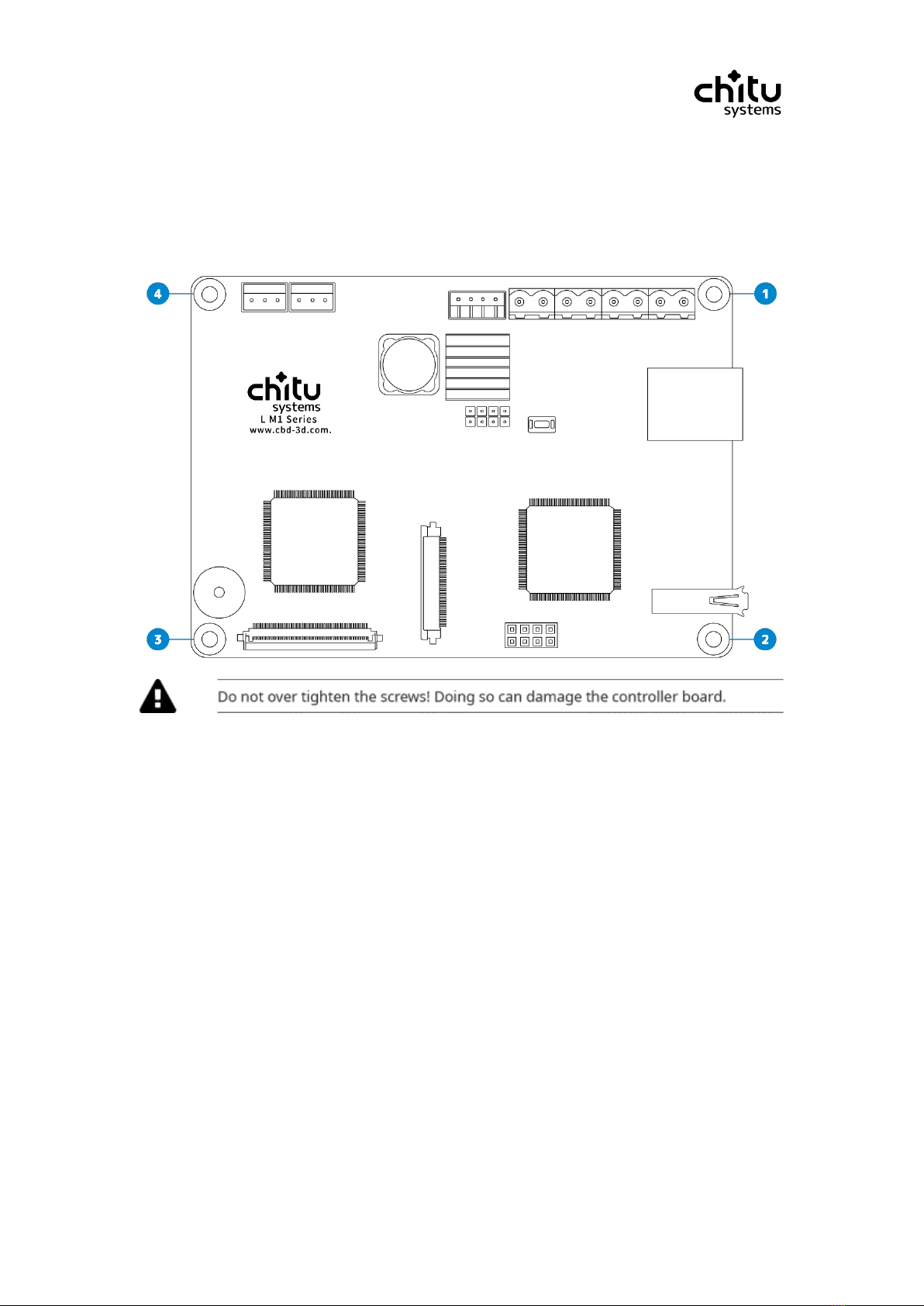

1.1.1 Screw holes
Place 4 screws into the holes indicated by circles to secure the controller board to the chassis.

Confidential 12 / 73 2020/06/28
1.2 Controller board Layout
NO. Name NO. Name
1. Ethernet port 14. Heat sink
2. Reset button 15. Mainboard fan port
3. ARM STM32F4 series CPU 16. UV LED fan port
4. USB 2.0 port 17. UV LED port
5. External motor driver pin 18. Power supply
6. Z motor driver pin
7. TFT resistive touch screen
8. ANOLOGIC EL2F series FPGA chip
9. LCD resin panel
10. Buzzer
11. Z endstop (minimum position)
12. Z endstop (maximum position)
13. Z motor

Confidential 13 / 73 2020/06/28
1.3 Component overview

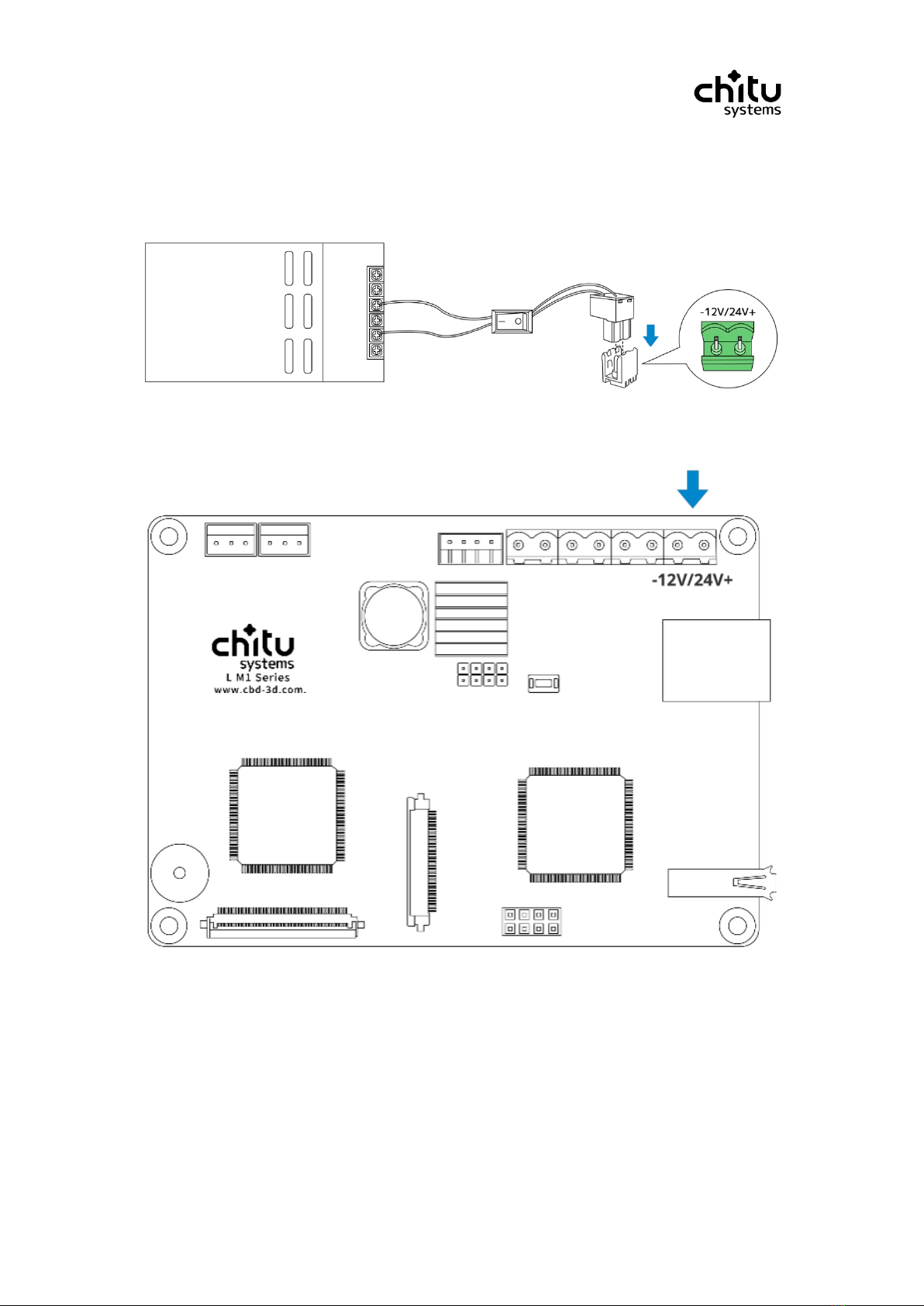

1.3.1 Power supply
This port is for power supply for the entire controller board.
1.3.2 UV LED
This port is for control and signals the LED light device connected.
1.3.3 UV LED fan
This port is for control and signals the LED light fan device connected.
1.3.4 Mainboard fan
This port is for control and signals the mainboard fan connected.
1.3.5 Z stepper motor
This port is for control and signals the Z-axis stepper motor connected.
Pin Name/Pin Tag Number Definition Description
11B
Coil 1 end B
21A
Coil 1 end A
32A
Coil 2 end A
42B
Coil 2 end B
Z Motor
(Z Motor)

Confidential 14 / 73 2020/06/28
1.3.6 Z+ end stop
This port is for control and signals the Z-axis maximum end stop connected.
1.3.7 Z- end stop
This port is for control and signals the Z-axis minimum end stop connected.
1.3.8 External Z motor driver pin (Common cathode，3.3V)
This port is for control and signals the external Z-axis stepper motor connected.
1.3.9 External motor driver pin (Common cathode，3.3V)
This port is for control and signals the external Z-axis stepper motor connected.
Pin Name/Pin Tag Number Definition Description
1
+（VCC）Power Output
2
-（GND）GND
3
SSignal pin
Z+ Endstop (Maximum position)
(Z+)
Pin Name/Pin Tag Number Definition Description
1
+（VCC）Power Output
2
-（GND）GND
3
SSignal pin
Z- Endstop (Minimum position)
(Z+)
Pin Name/Pin Tag Number Definition Description
1
DIR Direction
2
EN Enable
3
ST（STEP/PUL）Step/Pulse
4
GND GND
External Z Motor Driver Pin
(Z)
Pin Name/Pin Tag Number Definition Description
1
DIR Direction
2
EN Enable
3
ST（STEP/PUL）Step/Pulse
4
GND GND
External motor driver pin
(EXT)

Confidential 15 / 73 2020/06/28
1.3.10 LCD resin panel (MIPI port)
This port is for control and signals the LCD panel connected.
1.3.11 TFT Resistive touch screen
This port is for control and signals the resistive touch screen port connected.
1.3.12 USB 2.0
This port is for read the USB 2.0 connected.
1.3.13 Buzzer
This component will emit a "beep" sound to remind you of the completion of an operation or an
abnormal error.
1.3.14 Ethernet port
This port is for Ethernet connected.
LED picture LED name Status Description
Blinking (High Frequence) Data activity
Yellow Sleep mode
Green Connection succeeded
Off Connection failed
Activity LED
Link LED

Confidential 16 / 73 2020/06/28
Installation Flow

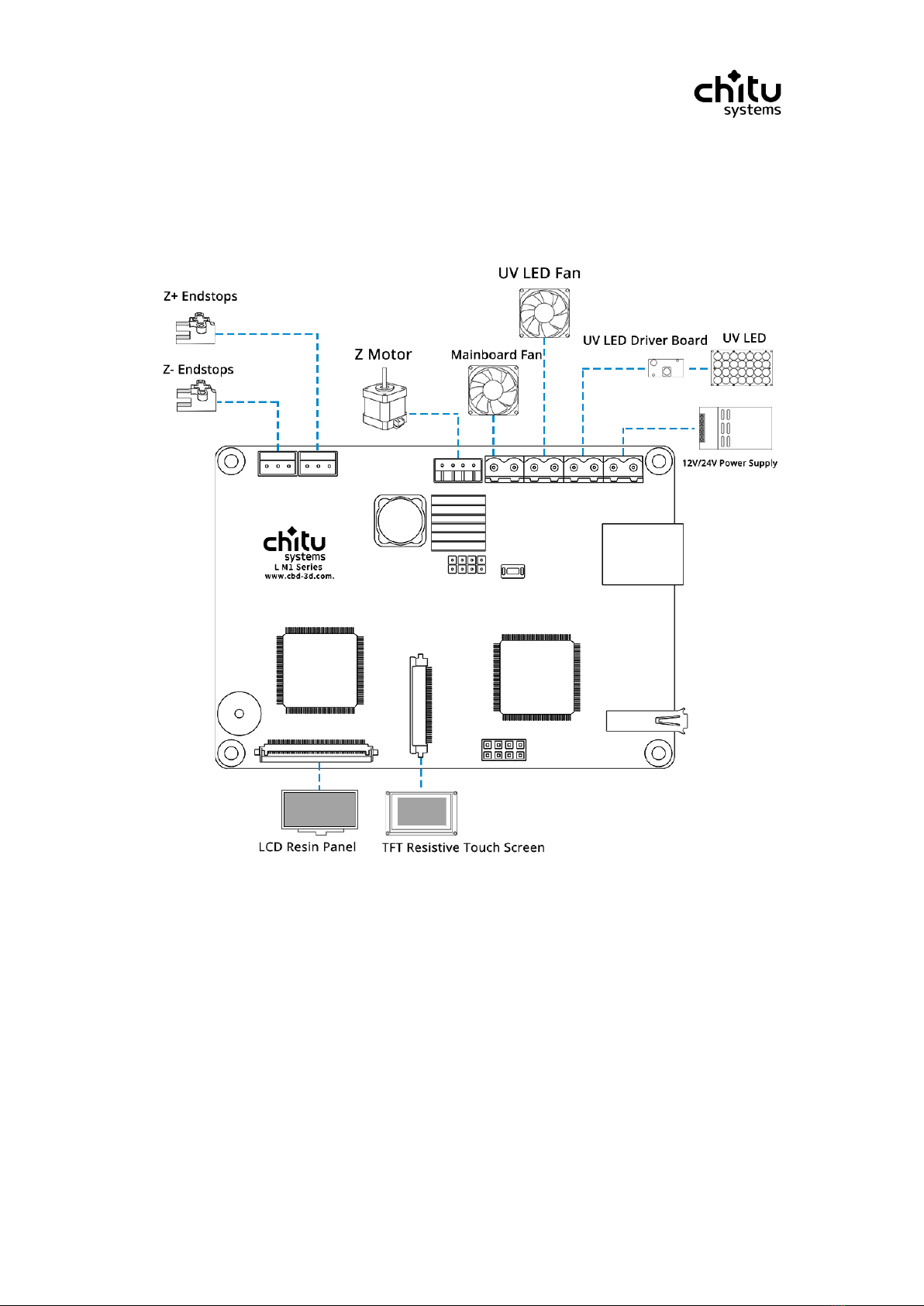

2.1 Installation overview

Confidential 17 / 73 2020/06/28
2.2 Regular installation
2.2.1 Installing power supply
As shown below, connect the power supply wire with“-12V/24V+”port.
As shown below, the arrow shows the where “-12V/24V+”on the board.

Confidential 18 / 73 2020/06/28
2.2.2 Installing touch screen (TFT Resistive)
As shown following steps, connect the touch screen cable (FFC cable).
①、Find the screen connector on the board
As shown below, “U13”on the board.
②、Pull out the black bar
As shown on ②, put your finger on each side of the black bar(mark as red), pull out the bar to
follow the arrow direction, as shown on ③.

Confidential 19 / 73 2020/06/28
③、Insert the FFC cable
As shown below, put the FFC cable pin side towards up, stiffeners shielded side(usually the
blue side) towards down, make sure to insert the cable all the way till it can’t move forward anymore.
④、Close the black bar back
As shown on ②, put your finger on each side of the black bar(mark as red), push back the bar
to follow the arrow direction, as shown on ③.
