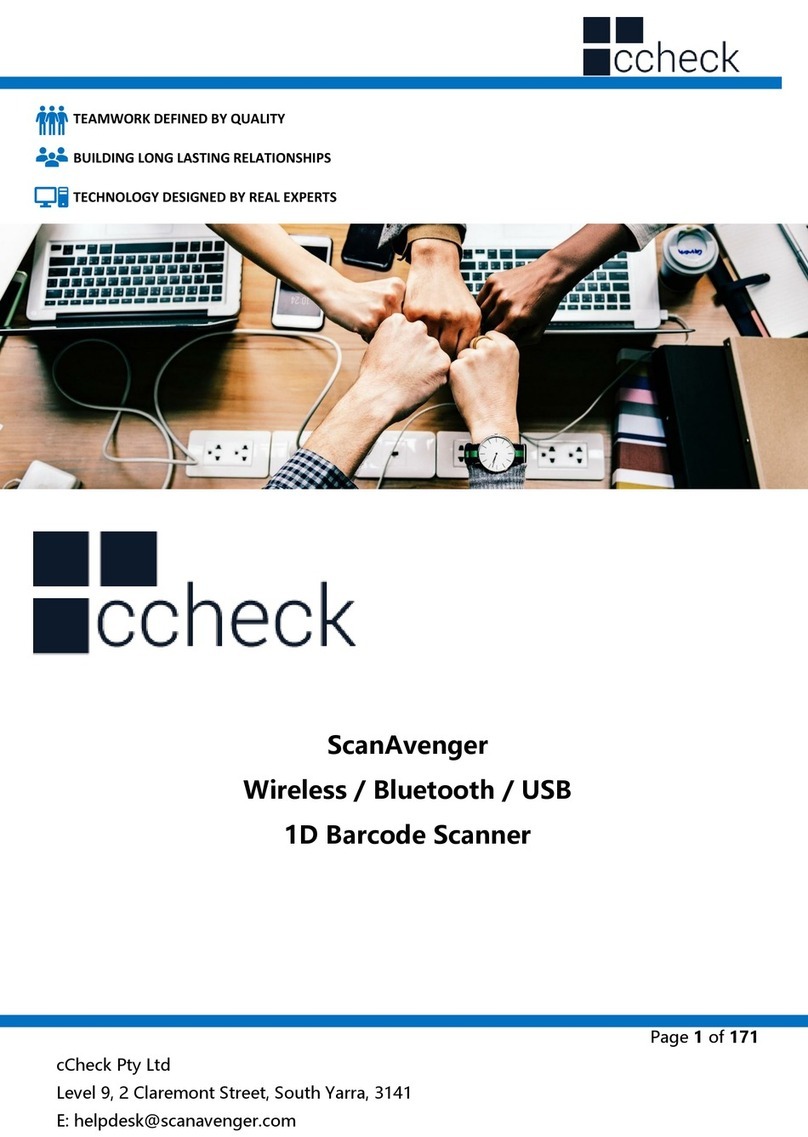

cCheck ScanAvenger User manual
TEAMWORK DEFINED BY QUALITY
BUILDING LONG LASTING RELATIONSHIPS
TECHNOLOGY DESIGNED BY REAL EXPERTS
ScanAvenger
Wireless / Bluetooth / USB
1D/2D Barcode Scanner
Disclaimer
Please read through the manual carefully before using the product and operate it
according to the manual. It is advised to keep this manual for future reference.
Do not disassemble the device or remove the seal label from the device as this will void
the warranty.
Regarding to the product modification and update, cCheck Pty. Ltd reserves the right to
make changes to software or product to improve reliability, function, or design at any time
without notice. The information contained in this manual is subject to change without prior
notice.
The products depicted in this manual may include software copyrighted by cCheck Pty.
Ltd. or a third party. The user, corporation or individual, shall not duplicate, in whole or in
part, distribute, modify, compile, disassemble, decode, reverse engineer, rent, transfer or
sublicense such software without prior written consent from the copyright holders.
This manual is copyrighted. No part of this publication may be reproduced or distributed
in any form without written permission from cCheck Pty. Ltd.
cCheck Pty. Ltd. reserves the right to make final interpretation of the statement above.
Contents
Disclaimer..............................................................................................................................................................2
Chapter 1 System Settings..............................................................................................................................7
Introduction .....................................................................................................................................................7
Restore Defaults.............................................................................................................................................8
version..............................................................................................................................................................10
Beep&LED Indications................................................................................................................................11
Buzzer driving frequency ......................................................................................................................11
Beep after Good Decode.......................................................................................................................12
Startup Beep..............................................................................................................................................12
Illumination&aiming...................................................................................................................................13
Illumination................................................................................................................................................13
Aiming light: ..............................................................................................................................................14
Read Area Settings......................................................................................................................................15
Global area.................................................................................................................................................15
Image Flipping ..............................................................................................................................................16
Data encoding format................................................................................................................................17
USB Chinese Output ...............................................................................................................................17
Chinese output of serial port...............................................................................................................18
VAT invoice automatic identification output function ...................................................................18
Chapter 2 Communication setting.........................................................................................................19
Introduction ...................................................................................................................................................19
USB Mode.......................................................................................................................................................19
USB-KBW Mode .......................................................................................................................................20
USB keyboard character delay ............................................................................................................20
Country/language keyboard layout selection...............................................................................21
Virtual Keyboard Enablation................................................................................................................24
USB-HID Mode .........................................................................................................................................24
USB-COM Mode.......................................................................................................................................25
TTL/RS232 mode..........................................................................................................................................26
Chapter 3 Reading Mode..............................................................................................................................28
Tirgger Mode.................................................................................................................................................28
Continuous scanning mode .....................................................................................................................29
Same Barcode Output Settings ..........................................................................................................30
Sense Mode ...............................................................................................................................................31
Sensitivity Level Setting.........................................................................................................................32
Chapter 4 Data Editing...................................................................................................................................33
Introduction ...................................................................................................................................................33
Chapter 5 Data Editing...................................................................................................................................34
Code ID Setting ............................................................................................................................................34
Custom Prefix &Suffix ................................................................................................................................35
Delete prefix and suffix..............................................................................................................................36
Global settings..........................................................................................................................................36
Custom Delete Prefix and Suffix Settings .......................................................................................37
Modify header field length...................................................................................................................38
Modify the length of the intermediate field ..................................................................................40
Modify tail field length ..........................................................................................................................41
Suffix setting..................................................................................................................................................42
Character conversion..................................................................................................................................43
Chapter 6 BarCode Parameter Settings ...................................................................................................44
Introduction ...................................................................................................................................................44
Global setting................................................................................................................................................44
UPC-A...............................................................................................................................................................45
UPC-E ...............................................................................................................................................................48
EAN-8 ...............................................................................................................................................................50
EAN-13.............................................................................................................................................................52
Code 128.........................................................................................................................................................54
GS1-128(UCC/EAN-128)............................................................................................................................54
Code 39 ...........................................................................................................................................................56
Code 93 ...........................................................................................................................................................58
Code 11 ...........................................................................................................................................................59
Interleaved 2 of 5.........................................................................................................................................60
Matrix 2 of 5...................................................................................................................................................61
Industrial 2 of 5 & Standard 2 of 5(IATA)............................................................................................62
Codabar（NW-7）.......................................................................................................................................63
MSI ....................................................................................................................................................................63
GS1 DataBar（RSS）...................................................................................................................................66
GS1 DataBar Limit........................................................................................................................................66
GS1 DataBar Expand...................................................................................................................................67
Datalogic 2 of 5(China Post) ....................................................................................................................67
QR Code ..........................................................................................................................................................68
Data Matrix.....................................................................................................................................................68
PDF 417............................................................................................................................................................68
Aztec Code .....................................................................................................................................................69
Chapter 7 Communication Command......................................................................................................70
Introduction ...................................................................................................................................................70
Command Format........................................................................................................................................70
Command Feedback...................................................................................................................................70
Trigger command ........................................................................................................................................70
Command Sending Example....................................................................................................................73
Chapter 8 Appendix ........................................................................................................................................74
Appendix -Code ID......................................................................................................................................79
Appendix –Command Table ...................................................................................................................80
Appendix - Digit Barcodes........................................................................................................................89
Appendix –Save and Cancel BarCodes............................................................................................. 107
Appendix –ASCII Table........................................................................................................................... 108
Chapter 1 System Settings
Introduction
The user can set the function of the barcode reader by scanning one or more setting
barcodes。
Scanning Instructions
In the Trigger Mode, the scanning barcode operation steps are as follows
1. Hold down the trigger key of the barcode reader, the line of sight is activated, red red
line of sight appears。
2. Align the red line of sight with the bar code center, move the bar code reader and
adjust the distance between it and the bar code to find the best reading distance。
3. After hearing the successful prompt sound, and the red lighting line is extinguished,
the reading is successful, and the barcode reader transmits the decoded data to the host.
。
Note: During the reading process, you will find the distance between the barcode reader
and the barcode within a certain range for the barcode of the same batch, and the
reading success rate will be very high. This distance is the best reading distance.
Restore Defaults
All barcode readers have a factory default setting. Reading the "Restore default
settings" barcode will restore all barcode reader property settings to the factory state.
You are most likely to use this bar code in the following situations：
1、Error in barcode reader settings, such as barcode not recognized.
2、You have forgotten what settings were made for the barcode reader before, and you
do not want to use the previous settings。
3、The bar code reader is set to use some infrequently used features and is used after
completion。
Please scan all the below barcodes in order. This will reset the scanner to the default
factory settings including software updates and customizations for your scanner.
Step 1
Step 2
1. TTL/RS232 2. 9600
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
Step 10
Step 11
Step 12
Step 13
version
Use the scanner to scan the version number bar code, you can view the current bar coder
version number information
version
Beep&LED Indications
Buzzer driving frequency
There are three levels of volume level to choose from, default: passive medium frequency
Active Medium Frequency
Passive low frequency
* Passive Medium Frequency
Passive High Frequency
Beep after Good Decode
The barcode reader will have a prompt sound after reading the barcode successfully. The
user can set the switch off or turn on the prompt sound, and the default is to turn on the
decoded sound.
*Beep after Good Decode
Do Not Beep after Good Decode
Startup Beep
If startup beep is enabled, the engine will beep after being turned on.
*Enable Startup Beep
Disable Startup Beep
Illumination&aiming
Illumination
The illumination lamp can provide auxiliary illumination for shooting and reading. The
light beam irradiates the reading target, and improves the reading performance and the
adaptability under weak environment illumination. Users can set it to one of the following
states according to the application environment:
*Turn on Illumination
Turn off Illumination
Aiming light:
Aiming at the beam can help users find the best reading distance when shooting. Users
can choose any of the following modes according to the application environment.
The default is to turn on the aiming light.
*Trun on Aiming light
Trun off Aiming light
Read Area Settings
For different applications, there will be some differences in the identifiable areas that
users need, which can be set by scanning the following settings code.
Global area
When the reading area is the whole area, the reading module will scan the barcode
around the center first, and the barcode can be located in any position of the picture.
* Global area
Modify the size of the central area
The size of the commonly used central area can be set by scanning the following
settings Code:
Central Area 20%
Central Area 40%
Central Area 60%
Central Area 80%
Image Flipping
Normal image
Left and right
mirror image
up and down
mirror image
Left&right and
up&down mirror
When the bar code appears to flip, it can scan the corresponding settings code into the
mirror flip mode.
Trun on image Flipping（Support normal
and flip）
* Trun on image Flipping（Only support
normal）
Data encoding format
USB Chinese Output
In order to allow the host to print Chinese data in the specified encoding format, you can
set it by reading "Data encoding format".
1: GBK (GB2312), suitable for Notepad, EXCEL and other software display.
2: UTF-8, suitable for WORD,QQ and other software display.
*GBK(GB2312)
UTF-8
Chinese output of serial port
When using serial interface, the recognition module can automatically recognize the two-dimensional
code of GBK or UTF-8. The output defaults to GBK format. If you need UTF-8 Chinese output format,
please read the following settings.
*GBK
UTF-8
Unicode（Big）
Unicode（Little）
VAT invoice automatic identification output function
Enable
*Disable
Chapter 2 Communication setting
Introduction
When using this barcode to communicate with different hosts, you need to set the
barcode reader to the corresponding communication interface mode.
The user can set the barcode scanner function by scanning one or more setting barcodes.
Users can choose to use USB-KBW, USB-COM, TTL / RS232 serial communication interface
mode.
USB Mode
When using this barcode to communicate with different hosts, you need to set the
barcode reader to the corresponding communication interface mode.
The user can set the barcode scanner function by scanning one or more setting barcodes.
Users can choose to use USB-KBW, USB-COM, TTL / RS232 serial communication interface
mode.
USB-KBW Mode
In the mode of USB interface, there are two kinds of communication protocols to choose.
The default mode is USB-KBW, that is, USB keyboard mode, which simulates USB
keyboard to transmit data to the host.
*USB-KBW Mode
USB keyboard character delay
The slow speed of some hosts may lead to the loss of data reported by USB keyboard,
which needs to be reduced. This is a multi-code configuration. First, scan the bar code
below to enter the set mode, then scan the input value (the actual delay time is the input
value * 2ms), and finally scan save to save. The default is 1, the maximum is 9 or 18ms.
USB Keyboard Character Delay Settings
Setting step: Set the delay between characters to 10MS with a value of 5.
1. Scan the bar code of "USB Keyboard Character Keyboard Delay Settings" first.
2. Scan the data code "5" according to "Appendix-Data Code".
3. Finally, scan the "Save Settings" bar code of "Appendix-Save and Cancel Settings" to
complete the settings.
Other manuals for ScanAvenger
2
Table of contents
Other cCheck Barcode Reader manuals
