CCTV 41657 User manual
17” – 19” PROFESSIONAL LCD COLOUR MONITOR
ART. 41657 - 41659
Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo)
2
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
DO NOT INSERTANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION:
Explanation of Graphical Symbols
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended.
to alert the user to the presence of uninsulated
"dangerous voltage" within the
product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the
presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
3
Risk of electric shock – Do not open
To reduce the risk of electric shock, do not remove the back cover. There are no user-serviceable
parts inside.
Removing the back cover voids the warranty.
Have your LCDAV repaired by qualified service personnel only.
Warnings and precautions
Do not place your hands, face, or objects close to the ventilation openings of you LCD AV. The
top of your LCDAV gets very hot from exhaust air that is released through the ventilation
openings. Burns or personal injuries may occur if you are too close the LCDAV. Damage may
occur if you place any object near the top of your LCD AV.
Disconnect all cables before moving you LCD AV. Moving you LCDAV with its cables
attached may damage the cables and cause fire or electric shock danger.
Do not expose you LCD AV to rain or moisture.
Keep your LCD AV away from excessive dust, high temperatures, moisture, or direct sunlight.
Use your LCD AV in a well-ventilated area and do not cover the ventilation openings.
Do not modify your LCDAV or use an unshielded power cord or video input source cable, or
you may experience excessive interference.
Disconnect your LCDAV and unplug the power cord when the AV is not used for a long period
of time.
If the picture displayed is in any way abnormal, turn off your LCD AV, then disconnect it from
the electrical outlet. Make sure that your video input source cable is connected correctly, then
reconnect your LCD AV to the electrical outlet.
Disconnect your LCD AV from the electrical outlet before cleaning or performing maintenance.
Do not use liquid or aerosol cleaners. Use only a slightly damp cloth for cleaning.
Do not place your LCDAV on an unstable cart, stand, or table. Your LCD AV may fall, causing
serious damage.
Important safeguards
4
Chapter 6 Safety, Regulatory and Legal Information
US Regulatory compliance statements
Your LCD AV has been tested and found to comply with the limits for a Class B digital devices,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. Your LCD AV generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the instruction, may
cause harmful interference to radio communication. However, there is no guarantee that interference
with not occur in a particular installation. If your LCD AV does cause harmful interference to radio or
television reception, which can be determined by turning your LCD AV off and on, the user is
encouraged to try to correct the interference by one or more the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/AV technician for help.
Warning: Use only shielded signal cables to connect I/O devices to your LCD AV. You are cautioned
that changes or modifications not expressly approved by the party responsible for
compliance could viold your authority to operate the LCD AV.
FCC STATEMENT
This LCDAV complies with part 15 FCC Rules. Operation is subject to the following two
conditions (1) This device may not cause harmful interference. (2) This LCDAV must
accept and interference received, including interference that may cause undesired
operation.
Canada Regulatory compliance statements
This LCDAV does not exceed the Class B limits for radio noise emissions from digital apparatus as
set out in the radio interference regulations of Industry Canada.
Safety Precautions
5
Warning…………………………………………………………………………………………………….2
Important Safeguards…………………………………………………………………………………….3
Safety Precautions………………………………………………………………………………………..4
Table of Contents………………………………………………………………………………………… 5
Components………………………………………………………….. …………………………………. 5
Feature……………………………………………………………………………………………………. 6
Exploring Your New Monitor……………………………………………………………………………..7
Function Keys Instructions for AV..…….…………………………………………………………….….8
I/O Connection.…..……………………………………………………………………..………………...9
Menu Setup-IMAGE..……………………………………………………………………………….……10
Menu Setup-PIP…………………………………………………………………………………….…… 11
Menu Setup-SYSTEM……………………………………………………………………………………12
Menu Setup-VGA………………………………………………………………………………………. 13
Specifications………………………………………………………………………………………..… 14
Wall Mountable…………………...………………………………………………………………….….. 16
Dimensions…………………….. ……………………………………………………………………..….17
Components
(1) LCD Color Monitor 1
(2) Accessories
(A) Power cord 1
(B) User Manual 1
(C) Adapter 1
(D) PC audio cord 1
(E) VGAcord 1
Table of contents
6
1. Professional TFT LCD for surveillance.
2. Compatible with VGA(640X480), SVGA(800X600), XGA(1024X768), SXGA(1280X1024)
resolution,(SXGA for 17/19" LCD only).
3. All plastic case.
4. Video input BNC x 1 / VGA x 1 / S-Video x 1.
5. Video output BNC x 1.
6. Audio input RCAx 2 / phone jack x 1.
7. Audio speaker x 2.
8. Full / Under / Over scale mode.
9. Picture-In-Picture feature that allow multi-picture display.
10. Built-in 3D comb filter and 3D de-interlace for crispy picture performance.
11. Fast response time and refresh rate without time lagging.
12. Provides 6500°K and 9300°K color temperature se lection for user's preference.
13. Provides key lock and power memory function for easy management.
14. Cam mode control that enable auto-adjust incoming video signal level
15. Video looping Output supports 75ohm auto termination.
16. VESA standards (100mm X 100mm) bracket.
17. High brightness level and contrast ration with super wide viewing angle.
Feature
7
You can operate your monitor by using the buttons on the front panel.
Front Panel
Back Side
Exploring Your New Monitor
17”
19”
8

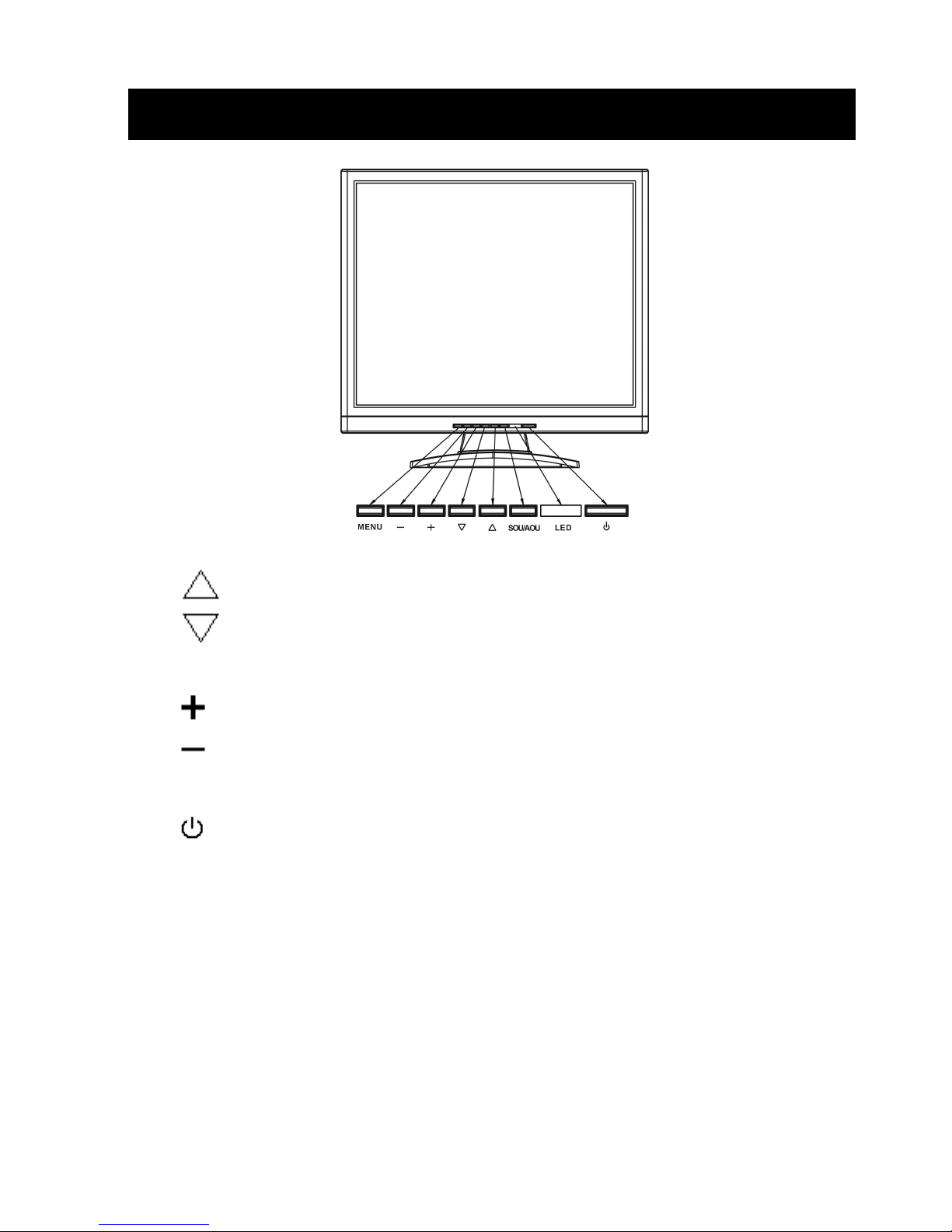

Up: Select menu item
Down: Select menu item
MENU
Menu: Push this button to display the main OSD menu / select item of next level
Right : Increase the setting of selected item
Left : Decrease the setting of selected item
SOU/AOU
Source: Change input source / to return to last OSD control level
Power: Turn on or off the monitor power
Function Keys Instruction for AV
9
Illustration:
●Video Out is present in “AV video out”
●Video In is present in “AV video in”
●PC Audio In is present in “PC audio in”
●Audio In 1 is present in “AV audio in”
●Audio In 2 is present in “S-Video audio in”
●S-Video In is present in “S-Video video in”
●VGA In is present in “PC - VGA signal in”
●Power In is present in “Power in”
I/O Connection:
10
Brightness:
picture brightness adjustment
min. ~ max.:0~100 / Default: 55
Contrast:
picture contrast adjustment
min. ~ max.:0~100 / Default: 50
Color Temp:
selects color temperature of 6500°K or 9300°K.
Saturation:
picture saturation adjustment
min. ~ max.:0~100 / Default: 50
Hue:
to adjust the color tint value
min. ~ max.:0~100 / Default: 50
Scan Mode:
to change the display mode Full/Under/Over.
Sharpness:
sets the desired sharpening enhancement to the picture
min. ~ max.:0~20 / Default: 5
Cam Mode:
camera video compatibility and performance.
Menu Setup - IMAGE
11
PIP Mode:
this function allows the PIP mode to be selected.
PIP Source:
the function allows the PIP Sub source to be selected.
PIP H.Position:
picture in picture window horizontal position.
PIP V.Position:
picture in picture window vertical position.
PIP Swap:
enable PIP sources switching.
Menu Setup - PIP
12
OSD Timeout:
select 5 ~ 60 to determine the time menu show on screen.
Default: 30
OSD H.Position:
OSD horizontal position.
OSD V.Position:
OSD vertical position.
Mute:
to disable the audio function. Default: OFF
Channel Display:
select ON/OFF. Default: ON
Auto Source:
the monitor will auto detect the video source when power ON.
Select ON / OFF. Default: OFF
Key Lock:
administrator control to protect monitor setting.
MENU button + SOU/AOU button for un-key lock
Reset:
restore all settings to Factory default.
Menu Setup - SYSTEM
13
H-position :
allows adjustment for horizontal position.
V-position:
allows adjustment for vertical position.
Phase:
is used to adjust best picture quality. It adjusts the sampling phase
across one pixel time. When the phase is not adjusted properly,
the picture will be unclear. Therefore this value should be carefully
adjusted.
Note: improper adjustment will cause image failure.
Clock:
is used to adjust best picture quality. It adjusts the numbers of the
pixel clock across one line time. Therefore it can affect the picture
position and size.
Note: improper adjustment will caused image failure.
Auto Adjust:
auto detect screen detail data such as clock and phase.
Menu Setup - VGA
14
Model 41657 41659
Button Control Menu, VOL-, VOL+, Up, Down, Source, Power
Display Resolution 1280 x 1024 @ 60/75 Hz 1280 x 1024 @ 60/75 Hz
Active Area 432.7mm diagonal 481.9mm diagonal
LCD Panel Type TN mode, normally white
Dot Pitch 0.264 (H) x 0.264 (V) mm 0.294 (H) x 0.294 (V) mm
Display Ratio 5:4
Display Color 16.7M colors
Brightness (central) 250cd/m2 (*)
Contrast Ratio 1000 :1 800 :1
Viewing Angle Left 85°/ Right 85°/ Up 75°/ Down 85° CR>10
Response Time 5ms
Input Voltage 96 - 256V AC, 60Hz / 50Hz
Input Signal 1Vp-p composite video
Input Impedance 75 ohm
Output Impedance 1.0Vp-p ± 0.2Vp-p composite video ( Auto Termination)
Specifications
15
Scanning system NTSC: 525 lines, 60 fields / sec; PAL: 625 lines, 50 fields / sec
VGA Input 15 pin D-SUB connector
Video Input/ Output BNC x 1 / BNC x 1 Looping Output Auto Termination
Audio Input Audio In x 2, PC-Audio In x 1
S-Video 4-pin DIN connector
Speakers 1W + 1W
Power Consumption (**) 40W
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature -10°C ~ 60°C (14°F ~ 140°F)
Power Supplier Adapter: output 12V DC 5A/ Input 90 ~ 240V AC
Dimensions (W x H x D) 372 x 353 x 52 mm 420 x 400 x 54 mm
(*) Brightness depends on what panel is used. Panel specifications is subject to change without notice.
(**) Power consumption depends on what panel is used. Panel specifications is subject to change without notice.
16
Wall mountable
User please use the correct screw type when installation.
The desktop bracket and mount type bracket can use the same screw
1.61 2
M4
M4
M4
M4 x 16L
Wall Mountable
17
Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo)
Dimensions
17”
19”
