CDA CW495 Operation instructions

Integrated
Dishwasher
CW495
Users Operating Instructions
Before operating this appliance,
please read these instructions carefully

Guarantee
CDA appliance carry a five-year parts and one-year labour guarantee.
CDA will repair or replace any defect or part attributable to faulty material or workmanship. Within the first year this will be
free of both labour and parts charges. After the first year and within five years, the parts will be supplied free of charge
provided that the repair is carried out by an agent authorised by CDA and the labour will be charged at the commercial rate
applicable at the time of repair.
The appliance must have been installed by a suitably qualified person and in accordance with the manufacturers instruc-
tions and current legislation. The guarantee does not cover faults caused by the incorrect fitting of the appliance.
Limit of Cover
The guarantee does not cover cosmetic damages e.g. discolouration or oxidisation.
Proof of purchase or installation date must be produced before a service call will be booked.
The appliance must be used for domestic purposes only. Appliances used for commercial or professional purposes are
not covered by this guarantee.
The appliance must not be modified or tampered with or repair attempted by any unauthorised person.
The guarantee does not cover damage caused by transit or by misuse, accident, abuse or neglect.
The guarantee does not cover routine maintenance.
Use of parts not supplied or recommended by CDA will invalidate the warranty.
Rubber seals, filters, removable glass parts, control knobs and buttons, fuses and light bulbs which need replacing
periodically are not covered by the guarantee.
Second hand or reconditioned appliances are not covered by the guarantee.
•
•
•
•
•
•
•
•
•
The conditions under which this guarantee is offered are in addition to the statutory rights of the domestic purchaser and
these rights are not affected by this guarantee.
CDA reserve the right to change specification without prior notice.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste
handling of this product.
For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop
where you purchased the product.

Close-up View (control panel)
A
B
C
D
E
F
G
H
I
Cycle indicator light
Low rinse aid indicator light
Cycle select button
Power button
Power indicator light
1/2 load button
NOTICE
Carefully read the instructions contained in this manual, as they
provide important information which is essential to safe and
proper installation, use and maintenance of the appliance.
* During installation, the power supply cord must not be exces-
sively or dangerously bent or flattened;
* If the appliance is not operating properly or maintenance must
be performed, disconnect the appliance from the power supply.
- Keep detergents out of the reach of children, who must also be
kept away from the dishwasher when it is open.
- This appliance cannot be installed outdoors, not even if the
area in which it is installed is covered by a roof; it is also very
dangerous to leave it exposed to the rain and elements.
- Do not touch the heating element during or after a wash cycle.
- Do not lean or sit on the door when it is open, as this could
overturn the dishwasher.
- If the appliance malfunctions, turn off water supply to the appli-
ance and disconnect the plug from the wall socket. Then, con-
sult the section entitled, "Troubleshooting". If you cannot re-
solve the problem, contact a service centre.
- Only specialised personnel are authorised to make repairs.
- Appliances which are no longer being used must be made inop-
erable by cutting the power supply cord and removing the door
lock.
This appliance complies with following EEC di-
rectives:
- 73/23/EEC of 19/02/73(Low Voltage) and subsequent modifi
cations;
- 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and
subsequent modifications.
- Carefully dispose of the packing material.
- After removing the packing, check to make sure that the appli-
ance is not damaged. If in doubt, contact a qualified professional.
- The dishwasher must only be used by adults for the washing of
household dishes and cooking utensils.
- Fundamental rules to follow when using the appliance:
* Never touch the dishwasher when barefoot or with wet hands
or feet;
* We discourage the use of extension cords and multiple sock-
ets;
Safety Is a Good Habit to Get Into
.1.
CW495
ABCDEF
H
G
I
Delay select button
Low salt indicator light
Display delay time and
programme running time
GB

Close-up View (Interior)
.2.
V
J
L
J
L
K
N
P
J
K
L
M
N
Upper Rack
Top Spray Arm
Rack Height Adjustor
Lower Rack
O
P
Q
R
Washing Filter
Detergent and Rinse Aid Dispenser
Third Sprayer
Salt Container Cap
Bottom Spray Arm
Technical characteristics
60 cm
58 cm
82 cm
12 standard place settings
0.03-0.6MPa
220-240V~ 50Hz
2150W
Width
Depth
Height
Capacity
Mains water pressure
Power voltage
Total absorber power
M
O
Q
R
GB

Salt


.3.
Salt
The hardness of the water varies from place to place. If hard
water is used in the dishwasher, deposits will form on the dishes
and utensils.
The appliance is equipped with a special softener that uses a salt
specifically designed to eliminate lime and minerals from the water.
Loading the Salt into the Softener
Always use salt intended for use with dishwashers.
The salt container is located beneath the lower rack and should
be filled as follows:
- Remove the lower rack and then unscrew and remove the cap
from the salt container;
- If you are filling the container for the first time, fill it with water;
- Place the end of the funnel (supplied) into the hole and intro-
duce about 2 kg of salt. It is normal for a small amount of water
to come out of the salt container.
- Carefully screw the cap back on.
The salt container must be filled when the "low salt" indicator
light (located on the control panel), comes on..
To prevent the formation of rust, load the salt just be-
fore beginning a wash cycle.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjusting the amount of
salt consumed based on the hardness of the water used. This is
intended to optimize and customize the level of salt consump-
tion so that it remains at a minimum.
To adjust salt consumption, proceed as follows:
- Unscrew the cap from the salt container;
- There is a ring on the container with an arrow on it (see figure
to the side),
- If necessary, rotate the ring in an anticlockwise direction from
the "-" setting towards the "+" sign, based on the hardness of
the water being used.
It is recommended that adjustments be made in accordance
with the following schema:
Water Hardness
Clarke
degrees ˚dH mmol/l Selector position
Salt
consumption
(Grams/cycle)
Autonomy
(cycles/2kg)
014 MNT
NIUQIQNUQQ
NQPS
PSTN QRUV QIRUIV
[UV
[TN [UIV
L
?J?
jba
LM
OM
QM
SM?H?
SM
QM
OR
MNIT
GB

.4.
Detergent and Rinse Aid


Detergent
Detergent specifically intended for use with dishwashers must
be used. The dispenser must be refilled before the start of each
wash cycle following the instructions provided in the "Wash Cycle
Table". The detergent dispenser is located on the inside panel
the door.

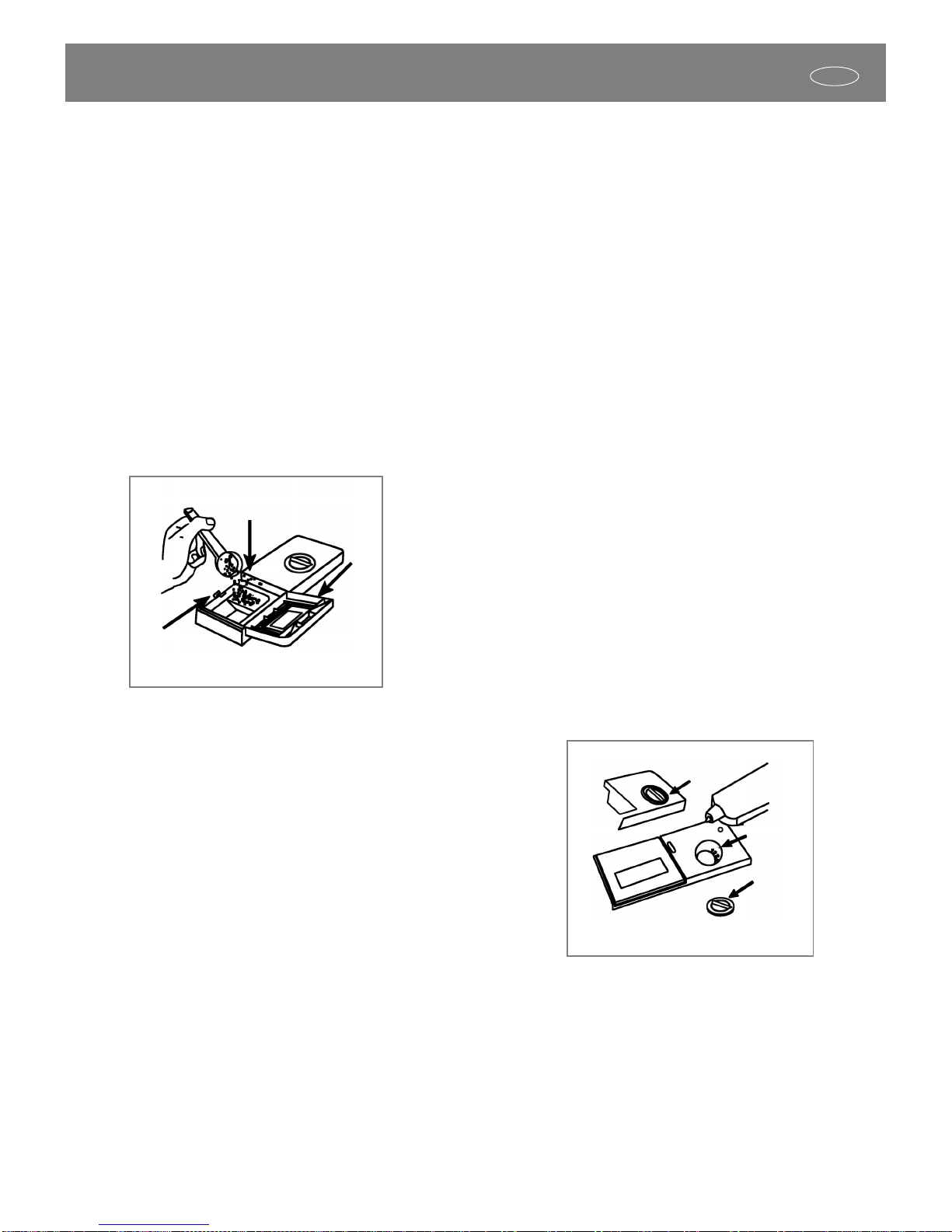

Loading the detergent
To open the "A" cover on the dispenser, press the "B" button.
The detergent for the wash cycle should be poured into the "C"
compartment.
After the detergent has been placed in the dispenser, close the
cover and press down until it clicks in place.
Notice: To facilitate closing the cover, remove any ex-
cess detergent on the edges of the dispenser.
Rinse Aid
This product makes dishes sparkle and helps them to dry with-
out spotting. The dispenser is located on the inside panel of the
door and should be filled after every 80 wash cycles (or when
the "low rinse aid" indicator light comes on for those models
with this feature).
Loading the Rinse Aid
Regardless of the type of detergent dispenser installed on your
appliance, you must proceed as indicated below when loading
the rinse aid.
To open the dispenser, turn the "C" cap in an anti-clockwise
direction and then pour in the rinse aid, making sure not to overfill.
The amount of rinse aid used for each cycle can be regulated by
turning the "F" dose adjustor, located beneath the "C" cap, with
a screwdriver. There are 6 different settings; the normal dosage
setting is 3.
Important
Proper dosage of the rinse aid improves drying.
If drops of water remain on the dishes or spotting occurs,
the dosage adjustor should be turned to a higher setting.
If the dishes have white streaks, turn the dosage adjustor
to a lower setting.
C
B
A
C
C
F
GB

.5.

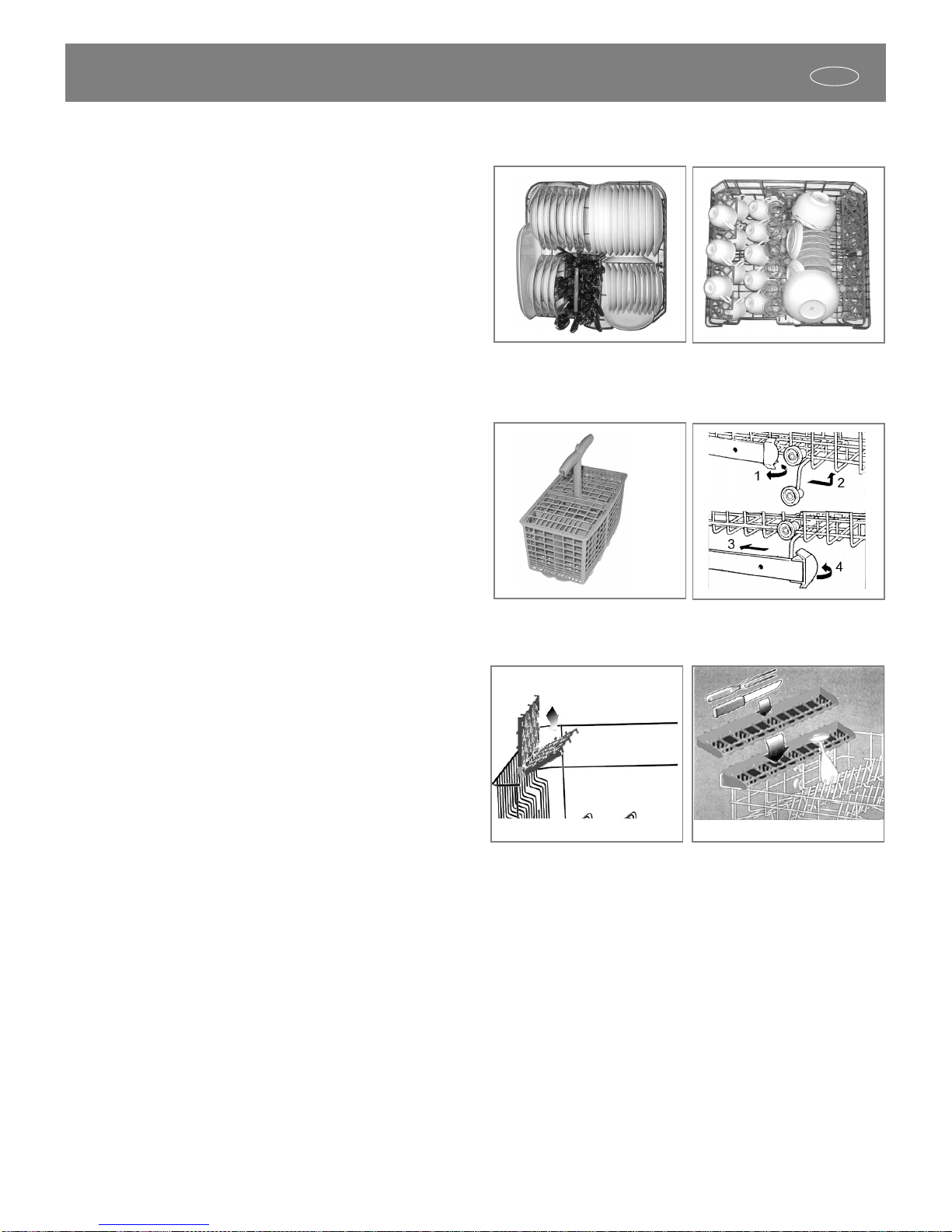

Loading the Dishwasher
fig.D
Lower Rack Upper Rack
Load for 12 Standard Settings
fig.B
fig.A
fig.C
Before placing the dishes in the dishwasher, remove the larger
food debris to prevent the filter from becoming clogged, which
results in reduced performance.
If the pots and pans have baked-on food that is extremely hard
to remove, we recommend that they be allowed to soak before
they are washed. This will eliminate the need for extra wash
cycles.
Pull out the rack to facilitate loading the dishwasher.
How to use the lower rack
We recommend that you place the most difficult to clean items
on the bottom rack: pots, pans, lids, serving dishes and bowls,
as shown in the figure to the right.
It is preferable to place serving dishes and lids on the sides of
the racks in order to avoid blocking the rotation of the top spray
arm.
- Pots, serving bowls, etc. must always be placed face down.
- Deep pots should be slanted to allow the water to flow out.
- The silverware basket can be doubled (see fig.A) so that only
one section may be used when the silverware load is light. This
also makes space for additional pots and pans and it can also
be placed in the upper rack.
- Silverware should be placed in the silverware basket with the
handles at the bottom; if the rack has side baskets, the spoons
should be located individually into the appropriate slots. Espe-
cially long utensils should be placed in the horizontal position at
the front of the upper rack.
How to use the upper rack
The upper rack is designed to hold more delicate and lighter
dishware, such as glasses, cups and saucers, plates, small bowls
and shallow pans (as long as they are not too dirty).
- Position the dishes and cookware so that they do not get
moved by the spray of water.
The upper rack can be adjusted for height by using the knobs
located on the sides of the rack itself (see fig.B).
Shelf
Lean tall glasses and those with long stems against the shelf-not
against other items to be washed.
Place glasses, cups and small bowls on the additional cup rack.
The additional cup rack can be swivelled in or out as required
(see fig.C).
Knife rack
The knife rack clips onto the side of the top basket, giving you
the freedom to wash your large sharp knives separately and out
of harm’s way (see fig.E).
GB

.6.
Starting the Appliance
Starting a wash cycle


After having completed all of the installation steps in the preced-
ing paragraphs, turn on the water to the unit, partially open the
door of the dishwasher, and press the power button "A" located
on the control panel. The "B" indicator light will come on. At this
point, the appliance is on and ready to be programmed.
Setting and Starting a wash Cycle
Choose the desired cycle by pressing the cycle selection button
"H". Each time it is pressed, one of the cycle indicator lights "G"
will come on in succession. At that time, the display "I" will show
number of hours for the programme.
Choose the wash cycle you feel is most appropriate for the type
of dishes that need washing (consult the wash cycle table con-
tained in this manual, especially when first using the appliance).
Close the door and after a few seconds, a short acoustic signal
will sound indicating that the wash cycle has begun and cannot
be modified. If necessary, read the paragraph entitled, "Cancel-
ling or modifying a cycle while underway". The end of the cycle
will be signalled by a double acoustic sound, and the indicator
light "G" will begin to blink.
Cancelling or modifying a cycle while underway...
Premise: A cycle that is underway can only be modified if it has
only been running for a short time.
Otherwise, the detergent may have already been used, and the
appliance may have already drained the wash water. If this is the
case, the detergent dispenser must be refilled (see the paragraph
entitled, "Loading the Detergent").
To change the cycle currently underway, open the door, press
the power botton "A", then all the settings will be cancelled. Once
the cycle has been cancelled, the dishwasher will emit a short
acoustic sound and the relative indicator light will turn off.
To set a new wash cycle, follow the instructions contained in the
paragraph entitled, "Setting and Starting a Wash Cycle".
If you forget to load some of the dishes...
The wash cycle can be interrupted by opening the door carefully
(in order to avoid being sprayed by hot water). When the door is
closed again, the cycle will automatically restart at the point where
it left off.
At the end of the wash cycle...
The end of the cycle will be indicated by a double acoustical
signal and the blinking of the "G" indicator light. And the number
on the display "I" will turn "0". Open the door, turn off the appli-
ance using the power botton and turn off the water supply to the
unit. Wait a few minutes before removing the dishes so as to
avoid handling them while still hot (when they are more suscep-
tible to breakage) and to get better drying results.
Setting The Start Delay Time
Open the door of the dishwasher partially. If the "D" button is
pressed (see, Close-up View "Control Panel"). The start time of
the wash cycle can be delayed for between 1 to 12 hours.
Each time the button is pressed, the display "I" will show the
number of hours for the delay period.
After selecting the delay time, the wash cycle can be set, as
explained in "Starting a wash cycle..." There will be a short acous-
tic signal, and at this point the delay period will begin to count
down. During this period the delay indicator light "E" will blink. At
the end of the delay time, the indicator will stop blinking and the
cycle will start.
Wash Cycle Adjustment Buttons
1/2 Load Button
This button (see "Close-up View-Control Panel", letter "D") makes
it possible to wash dishes using only the upper rack if there are
not enough dishes for a full load, This will allow you to save on
water and electrical energy.
It cannot be used with the heavy duty wash cycles.
a) During the delay period, it is preferable not to change any of
the settings. If it is necessary, all of the settings must be can-
celled by pressing the power button"B" to indicate that all of the
settings have been cancelled.
At this point, all of the steps for "Setting the Wash Cycle with a
delayed Start Time" and "setting and Starting a Wash Cycle"
must be repeated, following the instructions contained in the cor-
responding sections.
b) If the door is opened during the delay period, the indicator will
blink and acoustic signal will sound, and the countdown will stop.
It will begin again when the door is closed .
NOTE:
GB

.7.
Wash Cycle Table
Cycle Cycle Selection Information Description of Cycle
Normal Wash
Intensive wash
Light Wash
(IEC-EN50242)
Glassware
Rapid Wash
Soak


ERF

Normal dirty dishes,
pots and pans. Stan-
dard daily cycle.
Very dirty dishes,
pots and pans. (Not
to be used with deli-
cate items)
Normal dirty dishes,
pots and pans without
dried on residue.
Economic, fast cycle to
be used for items which
are sensitive to higher.
Run immediately after
dishes are used.
Economic, fast cycle to
be used to on not very
dirty dishes right after
they are used. No dry-
ing cycle.
Pre-wash of dishes,
pots and pans while
waiting for the load to
be completed after the
subsequent meal.
Pre-wash with hot water.
Extended wash at 70K
Rinses with cold water.
Rinse with hot waterK
Drying.
pre-wash with cold water.
Extended wash at 55.
Rinse with cold water.
Rinse with hot water.
Drying.
Wash at 60.
Rinse with warm water.
Hot rinse.
Drying.
Short wash at 40.
Cold rinse.
Short cold wash to prevent
food residue from drying on
the dishes K
30g
30g
15g
15g
Pre-wash with cold water.
Extended wash at 50K
Rinse with cold water.
Rinse with hot waterK
Drying.
30g
Detergent Rinse Aid
GB

.8.

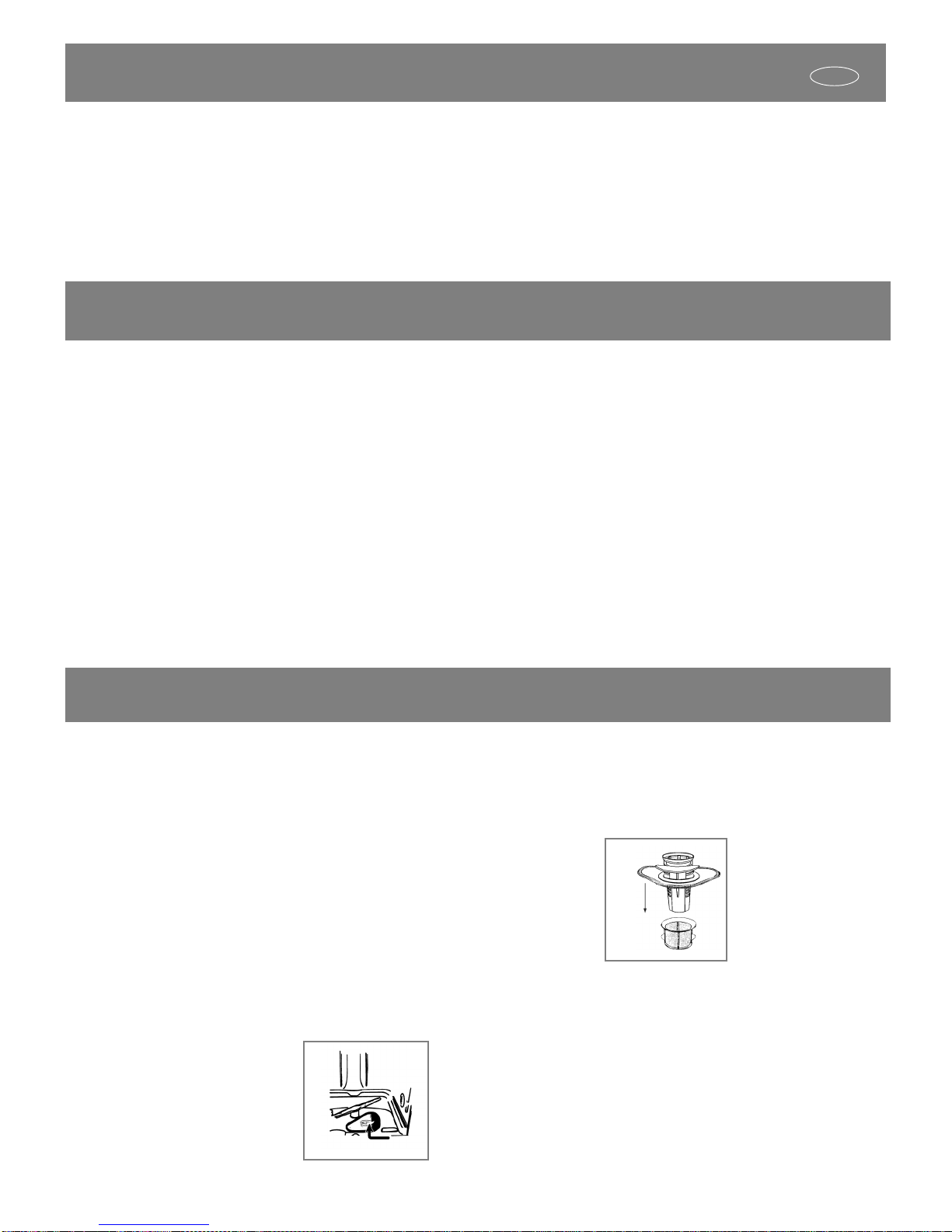

Energy Saving Tips
-It is important to try and run the dishwasher when it is fully
loaded in order to save on energy. In order to prevent odors
from forming and food from caking onto the dishes, you can run
the hold cycle.
-Choose the right wash cycle: the choice of cycle depends on
the type of dishware, cookware and utensils being washed and
how dirty they are.
-Use the right amount of detergent: if you use too much detergent,
the result will not be cleaner dishes, but, rather, a greater nega-
tive impact on the environment.
-There is no advantage in rinsing dishes, cookware and utensils
before placing them in the dishwasher.
How to keep Your Dishwasher in Shape
After every wash, turn off the water supply to the appliance and
leave the door slightly ajar so that moisture and odors are not
trapped inside.
After Every Wash
Before cleaning or performing maintenance, always remove the
plug from the socket. Do not run risks.
Remove the plug
To clean the exterior and rubber parts of the dishwasher, do not
use solvents or abrasive cleaning products. Rather, use only a
cloth and warm soapy water.
To remove spots or stains from the surface of the interior, use a
cloth dampened with water and a little while vinegar, or cleaning
product made specifically for dishwashers.
No solvents or Abrasive Cleaning Products
When you go on holiday, it is recommended that you run a wash
cycle with the dishwasher empty and then remove the plug from
the socket, turn off the water supply and leave the door of the
appliance slightly ajar. This will help the seals last longer and
prevent odors from forming within the appliance.
When You Go on Holiday
If the appliance must be moved, try to keep it in a vertical position.
If absolutely necessary, it can be positioned on its back.
Moving the Appliance
One of the factors that cause odors to form in the dishwasher is
food that remains trapped in the seals. Periodic cleaning with a
damp sponge will prevent this from occurring.
Seals
Cleaning and Special Maintenance
Filter Assembly
For best performance and results, the filter assembly must be
cleaned frequently.
The filter efficiently removes food residue from the wash water,
allowing it to be recirculated during the cycle. For this reason, it
is a good idea to remove the larger food particles trapped in the
filter after each wash cycle by rinsing the "A" semi-circular filter
and cup under running water. To remove the filter assembly, pull
on the cup handle in the upward direction. The entire filter as-
sembly (made up of the "A" semicircular filter and the "B" fine
filter) should be cleaned at least once a month.
To clean the filter and the fine filter, use a cleaning brush. Then,
reassemble the filter parts as shown in the figures below and
reinsert the entire assembly in the dishwasher, positioning in its
seat and pressing downward.
The dishwasher must never be
used without the filters. Improper
replacement of the filters may re-
duce level of the appliance and
damage dishes and utensils.
Cleaning the Spray Arms
It may happen that food particle become encrusted on the spray
arms and block the holes. Check the spray arms periodically and
clean them when needed.
Cleaning the Water Inlet Filter
Periodically clean the water inlet filter (see figure) located on the
outlet of the water supply tap.
After turning off the water tap, unscrew the end of the water sup-
ply hose, remove the filter and clean it carefully under running
water. Then, return the filter to its place and tighten the water
supply hose back into position.
A
B
GB

.9.
Troubleshooting
It may occur that the dishwasher does not function or does not
function properly. Before calling for assistance, Iet us see what
can be done first: have you forgotten to press one of the buttons
or to perform an essential operation?
The Dishwasher Does Not Start
Have you checked whether:
- the plug is pushed into the socket correctly;
- the power is on in the house;
- the door is closed properly;
- the ON-OFF switch is on "ON";
- the water supply is turned on.
The Dishwasher Does Not Load Water
Have you checked whether:
- the water is turned on and the hose is connected properly;
- the water supply to the house is on and has sufficient pressure;
- the water supply hose is crimped or bent;
- the filter for the water supply hose is clogged.
The Dishes Are Not Clean
Have you checked whether:
- the water is turned on and the hose is connected properly;
- the water supply to the house is on and has sufficient pressure;
- the water supply hose is crimped or bent;
- the filter for the water supply hose is clogged.
The Dishwasher Does Not Drain
Have you checked whether:
- the drain hose is crimped or bent.
Lime Deposits or a White Film Form on the Dishes
Have you checked whether:
- the lid to the salt container is closed properly;
- the rinse aid dosage is correct.
Error Messages
The dishwasher is equipped with a safety system that is able to
detect operating problems and malfunctions. These malfunctions
are signalled by the rapid blinking of one of the "M" program
LEDs. Only in the case where the indicator light for the soak
cycle (see table for cycles) blinks rapidly should you cancel the
cycle as described in the section entitled, "Changing a Cycle
while Underway". Then check to make sure that there is water in
the mains and that the tap is turned on. If the message continues,
call for technical assistance, indicating which message appeared.
If any of the other indicator lights begins to blink rapidly, turn off
the appliance and call for technical assistance, indicating which
light began to blink.
If, despite all these checks, the dishwasher still does not func-
tion and/or the problem persists, contact the nearest authorised
service centre and provide them with the following information:
- the nature of the problem;
- the model type number (Mod...) And the
serial number (S/N...), which are indicated on the plate located
on the side of the inner part of the door.
Never call on unauthorised technicians and refuse to
allow parts to be installed that are not original spare
parts.
GB

.10.
Installation
Positioning the Appliance
Positioning the appliance in the desired location. The back should
rest against the wall behind it, and the sides, along the adjacent
cabinets or wall. The dishwasher is equipped with water supply
and drain hoses that can be positioned to the right or the left to
facilitate proper installation.
Levelling the Appliance
Once the appliance is positioned, adjust the feet (screwing them
in or out) to adjust the dishwasher, making it level. In any case,
the appliance should not be inclined more than 2˚. If the appli-
ance is level, it will help ensure proper performance.
Cold Water Connection
Connect the cold water supply hose to a threaded 3/4 (gas)
connector, making sure that it is fastened tightly in place (see fig.2).
Some models are fitted with an "Aquastop" water supply hose
(see fig.1) in which the small filter is already housed in the
threaded end.
If the water pipes are new or have not been used for an extended
period of time, let the water run to make sure that the water is
clear and free of impurities. If this precaution is not taken, there
is a risk that the water inlet can get blocked and damage the
appliance.
Anti-Flooding Protection
The dishwasher is equipped with a system that stops the supply
of water in the event of a problem with the water supply hose, or
leaks within the unit, in order to prevent damage to your home. If
for any reason the box containing the electrical components hap-
pens to get damaged, remove the plug for the appliance from
the socket immediately. In order to guarantee that the anti-flood-
ing feature operates properly, the "A" box with water supply hose
must be attached to the water supply tap as shown in Fig .1. No
other type of connection is acceptable.
Hot Water Connection
The water supply to the appliance can also be connected to the
house's hot water line (centralised system, heating system), as
long as it does not exceed a temperature of 60

.
In this case,the wash cycle time will be shortened by about 15
minutes and the wash efficiency slightly reduced.
The connection must be made to the hot water line following the
same procedures as those for the connection to the cold water
line.
fig.2
Drain Hose Connection
Insert the drain hose into a drain pipe with a minimum diameter of
4cm, or let it run into the sink, making sure to avoid bending or
crimping it. Use the special plastic support that comes with the ap-
pliance (see fig.3). The free end of the hose must be at a height
between 40 and 100 cm and must not be immersed in water.
Attention:
The special plastic hose support must be solidly fastened to the
wall to prevent the drain hose from moving and allowing water to
spill outside the drain.
The water supply hose must not, under any circumstances, be cut,
as it contains electrical parts which are live. If the length of the hose
is not adequate to make a proper connection, the hose must be
replaced with one which is long enough. This hose is available upon
request from specialised retailers and service centres.
Electrical Connection
After making sure that the voltage and frequency values for the
current in the home correspond to those on the rating plate
(located on the stainless steel inner door of the appliance) and
that the electrical system is correct for the maximum voltage on
the rating plate, insert the plug into an electrical socket which is
earthed properly (the earthing of the appliance is a safety re-
quirement mandated by law).
If the electrical socket to which the appliance must be connected
is not appropriate for the plug, replace the plug, rather than us-
ing adaptors or the like as they could cause overheating and
burns.
Caution:
The dishwasher plug must be accessible even when the appli-
ance is installed as a built-in unit so that maintenance can be
done safety.
fig.3
fig.1
GB
MAX 100
MIN 40

Supplied with the appliance is a plastic
(self adhesive) anticondensation strip,
this should be fixed to the underside of
your worktop along the front edge. The
adjustable feet of the appliance allow it
to be raised up to 870mm, if the space
between the floor and the underside of
the work surface is greater than 870mm,
Stage 1
To prevent damage to the floor covering, the appliance must be
installed using the plastic skids provided.
Stage 2
Connect the water, drain and electrical supplies (220 - 240V,
50Hz). We recommend that the appliance is connected to a cold
water supply.
Measure the width of the decor door.Align the template on the
rear of the door with the top of the door level with the top of the
template, and the left hand edge of the door in line with the mea-
sured door width. Mark the four fixing poisitions. Repeat on the
right hand side. Remove the template, and drill pilot holes in the
door in all eight positions using a suitable drill (take care not to
drill through the door). Attach the upper plastic studs and lower
fixing brackets to the decor door as shown below.
Stage 3
Position the decor door onto the front of
the dishwasher by locating the brackets
into the two plastic studs mounted ei-
ther side on the top of the door. Lift the
decor door until the lower brackets lo-
cate into the slots in the appliance door.
Stage 4
then the appliance should be positioned on suitable wooden
spacers which should always be fixed to the floor. Always use a
spirit level to make sure that the appliance is level left to right
and front to back.(If the appliance is installed on a carpet, en-
sure there is clearance beneath the appliance). The four adjust-
able feet should be adjusted to the correct height; the rear feet
are adjustable via studs at the front of the appliance (fig 1a).
fig 1a
Align the top of the decor door with
adjacent cabinets. Gently open door
whilst supporting the decor door.
Once in the lowered position, secure
the decor door using the fixing
screws provided as shown in the
diagram. Cover the screw heads
using the plastic caps provided.
Stage 5
The dishwasher should now be screwed to the underside of the
worktop, via the two fixing holes in the top trim.
For non-wooden worktops (e.g. marble) two brackets are pro-
vided to allow the appliance to be secured to the sides of the
adjacent cabinets. The should be secured to the appliance us-
ing the two screws at the top of the chassis (see fig 1b), ad-
justed to the correct width and then screwed to the adjacent
sides panels using suitable screws.
Stage 6
The door balance can be adusted via two screws accessed
through two holes in the top of the front frame. Adjust these until
the door just remains open under its own weight and is level
when open.
Stage 7
Cut clearance in the plinth to allow the door to open fully and
seal edges with a suitable varnish to prevent water ingress.
Stage 8
Installation cont..
.11.
GB

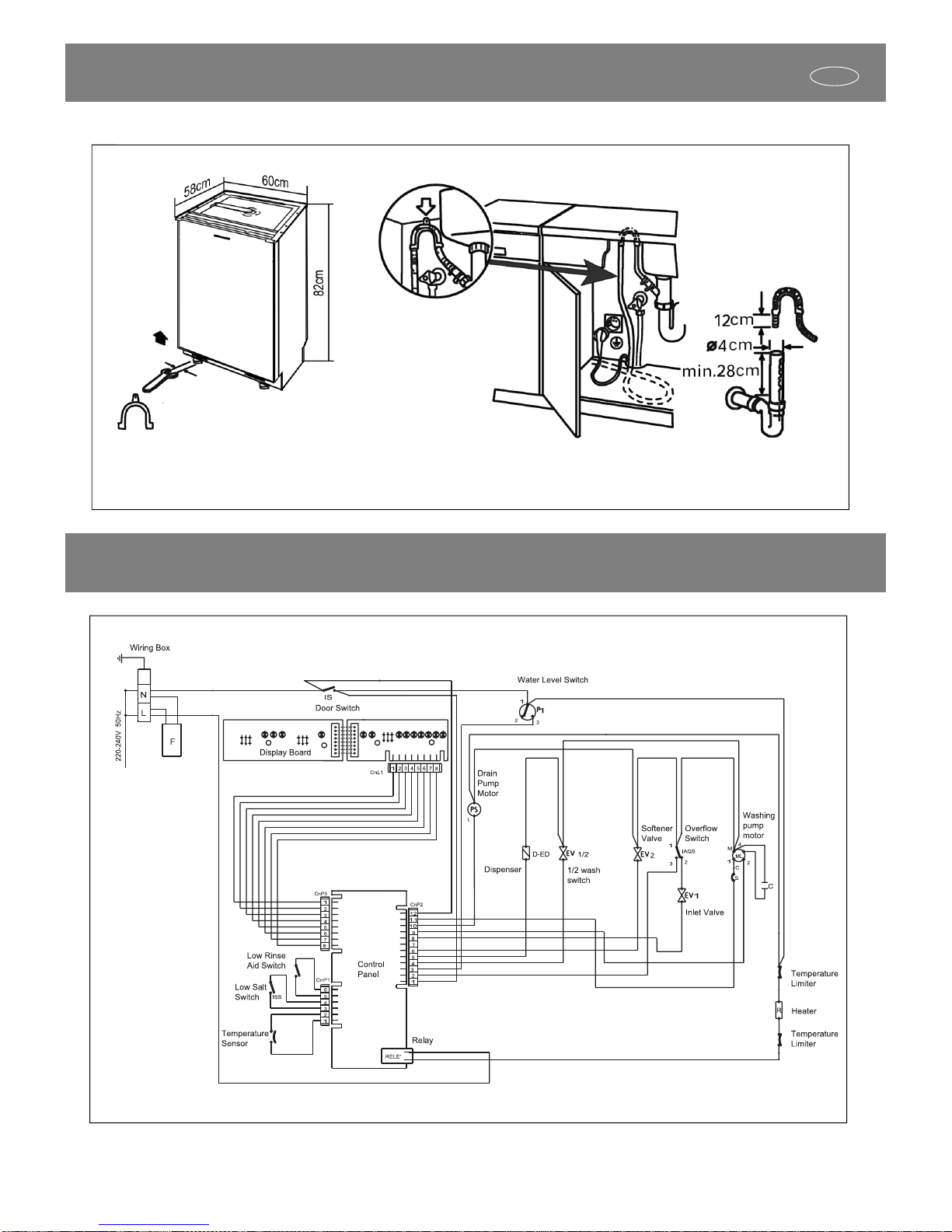

Installation
Diagram
.12.
GB

Appliance servicing
CDA provide a quality and effective after-sales service to cover all your servicing needs.
Please attach your receipt to this page for safekeeping.
Please help us to help you by having the following information available when booking a service call.
1. Model type, make and model – see the front of this manual
2. Evidence of installation/purchase date
3. Retailer where the appliance was purchased
4. Clear and concise details of the fault
5. Full address including postcode and any contact phone numbers
Contact telephone numbers
CDA Customer Care Department
Harby Road
Langar
Nottingham
NG13 9HY
Telephone: [phone]
Email:[email protected]
CW495 Dishwasher
0120504647
