CDA WC432 Quick start guide

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu www.cda.eu
WC432
Integrated
Slimline
Dishwasher
Installation, Use and Maintenance

2
Contents
3 Important information
5 Important notes
6 Before first use
7 Using your dishwasher
9 Starting a programme
10 Changing a programme
10 Cancelling a programme
11 Detergent information
12 Salt information
13 Softener adjustment
15 Rinse aid information
16 Dishwasher basket information
18 Standard loading
19 Programme listing
20 Care and Maintenance
22 Fault code information
23 Troubleshooting
24 Electrical Information
26 Installation
30 Installation - final checks

3
Important
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that CDA reserve the right to invalidate the guarantee supplied with
this product following incorrect installation or misuse of the appliance.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
This appliance has been designed for domestic use only. Commercial
use will invalidate the warranty.

4
EU Declarations of Conformity:
This product meets the requirements of all applicable EU directives
with the corresponding harmonised standards, which provide for CE
marking.
Availability of this manual in an alternative format:
A soft copy of this manual is available for download from www.cda.eu.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing appli-
ance recycling services.
Disposing of a household appliance separately avoids possible nega-
tive consequences for the environment and health. It also enables
the constituent materials to be recovered, saving both energy and
resources. As a reminder of the need to dispose of household appli-
ances separately, the product is marked with a crossed-out wheeled
dustbin .

5
Important
•Read the instructions prior to installation and use of the
appliance.
•Do not lean or climb on the open dishwasher door, to
prevent damage.
•Close the dishwasher door after use to prevent accidents.
•Use only detergents, salt and rinse aid specifically
designed for dishwashers.
•Do not put solvents in the dishwasher detergent
compartment to prevent risk of explosion.
•Only put dishwasher safe items into the dishwasher. If in
doubt, check with the manufacturer of the items.
•Take care when loading the dishwasher to observe the
recommendations for best loading practice, and also to
ensure that sharp objects such as knives are placed blade
down to prevent accidents.
•Do not open the dishwasher door when a programme
is running. If it is necessary to do so, then open it only
slightly to allow the dishwasher to pause the programme
and prevent any water spilling out. Remember that
the water in the dishwasher can be very hot when the
programme is running.
•When the dishwasher is not in use, we recommend
that you turn o the water supply at the supply tap and
disconnect the main supply.
•If you are leaving the dishwasher for an extended period
you should leave the door slightly open to prevent the
formation of unpleasant smells.

6
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
•The plastic housing on the water inlet pipe contains an
electrically operated valve. The wires that connect to this
valve are inside the inlet hose. Do not cut through the inlet
hose and do not put the plastic housing in water.
•Children could get locked inside the appliance. Therefore,
when disposing of an old appliance cut o the plug and
set aside. Damage the door lock so that the door can no
longer be closed.
Recommendations
•To reduce energy and water consumption, remove all dirt residues
from the dishes prior to loading the dishwasher.
•Only run the dishwasher when fully loaded, unless half-load is active.
•Place hollow items (bowls, glasses and pans) face down in the basket.
•Do not put dishes, cutlery or other items with tobacco ash, wax,
lubricating grease or paint residues in the dishwasher.
Before First Use
•Set the water softener level as required by the water hardness in the

7
area (see pages 13-14).
•Add 1kg of salt into the salt compartment and then fill with water to the
top of the salt compartment.
•Remove all the packaging materials from the interior of the dishwasher.
•Fill the rinse aid compartment.
•Run a hot programme without any dishes in the dishwasher.
Control Panel
Power button
To switch the power to the dishwasher on or o, press the ‘Power’
button (1). When you switch on the dishwasher, the ‘End of
programme’ light will illuminate and two dashes will appear on the
programme display (2).
Programme selection button
To select an alternative programme, press the ‘Programme selection’
button (3) several times, until the programme display (2) shows the
desired programme. The dishwasher will store, in its memory, the last
programme used.
Fig. 1

8
Half load button and indicator light
The dishwasher is equipped with a half-load function that allows for
small numbers of dishes to be washed, spread between both baskets.
This reduces the amount of water and electricity used.
To use this function, press the half-load button (4). The indicator light
should illuminate and shows that this function is selected.
If you have selected the half-load function for a programme, then this
function will automatically be selected the next time the dishwasher
is used. To cancel the selection of this function, press the half-load
button (4) until the indicator light goes out.
Delay timer button and delay timer indicator lights
The dishwasher is equipped with a variable delay timer of three, six
or nine hours duration. To set the delay timer, press the ‘Delay Timer’
button (5). This will switch on the delay timer for three hours, and
the 3h light will illuminate. To change the duration, press the ‘Delay
Timer’ button again until the light next to the required time (6h or 9h)
is illuminated.
To cancel the timer, press the “Delay Timer” button again until none of
the “Delay Timer” indicator lights are illuminated.
As the delay timer counts down, the “Delay Timer Indicator” lights will
illuminate in turn, so at six hours delay the “6h” light will illuminate, and
at three hours delay the “3h” light will illuminate.

9
Salt and rinse aid warning lights and End of programme light
When the dishwasher salt or rinse aid begins to run out, the relevant
warning light will illuminate to advise that it needs refilling.
When the set programme has finished, the dishwasher will emit five
beeps and the end of programme indicator light will illuminate.
Starting a programme
•Press the ‘Power’ button.
•Press the ‘Programme selection’ button until the required
‘Programme’ light is illuminated.
•If required, press the ‘Delay Timer’ button.
•Once the power is switched on, the ‘End of programme’ Indicator
light will switch on.
•Once a programme is selected, the ‘End of programme’ Indicator
light will switch o, and the ‘Programme Indicator’ light will switch
on.
•When you close the dishwasher door the programme will start
automatically.
Please note: The dishwasher stores the most recently used
programme in its memory. To change the programme, simply
press the ‘Programme selection’ button.
At the end of a programme
If possible, do not open the dishwasher door once the programme has
started.
At the end of the programme, the dishwasher will beep five times, and the
‘End of programme’ Indicator light will switch on.

10
Changing a programme
It is possible to change the programme if necessary once the
programme has started.
•First open the door slightly to reduce the risk of water spillage.
•Press the ‘Programme selection’ button until the required
programme is shown on the display.
•Then close the door. The dishwasher will begin the new programme
from the point at which the old programme stopped.
Cancelling a programme
It is possible to cancel the programme once the programme has
started.
•First open the door slightly to reduce the risk of water spillage.
•Press and hold the ‘Programme selection’ button for approximately
three seconds, until the end of ‘Programme Indicator’ light flashes
and a ‘1’ shows on the display.
•Then close the door. The dishwasher will drain for approximately
thirty seconds. Once this is complete, the dishwasher will beep five
times and the ‘End of programme’ indicator light will switch on.
Switching the dishwasher o
•Once the dishwasher beeps five times, and the ‘End of programme’
indicator light switches on, the dishwasher can be switched o by
pressing the ‘Power’ button.
•Then, turn o the water tap and remove the plug from the power
socket.
Please note: The dishwasher will automatically continue on the
programme it has started if operation is interrupted.

11
Detergent
To fill the detergent compartment
1. Push the latch to open the compartment.
2. Add the required amount of detergent. The
main detergent compartment (b in Fig. 2)
has lines to allow for specific amounts of
detergent.
These are marked at either 15cm3or
25cm3, depending on how dirty the dishes
are.
If your dishes are in need of an intensive
wash, then add 5cm3of detergent into the
prewash section of the compartment (a in
Fig 2).
3. Then close the detergent compartment lid
until the latch locks.
Please note: You should only use
detergents designed specifically for use in
dishwashers.
If using dishwasher tablets, always use the detergent compartment.
Do not put them in the main body of the dishwasher or in the cutlery
basket.
The solubility of dishwasher tablets can vary depending on the
temperature and duration of the programme. As a result, it is
recommended that powder detergents (and not 3-in-1 tablets) should
be used in the quick wash and half-load programmes to allow better
performance.
Fig. 2
Fig. 4
Fig. 3

12
CDA recommends the use of separate detergent, rinse aid and
dishwasher salt rather than combination tablets as separates achieve
better wash performance.
If you do use combination detergents, add salt and rinse aid to the
dishwasher and then adjust the water hardness setting and rinse aid
setting to the minimum. When you then use separate detergents
again, you should fill the salt and rinse aid compartments, adjust the
water hardness setting to the maximum and run an empty wash, then
adjust the water hardness setting and the rinse aid setting to the
appropriate level.
Salt
To ensure the best eciency, the dishwasher needs soft water. Hard
water means that lime residues remain on the dishes and the interior
of the dishwasher, aecting performance. The softener system is
designed to remove the ions that make the water hard to provide the
best quality wash performance. This is achieved by using dishwasher
salt.
To add dishwasher salt
1. Remove the lower dishwasher basket and then unscrew the salt
compartment cap, as shown in Fig. 3 (page 11).
2.Fill the compartment with dishwasher salt (do not use table salt),
carefully to prevent unnecessary spillage. Before first use, you should
fill the compartment with 1kg of dishwasher salt and then fill up the salt
compartment with water (up to the brim of the compartment) as shown
in Fig. 4 (page 11).

13
3.Replace the cap and the lower basket.
When the ‘Salt Warning’ light on the control panel illuminates, you
should refill the salt compartment with salt only – do not add water to
the salt compartment after the first use.
You should run a programme immediately after adding dishwasher
salt, to prevent any damage to the dishwasher systems.
Fill the salt compartment with just water on first use.
Softener Adjustment
The eciency of your dishwasher depends on the softness of the
tap water. To ensure best eciency, the dishwasher is equipped with
a system that reduces the hardness in the mains water supply. The
eciency will increase when the system is correctly set. To find out
the water hardness level of your water supply you can use the test
strip supplied or alternatively contact your local water board.
1. Open the testing strip.
2. Run water through the tap for one minute.
3. Hold the testing strip in water for one second.
4. Shake the testing strip after taking it out of the water.
5. Wait for one minute.
6. Check the number of marks on the strip to see the level of water
hardness.
1 minute 1 second
1 minute
Level 1
Level 2
Level 3
Level 4
Level 5
Level 6

14
If the hardness of the water you use is above 63dE or if you are using
well water; you are recommended to use filter and water refinement
devices.
Please note: The level of water hardness is preset to level 3.
1. Press and hold down the ‘Programme Selection’ button.
2. Press the ‘Power Button’ to switch on the dishwasher.
3. Keep the ‘Programme Selection’ button pressed until ‘8’ shows on
the display and then disappears.
4. After the ‘8’ disappears, the machine displays the last water
hardness setting entered.
5. To adjust the level, press the ‘Programme selection’ button
until the required level is selected. The programme display will

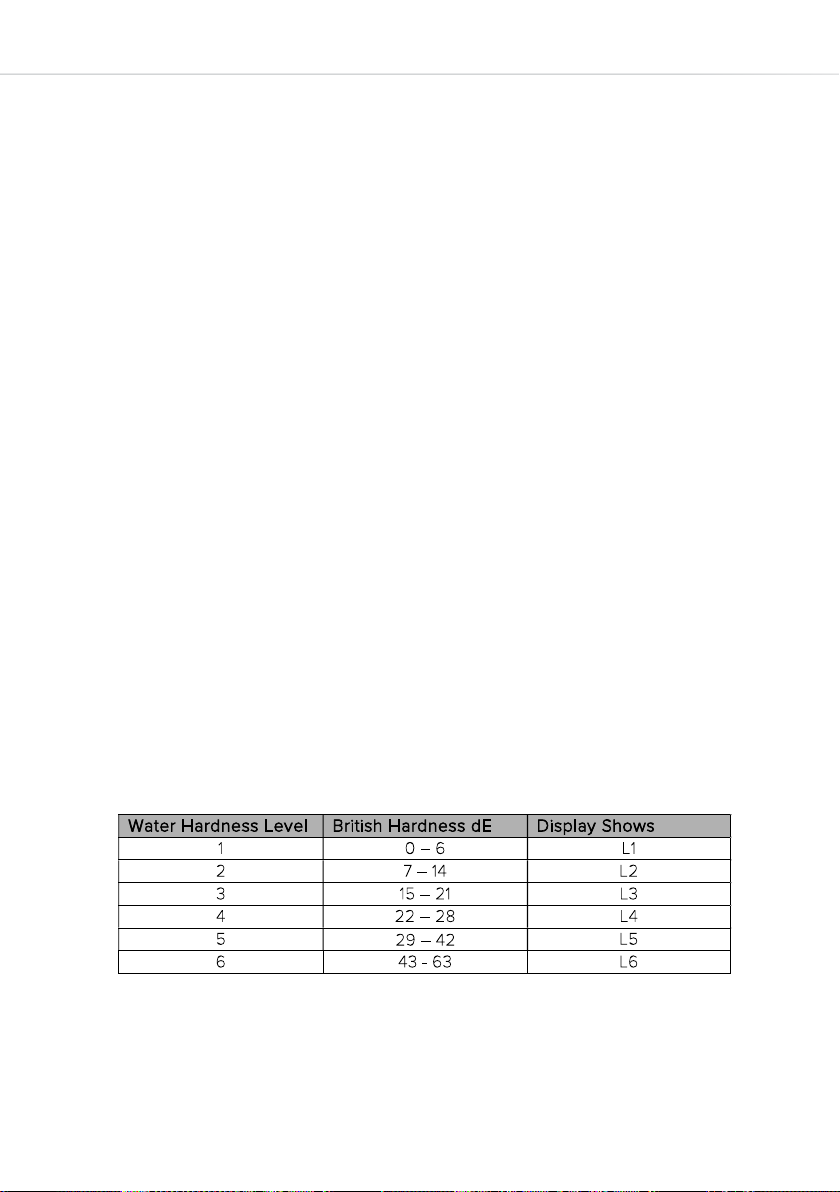

illuminate with certain figures as in the table of water hardness
settings below.
6. To store the selected water hardness level, press the ‘Power’
button.

15
Fig. 5
Fig. 6
Fig. 7
Rinse Aid
To fill the rinse aid compartment
1. Open the rinse aid compartment by
turning and removing the cap as
shown in Fig. 5.
2. Fill the rinse aid compartment until the
rinse aid indicator goes dark,
as shown in Fig. 6 (where ‘a’ indicates
the compartment is empty, and
‘b’ indicates the compartment is full).
3. Replace the cap, ensuring the markers
on the cap line up with the
compartment prior to screwing the cap
back in place.
Rinse Aid Adjustment
The level of rinse aid use is preset to 4. You can adjust the level of
rinse aid use by adjusting as shown in Fig. 7.
If water stains form on the dishes after a wash, the level should be
increased.
If blue stains which can be wiped away are left on the dishes after a
wash, the level should be decreased.

16
Upper basket
Lower basket
Please note: Rinse aid ensures better quality wash results and
increased drying performance.
Always refill the rinse aid when the rinse aid indicator light on the
control panel is illuminated.
Dishwasher Baskets
To adjust the height of the upper basket:
1. Open the basket retaining clips, as shown
in Fig. 8, by turning them to the side.
2. Remove the upper basket, and relocate
the alternate set of wheels on the runner,
as shown in Fig. 9, pushing the basket
back into place.
3. Close the basket retaining clips.
The following images are designed
as guidance as to best practice (and
malpractice) for loading the dishwasher.
Fig. 8
Fig. 9

17
Poorly stacked loads

18
Standard Loading and Test Data
Capacity
•Upper and lower baskets: 10 place settings.
•The upper basket should be adjusted to high position.
•Cups should be placed onto the dish rack pins.
Detergent / Rinse aid
•5 + 20cm³, in accordance with EN50242-DIN 44990 IEC 436
(international norms) / Rinse aid dosage adjustment: 5.
Programme test
• Eco 50°C, in accordance with EN50242 (international norms.).

19
Programme Listing
Warning: Short programmes do not include a drying stage.
The values and times provided on the previous page have been ob-
tained under laboratory conditions according to relevant standards.
This information can change depending on the conditions of the
dishwasher’s use and environment (network voltage, water pressure,
water input temperature and environment temperature).

20
Care and maintenance
Before beginning any care or maintenance,
you should always disconnect the appliance
from the electricity supply, and also turn o
the water supply.
Door seals
Wipe the dishwasher door seals regularly
with a damp cloth to remove any residues.
Filters
You should clean the filters at least once a
month.
1. Remove the lower basket.
2. Turn the microfilter anticlockwise and then
lift it out (Fig. 9).
3. Remove the coarse filter from the
microfilter (Fig. 10).
4. Remove the base filter from the
dishwasher compartment (Fig. 11).
You should clean and rinse the filters
thoroughly before replacing all the
sections in reverse order to that above.
The microfilter should lock into place once
it is secure (Fig. 12).
Please note: Never run a programme
without the filters in place.
Fig. 9
Fig. 10
Fig. 11
Fig. 12
