CDA VW601 Quick start guide

1
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu www.cda.eu
VW601 Grill
Drawer
Installation, Use and Maintenance

2
Important Safety Information
This appliance must only be used for the purpose for which it is
intended, i.e. warming crockery and grilling food. Any other use could
be dangerous and may lead to premature failure of the appliance.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
User information:
•Grill drawers become hot during and immediately after use. Take
care not to touch any of the internal components.
•The drawer may become hot during operation.
•After use, please ensure that the switches are in the ‘O’ position.
•Keep children away from the appliance when in use, and
immediately after use.
•Keep the drawer closed whilst grilling.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.

3
Appliance Model
Serial Number
CE Declarations of Conformity:
This appliance has been designed, constructed and marketed in
compliance with safety requirements of Directive 73/23/CEE modified
by directive 93/68/CEE for attribution of CE approval (Low voltage)
and requirements of EMC Directive 89/336/CEE modified by directive
93/68/CEE for attribution of CE approval.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed
of as urban waste. It must be taken to a special local authority
dierentiated waste collection centre or to a dealer providing this
service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.

4
Important
•Do not rest or sit on the drawer when open, as this will
damage the telescopic runners.
•The maximum capacity of the drawer is 15 kg.
•Do not cover the bottom of the drawer with aluminium
foil or other objects. Use only the supplied grill pan
and trivet.
•Never pour water directly into the drawer.
•Do not use this appliance for heating liquids
•To avoid scratching, do not use sharp utensils in the
drawer.
•Use suitable containers or crockery.
•Residual condensation could eventually damage the grill
drawer and surrounding cabinets. It is advisable to dry
any wet parts when the drawer is cold.
•Do not store plastic or flammable objects in the drawer.
•We recommend the use of oven gloves or adequate
protection when removing items from the drawer.
•Never insert objects (e.g. screwdrivers, sharp objects,
papers, etc.) into the heating element and ventilation slots.
•Children should be supervised to ensure that they do not
play with the appliance.
•Cleaning and user maintenance shall not be made by
children without supervision.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
EVENTUAL DAMAGES CAUSED BY FAILURE TO OBSERVE THESE
INSTRUCTIONS.

5
Before First Use
Before using the drawer for the first time we recommend that you
Preheat the empty drawer for thirty minutes with the temperature
control at the six O’clock position. A slightly unpleasant smell may be
produced, caused by grease remaining on the heating element from
the production process.
•Read the user instructions carefully before using the
drawer for the first time.
•Follow the instructions for first use.
•Clean the drawer regularly.
•Remove spills as soon as they occur.
•Always use oven gloves when removing shelves and
trays from the drawer.
•Do not allow children near the drawer when in use.
•Do not allow fat or oils to build up on the grill pan or
drawer base.
•Do not place any cooking utensils or plates directly on the
drawer base.
•Always grill with the drawer closed.
•Do not grill food containing fat without using the grill pan
grid.
•Do not cover the grill pan grid or the drawer walls with
aluminium foil.
•Do not perform maintenance or cleaning without first
switching o the electricity supply. If the drawer has
recently been used, allow to cool.

6
•Do not place hot metallic parts in water. Leave them to
cool first.
•Do not allow vinegar, coee, milk, saltwater, lemon or
tomato juice to remain in contact with metal parts.
•Do not leave the grill drawer unattended whilst in use.
•Do not use abrasive cleaners or powders that will
scratch the surface of the steel.
•Do not attempt to repair the internal workings of your
grill drawer.
This drawer has been fitted with a cooling fan to
achieve maximum eciency and to maintain low surface
temperatures. The cooling fan will switch on automatically
when the drawer switches on. It is normal for the cooling
fan to run for an hour or more after use, depending on the
duration and temperature used.
IMPORTANT
If the drawer runners become damaged or do not work
correctly do not operate the grill drawer. Contact CDA
Customer Care for advice.

7
Using Your Grill Drawer
Use
•Select the required cooking time.
•Select the required temperature.
•Close the drawer gently.
Ensure that you turn both controls to the o position when cooking is
complete.
Setting the Temperature
•Turn the temperature control to the required position.
•Do not force the temperature control past the maximum position, to
prevent damage to the thermostat.
•The symbols do not indicate absolute temperature values, but

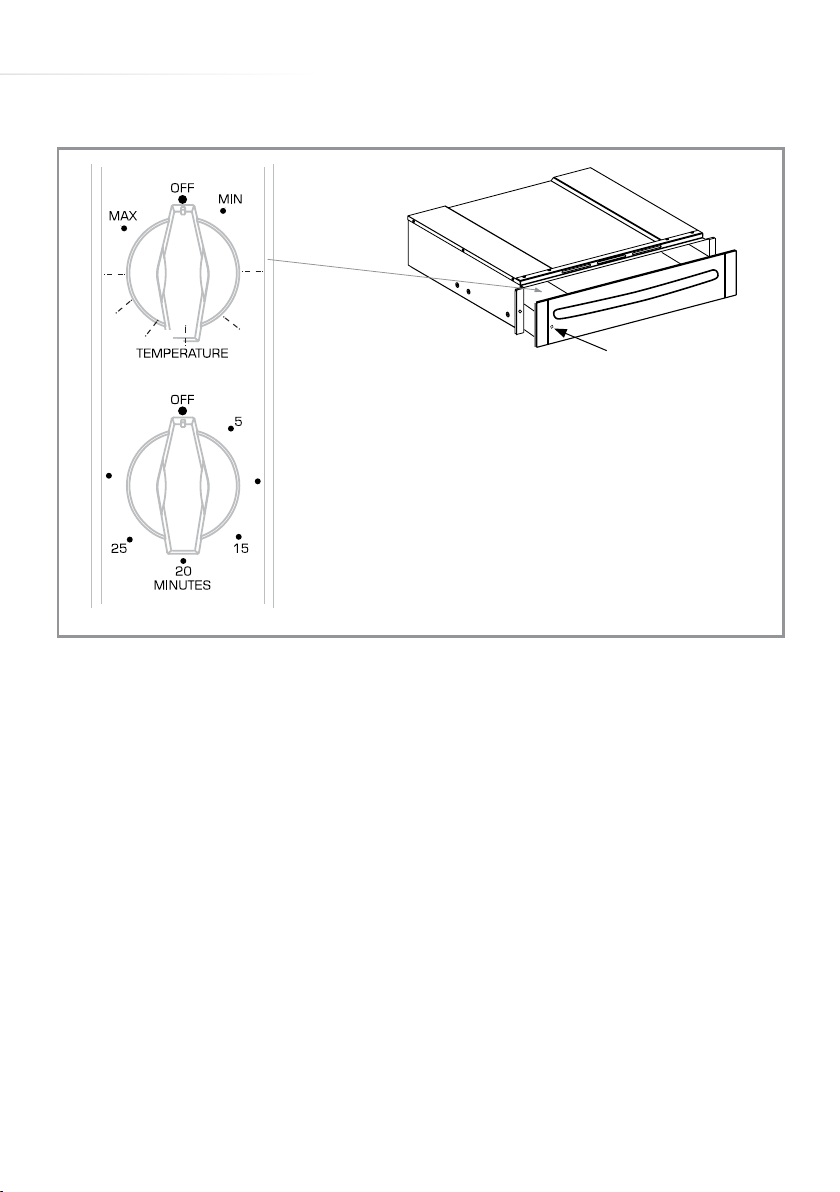

recommendations for control positions are shown in figure 1.
When the drawer is closed, the power indicator is
visible on the front of the drawer to indicate the
drawer is switched on.
fig. 1
Medium
Temperature control
Timer control
Power indicator
A
B
G
F
EDCA Plate warming
B Keeping food warm
C Low
D Medium
E Medium high
F High
G Full Power

8
Setting The Cooking Time
The grill drawer is equipped with a timer which can be set for up to 30
minutes.
•Turn the timer control to the required position. The timer will start
running and will sound an audible alert at the end of the countdown.
•Do not force the timer control past the 30 minute position, to
prevent damage to the timer.
Please note:
•Always grill with the drawer closed.
•Do not grill for more than 30 minutes at a time.
•The grill can be preheated if required for two minutes prior to
placing food inside.
•Small amounts of steam may escape from the top of the drawer
front when the grill drawer is in use. This is normal and does not
constitute a fault.
•The grill drawer will only run when the drawer is closed.
With use, experience will demonstrate optimal cooking times and
temperature settings.

9
Care And Maintenance
IMPORTANT
Before cleaning or any service operation is started, the appliance
must be disconnected from the power supply.
If the drawer has been in use, let the drawer cavity and the heating
elements cool down before attempting any maintenance.
The drawer exterior and control panel
As the drawer has a stainless steel and glass surface, you should
use a nonabrasive cleaner. Any abrasive cleaner (including Cif) will
scratch the surface. Stainless steel can be eectively cleaned by
simply using a dilute solution of water and mild detergent and drying
to a shine with a clean cloth.
Proprietary stainless steel cleaners are available. We recommend the
CDA E-Cloth available from the CDA Sales Team for cleaning stainless
steel surfaces as this has been designed to prolong the finish of your
appliance.
The drawer interior
The drawer should always be cleaned after use but only when it has
cooled down.
The interior should be cleaned using a mild detergent solution and
warm water. Proprietary chemical cleaners must not be used.
Abrasive cleaning agents or scouring pads/cloths should not be used.

10
IMPORTANT:
•Steam cleaners must not be used
when cleaning this appliance.
•Once care and maintenance is
complete, ensure that all parts are
correctly replaced before using the
grill drawer.
The drawer can be removed to facilitate
cleaning.
- Pull out the drawer fully.
- Open the drawer release levers,
positioned underneath the drawer
runners, as shown in figure 2.
- Carefully slide the drawer forwards to
remove it from the runners.
To replace the drawer, locate it on
the runners and push back into the
housing.
IMPORTANT
Ensure that the drawer runners lock
into the drawer release levers. A `click’
sound signifies the drawer is locked to
the runners.
fig. 2
Levers located under
the drawer

11
Installation
Important
The grill drawer is not intended to be installed under a worktop and is
intended to be installed underneath a CDA compact appliance.
Do not install this product in locations where the top of the grill drawer
is within 25mm of a wooden supporting shelf.
Failure to allow adequate ventilation to the appliance may result in
overheating or damage to adjacent units and could invalidate the
warranty.
This appliance is type X installation.
The walls of the kitchen units must be able to withstand temperatures
of 75˚C above ambient (typically this is between 90˚C and 100˚C).
When correctly installed ensure that there is a gap of 4mm minimum
between the sides of the grill drawer and adjacent furniture doors.
Lift the grill drawer carefully into position on the shelf, taking care NOT
to lift it by the drawer handle. When the drawer is open, there are two
screw holes visible, one on each side of the housing. The grill drawer
should then be secured to the housing by fitting screws into these
holes. Remember the housing should not be free standing but be
secured to the wall and/or adjacent fittings.

12
How to install your grill drawer
You will need the following housing
area to install your grill drawer correctly.
The grill drawer is designed to fit into
a cabinet of 600mm width with a
clearance between the side and rear of
the grill drawer of 5mm or more.
The grill drawer should be built in,
but you must ensure that it is properly
ventilated as described below.
In the diagram shown in figure 4 an
open channel is shown at the rear
of the housing unit for ventilation
purposes; this is standard with most
housing units. The dimensions of
the rear channel should be 500mm x
25mm as a minimum.
The top of the unit should be open to allow air to escape and a free
air intake should be provided in the housing unit to allow a natural
flow of cooling air inside the unit. The dimensions of the air intake are
recommended as 500mm x 25mm (or 1250cm2).
The maximum weight of an appliance to be installed above the grill
drawer is 60kg.
fig. 4
545
141
554
128 596
23
25 min
560
141
Air Exhaust
Air Intake
560

13
Electricity Supply To Your Grill Drawer
Warning! This appliance must be earthed.
This appliance must be connected by a competent person, using
fixed wiring via a double pole switched fused spur outlet, protected
by a 13A fuse.
We recommend that the appliance is
connected by a qualified electrician,
who is a member of the N.I.C.E.I.C. and
who will comply with the I.E.T. and local
regulations. The wires in the mains
lead are coloured in accordance with
the following code:
GREEN AND YELLOW = EARTH BLUE
= NEUTRAL BROWN = LIVE.
As the colours of the wires in the
mains lead for the appliance may not
correspond with the coloured markings
identifying the terminals in your spur
box, proceed as follows:
DOUBLE POLE SWITCHED
FUSE SPUR OUTLET
13A

14
1. The wire which is coloured green and yellow must be connected to
the terminal marked E (Earth) or coloured Green.
2.The wire which is coloured blue must be connected to the terminal
marked N (Neutral) or coloured Black.
3.The wire which is coloured brown must be connected to the
terminal marked L (Live) or coloured Red.
Please note:
The electricity supply should allow for the disconnection of the
appliance after installation. The isolator should be positioned within
2m of the appliance.

15
E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the
right to change specifications without prior notice.

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu www.cda.eu
Please contact our Customer Care Department for Service on the details below
Customer Care Department
The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : customer[email protected]
