VW141 & VW281
Warming Drawers
Installation, Use and Maintenance

2
Important
The manufacturer cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product.
Please note that we reserve the right to invalidate the guarantee
supplied with this product following incorrect installation or misuse of
the appliance.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
User information:
• Warming drawers become hot during and immediately after use.
Take care not to touch any of the internal components.
• The drawer may become hot during operation.
• After use, please ensure that the warming drawer is switched o.
• Keep children away from the appliance when in use, and
immediately after use.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.

3
Appliance Model
Serial Number
CE Declarations of Conformity:
This appliance has been designed, constructed and marketed in
compliance with safety requirements of Directive 73/23/CEE modified
by Directive 93/68/CEE for attribution of CE approval (Low voltage)
and requirements of EMC Directive 89/336/CEE modified by Directive
93/68/CEE for attribution of CE approval.
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Electrical safety (LVD)
and Electromagnetic interference compatibility (EMC). Parts intended
to come into contact with food conform to CE Regulation 1935/2004.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.

4
Important
• Do not rest or sit on the drawer when open, as this will
damage the telescopic runners.
• The maximum capacity of the drawer is 25 kg.
• Do not cover the bottom of the warming drawer with
aluminium foil or other objects. Use only the supplied mat.
• Never pour water directly into the warming drawer.
• Do not use this appliance for heating liquids.
• To avoid scratching, do not drag dishes on the bottom of
the warming drawer.
• Use suitable containers or crockery.
• Residual condensation could eventually damage the
warming drawer and surrounding cabinets. It is advisable
to:
- cover food;
- dry the inside of the warming drawer when it has
cooled down.
• Do not store plastic or flammable objects in the warming
drawer.
• We recommend the use of oven gloves or adequate
protection when removing crockery from the drawer.
• Never insert objects (e.g. screwdrivers, sharp objects,
papers, etc.) in the heating element and ventilation slots.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
EVENTUAL DAMAGES CAUSED BY FAILURE TO OBSERVE THESE
INSTRUCTIONS.

5
Before first use
Before using the drawer for the first time we recommend that you
clean it with a damp cloth, then dry thoroughly.
Preheat the empty drawer for at least two hours at maximum
temperature. A slightly unpleasant smell may be produced, caused
by grease remaining on the heating element from the production
process.

6
Using Your Warming Drawer
Use
•Place the dishes in the drawer.
•Set the required temperature.
•Press the power switch, which will light up to confirm the warming
drawer is switched on:
•Close the drawer gently.
•Switch the appliance o before removing the warmed dishes.
Selecting the Temperature
•The temperature knob enables a temperature adjustment between
approx. 30°C and 80°C.
•Turn the temperature knob to the required position.
•Do not force the temperature knob past the maximum
position to prevent damage to the thermostat.
•The symbols do not indicate absolute temperature values, but
recommendations for optimal settings for cups and dishes.

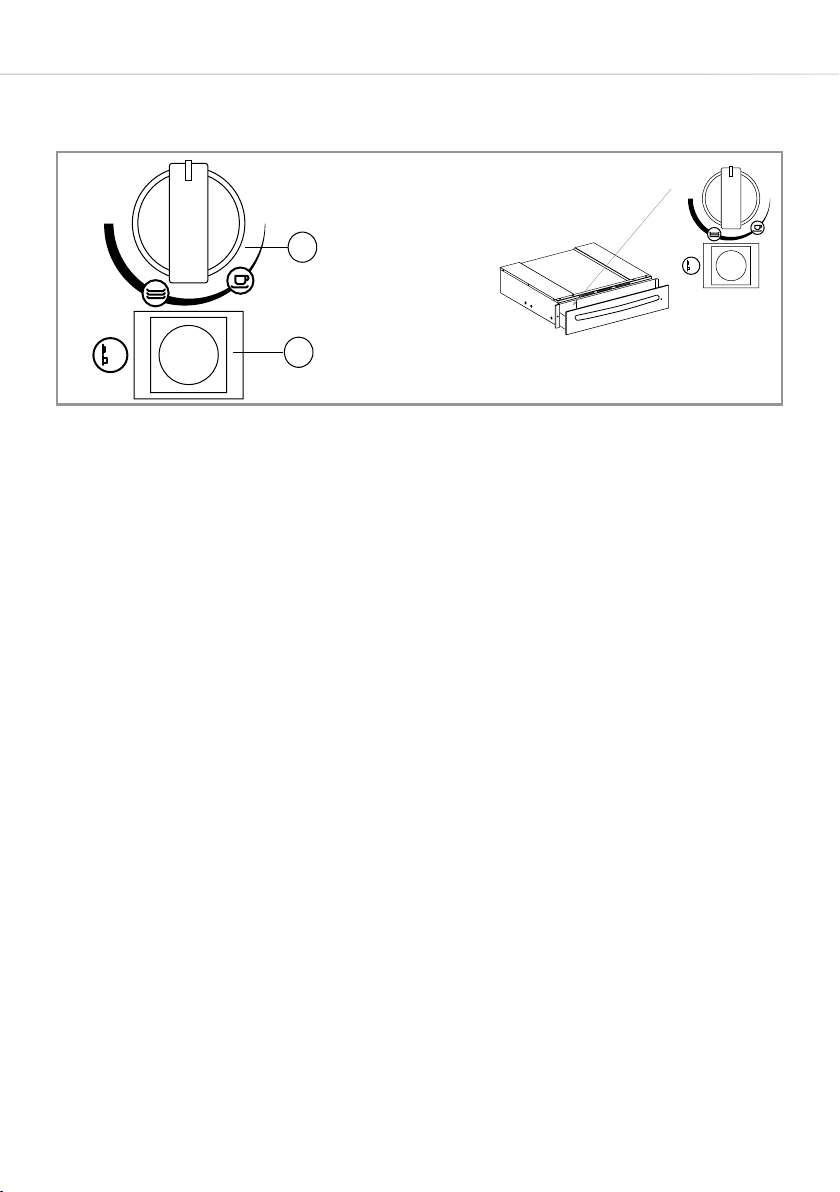

1
2
1. Temperature knob
2. Luminous ON-OFF switch
When the drawer is closed, the power light is visible on the front
of the drawer to indicate the drawer is switched on.
on
off
Max
on
off
Max
Fig. 1

7
Temperature Setting Temperature Information Regarding Use
approx. 40°C To prevent hot drinks from cooling too
quickly, use this temperature setting to
warm the cups to a temperature that is
safe to touch.
approx. 60°C To prevent hot food from cooling too
quickly, use this temperature setting
to warm plates or serving dishes. The
use of oven gloves or pot holders is
recommended for this setting.
Max
approx. 80°C The thermostat is set to max
temperature. The use of oven gloves or
pot holders is necessary for this setting.
Warming Times
The time necessary for warming depends on various factors:
•Material and thickness of the dishes.
•Quantity of dishes to be warmed.
•Arrangement of dishes in the drawer.
•Temperature setting.
Therefore exact warming times cannot be provided.
With use, experience will demonstrate optimal warming times and
temperature settings.

8
Load capacity:
•The load capacity depends on the height of the appliance and the
size of the dishes.
•The following load examples are only guides.
VW141 Diameter (cm)
6 Dinner plates 28
6 Soup bowls 10
1 Serving bowl 22
1 Serving bowl 19
1 Serving bowl 17
2 Serving platters 36
OR
10 Dinner plates 28
10 Soup bowls 22
OR
18 Soup bowls 22
2 Soup terrines 21 x 18
OR INDIVIDUALLY
20 Dinner plates 28
36 Soup bowls 22
30 Soup bowls 10
10 Pizza plates 36
80 Espresso cups
40 Cappuccino cups
30 Punch glasses
VW281 Diameter (cm)
12 Dinner plates 28
2 Serving bowl 22
2 Serving bowl 19
2 Serving bowl 17
2 Serving platters 36
OR
20 Dinner plates 28
20 Soup bowls 22
OR INDIVIDUALLY
40 Dinner plates 28
60 Soup bowls 22
45 Soup bowls 10
20 Dinner plates 28
20 Soup bowls 22
20 Pizza plates 36
120 Espresso cups
60 Cappuccino cups
30 Punch glasses

9
Installation
Check the measurements in fig. 4 to confirm the requirements for your
installation. Please note, the oven dimensions show a standard CDA
oven and will vary depending on the appliance being installed above
the warming drawer.
1. Connect the mains lead to the product before installation. Run
the lead to the power outlet to be used and connect to the mains
electrical supply. Do not switch on until installation is complete.
2. Locate the product centrally on the supporting shelf and fix into
position using the fixing screws and plastic supports (Fig. 3).
3. Carefully fit the appliance on top of
the warming drawer, taking care not
to scratch the top stainless edge
of the drawer unit. Ensure that the
mains connection lead is located
near to the power outlet, to avoid
having to remove the product again
to connect the mains electrical
supply.
4. Secure the oven into the housing
using appropriate fixing screws.
Fig. 2
Fig. 3

10
5. The warming drawer is supplied with three metal filler strips with
self-adhesive backing. These strips should be attached to the
warming drawer to seal any gaps between the appliance and the
housing. Remove the protective foil from each strip and position
it as shown in fig. 2 so it is flush with the rear and side walls of the
housing, then attach to the warming drawer. If there is no rear wall
to the housing, the rear trim is not required.
The casing of this appliance will get hot. Ensure that any cables that
may come into contact with the appliance once installed are suitable
for use at 85°C.
Fig. 4
20-24
T
T
573
20-24
594
598
595
598
595
715-720
560-568
560-568
863-868
594
548
548
276
23
23
289
128
545
545
573
141
66

11
Care and Maintenance
IMPORTANT
•Before any maintenance is started involving electrical parts, the
appliance must be disconnected from the power supply.
•If the warming drawer has been in use, let it cool down before
attempting any maintenance.
•Steam cleaners must not be used when cleaning this appliance.
•Once care and maintenance is complete, ensure that all parts are
correctly replaced before using the appliance.
Warming drawer exterior
As the warming drawer has a stainless steel surface, you should use a
nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch
the surface and could erase the control panel markings. Stainless
steel can be cleaned eectively by simply using a dilute solution of
water and mild detergent and drying to a shine with a clean cloth.
Proprietary stainless steel cleaners are available. We recommend the
CDA E-Cloth available from the CDA Sales Team for cleaning stainless
steel surfaces as this has been designed to prolong the finish of your
appliance.
Warming drawer interior
The inside should always be cleaned after use when it has cooled
down.
The inside should be cleaned using a mild detergent solution and
warm water, then dried thoroughly.

12
Mains Electricity Connection
THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY
BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE
POLE SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A
FUSE.
We recommend that the appliance is
connected by a qualified electrician, who is a
member of the N.I.C.E.I.C. and who will comply
with the I.E.T. and local regulations.
The wires in the mains lead of this appliance
are coloured in accordance with the following
code:
Green & Yellow = Earth, Blue = Neutral, Brown = Live.
As the colours of the wires in the mains lead for the appliance may
not correspond with the coloured markings identifying the terminals
connecting to the fuse spur, proceed as follows:
•The wire which is coloured green and yellow must be connected to
the terminal marked E (Earth) or coloured green.
•The wire which is coloured blue must be connected to the terminal
marked N (Neutral) or coloured black.
•The wire which is coloured brown must be connected to the
terminal marked L (Live) or coloured red.
Note: Use a 3A Fuse
Assembly and electrical connection should be carried out by
specialised personnel.
When installing this product we recommend you seek the help of
another individual.
DOUBLE POLE SWITCHED
FUSE SPUR OUTLET
USE A 3 AMP FUSE
Fig. 5

13
Notes:

14
Notes:

15
E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the
right to change specifications without prior notice.
Notes:

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu www.cda.eu
Please contact our Customer Care Department for Service on the details below
Customer Care Department
The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : customer[email protected]
Copyright © CDA 2015
