VW153 Warming
Drawer
Installation, Use and Maintenance

2
Important
This appliance must only be used for the purpose for which it is
intended, i.e. warming plates etc. in a domestic environment. Any
other use could be dangerous and may lead to premature failure of
the appliance.
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that CDA reserve the right to invalidate the guarantee supplied with
this product following incorrect installation or misuse of the appliance.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified
personnel.
User information:
•Warming drawers become hot during and immediately after use.
Ensure you do not touch any of the internal components.
•The drawer can become very hot during operation. Wear oven
gloves or suitable hand protection where appropriate.
•After use, please ensure that the appliance is switched o.
•Keep children away from the appliance when in use, and
immediately after use.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.

3
Appliance Model
Serial Number
EU Declarations of Conformity:
This appliance has been designed, constructed and marketed in
compliance with safety requirements of EU Directive 2014/35/EU (LVD)
and requirements of EU Directive 2014/30/EU (EMC).
Parts intended to come into contact with food conform to 1935/2004/
EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must not be disposed
of as urban waste. It must be taken to a special local authority
dierentiated waste collection centre or to a dealer providing this
service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.

4
Important
• Do not rest or sit on the drawer when open, as this will
damage the telescopic runners.
• Warming drawers become hot during and immediately
after use. Ensure you do not touch any of the internal
components.
• The maximum capacity of the drawer is 20 kg.
• Do not cover the bottom of the warming drawer with
aluminium foil or other objects. Use only the supplied mat.
• Never pour water directly into the warming drawer.
• Do not use this appliance for heating liquids.
• To avoid scratching, do not drag dishes on the bottom of
the warming drawer.
• Use suitable containers or crockery.
• Residual condensation could eventually damage the
warming drawer and surrounding cabinets. It is advisable
to dry any wet parts when the warming drawer is cold.
• Do not store plastic or flammable objects in the warming
drawer.
• We recommend the use of oven gloves or adequate
protection when removing crockery from the drawer.
• Never insert objects (e.g. Screwdrivers, sharp objects,
papers, etc.) in the heating element and ventilation slots.
THE CDA GROUP LTD CANNOT BE HELD RESPONSIBLE FOR
EVENTUAL DAMAGES CAUSED BY FAILURE TO OBSERVE THESE
INSTRUCTIONS.

5
Before First Use
Cleaning
Before using the warming drawer for the first time we recommend
that you clean it with a damp cloth, then dry thoroughly. Preheat the
empty drawer at maximum temperature for at least 1 hour.
A slightly unpleasant smell may be produced, caused by grease
remaining on the oven elements from the production process.
Using Your Warming Drawer
To open the drawer
Press the front of the drawer briefly and
it will spring open slightly.
Hold the front panel and pull the drawer
open. Do not lean on, or apply any body
weight to, the drawer whilst you are
opening or closing it.
To close the drawer
Gently push the drawer back to its
closed position.

6
Use
• Place the dishes in the drawer.
• Set the required temperature.
• Press the power switch, which will light up to confirm the warming
drawer is switched on.
• Close the drawer gently.
• Switch the appliance o, and ensure your hands are suitably
protected from heat (i.e. by oven gloves), before removing the
warmed dishes.
Selecting the Temperature
• The temperature knob enables a temperature adjustment between
approximately 40°C and 80°C.
• Turn the temperature knob to the required position.
• Do not force the temperature knob past the maximum position, to
prevent damage to the thermostat.
• The symbols do not indicate absolute temperature values.
80°C
Low
Med
Max

7
Warming times
The time necessary for warming depends on various factors:
• Material and thickness of the dishes.
• Quantity of dishes to be warmed.
• Arrangement of dishes in the drawer.
• Temperature setting.
Therefore exact warming times cannot be provided.
With use, experience will demonstrate optimal warming times and
temperature settings.
Warming drawer capacity
The capacity of the warming drawer is 20kg.
The number of items this includes depends on the size and thickness
of your crockery.

8
Cleaning
IMPORTANT:
• Always disconnect the appliance from the power supply before
undertaking any cleaning.
• You should always allow the warming drawer to cool fully after use
before undertaking any cleaning.
• Never use high pressure water or steam cleaners.
• Do not use: detergents containing soda, acids or chlorides, abrasive
detergents (in powder or lotion), abrasive sponges (e.g. steel wool)
or sponges containing residuals of abrasive detergents, descaling
detergents, dishwasher detergents, oven sprays.
Warming drawer exterior
• Clean with a damp cloth. If it is very dirty, add a few drops of dish
washing detergent to the water. Dry with a dry cloth.
• Do not use corrosive or abrasive detergents, as they can create dull
areas. If any of these products accidentally comes into contact with
the warming drawer, immediately clean the appliance with a damp
cloth.
• Slight colour dierences on the front of the appliance are due to the
use of dierent materials, such as glass, plastic and metal.
Front panel
• Use a mild detergent and a soft window cleaning cloth or a
micro-fibre cloth that does not leave fibres on the surface. Wipe
horizontally, without pressing.
• Do not use corrosive products, hard sponges or rough cloths for
cleaning. Clean the aluminium surfaces with a dry cloth.

9
Glass base
• The glass drawer base can be lifted out to clean the bottom of the
drawer. The base can be washed by hand with hot water and a mild
detergent. Dry thoroughly.
• Refit the glass base in the drawer only when completely dry.
Drawer base
• It is advisable to clean the bottom of the drawer after every use,
making sure to allow it to cool. In this way grime will not accumulate
and cleaning is easier.
• Use a clean cloth, absorbent paper and dish hand-wash detergent,
or specific products for cleaning the vitroceramic top.
• Remove stubborn cooking grime with specific products.
• Remove any food residuals left on the vitroceramic top; do not leave
to harden.
• Foods with a high sugar-content (coee, fruit juice, jam, etc.) that
have boiled over or any sugar stains due to cooking must be
immediately removed.
• Do not use abrasive products, bleach, oven cleaning sprays or steel
wool.
• It is advisable to periodically treat the vitroceramic glass with the
special waxes available on the market.

10
PLEASE NOTE: Steam cleaners must not be used to clean this
appliance.
Do not store flammable material in the warming drawer.
Do not allow grease or food particles to build up around the door.
IMPORTANT:
When correctly installed, your product meets all safety
requirements laid down for this type of product. However, special
care should be taken around the rear or the underneath of the
appliance as these areas are not designed or intended to be
touched and may contain sharp or rough edges that could cause
injury.
Troubleshooting
If the dishes are not warm enough, make sure:
• The appliance is on.
• The right temperature has been set.
• The heat openings are not covered by large dishes or soup-plates.
• The dishes have been warmed for a long enough time.
• The drawer is closing properly and is not obstructed.

11
Installation
Check the measurements on Fig.
1 to confirm the requirements for
your installation. Please note,
the oven dimensions show a
CDA compact oven and will vary
depending on the appliance
being installed above the
warming drawer.

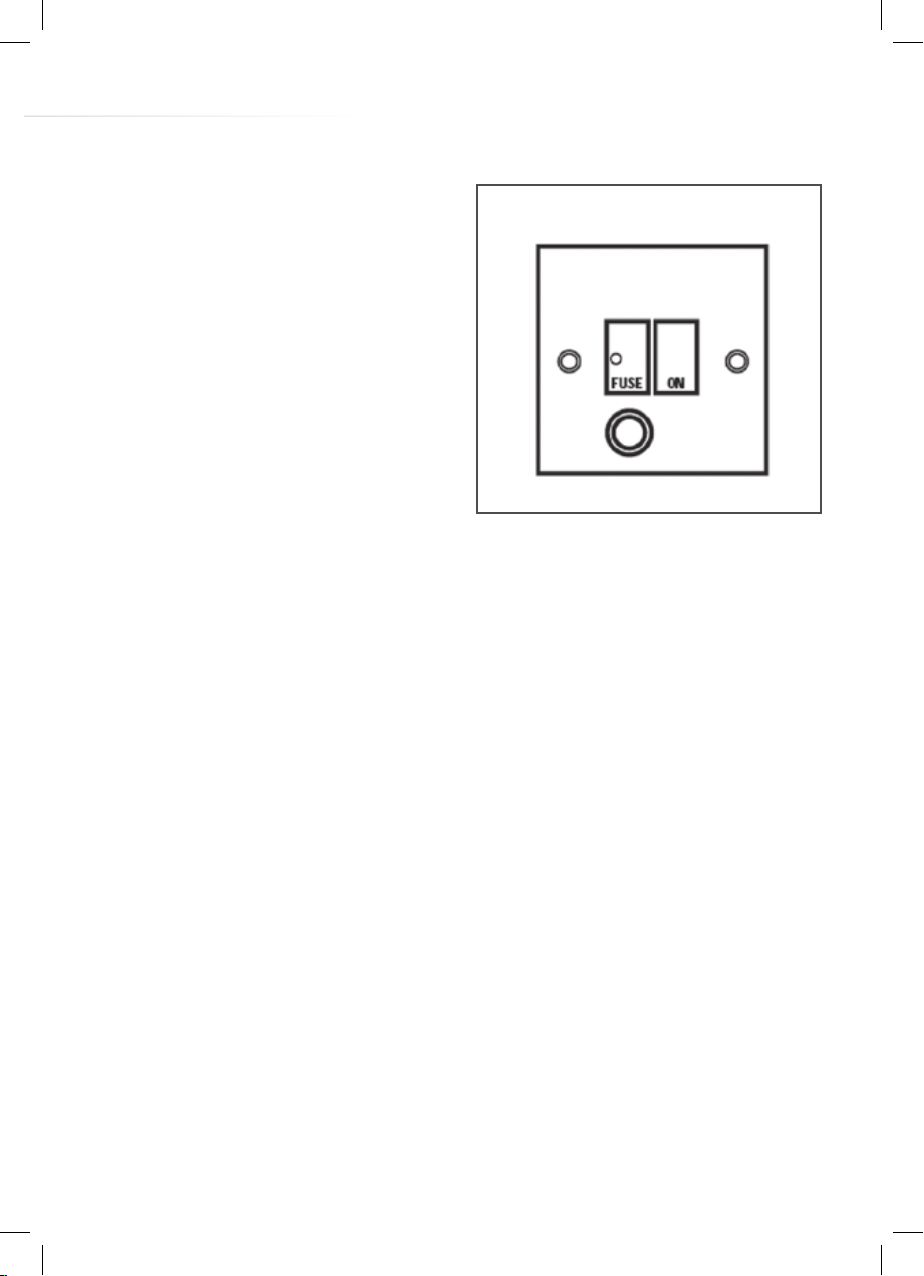

1. Run the mains lead to the
switched fused spur outlet to be
used and connect to the mains
electrical supply. Do not switch
on until installation is complete.
2. Locate the product centrally on the supporting shelf and fix into
position using the fixing screws supplied.
3. Carefully fit the appliance on top of the warming drawer, taking
care not to scratch the top stainless edge of the drawer unit.
Ensure that the mains connection lead is located near to the power
outlet to avoid having to remove the product again to connect the
mains electrical supply.
4. Secure the oven into the housing using appropriate fixing screws.
The casing of this appliance will get hot. Ensure that any cables that
132.5
595
21.5
560
8.5
555
19
455
432
595
564
588 min
141
Fig. 1

12
may come into contact with the appliance once installed are suitable
for use at 85°C.
Mains Electricity Connection
Warning! This appliance must be earthed
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.T. and local regulations.
This appliance is intended to be connected to fixed wiring and is
not suitable for connection to a 13A plug or 13A supply.
This appliance is intended to be connected to fixed wiring by a
double pole switch, having a contact separation of at least 3mm in
all poles. The switch must be positioned no further than 2m from the
appliance.
This appliance is supplied with a 3 core mains cable; the wires are in
accordance with the following code:
Green and Yellow = Earth
Blue = Neutral
Brown = Live
Please note:
• The mains cable must only be replaced by a qualified electrician
or service engineer and must be of equivalent or better rating (i.e.

13
0.5mm2, HO3VV-F).
• The current rating of the fuse or
circuit breaker protecting this
appliance should be marked on
the socket outlet (3A).
• Assembly and electrical
connection should be carried out
by specialised personnel.
• When installing this product we
recommend you seek the help of
another individual.
• The mains isolation switch must
be accessible after installation.
Appliance rated electrical power:
440W
$/5",%0/,%37)4#(%$
FUSE SPUR OUTLET
USE A 3 AMP FUSE

14
Notes

15
Notes

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu www.cda.eu
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu www.cda.eu
Please contact our Customer Care Department for Service on the details below
Customer Care Department
The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : customer[email protected]
Copyright © CDA 2017
Cod:0040306810-00
