CDS COOK-N-DINE MO-70 User manual

1
2
3
4
SOLID STAINLESS STEEL GRILL TOP
CONTROL BOX “B”
FLEXIBLE CONDUIT
STAINLESS STEEL MOUNTING BOLTS 1-3/4”
stainless steel washers & nuts included
2.4m POWER CORD, included
COOKING GUIDE, included
8
9
Ship weight 18 kg | ship size 93 x 74 x 13 cm
TEPPANYAKI GRILL
COOK TOP SPECIFICATIONS
Size: Ø 70 cm x 4 cm H
~330 square inches HOT SPOT
total cooking area ~510 sq/in incl. warming
INDOOR + OUTDOOR USE IPX4 RATED
Material: Professional Food Grade Best Alloy
German Stainless Steel type 304 (V2A)
1/8” thick (3 mm) cold pressed, hand-
welded. Built-to-last. Silk-brushed finish.
Power:
Electric:
2250 Watt | 240V | 10 AMP
Analog temperature control:
1-10 dial | 2 indicator lights | thermostat
Contact Heat: 65º-230ºC
2 Year Manufacturer Warranty.
CE/ GS/ VDE Safety Approvals. Electrical +
Electronic Components: UL approved.
3
4
3
27-1/2 inch Ø 70 cm
~21 inch Ø
HOT Cooking Center
1-9/16”
(40 mm)
ULTRA
SLIM !
1
2
~
1” ~
2.5-3”
warm
cool
SINCE 1887 - OVER 125 YEARS OF INNOVATION & PRECISION MANUFACTURING
2
“A” box
“B” box front plate
3
PATENTED SHALLOW-DIP-TECHNOLOGY + CONTACT HEAT
The manufacturer reserves the right to update, change, alter or discontinue any model without further notice. Shown accessories not included.
BUILT-IN Model
# MO-70
©2016 p&p | www.cookndine.com.au | All rights, errors and misprints reserved.

1-3/4 inch
45 mm
BUILT-IN Model
# MO-70

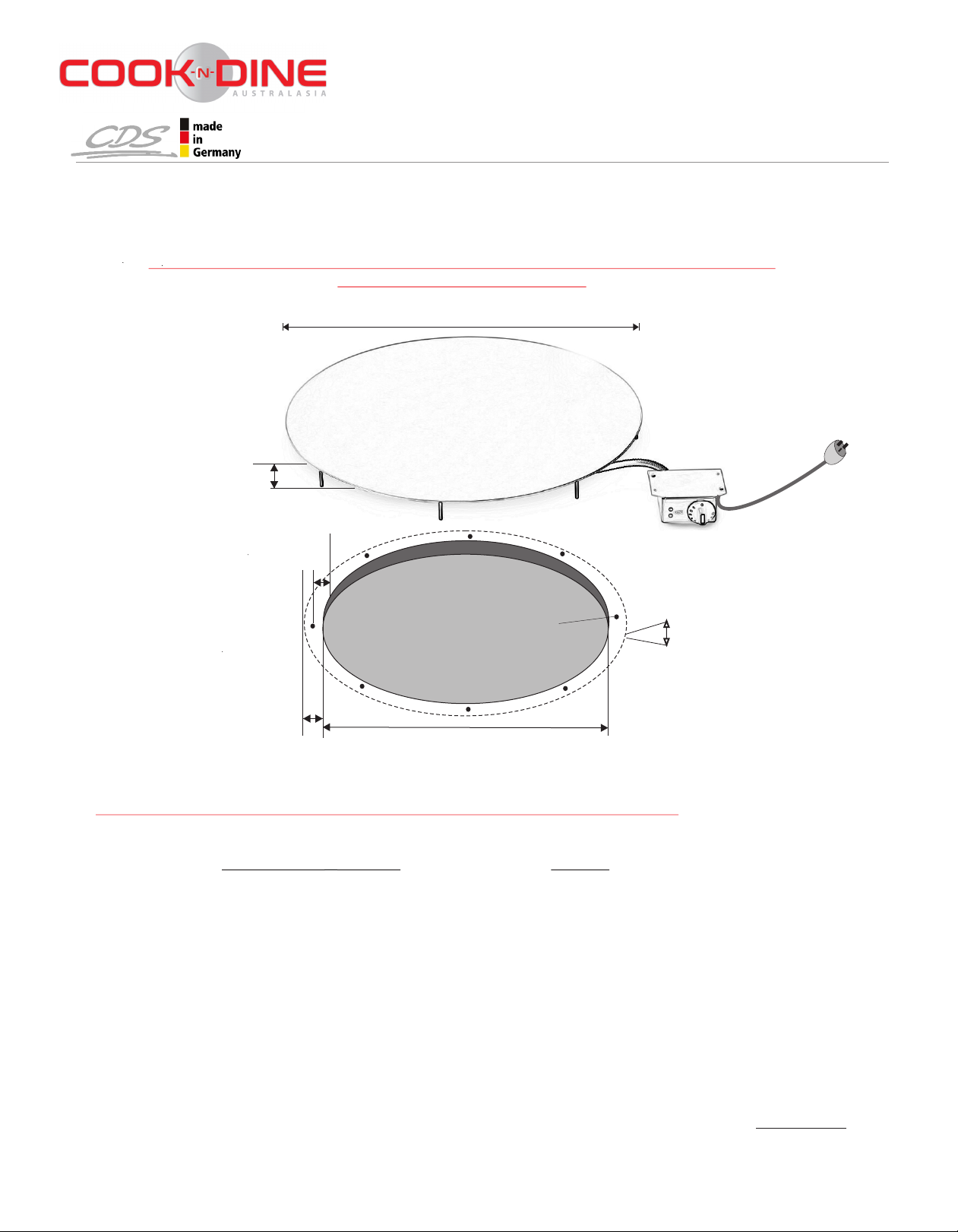

INSTALL SHEET 1 of 2
©2016 p&p | www.cookndine.com | All rights, errors and misprints reserved.
MINIMUM CUTOUT SIZE
25-13/64 in Ø | 640 mm dia
27-1/2 in Ø | 700 mm dia
2.4m
power
cord
conduit length
~19.5” | ~500 mm
Electrical Rating: 120V |1800 Watt |15 AMP | 50-60 Hz
1.8 kWh on high (alt. 240V/1800 Watt, 8 AMP or ProStyle 2250W-240V, 10 AMP)
8ALWAYS Check control box label for correct voltage BEFORE plugging in!
Bolts are 1-3/4 inch (45 mm) long; bolt diameter is 13/64” (5 mm) 8drill 5/16” (8 mm)Ø Ø
8 The Control Box MUST be firmly fastened to a NON-MOVING surface. Secure cords/conduits. No dangling!
8 CAUTION: DO NOT SNAP, PULL or TWIST THE CONDUIT DURING INSTALLATION ! ! !
Warranty will become void if capillary tube (thermostat) inside the conduit is damaged during installation.
1.
2.
3.
4.
Mark bolt holes, drill 5/16 inch | 8 mm olts will fit holes loosely.
Clean underside edges of unit with rubbing alcohol or similar.
Apply thin bead of Silicone Sealant around the edges of the underside of the unit. Do not leave any gaps.
This protects from potential moisture intrusion, especially when installed outside without overhead cover.
Slide cook top into place. Do not apply excessive force. Studs need to go in without any resistance.
Press evenly down to compress Silicone. Secure with supplied nuts and washers from underneath.
Find all nuts, washers and the extension key for “B” control in a small plastic bag inside the pouch.
!!! IMPORTANT: Tighten nuts with hand tool only. Do not use any power tools!!!
Mark, drill and fasten the control box into place
IMPORTANT: Check product label + outlet for correct voltage!!! Now connect the power cord VERY FIRMLY to
the rear of the control box. Connect the electrical 3-prong plug to a properly grounded power outlet.
ØØ - b Clean counter surface thoroughly!!!
!!! IMPORTANT NOTE: MAKE SURE TO PREVENT SILICONE FROM GETTING INTO THE BOLT HOLES !!!
8REFER TO SEPARATE INSTALL SHEET FOR “B” CONTROL
Optional: seal the round metal plate with Silicone to prevent potential moisture intrusion.
!!! IMPORTANT: DO NOT DRILL NOR CUT ANY HOLES BEFORE UNIT IS PHYSICALLY
PRESENT !!! ! ! ! DO NOT CUT OFF THE BOLTS ! ! ! DO NOT OPEN CONTROL BOX OR WARRANTY
BECOMES VOID ! ! !
edge of cooktop
30 mm 10 mm
20 mm 3/4”
Optional:
route counter top
for perfectly flush

BUILT-IN
INSTALL DETAIL
PAGE 2 of 2
Bolts/studs are 1-3/4 inch (45 mm) long; bolt/stud diameter is 3/16” (5 mm) 8drill 5/16” (8 mm) !!!Ø Ø
VERY IMPORTANT:
DO NOT CUT OR DRILL BEFORE UNIT IS PHYSICALLY PRESENT. DO NOT CUT OFF THE BOLTS/STUDS!8
8 CAUTION: DO NOT SNAP, PULL or TWIST THE CONDUIT DURING INSTALLATION ! ! !
Warranty becomes void if capillary tube inside the conduit (thermostat) is damaged during
installation. Control box must be firmly fastened to a non-moving surface.
COUNTER TOP
COUNTER TOP
HEATING
ELEMENT
ENCLOSURE
CUTOUT
CND TEPPANYAKI COOK-TOP COOK-TOP
8 MM | 5/16” REQUIRED HOLE DIAMETER
5 MM | 3/16” BOLT DIAMETER
WASHER
LOCK WASHER
NUT
STUD
ANGLE
BRACKET
PRE-PUNCHED
(MO-80 only)
COUNTER SINK
nuts if necessary
8
Make sure to HAVE THE UNIT and ALL install sheets ON SITE ahead of time for counter top templating!
ATTENTION !!! MUST READ !!! INSTALLATION INTO STONE/GRANITE COUNTER TOPS !
Please be reminded that the CND stainless steel grill surface will flex slightly when switched on thus
developing a shallow dip in the cooking center. This motion is intended and is counteracted by the secured
bolts, which hold the unit in place.
If you install into a natural stone or granite counter-top, please talk to your supplier/installer about your plans.
You must provide them with a full set of install sheets ahead of time. A stone professional will be able to advise
you on any aspects to watch out for, e.g. on how much counter-top (“meat”) is necessary at the narrowest point
for the particular stone of choice to accommodate a Cook-N-Dine built-in unit properly. Min. 6” are advised.
PLEASE NOTE: COUNTER TOP THICKNESS OF 1.57 INCH IS MANUFACTURER RECOMMENDED
UNLESS MATERIAL HAS BEEN RE-INFORCED BY MEANS OF RODDING OR COMPARABLE.
RODDING is a professional business practice for porous, fissured or “brittle” Natural Stone/Granite. The narrow
areas of material are reinforced on the underside surrounding large cutouts (e.g. for sinks, stoves, cook tops).
This will support and strengthen those areas and is intended to prevent possible damage.
CND offers 304 stainless steel custom-made 12 gauge pre-punched angle brackets (order separately, for
MO-80 only) which can be installed along the full length of the cutout (both long sides). The unit is fastened
through the bracket’s holes (see above). Stress applied to the counter material during operation should thus be
evenly distributed. VERY IMPORTANT: The use of brackets cannot guarantee the prevention of damage.
Everything strictly depends on the natural properties of the counter top material. Therefore, Cook-N-Dine can-
not be held responsible for any type of damage to stone counter tops. Also see Marble Institute of America Info.
10 mm
3/8”
20 mm
3/4”
36 mm
1.41”
3-4 MM material strength
Optional:
Route metal thickness
for flush installation
RODDING:
inserted epoxied metal rod
to re-inforce stone counter
(also see )OFFICIAL MIA INFO
IMPORTANT:
WHEN INSERTING THE UNIT,
THE STUDS MUST SLIDE
INTO THEIR DESIGNATED
HOLES EASILY AND
WITHOUT ANY RESISTANCE ! ! !
TIGHTEN THE NUTS WITH A HAND WRENCH.
DO NOT USE FORCE OR POWER TOOLS.
NOTE: DRAWINGS ARE NOT TO SCALE.
©2016 p&p | www.cookndine.com | All rights, errors and minsprints reserved.

Hole
for fastening screws
Hole for
fastening
screws
Stem for
dial knob
Control
Light
Sockets
0
dial knob
Hollow Stem
Extension
DIRECTIONS:
1. Remove packaging and carefully pull off the DIAL KNOB ONLY while holding on to the round plate. Do not use force or tools!
2. Now separate the round steel plate from Control Light Sockets by carefully wiggling it away WITH the yellow and green light plastic caps
Hold one with two fingers and gently pull plate away; repeat with other. Yellow and green PLASTIC CAPS STAY IN PLACE in the plate.)
3. Mark all necessary holes utilizing the provided template below. Drill required holes and gently thread light sockets through their
designated openings. DO NOT SNAP THE PRONGS! Now fasten the box to interior of cabinet wall or underneath counter top.
4. Gently pull light sockets out a little bit and re-connect with plastic caps in the metal plate; affix plate with two small flathead screws, or
silicone into place.
5. Connect the hollow extension to stem if needed (packed with nuts + washers). Slide dial knob onto stem (match flat side of stem
with flat side of female receptacle at back of knob). Do not use force. The “0” has to align centered below the CDS logo.
CAUTION: DO NOT TWIST OR SNAP DELICATE WHITE WIRING OF INDICATOR LIGHTS.
BUILT-IN
TYPE “B” CONTROL BOX
CONCEALED MOUNT
4” (102 mm)
3” (76 mm)
2-3/8”
(60 mm)
5-3/8” (137 mm)
Holes for screws
to attach
plate
Hole
for
stem
Control/Indicator Light
Plastic Caps
11/16"
11/16"
9/32" 9/32"
1 17/32"
1 17/32"
1 13/16 in
4 7/8"
5 3/8"
ø 3/8”
10 mm
ø
6 mm
7/32”
ø 7/32”
6 mm
ø 9/64”
3.6 mm
ø 9/64”
3.6 mm
ø 9/64”
3.6 mm
ø 9/64”
3.6 mm
ø 5/8”
16 mm
8 CAUTION: DO NOT SNAP, PULL or TWIST THE CONDUIT DURING INSTALLATION ! ! !
Warranty will become voide if capillary tube inside the conduit is damaged during installation.
Control box must be firmly fastened to a non-moving surface.
8 VERY IMPORTANT NOTE: Do not open the control box or warranty expires!
IMPORTANT: To use as 1:1 template set “page scaling” to “none” when printing
Stainless
Steel Plate
3-1/8“ dia (80 mm)
cabinet
wall
interior
cabinet space
exterior
YELLOW
GREEN
7 mm
39 mm
18 mm
18 mm
46 mm
39 mm
7 mm
124 mm
8137 mm - PLEASE MEASURE ACROSS TO MAKE SURE TEMPLATE IS 1:1
Prongs prevent
light sockets from
slipping into box only
©2016 p&p | www.cookndine.com | All rights, errors and misprints reserved.
