CEL-MAR DNB-200 User manual

User manual
DNB-200

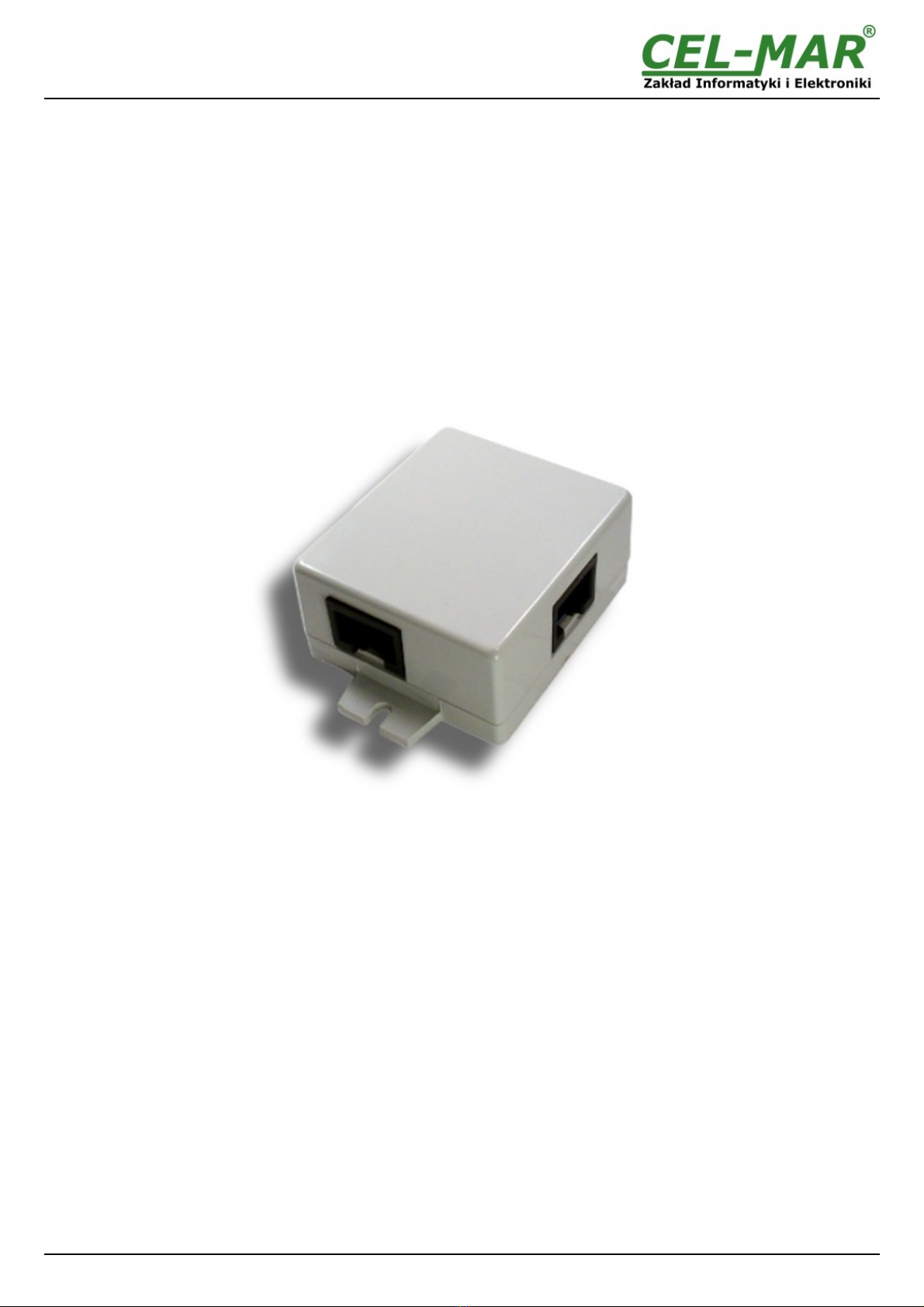

Passive 1-WIRE Bus Splitter
1
io_dnb-200_en_v1.03
DNB-200
Copyright © 2001-2010 CEL-MAR sp.j.

Contents
1. GE ERAL I FORMATIO ...................................................................................................................................................................... 3
1.1. WARRA TED I FORMATIO ...................................................................................................................................................... 3
1.2. GE ERAL CO DITIO S FOR SAFE USE.................................................................................................................................... 3
1.3. E VIRO ME TAL PRESERVATIO .............................................................................................................................................3
1.4. SERVICE A D MAI TE A CE.....................................................................................................................................................3
2. SOLUTIO S............................................................................................................................................................................................ 3
3. SPECIFICATIO S................................................................................................................................................................................... 3
4. VIEW....................................................................................................................................................................................................... 4
5. SIG ALS O THE PI S OF MODULAR SOCKET – FOR RJ45 CO ECTOR....................................................................................4
6. JP-1 JUMPERS....................................................................................................................................................................................... 4
7. EXAMPLE CO ECTIO ....................................................................................................................................................................... 5
2
DNB-200

1. GENER L INFORM TION
Thank you for your purchase of CEL-MAR Company product. This product has been completely tested and is covered by two year
warranty on parts and operation from date of sale.
If any questions or problems arise during installation or use of this product, please do not hesitate to contact Technical Support at +48
41 362-12-46 or e-mail [e-mail].
1.1. W RR NTED INFORM TION
CEL-M R Company gives the two year guarantee on the DNB-200 splitter. In case of being damaged it will be repair or the
damaged component will be replace. The warranty does not cover damage caused from improper use, materials consumption or any
unauthorized changes. If the product does not function (is damaged), or not operate in accordance with the instructions, will be
repaired.
All warranty and no warranty repairs must be returned with paid transport and insuring to the CEL-M R Company.
CEL-M R Company under no circumstances won't be responsible for ensuing damage from improper using the product or as a result
of random causes: the lightning discharge, the flood, the fire and the like.
CEL-M R Company is not be held responsible for damages and loss including: loss of profits, loss of data, pecuniary losses ensuing
from using or the impossibility of using this product.
In specific cases CEL-M R Company discontinue all warranties and in particular do not follow the user manual and do not accept
terms of warranty by the user.
1.2. GENER L CONDITIONS FOR S FE USE
The device should be installed in a safe and stable places, the powering cable should be arranged so as not to be exposed to
trampling, attaching, or pulling out of the circuit.
Do not put device on the wet surface.
Do not connect devices for nondescript powering sources,
Do not damage or crush powering wires.
Do not make connection with wet hands.
Do not adapt, open or make holes in casings of the device!
Do not immerse device in water or no other liquid.
Do not put the fire opened on device sources: candles, an oil lamps and the like.
1.3. ENVIRONMENT L PRESERV TION
This sign on the device inform about putting expended device with other waste materials. Device should send to the
recycling. (In accordance with the act about the Electronic Appliance Expended from day 29 of July 2005)
1.4. SERVICE ND M INTEN NCE
It is recommended to check the status of modular sockets and the sensors connecting cables, to eliminate the influence of mechanical
damage on the quality of measurement .
Technical support is available at number [phone] in 8.00-16.00, from Monday to Friday or e-mail [e-mail].
2. SOLUTIONS
Splitter D B-200 is used to for connection of digital sensors as: DTS-103, DTS-107 to remote multi-point measurement temperature
system in:
–rooms with structured cabling,
–automation cubicles,
–data communication cubicles,
–devices,
–and outside temperature via the serial bus 1-WIRE.
Application of 1-Wire bus enables:
–the cooperation of many sensors connected to the same data lines,
–the deployment of sensors in various locations up to 260m,
–powering the sensors from the bus,
–guarantee the correct transmission of measurement data secure checksum CRC
3. SPECIFIC TIONS
Parameters Data
Casing material Polystyrene
Operating temperature from -30°C to +70°C
Degree of protection IP20
Dimensions 50,2 x 40,2 x 20,6 mm
Weight 0,05 kg
Storage and transport
outdoor temperature -30 ÷ +70°C
Relative air humidity 5 ÷ 95% - noncondensing
3
DNB-200

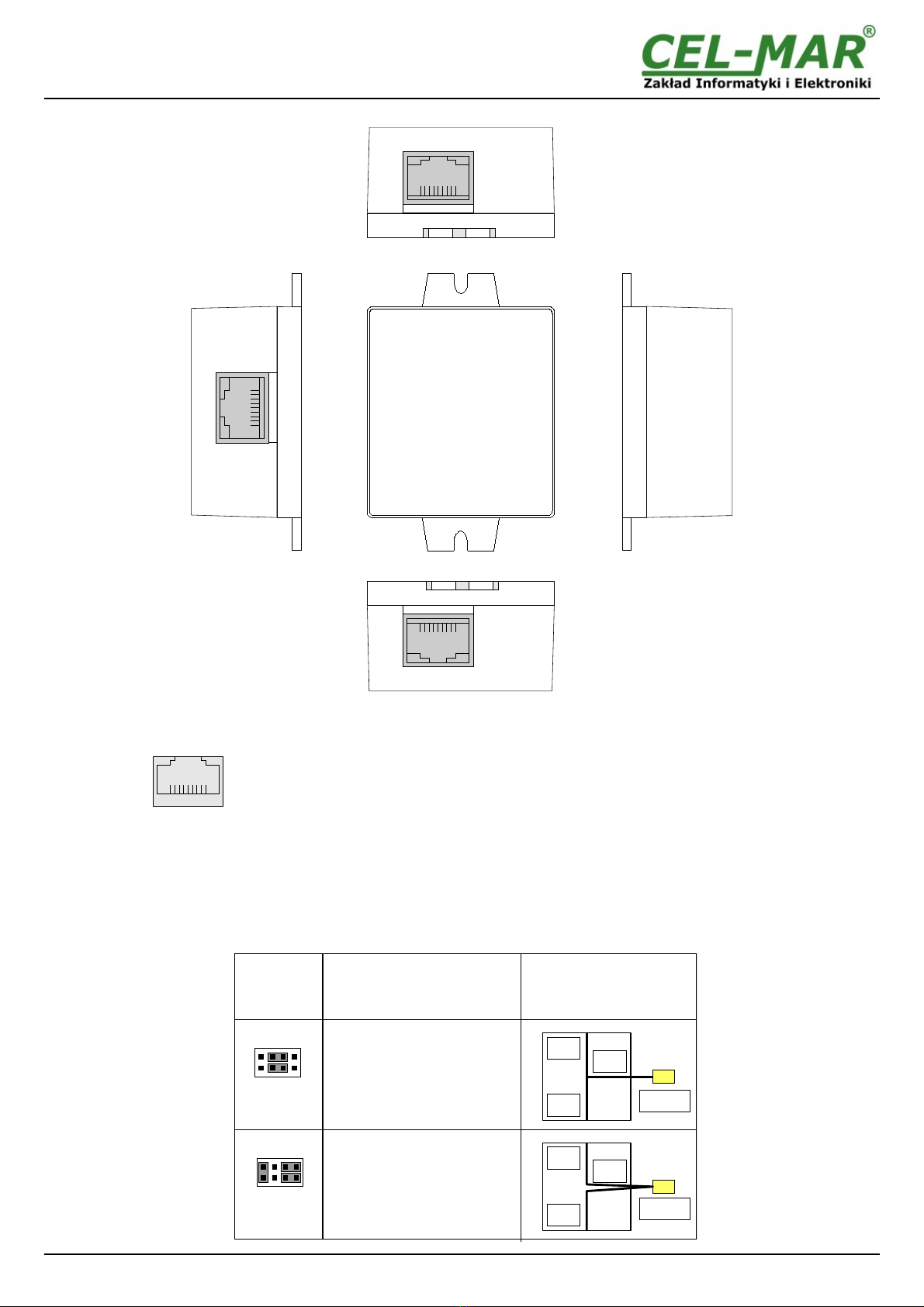

4. VIEW
5. SIGN LS ON THE PINS OF MODUL R SOCKET – FOR RJ45 CONNECTOR
6. JP-1 JUMPERS
4
DNB-200
1. G D-R – G D return (RJ45/8WIRE cable – white-orange)
2. DQ-R – DQ return (RJ45/8WIRE cable - orange)
3. VDD – power +5VDC (RJ45/8WIRE cable - white-green)
4. DQ – data line (RJ45/8WIRE cable - blue)
5. G D – ground line (RJ45/8WIRE cable - white-blue)
6. W - not use (RJ45/8WIRE cable - green)
7. W - not use (RJ45/8WIRE cable - white-brown)
8. W - not use (RJ45/8WIRE cable - brown)
81
Chain type connection
Topology
OUT Sensor
I
Setting of
JP-1
jumpers
Star type connection
Type of connection
B
Sensor
OUT
I B
S CH
JP-1
S CH
JP-1
18
B
B
I
OUT
I
OUT
18
18

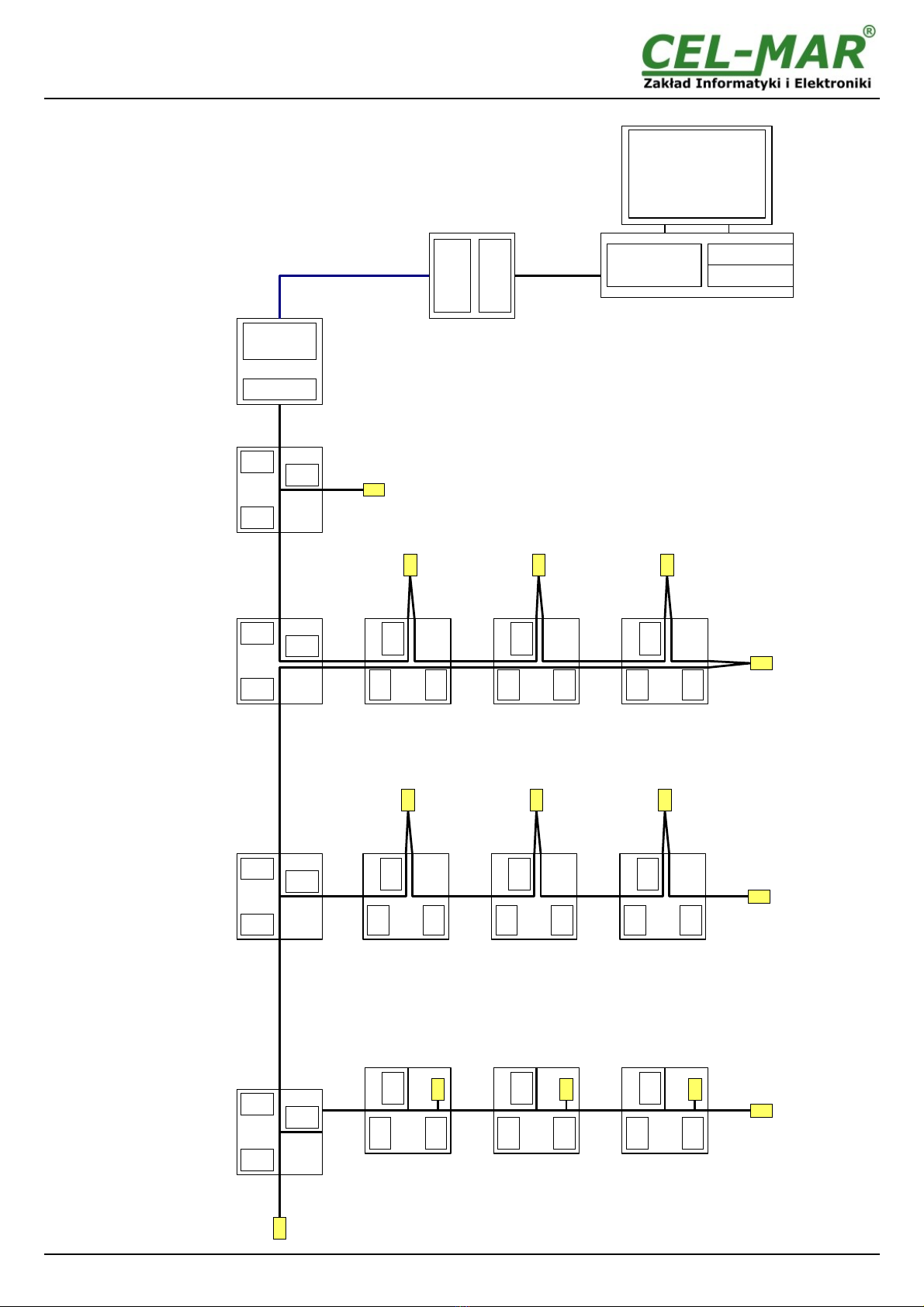

7. EX MPLE CONNECTION
5
DNB-200
Computer with
FREESCADA
or
PLC with MODBUS
operating
RS232
USB
RS485
MODBUS
OUT
I B
D B-200
JP1-S
D B-200
JP1-S
D B-200
JP1-S
OUT
I B
D B-200
JP1-CH
DTS-103
E
DTS-103
E
1-WIRE
RS485
MODBUS
RS485
ADA-I1040
ADAI9140
OUT
I B
OUT
I B
1-WIRE
ADA-401WP
DQ
G D
DQ
G D
DTS-103
F
I B
OUT OUT
I B I B
OUT
DTS-103
F
D B-200
JP1-CH
D B-200
JP1-CH D B-200 JP1-CH
DTS-103
E
DTS-103
F
DQ
G D
DQ
G D
DQ
G D
DTS-103
F
I B
OUT OUT
I B
DQ-R
G D-R
I B
OUT
DTS-103
F
D B-200
JP1-CH
D B-200
JP1-CH D B-200 JP1-CH
DTS-103
F
DTS-103
F
DQ
G D
DTS-103
E
OUT
I B
OUT
I B
OUT
I B
DTS-200
JP1-S
DTS-200
JP1-S DTS-200 JP1-S
DQ
G D

6
DNB-200
Dear Customer,
Thank you for purchasing CEL-M R Company product.
We hope that this user manual help simplify your network of 1-Wire sensor for industrial applications. We also wish to remind you
that CEL-MAR Company are a manufacturer of the widest selections of data communications products in the world in applications
such as: data transmission converters in RS232, RS485, RS422, USB, Current Loop, Fibre-Optic and Ethernet Converters and many
others.
We welcome your feedback so please contact us to tell how you like our products and how we can satisfy you present and future
needs.
CEL-M R sp.j.
Zakład Informatyki i Elektroniki
str. Ściegiennego 219C
25-116 Kielce, POLSKA
Tel.................................................... : [phone]
Tel/fax.............................................. : [phone]
Web................................................. : http://www.cel-mar.pl/en
Office................................................: [e-mail]
Sales department............................ : [e-mail]
Technical information ..................... : [e-mail]
