CEL-MAR DES-215-PT User manual

User manual
DES-215-PT
Sensor Transducer PT to 1-WIRE
1
io_des-215-pt_en_v1.01
DES-215-PT
Copyright © 2001-2015 CEL-MAR sp.j.

Contents
1. GENERAL NFORMAT ON...................................................................................................................................................................... 3
1.1. WARRANTED NFORMAT ON....................................................................................................................................................... 3
1.2. GENERAL COND T ONS FOR SAFE USE.................................................................................................................................... 3
1.3. CE LABEL....................................................................................................................................................................................... 3
1.4. ENV RONMENTAL PRESERVAT ON............................................................................................................................................. 3
1.5. SERV CE AND CONSERVAT ON................................................................................................................................................... 3
2. APPL CAT ON.......................................................................................................................................................................................... 3
3. COOPERAT ON W TH OTHER 1-W RE DEV CES................................................................................................................................ 3
4. TRANSDUCER V EW.............................................................................................................................................................................. 4
5. CONNECT ON OF 1-W RE BUS............................................................................................................................................................. 5
6. CONNECT ON OF PT100, PT500, PT1000 SENSORS......................................................................................................................... 6
7. EXAMPLES CONNECT ONS OF ADA-401WP....................................................................................................................................... 7
8. VERS ONS.............................................................................................................................................................................................. 8
9. PARAMETERS........................................................................................................................................................................................ 8
2
DES-215-PT

1. GENERA INFORMATION
1.1. WARRANTED INFORMATION
The DES-215 transducer is covered by a two year warranty from date of sale. n case of being damaged it will be repair or the
damaged component will be replace. The warranty does not cover damage caused from improper use, materials consumption or any
unauthorized changes. f the product does not function (is damaged), or not operate in accordance with the instructions, will be
repaired or replaced.
All warranty and no warranty repairs must be returned with paid transport and insuring to the CE -MAR Company.
CE -MAR Company under no circumstances won't be responsible for ensuing damage from improper using the product or as a result
of random causes: the lightning discharge, the flood, the fire and the like.
CE -MAR Company is not be held responsible for damages and loss including: loss of profits, loss of data, pecuniary losses ensuing
from using or the impossibility of using this product.
In specific cases CE -MAR Company discontinue all warranties and in particular do not follow the user manual and do not
accept terms of warranty by the user
1.2. GENERA CONDITIONS FOR SAFE USE
The device should install in the safe and stable place, the connecting cable should be arranged this way isn't exposed to treading,
catching or tear out from sensor
Do not put device on the wet surface.
Do not connect devices for nondescript powering sources,
Do not damage or crush powering wires.
Do not make connection with wet hands.
Do not adapt, open or make holes in casings of the device!
Do not immerse device in water or no other liquid.
Do not put the fire opened on device sources: candles, an oil lamps and the like.
1.3. CE ABE
CE symbol on organizing the company CEL-MAR a conformity of the device to the directive of the electromagnetic EMC
89/336/EWG (Electromagnetic Compatibility Directive). The declaration of the agreement is accessible through the
contact with the technical service at the address e-mail: [e-mail] or on the phone at the [phone].
1.4. ENVIRONMENTA PRESERVATION
This label on the device inform about putting expended device with other waste materials. Device should send to the
recycling. ( n accordance with the act about the Electronic Appliance Expended from day 29 of July 2005)
1.5. SERVICE AND CONSERVATION
t is recommended to check the status of cases and sensor connecting cables, to eliminate the effect of mechanical damage on the
quality of measurement.
Technical support at the number: [phone] in 8.00-16.00, from Monday to Friday
2. APP ICATION
Transducer DES-215-PT is used to for connection of PT100, PT500, PT1000 sensors, compliant with standard PN-EN 60751+A2, to
1-W RE bus. The transmitter supports the PT100, PT500, PT1000 (B class) sensors, in the range of -200°C...+600°C.
Use of 1-Wire bus allows:
–the cooperation of many sensors connected to the same data lines,
–the deployment of sensors in various locations up to 260m,
–powering the sensors from the bus,
–correct transmission of measurement data secure check sum CRC.
Transducer DES-215-PT can be installed on the wall inside or outside buildings.
3. COOPERATION WITH OTHER 1-WIRE DEVICES
Transducer DES-215-PT cooperates with 1-W RE devices used for creation of monitoring and control systems for environmental
parameters:
– ADA-401WP Measuring Module 1-W RE to MODBUS-RTU,
– DNB-400 Passive 1-W RE Bus Splitter,
3
DES-215-PT

– DNB-215 Passive 1-W RE Bus Splitter,
– DNB-200 Passive 1-W RE Bus Splitter,
– other 1-W RE sensors eg. DTS-RJ45, DTS-103, DTS-107, DES-200, DES-215, DES-300.

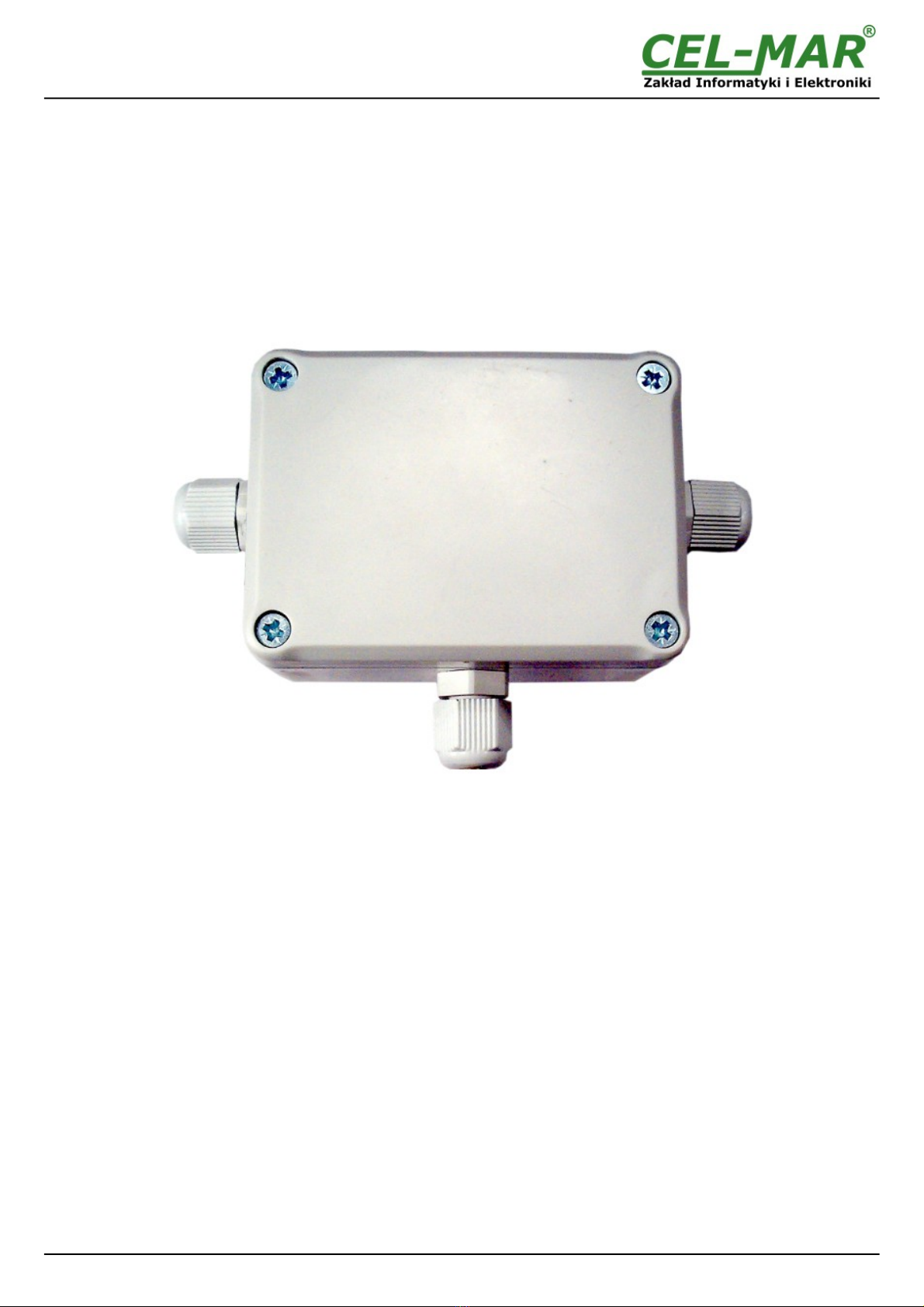

4. TRANSDUCER VIEW
4
DES-215-PT
PG-7
88,5mm
66,5mm
30mm
42,5mm
15mm
PG-7
R
PG-7
L
PG-7
R
PG-7
L
Gland to connect the
PT100 / PT500 / PT1000 sensors
Gland to connect the
1-W RE bus

5. CONNECTION OF 1-WIRE BUS
5
DES-215-PT
L NE-B
1-W
L NE-B
GND VDD
1-W
L NE-B RETURN
GND COM
A N DO GND
1-W
L NE-A RETURN
GND COM
SNS VDS 1-W
L NE-A
GND VDD
1W-R
COM
GND-R
L NE-A
1W-R
COM
GND-R
L NE-A RETURN L NE-A RETURN
1-W
GND
VDD
1-W
GND
VDD
Method of connecting unused cable pairs

6. CONNECTION OF PT100, PT500, PT1000 SENSORS
6
DES-215-PT
L NE-B
1-W
L NE-B
GND VDD
1-W
L NE-B RETURN
GND COM
A N DO GND
1-W
L NE-A RETURN
GND COM
SNS VDS 1-W
L NE-A
GND VDD
L NE-A
1-W
GND
VDD
1-W
GND
VDD
PT100 / PT500 / PT1000 sensor

7. EXAMP ES CONNECTIONS OF ADA-401WP
7
DES-215-PT
Tx-/B Tx+/A Rx-
Computer with FreeSCADA
or
PLC with support the
protocol
MODBUS
stabilized
power supply
10 – 24 VDC
1-W RE
RS485
MODBUS
ADA- 1040
ADA 9140
R
DES-215-TAP (EL) END LEFT
L
GND Rx+
1-W
VDD
L
RS232
USB
RS485
MODBUS
PE
GND
Tx-/B
Tx+/A
Rx-
GND
Rx+
RS232
USB
Vss-
Vss+
Unused wires of twisted pair connect together and connect
the electrical installation PE
230V~
V-
N
V+
10 - 24V=
ADA-401WP
DES-215-T (F) STRA GHT- THROUGH
DES-215-TH (F) STRA GHT- THROUGH'
RS485(2W)
do 1200m
UTP 4x2x0,5 cable
1-W
L NE-B
GND
VDD
1-W
L NE-B RETURN
COM
GND
1-W
L NE-A
GND
VDD
1-W
L NE-A RETURN
GND
COM
1-W
L NE-B
GND
VDD
1-W
L NE-B RETURN
COM
GND
1-W
L NE-A
GND
VDD
1-W
L NE-A RETURN
GND
COM
1-W
L NE-B
GND
VDD
1-W
L NE-B RETURN
COM
GND
1-W
L NE-A
GND
VDD
1-W
L NE-A RETURN
GND
COM

8. VERSIONS
DES-215 -PT -
Order example:
Product symbol: DES-215-PT100-ER
PT100 – transducer for PT100 sensors,
ER – end right (input of 1-W RE bus from right side of the
sensor).
Transducer type:
PT100 (-200°C ... +600°C) 100
PT500 (-200°C ... +600°C) – in preparation 500
PT1000 (-200°C ... +600°C) – in preparation 1000
Connection type of 1-WIRE bus
Straight-through F
End right ER
End left E
9. PARAMETERS
Parameters Data
Required parameters of PT100 / PT500 / PT1000 temperature sensor, connected to the transducer
Compliance characteristics thermowell of PT
resistor with the standard PN-EN 60751+A2
Sensor class B
Temperature measurement range of sensor -200°C … 600°C
Sensor temperature measurement error 1,0°C in range -100°C...+100°C
t = (0,30 + 0,005x| t |) °C in range -200°C...+600°C
Transducer Parameters
Digital resolution of transducer 10 bits
Temperature measurement range sensor
PT100 / PT500 / PT1000 -200°C … 600°C
Supply voltage from 1-W RE bus VDD=5VDC
Maximum input power 20mW
Reverse polarity protection YES
Warning! on reverse power on is shorted VDD to GND
Wiring 1-Wire bus Recommended computer twisted pair cable UTP 4x2x0.5 AWG24
Cover
Operating temperature from -30°C to +60°C
Material Polystyrene
Protection degree P65
Dimensions 88,4 x 66,4 x 42,2 mm
Weight 0,05 kg
Storing and Transportation
Storage temperature -40°C ÷ +70°C
Humidity 5 ÷ 95% - non-condensing
8
DES-215-PT
Dear Customer,
Thank you for purchasing CE -MAR Company products.
We hope that this user manual helped you to connect and start up the purchased device. We also wish to inform you that we are a
manufacturer of: data transmission converters with interface RS232, RS485, RS422, USB, Current Loop, Fiber Optic Converters,
1-Wire, ETHERNET, Wi-Fi; digital sensors as: temperature, humidity, pressure, illumination; power supply
Please express your opinion by e-mail or phone on this product, and advise us how we can satisfy you present and future of
expecting.
CE -MAR sp.j.
Computers Science and Electronic Factory
str. Sciegiennego 219C
25-116 Kielce, Poland
Tel.................................................... : [phone]
Tel/fax.............................................. : [phone]
Web................................................. : http://www.cel-mar.pl
Office................................................: [e-mail]
Sales department.............................: [e-mail]
Technical nformation ..................... : [e-mail]
