CELIER AVIATION Xenon 2 RST User manual

CELIER AVIATION
SERVICE MANUAL
GYROCOPTER
Xenon 2
model: RST
FACTORY NUMBER:
DISTINGUISHING MARKS:
NUMBER ON FILE:
THE MANUAL WAS APPROVED WITH ADECISION OF PRESIDENT OF THE CIVIL AVIATION AUTHORITY
DATED …………………………………. NO. ………………………
“
“ULTRALIGHT” ” CATEGORY
THIS GYROCOPTER CAN BE USED IN THE “ULTRALIGHT” CATEGORY FOR
LEISURE, SPORTS AND DISPLAY PURPOSES AS WELL AS OTHERS, EXCLUDING
AIR TRANSPORT.
USING THIS GYROCOPTER FOR TRAINING AND PRACTICE TO OBTAIN A
CERTIFICATE OF QUALIFICATIONS OF AN ULTRALIGHT GYROCOPTER PILOT AS
WELL AS HAVE QUALIFICATIONS ENTERED IN THIS CERTIFICATE CAN BE DONE
SOLELY IN A CERTIFIED TRAINING CENTRE.
THE GYROCOPTER MUST BE USED ACCORDING TO THE RESTRICTIONS AND
INFORMATION STATED IN THIS INSTRUCTION MANUAL.
THIS MANUAL MUST ALWAYS BE AVAILABLE WHEN PERFORMING SERVICE
ACTIVITIES, OVERHAULS AND PERIODIC WORK
ON THE GYROCOPTER.
Edition 1 24 Aug 2009
Change no.:
Document no.: X2RST-001-PL

The manual has been developed as per the requirements of the regulations in Annexe No. 5
“Ultralight Aircraft” - of the Decree of the Minister of Infrastructure dated 25 April 2005 on
Excluding the Application of Some of the Laws of the Act on Air Law for Some Sorts of Aircraft
as well as Defining the Conditions and Requirements concerning the Use of this Aircraft (Official
Journal 107 section 904) with subsequent amendments.
It is not allowed to make any entries and supplements in this “Flight Manual” without the consent
of the Civil Aviation Authority.
In case this Manual is lost, you should notify the Civil Aviation Authority instantaneously, and
when outside the border of your country - an equivalent institution.
Any person to find this manual is requested to send it in instantaneously to Urząd Lotnictwa
Cywilnego (Civil Aviation Authority), 02-247 Warszawa, ul. Marcina Flisa 2, and when outside
the border of your country to an equivalent institution.
Document no.: X2RST-001-PL
Edition 1 24 Aug 2009
Change no.:

CELIER
SERVICE MANUAL
Xenon 2 RST
Aviation Organizational Information Chapter 0
Chapter 0 Organizational Information
0.1 Register of Changes
If necessary CELIER AVIATION will issue updates for this manual and will publish it in
the form of bulletins on its website.
Any changes of this manual must be instantaneously entered and written in the table below
as well as be approved by the Civil Aviation Authority (CAA).
A new or revised text in changed pages must be marked with a black vertical line on the
margin and a change number. The number of the last change in a given page and its date must be
placed in the page footer. Every time a change is entered, the pages listed in the table below must
be mentioned.
Change no. Description of change Refers to pages Entry date Signature
Edition 1 24 Aug 2009
Change no.:
Document no.: X2RST-001-PL Page 0-1

CELIER
SERVICE MANUAL
Xenon 2 RST
Aviation Organizational Information Chapter 0
Change no. Description of change Refers to pages Entry date Signature
Page 0-2 Document no.: X2RST-001-PL
Edition 1 24 Aug 2009
Change no.:

CELIER
SERVICE MANUAL Xenon 2
RST
Aviation
Organizational Information Chapter 0
0.2 List of Up-to-date Pages
Chapter Page Date Chapter Page Date
Title 24.08.2009 4 4-1 24.08.2009
Reverse 24.08.2009 4-2 24.08.2009
0 0-1 24.08.2009 4-3 24.08.2009
0-2 24.08.2009 4-4 24.08.2009
0-3 24.08.2009 4-5 24.08.2009
0-4 24.08.2009 4-6 24.08.2009
1 1-1 24.08.2009 5 5-1 24.08.2009
1-2 24.08.2009 5-2 24.08.2009
1-3 24.08.2009 5-3 24.08.2009
1-4 24.08.2009 5-4 24.08.2009
2 2-1 24.08.2009 5-5 24.08.2009
2-2 24.08.2009 5-6 24.08.2009
2-3 24.08.2009 5-7 24.08.2009
2-4 24.08.2009 5-8 24.08.2009
2-5 24.08.2009 6 6-1 24.08.2009
2-6 24.08.2009 6-2 24.08.2009
2-7 24.08.2009 6-3 24.08.2009
2-8 24.08.2009 6-4 24.08.2009
2-9 24.08.2009 7 7-1 24.08.2009
2-10 24.08.2009 7-2 24.08.2009
2-11 24.08.2009 8 8-1 24.08.2009
2-12 24.08.2009 8-2 24.08.2009
3 3-1 24.08.2009 8-3 24.08.2009
3-2 24.08.2009 8-4 24.08.2009
3-3 24.08.2009 8-5 24.08.2009
3-4 24.08.2009 8-6 24.08.2009
3-5 24.08.2009 8-7 24.08.2009
3-6 24.08.2009 8-8 24.08.2009
3-7 24.08.2009 9 9-1 24.08.2009
3-8 24.08.2009 9-2 24.08.2009
3-9 24.08.2009 10 10-1 24.08.2009
3-10 24.08.2009 10-2 24.08.2009
3-11 24.08.2009 10-3 24.08.2009
3-12 24.08.2009 10-4 24.08.2009
3-13 24.08.2009 11 11-1 24.08.2009
3-14 24.08.2009 11-2 24.08.2009
Edition 1 24 Aug 2009
Change no.:
Document no.: X2RST-001-PL Page 0-3

CELIER
SERVICE MANUAL Xenon 2
RST
Aviation
Organizational Information Chapter 0
0.3 Table of Contents
Chapter Title
0Organizational Information
1General Information
2Description of the Gyrocopter and its Systems
3Assembly and Dismantling
4Service Work, Operational Materials
5Schedule of Overhauls and Service Work
6Weighing and Specifying the Position of the Centre of Gravity
7Durability of Structural Components
8Adjustment Data and Deflections of Control Components
9Other Service Information
10 List of Notices and Markings
11 Supplements
Page 0-4 Document no.: X2RST-001-PL
Edition 1 24 Aug 2009
Change no.:

CELIER
SERVICE MANUAL
Xenon 2 RST
Aviation General Information Chapter 1
Chapter 1 General Information
1. page
1.1 Introduction ................................................................................................. 1-2
1.2 Basis for Acknowledging Airworthiness..................................................... 1-2
1.3 Directives and Announcements of Airworthiness....................................... 1-2
1.4 Responsibility .............................................................................................. 1-3
Edition 1 24 Aug 2009
Change no.:
Document no.: X2RST-001-PL Page 1-1

CELIER
SERVICE MANUAL
Xenon 2 RST
Aviation General Information Chapter 1
1.1 Introduction
This manual has been written to pass to pilots and engineers information that is essential to
correctly operate and properly handle gyrocopter Xenon 2 RST to ensure its airworthiness and
safe and effective operation.
The gyrocopter should be operated in accordance with this manual and the applicable
regulations. The owner/use of the gyrocopter is responsible for the compliance.
The gyrocopter can be used for flight only when it is technically operative and has a valid
authorization to perform flights. An authorization to perform flights is entered in the ultralight
aircraft book, which is a document identifying an ultralight aircraft and its subassemblies as well
as containing data on the record of usage.
Any modifications to the gyrocopter, made without the consent of the producer and the
aviation supervisory authority, will render this manual inappropriate for the modified specimen.
1.2 Basis for Acknowledging Airworthiness
The gyrocopter Xenon 2 RST can be used within the territory of the Republic of Poland on
the basis of the Decree of the Minister of Infrastructure dated 25 April 2005 on Excluding the
Application of Some of the Laws of the Act on Air Law for Some Sorts of Aircraft as well as
Defining the Conditions and Requirements concerning the Use of this Craft. The detailed
conditions and requirements concerning its use are set out in Annexe No. 5.
Under this Annexe, Xenon 2 RST has been classified as an Ultralight Aircraft, meeting the
following conditions (subsection 2.1.23.c): an ultralight gyrocopter - an aircraft being a rotorcraft
which gains lift in flight from the autorotation system of the rotor, is equipped with at least one
power unit ensuring independent take-off and climbing flight, having not more than 2 crew seats
and whose maximum takeoff weight (MTOW) does not exceed 495kg (for a two-seater).
For acknowledging the airworthiness of the gyrocopter, as technical requirements, the
Regulations for Constructing Ultralight Gyrocopters (Bauvorschriften für Ultraleichte
Tragschrauber - BUT) of 26 September 2001 have been adopted. For this reason, the maximum
takeoff weight (MTOM) of the gyrocopter Xenon 2 RST has been restricted in Poland to 450kg.
1.3 Directives and Announcements of Airworthiness
All applicable directives of airworthiness or other documents (notes, decrees) issued by civil
aviation authorities must be observed. Compliance with the directives should be recorded in the
Ultralight Aircraft Book (Gyrocopter Book) or approved in an equivalent manner.
Page 1-2 Document no.: X2RST-001-PL
Edition 1 24 Aug 2009
Change no.:

CELIER
SERVICE MANUAL Xenon 2
RST
Aviation
General Information Chapter 1
1.4 Responsibility
The user is responsible for conducting overhauls and servicing at the right time as described
in this manual.
The deadlines for overhauls and service work should follow those recommended by CELIER
Aviation. The Civil Aviation Authority can order to change the deadlines by issuing directives or
notes of airworthiness.
Persons that certify servicing should use their engineering knowledge and skills to specify
the extent of the necessary repairs and checks and other issues which can affect the airworthiness
of the gyrocopter.
The repairs and overhauls of the gyrocopter should be registered (with a listing of all defects,
shortages and additional servicing resulting from the execution of the work schedule) in the form
of reports and recorded in the Gyrocopter Book. Persons that certify servicing are responsible for
keeping these records. Every consecutive repair or overhaul should be conducted after previous
familiarization with the history of repairs and overhauls.
Servicing information (bulletins, lists etc) published by CELIER Aviation should be
assessed and taken into consideration by the user/owner, if the need arises, to ensure security and
infallibility during usage. Complying with the recommendations of servicing information should
be recorded in the Gyrocopter Book.
Edition 1 24 Aug 2009
Change no.:
Document no.: X2RST-001-PL Page 1-3

CELIER
SERVICE MANUAL Xenon 2
RST
Aviation
General Information Chapter 1
The page is left blank deliberately
Page 1-4 Document no.: X2RST-001-PL
Edition 1 24 Aug 2009
Change no.:

CELIER
SERVICE MANUAL
Xenon 2 RST
Aviation Description of the Gyrocopter and its Systems Chapter 2
Chapter 2 Description of the Gyrocopter and its Systems
2. page
2.1 General Description .................................................................................... 2-2
2.1.1 Technical Data ........................................................................................ 2-2

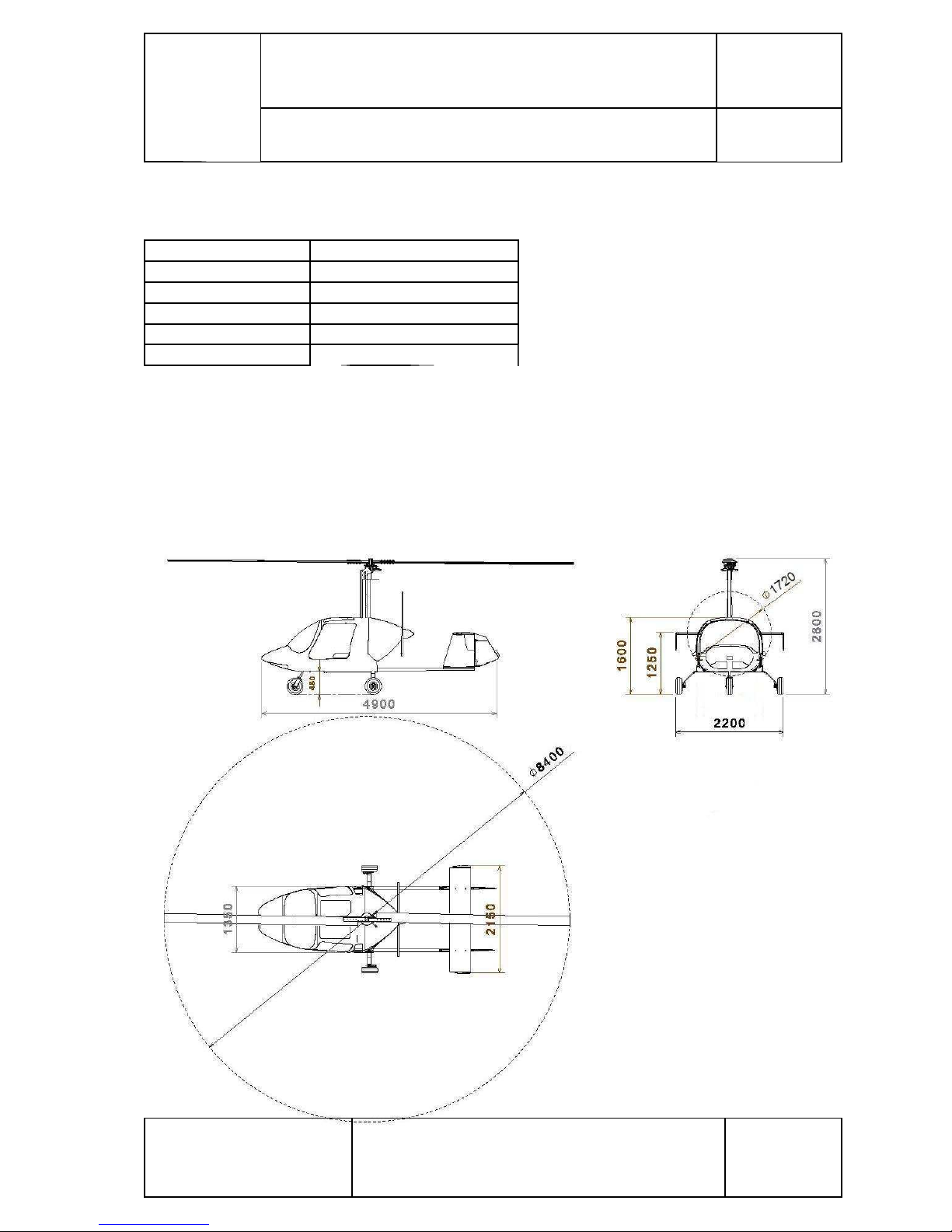

2.2 Figure in Three Projections ......................................................................... 2-3
2.3 Control Systems .......................................................................................... 2-4

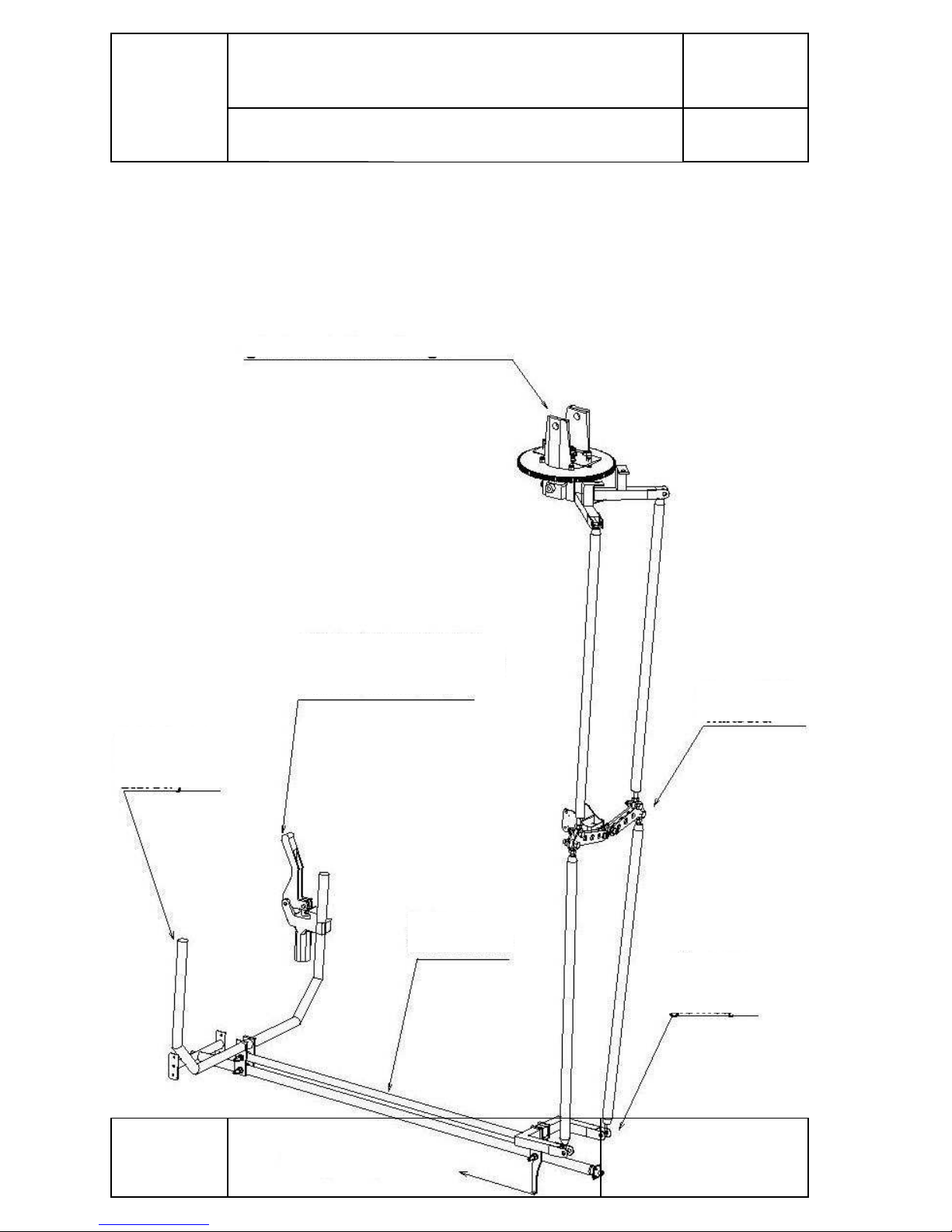

2.3.1 Schema of the Control System with the Rotor........................................ 2-4
2.3.2 Schema of the Spring-Operated Relieving Device - “Trimmer” ........... 2-5
2.3.3 Schema of the Directional Control System............................................. 2-6

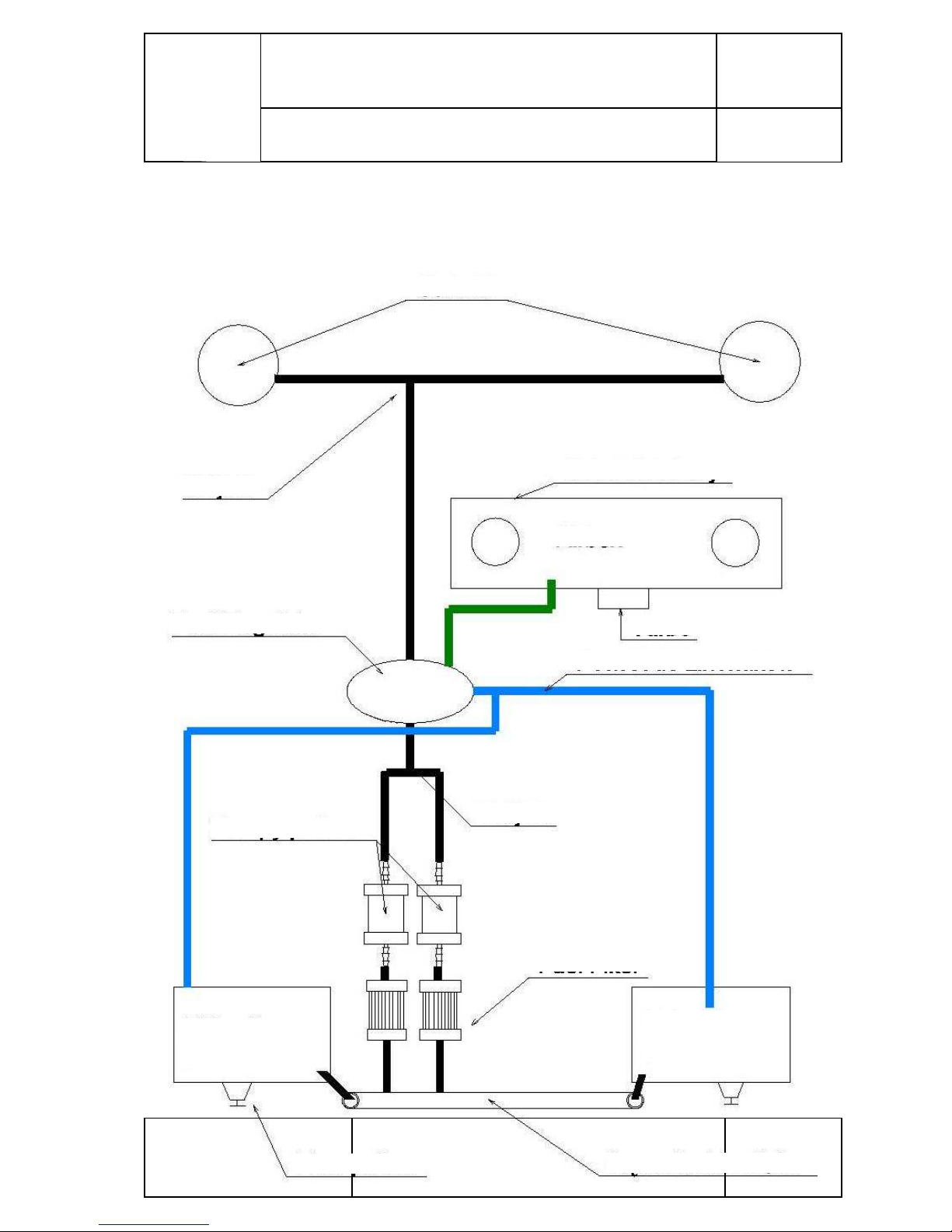

2.4 Fuel System ................................................................................................. 2-7
2.5 Oil System ................................................................................................... 2-8
2.6 Engine Cooling System ............................................................................... 2-9
2.7 Electrical System ......................................................................................... 2-10
Edition 1 24 Aug 2009
Change no.:
Document no.: X2RST-001-PL Page 2-1

CELIER
SERVICE MANUAL
Xenon 2 RST
Aviation Description of the Gyrocopter and its Systems Chapter 2
2.1 General Description
Xenon 2 RST is a two-seat ultralight gyrocopter. The main structural component is the
fuselage with composite structure. Two slender metal tail beams are guided from the fuselage, on
which vertical twin fin tail unit is constructed (stabilizers and rudders), on which in turn the
horizontal stabilizer with a symmetric profile is mounted, equipped with winglets. The control
surfaces are also of composite structure. A metal mast is affixed to the fuselage structure, on which
the control head with the lifting rotor is mounted.
The two-blade rotor with metal structure is manufactured and delivered in a set (blades + a
hub) by the AIRCOPTER Company. The blades, made from drawn aluminium, are entirely
anodized and perfectly balanced.
Xenon 2 RST is powered with a CA 912 ULT engine. It is a Rotax 912 UL engine,
modified by the CELIER AVIATION Company by adding an Iveco turbocompressor. It is
equipped with a three-blade composite propeller of the DUC brand, which has the capability to
manually change a stroke.
The undercarriage is a stationary three-wheel one in a set with the front wheel. The main legs
are elastic and made of aluminium. The front leg is dampened only with a wheel pneumatic unit. The
undercarriage can be made as “ordinary” with wheels with a diameter of 350mm or as a “Tundra”
with wheels with a diameter of 450mm.
The spacious cockpit with a width of 125cm is accessible through a large door on the left and
right sides. Rich glazing ensures optimum visibility. Two ergonomic bucket seats can be set up in 3
positions. Each chair is equipped with adjustable four-point belts.
2.1.1 Technical Data
Geometric data
Rotor diameter 8.40 m
Rotor surface 55.38 m
2
Rotor blade chord 0.20 m
Overall length (w/o rotor) 4.90 m
Fuselage width 1.35 m
Cockpit width 1.25 m
Overall width 2.20 m 2.23
Overall height 2.80 m 2.85
Wheel diameter 0.35 m 0.45
undercarriage: “ordinary” “Tundra”
Weight data
Maximum take-off weight 450 kg
Bare weight 265 kg
Load capacity 185 kg
Page 2-2 Document no.: X2RST-001-PL
Edition 1 24 Aug 2009
Change no.:

CELIER
SERVICE MANUAL Xenon 2
RST
Aviation
Description of the Gyrocopter and its Systems Chapter 2
Data of the power unit
Engine type CA 912 ULT
Power 122 KM at 5800rpm
Reducer ratio 1 : 2.43
Propeller DUC FC Windspoon R
Propeller diameter 1.72m
Capacity of fuel tanks 2 × 42 litres
2.2 Figure in Three Projections
(variant equipped with “ordinary” undercarriage with 350mm diameter wheels)
Edition 1 24 Aug 2009
Change no.:
Document no.: X2RST-001-PL Page 2-3

CELIER
SERVICE MANUAL Xenon 2
RST
Aviation
Description of the Gyrocopter and its Systems Chapter 2
2.3 Control Systems
2.3.1 Schema of the Control System with the Rotor
Page 2-4 Document no.: X2RST-001-PL
Edition 1 24 Aug 2009
Change no.:
Lifting Rotor Head
Wheel Brake Lever
(Optionally on the Left
or Right Stick)
Doubled
Control
Stick
“Mixer”
Mechanism
Control
Column Head
Control
Lever
Trimmer Lever

CELIER
SERVICE MANUAL Xenon 2
RST
Aviation
Description of the Gyrocopter and its Systems Chapter 2
2.3.2 Schema of the Spring-Operated Relieving Device - “Trimmer”
The length of the line (2450) from the fair-lead (2454) to the grip (2453), with the control stick
deflected backwards, should amount to 250mm.
The line should be replaced if any traces of wear are noticed (rubbed spots). Polyester sailing
line with a diameter of 2.8mm should be applied.
Edition 1 24 Aug 2009
Change no.:
Document no.: X2RST-001-PL Page 2-5
2448 Spring
2450 Trimmer Line
2453 Trimmer Grip
2454 Fair-Lead
2452 Stopper
2451 Roll

Rudder Bar Lever
Bowden Strands
Rudder
CELIER
SERVICE MANUAL Xenon 2
RST
Aviation
Description of the Gyrocopter and its Systems Chapter 2
2.3.3 Schema of the Directional Control System
Page 2-6 Document no.: X2RST-001-PL
Edition 1 24 Aug 2009
Change no.:

CELIER
SERVICE MANUAL Xenon 2
RST
Aviation
Description of the Gyrocopter and its Systems Chapter 2
2.4 Fuel System (Schema)
Edition 1 24 Aug 2009
Change no.:
Document no.: X2RST-001-PL Page 2-7
Carburettors
Approaching System
Airbox
T-pipe
Fuel Regulator
Return to Tanks
T-pipe
Turbo
Fuel Pumps
Fuel Filter
Fuel
Tank Fuel
Tank
Tank Connector
Fuel Drain

CELIER
SERVICE MANUAL Xenon 2
RST
Aviation
Description of the Gyrocopter and its Systems Chapter 2
2.5 Oil System (Schema)
Page 2-8 Document no.: X2RST-001-PL
Edition 1 24 Aug 2009
Change no.:
Conduit 8mm
Oil Tank
Hose Dia 12
Hose with Adaptor
Gasket
Turbine Oil Receptacle
Bolts with Locking Washers
Oil Cooler
Overflow Tank or
Deaeration Conduit
Turbocompressor
Propeller

CELIER
SERVICE MANUAL Xenon 2
RST
Aviation
Description of the Gyrocopter and its Systems Chapter 2
2.6 Engine Cooling System (Schema)
Rear View
Right-Side View
Edition 1 24 Aug 2009
Change no.:
Document no.: X2RST-001-PL Page 2-9
Aluminium Water Pipe
Aluminium Water Pipe
Aluminium Water Pipe
Conduit 25mm
Gate Peg
Overflow Tank
Water Pump
Cooler

CELIER
SERVICE MANUAL Xenon 2
RST
Aviation
Description of the Gyrocopter and its Systems Chapter 2
2.7 Electrical System (Schema)
The main source of electrical energy of the aeroplane is a direct current generator enclosed
on the engine (14V, 250W with 5800 rpm). The electrical system of the plane is a two-lead system
on account of the composite structure of the cockpit. The master switch is placed on the central
panel and is activated with a removable red key.
The electrical system serves to supply: the ignition system and engine start-up, the
electromagnetic prerotation clutch (bendix), the lighting of the cockpit and the navigation lighting,
the pumps and the fuel level sensor, the check instrument for engine work and its sensors, the
instrument and sensor for the rotational speed of the rotor. At the side of the instrument board,
there is a 12V socket (a typical automotive socket for a lighter) giving a possibility of connecting
additional devices.
Individual circuits are enabled with appropriate marked switches and secured with safety
fuses. When the generator is idle (e.g. the engine is off, it is at a low speed or there is a failure),
charging orange indicator light turns on on the instrument board, and the electric units are then
supplied from the battery YTX12-BS (12V, 10Ah).
Elucidation of denotations on the schema of the electrical system:
1– Battery 16 – Slave Electric Pump
2– Generator (integrated) 17 – Magneto Switch
3– Electric Starter 18 – Magneto Switch
4– External Controller 19 – Block of Fuses
5– Starter Relay 20 – Block of Fuses
6– Starter Switch 21 – Ignition Module “A”
7– Capacitor 22 – Ignition Module “B”
8– Cockpit Lighting CHT – Cooling Fluid Temperature
9– Master Switch (red key) EGT – Exhaust Gas Temperature
10 – Master Fuse (30A) OT – Oil Temperature
11 – Prerotation Switch OP – Oil Pressure
12 – Prerotation Relay RC – Rotor Tachometer
13 – Bendix ABT – Approaching System Temperature
14 – 4-Switch Console MAP – Recharging Pressure
15 – Master Electric Pump FLS – Fuel Level Sensor
Page 2-10 Document no.: X2RST-001-PL
Edition 1 24 Aug 2009
Change no.:
