Central Machinery Central Machinery 6" Belt & 9" Sander 6852 User manual

6” BELT & 9” SANDER
6852
ASSEMBLY AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2004 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of Harbor
Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements,
actual product may differ slightly from the product described herein. Tools required for assembly and service
may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 09k

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 2
PRODUCT SPECIFICATIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, op-
erating, inspection, maintenance and cleaning procedures, parts list and assem-
bly diagram. Keep your invoice with this manual. Write the invoice number on the
inside of the front cover. Keep this manual and invoice in a safe and dry place for
future reference.
GENERAL SAFETY WARNINGS AND PRECAUTIONS
1. KEEP WORK AREA CLEAN AND DRY. Cluttered, damp, or wet work areas
invite injuries.
2. KEEP CHILDREN AWAY FROM WORK AREA. Do not allow children to handle
this product.
3. STORE IDLE EQUIPMENT. When not in use, tools and equipment should be
stored in a dry location to inhibit rust. Always lock up tools and equipment, and
keep out of reach of children.
4. DO NOT USE THIS PRODUCT IF UNDER THE INFLUENCE OF ALCOHOL OR
DRUGS. Read warning labels on prescriptions to determine if your judgement or
reflexes are impaired while taking drugs. If there is any doubt, do not attempt to
use this product.
REV 07g
Electrical Requirements 1 HP, Ball Bearing Motor
110 Volt/60 Hz/12.8 Amps
3450 Rpm
Overall Height 40”
Table Surface Dimensions 6-1/2” x 12-3/4”
Table Tilt 0-50 Degrees
Work Table Options For Sanding Disc or Sanding Belt
Use
Belt Size 6” x 48”
Disc Size 9” Diameter, PSA Type
Belt Speed 1280 FPM
Disk Speed 1720 RPM
Weight 121 lb.

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 3
5. USE EYE, BREATHING, AND HAND PROTECTION. Wear ANSI approved safe-
ty impact eyeglasses, safety impact full face shield, and a dust mask or respirator
when using this product. ANSI approved safety impact eyeglasses, safety impact
full face shield, dust masks and respirators are available from Harbor Freight
Tools.
6. DRESS SAFELY. Do not wear loose clothing or jewelry, as they can become
caught in moving parts. Wear a protective hair covering to prevent long hair from
becoming caught in moving parts. If wearing a long-sleeve shirt, roll sleeves up
above elbows.
7. DO NOT OVERREACH. Keep proper footing and balance at all times to prevent
tripping, falling, back injury, etcetera.
8. INDUSTRIAL APPLICATIONS MUST FOLLOW OSHA REQUIREMENTS.
9. STAY ALERT. Watch what you are doing at all times. Use common sense. Do
not use this product when you are tired or distracted from the job at hand.
10. CHECK FOR DAMAGED PARTS. Before using this product, carefully check that
it will operate properly and perform its intended function. Check for damaged
parts and any other conditions that may affect the operation of this product. Re-
place or repair damaged or worn parts immediately.
11. REPLACEMENT PARTS AND ACCESSORIES: When servicing, use only identi-
cal replacement parts. Only use accessories intended for use with this product.
Approved accessories are available from Harbor Freight Tools.
12. MAINTAIN THIS PRODUCT WITH CARE. Keep this product clean and dry for
better and safer performance.
13. MAINTENANCE: For your safety, service and maintenance should be performed
regularly by a qualified technician.
14. USE THE RIGHT TOOL FOR THE JOB. Do not attempt to force a small tool or
attachment to do the work of a larger industrial tool. There are certain applica-
tions for which this tool was designed. It will do the job better and more safely
at the rate for which it was intended. Do not modify this tool, and do not use this
tool for a purpose for which it was not intended.
15. WARNING: The warnings, precautions, and instructions discussed in this manual
cannot cover all possible conditions and situations that may occur. The operator
must understand that common sense and caution are factors, which cannot be
built into this product, but must be supplied by the operator.

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 4
SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS
1. MAINTAIN A SAFE WORKING ENVIRONMENT. Keep the work area well lit.
Make sure there is adequate surrounding workspace. Always keep the work area
free of obstructions, sawdust, grease, oil, trash, and other debris. Do not use the
Belt/Disc Sander in areas near flammable chemicals, dusts, and vapors. Do not
use the Belt/Disc Sander in a damp or wet location.
2. GROUND THIS PRODUCT. The electrical Power Cord (55) for this product is
equipped with a grounded, 3-Prong Plug. Never remove the grounding prong or
modify the Plug in any way. Do not use adapter plugs with this product. To com-
ply with the National Electric Code, and to provide additional protection from the
risk of electrical shock, this product should only be connected to a 110 Volt,
3-hole electrical outlet that is protected by a Ground Fault Circuit Interrupter
(GFCI).
3. DO NOT ABUSE THE POWER CORD. Do not use the Power Cord (55) to pull
its 3-Prong Plug from an electrical power outlet. Keep the Power Cord away from
heat, oil, sharp edges, and moving parts. Route the Power Cord safely. Do not
route the Power Cord where it can be walked on or tripped over. Replace a dam-
aged Power Cord immediately.
4. IF AN EXTENSION CORD (not included) IS USED, MAKE SURE TO USE
ONLY UL APPROVED CORDS HAVING THE CORRECT GAUGE AND
LENGTH. This product requires a 14 gauge extension cord.
5. REDUCE THE RISK OF ACCIDENTAL STARTING. Make sure the Power Switch
(53) is in the “OFF” position before plugging the Power Cord (55) into a grounded,
3-hole, 110 Volt, electrical outlet. (See Figure B, and Assy. Diagram.)
6. PRIOR TO STARTING THE BELT/DISC SANDER, MAKE SURE ALL ADJUST-
ING KEYS AND WRENCHES ARE REMOVED FROM THE TOOL.
7. BEFORE SANDING, TURN ON THE BELT/DISC SANDER AND CHECK FOR
EXCESSIVELY LOOSE SANDING BELT/DISC (2, 15) OR MACHINE VIBRA-
TION. If this is found, turn off the tool and correct the problem before using.
8. ALWAYS KEEP HANDS AND FINGERS AS FAR AWAY AS POSSIBLE FROM
THE MOVING PARTS OF THE BELT/DISC SANDER.

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 5
9. ALLOW THE SANDING BELT/DISC (2, 15) TO TURN UP TO FULL SPEED
BEFORE FEEDING A WORKPIECE INTO THE SANDING BELT/DISC. When
turning off the Belt/Disc Sander, allow the Sanding Belt/Disc to slow down and
stop on its own. Do not press against the Sanding Belt/Disc to stop it.
10. FEED THE WORKPIECE INTO THE SANDING BELT/DISC (2, 15) GRADU-
ALLY. Do not force the machine to remove material faster than it was designed
to cut.
11. TO AVOID PERSONAL INJURY AND/OR DAMAGE TO THE MACHINE,
ALWAYS ALLOW APPROXIMATELY 1/16” CLEARANCE BETWEEN THE
SANDING BELT (2) AND THE BACK STOP (39).
12. ALWAYS ALLOW APPROXIMATELY 1/16” CLEARANCE BETWEEN THE
SANDING DISC (15) AND THE TABLE (1).
13. WHEN SANDING A LARGE WORKPIECE, MAKE SURE ITS ENTIRE LENGTH
IS PROPERLY SUPPORTED. If necessary, use a roller stand (not included) with
a larger workpiece.
14. NEVER ATTEMPT TO REMOVE MATERIAL STUCK IN THE MOVING PARTS
OF THE BELT/DISC SANDER WHILE IT IS PLUGGED IN AND RUNNING.
15. NEVER STAND ON THE BELT/DISC SANDER. Serious injury could result if the
Belt/Disc Sander is tipped or if the turning Sanding Belt/Disc (2, 15) are acciden-
tally contacted.
16. ALWAYS TURN THE POWER SWITCH (53) TO ITS “OFF” POSITION AND UN-
PLUG THE BELT/DISC SANDER FROM ITS ELECTRICAL SUPPLY SOURCE
BEFORE PERFORMING ANY INSPECTION, ADJUSTMENTS, MAINTE-
NANCE, OR CLEANING PROCEDURES.
17. WARNING: Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities, contain chemicals known (to the State of California)
to cause cancer, birth defects or other reproductive harm. Some examples of
these chemicals are: lead from lead-based paints, and arsenic and chromium
from chemically treated lumber. Your risk from these exposures varies depending
on how often you do this type of work. To reduce your exposure to these chemi-
cals: work in a well ventilated area, and work with approved safety equipment,
such as those dust masks that are specially designed to filter out microscopic
particles.
(California Health & Safety Code § 25249.5, et seq.)

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 6
PRODUCT FEATURES
NOTE: Prior to assembling and operating the Belt/Disc Sander, it is important to fa-
miliarize yourself with all of the machine’s major components. Failure to do so
may result in personal injury and/or damage to the machine and workpiece being
sanded. (See Figure B, and refer to the “Operating Instructions” section in
this manual.)
9” SANDING DISC
(15)
6” SANDING
BELT (2)
TABLE (1)
MITER GAUGE
(3) BACK STOP
(39)
POWER
SWITCH
(53)
POWER
CORD
(55)
LOCK KNOB/ADJUST NUT ASSY. (44)
FIGURE B
STAND
(56
FRAME
(64)
BASE
(51)
PULLEY
COVER
(22) SAND BELT
FRAME (40)
18. WARNING: People with pacemakers should consult their physician(s) before
using this product. Operation of electrical equipment in close proximity to a heart
pacemaker could cause interference to or failure of the pacemaker.
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts List on page 16
are included. If any parts are missing or broken, please call Harbor Freight Tools at the
number shown on the cover of this manual as soon as possible.

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 7
To Assemble The Stands, Frames, And Upper Bracket:

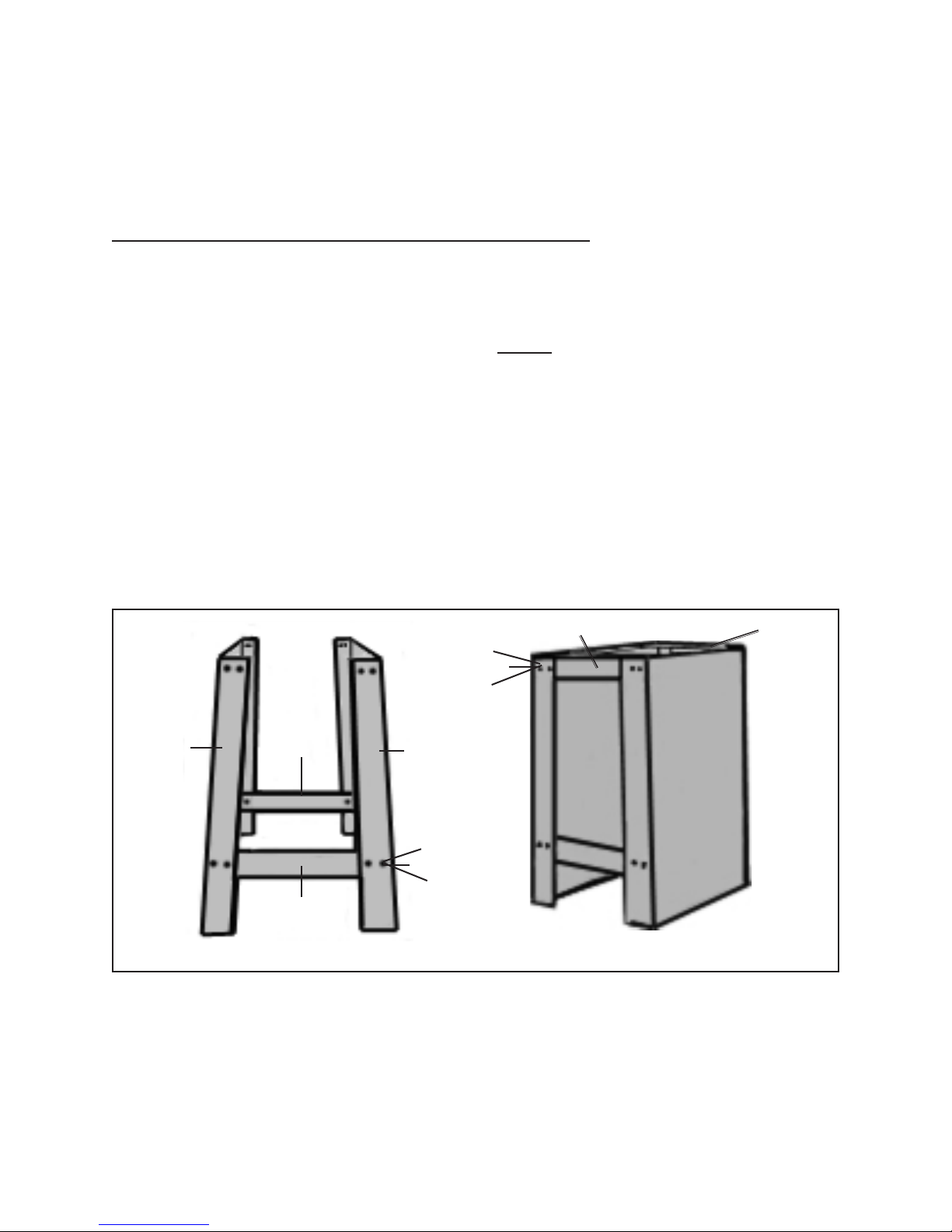

1. With assistance, position the two Stands (56) upright on the floor and parallel to
one another. (See Figure C.)
2. Place the end of one Frame (64) on the inside edge of one Stand (56), and align
the two mounting holes on the end of the Frame with the two lower mounting
holes on the Stand. (See Figure C.)
3. Secure the Frame (64) to the Stand (56), using two Bolts (58), two Washers (60),
and two Nuts (63). (See Figure C.)
4. Repeat Steps #1, #2, and #3 to connect the other end of the Frame to the re-
maining Stand. (See Figure C.)
5. To connect the remaining Frame (64) to the two Stands (56), follow Steps #1, #2,
#3, and #4). (See Figure C.)
6. Place both Upper Brackets (57) on the top edges of the two Stands (56), and
align the eight mounting holes (two on each end) of the Brackets with the eight
mounting holes (two on each end) of the Stands. (See Figure C.)
7. Secure both Upper Brackets (57) to the two Stands (56), using eight Bolts (58),
Washers (60), and Nuts (63). (See Figure C.)
ASSEMBLY INSTRUCTIONS

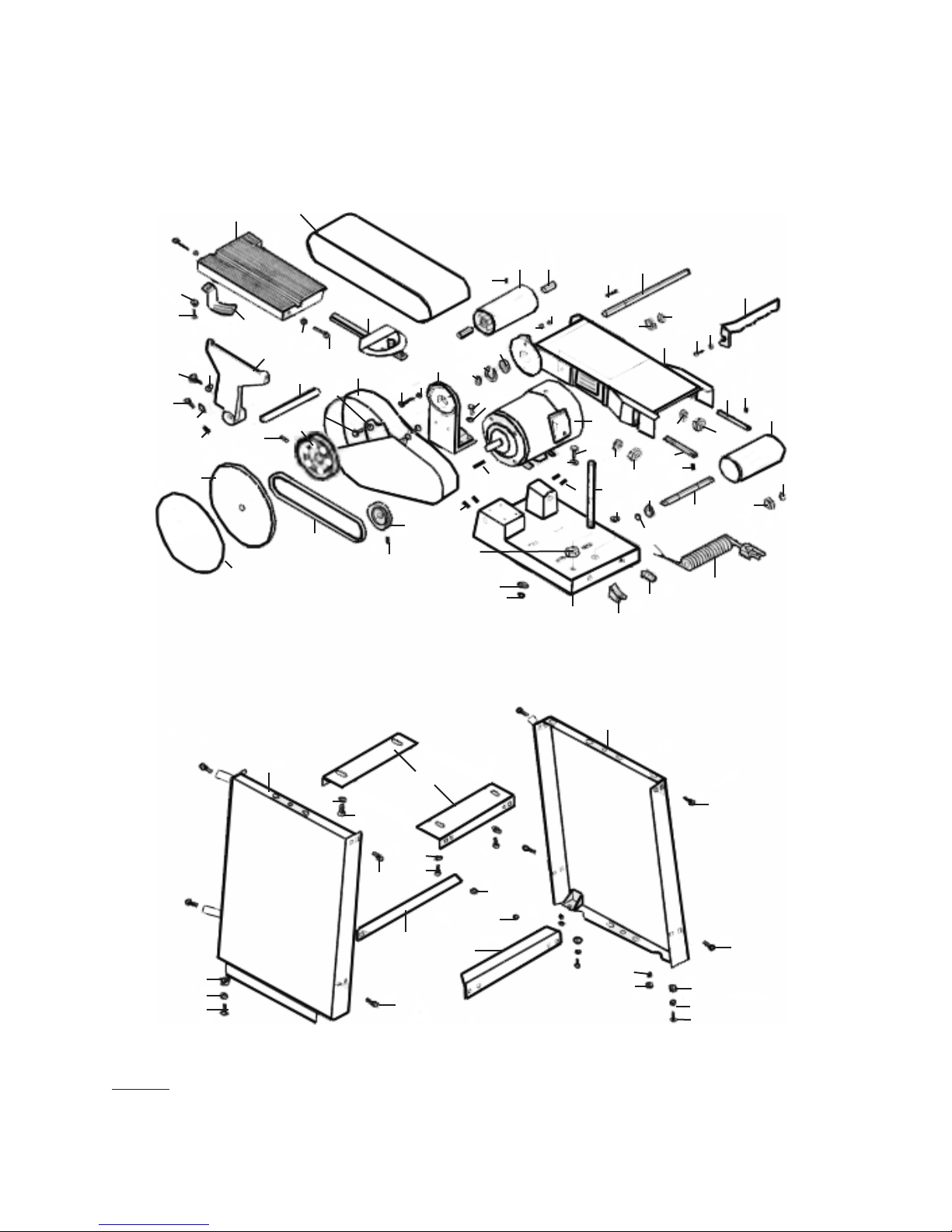

NOTE: For additional references to the parts listed below, refer to the Assembly
Diagram on page 17.
STAND
(56)
STAND
(56)
FRAME
(64)
FRAME
(64)
BOLT (58)
WASHER (60)
NUT (63)
BOLT (58)
WASHER (60)
NUT (63)
UPPER BRACKET (57)
FIGURE C
UPPER
BRACKET
(57)
(mostly hid-
den)
REV 05b

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 8

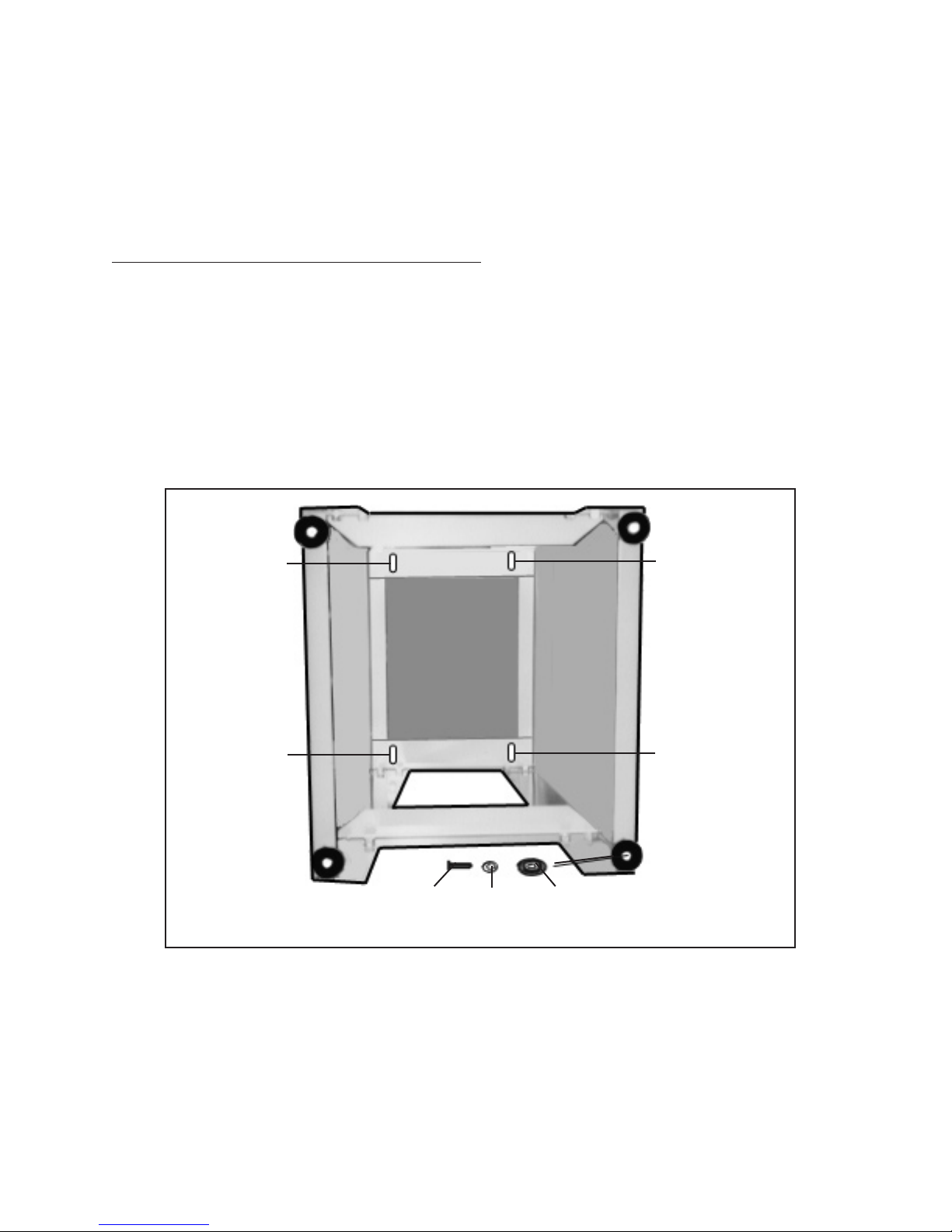

8. With assistance, carefully tip the assembled Stand on its side. Attach a Rubber
Foot (59) to each of the Stand’s four corners, using four Rubber Feet, four Wash-
ers (60), and four Screws (61). Then, place the Stand back in its upright position.
(See Figure D.)
To Attach The Base To The Upper Bracket:
1. With assistance, place the Base (51) of the Belt/Disc Sander on top of the Upper
Brackets (57). Align the four threaded mounting holes on the Base with the four
mounting holes on the Upper Brackets. (See Figures B, and D.)
2. From underneath the Stand, secure the Base (51) to the Upper Brackets (57) by
inserting four Screws (66), with four Washers (65), upward through the Stand’s
four mounting holes. Then, firmly tighten the four Screws into the four threaded
mounting holes on the Base. (See Figure D.)
REV04h;05b
SCREW (66)
WASHER (65)
RUBBER
FOOT
(59)
WASHER
(60)
SCREW
(61)
SCREW (66)
WASHER (65)
SCREW (66)
WASHER (65)
SCREW (66)
WASHER (65)
FIGURE D

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 9
Screw (20)
FIGURE E
To Assemble The Pulleys, Sanding Disc Plate, and Table:
1. Remove the 4 screws from the cover on the Pulley Cover (22) and set aside.
2. Line up the three bolt holes on the Pulley Cover
(22) with the threaded holes in the Bracket
(26). Place a Washer (21) over each of 3
Screws (20). Insert a Screw (20) into each
hole and tighten. (See Figure E.)
3. This item is packed with tape on the shafts
to keep the keys in place. Remove the
tape from the upper shaft, being careful
to not lose the key.
4. Loosen the Set Screw (14) on the Large
Pulley (19). Put the Large Pulley on the upper
shaft, with the smaller step on the pulley inside and
with the key lined up with the slot on the Pulley. Be sure
the key stays in the correct position, all the way through the
pulley.
5. Repeat steps 3 and 4 putting the Small Pulley (52) on the lower shaft. ( S e e
Figure F.)
6. Carefully align both pulleys and tighten. Use
a flat head screwdriver through the slot in the
Pulley Cover (22) to tighten the Set Screw
(14) on the Large Pulley (19). (See Figure
G.) Use a hex key (not included) to tighten
the Set Screw (14) on the Small Pulley (52).
7. Loosen the 4 Screws (48) that hold the Motor
(30) just enough to let the Motor move. Move the
Motor towards the Large Pulley enough
to let the Belt (17) slip on over both
Pulleys. Move the Motor away from the
Large Pulley until the Belt is tight enough so
that, if pushed, it doesn’t move more than 1/2”.
Hold the Motor in place while you retighten the
4 Screws (48).
8. Put the Sanding Disc Plate (16) on the end of the shaft
so that it’s flush with the end of the shaft. Tighten its
set screw, once again using the slot in the Pulley Cover
(22). (See Figure G.)
9. Check to make sure the Sanding Disc Plate (16) is free
of dirt, oil, and other debris.
FIGURE G
hole for Support Bar (18)
FIGURE F
Large Pul-
ley (19)
Small Pul-
ley (52)
REV 04b

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 10
OPERATING INSTRUCTIONS
To Install A Sanding Belt:
1. CAUTION: Always turn the Power Switch (53) to its “OFF” position and unplug the
Power Cord (55) from its 110 volt electrical outlet before performing this procedure.
(See Figure B.)
2. Loosen the two Lock Knobs (44) in order to unlock the two Adjust Nuts (44). (See
Figure H, next page.)
3. Turn the two Adjust Nuts (44) counterclockwise to allow the Sanding Belt (2) to be
inserted onto the Sand Belt Frame (40). (See Figure H.)
4. Slide the Sanding Belt (2) fully and evenly onto the Sanding Belt Frame (40). Then,
turn the two Adjust Nuts clockwise to tighten the tension on the Sanding Belt. (See
Figure H.)
5. Retighten the two Lock Knobs (44), and lock the two Adjust Nuts (44) in place. (See
Figure H.)
6. Plug the Power Cord (55) into a 110 volt electrical outlet, and turn the Power Switch
(53) to its “ON” position. (See Figure B.)
7. Allow sufficient time for the Sanding Belt (2) to turn at full speed. (See Figure H.)
8. NOTE: If the Sanding Belt (2) appears to be too loose on the Sand Belt Frame (40),
10. Remove the paper backing on the adhesive Sanding Disc (15), and stick the Sanding
Disc firmly and evenly onto the Sanding Disc Plate (16). (See Figure I, page 11.)
11. Replace cover of the Pulley Cover (22) and tighten the 4 screws. Verify that the
pulley cover does not contact the Sanding Disc (15). If it does, you need to adjust
the Sanding Disc Plate (16).
NOTE: When positioning the Table (1), make sure there is more than 1/16” clearance but
less than 1/8” clearance between the Table and the Sanding Disc (15).
12. Insert the round end of the Support Bar (18) into the hole on the side of the Base
(18). (See Figure G.) Put the Table Support Bracket (9) over the end of the Support
Bar, with the tapered side of the Bracket facing the Sanding Disc (15) and also the
flat side of the Bar lined up with the Set Screw. Tighten the Set Screw (14) on the
Table Support Bracket. Set the Table Support Bracket as shown in Figure J, page
12. Tighten the two Set Screws (14) on the side of the Base to secure the bar.
REV 04b

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 11
To Install A Sanding Disc:
1. CAUTION: Alwaysturn
the Power Switch (53)
to its “OFF” position
and unplug the Power
Cord (55) from its 110
volt electrical outlet
before performing
this procedure. (See
Figure B.)
2. S w i n g t h e Ta bl e
Support Bracket (9)
out of the way and
remove the cover from
the Pulley Cover ( 22)
as explained on page 9. Check to make sure the Sanding Disc Plate (16) is free
of dirt, oil, and other debris. (See Figure I.)
3. Remove the paper backing on the adhesive Sanding Disc (15), and stick the Sanding
Disc firmly and evenly onto the Sanding Disc Plate (16). Restore the Table Support
Bracket and Pulley Cover to their original positions. (See Figure I.)
LOCK KNOB &
ADJUST NUT ASSY.
(44)
LOCK KNOB &
ADJUST NUT ASSY (44)
LOCK
KNOB (44)
ADJUST NUT (44)
SANDING BELT FRAME
(40)
FIGURE H
SANDING BELT (2)
SANDING DISC PLATE
(16)
SANDING DISC
(15)
FIGURE I
turn off the machine and unplug it from its electrical outlet. Then repeat Steps #2
through #7 to further increase the tension on the Sanding Belt. (See Figures B
and H.)
9. Attach the Back Stop (39) to the side of the Sanding Belt Frame (40), as shown in
Figure H.
BACK STOP (39)
Sand in this area.
REV 04b

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 12

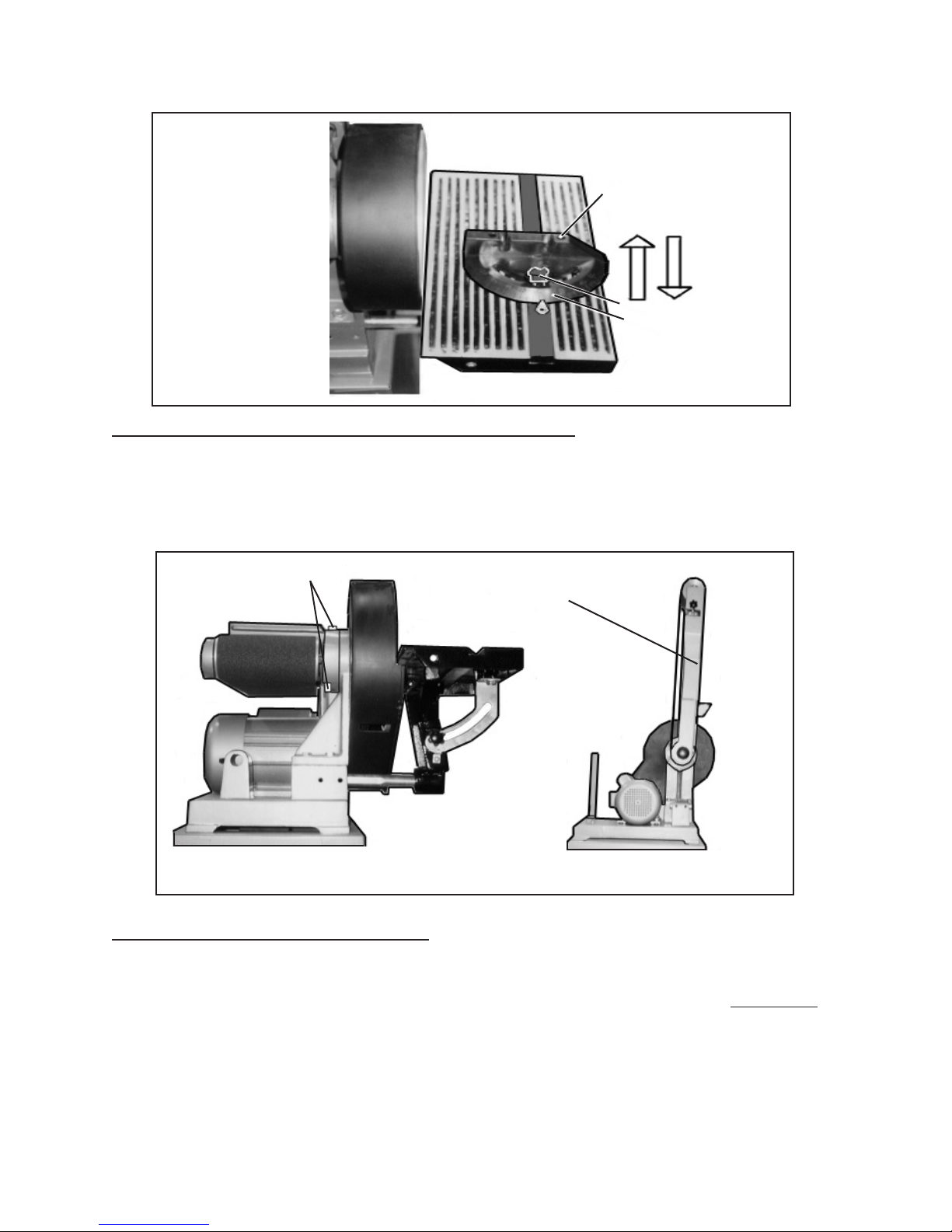

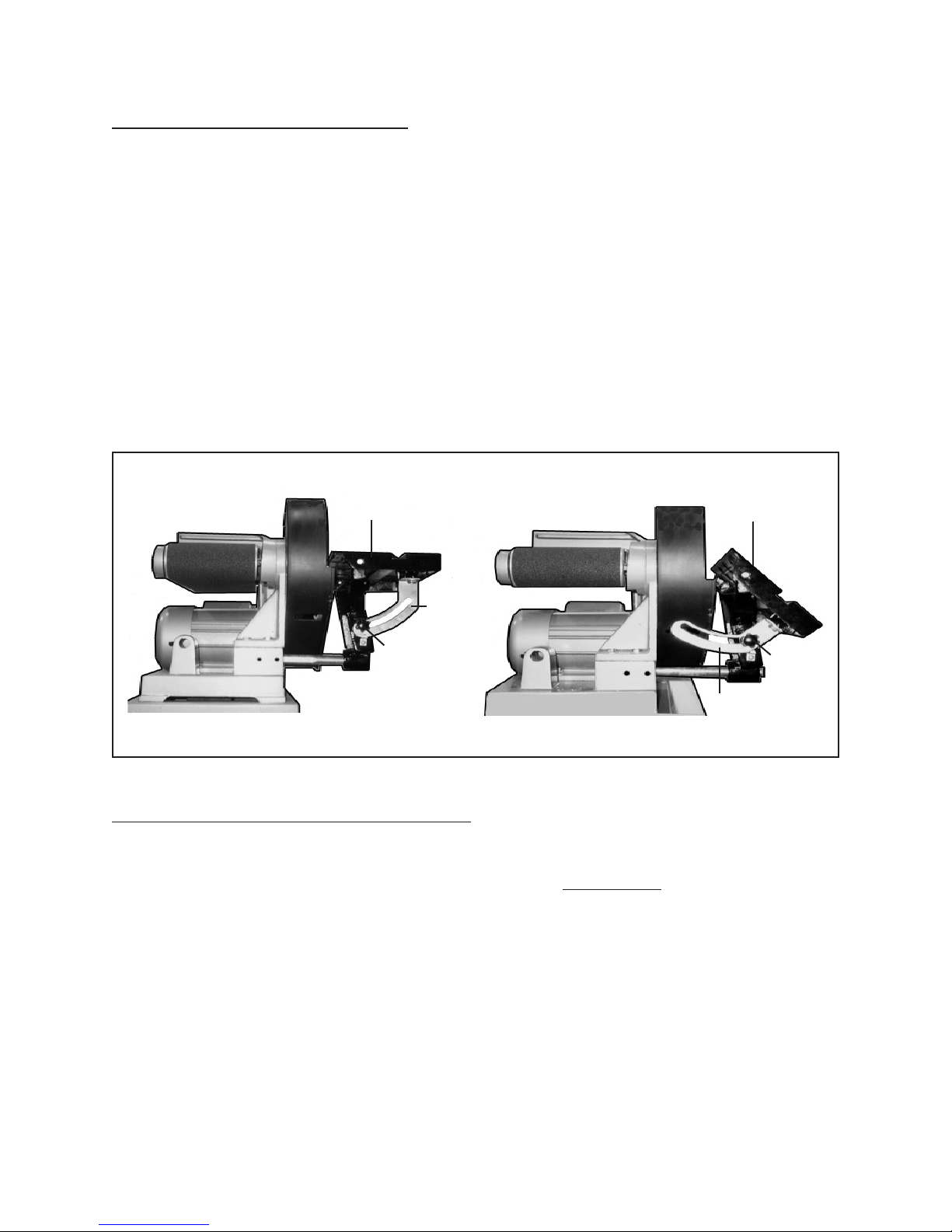

TABLE (1)
KNOB
(10) KNOB
(10)
TABLE (1)
ANGLE
GAUGE
(5)
ANGLE
GAUGE
(5)
FIGURE J
To Adjust The Angle Of The Miter Gauge:
1. The angle of the Miter Gauge (3) may be adjusted to the right 0 to 45 Degrees
and to the left 0 to 45 Degrees. (See Figure K, next page.)
2. To adjust the angle of the Miter Gauge (3), slightly loosen the Miter Gauge Knob.
(See Figure K.)
3. Observe the Angle Scale on the Miter Gauge (3). Then move the Miter Gauge
Body to the right or left until the desired angle of the Miter Gauge is shown on the
Angle Scale. (See Figure K.)
4. Once the desired angle of the Miter Gauge (3) is obtained, retighten the Miter
Gauge Knob. (See Figure K.)
To Adjust The Angle Of The Table:
1. The angle of the Table (1) may be adjusted from 0 to 45 Degrees.
(See Figure J.)
2. To adjust the angle of the Table (1), slightly loosen the Knob (10).
(See Figure J.)
3. Observe the Angle Gauge (5). Then raise or lower the Table until the desired
angle of the Table is shown on the Angle Gauge. (See Figure J.)
4. Once the desired angle of the Table (1) is obtained, retighten the Knob (10).
(See Figure J.)
REV 04b

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 13
To Adjust The Sand Belt Frame For Vertical Sanding:
Loosen the two Nuts (36) on the Sanding Belt Frame (40), and with assistance
raise the Sanding Belt Frame to its full vertical position. Then, firmly retighten the
two Nuts to lock the Sanding Belt Frame in place. (See Figure L.)
To Adjust The Position Of The Table:
1. When the Sanding Belt Frame (40) is in its vertical position, the Table (1) should be
repositioned to the front of the Sanding Belt Frame. (See Figure M, next page.)
2. To reposition the Table (1), loosen the two Set Screws (14) and remove the Table,
including the Support Bar (18). (See Figure M.)
3. Insert the Support Bar into the Mounting Hole, and tighten the other two Set Screws
(14). (See Figure M.)
MITER GAUGE
(3)
MITER GAUGE KNOB
ANGLE SCALE
FIGURE K
NUT (36) SANDING BELT FRAME (40)
(VERTICAL POSITION)
FIGURE L
REV 04b

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 14
To Perform Horizontal Sanding With The Sanding Belt:
1. CAUTION: Before each use, inspect the condition of the Sanding Belt (2). Look
for tearing, excessive wear, or other damage to the Sanding Belt. Never use a
Sanding Belt that is damaged. When replacing, never use an inexpensive, low
quality Sanding Belt.
2. Plug the Power Cord (55) into a grounded, 110 Volt electrical outlet.
(See Figure B.)
3. Turn the Power Switch (53) to its “ON” position, and allow the Sanding Belt (2) to
come to full speed for approximately ten seconds before feeding the workpiece
into the Sanding Belt. (See Figure B.)
4. Hold the workpiece firmly with both hands, and carefully set it flat and level upon
the Sanding Belt (2) and against the Back Stop (39). (See Figure B.)
5. Apply moderate downward pressure on the workpiece, allowing the Sanding Belt
(2) to cut without being forced.
6. Once the sanding procedure is completed, remove the workpiece from the Sand-
ing Belt (2), turn the Power Switch (53) to its “OFF” position, and unplug the
Power Cord (55) from its electrical outlet. (See Figure B.)
4. NOTE: When
repositioning
the Table (1),
make sure there
is more than
1/16” clearance
but less than1/8”
clearance be-
tween the Table
and the Sand-
ing Belt Frame
(40). (See Fig-
ure M.)
SET SCREW
(14)
SET SCREW
(14)
SUPPORT BAR
(18)
SUPPORT
BAR
(18)
TABLE (1)
TABLE
(1)
SANDING BELT FRAME
(40)
END VIEW SIDE
VIEW
FIGURE M
SANDING
BELT
(2)
REV 04b

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 15
To Perform Horizontal Sanding With The Sanding Disc:
1. CAUTION: Before each use, inspect the condition of the Sanding Disc (15). Look
for tearing, excessive wear, or other damage to the Sanding Disc. Never use a
Sanding Disc that is damaged. When replacing, never use an inexpensive, low
quality Sanding Disc.
2. NOTE: The Sanding Disc (15) is typically used for smaller workpieces.
3. Plug the Power Cord (55) into a grounded, 110 Volt electrical outlet.
(See Figure B.)
4. Turn the Power Switch (53) to its “ON” position, and allow the Sanding Disc (15)
to come to full speed for approximately ten seconds before feeding the work-
piece into the Sanding Disc. (See Figure B.)
5. Hold the workpiece firmly with both hands, and carefully set it flat and level upon
the Table (1). (See Figure B.)
6. Apply moderate inward pressure on the workpiece, allowing the Sanding Disc
(15) to cut without being forced.
7. Once the sanding procedure is completed, remove the workpiece from the Sand-
ing Disc (15), turn the Power Switch (53) to its “OFF” position, and unplug the
Power Cord (55) from its electrical outlet. (See Figure B.)
To Perform Vertical Sanding With The Sanding Belt:
1. Adjust the Sand Belt Frame (40) and Table (1) for a vertical sanding procedure.
(See Figures L, and M.)
2. Plug the Power Cord (55) into a grounded, 110 Volt electrical outlet.
(See Figure B.)
3. Turn the Power Switch (53) to its “ON” position, and allow the Sanding Belt (2) to
come to full speed for approximately ten seconds before feeding the workpiece
into the Sanding Belt. (See Figure M.)
4. Hold the workpiece firmly with both hands, and carefully set it flat and level upon
the Table (1). (See Figure M.)
5. Apply moderate inward pressure on the workpiece, allowing the Sanding Belt (2)
to cut without being forced. (See Figure M.)
REV 04b

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 16
6. Once the sanding procedure is completed, remove the workpiece from the Sand-
ing Belt (2), turn the Power Switch (53) to its “OFF” position, and unplug the
Power Cord (55) from its electrical outlet. (See Figure B.)
INSPECTION, MAINTENANCE, AND CLEANING
1. CAUTION: Always turn the Power Switch (53) to its “OFF” position and un-
plug the Power Cord (55) from its 110 volt electrical outlet before perform-
ing any inspection, adjustments, maintenance, or cleaning.
2. BEFORE EACH USE, inspect the general condition of the Belt/Disc Sander.
Check for loose screws, misalignment or binding of moving parts, cracked or
broken parts, damaged electrical wiring, excessively loose Sanding Belt (2) and
Sanding Disc (15), and any other condition that may affect its safe operation. If
abnormal noise or vibration occurs, have the problem corrected before further
use. Do not use damaged equipment.
3. DAILY: Sanding Belts (2) and Sanding Discs (15) must be sharp and clean to
perform properly. Depending on materials sanded and frequency of tool use,
Sanding Belts and Sanding Discs become clogged with wood particles and dull.
Dull Sanding Belts and Sanding Discs rub the workpiece rather than cut, which
results in increased friction, higher temperatures, and a burned workpiece. As
often as possible, check the condition of the Sanding Belt and Sanding Disc and,
if necessary, replace a worn Sanding Belt and Sanding Disc with a new, 6” wide
by 48” Sanding Belt and 9” diameter Sanding Disc.
4. DAILY: With a soft brush, cloth, or vacuum, remove all sawdust and debris from
the Belt/Disc Sander. Then, use a premium quality, lightweight machine oil to
lubricate all moving parts.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND
ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE
MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF
ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO
THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE
PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES
THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTI-
FIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL
RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT
OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 17
PARTS LIST
NOTE: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
REV 05b
PART # DESCRIPTION QTY PART # DESCRIPTION QTY
1 Table 1 34 Set Screw 2
2 Sanding Belt 1 35 Driving Roller 1
3 Miter Gauge 1 36 Nut (M8) 6
4 Screw (M5x30) 2 37 Key (B5x50) 1
5 Angle Gauge 1 38 Driving Roller Shaft 1
6 Washer (8) 6 39 Back Stop 1
7 Screw (M8x12) 1 40 Sanding Belt Frame 1
8 Nut (M5) 2 41 Roller Adjust Bar 2
9 Table Support Bracket 1 42 Spring Pin (5) 2
10 Knob 1 43 Leader Roller 1
11 Screw (M5x10) 1 44 Lock Knob/Adjust Nut Assy 2
12 Pointer 1 45 Spring 2
13 Set Screw 1 46 Leader Roller Shaft 1
14 Set Screw 7 47 Support Bolt (M16x240) 1
15 Sanding Disc 1 48 Screw (M8x30) 4
16 Sanding Disc Plate 1 49 Nut (M8x30) 1
17 V-Belt (A-710) 1 50 Cord Clamp 1
18 Support Bar 1 51 Base 1
19 Large Pulley 1 52 Small Pulley 1
20 Screw (M8x10) 3 53 Switch 1
21 Washer (8) 6 54 Cord Clamp 1
22 Pulley Cover 1 55 Power Cord 1
23 Screw (M8x35) 2 56 Stand 2
24 Washer (4) 1 57 Upper Bracket 2
25 Knob 1 58 Bolt (M8x10) 16
26 Bracket 1 59 Rubber Foot 4
27 Retaining Ring 4 60 Washer (8) 8
28 C-Snap Ring 1 61 Screw (M5x12) 8
29 Ball Bearing 4 62 Nut (M5) 4
30 Motor 1 63 Nut (M8) 4
31 Screw (M8x25) 5 64 Frame 2
32 Key (B5x20) 1 65 Washer (8) 4
33 Tube 2 66 Screw (M8x10) 4

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 18
ASSEMBLY DIAGRAM
NOTE: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
1
3
2
5
6
7
9
6
10
11
12
13
16
15
17
14
52
19
14
18
4
8
34
35 33
36
21
29
28
27
37 38
27
29
3121
30
26
6
23
22
21
20
39
6
31
40
4142
43
44
45
42
41
46
44
45
47
48
6
14
49
32
14
51
6
36
53
54 55
50
27
29
27
29
56
58
58
59
60
61
60
62
63
64
58
64
63
66
65
58
65
66
57
56
59
60
61
REV 05b

SKU 06852 For technical questions, please call 1-800-444-3353. PAGE 19
LIMITED 1 YEAR / 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that for a period
of ninety days from date of purchase that the engine/motor, the belts (if so equipped),
and the blades (if so equipped) are free of defects in materials and workmanship. Harbor
Freight Tools also warrants to the original purchaser, for a period of one year from date of
purchase, that all other parts and components of the product are free from defects in ma-
terials and workmanship (90 days if used by a professional contractor or if used as rental
equipment). This warranty does not apply to damage due directly or indirectly, to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, normal wear and
tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons
or property, or for incidental, contingent, special or consequential damages arising from
the use of our product. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation of exclusion may not apply to you. THIS
WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the com-
plaint must accompany the merchandise. If our inspection verifies the defect, we will either
repair or replace the product at our election or we may elect to refund the purchase price
if we cannot readily and quickly provide you with a replacement. We will return repaired
products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning
the product.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
