Centrios 2516511 User manual

1
CCD Web Camera
2516511

1
Contents
Introduction .................................................................2
System Requirements ................................................2
Package Contents ......................................................3
Web Camera Introduction ...........................................3
Set up Web Camera ...................................................4
Driver Installation ....................................................... 5
Software Installation
Arcsoft VideoImpression 2.0 ................................. 6-7
Live Video Playing ................................................... 8
Camera Specifications ............................................ 9
Warranty ..............................................................10-11

2
Introduction
Welcome to the world of digital imaging. The following
information will help you to use your camera to its full
capabilities.
For viewing pictures or video, camera must be connected to
your personal computer.
System Requirements
• Personal computer, laptop, desktop, or IBM compatible
with Pentium 166 MHz minimum, and with an active USB
(universal serial bus) port.
• Windows 98SE/ME/2000/XP, CD ROM drive, color
monitor, mouse and keyboard.
• For transferring still images, or for video conferencing,
your computer must have modem and communication
software for Internet connectivity.

3
Package Contents
Web Camera Introduction
Web camera CD-disc Earphone
Manual
Snapshot
Button LED
Lens
Tripod
CCD Web CAMERA

4
Set up Web Camera
Please manually adjust
the focus to view the
best image quality.
You have the option of using the web camera at your desk-
top or notebook by adjusting the tripod.

5
Driver Installation

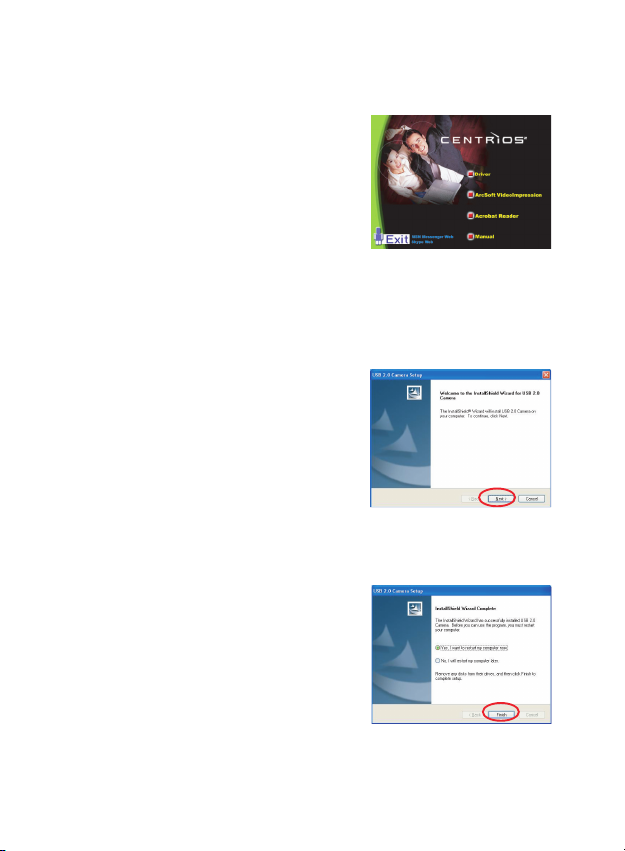

1. Turn on the computer and
insert the CD installation disc
into your CD-ROM drive.
Select and click “Driver”.
2. Click “Next” to continue.
3. Click “Finish” to complete the
installation.

6
Software Installation
AcrSoft VideoImpression 2.0

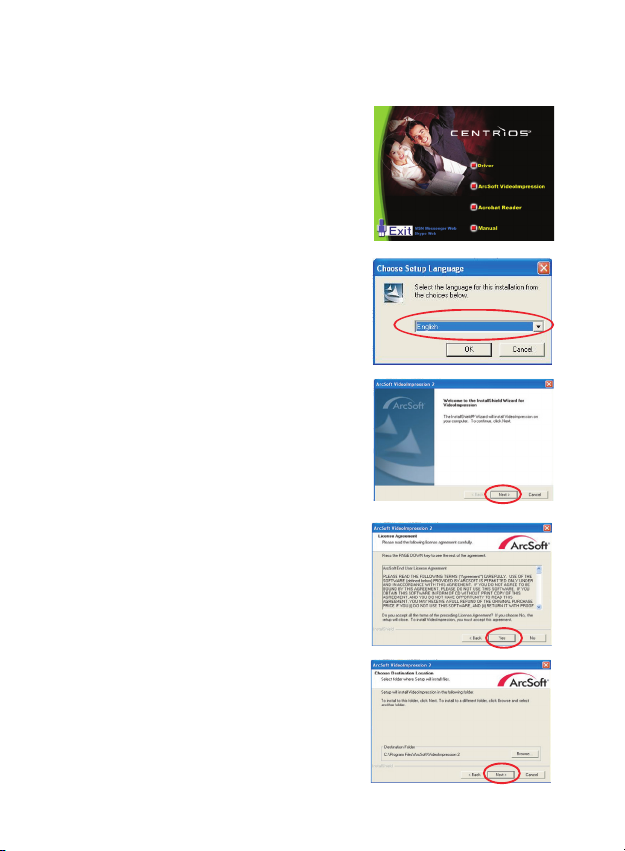

1. Turn on the computer and
insert the CD installation disc
into your CD-ROM drive.
Select “ArcSoft
VideoImpression 2.0”.
2. Choose Setup Language.
3. Click “Next”.
4. Click “Yes”.
5. Click “Next”.

7

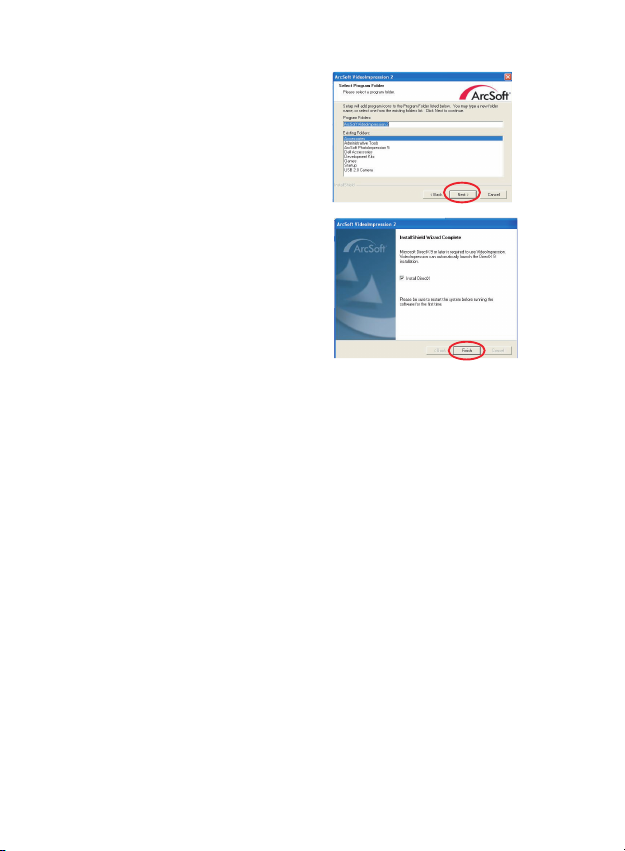

6. Click “Next”.
7. Click “Finish”.

8
Live Video Playing
AcrSoft VideoImpression 2.0

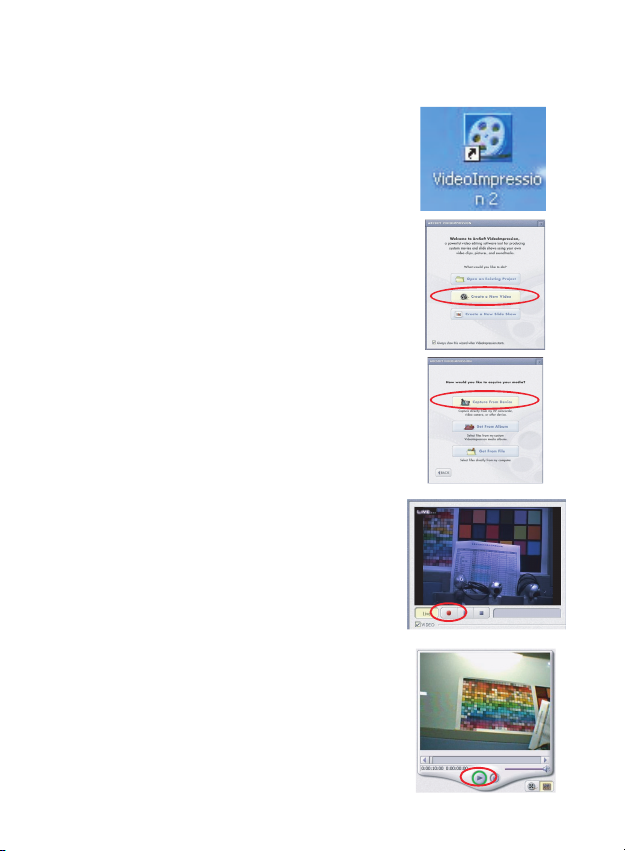

1. Click on the “VideoImpression
2.0” icon on the desktop.
2. Click “Create a New Video”.
3. Click “Capture From Device”.
4. Click “Record” and click “Stop” to
finish.
5. Now you are playing the video.

9
Camera Specifications
Image Sensor 1/4” color progressive CCD,
659 x 494 pixels
Lens Specification F2.8, f=4.5 mm, view angle 54º
O/S Windows 98SE/2000/ME/XP
White Balance Auto
Exposure control Auto
Frame Rate VGA 640 x 480 pixels @ 30fps
QVGA 320 x 240 pixels @ 30fps
Focus Range Manual focus, 1 cm to infinity
Depth of Field 50 cm to infinity
PC Interface USB 2.0
Video Format AVI
Video Capture Res. 640 x 480 pixels
320 x 240 pixels
160 x 120 pixels
Snap Shot Hardware
Still Capture Res. Up to 640 x 480 pixels
Flicker Control 50Hz, 60Hz
Power From USB port
Bundle Software ArcSoft VideoImpression 2.0

10
