Centrometal EKO-CK P 20-40 Owner's manual

TECHNICAL INSTRUCTIONS
FOR THE COMMISSIONING AND ADJUSTMENT
Cm Pelet-set
(14-35 kW)
For boilers:
EKO-CK P 20-40 (EKO-CK 20-40)
EKO-CKB P 20-40 (EKO-CKB 20-40)
TUPS-M-1-2017-E-N-ENG

Technical instructions for the commissioning and adjustment
2
CONTENTS
1. Introduction ...……………………………………………………………………………………………..
2. Status at delivery …………………………………………………………………………………………
3. Technical data ……………………………………………………………………………………………
4. Installation of Cm Pelet-set ..………………………………………………………………..…………..
4.1. Installation of pellet burner and pellet control unit on boiler ..……………..…………...
4.2. Installation of pellet tank CPSP and pellet feeder CPPT …..………………………..…..
5. Draught of the chimney..…………………………………………………………………………………
6. Boiler control unit …………………………………………………………………………………………
6.1. Description of control buttons and marks .………………………………………………...
6.2. Symbol description …………………………………………………………………………...
6.3. Basic setting of burner operation …….……………………………………………………..
6.4. The basic software configuration ..................................................................................
6.5. Fine tuning of operating parameters of the burner ….………………………...………….
6.6. Burner operation modes ……………………………………………………………………..
7. Interruption of power supply.…………………………………………………………………………….
8. Electrical connection.……………………………………………………………………………………..
9. The possibility of fan lid installing……………………………………………………………………...
3
3
3
4
4
9
9
9
9
10
10
11
14
20
24
24
28

Technical instructions for the commissioning and adjustment
3
1. Introduction
Cm Pelet-set, pellet based heating system (nominal burner output of 14 kW and from 20 to 35 kW)
designed for installation in combined boilers or biomass firing boilers EKO-CK P (EKO-CK) and EKO-
CKB P (EKO-CKB), with thermal output from 20 to 40 kW. These technical instructions present
commissioning, as well as fine tuning of the burner operating parameters. Installation, commissioning
and fine tuning of Cm Pelet-set must be carried out by the manufacturer authorized fitter/serviceman
Use and maintenance instructions for Cm Pelet-set in daily work are also supplied with these
instructions.
2. Mode at delivery
1. pellet burner CPPL-14 or CPPL-35
2.a) Set for installation of pellet burner (only new boiler models)
2.b) Lower boiler door CPDV (only for models that have special doors for installation of pellet)
3. boiler control unit CPREG
4. pellet feeder CPPT
5. pellet tank CPSP
3. Technical data

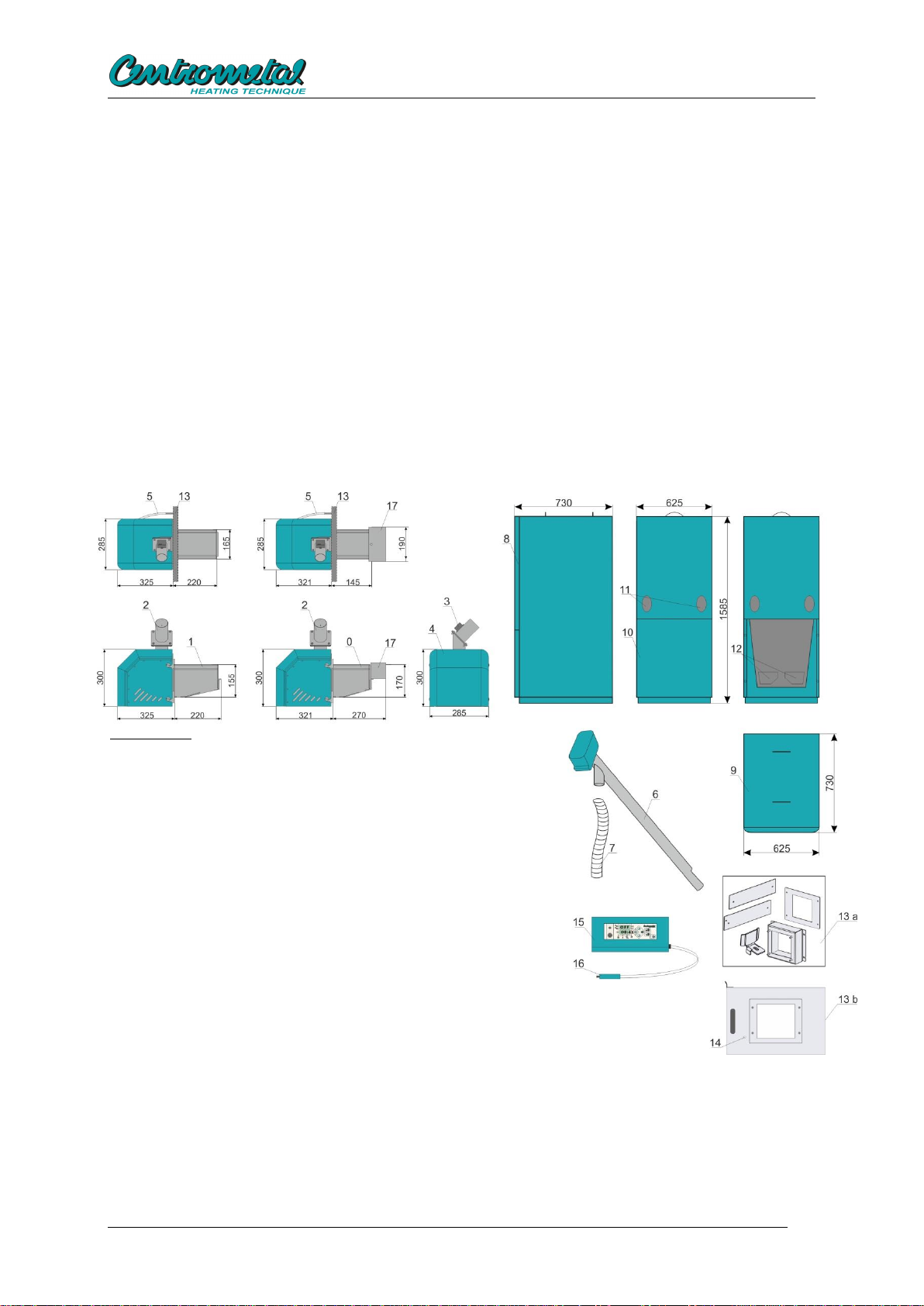

Description:
0. pellet burner CPPL-14
1. pellet burner CPPL-35
2. tube for connecting of pellet feeding flexible tube
3. Backfilling sensor / temperature gauge on inlet tube that
is installed tube for connecting of pellet feeding flexible
tube (backfilling sensor is detailed in the
Technical instructions for use and maintenance)
4. burner cover
5. plastic and silicone pressure switch pipe
6. feeder with electric motor CPPT
7. pellet feeder flexible tube
8. pellet tank CPSP
9. cover of opening for filling the pellet tank
10. lower lid for tank cleaning
11. opening for pellet feeder
12. openings for tank cleaning
13.a) Set for installation of pellet burner (only new boiler models)
13.b) Lower boiler door adapted for pellet burner CPDV
(for boilers EKO-CK/CKB)
14. connector for pressure switch silicone pipe
on the lower boiler door CPDV
15. boiler control unit CPREG
16. micro switch for lower boiler door
17. ceramic nozzle (only CPPL-14)

Technical instructions for the commissioning and adjustment
4

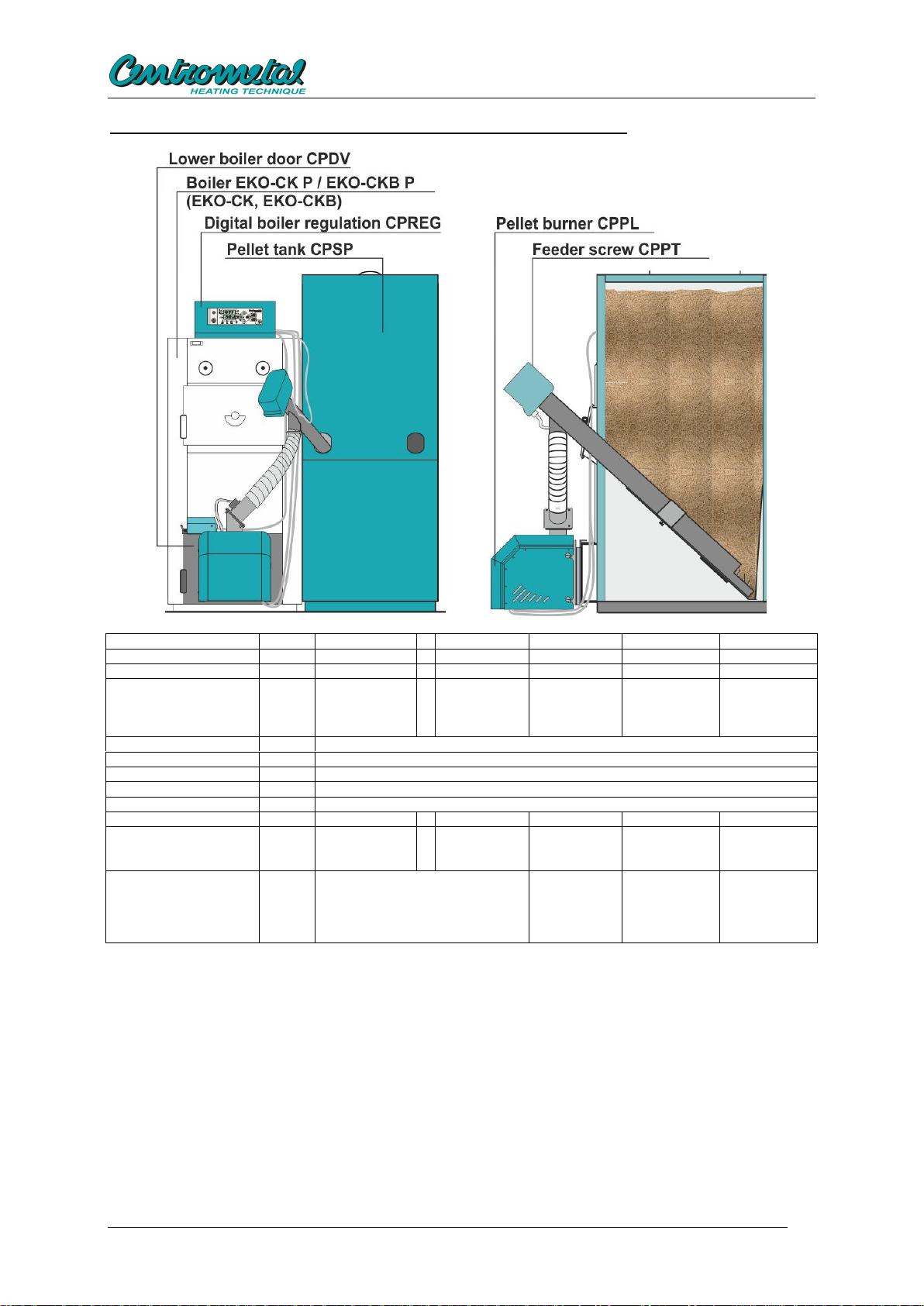

Cm Pelet-set on boilers EKO-CK P (EKO-CK) and EKO-CKB P (EKO-CKB)
Cm Pelet-set type
14
20
25
30
35
Burner CPPL type
CPPL-14
CPPL-35
CPPL-35
CPPL-35
CPPL-35
Set thermal output
(kW)
14
20
25
30
35
Boiler type
EKO-CK
P/CKB P 20
(EKO-CK/B 20)
EKO-CK
P/CKB P 25
(EKO-CK/B
25)
EKO-CK
P/CKB P 30
(EKO-CK/B
30)
EKO-CK
P/CKB P 35
(EKO-CK/B
35)
EKO-CK
P/CKB P 40
(EKO-CK/B
40)
Pellet tank volume
(l)
370
Pellet tank height
(mm)
1545
Pellet tank depth
(mm)
730
Pellet tank width
(mm)
625
Supply voltage
V/Hz
230/50
Boiler width
(mm)
526
526
576
626
676
Set for installation
of pellet burner (only
new boiler models)
14-25
14-25
14-25
30-35
30-35
Lower boiler door CPDV
(mm)
CPDV for
EKO-CK P/CKB P (EKO-CK/B) 20,
25
CPDV for
EKO-CK
P/CKB P
(EKO-CK/B)
30
CPDV for
EKO-CK
P/CKB P
(EKO-CK/B)
35
CPDV for
EKO-CK
P/CKB P
(EKO-CK/B)
40
4. Installation of Cm Pelet-set
Commissioning and fine adjustment of Cm Pelet-set should be carried out by a professional or the
manufacturer’s authorized fitter.
4.1. Installation of pellet burner and pellet control unit on the boiler
a1) On the lower boiler doors that are already planned to upgrade the pellet burner (new
boiler models)
a2) On the lower boiler door CPDV which should be further purchase.
Remove lower boiler door and install lower boiler door CPDV supplied with Cm Pelet-set (if
lower boiler door CPDV is not already installed on the boiler).
b) remove burner protection cover, place burner head (with fixed thicker gasket toward door and
thinner gasket on the side away from door) onto prepared screws on the door, then place a

Technical instructions for the commissioning and adjustment
5
feeding box and tighten the screws with enclosed nuts M8. Put a gasket onto the feeding box and
put a feeding tube onto it (faced toward the pellet tank, either on the left or on the right side and
tighten it firmly using enclosed screws M4 x 15. Connect 3-pin plug of the backfilling sensor /
temperature sensor'' the supply pipe in 3-pin connector which is attached to the feeding box. PVC
and silicone pipe, which is at its one end fixed to the pressure switch at the burner, should be
placed (and shorten if necessary) onto appropriate connector on the boiler door. Place cover onto
preinstalled screws and tighten them firmly.
Only CPPL-14: put ceramic nozzle onto holder located on the top of burner head.
Installation of the burner onto lower boiler door
c) On the top side of boiler plating, using enclosed screws 3.9 x 9.5 mm, fix boiler control unit
CPREG, insert the safety thermostat sensor and control unit sensor into the sleeve on the boiler
(on the top side on EKO-CK P (EKO-CK) boiler, and on the front side on EKO-CKB P (EKO-CKB)
boiler; sensors should run to the sleeve along lateral side of the boiler) and connect wires by 4-
poles and 6-poles connectors onto the burner and then fix the connectors to the burner body. Fix
wire cable between the control unit and burner to the boiler casing by supplied plastic cable holder
(fix cable holder onto boiler casing with tapping screws 3.9 x 16 mm).

Technical instructions for the commissioning and adjustment
6
d) Set the micro switch (1) in lower left or right corner (depend about opening direction of lower boiler
door) of the lower front casing of the boiler (3) using 2 screws, put the cover (2) according to the
picture on micro switch and fasten it with the screw. Check if lower boiler door, when they are
closed, push the micro switch (See figure below).

Technical instructions for the commissioning and adjustment
7
e) Assembly the pellet tank CPSP according to technical instructions and position it next to the right
or left boiler side onto horizontal surface. Align tank bottom with the boiler bottom and align the
front tank side with the front side of boiler plating.
f) Place the feeder CPPT into tank and connect it by a transparent flexible tube with a pellet burner
CPPL. Fix one end of transparent flexible tube to the burner (onto the feeding tube) to backfilling
sensor / temperature gauge on inlet tube, and other end should be fixed to the feeder so that the
tube will not become loosen. Transparent tube between the feeder and burner must be as straight
as possible so that pellets can fall smoothly from the feeder into the burner (if pellets remain in the
tube, it should be straighten and shorten, if necessary).
g) Connect a wire for power supply to the screw feeder CPPT to the connector (2) on the back side
of the control unit CPREG.
h) If sanitary water is prepared by using the boiler control unit, or the system installed one or more
accumulation tank (CAS) a sanitary water sensor should be fixed to connector 4 instead of a
jumper wire.
h1) If the sanitary water is prepared with the help of boiler control unit, sensor should
be placed in domestic hot water tank (Figure 1a).
h2) if it is installed one or more accumulation tanks (CAS) it is necessary to set the
domestic hot water sensor at the lowest sensor sleeve on the last accumulation
tank (CAS) or in a sensor tube below the water level we want to warm up (see
Figure 1b). In this case the hot water sensor has no direct connection with the
preparation of hot water (Figure 1b).
i) If used Telecontrol or cascade manager they is connected in place of a room thermostat
(Connector 3).
j) A jumper wire is factory installed in the place of room thermostat (connector (3). If an adapter is
used for ‘’more zones’’ control (optional equipment), a jumper wire in the connector (3) must be
put.
k) Do not connect boiler control unit to power supply via a built in thermostat on the boiler (if there is
a thermostat on the upper side of EKO-CK P/CKB P (EKO-CK/B) boiler).

Technical instructions for the commissioning and adjustment
8

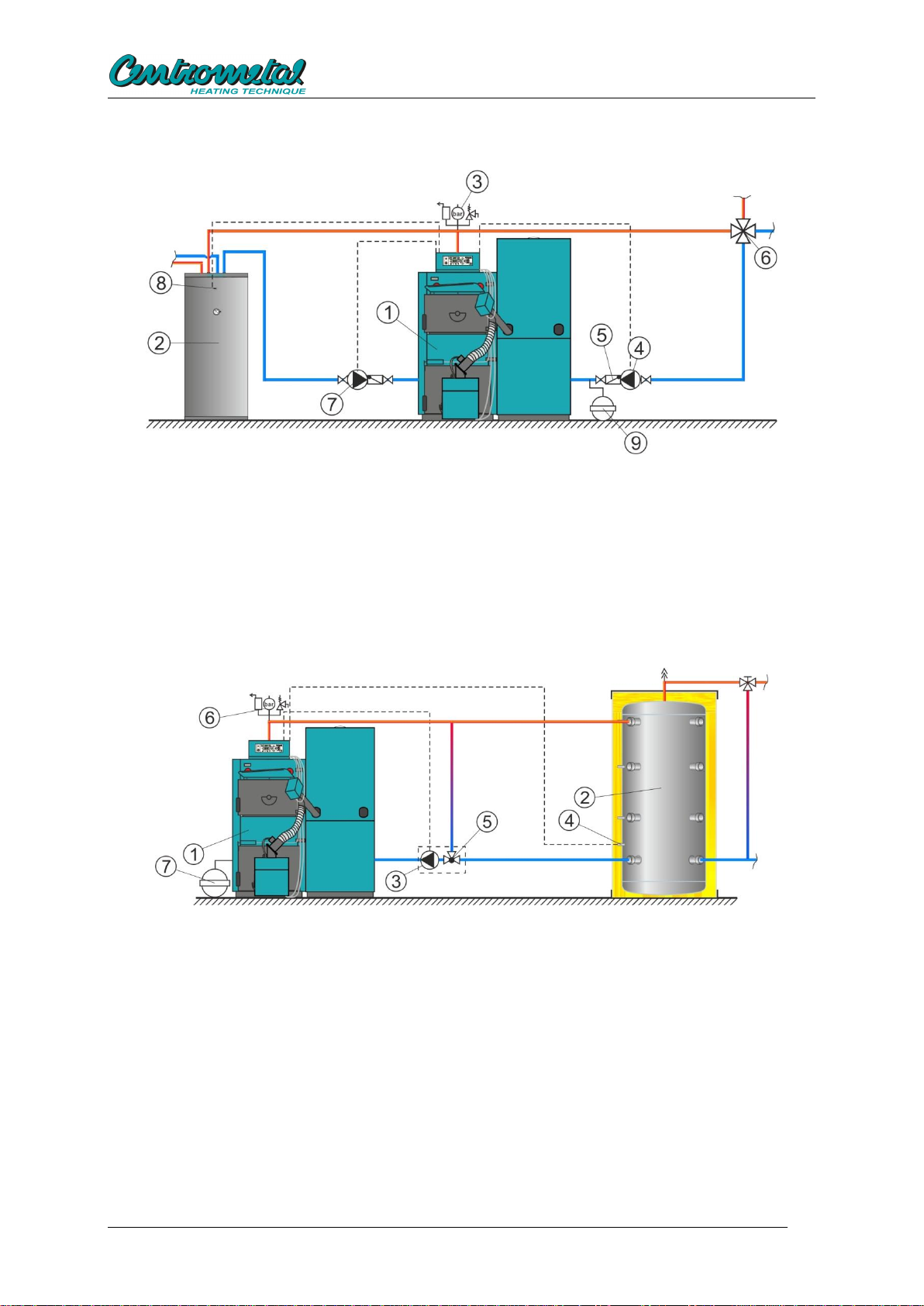

Figure 1a. Connection scheme of the boiler EKO-CK P / EKO-CKB P (EKO-CK / EKO-CKB) with
in-built Cm Pelet-set on heating installation with stainless steel hot water boiler:
1. Boiler EKO-CK P / EKO-CKB P (EKO-CK / EKO-CKB) with in-built Cm Pelet-set
2. Stainless steel hot water boiler TB
3. Air selfventing group
4. Heating system pump
5. Non-return valve
6. Manual 4-way mixing valve
7. Sanitary water pump
8. Sanitary water sensor
9. Expansion vassel (10% volume of water in the installation)
Figure 1a. Connection scheme of the boiler EKO-CK P / EKO-CKB P (EKO-CK / EKO-CKB) with
in-built Cm Pelet-set on heating installation with accumulation tank:
1. Boiler EKO-CK P / EKO-CKB P (EKO-CK / EKO-CKB) with in-built Cm Pelet-set
2. Accumulation tank (CAS)
3. Heating pump between boiler and accumulation tank (CAS)
4. Sanitary water sensor (at the lowest sensor sleeve on the accumulation tank (slučaj h2))
5. 3 - way thermostat valve for outlet protection (as ESBE VTC 512, VTC 531, LTC 141
or Laddomat 21)
6. Air selfventing group
7. Expansion vassel (10% volume of water in the installation)

Technical instructions for the commissioning and adjustment
9
4.2. Installation of CPSP pellet tank and CPPT pellet feeder
See Technical instructions for installation, use and maintenance of pellet tank and feeder supplied with
CPSP pellet tank and CPPT screw feeder.
5. Draught of the chimney
Chimney of appropriate size is one of conditions for proper operation of the boiler. If the boiler is (or
will be) fired with solid fuel and wooden pellets (only for EKO-CK boilers), chimney has to be select
according to diagram for solid fuel firing (see Technical instructions EKO-CK or EKO-CKB). If boiler is
fired only with wooden pellets, a chimney with the following minimum draughts has to be select for
certain powers:
-Cm Pelet-set 14 = 9 Pa
-Cm Pelet-set 20 = 10 Pa
-Cm Pelet-set 25 = 11 Pa
-Cm Pelet-set 30 = 13 Pa
-Cm Pelet-set 35 = 14 Pa
6. Boiler control unit
Boiler control unit is supplied in a plasticized metal box prepared for installation on boilers EKO-CK P
(EKO-CK) and EKO-CKB P (EKO-CKB).

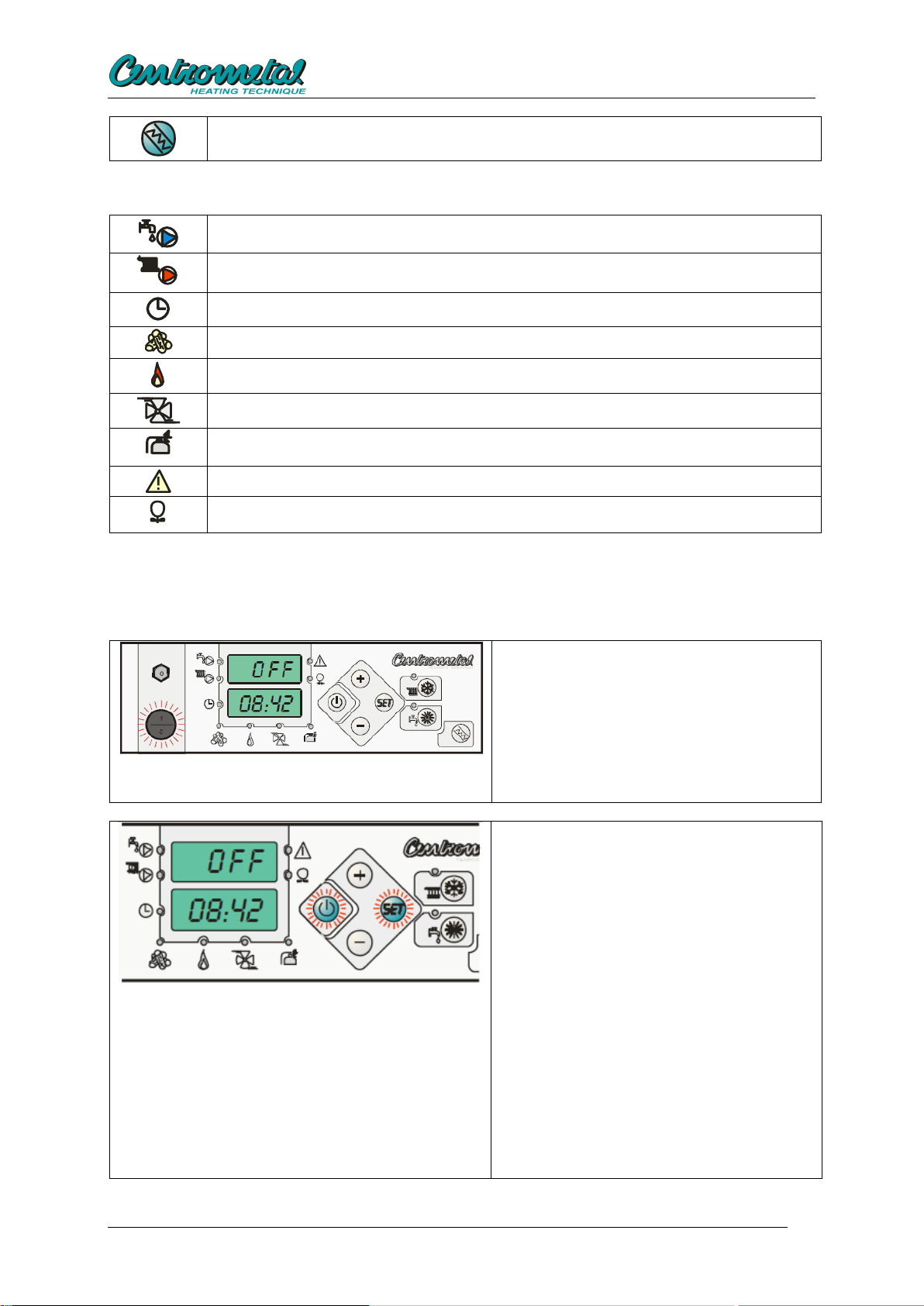

6.1. Description of buttons and symbols on the control unit
Button
Function
Safety thermostat button.
0
1
Main switch to turn on/turn off power supply to the control unit
Start/stop button (on/off)
- By pressing the button for 3 sec. the burner turns on.
- While the burner operates, by pressing the button for 3 sec. the burner goes to
extinction phase.
- Short pressing of the button: Exit from parameter setting and their saving.
Entry button to the parameter setting menu and going to the next parameter
Setting of the selected parameter to higher value.
Setting of the selected parameter to lower value
Selection of the WINTER firing regime. In this regime the heating pump turns on and a
sanitary water pump also turns on if a sanitary water sensor and tank is built in.
Selection of the SUMMER firing regime. In this regime only the sanitary water pump
turns on if a sanitary water sensor is built in. If it is a boiler with sanitary hot water
heater inside the boiler water and if no sanitary water sensor and tank is built in,
neither the heating pump nor the sanitary water pump will turn on in the summer
regime.

Technical instructions for the commissioning and adjustment
10
Manual switch on of the pellet feeder. It is used to supply the feeder with pellets (after
tank cleaning, tank discharge…).
6.2. Symbol description
Indication of operation of the sanitary water heating pump
Indication of operation of the heating pump circuit.
Indication of turn on status of timer (time programmes)..
Indication of operation of pellet feeding screw feeder
Indication of flame presence in the burner
Indication of operation of the burner fan.
Indication of operation of electric heater (for firing of pellets).
An indication of activation errors except errors of safety pressure switch.
Indication of the safety pressure switch due to too high pressure in the boiler
combustion chamber
6.3. Basic setting of burner operation
Basic setting of burner operation is described in details in ''Technical instructions for use and
maintenance of Cm Pelet-set''.
Turning on of control unit
If control unit is turned on by a main switch, it
will be in OFF mode, i.e. the burner does not
work.
''OFF'' appears on the upper display, and
current time and current temperature in boiler
are alternately displayed on the lower
display.
Burner operating parameters can be set in
any operation mode (‘’ON’’ mode) or standby
mode (‘’OFF’’ mode) of the burner.
By longer pressing of ‘’SET’’ button the
parameter setting menu is entered, and by
short pressing of ‘’SET’’ button you can
switch from menu to menu.
Exit from a menu to home display and saving
of modified values is made by short pressing
of ‘’On/Off’’ button or by passing through all 9
parameters and returning to the home display
In service menu you can move to next
parameter by short pressing of ‘’SET’’ button.
Exit from service menu, saving and return to
home display is done by short pressing of
‘’ON/OFF’’ button.
If no button is pressed within 90 seconds, the
control unit automatically exits the service
menu to home display without saving of
modified parameters..

Technical instructions for the commissioning and adjustment
11
6.4. The basic software configuration (by authorized service)
It is used for the case:
- on CentroPlus/-B boiler firing with solid fuel / pelets: adjusting the temperature of the boiler
for the first firing a pellet burner (for CentroPlus /-B boilers fired with solid fuel / wood pellets)
when working on wood without accumulation tank (CAS)
- adjust the maximum temperature in the accumulation tank (CAS) for the first firing a pellet
burner (if accumulation tank (CAS) is installed).
- Adjust the switch off of pump heating to accumulation tank (CAS)
- adjust the desired temperature in the accumulation tank (CAS) for the first firing a pellet
burner (if accumulation tank (CAS) is installed)
- Adjust the diference "D" of burner work
- Adjust the domestic hot water priority (must remain at the factory settings if the accumulation
tank (CAS) is built-in).
- adjustment work with external controller or remote control "telecontrol"
Service menu Pr09 for a basic software configuration
After entering the setting menu move to Pr09 programme by multiple short pressure on ‘’SET’’ button
and entering the correct ‘’PIN’’ for entering the service menu.
Pr09: PIN entry
Factory setting: OFF (turned off)
Available setting: Pin (turned on)
When ''+'' button is pressed, ‘’PIN’’ is displayed in the
lower display, and after that PIN can be entered; PIN
enables to enter the burner setting menu. PIN is the
following series of 5 buttons:
PIN is the following series of 5 buttons:
(-), (winter), (screw), (+),
(summer).
If a wrong PIN is entered, you may start the series
from the beginning at any time.
Exit from Pr09 is done by pressing SET button.
OP01 - The temperature of the boiler
for the first firing a pellet burner
(for CentroPlus /-B boilers fired with
solid fuel / wood pellets) when working
on wood without accumulation tank (CAS)
Factory setting: "0" (turned off)
Available setting: "0" ili "50...80 °C".
OP02 - maximum temperature in the accumulation
tank (CAS) for the first firing a pellet
burner (if accumulation tank (CAS) is
installed).
Factory setting: "0" (turned off)
Available setting: "0" ili 40...85 °C".
When ''+'' button is pressed ‘’ 40...85°C’’ is displayed
in the display (turned on - the first start of the burner
at a temperature below the accumulation tank

Technical instructions for the commissioning and adjustment
12
temperature setting). If "OP02" is turned on then
domestic hot water sensor is defined as a
accumulation tank sensor it is necessary to set at the
lowest sensor sleeve on the last accumulation tank
(CAS) or in sensor sleeve below the level that we
want to heat up in accumulation tank (CAS).
OP03 - Switch off of pump to accumulation tank
(CAS)
Factory setting: "0" (turned off)
Available setting: "0" ili 60°C...(90-(D+1).
When ''+'' button is pressed ‘’60°C...(90-(D+1)’’ is
displayed in the display.
if the "OP03" is "ON", Tboiler set ("Pr01") min.=
("OP03 set) + (D+1)°C).
D = diference of burner work
In case the built-in protection element return line
"OP03" should be set at a minimum temperature of
the opening of the protective elements +1.
OP04 - Desired temperature in the accumulation
tank (CAS) for the first firing a pellet
burner (if accumulation tank (CAS) is
installed).
Factory setting: "0" (turned off)
Available setting: "0" ili "20...90°C".
Not valid for the first start if active "OP02".
When ''+'' button is pressed "20...90°C" is displayed in
the display, diference applies the same as in the
boiler.
OP05 - Diference "D" of burner work
Factory setting: "0" (turned off), boiler diference
(and accumulation tank diference if "OP03" and
"OP04" is turned on) = 5°C.
Available setting: "0" ili "6...15°C".
When ''+'' button is pressed "6..15°C" is displayed in
the display - diference of the boiler (and accumulation
tank if "OP04" is turned on).
OP06 - Domestic hot water priority (must remain
at the factory settings if the accumulation tank
(CAS) is built-in).
Factory setting: "0" (turned off)
Available setting: "0" (turned off), "1" (turned on), "2"
(turned on).
"1" - a priority hot water (heat pump shuts down when
there is a requirement for a sanitary water)
"2" - when there is a need for sanitary water pump
heat for 5 minutes (if request) / stand 5 minutes
When is "OP02" and/or "OP04" is turned on, "OP06"
is doesn't have function.
If the accumulation tank is installed, the option must
be disabled ("0").

Technical instructions for the commissioning and adjustment
13

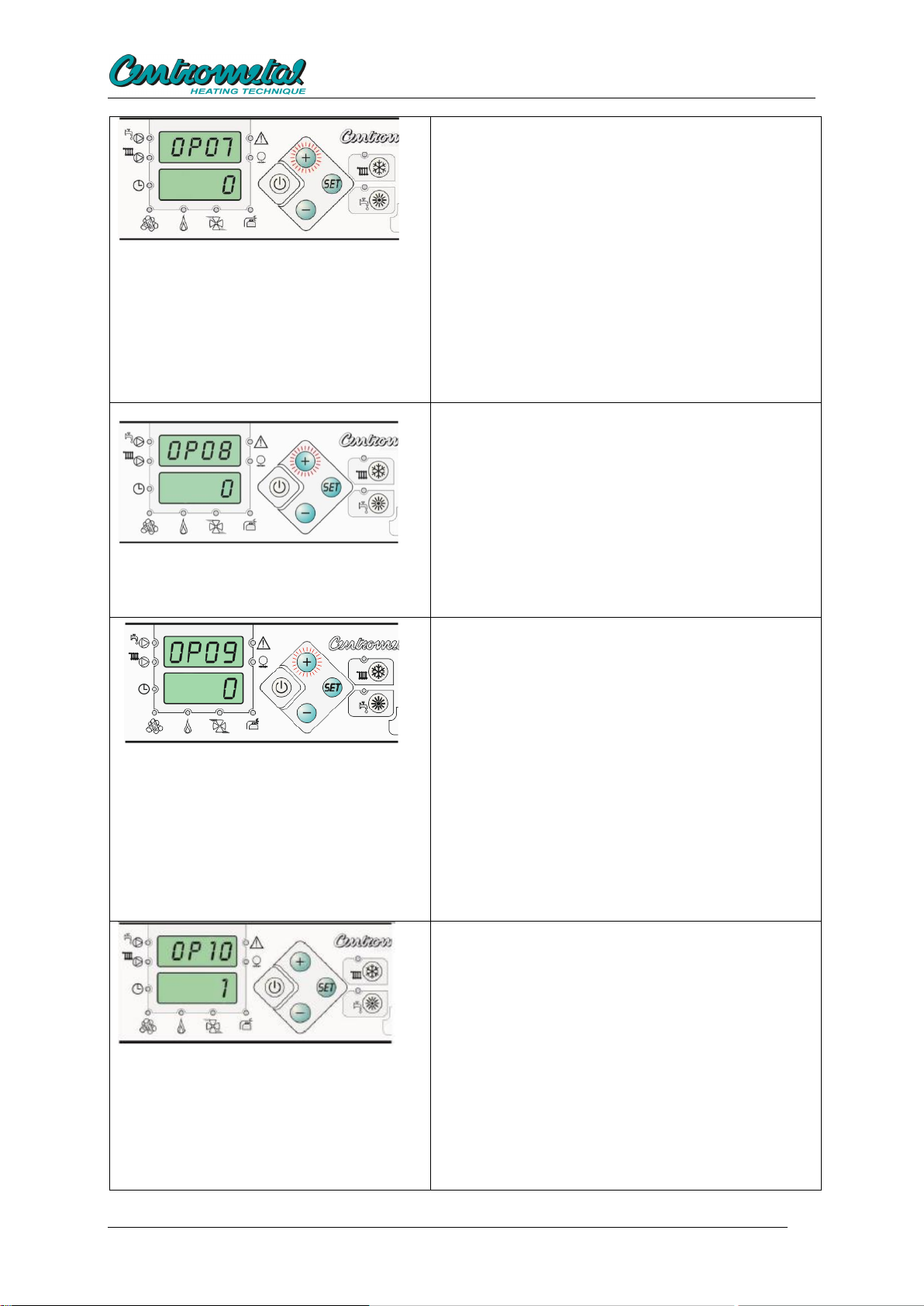

OP07 - Work with external controller or remote
control "telecontrol"
Factory setting: "0" (turned off)
Available setting: "0" (turned off), "1" (turned on).
"OP07" can be turned on ("1") if "OP01" and "OP02" is
turned off.
Turning off with "ON/OFF" button have a priority and
throughout the closing phase + 5 minute except hand
hitting the button "ON/OFF" can't start a burner (or
integrating the time will blend with the wait until after
the closing phases +5 minutes). The procedure to
cancel the action (simultaneous ignition "0 / 1" and
hold "ON / OFF") here goes.
OP08 - Setting functions for REL1- voltage
output 230V (OPTIONAL)
Factory setting "1" ().
Available setting:
0 - (off),
1 - (flap)
2 - (air cleaning)
It cannot be selected the same setting Pr9_OP8 and
Pr9_OP9 except 0 - Off, or in default, / after resetting
to factory settings both values are factory setted to 1 -
flap. Any change to one-flap on something else is not
possible during work
OP09 –Setting functions for REL2- voltage free
contact NO/NC/COM (on optional board)
Factory setting "1" (Flap -not used).
Available setting:
0 - off
1 - flap (not used)
2 - air cleaning
3 - alarm (relay is switched on when there is no alarm,
selecting the appropriate connector on the PCB can
be obtained by peaceful or make contact).
It can not be selected the same setting Pr9_OP8 and
Pr9_OP9 except 0 - (off) or in default, / after resetting
to factory settings both values are the factory at 1-flap.
Any change to one-flap on something else is not
possible during work.
OP10 –adjustment operation / start of burner with
room thermostat
Factory setting: “1” (work without maintaining of
boiler temperature –burner start according to
boiler temperature difference + additional demand
(room thermostat or dislocated DHW tank)
Available setting:
0 - work with maintaining boiler temperature –burner
start according to boiler temperature difference.
1 - work without maintaining of boiler temperature –
burner start according to boiler temperature difference
+ additional demand (room thermostat or dislocated
DHW tank)

Technical instructions for the commissioning and adjustment
14
0 = burner will be start when boiler temperature drop
for difference below adjusted boiler temperature
(demand from room thermostat or dislocated DHW
tank is not followed)
Is OBLIGATORY to use on boilers with inbuilt DHW
tanks (EKO-CKB P (EKO-CKB)) and POSSIBLE to
use on boilers without inbuilt DHW tanks (EKO-CK P
(EKO-CK)) where is wanted boiler temperature
maintaining (on boilers with inbuilt DHW tank, in
summer firing regime, must be installed bridge on
DHW sensor position).
1 = burner will be start after both requirements are
met (1. and 2.): 1. 1. Boiler temperature drop for
difference below adjusted boiler temperature.
2. 2. Demand from room thermostat or dislocated
DHW tank (DHW sensor must be connected, DHW
option must be turned on).
Is used on boiler without inbuilt DHW tank (EKO-CK P
(EKO-CK)) where is not wanted boiler temperature
maintaining but is wanted that boiler start according to
demand from room thermostat or dislocated DHW
tank.
6.5. Fine tuning of burner operating parameters
If fine tuning of burner operating parameters (different quality of pellets, different chimney draught,…)
is required, pellet falling time and fan speed can be changed by entering the service menu.
Pr08 to fine tune the parameters of the burner
After entering the setting menu move to Pr08 programme by multiple short pressure on ‘’SET’’ button
and entering the correct ‘’PIN’’ for entering the service menu.
Pr08: PIN entry
Factory setting: OFF (turned off)
Available setting: Pin (turned on)
When ''+'' button is pressed, ‘’PIN’’ is displayed in the
lower display, and after that PIN can be entered; PIN
enables to enter the burner setting menu. PIN is the
following series of 5 buttons:
PIN is the following series of 5 buttons:
(-), (winter), (screw), (+),
(summer).
If a wrong PIN is entered, you may start the series
from the beginning at any time.
Exit from Pr08 is done by pressing SET button.

Technical instructions for the commissioning and adjustment
15

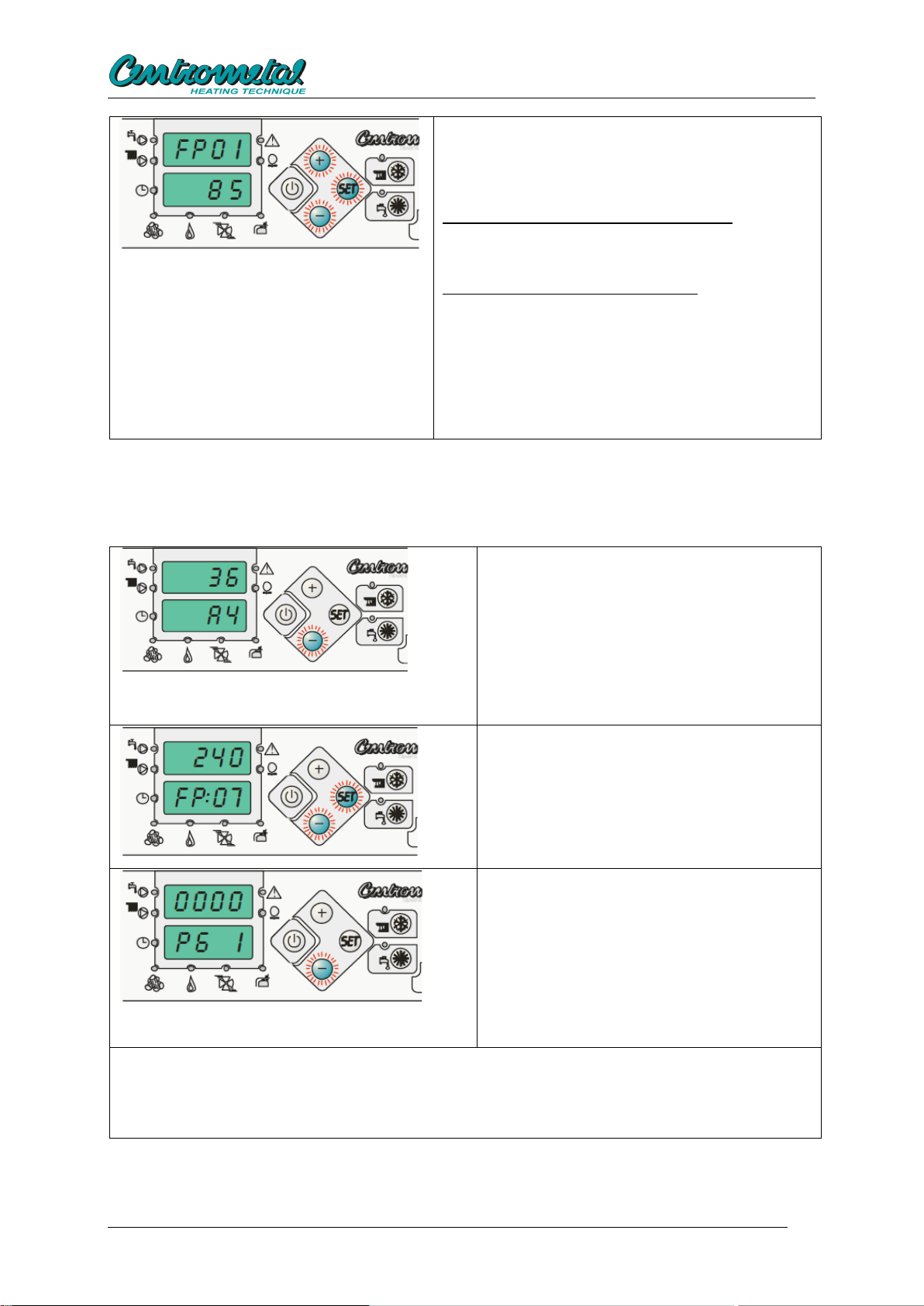

Service menu Pr08
Depending on the burner operation phase or stand-by
phase (OFF mode), the following is displayed in
displays after PIN is entered:
Burner is not operating (''OFF'' mode): Parameter
FP01 is displayed in the upper display, and set value
of the parameter is displayed in the lower display
Burner is operation (''ON'' mode): Current burner
parameter is displayed and set value of the parameter
is displayed in the lower display.

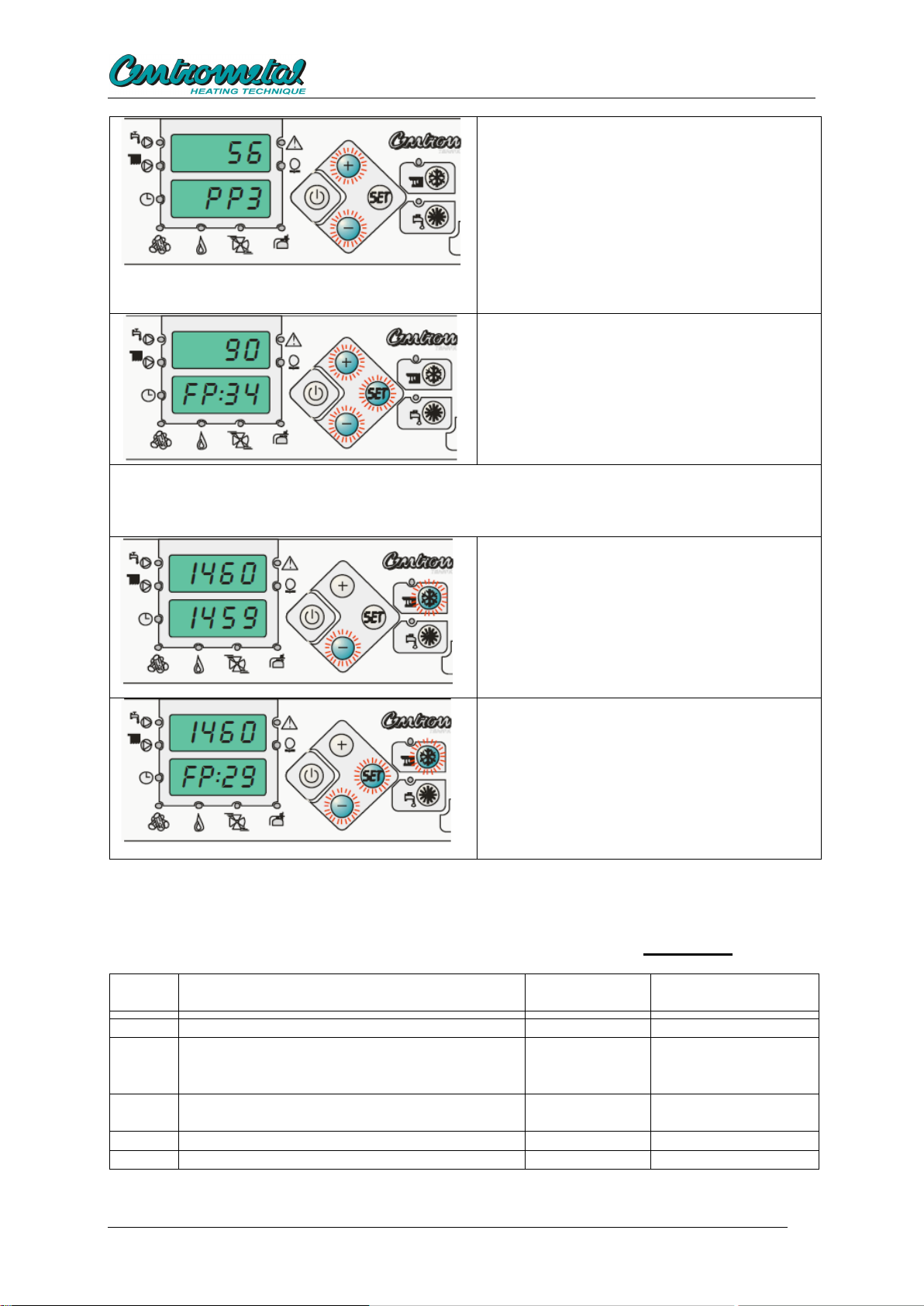

Symbols and values of a parameter are shown in a
table of fine tuning parameters.
Data saving and exit from service menu is done by
short pressing of ‘’ON/OFF’’ button.
After exit the service menu, it is possible, within 60 minutes, to follow current burner operating
parameters in the upper and lower display of the control unit. After 60 minute the overview function of
current parameters is cancelled and, in order to resume it, you have to enter PIN again and leave the
service menu (short push of ‘’ON/OFF’’ button).
Overview of the burner current mode
While the burner is operating, when ''-'' button
is pressed, the burner current mode is
displayed in the lower display, and time to go to
new mode is displayed in the upper display.
Mode symbols are described in section ‘’Burner
modes’’.
Overview of the burner current mode
While the burner is operating, when ''-'' and
''SET'' buttons are pressed together, the burner
current parameter (FPXX) is displayed in the
lower display, and set value of the parameter is
displayed in the upper display.
Overview of the burner current mode
When the burner reached the set programme,
when ''-'' button is pressed, the current burner
output and current burner sub-mode (for
example, P6 1, P4 2, P2 3…) are displayed in
the lower display and 0000 is displayed in the
upper display. Symbols of modes and
submodes are described in ‘’Burner modes’’.
When several times are overlapped in the transition burner operating mode, total times can be
accessed additionally by the following combination of buttons. These combinations are available only
in transition phase and only in case of simultaneous counting of 2 times.

Technical instructions for the commissioning and adjustment
16
Overview of the burner current mode
(only in transition phase)
While the burner is operating, if ''-'' and ''+''
buttons are pressed simultaneously, transition
phase (PPX) is displayed in the lower display
and total time of the transition phase remaining
to transition to the next phase is counted down
in the upper display. Mode description can be
found in ‘’Burner mode’’.
Overview of the burner current mode
(only in transition phase)
While the burner is operating, if ''-'', ''+'' and
''SET'' buttons are pressed simultaneously, the
current burner parameter (FPXX) is displayed
in the lower display, while the set parameter
value is displayed in the upper display.
Within 60 minutes after exit the service menu, fan revolution number can be seen on the control unit,
in any phase of the burner operation.
Overview of the current fan revolution
number
While the burner is operating, if ''-'' and
''WINTER'' buttons are pressed simultaneously,
current fan revolution number (rpm), is
displayed in the lower display, while the set
revolution number in that phase is displayed in
the upper display.
Overview of the current fan revolution
number
While the burner is operating, if ''-'', ''SET'' and
''WINTER'' buttons are pressed
simultaneously, the current burner parameter
(FPXX) (according to rpm) is displayed in the
lower display, while the set parameter value is
displayed in the upper display.
The table below shows times in seconds (sec.) and revolution number per minute (rpm) of individual
parameters with factory settings and available setting range
TABLE WITH FINE TUNING OF BURNER OPERATING PARAMETERS CPPL-14
Param.
Description
Factory
settings
Setting range
FP01
Time of initial pellet feeding
75 sec.
0 - 200 sec.
FP02
Time after which the burner, if is in the
continuous operation phase, going into
automatic extinction phase and re-ignition
0
0 or 60 - 360min
FP03
Time of fan operation at maximum voltage at
the beginning of the burner operation
10 sec.
0 - 999 sec.
FP04
Time for flame development, safety time
720 sec.
0 - 999 sec.
FP05
Working time of electric heater without fan
1 sec.
0 - 99 sec.

Technical instructions for the commissioning and adjustment
17
FP06
Working time of electric heater after photocell
has detected flame
60 sec.
0 - 99 sec.
FP07
Initial fire developing time from flame
occurrence to transition to P1
120 sec
0 - 999sec.
FP08
Not used
0
FP09
Fan working time in extinction phase at the
voltage of set programme
180 sec.
0 - 999 sec.
FP10
Fan working time at max. revolution number at
the end of burner operation
120 sec.
0 - 999 sec.
FP11
Fan revolution number during fire developing
from the beginning of initial pellet feeding to
transition to programme P1
1160 rpm
500 - 2200 rpm
FP12
Revolution number for programme P1
1630 rpm
500 - 2600 rpm
FP13
Screw working time in programme P1
4 sec.
0 –99 sec.
FP14
Screw stand by time in programme P1
14 sec.
0 –99 sec.
FP15
Screw working time in programme P2
6 sec.
0 –99 sec.
FP16
Screw stand by time in programme P2
13 sec.
0 –99 sec.
FP17
Not used
0
FP18
Not used
0
FP19
Not used
0
FP20
Not used
0
FP21
Not used
0
FP22
Not used
0
FP23
Not used
0
FP24
Not used
0
FP25
Revolution number for programme P2
1380 rpm
500 - 2600 rpm
FP26
Not used
500
500 - 2600 rpm
FP27
Not used
500
500 - 2600 rpm
FP28
Not used
500
500 - 2600 rpm
FP29
Not used
500
500 - 2600 rpm
FP30
Revolution number for additional fire developing
in set programme
200 rpm
0 - 500 rpm
FP31
Working time of additional fire developing in set
programme
150 sec.
0 –999 sec.
FP32
Burner work time in transition phase in
programme P1
350 sec.
0 –999 sec.
FP33
Not used
0
FP34
Not used
0
FP35
Not used
0
FP36
Not used
0
FP37*
Suction system configuration
0
0- suction
system is not
installed
1- suction
system is
installed
FP38*
START time
5 sec
1 –20 sec
FP39*
RUNNING time
45 sec
1 –360 sec
FP40*
END time
10 sec
1 –60 sec
FP41*
CYCLE PAUSE time
15 sec
1 –60 sec
FP42*
Maximum RUNNING TIME
30 min
30 –60 min
FP43*
NUMBER OF CYCLES until the sensor is covered
3
1 –20
FP44*
TYPE OF SENSOR
0
This parameter must
be always set on 0.
*parameters for additional equipment (pellet suction system, for detailed description see
technical instructions for installation and use of pellet suction system)

Technical instructions for the commissioning and adjustment
18
If value of any parameter is changed from its factory setting, the modified parameter is blinking to
enable the fitter/serviceman to notice such change.
TABLE WITH FINE TUNING OF BURNER OPERATING PARAMETERS CPPL-35
Param.
Description
Factory
settings
Setting range
FP01
Time of initial pellet feeding
85 sec.
0 - 200 sec.
FP02
Time after which the burner, if is in the
continuous operation phase, going into automatic
extinction phase and re-ignition
0
0, 60 –360 min
FP03
Time of fan operation at maximum voltage at the
beginning of the burner operation
10 sec.
0 - 999 sec.
FP04
Time for flame development, safety time
720 sec.
0 - 999 sec.
FP05
Working time of electric heater without fan
1 sec.
0 - 99 sec.
FP06
Working time of electric heater after photocell has
detected flame
60 sec.
0 - 99 sec.
FP07
Initial fire developing time from flame occurrence to
transition to P1
240 sec
0 - 999sec.
FP08
Not used
0
FP09
Fan working time in extinction phase at the voltage
of set programme
180 sec.
0 - 999 sec.
FP10
Fan working time at max. revolution number at the
end of burner operation
120 sec.
0 - 999 sec.
FP11
Fan revolution number during fire developing from
the beginning of initial pellet feeding to transition to
programme P1
1160 rpm
500 - 2200 rpm
FP12
Revolution number for programme P1
1430 rpm
500 - 2600 rpm
FP13
Screw working time in programme P1
6 sec.
0 –99 sec.
FP14
Screw stand by time in programme P1
24 sec.
0 –99 sec.
FP15
Screw working time in programme P2
6 sec.
0 –99 sec.
FP16
Screw stand by time in programme P2
13 sec.
0 –99 sec.
FP17
Screw working time in programme P3
6 sec.
0 –99 sec.
FP18
Screw stand by time in programme P3
9 sec.
0 –99 sec.
FP19
Screw working time in programme P4
5 sec.
0 –99 sec.
FP20
Screw stand by time in programme P4
5 sec.
0 –99 sec.
FP21
Screw working time in programme P5
9 sec.
0 –99 sec.
FP22
Screw stand by time in programme P5
6 sec.
0 –99 sec.
FP23
Screw working time in programme P6
14 sec.
0 –99 sec.
FP24
Screw stand by time in programme P6
6 sec.
0 –99 sec.
FP25
Revolution number for programme P2
1400 rpm
500 - 2600 rpm
FP26
Revolution number for programme P3
1380 rpm
500 - 2600 rpm
FP27
Revolution number for programme P4
1410 rpm
500 - 2600 rpm
FP28
Revolution number for programme P5
1455 rpm
500 - 2600 rpm
FP29
Revolution number for programme P6
1460 rpm
500 - 2600 rpm
FP30
Revolution number for additional fire developing in
set programme
170 rpm
0 - 500 rpm
FP31
Working time of additional fire developing in set
programme
120 sec.
0 –999 sec.
FP32
Burner work time in transition phase in
programme P1
240 sec.
0 –999 sec.
FP33
Burner work time in transition phase in
programme P2
100 sec.
0 –999 sec.
FP34
Burner work time in transition phase in
programme P3
90sec.
0 –999 sec.
FP35
Burner work time in transition phase in
72 sec.
0 –999 sec.

Technical instructions for the commissioning and adjustment
19
programme P4
FP36
Burner work time in transition phase in
programme P5
75 sec.
0 –999 sec.
FP37*
Suction system configuration
0
2- suction
system is not
installed
3- suction
system is
installed
FP38*
START time
5 sec
1 –20 sec
FP39*
RUNNING time
45 sec
1 –360 sec
FP40*
END time
10 sec
1 –60 sec
FP41*
CYCLE PAUSE time
15 sec
1 –60 sec
FP42*
Maximum RUNNING TIME
30 min
30 –60 min
FP43*
NUMBER OF CYCLES until the sensor is covered
3
1 –20
FP44*
TYPE OF SENSOR
0
This parameter must
be always set on 0.
*parameters for additional equipment (pellet suction system, for detailed description see
technical instructions for installation and use of pellet suction system)
If value of any parameter is changed from its factory setting, the modified parameter is blinking to
enable the fitter/serviceman to notice such change.
Resetting to factory setting
To reset to factory setting, the control
unit has to be switched off on the main
switch, then press simultaneously
„WINTER“ and „SUMMER“ buttons
and keep them pressed until main
switch turns on. Four 8 digits are
displayed in the upper display, and
FAC X (X shows current set
programme) is displayed in the lower
display.
FAC 0-Cm Pelet-set 14 kW
FAC 1-Cm Pelet-set 35 kW
After that, both display return to initial
settings: OFF is displayed in the upper
display and current time/current boiler
temperature are displayed in the lower
display.
Overview of software version
Software version can be displayed by
keeping ''-'' button pressed with
simultaneous turning on of control unit
on the main switch. Software version
is displayed in the upper display, and
four ''-'' signs are displayed in the
lower display.
In this version of software was
introduced full software version review
(letter is displayed too) by pressing on
“Main switch 0/1” and “-“ button.

Technical instructions for the commissioning and adjustment
20
6.6. Burner operating mode
The burner operation in each mode (current mode can be seen on displays of the control unit) is
described below:
Mode A0:
Fan is operating at max. speed and after expiry time FP3 it goes to Mode A1.
If '-' is pressed, A0 Mode is displayed in the lower display and time to FP3 is counted down in the
upper display.
If '-' and 'SET' are pressed, „FP:03“ Mode is displayed in the lower display and FP3 parameter value is
displayed in the upper display
Mode A1:
Counting down of FP4 safety time starts (flame should appear in this time).
Fan turns off and heater turns on. After expiry of FP5 time, it goes to Mode A2.
If '-' is pressed, A1 Mode is displayed in the lower display and time to FP5 is counted down in the
upper display.
If '-' and 'SET' are pressed, „FP:05“ is displayed in the lower display, and FP5 parameter value is
displayed in the upper display.
Mode A2:
Screw turns on, fan turns on to FP11 speed, and heater still works.
Upon expiry of FP1, it goes to Mode A3.
If '-' is pressed, A2 Mode is displayed in the lower display and time to FP1 is counted down in the
upper display.
If '-' and 'SET' are pressed, „FP:01“ is displayed in the lower display, and FP1 parameter value is
displayed in the upper display.
Mode A3:
If FP4 expires, control unit goes to error E2.
If a flame occurs before FP4 time expires, it goes to Mode A4.
If '-' is pressed, A3 Mode is displayed in the lower display and time to FP4 is counted down in the
upper display.
If '-' and 'SET' are pressed, „FP:04“ is displayed in the lower display, and FP4 parameter value is
displayed in the upper display.
Mode A4:
Counting down of times FP6 and FP7 starts.
Upon expiry of FP6 the heater turns off and goes to Mode A5.
If '-' is pressed, A4 Mode is displayed in the lower display and time to FP6 is counted down in the
upper display.
If '-' and 'SET' are pressed, „FP:06“ is displayed in the lower display, and FP4 parameter value is
displayed in the upper display.
By entering into this Mode, monitoring of possible flame loss commences. If flame is absent
over 4 minutes, the heater turns on and control unit goes to Mode A3.
Mode A5:
Upon expiry of FP7 control unit goes to Mode PP1.
If '-' is pressed, A4 Mode is displayed in the lower display and time to FP7 is counted down in the
upper display.
If '-' and 'SET' are pressed, „FP:07“ is displayed in the lower display, and FP7 parameter value is
displayed in the upper display.
