Technical instructions
using of REGULATION
hot water boiler PelTec / PelTec-lambda
THE FIRST START-UP MUST BE DONE BY AUTHORIZED PERSON
OTHERWISE PRODUCT WARRANTY IS NOT VALID
O2=8%
PelTec 12-48
PelTec-lambda 12-48
80°C
120°C
0%
1700
15k
30%
60°C 70°C
50°C
55°C
READY

Technical instructions REGULATION PelTec / PelTec-lambda
2
Screen
After turning on the main switch, screen will display language selection menu and software version.
You can choose between 12 languages, Croatian, French, Portuguese, English, Slovenian, Italian,
Serbian, German, Czech,Hungarian, Slovakian and Spanish. To select the language, press the flag
of language you want.
Software version
Language selection
SWITCHING ON
If the language selection is "disabled" (display > language sel > disabled), initial message wil appear
in the screen as long as the set in the menu "Welcome time" (display > welcome time).
Button’’OK’’
Initial message duration
(countdown)
Software version
Boiler power
(12, 18, 24, 36, 48 kW)
Boiler power
(12, 18, 24, 36, 48 kW)
When turning the main switch the screen should not be pressed (by finger ...). If
the screen when you turn the main switch is pressed (on the screen labeled
"Firmware update ') regulation is in ”software update“ that can be used by
authorized personnel only. If this happens, it is necessary to turn off the main
switch and restarted without any pressure on the display.
Possibility of online boiler
monitoring and online boiler
management.
(Additional equipment- it is
necessary to order a Wi-Fi module.)

Start/stop boiler
State of the current
boiler status
BUTTONS
Button ’’START’’/’’STOP’’
Technical instructions REGULATION PelTec / PelTec-lambda
3

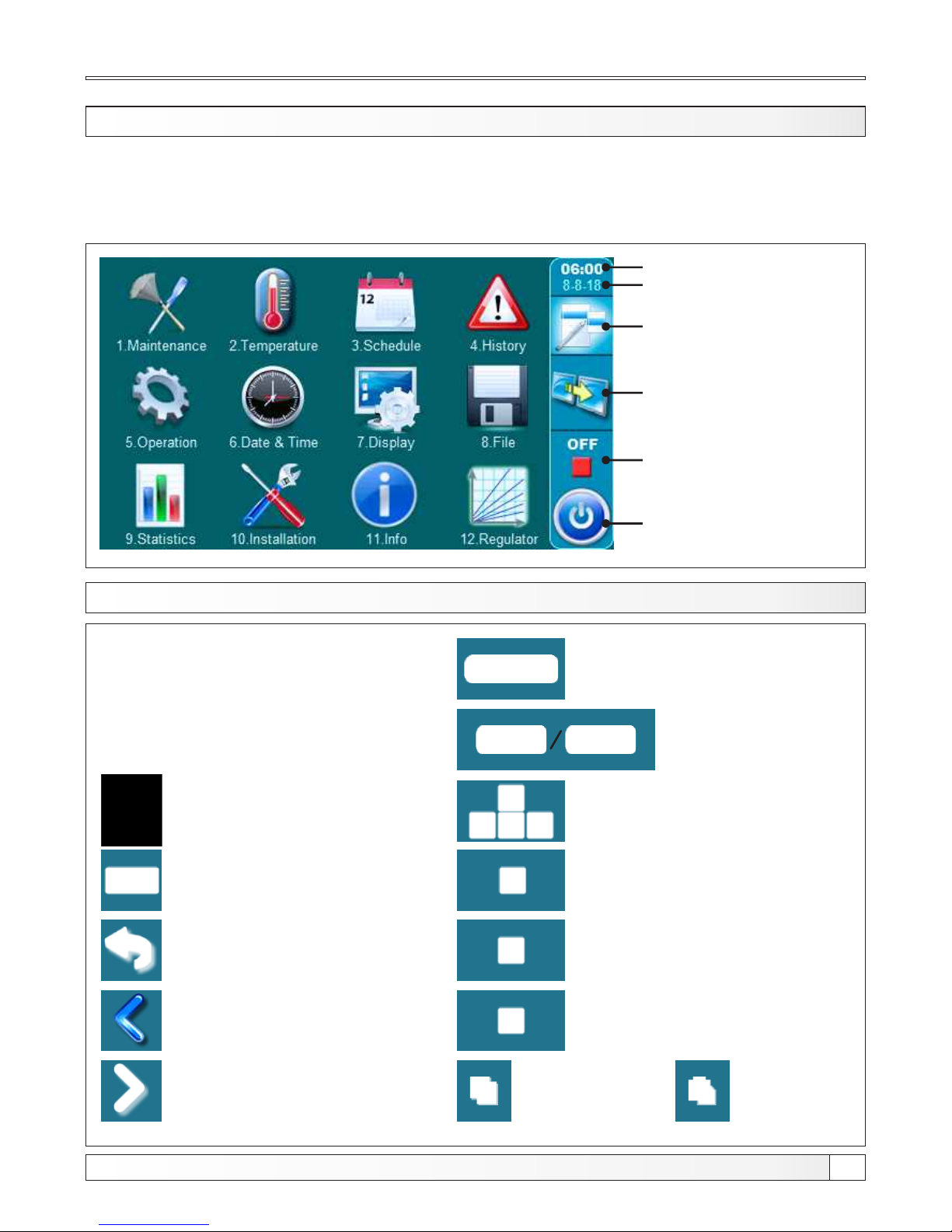

Main Menu, Buttons
MAIN MENU
Time
Button ’’ON / OFF’’
options: on / off boiler operation’’
Button ’’DISPLAY SELECTION’’
options: main menu / work
Button ’’BOILER OPERATION DISPLAY’’
options: graphic / numeric /
additional equipment
Button ’’ENTER’’
Button ’’BACK’’
Button’’PREVIOUS SCREEN’’
Button ’’NEXT SCREEN’’
Button ’’OK’’
Navigation buttons:
’’LEFT’’, ’’RIGHT’’, ’’UP’’, ’’DOWN’’
Button ’’DELETE’’
Button ’’FACTORY SETTINGS’’
Button ’’INFORMATION’’
Button ’’COPY’’ Button ’’PASTE’’
Display selection:
Main menu / work
Boiler operation display :
graphic/numeric
additional equipment
The main menu is used to select the desired submenu. To select a specific menu you must press the
appropriate icon on the screen. To switch between the ’’Main menu’’ and ’’Boiler working display’’
press the button ’’Display selection’’. To switch between graphic and numeric display of the boiler
using press ’’Boiler operation display’’.
Date

Screen, Symbols

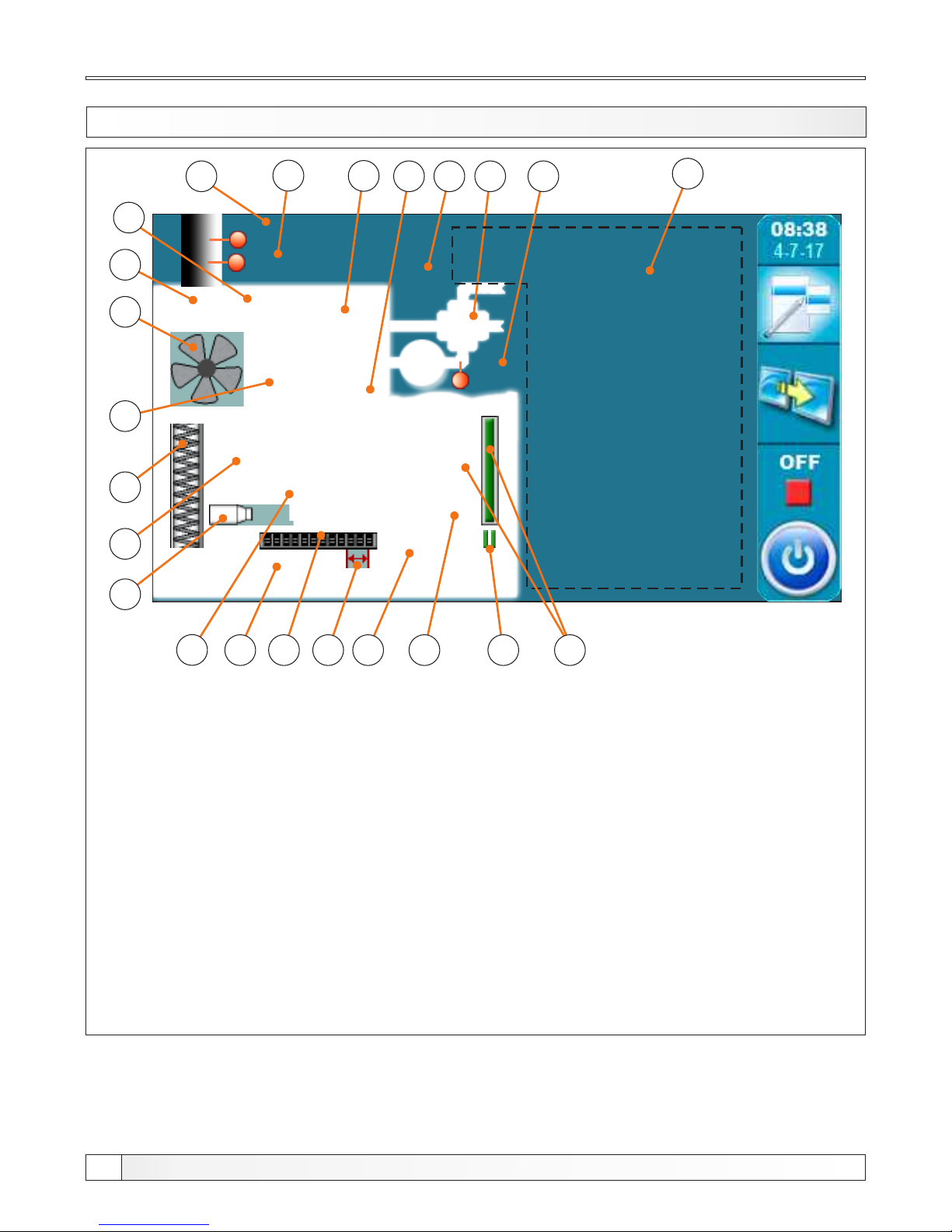

SYMBOLS
1 - Boiler
2 - Pellet tank
3 - Pellet feeding screw
4 - 4-way mixing valve with motor device
(when working, left/right arrow will be shown)
5 - Symbol of fan operation
(when working, symbol is turning)
6 - Fan speed (rpm)
7 - Symbol of flue gas channel cleaner
(when working, symbol is moving)
8 - Symbol of electric heater
(when working, symbol changes color)
9 - Symbol of pellet feeding screw
(when working, symbol is moving)
10 - Symbol of mechanism for grate cleaning
(when working, symbol moves left/right)
11 - Current position of burner grate
(0% - closed, 100% - open)
12 - Pellet level in the tank (3 levels)
13 - Boiler temperature sensor
14 - Flue gas sensor
15 - Flow temperature sensor
16 - Resistance of photocell (luminous intensity
of flame)
17 - Flame
(symbol appears when there is the flame)
18 - Symbol of microswitch in mechanism for
grate cleaning
19 - Percentage of openes of the 4-way mixing
valve with motor device
(0% - closed, 100% - open)
20 - The percentage of oxygen in the flue gases
21 - The symbols in this section depend on the
selected configuration
22 - External control symbol (see point 13.1)
23 - Suction system symbol (off,pause,on)
80°C
120°C
0%
1700
14 15 4
5
6
7
16
1011
3
92
8
21
17
1
15k
18
30%
60°C
19
13
4
22
**
1223
*
*
*
***
**Displaying these symbols depends on the configuration set up by an authorized service
***For more informations about this symbol see ”Technical instructions for vacuum wood pellet feeding system“.
Technical instructions REGULATION PelTec / PelTec-lambda
O2=8%
20 *
*
*
**
*
*Only on PelTec-lambda
**

0% 0%
Feeding
screw
80°C
0%
1700
>1M
80°C
0%
1700
15k
Pellets
falling
60°C 60°C 60°C
Screen, Symbols
SYMBOLS
4-way mixing valve with motor device
Motor device doesn’t work Motor device is closing
the valve
Motor device is opening
the valve
Pellet feeding screw
Pellet feeding screw doesn’t work Pellet feeding screw is working
(pellets are falling and screw is moving)
Flame symbol
There is no flame There is a flame
Technical instructions REGULATION PelTec / PelTec-lambda
5

Symbols, Configuration symbols
CONFIGURATION SYMBOLS
80°C
120°C
0%
1700
15k
30%
60°C
The following symbols are shown on the display configuration
(page 4, mark 20 in the figure)
The pump has a request for work (next to the pump symbol bright yellow square when
the consumer given the demand for work the pump, the pump does not work if you have
not met all the conditions for work, for example. low temp. in the boiler, otherwise the
pump normally works)
20
Pump (when pump is working symbol is rotating, otherwise idle)
Pellet level in the tank (3 levels)
Empty
- error
Half-empty
- warning
Full
0%
100%
Position of burner grate
Closed
(ready to work)
Open
(cleaning)
6Technical instructions REGULATION PelTec / PelTec-lambda
O2=8%
05:08
OFF

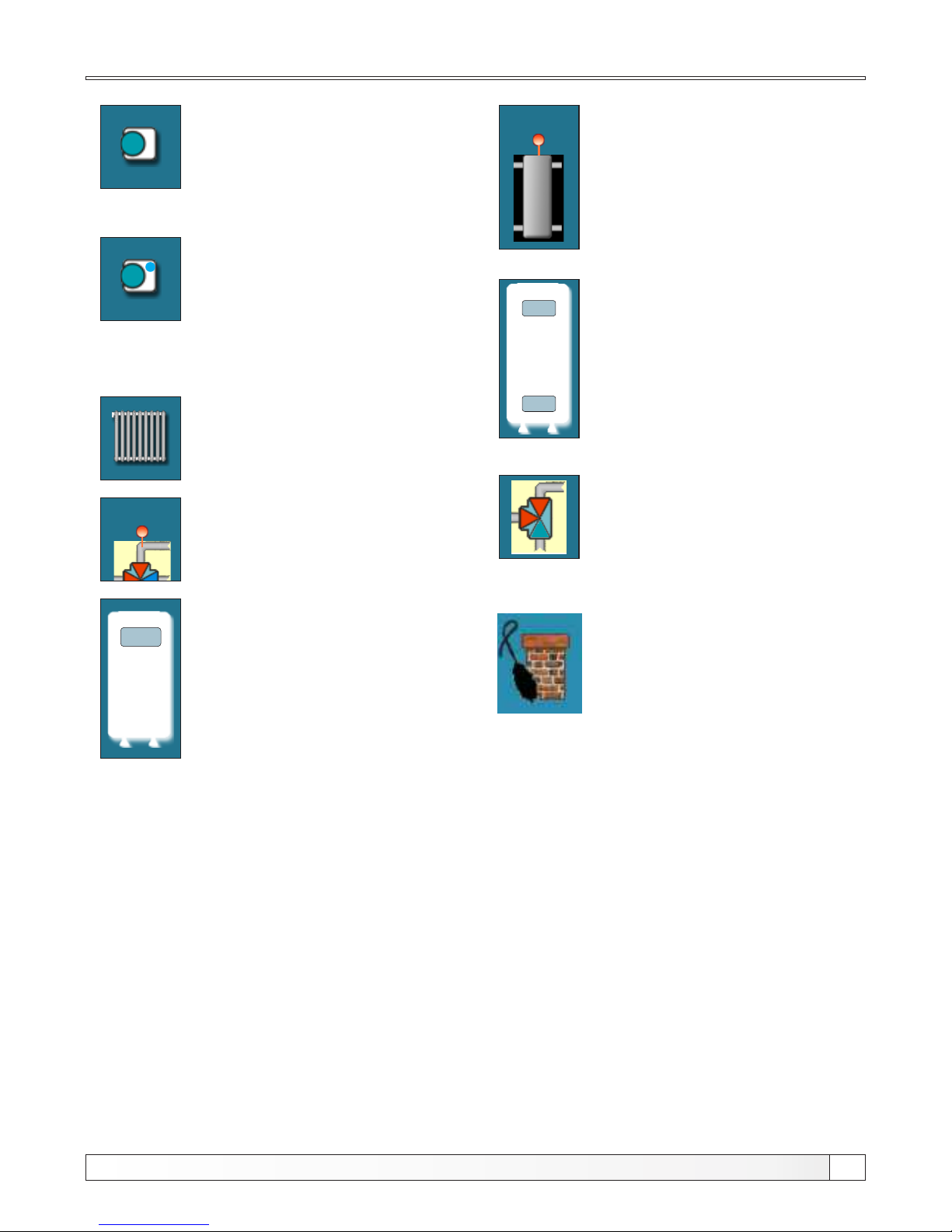

Configuration symbols
Accumulation tank with current
temperature at top of the tank and
at the bottom of the tank.
Hydraulic crossover with the
current temperature
Domestic hot water tank
with current temperature
Heating circuit
Room thermostat
Next to the room thermostat
symbol bright blue circle (the
room thermostat has requested
for operating the pump, the pump
does not work if you have not met
all the conditions for its operation,
for example. low temp. in the
boiler, otherwise normally works)
Boiler flow temperature
3-way diverter valve (showing the
open and closed pipe)
55°C
70°C
70°C
50°C
60°C
Chimney sweeper
Technical instructions REGULATION PelTec / PelTec-lambda
7

Maintenance, Cleaning the boiler
1.0. MAINTENANCE
1. Maintenance
Manual B.Cleaning
1.
2.
3.
Filling screw transp.
System Airvent
1.1. CLEANING THE BOILER
Boiler cleaning
0%
2000
>1M
2
3
1
4
5

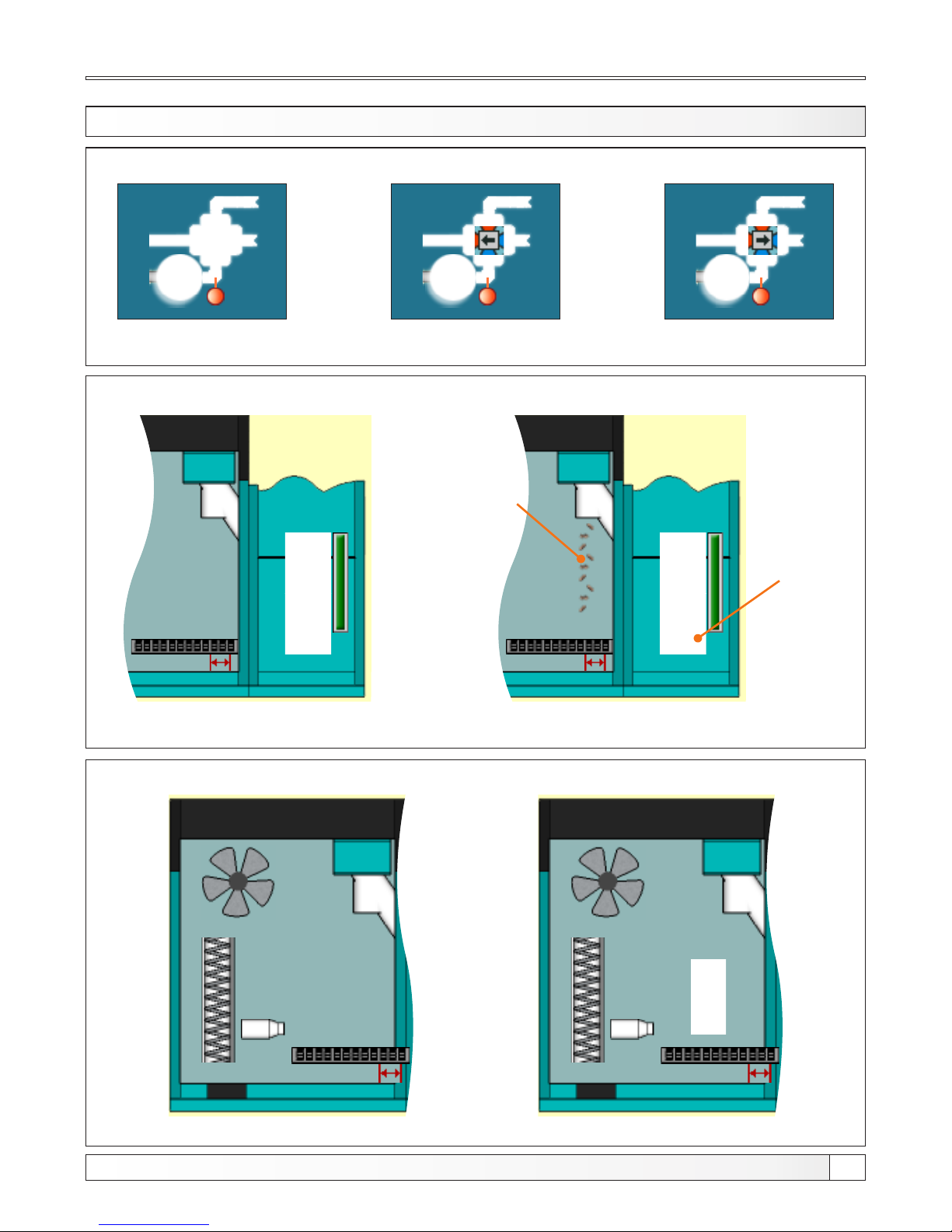

Cleaning the boiler - By pressing the button ’’START’’ (1) fan will begin work (2), an burner grate (3)
will move into the open position (100%) (4), (button ’’START’’ will become a button’’STOP’’).
This option enables you to during cleaning of combustion chamber, boiler ash does not come out of
the boiler, and since the burner grate is open ash falls into the ash box. After cleaning, it is necessary
to press the ''STOP'' to shut off the fan and burner grate move back to the closed position (0%) (4)
(same thing will happen if you press the button ''BACK'' (5)) . After cleaning, it is necessary to empty
the ashtray.
8Technical instructions REGULATION PelTec / PelTec-lambda

Filling at start, System airvent
1.2. FILLING AT START
Filling at start - by pressing ''START'' (1) pellet feeding screw starts to operate (2) (works 25 min),
and the burner grate (3) moves to the open position (100%) (4) to make pellets fell down in ashtray
After this process is complete pellet feeding screw stops working, the burner grate is returned to the
closed position (0%) (4). After completion of the initial filling of pellets ashtrays need to put in pellet
tank. For the duration of this process, the display shows the countdown process duration (5). Before
starting this process, it is necessary to fill the pellet tank. The process may be interrupted by
pressing button ''STOP'' or ''BACK'' (6).
1.3. SYSTEM AIRVENT
System airvent - entering the above menu, the motor device of 4-way mixing valve opens the valve
to 50%(1). By pressing START'' next to a particular pump symbol, the pump starts to work (2, 3, 4)
(button ’’START’’ become button ’’STOP’’). By pressing the button ''STOP'' the pump stops
working. In this option is not possible to work 2 or 3 pumps at the same time.
25:00
0%
Filling at start
3
2
5
50%
0%
System airvent
P1
P2
P3
1
2
3
4
1
4
6
Technical instructions REGULATION PelTec / PelTec-lambda
9

Temperatures
2.0. TEMPERATURE
Temperatures choice depends on the configuration of heating. Below are shown all types of
installation and configuration.
CONFIGURATION 1 - DOMESTIC HOT WATER (DHW)
Scheme of configuration
3
M
bar
2
4
5
HV
P1
6
1
7
On the screen
80°C
120°C
0%
1700
15k
30%
60°C
55°C
1 - Boiler PelTec / PelTec-lambda
2 - Air self-venting group 2,5 bar
3 - Motor 4-ways mixing valve
4 - Closed type expansion vessel
5 - Return flow temperature sensor
6 - DHW tank
7 - DHW sensor
Scheme 1. Configuration DHW
10
Required sensors: - return flow temp. sensor
- DHW sensor
Technical instructions REGULATION PelTec / PelTec-lambda
O2=8%

Temperature (configuration DHW)
2. TEMPERATURES (CONFIGURATION DHW)
2. Temperature
DHW temp.
Differential of DHW
1.
2.
2.1 TEMPERATURE DHW
2.2 DIFFERENCE DHW
default: 50°C
Minimum: 40°C
Maximum: 80°C
Temperature setting options of DHW (domestic hot water).
Possible selection:
default: 5°C
Minimum: 4°C
Maximum: 40°C
The possibility of setting domestic hot water diference.
Possible selection:
Technical instructions REGULATION PelTec / PelTec-lambda
11

Temperature (configuration DHC)
CONFIGURATION 2 - DIRECT HEATING CIRCUIT (DHC)
Scheme of configuration
80°C
120°C
0%
1700
15k
30%
60°C
36
bar
2
4
5P1
1
M
P2
7
8
Scheme 2. Configuration DHC
1 - Boiler PelTec / PelTec-lambda
2 - Air self-venting group 2,5 bar
3 - Motor 4-ways mixing valve
4 - Closed type expansion vessel
5 - Return flow temperature sensor
6 - Flow temperature sensor
7 - Heating circuit
8 - Room thermostat
On the screen
60°C
12
Required sensors: - return flow temp. sensor
- flow temperature sensor
Technical instructions REGULATION PelTec / PelTec-lambda
O2=8%

Temperature (configuration DHC)
2. TEMPERATURE (CONFIGURATION DHC)
2. Temperature
Main flow temp.
1.
default: 60°C
Minimum: 30°C
Maximum: 90°C
The possibility of setting flow temperature
2.1 FLOW TEMPERATURE
Possible selection:
Technical instructions REGULATION PelTec / PelTec-lambda
13

Temperature (domestic hot water and direct heating circuit)
CONFIGURATION 3 - DHW || DHC
80°C
120°C
0%
1700
15k
30%
60°C
3
M
6
bar
2
4
5
HV
P2
P1
7
1
9
P
P3
10
8
11
50°C
60°C
Scheme 3. Configuration DHC || DHW
1 - Boiler PelTec / PelTec-lambda
2 - Air self-venting group 2,5 bar
3 - Motor 4-ways mixing valve
4 - Closed type expansion vessel
5 - Return flow temperature sensor
6 - Flow temperature sensor
7 - DHW tank
8 - DHW tank sensor
9 - Heating circuit
10 - 3-way diverter valve
11 - Room thermostat
Scheme of configuration
On the screen
14
Required sensors: - return flow temp. sensor
- flow temperature sensor
- DHW sensor
Technical instructions REGULATION PelTec / PelTec-lambda
O2=8%

Temperature (configuration DHW || DHC)
2. TEMPERATURE (CONFIGURATION DHW || DHC)
2. Temperature
Main flow temp.
3.
DHW temp.
Differential of DHW
1.
2.
2.1 TEMPERATURE DHW
2.2 DIFFERENTIAL OF DHW
default: 50°C
Minimum: 40°C
Maximum: 80°C
Temperature setting options of DHW (domestic hot water).
Possible selection:
default: 5°C
Minimum: 4°C
Maximum: 40°C
The possibility of setting differential of DHW.
Possible selection:
default: 60°C
Minimum: 30°C
Maximum: 90°C
The possibility of setting flow temperature
2.3 FLOW TEMPERATURE
Possible selection:
Technical instructions REGULATION PelTec / PelTec-lambda
15

Temperature (configuration accumulation tank)
CONFIGURATION 4 - ACCUMULATION TANK
80°C
120°C
0%
1700
15k
30%
60°C
3
bar
2
4
5P1
6
7
8
1
M
70°C
50°C
Scheme of configuration
Scheme 4. Configuration BUF
1 - Boiler PelTec / PelTec-lambda
2 - Air self-venting group 2,5 bar
3 - Motor 4-ways mixing valve
4 - Closed type expansion vessel
5 - Back flow temperature sensor
6 - Accumulation tank CAS
7 - Accumulation tank sensor CAS 1 (upper)
8 - Accumulation tank sensor CAS (lower)
On the screen
16
Required sensors: - return flow temp. sensor
- accumulation tank sensor (upper)
- accumulation tank sensor (lower)
NOTES:
- In this configuration is possible to upgrade up to 4 unit "CM2K-P module for regulation 2 heating circuits“.
- In this configuration is possible to connect external control (external start).
Technical instructions REGULATION PelTec / PelTec-lambda
O2=8%

Temperature (configuration BUF)
2. TEMPERATURE (CONFIGURATION BUF)
2. Temperature
Diff.buf.tank temp.
3.
Buffer tank temp.
Min buf.tank temp.
1.
2.
default: 80°C
Minimum: 40°C
Maksimum: 85°C
The possibility of setting the desired temperature of the accumulation tank.
2.1 TEMPERATURE OF THE ACCUMULATION TANK
default: 20°C
Minimum: 5°C
Maksimum: 64°C
The possibility of setting the minimum temperature of the accumulation tank. When minimum
temperature of accumulation tank (upper sensor) is reached, all heat pumps connected to the boiler
control will be shut down. The minimum accumulation tank temperature does not affect the operation
of the DHW pump.
2.2 MINIMUM TEMPERATURE OF THE ACCUMULATION TANK
default: 10°C
Minimum: 5°C
Maksimum: 30°C
The possibility of setting the accumulation tank difference.
2.3 ACCUMULATION TANK DIFFERENCE
Possible selection:
Possible selection:
Possible selection:
Technical instructions REGULATION PelTec / PelTec-lambda
17
Description of work:
The regulation reads on the upper sensor accumulation tank temperature, minimum accumulation
tank temperature and accumulation tank difference. At the bottom sensor, regulation reads the
accumulation tank shutdown difference that can be set in the installation menu (under PIN). When
the boiler is switched on, it works until the temperature on the lower sensor (T accumulation tank - T
accumulation tank shutdown difference) is reached. The boiler will turn ON again when
accumulation tank upper temperature (upper sensor) reach the (T accumulation tank - T
accumulation tank difference).

Temperature (domestic hot water and accumulation tank)
CONFIGURATION 5 - DHW||BUF
80°C
120°C
0%
1700
15k
30%
60°C 70°C
50°C
3
M
bar
2
4
5
HV
P1
1
P
P3
11
7
8
9
10
6
55°C
Scheme 5. Configuration DHW || BUF
1 - Boiler PelTec / PelTec-lambda
2 - Air self-venting group 2,5 bar
3 - Motor 4-ways mixing valve
4 - Closed type expansion vessel
5 - Return flow temperature sensor
6 - DHW tank
7 - DHV tank sensor
8 - Accumulation tank CAS
9 - Accumulation tank sensor CAS 1 (upper)
10 - Accumulation tank sensor CAS 2 (lower)
11 - 3-way diverter valve
Scheme of configuration
On the screen
18
Required sensors: - return flow temp. sensor
- DHW tank sensor
- accumulation tank sensor (upper)
- accumulation tank sensor (lower)
NOTE:
In this configuration is possible to upgrade up to 4 unit "CM2K-P module for regulation 2 heating circuits“.
Technical instructions REGULATION PelTec / PelTec-lambda
O2=8%

Temperature (domestic hot water and accumulation tank)
2. TEMPERATURE (CONFIGURATION DHW || BUF)
2. Temperature
Dif.buf.tank temp.
3.
Buffer tank temp.
Min buf.tank temp.
1.
2.
DHW temp.
4.
Differential of DHW
5.
default: 80°C
Minimum: 40°C
Maksimum: 85°C
The possibility of setting the desired temperature of the accumulation tank.
2.1 TEMPERATURE OF THE ACCUMULATION TANK
default: 20°C
Minimum: 5°C
Maksimum: 64°C
The possibility of setting the minimum temperature of the accumulation tank.
2.2 MINIMUM TEMPERATURE OF THE ACCUMULATION TANK
default: 10°C
Minimum: 5°C
Maksimum: 30°C
The possibility of setting the accumulation tank difference.
2.3 ACCUMULATION TANK DIFFERENCE
Possible selection:
Possible selection:
Possible selection:
Technical instructions REGULATION PelTec / PelTec-lambda
19

Temperature (domestic hot water and accumulation tank)
2.4 TEMPERATURE DHW
2.5 DIFFERENCE DHW
default: 50°C
Minimum: 40°C
Maximum: 80°C
Temperature setting options of DHW (domestic hot water).
Possible selection:
default: 5°C
Minimum: 4°C
Maximum: 40°C
The possibility of setting domestic hot water diference.
Possible selection:
20 Technical instructions REGULATION PelTec / PelTec-lambda
