Century 400 Ninja 10070610 User manual

MODELS: 10070610
Operating Instructions
86307580 - F
09/04/08
PORTABLE EXTRACTOR
Read these instructions before using the machine

MACHINE DATA LOG/OVERVIEW
86307580 NINJA1200 01/31/08
2
OVERVIEW
The Ninja is an electric powered carpet extractor intended for commercial use. This appliance
applies a cleaning solution to the carpet and then vacuums the soiled water back into the
recovery tank.
Model:
Date of Purchase:
Serial Number:
Sales Representative:
Address:
Phone Number:
Copyright 2008 Windsor Industries, Printed in USA

TABLE OF CONTENTS
86307580 NINJA1200 01/31/08
3
Machine Data Log/Overview................................2
Table of Contents.................................................3
HOW TO USE THIS MANUAL
How To Use This Manual.....................................1-1
SAFETY
Important Safety Instructions ...............................2-1
Hazard Intensity Level..........................................2-2
Safety Label Location...........................................2-3
Grounding Instructions.........................................2-4
OPERATIONS
Technical Specifications.......................................3-1
Controls................................................................3-2
Machine Operation...............................................3-3
Pre-Run Machine Inspection ............................3-3
Equipment Set-up.............................................3-3
Auto Fill.............................................................3-3
Auto Dump........................................................3-3
Emptying & Cleaning Tanks..............................3-4
MAINTENANCE
Daily Maintenance................................................4-1
Periodic Maintenance...........................................4-1
Monthly Maintenance...........................................4-1
Semi-annually ......................................................4-1
Lubrication............................................................4-1
Storage.................................................................4-1
Vacuum Motor Replacement ...............................4-2
Solution Pump Replacement................................4-2

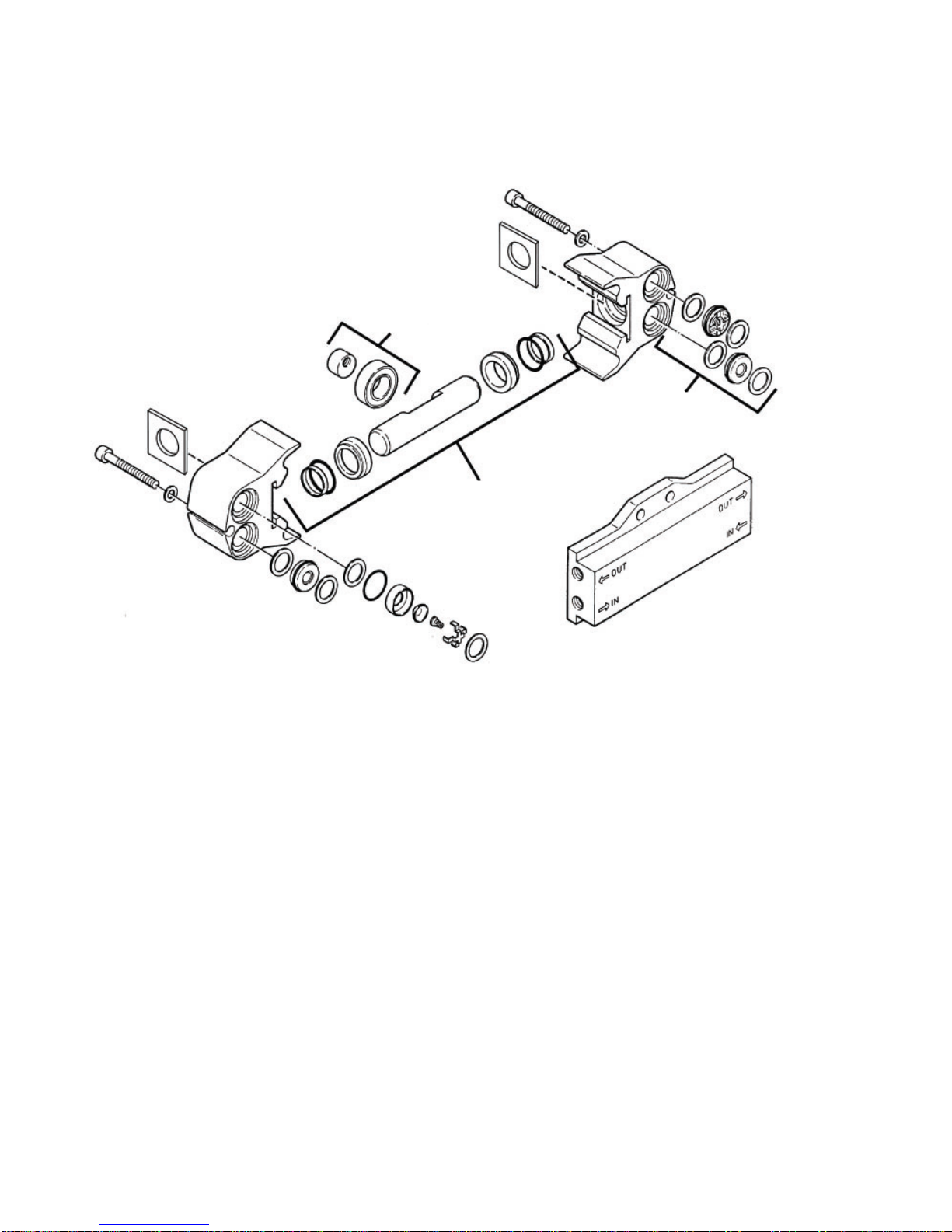

Pump Replacement Kits.......................................4-3
Machine Troubleshooting.....................................4-4
GROUP PARTS LIST
Frame ....................................................................................5-1
Controls..................................................................................5-3
Pump .....................................................................................5-5
Pumpout.................................................................................5-7
Recovery and Solution Tank..............................................5-9
Vacuum Motor......................................................................5-11
Wiring Group.........................................................................5-13
Warranty.................................................................................5-15

HOW TO USE THIS MANUAL
86307580 NINJA1200 01/31/08
1-1
This manual contains the following sections:
- HOW TO USE THIS MANUAL
- SAFETY
- OPERATIONS
- MAINTENANCE
- PARTS LIST
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized dealers.
When placing an order for parts, the machine model
and machine serial number are important. Refer to
the MACHINE DATA box which is filled out during
the installation of your machine. The MACHINE
DATA box is located to the inside of the front cover
of this manual.

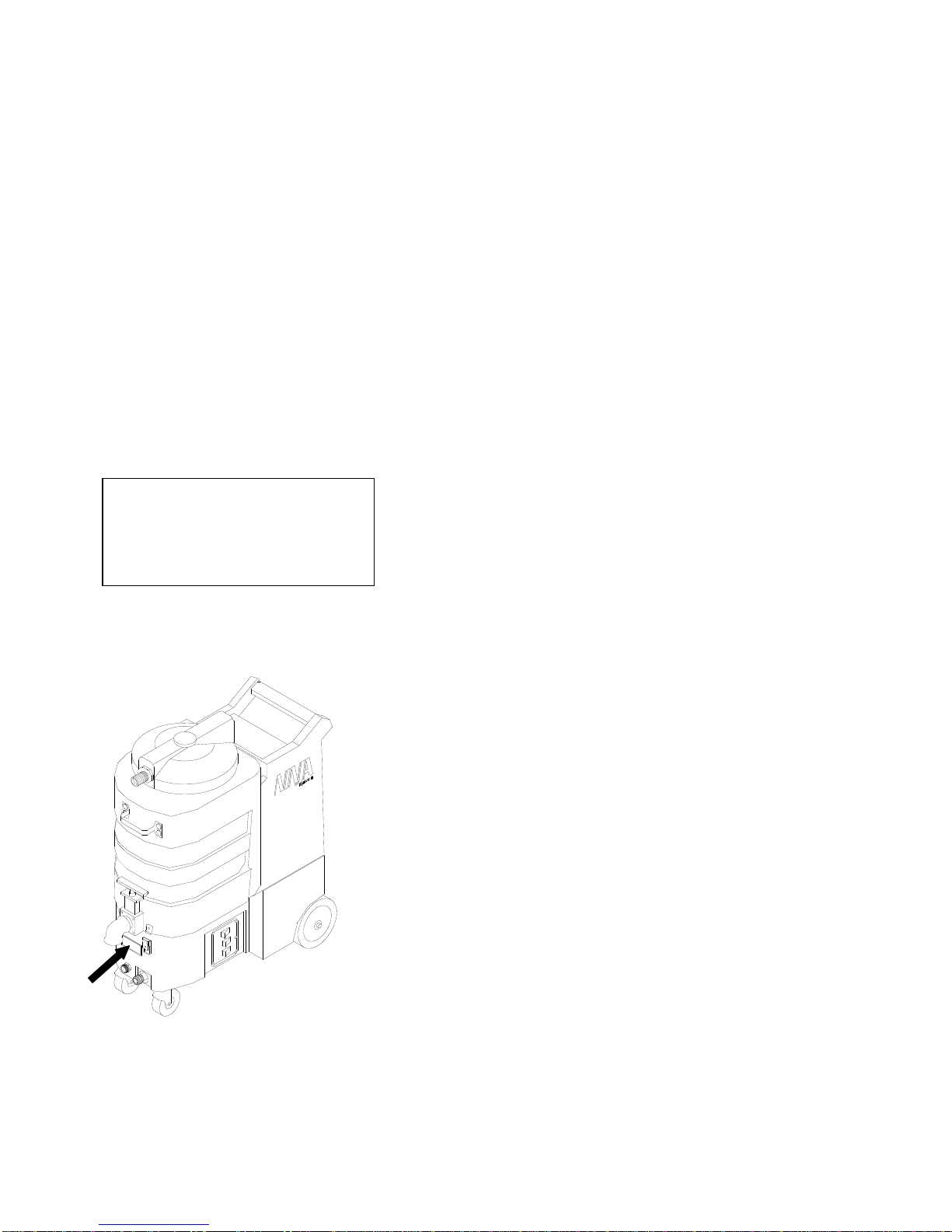

The model and serial number of your machine is on
the front of the Frame.
The SAFETY section contains important information
regarding hazard or unsafe practices of the
machine. Levels of hazards are identified that could
result in product or personal injury, or severe injury
resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its
components in good working condition. They are
listed in this general order:
- Maintenance
- Lubrication
- Vacuum Motor Replacement
- Solution Pump Replacement
- Troubleshooting
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts
lists include a number of columns of information:
- REF – column refers to the reference
number on the parts illustration.
- PART NO. – column lists the part
number for the part.
- PRV NO. – reference number.
- QTY – column lists the quantity of the
part used in that area of the machine.
- DESCRIPTION – column is a brief
description of the part.
- SERIAL NO. FROM – column indicates
the first machine the part number is
applicable to. When the machine design
has changed, this column will indicate
serial number of applicable machine.
The main illustration shows the most
current design of the machine. The
boxed illustrations show older designs.
-NOTES – column for information not
noted by the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
MODEL _____________________________________
DATE OF PURCHASE ________________________
SERIAL NUMBER ____________________________
SALES REPRESENTATIVE # ___________________

SAFETY INSTRUCTIONS
86307580 NINJA1200 01/31/08 2-1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
This machine is for commercial use.
To reduce the risk of fire, electric shock, or injury:
Connect to a properly grounded outlet. See Grounding Instructions.
Do not leave the machine unattended. Unplug machine from outlet when not in use and before
maintenance or service.
Use only indoors. Do not use outdoors or expose to rain.
Do not allow machine to be used as a toy. Close attention is necessary when used by or near
children.
Use only as described in this manual. Use only manufacturer’s recommended components and
attachments.
Do not use damaged electrical cord or plug. Follow all instructions in this manual concerning grounding
the machine. If the machine is not working properly, has been dropped, damaged, left outdoors, or
dropped into water, return it to an authorized service center.
Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord
around sharp edges or corners.
Do not run machine over cord. Keep cord away from heated surfaces.
Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.
Do not handle the electrical plug or machine with wet hands.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce
airflow.
This machine is intended for cleaning carpet only.
Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
This machine is not suitable for picking up health endangering dust.
Turn off all controls before unplugging.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this
machine near flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals,
factories, shops and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
SAVE THESE INSTRUCTIONS
!
WARNING:

HAZARD INTENSITY LEVEL
86307580 NINJA1200 01/31/08
2-2
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property
damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper
operating condition. Following is information that signals some potentially dangerous conditions to the
operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate
all safety devices on the machine. Please take the necessary steps to train the machine operating
personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the
machine.
.
!WARNING
!CAUTION

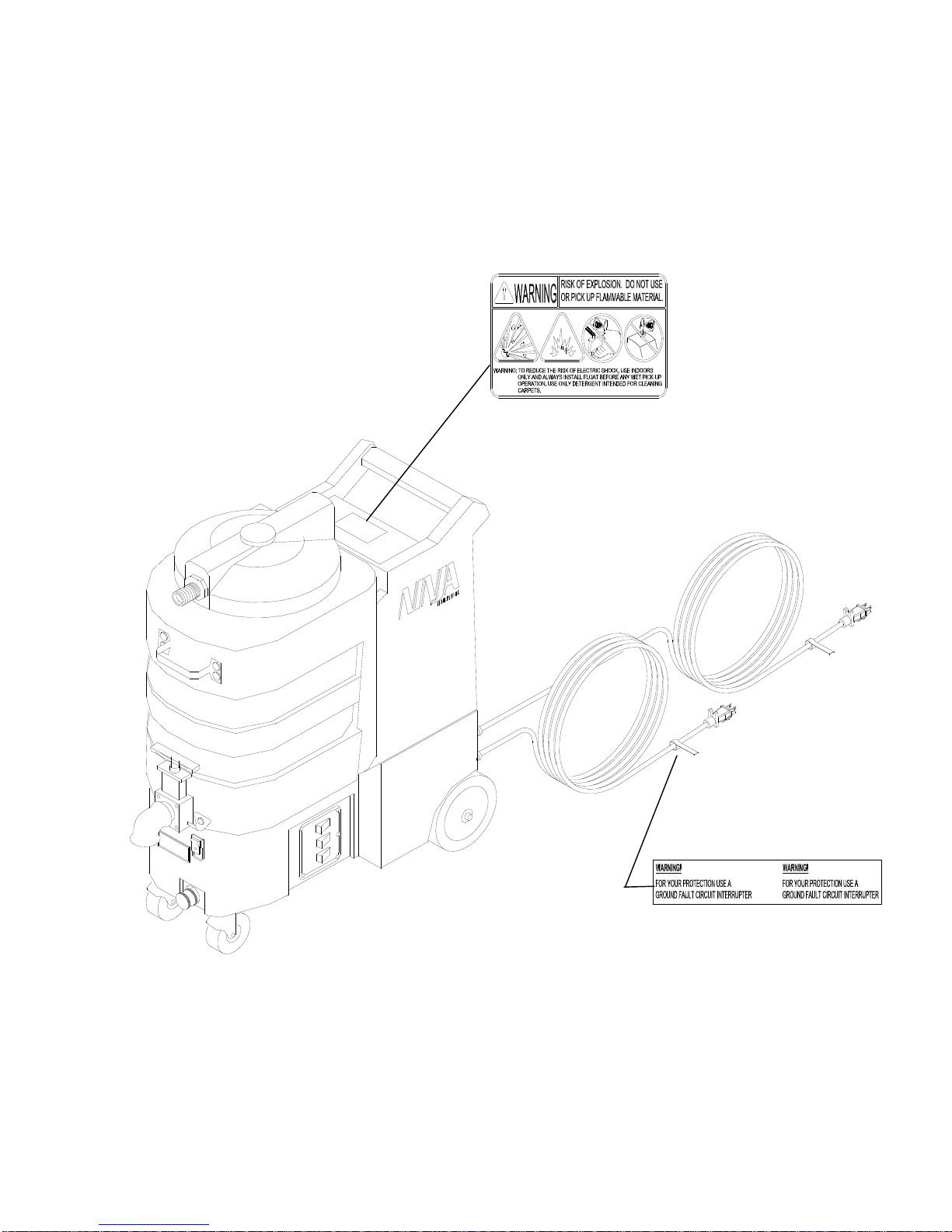

SAFETY LABEL LOCATION
86307580 NINJA1200 01/31/08
2-3
NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become
illegible, promptly replace them.
LABEL CIRCUIT INTERRUPTER
86200570
PRV NO. 170-41
LABEL WARNING
86242230
PRV NO. 500009

GROUNDING INSTRUCTIONS
86307580 NINJA1200 01/31/08
2-4
THIS PRODUCT IS FOR COMMERCIAL USE
ONLY.
ELECTRICAL:
In the USA this machine operates on a
standard 15 amp 115V, 60 hz, A.C. power
circuit. The amp, hertz, and voltage are listed
on the data label found on each machine.
Using voltages above or below those indicated
on the data label will cause serious damage to
the motors.
EXTENSION CORDS:
If an extension cord is used, the wire size must
be at least one size larger than the power cord
on the machine, and must be limited to 50 feet
(15.5m) in length.
GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should
malfunction or break down, grounding provides
a path of least resistance for electric current to
reduce the risk of electric shock. This
appliance is equipped with a cord having an
equipment-grounding conductor and grounding
plug. The plug must be inserted into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes
and ordinances.
This appliance is for use on a nominal 120-volt
circuit, and has a grounded plug that looks like
the plug in “Fig. A”. A temporary adaptor that
looks like the adaptor in “Fig. C” may be used to
connect this plug to a 2-pole receptacle as
shown in “Fig. B”, if a properly grounded outlet
is not available. The temporary adaptor should
be used only until a properly grounded outlet
(Fig. A) can be installed by a qualified
electrician. The green colored rigid ear, lug, or
wire extending from the adaptor must be
connected to a permanent ground such as a
properly grounded outlet box cover. Whenever
the adaptor is used, it must be held in place by
a metal screw.
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in doubt
as to whether the outlet is properly grounded.
Do not modify the plug provided with the
appliance - if it will not fit the outlet, have a
proper outlet installed by a qualified electrician.

TECHNICAL SPECIFICATIONS
86307580 NINJA1200 01/31/08 3-1
ITEM MEASURE
ELECTRICAL 115 Volt, 60 hz
Vaccum Motor 7.2, 3 stage
Solution Pump 1200 psi
Solution Capacity 10 gal (38 L)
Recovery Capacity 8 gal (30L)
Weight- Empty 147 lbs (67 kg)
Weight-Full Solution 222 lbs (101 kg)
Height 36 inches (91.4 cm)
Length 29 inches (73.6 cm)
Width 19.5 inches (49.5 cm)
Power cord (2) 22 feet (6.71 m)
WIDTH
HEIGHT
LENGTH
CENTURY400
BY

CONTROLS
86307580 NINJA1200 01/31/08
3-2
1. Pump Switch
2. Vacuum Switch
3. Sump Switch
1
2
3

MACHINE OPERATION
86307580 NINJA1200 01/31/08 3-
3
PRE-RUN INSPECTION
1. Check all fittings and connectors for proper
assembly.
2. Check all hoses for leaks. Repair or replace any
damaged hoses.
3. Check power cord(s) for any damage. If
damaged, replace.
EQUIPMENT SET-UP
1. Plug power cord from machine into properly
grounded wall outlet.
2. Turn vacuum motor switch on and off to make
sure there is electrical power at machine.
3. Connect vac hose to machine. Slide the swivel
cuff over the outlet on the tank.
4. Connect the hose to your machine and wand.
Pull back the knurled collar on the quick
disconnect coupler and push onto the connection
on the chassis. To avoid leaks, check to be that
a positive connection was made.
5. Using a clean container, fill the solution tank with
clean hot water. Mix in a non-foaming cleaning
concentrate for use in hot water extraction
machines, following the manufacture’s
instructions printed on container.
NOTE:When using a powder cleaner, pre-mix with
hot water in a clean container before adding to the
solution tank.
6. Turn pump and vacuum switch(s) to the on
position.
7. Start cleaning.
AUTO FILL
Connect standard garden hose from faucet to the
rear of the solution tank. Turn on water and allow
tank to fill check for leaks.
AUTO DUMP
Connect standard garden hose to the front of the
machine and run to any sanitary sewer. Check inside
the recovery tank to make sure the float switch is not
obstructed.
The auto dump (sump
pump) must never be run
dry. The float switch in the recovery tank will prevent
this. Make sure the drain screen in the recovery tank
is kept clean.

MACHINE OPERATION
86307580 NINJA1200 01/31/08
3-4
EMPTYING AND CLEANING
Always use defoamer if
foaming occurs. Foam
will suspend large particles that may damage
vacuum(s) as well as allow liquid into the vacuum
motor(s) without activating the float shutoff.
1. Before proceeding, make certain that the nozzle
is functioning properly.
a. To check, hold the wand about one foot
above the surface to be cleaned and open
the wand valve. A full spray should be
observed from the nozzle.
b. If the nozzle is not showing a full spray
pattern, adjust nozzle for proper pattern,
clean, or replace nozzle.
2. Normally, chemical is applied on the push stroke
of the wand when cleaning. Vacuuming is done
on the pull stroke. For heavily soiled carpets the
wand may be used in a scrubbing manner,
applying chemical in both the push and pull
stroke.
3. When cleaning, keep the working opening (wand
mouth) flat on the surface being cleaned. Keep
the wand moving when the valve is open.
4. The shutoff float inside the vacuum tank will
impede the vacuum flow when the vacuum tank
is full.
When this occurs, empty the vacuum tank by
opening the dump valve and dispose of the waste
in a proper manner.
5. Once the vacuum tank has been emptied, you
may once again proceed with cleaning

NOTES
86307580 NINJA1200 01/31/08 3-
5

MAINTENANCE
86307580 NINJA1200 01/31/08
4-1
DAILY MAINTENANCE
Unplug power cords
before servicing or
making any repairs.
1. Flush the entire system, including floor tool, hand
tool, etc., with 1 to 3 gallons of clean, hot water.
2. Vacuum out the solution tank.
3. Rinse tank with fresh water. Periodically inspect
the recovery tank and decontaminate if
necessary, using a Hospital Grade Virucide or a
1-10 bleach to water solution. Wastewater should
be disposed of properly.
4. Occasionally check filter screen at the bottom of
the solution tank and rinse clean with hot water if
necessary.
5. Inspect hoses for wear. Frayed or cracked hoses
should be replaced to avoid vacuum or solution
pressure loss.
6. Inspect power cord for wear or damage. This
cable will lie on wet carpet. To prevent electrical
shock replace cords that are frayed or have
cracked insulation immediately.
7. Clean all dirt and obstructions from drain valve
and gaskets to prevent possible leakage and
premature wear.
8. Run clean water through solution pump when
work is complete.
9. Empty both tanks and rinse, run vacuum (s) for at
least one minute to dry motor(s).
10. Store with access covers removed to allow tanks
to dry.
DO NOT attempt to
repair hose! Repairing
high-pressure hoses may result in severe burns
and serious injury.
PERIODIC MAINTENANCE
1. Twice a month, flush a white vinegar solution
(One quart vinegar to two gallons of water) or
anti-browning solution (mixed as directed)
through the extractor, turning pump switch on/off
several times, flush with clean water. This will
prevent build-up of alkaline residue in the system.
2. Check hoses for wear, blockages, or damage.
Frayed or cracked hoses should be repaired or
replaced to eliminate vacuum or solution
pressure.
3. Check all handles, switches, knobs, electrical
cables and connections on your machine for
damage. If the cable insulation is broken or
frayed, repair or replace it immediately. Don’t
take chances with electrical fire or shock.
4. Clean out solution tank. Remove and clean
solution screen.
5. Clean outside of all tanks and check for damage.
MONTHLY MAINTENANCE
1. Check all bearings for noise and wear.
2. Check all gaskets for wear and leakage.
3. Check pump pressure; observe spray pattern and
check gauge if necessary.
4. Check overall performance of machine.
SEMI-ANNUALLY
1. Check vacuum motor brushes.
LUBRICATION
For pressure regulator and pump cam lubrication,
use a light silicone lubricant which will not damage o-
rings. A small tube (86246790 - PRV NO. 51391) is
supplied with your machine.
STORAGE
Thoroughly clean machine if it is to be stored. You
must protect this machine from freezing while in
storage.
Make sure both recovery and solution tanks are
empty and wipe dry.

MAINTENANCE
86307580 NINJA1200 01/31/08 4-
2
Only qualified
maintenance personnel
are to perform the following repairs.
VACUUM MOTOR REPLACEMENT
1. Turn off all switches and unplug machine.
2. Remove recovery tank.
3. Locate the vacuum motor wires and disconnect
at the connector.
4. Remove the vacuum motor.
5. Reverse process to install vacuum motor.
SOLUTION PUMP REPLACEMENT
1. Turn off all switches and unplug the machine.
2. Remove recovery tank.
3. Remove solution hoses from fittings in pump.
4. Remove the screws that fasten the pump to the
frame.
5. Reverse process to install pump.
VACUUM MOTOR CARBON BRUSH
REPLACEMENT
The green ground wire
must be attached for
safe operation.
1. Remove retaining clip with flat tip screw driver.
2. Replace carbon brush (A), by disconnecting at
the terminal connection (B).
3. Insert carbon brush into vac motor.
4. Replace clip and press down until it locks in
place.
Important:
These brushes wear quicker as the length shortens
due to increased heat. Spring inside brush housing
will damage motor if brushes are allowed to wear
away completely.
Periodically check the length of the carbon brushes.
Replace both carbon brushes when either is less than
3/8" (9.5mm) long.

MAINTENANCE
86307580 NINJA1200 01/31/08
4-3
PUMP REPLACE KIT
1200 PSI
CAM & BEARINGS
P/N 86308380
PLUNGER & SEAL KIT
P/N 86308360
VALVE & O-RING
KIT (BOTH SIDES)
86308370

TROUBLESHOOTING
86307580 NINJA1200 01/31/08
4-4
PROBLEM CAUSE SOLUTION
Dead electrical circuit Check building circuit breaker or fuse box.
Loss of Power Faulty power cord Replace
Equipment not grounding Follow grounding instructions exactly
Receptacle not grounded Contact an electrician to check building’s wiring
Electrical shock Internal wiring problem Have a trained service technician check machine’s
wiring
Worn motor brushes Replace
Motor worn out Replace
Vac motor speed varies
or doesn’t run Faulty switch Replace
Loose vacuum dome Center and seal dome over tank
Crack in dome or poor joint Replace
Lint or dirt clogging
vacuum screen With power off clean screen
Loose cuffs on vacuum
hose Tighten cuffs turning counterclockwise
Vac motor seals leaking Replace
Floor tool vac chamber
clogged Wash out with hose. Pick lint out with a wire
Loss of vacuum
Vac motor, hose, or dome
gasket Replace
Pump inlet screen plugged Clean inlet screen
Pump air locked Press trigger to open valve on cleaning wand to
relieve air
Pump runs no solution Internal or external
solution line damaged and
leaking Replace
Internal pump components
wearing out Replace, see pump kit components
Note: Operation of pump using a wand or hand tool with an orifice of less than .06
will cause pump to cavitate or pulsate and could result in premature wear of pump
components.
Pump runs, loss of
pressure
Check valves in pump
head for leaks. Replace or clean valves.
Unit not plugged in Connect unit to 3 prong grounded outlet
Pump will not run Loose wiring See dealer
Corrosion on fittings. Clean with steel wool. Soak in acetic acid (white
vinegar). Lubricate lightly with silicone base lubricant.
Pressure locked. Unscrew and push in unloader knob. Connect hoses
before turning on pump
Solution hose fitting hard
to connect
Circuit breaker tripped. Reset breaker on motor.
Carpet not getting clean Severe soil conditions Make several passes at right angles to each other.
Use a pre-spray.
Carpet too wet Over saturation Adjust solution pressure to lower settings. Make
several passes without spray
Leaving carpet too wet Check for loss of vac pressure
Too much chemical Check label for correct solution concentration
Carpet browning Light carpet with no brown
prevention Go over carpet with browning preventative.
Solution hose connection Check for positive connection
Faulty pump Repair or replace
Faulty floor tool valve Repair or replace
Solution not flowing
properly Faulty pump switch Repair

FRAME
86307580 NINJA1200 01/31/08
5-1
27 28
31
9
14
13
24
7
5
4
11
17
18
5
16
15
8
6
1
2
3
12
20
21
19
22
22
23
9
10
2
2
25
26
30
27 28 29

FRAME
86307580 NINJA1200 01/31/08
5-
2
REF PART
NO. PRV NO QTY DESCRIPTION SERIAL
NO. NOTES:
1 86005680 57047 1 NUT,1/4-20 HEX NYLOCK
2 86010630 87013 15 WASHER, 1/4 ID X 5/8 OD SS
3 86233390 80887 1 CLAMP, 7/8 DIA “P”
CUSHIONED
4 86005640 57030 4 NUT, 10-32 HEX NYLOCK
5 86279190 87095 10 WASHER, #10 FLAT PLTD
6 86274040 70076 4 SCR, 10-32 X 1 PFHMS
7 86200010 140-01 2 HINGE SET CHROME
8 86001120 730059 2 SPACER, HINGE
9 86201300 280-03 5 RIVET ALUMINUM 3/16 X 3/4
10 86198460 20008 2 CLAMP, 5/8 NYLON UL/CSA
11 86307610 - 1 BASE, NINJA 1200 PSI
12 86306860 - 1 PLATE, CASTER, WHEEL
SUPPORT
13 86202280 89252 2 WHEEL, 12” CNTRD HUB
14 86271380 57196 2 NUT, 1/2 PUSH-ON DOME CAP
15 86273810 70018 10 SCR, 1/4-20 X 1 HHCS SS
16 86232600 18036 2 CASTER, 5” DIA SWIVEL
17 86201290 280-02 4 RIVET AL. 3/16 X 1/2 CLOSED
18 86199600 140-05 2 DRAW PULL LATCH STD.
19 86002450 22015 1 COUPLER, 1/4 QD
20 86006450 67420 1 RING, GROUND
21 86202230 390-09A 2 WASHER, 9/16 S/S USS-THICK
22 86005710 57105 2 NUT, 1/4-20 HEX W/STAR
WASHER
23 86268270 88226 1 WIRE, 8” GRN/14 76001 X 76001
24 86308990 - 3 CLAMP, 1” NYLON
25 86273780 70015 4 SCR, 1/4-20 X 3/4 HHCS SS NP
26 86201300 280-03 2 RIVET ALUMINUM 3/16 X 3/4
27 86005670 57040 2 NUT, 1/2 NPT CONDUIT
28 86256200 73200 2 STRAIN RELIEF, 1/2 NPT FLEX
29 86199540 060-04A 1 CORD ASM, 14/3 SJT X 25’ BLK
30 86202160 320-05 2 VELCRO STRAPS
31 86199530 060-04 1 CORD ASM, 12/3 SJT X 25’ BLK

CONTROLS
86307580 NINJA1200 03/11/08
21
19
6
17
20
6
6
16
15
14
13
12
11
10
9
8
7
5
4
3
2
1
18
22 18
5-3
