About This Guide
This guide describes the FibeAir RFU-C installation procedures and provides
additional information concerning system parts and frequency bands.
What You Should Know
RFU-C is a state-of-the-art Radio Frequency Unit which is fully software
configurable and supports a broad range of capacities and interfaces. The RFU
supports low to high capacities for traditional voice and Ethernet services, as well
as PDH/SDH/SONET or hybrid Ethernet and TDM interfaces.
Important! For the warranty to be honored, install the unit in accordance
with the instructions in this manual.
Target Audience
This guide contains technical information about RFU-C installation, and is
intended for use by qualified Ceragon technical personnel at all levels.
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 8 of 93
1. Important Notes
RFU-C is intended for installation in a Restricted Access Location.
RFU-C must be installed and permanently connected to protective earth by
qualified service personnel in accordance with applicable national
electrical codes.
2. Acronyms
CCDP
Co-Channel Dual Polarization
IDU
Indoor Unit
OMT
Orthogonal Mode Transducer
RFU
Radio Frequency Unit
WG
Waveguide
XPD
Cross Polar Differentiation
XPIC
Cross Polarization Interference Cancellation
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 9 of 93
3. RFU-C Overview
RFU-C is a state-of-the-art Radio Frequency Unit which is fully software
configurable and supports a broad range of capacities and interfaces.
The RFU supports low to high capacities for traditional voice and Ethernet
services, as well as PDH/SDH/SONET or hybrid Ethernet and TDM interfaces.
This innovative platform uses an “on-the-fly” upgrade method, whereby
network operators only buy capacity as needed, benefiting from savings on
initial investments and OPEX.
Traffic capacity throughput and spectral efficiency are optimized with the
desired channel bandwidth. For maximum user choice flexibility, channel
bandwidths can be selected together with a range of modulations of from
QPSK to 256 QAM.
High spectral efficiency is ensured using the same bandwidth for double the
capacity, via two carriers, with vertical and horizontal polarizations. This
feature is implemented by a built-in XPIC mechanism.
RFU-C works together with several types of indoor units (IDUs). For
PDH/SDH/SONET, the RFU works with the FibeAir 1500R IDU. For Ethernet
and TDM to Ethernet migration, RFU-C works with the FibeAir IP-10G IDU. For
Ethernet only, RFU-C works with the FibeAir IP-10E and FibeAir IP-10Q IDUs.
Together, FibeAir RFU-C and FibeAir IDUs provide a powerful, reliable, and
comprehensive solution for a variety of wireless network scenarios and
requirements.
When RFU-C operates in co-channel dual polarization (CCDP) mode, using the
cross polarization interference canceller (XPIC) algorithm, two carrier signals
can be transmitted over a single channel, using vertical and horizontal
polarization. This enables double capacity in the same spectrum bandwidth.
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 10 of 93
4. Installing an RFU-C
This section describes the basic types of RFU-C installation.
4.1 Packing
The equipment should be packed and sealed with moisture absorbing bags.
4.2 Transportation
The equipment should be prepared for public transportation. The cargo must
be kept dry during transportation, in accordance with ETS 300 019-1-2, Class
2.3.
It is recommended that the equipment be transported to the installation site
in its original packing case.
If intermediate storing is required, the packed equipment must be stored in a
dry and cool environment, and out of direct sunlight, in accordance with ETS
300 019-1-1, Class 1.2.
4.3 Inspection
Check the packing lists and verify that the correct equipment part numbers
and quantities are found in the packages that arrived.
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 11 of 93
4.4 Installation Components
The following figures show the main components involved in the installation
procedures.
RFU-C
Coupler
OMT
Remote Pole Mount
Remote Dual Pole
Remote Mount
4+0/4+4 Extender
Twist
Remote Mount for 4+0
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 12 of 93
4.5 Available Adapters and Installation Kits
4.5.1 General Installation Kits
Part Number
Marketing Model
Marketing Description
Item Description
MK-0253-1
2+2-Installation-Kit
2+2-Installation-Kit
Kit for installation per terminal 2+2
MK-0252-1
2+1-Installation-Kit
2+1-Installation-Kit
Kit for installation per terminal 2+1
MK-0251-1
1+1-Installation-Kit
1+1-Installation-Kit
Kit for installation per terminal 1+1
MK-0250-1
1+0-Installation-Kit
1+0-Installation-Kit
Kit for installation per terminal 1+0
4.5.2 Component Kits
Description
6GHz
7-8GHz
10-11GHz
13GHz
15GHz
18GHz
23GHz
26GHz
28-31GHz
32GHz
38GHz
42GHz
RFU-C COUPLER KIT
RFU-C6-
CPLR-Kit
RFU-C7_8-
CPLR-Kit
RFU-
C10_11-
CPLR-Kit
RFU-C13-
CPLR-Kit
RFU-C15-
CPLR-Kit*0
RFU-C18-CPLR-
Kit*0
RFU-C23-
CPLR-Kit
RFU-C26-
CPLR-Kit
RFU-C28-
CPLR-Kit
RFU-
C32-
CPLR-
Kit
RFU-
C38-
CPLR-
Kit
RFU-C42-
CPLR_Kit
RFU-C SYMMETRICAL
COUPLERS KIT
NA
RFU-C7_8-Sym-
cplr-kit
NA
RFU-C13-
Sym-cplr-kit
RFU-C15-
Sym-cplr-kit
RFU-C18-Sym-
cplr-kit
RFU-C23-
Sym-cplr-kit
NA
RFU-C TWIST KIT
RFU-C6-
TWST-Kit
RFU-C7_8-
TWST-Kit
RFU-
C10_11-
TWST-Kit
RFU-C13-
TWST-Kit
RFU-C15-
TWST-Kit
RFU-C18-TWST-
Kit
RFU-C23_26-TWST-Kit
RFU-C28_32-TWST-Kit
RFU-
C38-
TWST-
Kit
RFU-C42-
TWST-Kit
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 13 of 93
Description
6GHz
7-8GHz
10-11GHz
13GHz
15GHz
18GHz
23GHz
26GHz
28-31GHz
32GHz
38GHz
42GHz
RFU-C OMT KIT
RFU-C6-
OMT-DM-Kit
RFU-C7_8-
OMT-DM-Kit
RFU-
C10_11-
OMT-DM-Kit
RFU-C13-
OMT-DM-Kit
RFU-C15-
OMT-DM-Kit
RFU-C18-OMT-
DM-Kit
RFU-C23-
OMT-DM-Kit
RFU-C26-
OMT-DM-Kit
RFU-C28-
OMT-DM-Kit
RFU-
C32-
OMT-
DM-Kit
RFU-
C38-
OMT-
DM-Kit
RFU-C42-
OMT-DM-
Kit
RFU-C ADAPTORS
OMT KIT
RFU-C6-
OMT-ADAPT
RFU-C7_8-
OMT-ADAPT
RFU-
C10_11-
OMT-ADAPT
NA
RFU-C SHORT OMT KIT
RFU-C-OMT-SHORT-PLATE
Remote Mount
6GHz
7-8GHz
10-11GHz
13GHz
15GHz
18GHz
23GHz
26GHz
28-31GHz
32GHz
38GHz
42GHz
RFU-C REMOTE
MOUNT KIT
RFU-C-Pole Mount
RFU-C Dual Remote
Mount
RFU-C Dual Pole Mount
RFU-C Remote mount
4+0/4+4 pole mount kit
RFU-C_4+0_RM_Kit
RFU-C ADAPTOR
REMOTE MOUNT KIT
RFU-C6-
RM_ADAPT
RFU-C7_8-
RM_ADAPT
RFU-
C10_11-
RM_ADAPT
RFU-C13-
RM_ADAPT
RFU-C WG Kit
Flx-WG-4FT-
6
Flx-WG-4FT-
7_8
Flx-WG-4FT-
10_11
Flx-WG-3FT-
13
Flx-WG-3FT-
15
Flx-WG-3FT-18-26
Flx-WG-3FT-28-38
Flx-WG-
3FT-42
RFU-C ADAPTOR TO
FLEX WG (IMPERIAL) KIT
ADPT_RFU-
C6-RM_mill
ADPT_RFU-
C7_8-RM_mill
ADPT_RFU-
C10_11-
RM_mill
ADPT_RFU-
C13-RM_mill
ADPT_RFU-
C15-RM_mill
ADPT_RFU-C18_26-RM_mill
ADPT_RFU-C28_38-RM_mill
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 14 of 93
1500P Adaptors
6GHz
7-8GHz
10-11GHz
13GHz
15GHz
18GHz
23GHz
26GHz
28-31GHz
32GHz
38GHz
42GHz
RFU-C-PHOSPHORUS
DM ADAPTOR KIT
ADPT_RFU-
C10_11-
DM_1500P
ADPT_RFU-
C13-
DM_1500P
ADPT_RFU-
C15-
DM_1500P
ADPT_RFU-
C18-
DM_1500P
ADPT_RFU-
C23-
DM_1500P
ADPT_RFU-
C26-
DM_1500P
ADPT_RFU-
C28-
DM_1500P
ADPT_RFU-
C32-
DM_1500P
ADPT_RFU-
C38-
DM_1500P
NA
Imperial to mm
Transitions
6GHz
7-8GHz
10-11GHz
13GHz
15GHz
18GHz
23GHz
26GHz
28-31GHz
32GHz
38GHz
42GHz
RFU-C ADAPTOR KIT
TO IMPERIAL ANT.
ADPT_RFU-
C6-RM_Imp
ADPT_RFU-
C7_8-
RM_Imp
ADPT_RFU-
C10_11-
RM_Imp
ADPT_RFU-C13-
RM_Imp
ADPT_RFU-
C15-RM_Imp
ADPT_RFU-C18_26-RM_Imp
ADPT_RFU-C28_38-RM_Imp
NA
RFU-C ADAPTOR KIT
TO IMP WG
ADPT_RFU-
C6-RM_mill
ADPT_RFU-
C7_8-RM_mill
ADPT_RFU-
C10_11-
RM_mill
ADPT_RFU-C13-
RM_mill
ADPT_RFU-
C15-RM_mill
ADPT_RFU-C18_26-RM_mill
ADPT_RFU-C28_38-RM_mill
NA
Unique Installations
and Accessories
6GHz
7-8GHz
10-11GHz
13GHz
15GHz
18GHz
23GHz
26GHz
28-31GHz
32GHz
38GHz
42GHz
RFU-C 19in
MOUNTING KIT
RFU-C_19-inch_rack_adapt
RFU-C External 20dB
Attenuator
RFU-C38-
attn-20
NA
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 15 of 93
Antenna Circ.
Adapters for OMT1
6GHz
7-8GHz
10-11GHz
13GHz
15GHz
18GHz
23GHz
26GHz
28GHz
32GHz
38GHz
42GHz
Andrew
RFU-C6-
OMT-INT-A
RFU-C7_8-
OMT-INT-A
RFU-C10_11-
OMT-INT-A
RFU-C13-
OMT-INT-A
RFU-C15-OMT-
INT-A
RFU-C18-OMT-
INT-A
RFU-C23-OMT-
INT-A
RFU-C26-OMT-
INT-A
RFU-C28-OMT-
INT-A
RFU-C32-
OMT-INT-A
RFU-C38-
OMT-INT-A
RFU-C42-
OMT-INT-A
RFS 1FT
NA
NA
NA
RFU-C13-
OMT-INT-
1FT-R
RFU-C15-OMT-
INT-1FT-R
RFU-C18-OMT-
INT-1FT-R
RFU-C23-OMT-
INT-1FT-R
RFU-C26-OMT-
INT-1FT-R
RFU-C28-OMT-
INT-1FT-R
RFU-C32-
OMT-INT-
1FT-R
RFU-C38-
OMT-INT-
1FT-R
NA
RFS 2-6FT
RFU-C6-
OMT-INT-
2_6FT-R
RFU-C7_8-
OMT-INT-
2_6FT-R
RFU-C10_11-
OMT-INT-
2_6FT-R
RFU-C13-
OMT-INT-
2_6FT-R
RFU-C15-OMT-
INT-2_6FT-R
RFU-C18-OMT-
INT-2_6FT-R
RFU-C23-OMT-
INT-2_6FT-R
RFU-C26-OMT-
INT-2_6FT-R
RFU-C28-OMT-
INT-2_6FT-R
RFU-C32-
OMT-INT-
2_6FT-R
RFU-C38-
OMT-INT-
2_6FT-R
NA
Radio Waves
RFU-C6L-
OMT-INT-RW
/ RFU-C6H-
OMT-INT-RW
RFU-C7_8-
OMT-INT-
RW
RFU-C10_11-
OMT-INT-RW
RFU-C13-
OMT-INT-
RW
RFU-C15-OMT-
INT-RW
RFU-C18-OMT-
INT-RW
RFU-C23-OMT-
INT-RW
RFU-C26-OMT-
INT-RW
RFU-C28-OMT-
INT-RW
NA
RFU-C38-
OMT-INT-RW
NA
Shenglu
RFU-C7_8-
OMT-INT-
SH
RFU-C10_11-
OMT-INT-SH
RFU-C13-
OMT-INT-SH
RFU-C15-OMT-
INT-SH
RFU-C18-OMT-
INT-SH
RFU-C23-OMT-
INT-SH
RFU-C26-OMT-
INT-SH
Xian Putian (Ceragon
branding)
RFU-C6-
OMT-INT-CR
RFU-C7_8-
OMT-INT-
CR
RFU-C10_11-
OMT-INT-CR
RFU-C13-
OMT-INT-CR
RFU-C15-OMT-
INT-CR
RFU-C18-OMT-
INT-CR
RFU-C23-OMT-
INT-CR
RFU-C26-OMT-
INT-CR
RFU-C28-OMT-
INT-CR
RFU-C32-
OMT-INT-X
RFU-C38-
OMT-INT-CR
NA
Xian Putian (OEM
branding)
RFU-C6-
OMT-INT-X
RFU-C7_8-
OMT-INT-X
RFU-C10_11-
OMT-INT-X
RFU-C13-
OMT-INT-X
RFU-C15-OMT-
INT-X
RFU-C18-OMT-
INT-X
RFU-C23-OMT-
INT-X
RFU-C26-OMT-
INT-X
RFU-C28-OMT-
INT-X
RFU-C32-
OMT-INT-X
RFU-C38-
OMT-INT-X
NA
1
This adapter is not required if the antenna is equipped with a circular feeder. Such antenna will have the following marketing model structure: Am-size(ft)-freq-
CIRC-mnf.
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 16 of 93
4.6 Antenna Connection
RFU-C uses Andrew, General Dynamics, RFS, Shenglu and Xian Putian
antennas.
RFU-C can be mounted directly for all frequencies (6-42 GHz) using the
following antenna types (for integrated antennas, specific antennas PNs are
required):
Andrew: VHLP series
RFS: SB/SU series
Shenglu: SLC series
Xian Putian: WTC/WTG series
General Dynamics: HPS series
For remote mount installations, the following flexible waveguide flanges
should be used (millimetric). The same antenna type (integrated) as indicated
above can be used (recommended).
Other antenna types using the flanges listed in the table below may be used.
If a different antenna type (CPR flange) is used, a flange adaptor is required.
Please contact your Ceragon representative for details.
Note: Conductive grease must be applied to the screws that
connect the RFU-C to the antenna interface.
Frequency
Circ. WG
Diameter
Rect. WG Flange Des.
Radio Side (Remote)
Flange Des.
Flex WG Side A
Flange Des.
Flex WG Side B
Flange Des.
Antenna (Remote)
Flange Des.
Band
Range (GHz)
6(L/U) GHz
5.8-7.1
31.8mm
WR137
UDR70
PDR70
PDR70
UDR70
7/8 GHz
7.1-8.5
26mm
WR112
UBR84
PBR84
PBR84
UBR84
10/11 GHz
10.0-11.7
18mm
WR90
UBR100
PBR100
PBR100
UBR100
13 GHz
12.7-13.3
15mm
WR75
UBR120
PBR120
PBR120
UBR120
15 GHz
14.5-15.4
13.5mm
WR62
UBR140
PBR140
PBR140
UBR140
18 GHz
17.7-19.7
10.5mm
WR42
UBR220
PBR220
PBR220
UBR220
23 GHz
21.2-23.6
9mm
26 GHz
24.5-26.6
8mm
28-31GHz
27.3-29.5
7mm
WR28
UBR320
PBR320
PBR320
UBR320
32GHz
31.8-33.4
6.5mm
38GHz
37.0-40.0
5.5mm
42GHz
40.5-43.5
4.775mm
WR22
UG383/U
UG383/U
UG383/U
UG383/U
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 17 of 93
5. Cable Installation and Grounding
List of Items
Item
Description
Quantity
Remarks
1

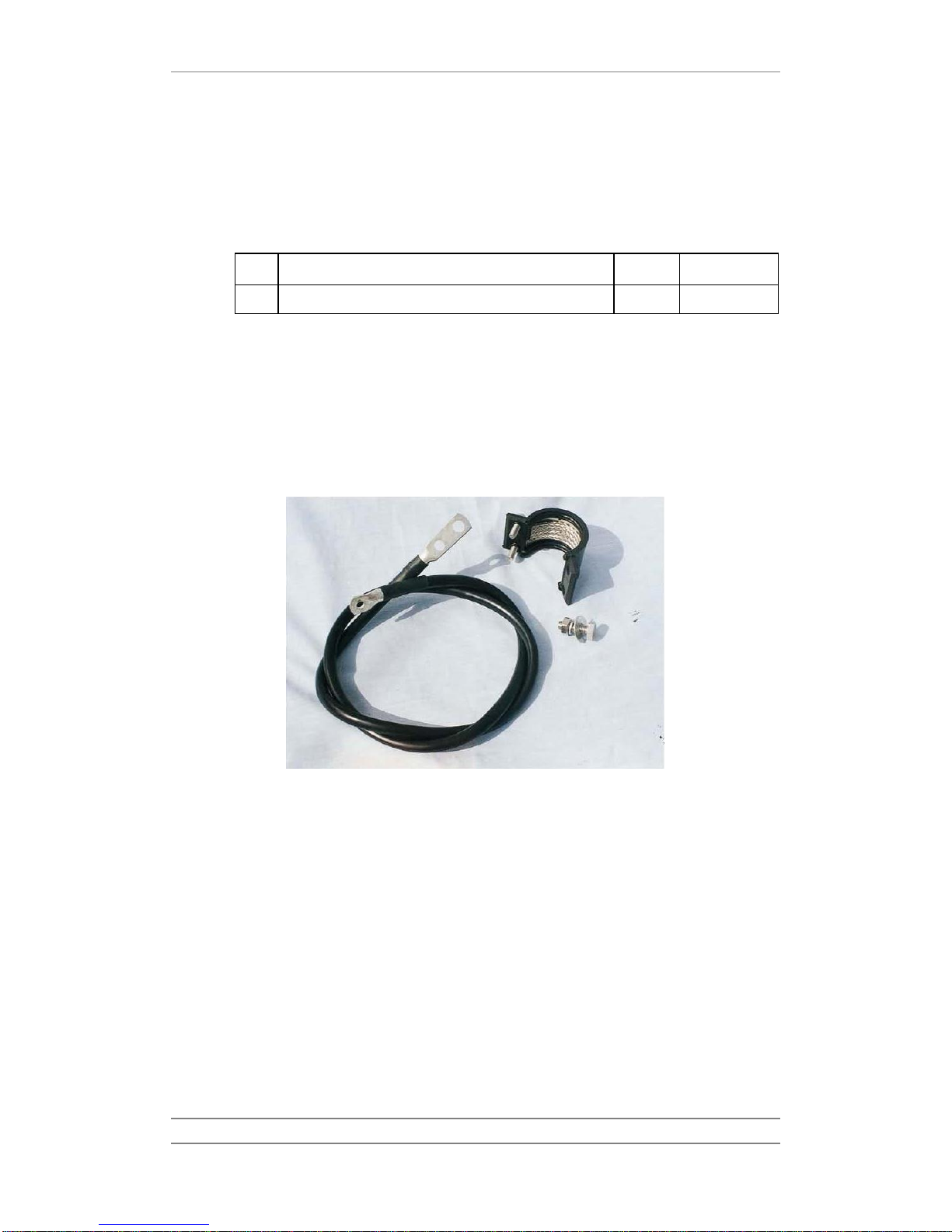

IF RG-8 GRD KIT
1
Procedure
1 On the front side of each RFU-C unit, loosen the nut, plain washer, and
serrated washer.
2 Place the cable lug (supplied with the RFU-C grounding kit) on the screw.
3 Secure the cable lug.
RFU-C Grounding Cable
The unit’s earthing screw terminal shall be permanently connected to
protective earth in a building installation in accordance with applicable
national code and regulations by a service person.
A 2-Pole circuit breaker, a branch circuit protector, suitably certified in
accordance with applicable national code and regulations, rated maximum
20A, shall be installed for full power disconnection in a building
installation.
Any outdoor antenna cable shield shall be permanently connected to
protective earth in a building installation.
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 18 of 93
6. Generic Installation Procedures
6.1 Remote Mount Installation with Imperial Waveguide
List of Items
Item
Description
Quantity
Remarks
1
RFU-C RADIO
1
3
FLEXIBLE WG IMPERIAL KIT
1
4
RFU-C REMOTE MOUNT ADAPTOR KIT
1
Up to 15 GHz
5
RFU-C REMOTE POLE MOUNT KIT
1
Required Tools
Metric offset hexagon key wrench set
Imperial offset hexagon key wrench set

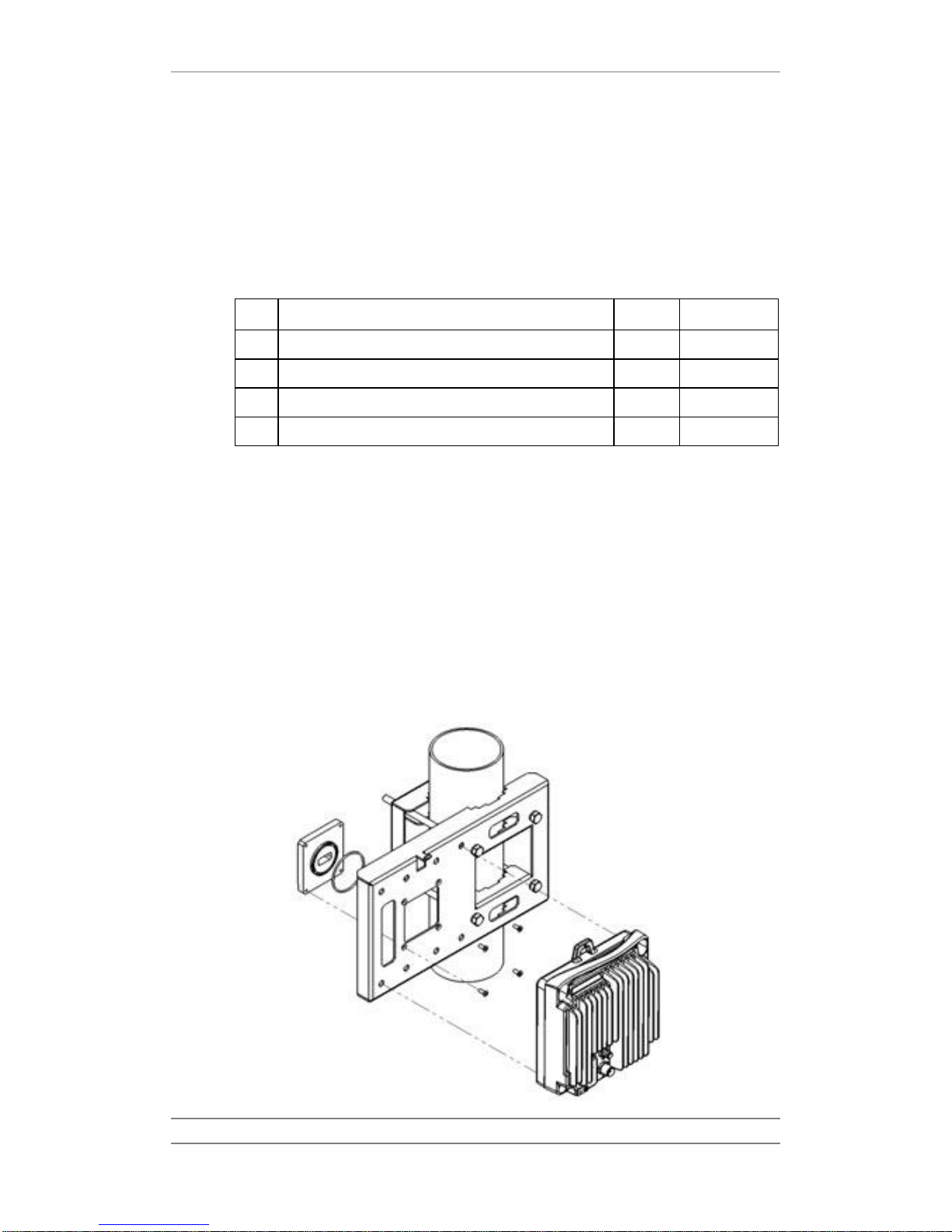

Remote Mount Installation with an Imperial Waveguide –6-11 GHz
1 Mount the RFU-C Adaptor supplied with the RFU-C Adaptor kit on the
RFU-C Remote Pole Mount kit using the four flat screws supplied with the
RFU-C Adaptor kit.
2 Mount the RFU-C using the four captive screws and washers supplied,
assembled, in the RFU-C.
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 19 of 93
3 Connect the Flexible Waveguide and Sealing Gasket supplied with the
Flexible Waveguide Imperial kit to the RFU-C Adaptor. Tighten the four
screws supplied with the Flexible Waveguide Imperial kit.

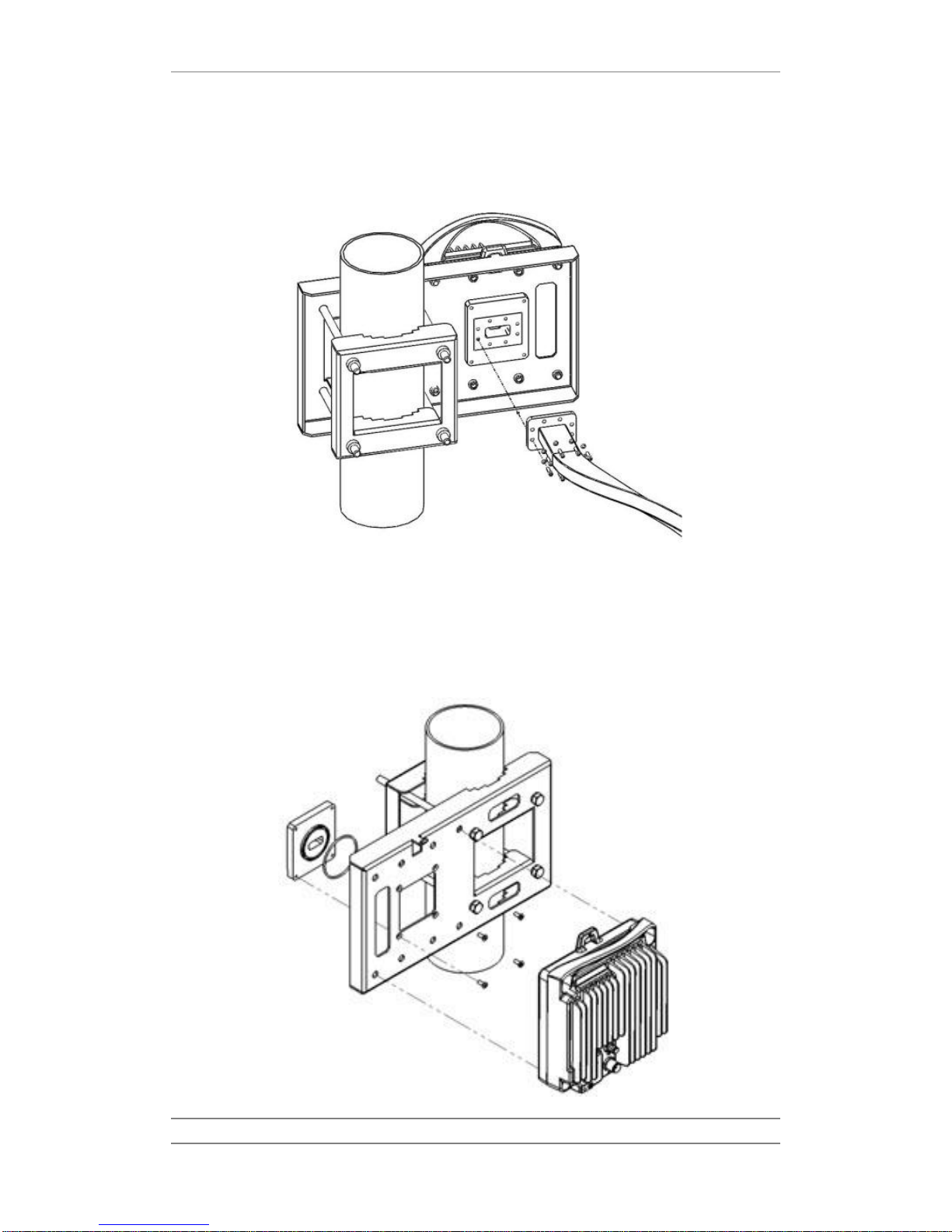

Remote Mount Installation with an Imperial Waveguide –13-15 GHz
1 Mount the RFU-C Adaptor supplied with the RFU-C Remote Pole Mount kit
using the four flat screws supplied with the RFU-C Adaptor kit.
2 Mount the RFU-C using the four captive screws and washers supplied,
assembled, in the RFU-C.
FibeAir® RFU-C Installation Guide
Ceragon Proprietary and Confidential Page 20 of 93
3 Connect the Flexible Waveguide and sealing O-Ring supplied with the
Flexible Waveguide Imperial kit to the RFU-C Adaptor. Tighten the four
screws supplied with the Flexible Waveguide Imperial kit.
Remote Mount Installation with an Imperial Waveguide –18-42 GHz
1 Mount the RFU-C Adaptor supplied with the RFU-C Remote Pole Mount kit
using the four flat screws supplied with the RFU-C Adaptor kit.
2 Mount the RFU-C using the four captive screws and washers supplied,
assembled, in the RFU-C.
3 Connect the Flexible Waveguide and sealing O-Ring supplied with the
Flexible Waveguide Imperial kit. Tighten the four metric screws supplied
with the RFU-C Adaptor kit.
Table of contents
