Cervoz MEC-LAN-M102i User manual

MEC-LAN-M102i
Mini PCI-e 2-port 10/100/1000 isolated Ethernet board
User’s Manual
First Edition, August 2021
© 2021 Cervoz Technology Co., Ltd. All rights reserved.
Reproduction without permission is prohibited

2
Mini PCI-e Ethernet Card
User’s Manual
The software described in this manual is furnished under a license agreement and may be
used only in accordance with the terms of that agreement.
Copyright Notice
© 2021 Cervoz Technology Co., Ltd. All rights reserved. Reproduction without permission is
prohibited.
Trademarks
Cervoz is a registered trademark of Cervoz Technology Co., Ltd. All other trademarks or
registered marks in this manual belong to their respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does not represent a
commitment on the part of Cervoz.
Cervoz provides this document “as is,” without warranty of any kind, either expressed or
implied, including, but not limited to, its particular purpose. Cervoz reserves the right to make
improvements and/or changes to this manual, or to the products and/or the programs
described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, Cervoz
assumes no responsibility for its use, or for any infringements on the rights of third parties that
may result from its use.
This product might include unintentional technical or typographical errors. Changes are
periodically made to the information herein to correct such errors, and these changes are
incorporated into new editions of the publication.
Technical Support Contact Information
http://www.cervoz.com/contact.php
Cervoz Technology Co., Ltd.
Tel: [phone]
Fax: [phone]

3
Table of Contents
Chapter 1
Introduction
4
Overviews
4
Features
4
Installation Flowchart
5
Package Checklist
5
Chapter 2
Hardware Installation
6
Appendix
Pin Assignments
13
Board Side Pin Assignments
14
Device Side Pin Assignments
15
Technical Reference
16
MEC-LAN-M102i Specifications
16
MEC- LAN-M102i Dimensions
17
MEC- LAN-M102i Daughter Board Dimensions
17
Product Warranty Statement
18

4
1
Introduction
Overview
MEC-LAN-M102i is an Ethernet card for embedded PC. The card follows the Mini
PCI-e standard which is compliant with PCI Express x 1 classification and small form
factor (30×50.95 mm). This board fits in any host computer that has mini express card
slots. MEC- LAN-M102i is a highly cost-effective solution to expand Gigabyte network
for your computer.
Features
The PCI Express boards have the following outstanding features:
Single-Lane (x1) PCI-Express with throughput up to 5.0 / 2.5Gbps
Fully compliant with PCI-Express Base Specification Rev 2.0
Integrated 10/100/1000Mbps transceiver
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3z compliant
IEEE 802.3x Full-Duplex flow control
Complies with EN61000-4-2(ESD) Air-15kV, Contact-8kV
Complies with EN61000-4-4(EFT) 2kV
Complies with EN61000-4-5 2kV Surge protection

5
Installation Flowchart
Installation Flowchart of MEC-LAN-M102i
The following flowchart provides a brief summary of the procedure you should follow to
install the Mini PCI-e card:
Package Checklist
The following items are included in the Mini PCI Express board package:
Mini PCI-e Card x 1
Daughter Board x 1
Bracket x 1
M2.5 Screw x 2
20Pin Internal Connection Cable (30cm) x 2
Quick Installation Guide (Printed) x 1
Note: Notify your sales representative if any of the above items are missing or
damaged.
Connect the internal cable
Hardware Installation
Install the card in the Mini PCI-e slot
Connector Fixation
Confirm if device is ready to be used
Hardware Installation
Hardware Installation

6
2
Hardware Installation
This chapter describes the PCI Express Series hardware installation procedure. Since the
BIOS automatically assign the PCI Express board’s IRQ number and I/O addresses, you must
plug in the board before installing the driver.
Step 1
Connect the internal cable to the card
Note
Both sides of the cable connectors are the same, it doesn’t matter which side
you connect

7

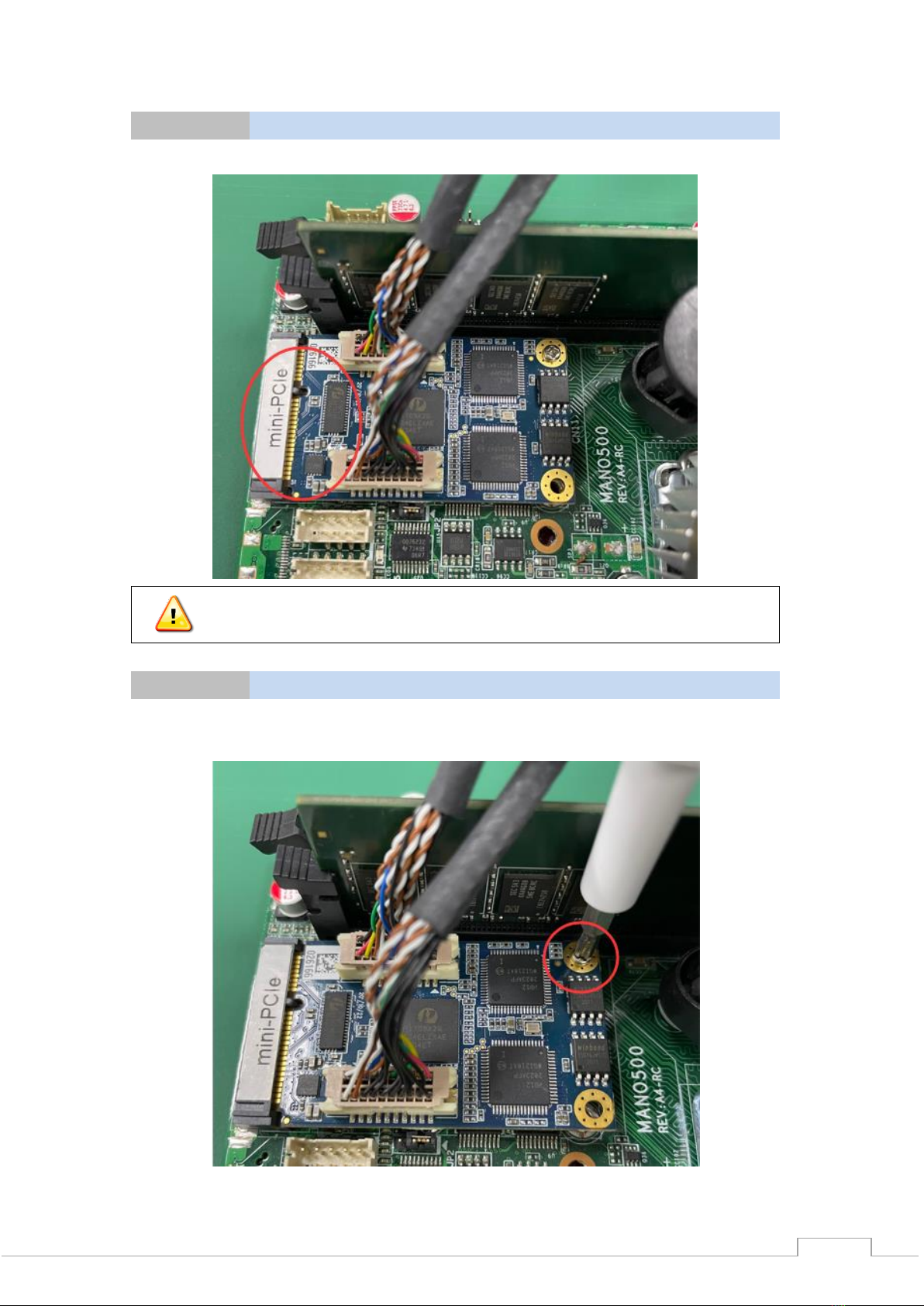

Step 2
Install the card to the Mini PCI-e slot
Make sure you install the card in the right position (fool-proof design)
Step 3
Fix the card on the motherboard
Make sure you tighten up the screws to fix the card

8
Step 4
Card installation completed
Step 5
Connect the cable to the daughter board
Connect other side of the cable to the daughter board
Note
Both sides of the cable connectors are the same, it doesn’t matter which side
you connect

9
Step 6
Confirm if device is ready to be used
Start “Computer Management” program
Go to the route: My Computer → Manage → Device Manager → Network adapters



10

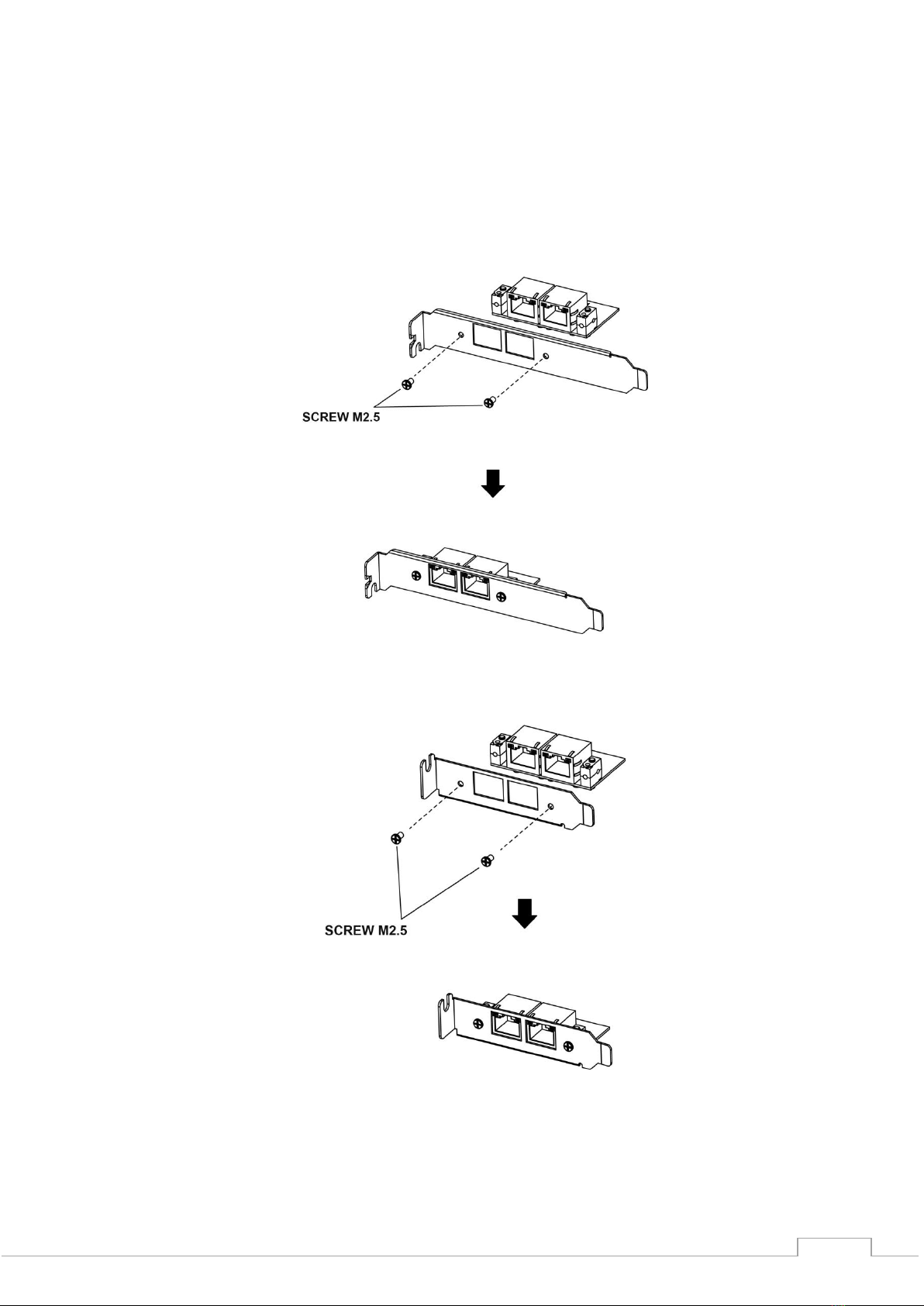

Connector Fixation
MECFIX –Versatile Mounting
1. Standard PCI/PCIe Bracket
PCI / PCIe IO Bracket
2. Low Profile PCI/PCIe Bracket
Low Profile IO Bracket

11
3. Internal Mounting
Upper Fixation –Industrial System
Right & Left Fixation –Industrial System

12
4. Customized Front / Rear Plate
Front / Rear I/O Plate
Universal Bracket

13
Appendix

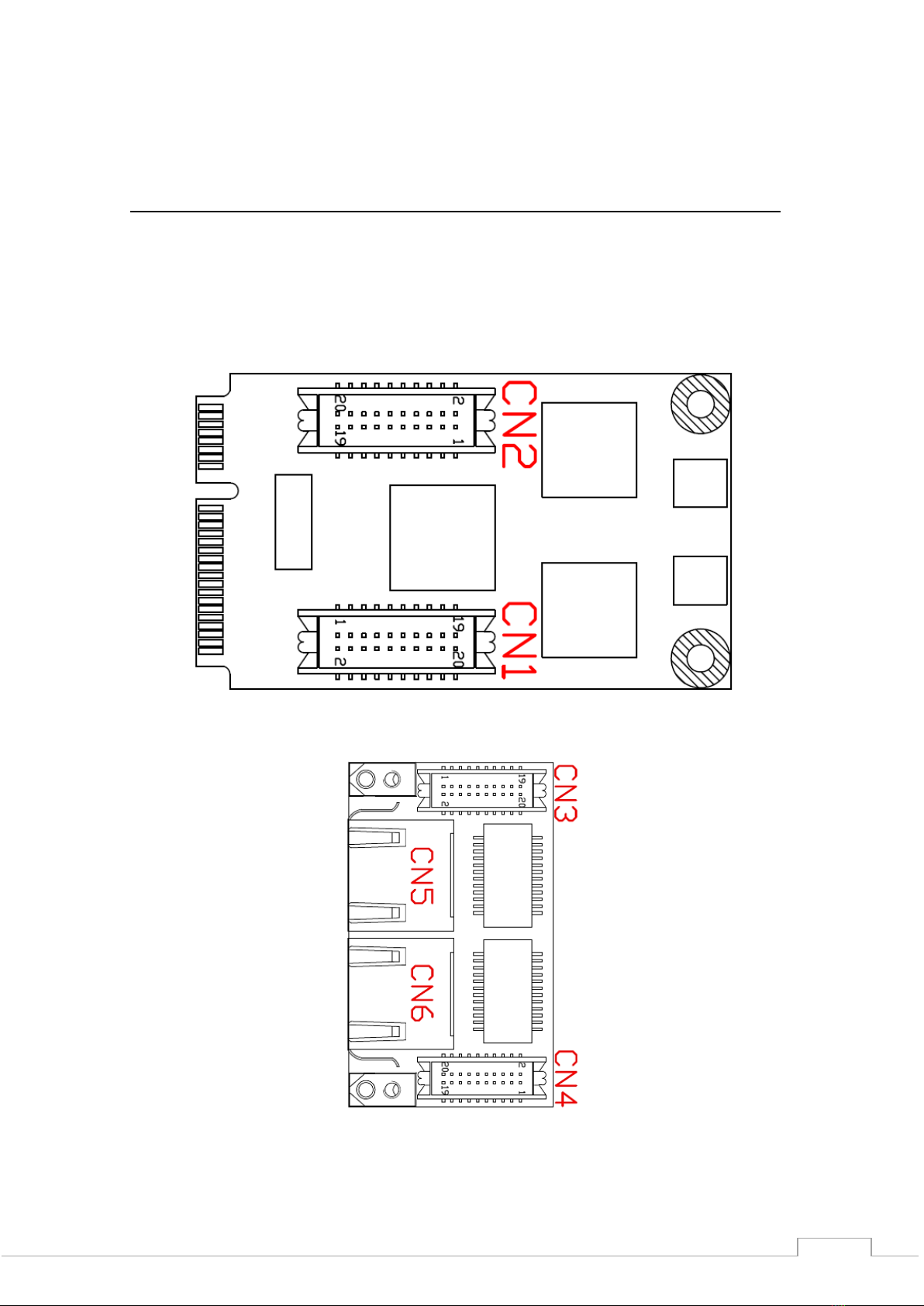

Pin Assignments

14
Board Side Pin Assignments
Wire to Board Connector (CN1、CN2)
CN1 (MB PCB Location)
CN2 (MB PCB Location)
Pin
Description
Pin
Description
Pin
Description
Pin
Description
1
LAN1_MDI0+
2
LAN1_MDI3+
1
LAN2_MDI0+
2
LAN2_MDI3+
3
LAN1_MDI0-
4
LAN1_MDI3-
3
LAN2_MDI0-
4
LAN2_MDI3-
5
GND
6
GND
5
GND
6
GND
7
LAN1_MDI1+
8
+1.5V
7
LAN2_MDI1+
8
+1.5V
9
LAN1_MDI1-
10
N/C
9
LAN2_MDI1-
10
N/C
11
GND
12
N/C
11
GND
12
N/C
13
LAN1_MDI2+
14
LAN1_LINK100
13
LAN2_MDI2+
14
LAN2_LINK100
15
LAN1_MDI2-
16
LAN1_LINK1000
15
LAN2_MDI2-
16
LAN2_LINK1000
17
GND
18
ACTIVITY
17
GND
18
ACTIVITY
19
N/C
20
LAN_LINK
19
N/C
20
LAN_LINK
Wire to Board Connector (CN3、CN4)
CN3 (DB PCB Location)
CN4 (DB PCB Location)
Pin
Description
Pin
Description
Pin
Description
Pin
Description
1
LAN1_MDI0+
2
LAN1_MDI3+
1
LAN2_MDI0+
2
LAN2_MDI3+
3
LAN1_MDI0-
4
LAN1_MDI3-
3
LAN2_MDI0-
4
LAN2_MDI3-
5
GND
6
GND
5
GND
6
GND
7
LAN1_MDI1+
8
+1.5V
7
LAN2_MDI1+
8
+1.5V
9
LAN1_MDI1-
10
N/C
9
LAN2_MDI1-
10
N/C
11
GND
12
N/C
11
GND
12
N/C
13
LAN1_MDI2+
14
LAN1_LINK100
13
LAN2_MDI2+
14
LAN2_LINK100
15
LAN1_MDI2-
16
LAN1_LINK1000
15
LAN2_MDI2-
16
LAN2_LINK1000
17
GND
18
ACTIVITY
17
GND
18
ACTIVITY
19
N/C
20
LAN_LINK
19
N/C
20
LAN_LINK

15

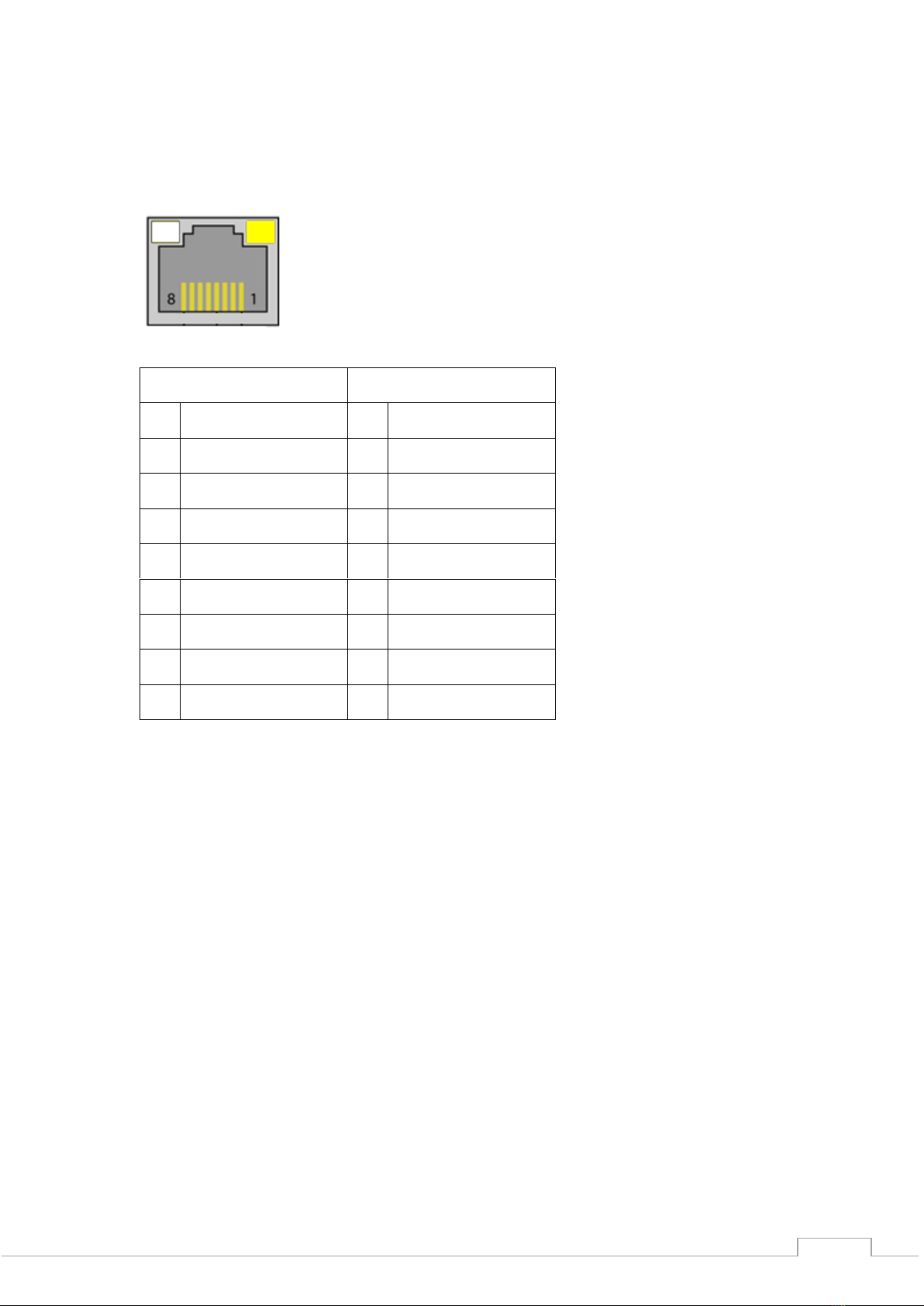

Device Side Pin Assignments
Ethernet Connector (CN5、CN6)
CN5
CN6
Pin
Description
Pin
Description
1
LAN1_MDI0+
1
LAN2_MDI0+
2
LAN1_MDI0-
2
LAN2_MDI0-
3
LAN1_MDI1+
3
LAN2_MDI1+
4
LAN1_MDI2+
4
LAN2_MDI2+
5
LAN1_MDI2-
5
LAN2_MDI2-
6
LAN1_MDI1-
6
LAN2_MDI1-
7
LAN1_MDI3+
7
LAN2_MDI3+
8
LAN1_MDI3-
8
LAN2_MDI3-

16
Technical Reference
MEC-LAN-M102i Specifications
General
PCI-Express Revision
PCI-Express Base Specification Rev 2.0
PCI-Express
Electromechanical
Revision
PCI-Express Mini Card Electromechanical Rev 2.0
Hardware
Controllers
Intel I210-IT
Bus
Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
Interface (Connector)
Ethernet 10/100/1000
2 (RJ45)
Technology
Standards
IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3ab for 1000BaseT(X),
IEEE 802.3z for 1000BaseX
Flow Control
IEEE 802.3x flow control
Driver Support
Operating Systems
Win 7, Win 8, Win 10
Power Requirement
Power Consumption
705mA@3.3V
Dimensions
Width x Length (mm)
30.00 x 50.95
Environmental Limits
Operating Temperature
-40°C ~ 85°C
Storage Temperature
-40°C ~ 125°C
Humidity
5% ~ 95%
Regulatory Approvals
EMC
CE, FCC
EMI
EN 55032, EN61000-3-2, EN61000-3-3, FCC Part 15 Subpart B
Class B
EMS
EN 55035, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4,
IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Reliability
Warranty
3 years

17
MEC-LAN-M102i Dimensions
MEC-LAN-M102i Daughter Board Dimensions

18
Product Warranty Statement
Cervoz products are warranted to be free from manufacturing defects in materials and
workmanship starting from the date of delivery. The actual warranty period of Cervoz products
vary with product categories. Complete details can be found here:
https://www.cervoz.com/warranty.php
During the warranty period, we shall, at our option, either repair or replace any product that
proves to be defective under normal operation.
Defects, malfunctions, or failures of the warranted product caused by damage resulting from
natural disasters (such as by lightening, flood, earthquake, etc.), environmental and
atmospheric disturbances, other external forces such as power line disturbances, plugging the
board in under power, or incorrect cabling, and damage caused by misuse, abuse, and
unauthorized alteration or repair, and the product in question is either software, or an
expendable item (such as a fuse, battery, etc.), are not warranted.
RMA Instruction
Customers must fill in Cervoz Return Merchandise Authorization (RMA) Request Form
and obtain a RMA number prior to returning a defective product to Cervoz for service.
Customers must collect all the information about the problems encountered and note
anything abnormal and describe the problems on the “Cervoz Service Form” for the RMA
number application process.
Charges may be incurred for certain repairs. Cervoz will charge for repairs to products
whose warranty period has expired. Cervoz will also charge for repairs to products if the
damage resulted from acts of God, environmental or atmospheric disturbances, or other
external forces through misuse, abuse, or unauthorized alteration or repair. If charges will
be incurred for a repair, Cervoz lists all charges, and will wait for customer’s approval
before performing the repair.
Customers agree to insure the product or assume the risk of loss or damage during transit,
to prepay shipping charges, and to use the original shipping container or equivalent.
Customers can send back faulty products with or without accessories (manuals, cable,
etc.) and any components from the card. If the components were suspected as part of the
problems, please note clearly. Otherwise, Cervoz is not responsible for the devices/parts.
Repaired items will be shipped along with a "Repair Report" detailing the findings and
actions taken.
Limitation of Liability
Cervoz’ liability arising out of the manufacture, sale, or supplying of the product and its use,
whether based on warranty, contract, negligence, product liability, or otherwise, shall not
exceed the original selling price of the product. The remedies provided herein are the
customer’s sole and exclusive remedies. In no event shall Cervoz be liable for direct, indirect,
special or consequential damages whether based on contract of any other legal theory.
