Cerwin-Vega CV62BM User manual

CV62BM
OWNER’S MANUAL
3761 South Hill St.
Los Angeles, CA 90007
[phone]
2022 Cerwin Vega Mobile All rights reserved.
(a division of CV & DA Holdings, Inc.)
CERWINVEGAMOBILE.COM
CV62BM
CV7BM
6.2” TOUCH SCREEN MP5 PLAYER WITH
WIRELESS MUSIC STREAM / MS / AM / FM

We reserve the right to change the products and specifications at any time without notice.
Images may or may not include optional equipment.
Introduction Installation
1
Notes On Installation
The unit is designed for 12V DC negative ground operation system only.
Before installing the unit, make sure your vehicle is connected to DC12V negative
ground electrical system.
The negative battery terminal must be disconnected before making
connections, which can decrease the chance of damaging the unit due to
short circuit.
Be sure to connect the color coded leades correctly according to the
diagram. Incorrect connection may cause the unit malfunction or damage the
vehicle electrical system.
Be sure to connect the speaker (-) leads to the speaker (-) terminal.
Do not connect the left and right channel speaker cables to each other to the
vehicle body.
Do not block vent or radiator panel. Blocking them will cause heat
build up inside and may result in fire .
After the completion of the installation and begin to play the unit
(including replacing the battery), please press the RESET button on the front
panel with pointed objects (such as ball-point pen) to set the unit to initial status.
2. Wiring Diagram
Cerwin Vega Mobile Radio
Congratulations for purchasing Cerwin Vega Mobile Radio for your car audio system.
You have chosen Cerwin Vega Mobile because you deserve the best!
Cerwin Vega Mobile Radio are designed and engineered to reproduce great sound
quality for many years of listening enjoyment in your vehicle! We highly recommend that
your new speakers be installed by an authorized Cerwin Vega Mobile dealer. Your
authorized dealer can professionally assemble/disassemble the interior of your vehicle
and set the proper speaker placement for ideal sound quality.
If you decide to install the speakers by yourself, please thoroughly read through this
manual before getting started. This manual will help familiarize yourself with these
speakers and guide you through the installation process and procedures.
Please contact your local authorized Cerwin Vega Mobile dealer if you have any
questions regarding the instructions in this manual. If you require additional assistance,
please contact the Cerwin Vega Mobile Technical Support Department during business
hours at 213-261-4161.


Remote Panel
23
Remote Control Description
Basic Operations
Installing the lithium coin battery (CR2025)
• Aim the remote control directly at the remote sensor on the unit
• DO NOT expose the remote sensor to strong light
(direct sunlight or artificial light)
WARNING: To prevent accidents and damage
• Store the battery in a safe place where in children cannot reach
• DO NOT charge, decompose, heat up the battery or dispose it in a fire.
• DO NOT poke or pierce the battery with tweezers or similar tools.
• Wrap the battery with tape for insulation when throwing it away for
keeping it for future use.
1. Power Switch
2. Mute
3. Up
4. Menu
5. Mode Switch
6. Right
7. MS/MC
8. Previous Track
9. Band / Automatic
10. Volume +
11. Left
12. Confirm / Play / Pause
13. Next Track
14. Under
15. Volume -
16. Choice
17. Answer the phone
18. Hang up
19. Digital Key
Radio Operation
When the unit connect with power, press POWER key button of the unit or the POWER key button of the
remote control, the unit will turn on and enter into the radio interface. The radio interface is as shown below:
Radio Operation:
: Press this icon to enter into the main interface
: Volume icon: Press to enter volume adjustment, touch and slide to
adjust volume
: Time Display
: Press this icon to switch the backlight mode (day, night, off screen)
3 Mode
: Return back icon (press to return back to main interface)
: Short press this icon to browse radio stations, long press to search
and save stations automatically
: BAND Switch (Switch FM1/FM2/FM3/AM1/AM2)
: ST Stereo Switch (Switch ST Stereo and Mono Mode)
: Switch Between LOC and DX (LOC: Strong Signal, DX: Weak Signal)
: Short press to scan to the low end manually, long press to scan to
the low end automatically
: Short press to scan to high end manually, long press to scan to high
end automatically
: Radio progress bar: Press and slide to adjust radio
stations at will
: Press to select a station, long press to store your
favorite station

Interface Interface
45
Main Interface
Press “ ” icon at any interface, it will return back to main interface, main
interface as below:
Main Interface Operation as follow:
: Time and date display, press to switch to two different display style.
: Small window displays, enter the main interface in different modes, the small window
will display the current mode. When press, it can quickly enter into current mode. It can
choose “previous song, next song, play or pause the song, or select the previous or next
station.” when playing MP3 or BT music or in radio mode.
: Radio
: Bluetooth
: USB (If unit without USB, when press this icon, it will display: No Device)
: Phonelink (Press to enter with choice: Android USB , Android WIFI and
iPhone USB, iPhone WIFI Mirrorlink and CARPLAY Connecting)
: SD (If unit without SD Card, when press this icon, it will display: No Device)
: Setting (Enter into to set language, time, steering wheel control, etc.)
: External Audio and Video Input (when the audio and video input line is not
connected, it will be blue screen)
: Rear View (When the camera is not connected, it will be blue screen)

Functions Functions
67
SD or USB Playback
Choose “ ” or “ ” icon in the main interface or press MOD Key button
to enter into SD or USB playback function, support music, image, video.
Music Playback Interface as follow:
The operation of the music interface is as follows:
: Switch to previous song
: When playing music, press once to pause the music, press again
again to resume playback
: Switch to next song
: Enter the speaker area and sound effect settings, after setting, press
icon “ ” to return back to music playback
: Repeat playback (can choose: repeat one, repeat all, repeat folder and
close repeat)
: Shuffle Playback
: Folder selection such as when there is a folder in SD or USB, click
to enter the small keyboard to directly input the number to select the
corresponding folder
: Song List
: Play progress bar, press and slide to adjust
the play progress at will
Picture playback, the playback interface is as shown below:
The picture playback interface operation is as follows:
: Switch to previous image
: When playing an image, press once to pause playback, press again
to resume playback
: Switch to next image
: Select the picture by number, click to enter the small keyboard to
directly input the number to select the corresponding picture
: Switch to 2/2 function interface
: Enlarge or zoom the image (magnification factor x2, x3, x4, x5 zoom
factor: x1/2,x1/3, x1/4)
: Rotate Image
: Repeat playback (can choose: repeat one, repeat all, repeat folder
and close repeat)
: Shuffle Playback
: Switch to 1/2 function interface

Functions Functions
89
Video playback, the playback interface is as shown below:
Video playback interface operations are as follows:
: Switch to previous one
: When playing an video, press once to pause playback, press again
to resume playback
: Switch to next one
: Repeat playback (can choose: repeat one, repeat all, repeat folder
repeat folder and close repeat)
: Shuffle Playback
: Enlarge or zoom (magnification factor x2, x3, x4, x5 zoom
factor: x1/2,x1/3, x1/4)
: Switch to the next function page
: Enter Sound Settings
: Video color adjustments, enter to adjust brightness, contrast, etc.
: Folder selection, such as when there is a folder in SD or USB,
click to enter the small keyboard to directly input the number
to select the corresponding folder
: Video List
: Switch to the last function page
(Image One) (Image Two)
CV62BM
When playing music, pictures or videos, click the upper right corner
icon “ ” the first time enter the list of music, pictures or videos.
Click the second time to enter the folder selection, as shown below:
The folder interface operation is as follows:
: View Music Folder
: View Image Folder
: View Video Folder
Bluetooth
Choose “ ” icon in the main interface to enter bluetooth Connection method:
Turn on the Bluetooth of the mobile phone, search for the BT name “CV62BM”
and click the BT name to pair, the host pairing is successful as shown below:

Functions Functions
10 11
Warm reminder: If the Bluetooth of the mobile phone and the host cannot
be successfully paired, please try the following solutions:
1. Turn off the bluetooth of the mobile phone and turn on the bluetooth again
to pair, if it still fails to pair, please restart the mobile
2. Press the RESET of the unit to clear the host memory
Press “ ” to enter BT calling interface, as shown below:
BT call dial interface operation is as follows:
: Delete a single entered number
: Delete all entered numbers
: Dial Key
: Entered Dial Display Box
: Number Dial Key
Press “ ” to enter BT calling interface, as shown below:
BT call log interface is as follows :
: Received Call History
: Dialed call Records
: Rejected Call History
: Clock to Download Call Log
Press “ ” to enter into BT phonebook interface as shown below:
(Image One) (Image Two)
The operation of the Bluetooth phone book (image one) is as follows:
: Download Bluetooth Phone Book
: Delete the letters that have been entered
: Already entered letter display box
: Letter Input Key, Enter letters to search for names
: Click to collapse the alphabet search keypad, shown as “ ”
means it has been put away, Click again to open, if the phone
book has been downloaded, when the keypad is closed, it
displays as image two
Warm reminder: You can seaerch by name only after downloading
the phone book.

Functions Functions
12 13
CV62BM
Press “ ” to enter the Bluetooth msuci playback interface, as shown
below:
BT music interface operations are as follows:
: Switchto to previous song
: When playing music, press once to pause the music, press again
to resume playback
: Switch to next song
: BT music ID3 display
Press “ ” to view connected Bluetooth Devices
Mirrorlink
Select the main interface, press “ ” icon enters the mobile internet interface,
as shown below:
Tips: 1. When all connection interfaces are not connected to the mobile
phone, press the lower right corner icon “ ” to exit phonelink
2. The rear USB is used as a portable Wifi signal receiver socket, all
USB connections only support the front USB

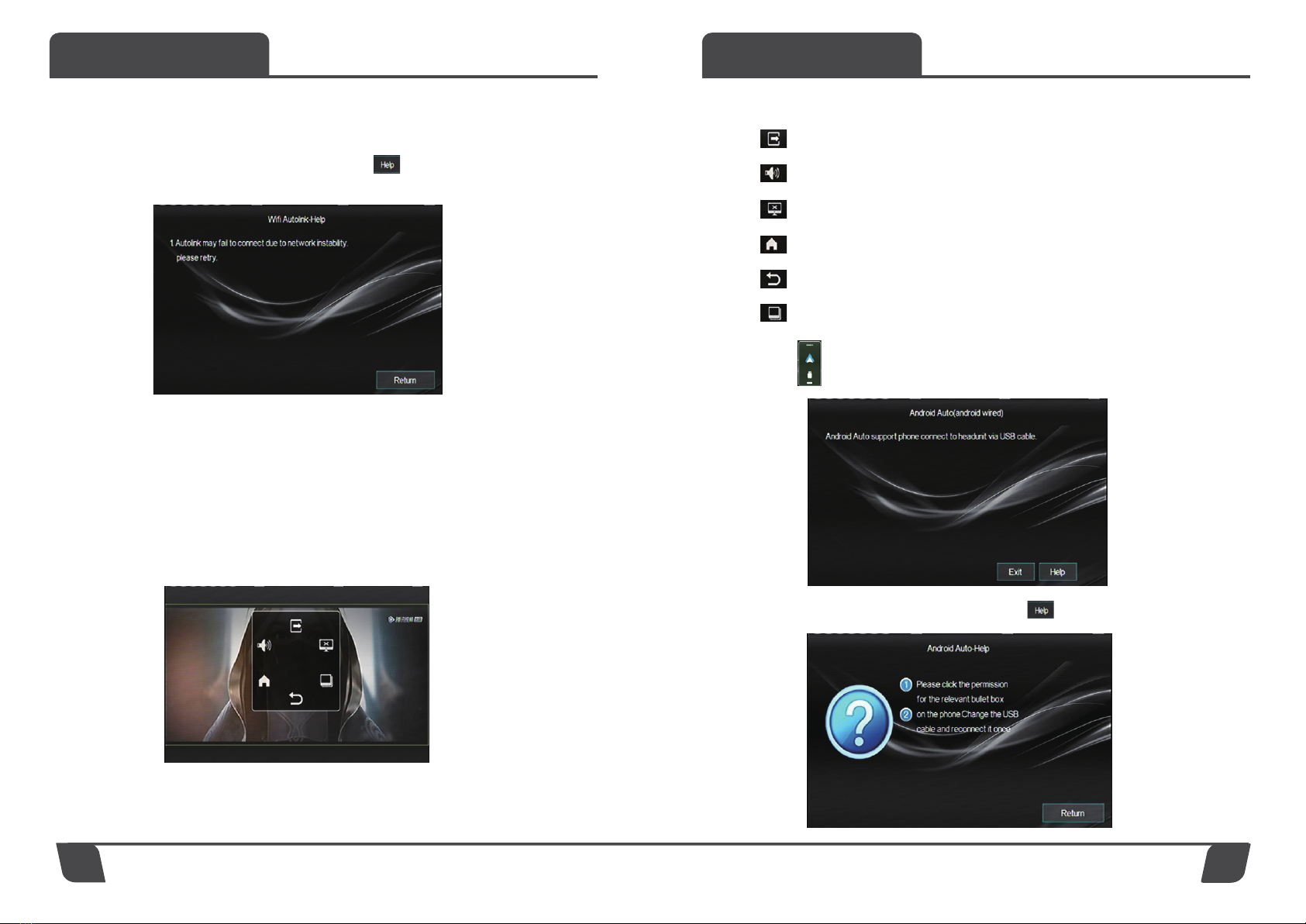

Choose “ ” icon to enter Auto link Android USB Connect
(Support Dual Control) as shown below:
(Connecting Method)
Connecting Method as follow:
Autolink support android phone connect to headunit via USB Cable.
1. When first connection, please follow the phone prompts to download and
install the app.

Functions Setup
14 15
2. Please connect the phone to the headunit via USB cable!
3. Phone’s Screen will mirror to headunit automatically.
4. For more information, please refer to to the help page, press “ ” icon to enter help page, as follow:
Auto Link-Help:
1. Please click the permission for the relevant bullet box
2. On the phone. Change the USB cable and reconnect it once.
3. If the APK installation fails, please scan the QR Code to download and install the APK.
Warm Reminder:
1. Some phones may not support
2. No sound while mirrorlink if without connecting to BT
3. If the unit morroring cannot display the full screen, please try to adjust the resolution of your phone
4. If the mobile phone cannot be connected all the time, please try to restart the mobile phone or
press “RESET” key of the unit to reset and reconnect
5. Autolink Android USB connection is successful, the unit will display the phone mirror, as shown
in the image next page:
Autolink Android USB successful connection interface is as follows:
: Exit Mirrorlink
: Sound Adjustment
: Turn off the Screen Display
: Enter the main interface of the phone
: Return to the upper level of the phone
: Force horizontal screen, some phones do not support
Choose “ ” icon to enter Miracast Android Wifi Connect (Only supports one-way
control: mobile phone controls the unit), the display interface is as follows:
(Connecting Method)
Connecting method as follow:
Wifi Autolink support android phone connect to headunit via wifi

Setup Settings
16 17
1. Please scan the QR code to download and install the autolink pro app.
2. Please open app click “xxxx” to connect
3. Phone’s screen will mirror to headunit automatically.
4. For more information, please refer to the help page, press “ ” icon to enter to help page as follow:
Miracast-help
1. When the connection fails, please restart your phone and try again
Reminder: some mobile phones do not need to connect to Bluetooth to transmit sound. If there
is no sound when connected, please disconnect the bluetooth connection.
2. Miracast Android Wifi Connection is successful, the unit will display the phone mirror, as shown
below:
Miracast Android Wifi successful connection interface is as follows:
: Exit Mirrorlink
: Sound Adjustment
: Turn off screen display
: Enter the main interface of the phone (Miracast Android Wifi not support this operation)
: Return to the upper level of the phone (Miracast Android Wifi not support this operation)
: Force horizontal screen (Miracast Android Wifi not support this operation)
Choose “ ” icon to enter Android Auto USB Connect as shown below:
For more information, please refer to the help page, press “ ” icon to enter to help as follow:
(Connecting Method)
(Help Page)

Settings Settings
18 19
Choose “ ” icon to enter into Iosmirror iPhone USB connection the
display interface is as shown below:
Connecting method as follow:
Iosmirror support iPhone connect to headunit via USB Cable.
1. When first connection, connect the phone to the headunit via USB cable.
Please click “trust” on your phone
2. Phone’s Screen will mirror to headunit automatically
3. More information, please refer to the help page, press “ ” icon to
enter into help page as follow:
(Help Page)
losmirror - Help
1. Please click the permission for the relevant bullet box
2. On the phone, Change the USB cable and reconnect it once.
Reminder:
1. The sound transmission is not affected when bluetooth is not connected
2. When connected to Bluetooth, it supports two-way control (the phone can control
the unit, also the unit can control the phone)
3. Iosmirror iPhone USB connection is successful, the unit will display the mirror or
image of the phone, as shown below:
Iosmirror iPhone USB successful connection interface is as follows:
: Exit mirrorlink
: Sound Adjustment
: Turn off screen display
: losmirror iPhone USB not support this operation
: Iosmirror iPhone USB not suppoty this operation
: Iosmirror iPhone USB

Settings Settings
20 21
Airplay - Help
Choose “ ” icon to enter into Airplay iPhone Wifi connection (only support one-way control:
mobile phone control the unit), the display interface is as follows:
Connecting method as follow:
Airplay support iPhone connect to the unit via Wifi
1. When wifi status icon is displayed, you can operate airplay connection from
the mobile phone
2. Connecting Method:
a. Open the phone WLAN, connect Wifi name, such as:
DIRECT-Car-phonelink, Password: 88888888
b. Open the contrl center, click “Screen Mirroring”, select “Car-airplay”
for screen mirroring
For more methods, please visit Apple’s Official Website
3. For more information, please refer to the help page, press “ ” icon
to enter help page as follow:
(Connecting Method)
(Help Page)
1. Only support audio/photo share and screen mirror,
can’t support video share in video’s app.
2. A few seconds after the phone lock screen,
airplay will exit automatically.
Reminder:
1. The sound transmission is not affected when Bluetooth is not connected
2. If the mobile phone has been unable to connect, please try to restart the mobile
phone or press “RESET” button of the unit to reset and reconnect
3. Airplay iPhone Wifi connection is successful, the unit will display the phone
mirror, as shown below:
Airplay iPhone Wifi successful connection interface is as follows:
: Exit Mirrorlink
: Sound Adjustment
: Turn Off Screen Display
: Airplay iPhone Wifi not support this operation
: Airplay iPhone Wifi not support this operation
: Airplay iPhone Wifi not support this operation

Settings Settings
22 23
Choose “ ” icon to enter into losmirror iPhone Carplay connection,
the display interface is as shown below:
(Picture 1) (Picture 2)
1. Carplay support iPhone phone connect to headunit via USB Cable.
2. When unconnected it will show as picture 1, and connected is like picture 2
3. For more information, please refer to the help page, press “ ” icon to enter help
page as follow:
(Help Page)
Carplay - Help
1. Please click the permission for the relevant bullet box.
2. On the phone, change the USB cable and reconnect it once.
Setting
Press “ ” icon in the main interface to enter into setting
1. Choose settings interface “ ” to enter system setting as follow:
The system settings list are as follows:
: Language setting: different languages can be selected according to
personal needs
: Key tone switch
: Key button light color settings (including: red, green, yellow, blue, rose red,
cyan, white and automatic conversion)
: Reversing silent switch
: Screen Settings (Including: Brightness setting and touch correction)

Settings Settings
24 25
: Radio are settings: different radio areas can be set according to different
regions
: Car logo setting: different car logos can be set according to different
models
: About the unit (Software version information)
: Reset
Choose settings interface “ ” icon to enter the speaker area setting and
sound effect setting, as shown below:
Press “ ” icon to enter the speaker area settings, press “ ” icon to
enter EQ settings (including 16-segment EQ)
Choose settings interface “ ” icon to enter video setting as follow:
The video settings list are as follows:
: Video ratio setting, choose 4:3 or 16:9
: Brightness Setting
: Contrast Setting
: Chroma Setting
: Saturation Setting
: Restore Default Settings
Choose settings interface “ ” icon to enter date and time setting
as follow:
The date and time setting list are as follows:
: Adjust up
: Adjust down
: Save the adjusted date and time settings
: 12-hour and 24-hour time system settings, tick “ ” for
24-hour system

Settings Warranty
26 27
Choose settings interface “ ” icon to enter background image setting,
4 different style of backgrounds to choose from, as shown below:
Choose settings interface “ ” to enter steering wheel control setting as follow:
The steering wheel control setting list is as follows:
Setting Method: long press the steering wheel button, choose corresponding
key button to select the prefer key button learning is successful.
: Save learned button
: Clear all learned keys
: The square in the lower right corner of the interface is the button voltage
display area
: Learning Tips Bar : Steering wheel control key button
Please Ship All Warranty Claims With Pre-Authorized RA Number To:
CV&DA Holdings, Inc.
ATTN: Customer Service Department
3761 S. Hill St.
Los Angeles, CA 90007 USA
Please Contact Customer Service for Further Warranty Information:
U.S.A.
Tel: [phone] / Fax: [phone]
