Challenge FB510 User guide

Important - Please read these instructions fully before starting assembly
These instructions contain important information that will help you get the best from your
pressure washer, ensuring it is assembled correctly and safely.
Original instruction manual
Challenge
1400W High Pressure Washer
FB510
Dec 2017 Rev C
Technical Support & Parts
01904 727508
www.coreservice.co.uk

Safety Information
Important - Please read these instructions fully before operating or maintaining
3
Customer Helpline 01904 727508
www.coreservice.co.uk
Contents
2
Customer Helpline 01904 727508
www.coreservice.co.uk
Safety Information.............................................................................................................................................3
Warning Symbols..........................................................................................................................................4
General Safety..............................................................................................................................................4
Personal Safety ............................................................................................................................................4
Operating Safety...........................................................................................................................................6
Maintenance and Storage Safety.................................................................................................................8
Intended Use ................................................................................................................................................9

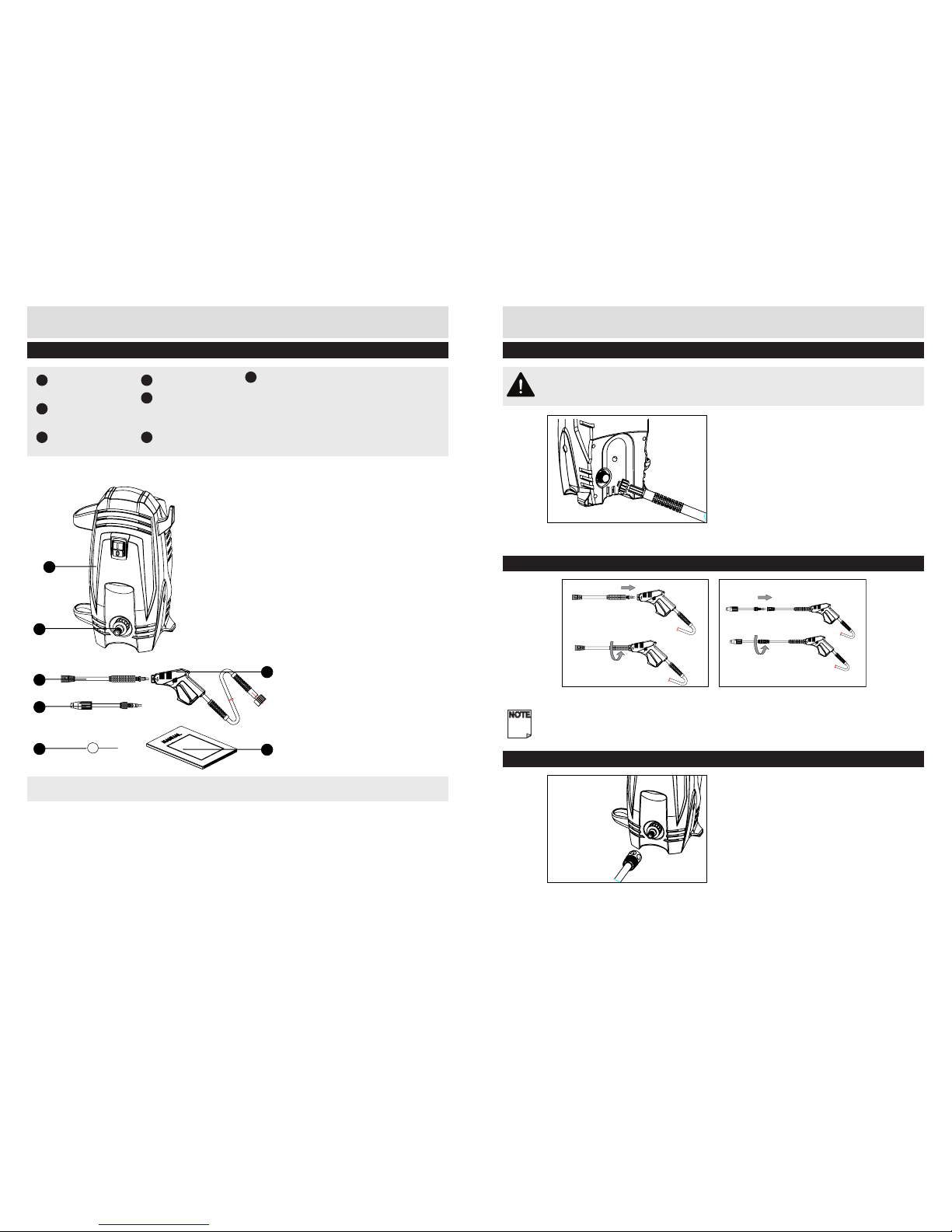

In the Box .......................................................................................................................................................10
Preparing to Operate the Pressure washer....................................................................................................11
Operate the Pressure Washer........................................................................................................................13
Maintenance and Repair.................................................................................................................................16
Storage and Transportation ............................................................................................................................16
Troubleshooting ..............................................................................................................................................17
Technical Data................................................................................................................................................ 18
Recycling and Disposal...................................................................................................................................19
Getting Help ....................................................................................................................................................19
Guarantee .......................................................................................................................................................20
The following warning symbols appear throughout this assembly manual and indicate the appropriate
safety measures you should take when assembly and operating the lawnmower.
Warning!
Read the instruction manual
Conforms to all relevant safety standards.
Wear eye and ear protections.
Disconnect the mains plug immediately if the cable is damaged, has been badly twisted or is
completely cut through and in the event that the device is left unattended for a short time.
WARNING: Never direct discharge stream at persons, animals, the unit or electric components.
Appliance not suitable for connection to the potable water mains.
Water that has own through backow preventers is considered to be non-potable. The appliance is
not intended to be connected to the potable water mains. If necessary, please use only with a water
backow preventer or inlet hose-set approved by IEC 61770.
Double insulations, Class II appliance
Waste Disposal and Environmental Protection!
Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre
when you have nished with them.Electrical machines do not belong in domestic waste. Take the
equipment to a waste disposal site. The plastic and metal parts that are used can be separated out
into pure grade, which allows recycling.
Guaranteed sound power level
Warning Symbols
98

Safety Information Safety Information
Important - Please read these instructions fully before operating or maintaining
4
Important - Please read these instructions fully before operating or maintaining
5
Customer Helpline 01904 727508
www.coreservice.co.uk
Customer Helpline 01904 727508
www.coreservice.co.uk
General Safety
Personal Safety
WARNING!
- Risk of fatal injury!
Use special care when cleaning tyres. Vehicle tyres/
tyre valves may become damaged or burst when
Personal Safety (continued)
handled improperly. First signs of damage included
discolorations on the tyre. Damaged vehicle tyres/tyre
valves pose a life-threatening risk. Keep the jet at a
distance of at least 30 cm!
- Never direct the jet against yourself or others in order
to clean clothes or footwear.
- The appliance is not designed for connecting to
tap water. If necessary, please use only with a water
backow preventer or inlet hose-set approved by IEC
61770.
- Risk of injection or injury, do not direct discharge
stream at persons.
- Do not use the appliance when there are other
people around, unless they are also wearing safety
equipment.
- High-pressure jets can be dangerous if misused. The
jet must not be directed at persons, animals, electrical
equipment or the appliance itself.
- Know how to stop the product and bleed pressure
quickly, be thoroughly familiar with thecontrols.
- Stay alert -watch what you are doing.
- Do not operate the product when fatigued or under
the inuence of alcohol or drugs.
- Keep operating area clear of all persons.
- Do not overreach or stand on unstable support. Keep
good footing and balance at all times.
- Always wear personnel protection equipment (PPE)
for high pressurecleaners in operation, e.g. safety
boots, safety gloves, safety helmets with visors,
IMPORTANT!
- Keep this instruction manual in a safe place for
future reference.
- Read the instructions carefully. Be familiar with the
controls and the proper use of the equipment.
- Never allow children or people unfamiliar with
these instructions to use the pressure washer. Local
regulations can restrict the age of the operator.
- Never use the machine while people, especially
children, or pets are nearby. Keep in mind that the
operator or user is responsible for accidents or
hazards occurring to other people or their property.
- This machine can be used by people with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
machine in a safe way and understand the hazards
involved.
- Don’t use the appliance without reading the
instruction sheet.
- Children should be supervised to ensure that they do
not play with the appliance.

Safety Information Safety Information
Important - Please read these instructions fully before operating or maintaining
6
Important - Please read these instructions fully before operating or maintaining
7
Customer Helpline 01904 727508
www.coreservice.co.uk
Customer Helpline 01904 727508
www.coreservice.co.uk
Important - Please read these instructions fully before operating or maintaining
- Water that has own through backow preventers is
considered to be non-potable.
- The PVC or polychloroprene sheathed power cord,
or extension cables (H05VV-F) are acceptable for
use at temperatures at or above 0 OC.
- Always ensure that a machine which has been
switched off and cannot be restarted unintentionally.
- Only use hoses, ttings and couplings supplied and
recommended by the manufacturer.
- Never carry the equipment by the cable or the
hose. Do not carry the equipment with your nger on
the On/Off switch when it is connected to the mains.
- Remove the plug from the plug socket if you are not
using the equipment, when transporting it or when
it is left unattended, when checking the equipment,
cleaning it or removing blockages, when undertaking
maintenance work or changing accessories, if the
power or extension cable is damaged, after contact
with foreign bodies, or in the event of abnormal
vibration.
- Do not use the equipment near ammable liquids or
gases. In case of non-observance, there is a risk of
re of explosion.
- Do not use the pressure washer if a supply cord,
safety devices, hoses, switch or trigger gun is
damaged.
WARNING! Inadequate extension cords can be
dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to
be kept dry and off the ground. It is recommended
that this is accomplished by means of a cord reel
Operating Safety
WARNING!
- High-pressure hose ttings and couplings are
important for the safety of the appliance. Use only
hose tting and couplings recommended by the
manufacturer.
- Inadequate extension cables can be dangerous.
- The electric supply connection shall be made by a
qualied electrician and comply with IEC60364-1. It is
recommended that the electric supply to this machine
should include either a residual current device that
will interrupt the supply if the leakage current to earth
exceeds 30 mA for 30 ms or a device that will prove
the earth circuit.
- Disconnect from the electrical power supply before
carrying out user maintenance.
- Don’t use the appliance if a supply cables or
important parts of the appliance are damaged, e.g.
safety devices, high-pressure hoses, trigger gun.
- If extension cable is used, the plug and socket outlet
must be of a watertight construction.
- If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualied person in order to avoid a hazard.
Personal Safety (continued)
hearing protection etc. which shall be worn while
operating the equipment.
- The operator or user is responsible for accidents or
damages to other people or their property.
Operating Safety (continued)

Safety Information Safety Information
Important - Please read these instructions fully before operating or maintaining
8
Important - Please read these instructions fully before operating or maintaining
9
Customer Helpline 01904 727508
www.coreservice.co.uk
Customer Helpline 01904 727508
www.coreservice.co.uk
WARNING!
- To ensure the appliance safety, use only original
spare parts from the manufacturer or approved by the
manufacturer.
- Retrotting or making any unauthorized changes to
the machine, as well as the use of unapproved parts will
invalidate your warranty.
Operating Safety (continued)
which keeps the socket at least 60 mm above the
ground.
- Ensure that the mains voltage matches the
information on the label.
- Before each use, check the equipment, power cable
and plug for damage, avoiding an electrical shock.
- Damaged cables, coupling and plugs or connecting
leads that are not compliant with specications are
not to be used. Remove the plug from the plug socket
immediately in case of damage or cutting through of
the mains cable.
- Do not use the equipment when the switching action
of the On/Off switch is impaired. Have damaged
switches replaced at our Service Centre.
- Do not overload your equipment. Work only within
the indicated range of performance. For heavy work,
do not use a machine with insufcient power. Do not
use your equipment for purposes other than those
specied.
Intended Use
This high-pressure cleaner is designed for domestic use
only:
- to clean machines, vehicles, buildings, tools, facades,
terraces, garden equipment etc. using a high-pressure
water jet (and detergents if required).
- to use with accessories, replacement parts and
detergents approved by Challenge.
Observe the instructions provided with these detergents.
Any use of the machine that deviates from its intended
use and is not included in these instructions is considered
unauthorized use and relieves the manufacturer from his
or her legal liability.
Maintenance and Storage Safety
- Do not attempt to repair the equipment yourself. All work
not indicated in these instructions is to be carried out only
by service stations authorized by us.
- Store the equipment in a dry location and out of reach
of children.
- Handle the equipment with care. Keep the equipment
clean for save and more efcient working. Follow the
maintenance directions.
- Machine may be damaged by frost.
- There is always residual water left inside the high-
pressure washer and in the pump. Do not store the
machine at temperatures below freezing point in order to
Maintenance and Storage Safety (continued)

1110
Customer Helpline 01904 727508
www.coreservice.co.uk
Customer Helpline 01904 727508
www.coreservice.co.uk
Ahigh pressure
washer
Btrigger gun with
hose attached
Cextend lance
Dspray lance
Ewater inlet male
connector (attached
to the machine)
Fnozzle pin
instruction manual
In the Box
Parts
G
A
C
D
E
F
B
G
If there are any parts missing, please call the customer helpline on 01904 727508
Insert the extend lance to trigger gun, and twist 1/4 turn to lock in position. Insert the spray lance to
extend lance, and twist 1/4 turn to lock in position.
Note! Check that it is rmly securely located in place.
WARNING! Always wear safety gloves when doing any work on the pressure washer.
Connect the high pressure hose to the pressure washer. Attach high pressure hose to the
machine’s water outlet (hand tighten only).
Step 1 Fit the high pressure hose to the washer
Preparing to Operate the Pressure Washer
Step2 Assemble the lower handle
Before you attach your water hose (not included), run the water through to eliminate any air in the
hose to avoid air locking.
Step 3 Connect garden hose and inlet adapter

1312
Customer Helpline 01904 727508
www.coreservice.co.uk
Customer Helpline 01904 727508
www.coreservice.co.uk
Step 5 Connect socket
Attach garden hose to water supply and turn water on.
Make sure the ON/OFF switch is in the OFF position and your hands and plug are dry. Connect the
plug to the mains socket.
Note! We Recommend the use of a RCD Safety protection adapter.
Preparing to Operate the Pressure Washer
Step 4 Connect garden hose and water supply
OFF
Operate the Pressure Washer
Step 1 - Starting
1. Place the high pressure washer on level ground. Stand in a secure and stable position.
2. Unlock the safety trigger on the spray gun, and press the trigger until there is a steady stream of
water.
3. To switch the machine on, set the On/Off switch to ON.
Warning!
Wear suitable clothing, ears and eyes protecting when working with the equipment. Ensure that the
equipment is functional before each use. Ensure that the mains voltage value matches the label on the
equipment. Check the safe condition of the machine:
– Check it for visual defects.
– Check that all parts of the machine have been securely tted.
– Check if the water connector and the high-pressure pipes are tight.
2
1
1. Release the trigger, and engage the safety lock.
2. To switch the machine off, set the On/Off switch to OFF.
Step 2 - Stopping

1514
Customer Helpline 01904 727508
www.coreservice.co.uk
Customer Helpline 01904 727508
www.coreservice.co.uk
WARNING! Always turn off the machine when changing the high pressure lance. The trigger gun is
subjected to a recoil force when the water jet is discharged. Make sure that you have a rm footing and
are also holding the trigger gun and spray lance with both hands.
Operate the Pressure Washer
Step 3- Use the high pressure lance
1. Hold the hand-held spray lance and the jet tube rmly with both hands. Be aware of the recoil when
switching on the high-pressure jet.
2. Unlock the safety button and press the trigger on the handheld spray lance. It takes approximately 5
seconds to release the high pressure.
NOTE! Clogging of the spray tips causes the pump pressure to be too high and cleaning is immediately
required. You can clean the spray tips by carefully inserting a using the supplied cleaning pin into the
tip to remove deposits.
2
1
CAUTION!
- Jet spray adjustment is very aggressive. Do not adjust while spraying. Switch the machine off when
interrupting your work for extended periods of time.
- The high-pressure pump starts running as soon as you operate the hand-held spray gun. The high-
pressure pump stops running as soon as you release the trigger on the hand-held spray gun.
Step 3- Use the high pressure lance (continued)
Operate the Pressure Washer
3. Use with adjustable spray lance, 180 degree rotation of the nozzle. It takes a couple of seconds for
the spray to adjust to setting.
The trigger gun safety lock prevents the trigger from being engaged accidentally and ensures the trigger
gun cannot be locked in the ON position.
Without turning the gun, adjust the spray to desired angle by turning the nozzle with 180° marking as
shown.

1716
Customer Helpline 01904 727508
www.coreservice.co.uk
Customer Helpline 01904 727508
www.coreservice.co.uk
Maintenance and Repair
Maintenance and Repair
WARNING! Always switch the product off, unplug from the power socket and let the product cool
down before performing inspection, maintenance and cleaning work!
- After every use wipe the machine with a slight damp cloth. Do not clean the machine using a high-
pressure water jet.
- Clean the high-pressure jet nozzle.
The pressure washer is equipped with a water lter to protect the pump. If the lter is not kept clean,
the water ow to the machine will be restricted and the pump may be damaged.
To clean water lter, remove inlet adapter and get the lter out.
− Rinse lter until it is free of debris and blockage.
− Replace the lter and inlet adapter.
Clearing of the Lime scale
From periods of time, water lime scale may build up on your lance outlet, use the nozzle cleaning pin
to clean this away.
Frost can damage your pressure washer that has not been completely emptied of water. The machine
should be stored in a frost free room. Do not kink high pressure hose.
Storing
Storage and Transportation
Troubleshooting
General Troubleshooting
WARNING!
- Only perform the steps described within these instructions! All further inspection, maintenance and
repair work must be performed by an authorised service centre or a similarly qualied specialist if you
cannot solve the problem yourself!
- Always turn off the machine and remove the plug before making any adjustment.
Problem Possible cause Solution
1. No power - Check the plug socket, cable,
line and plug.
- Any of the parts are defective,
such as On/Off switch / motor
etc.
- Connect to mains socket.
- Check by a specialist
electrician.
2. The high pressure washer
operates intermittently.
- Power cable is damaged.
- Internal loose electrical
connection.
- On/Off switch defective (please
contact service agent).
Check by a specialist electrician.
3. No or only little pressure is
built up
- Check if there is any air in the
system.
- Check all inlet pipes leading to
the pump for leaks or the hose is
blocked or there is a kink in the
pipe
- Check the setting on the hand-
held spray gun.
- If so, please ventilate the
machine! Run the machine
without the highpressure
hose connected until water
starts leaking without bubbles.
Reattach the high-pressure
hose.
- Check by a specialist
electrician
- Follow the Operation part
again.
4. Pressure varieties - Check the high pressure jet
nozzle
- Check the water inlet pressure.
If blocked, clean it with pin.
5. Machine is leaking. Machine is leaking Please contact the service
agent.
6.Engine is running but no
pressure is build up
You might have air locked in the
hose.
Turn off machine, disconnect
hose, run water through and
connect again. If the problem
continues --then please contact
the customer helpline.

1918
Customer Helpline 01904 727508
www.coreservice.co.uk
Customer Helpline 01904 727508
www.coreservice.co.uk
Technical Data
Technical Data Table
Voltage 230-240V~/50Hz
Input power 1400W
Working pressure 6Mpa (60bar)
Max pressure 9Mpa (90bar)
Rated ow 4.5l/min
Max ow 5.5l/min
Inlet Tmax 40oC
Net weight 4kg
Measured sound pressure level 83dB (A), k=3 dB (A)
Measured sound power level 95dB (A), k=3 dB (A)
Guaranteed sound power level 98dB (A)
Vibration 2.179m/s2, k=1.5m/s2
The declared vibration value has been measured in accordance with a standard test method and
may be used for comparing one tool with another. The declared vibration value may also be used
in a preliminary assessment of exposure.
WARNING!
The vibration emission value during actual use of the tool can differ from the declared value
depending on the ways in which the tool is used. Identify safety measures to protect the operator
that are based on an estimation of exposure in the actual conditions of use (taking account of all
parts of the operating cycle such as the times when the tool is switched off and when it is running
idle in addition to the trigger time).
The sound intensity level for the operator may exceed 85dB(A) and ear protection measures are
necessary.
Customer Helpline 01904 727508
Our dedicated UK based customer helpline is open 7 days a week to assist you with assembly,
parts queries and technical support. We are open during ofce hours but you can always send an
email via [email protected]. Our experts are here to get you back enjoying your garden
in no time.
For useful assembly, starting and maintenance videos and ordering spares please visit
www.coreservice.co.uk.
Calling our service does not affect your statutory rights
UK/Ireland 01904 727508
Monday to Friday 9am – 5pm. Saturday & Sunday 11am – 4pm
www.coreservice.co.uk
email: [email protected]
Recycling and Disposal
Recycling and disposal
Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and
packaging should be sorted, taken to the local recycling centre and disposed of in an
environmentally safe way.
Recycle rather than dispose of unwanted material in landll whenever possible. The machine
must be delivered in rigid packaging to avoid damage during transportation. The packaging
and the machine itself are manufactured from recyclable materials and should be disposed of
accordingly.
Only dispose of electrical/electronic/battery terms in separate collection schemes, which cater
for the recovery and recycling of materials contained within. Your cooperation is vital to ensure
the success of these schemes and for the protection of the environment.
Recycle packaging where facilities exist.
This symbol is known as the Crossed out Wheelie Bin Symbol. When this symbol is marked on a
product or battery, it means that it should not be disposed of with your general household waste.
Some chemicals contained within electrical/electronic products or batteries can be harmful to
health.
