Changhong Electric 43AP75 User manual

Changhong
REAR PROJECTION TELEVISION
OPERATION MANUAL
43AP75
51APB5
51AP95
51AP15W
43APB1W
43APG1W

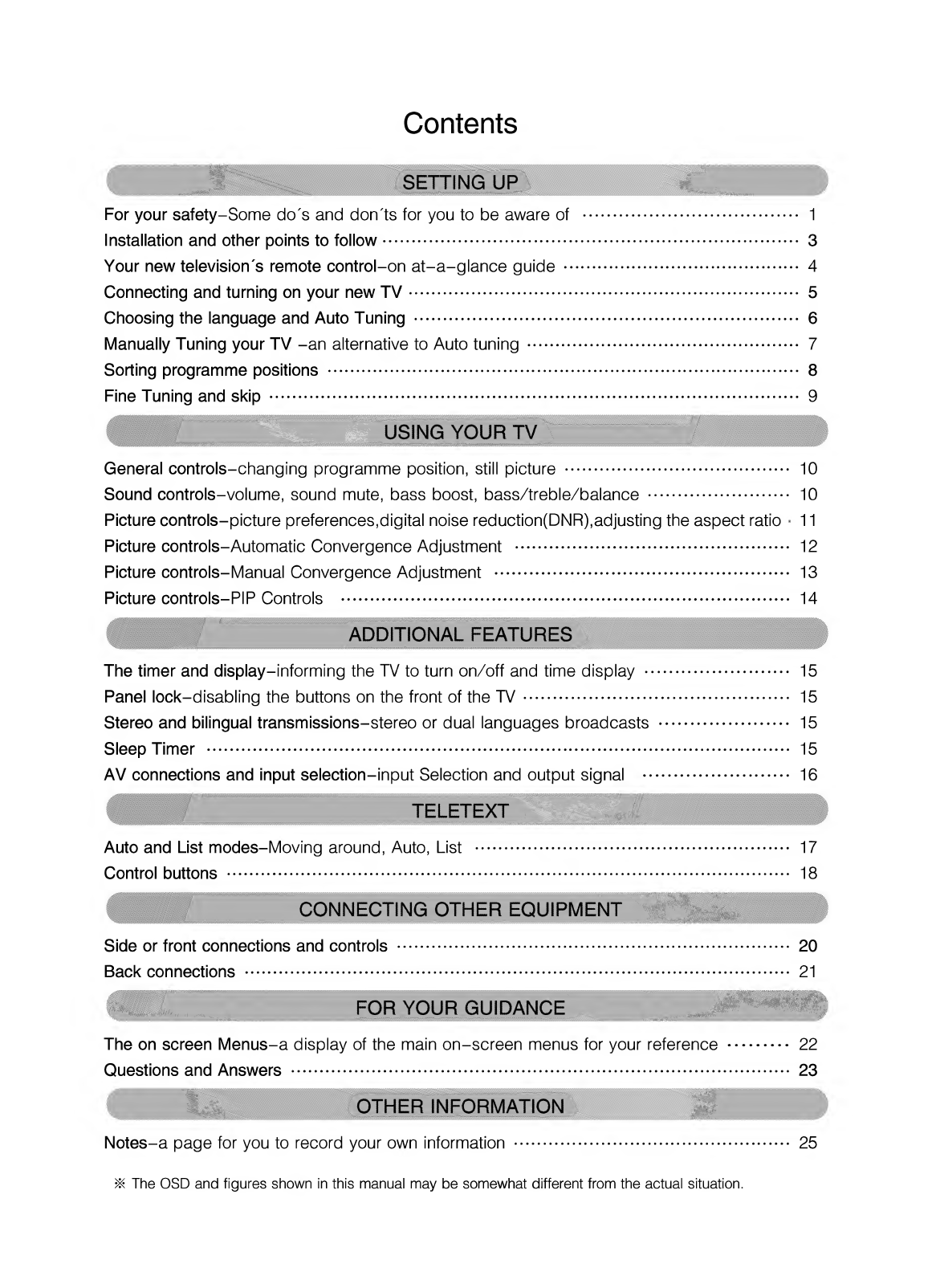

Contents
SETTING UP
For your safety-Some do's and don'ts for you to be aware of . 1
Installation and other points to follow. 3
Your new television's remote control-on at-a-glance guide . 4
Connecting and turning on your new TV. 5
Choosing the language and Auto Tuning . 6
Manually Tuning your TV -an alternative to Auto tuning . 7
Sorting programme positions . 8

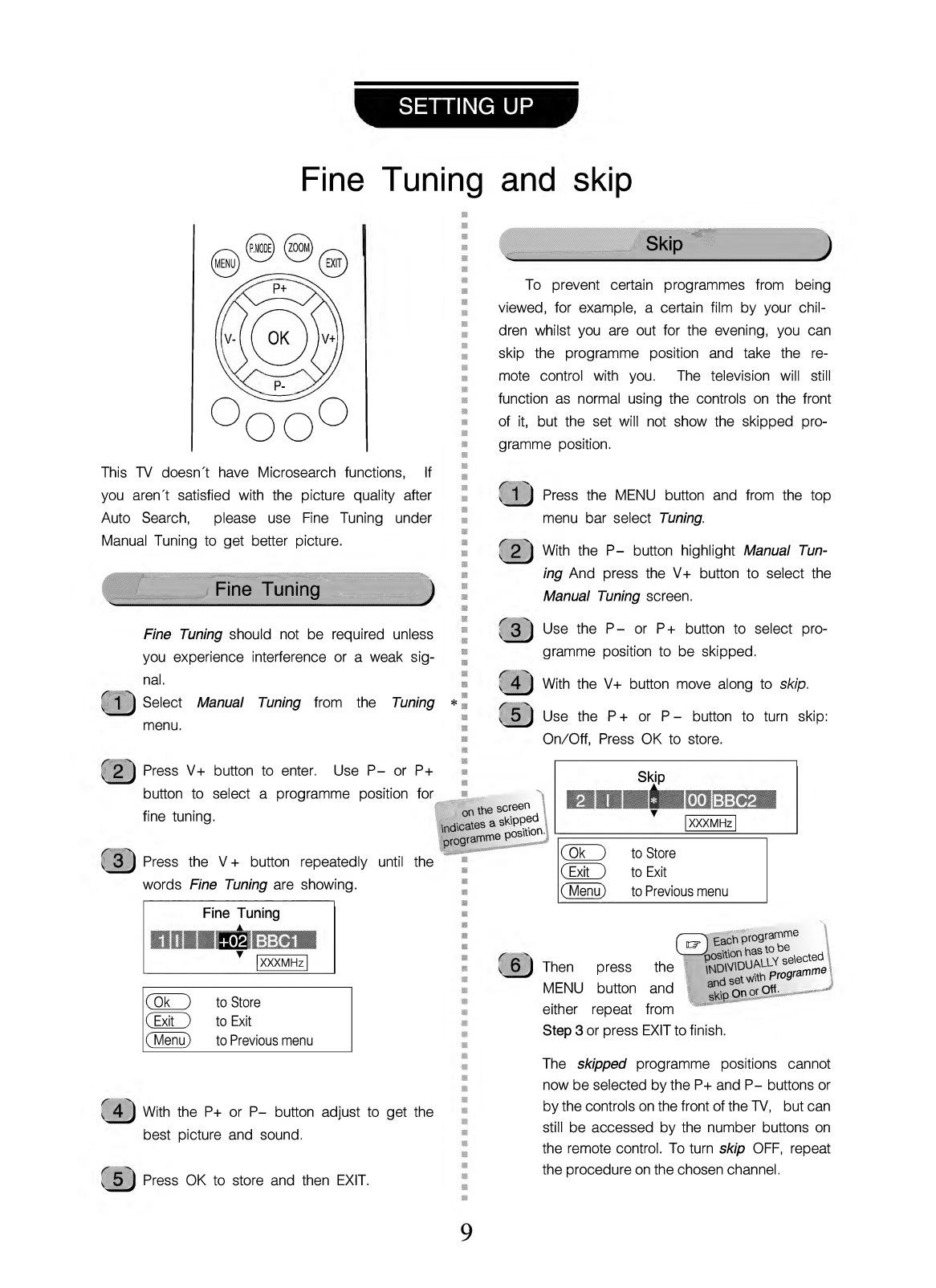

Fine Tuning and skip . 9
USING YOUR TV

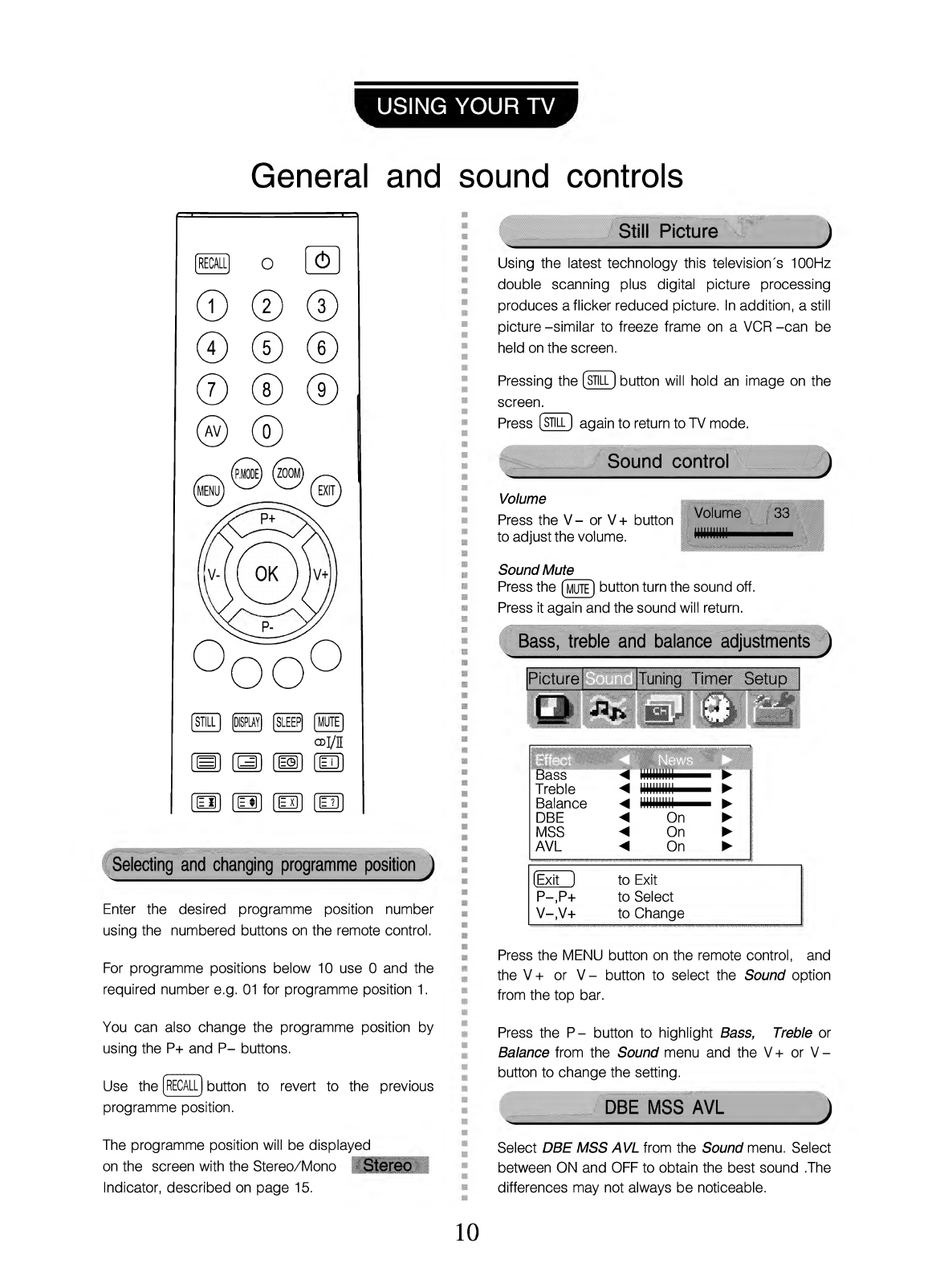

General controls-changing programme position, still picture . 10
Sound controls-volume, sound mute, bass boost, bass/treble/balance . 10
Picture controls-picture preferences,digital noise reduction(DNR),adjusting the aspect ratio ■ 11
Picture controls-Automatic Convergence Adjustment . 12

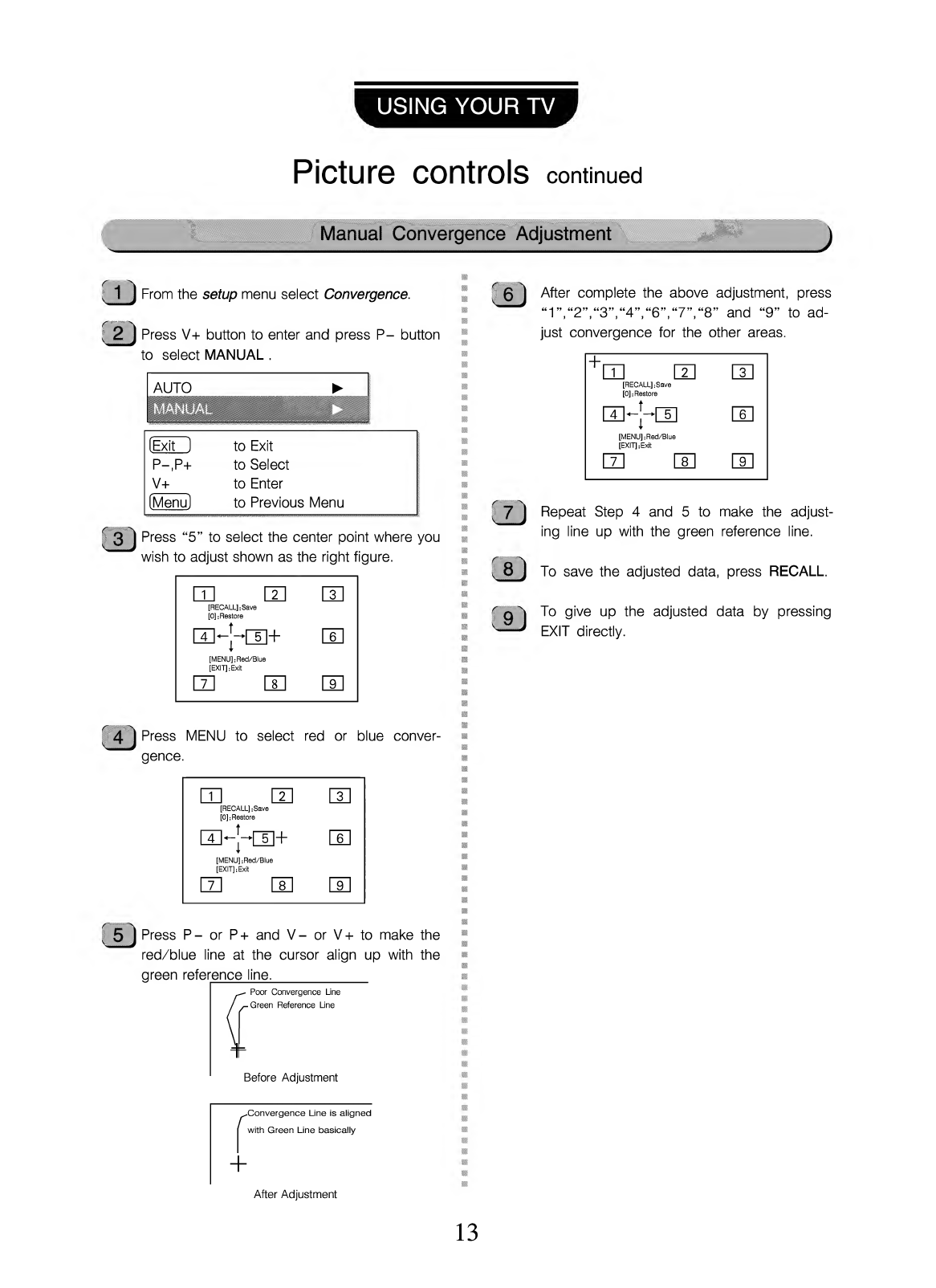

Picture controls-Manual Convergence Adjustment . 13
Picture controls-PIP Controls . 14
ADDITIONAL FEATURES
The timer and display-informing the TV to turn on/off and time display . 15
Panel lock-disabling the buttons on the front of the TV. 15
Stereo and bilingual transmissions-stereo or dual languages broadcasts . 15
Sleep Timer . 15
AV connections and input selection-input Selection and output signal . 16
TELETEXT

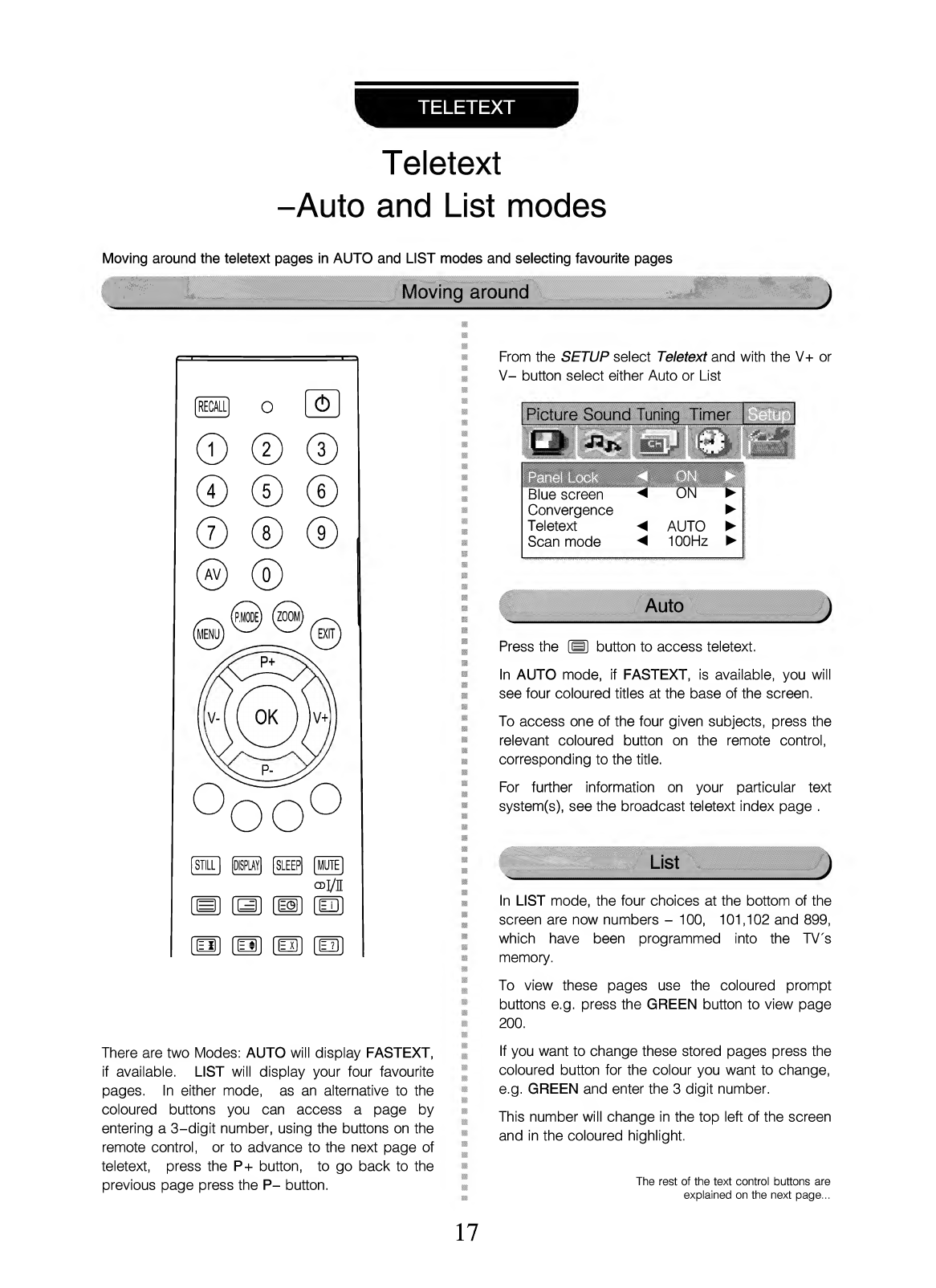

Auto and List modes-Moving around, Auto, List . 17
Control buttons . 18
CONNECTING OTHER EQUIPMENT
Side or front connections and controls . 20
Back connections . 21
FOR YOUR GUIDANCE
The on screen Menus-a display of the main on-screen menus for your reference . 22
Questions and Answers . 23
OTHER INFORMATION
Notes-a page for you to record your own information . 25
X The OSD and figures shown in this manual may be somewhat different from the actual situation.

SETTING UP
r
For your safety
This equipment has been designed and manufactured to meet international safety standards, but like any
electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. So,
please read the points below for your own safety. They are of a general nature, intended to help you with all your
electronic consumer products and some points may not apply to the goods you have just purchased.
Air Circulation...
Leave at least 10cm clearance around the television to allow adequate ventilation. This will prevent the TV from
overheating and consequential possible damage to the TV. Dusty places should also be avoided.
Heat Damage...
J
Damage may occur if you leave the TV in direct sunlight or near a heater. Avoid places subject to extremely high
temperatures or humidity, or locations where the temperature is likely to fall below 5°C(41 °F).
Mains Supply...
The mains supply required for this equipment is discribed in Specifications and Accessories table. Never
connect to a DC supply or any other power source. DO ensure that the TV is not standing on the mains lead. DO
NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal
of which will impair its performance. The fuse should only be replaced by a correctly rated and approved type
and the fuse cover must be refitted. IF IN DOUBT PLEASE CONSULT A COMPETENT ELECTRICIAN.
DO read the operating instructions before you attempt to use the equipment.
DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections
between pieces of equipment) are properly made and in accordance with the manufacturers' instructions.
Switch off and withdraw the mains plug before making or changing connections.
DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.
DO be careful with glass panels or doors on equipment.
DO use the Auto Convergence Adjustment function (See page 12) or press SMART FOCUS button on side or
front AV panel (See page 20), When this projection TV is installed first time or it has been moved or its direction
has been changed.
After this Auto adjustment, if the picture effect is still not satisfactory, please adjust it by using Manual
Convergence Adjustment function (See page 13).
DO Switch off your projection TV if the picture becomes abnormal and then switch it on. If the picture is still
abnormal, please do switch off your TV immediately in order not to cause any further damage to this TV and then
contact professional personnel for service.
l

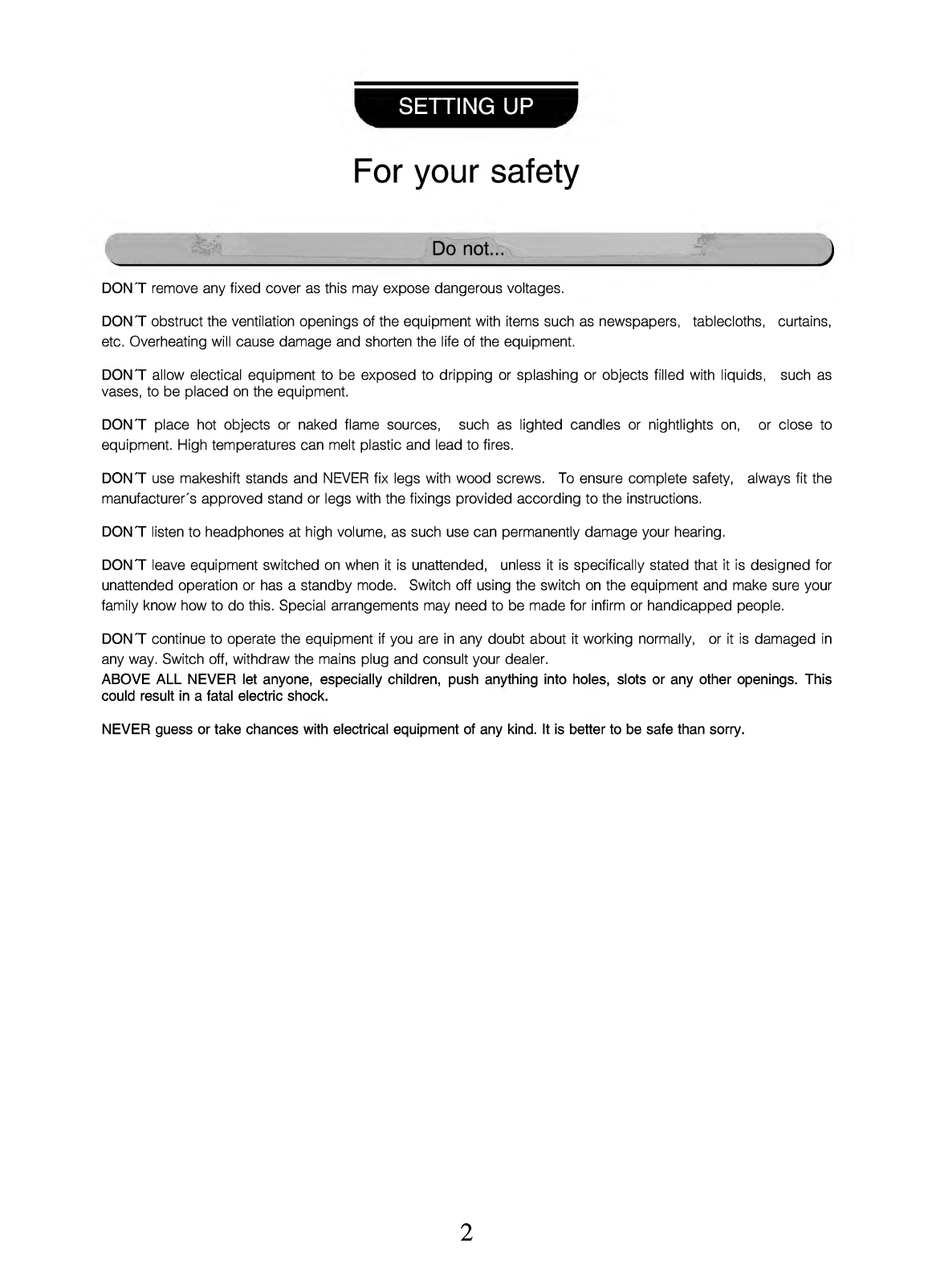

For your safety
_ Do not... _ J
DON'T remove any fixed cover as this may expose dangerous voltages.
DON'T obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains,
etc. Overheating will cause damage and shorten the life of the equipment.
DON'T allow electical equipment to be exposed to dripping or splashing or objects filled with liquids, such as
vases, to be placed on the equipment.
DON'T place hot objects or naked flame sources, such as lighted candles or nightlights on, or close to
equipment. High temperatures can melt plastic and lead to fires.
DON'T use makeshift stands and NEVER fix legs with wood screws. To ensure complete safety, always fit the
manufacturer's approved stand or legs with the fixings provided according to the instructions.
DON'T listen to headphones at high volume, as such use can permanently damage your hearing.
DON'T leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for
unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure your
family know how to do this. Special arrangements may need to be made for infirm or handicapped people.
DON'T continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in
any way. Switch off, withdraw the mains plug and consult your dealer.
ABOVE ALL NEVER let anyone, especially children, push anything into holes, slots or any other openings. This
could result in a fatal electric shock.
NEVER guess or take chances with electrical equipment of any kind. It is better to be safe than sorry.
2

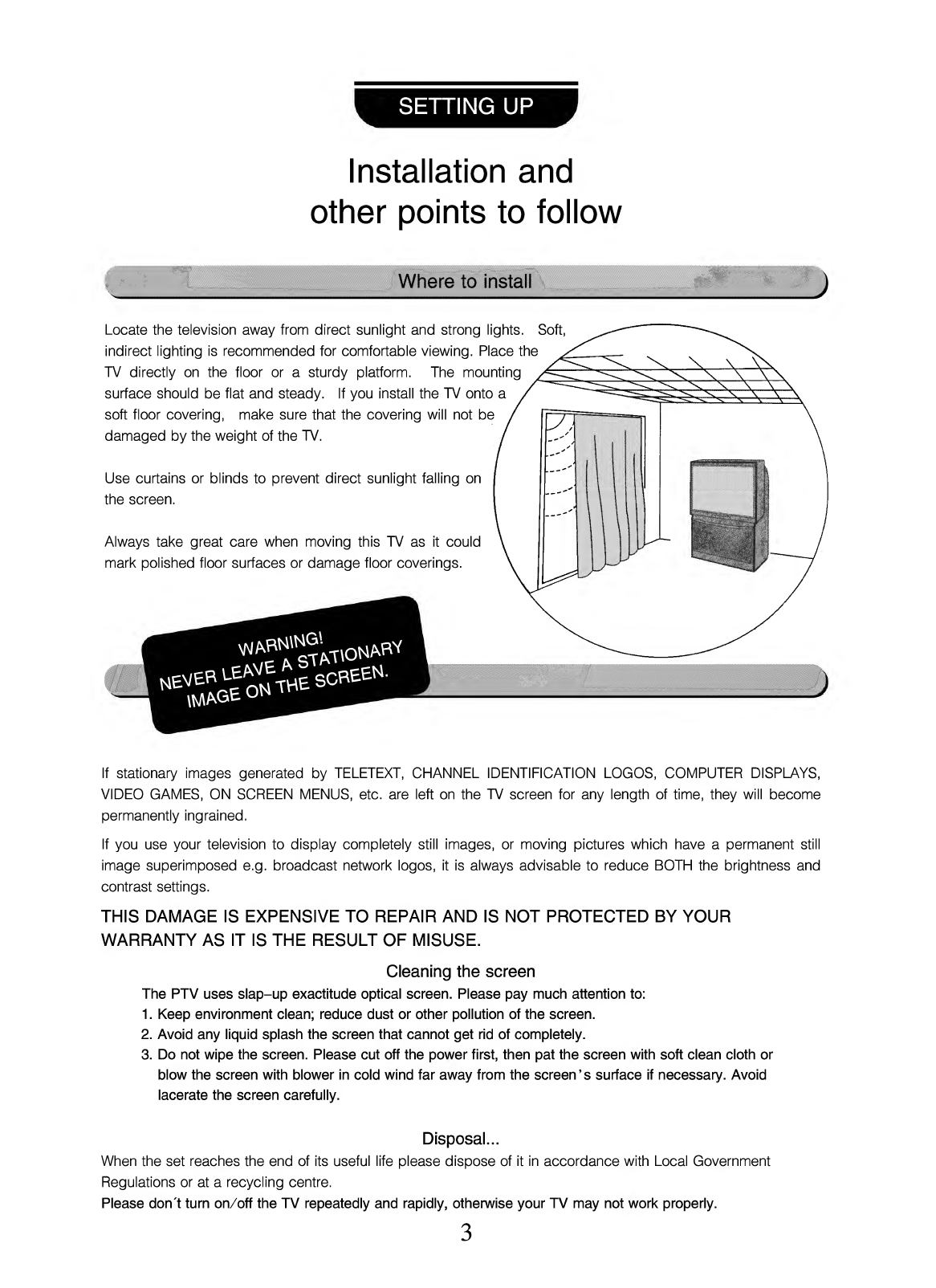

Installation and
other points to follow
Locate the television away from direct sunlight and strong lights. Soft,
indirect lighting is recommended for comfortable viewing. Place the >
TV directly on the floor or a sturdy platform. The mounting /^zz
surface should be flat and steady. If you install the TV onto a /
soft floor covering, make sure that the covering will not be /
damaged by the weight of the TV. j
Use curtains or blinds to prevent direct sunlight falling on
the screen.
Always take great care when moving this TV as it could \
mark polished floor surfaces or damage floor coverings. \
1
L. pH
I
If stationary images generated by TELETEXT, CHANNEL IDENTIFICATION LOGOS, COMPUTER DISPLAYS,
VIDEO GAMES, ON SCREEN MENUS, etc. are left on the TV screen for any length of time, they will become
permanently ingrained.
If you use your television to display completely still images, or moving pictures which have a permanent still
image superimposed e.g. broadcast network logos, it is always advisable to reduce BOTH the brightness and
contrast settings.
THIS DAMAGE IS EXPENSIVE TO REPAIR AND IS NOT PROTECTED BY YOUR
WARRANTY AS IT IS THE RESULT OF MISUSE.
Cleaning the screen
The PTV uses slap-up exactitude optical screen. Please pay much attention to:
1. Keep environment clean; reduce dust or other pollution of the screen.
2. Avoid any liquid splash the screen that cannot get rid of completely.
3. Do not wipe the screen. Please cut off the power first, then pat the screen with soft clean cloth or
blow the screen with blower in cold wind far away from the screen’s surface if necessary. Avoid
lacerate the screen carefully.
Disposal...
When the set reaches the end of its useful life please dispose of it in accordance with Local Government
Regulations or at a recycling centre.
Please don't turn on/off the TV repeatedly and rapidly, otherwise your TV may not work properly.
3

SETTING UP

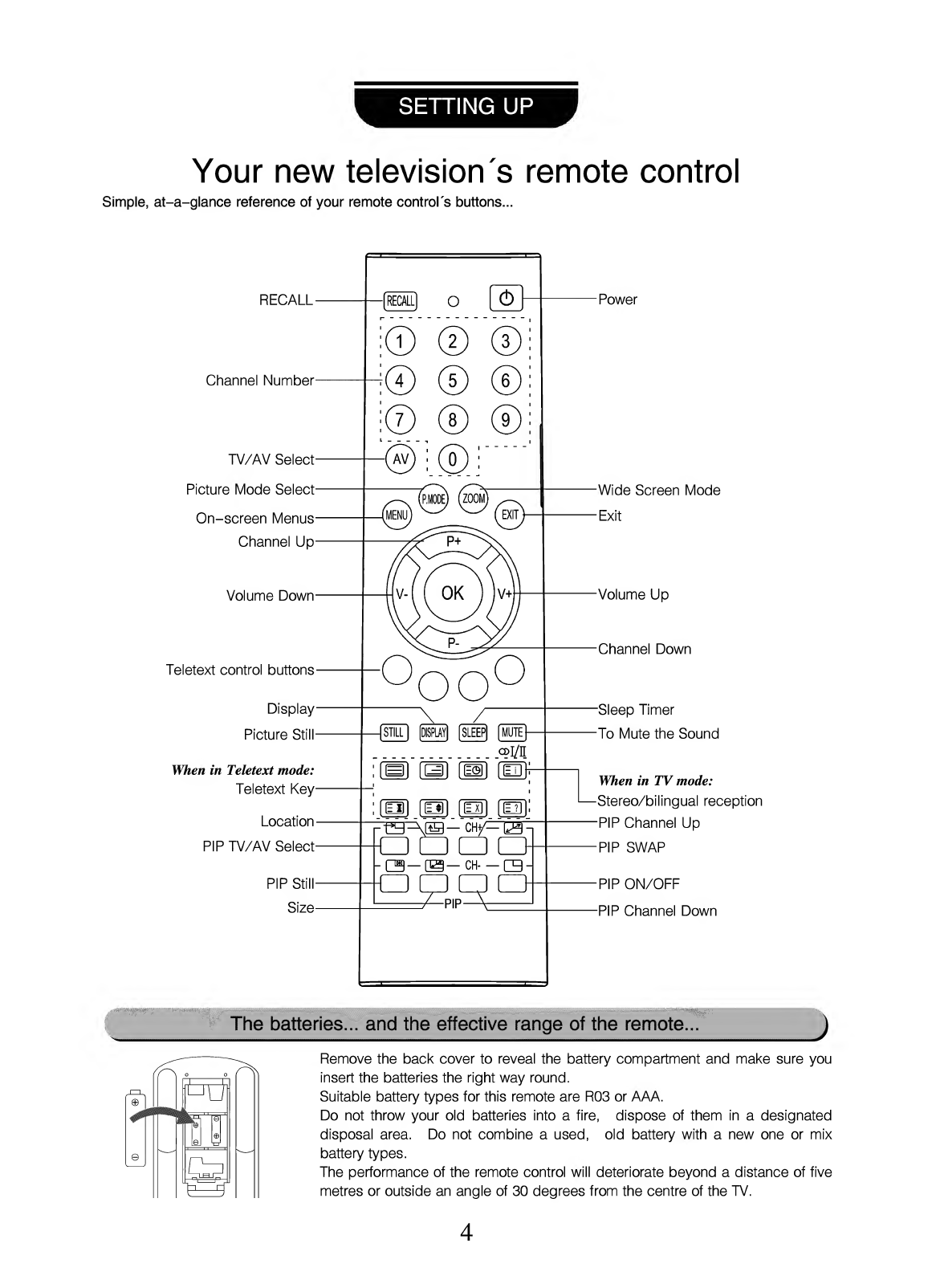

Your new television's remote control
Simple, at-a-glance reference of your remote controls buttons...
The batteries... and the effective range of the remote...
J
®
e
P
—
prfr
©
[©J w
&
—
Remove the back cover to reveal the battery compartment and make sure you
insert the batteries the right way round.
Suitable battery types for this remote are R03 or AAA.
Do not throw your old batteries into a fire, dispose of them in a designated
disposal area. Do not combine a used, old battery with a new one or mix
battery types.
The performance of the remote control will deteriorate beyond a distance of five
metres or outside an angle of 30 degrees from the centre of the TV.
4

SETTING UP
r
Connecting and turning on your new TV
To conserve energy it is best to turn your TV off and not to leave it in Standby, unless the timer has been set.
The TV back connections...
Connect the aerial to the socket on the rear of the television.
ttie reat of V oUt
TV
J
... and switching your new TV on/off
aj TURNING ON
a. Stand-By Mode
Press the on/off button in the front of your television. Your television goes to turning on mode.
b. Turning TV ON
When the TV is in stand-by mode, you can turn it on by pressing (Jj) button on the remote control or
CH+/CH- keys on the panel of TV.
TURNING OFF
a. T urning TV OFF
When you wish to turn off your television, press the on/off button on it.
b. S tand-By Mode
To turn TV off for a short while, press ( I } button on the remote control .
5

SETTING UP
Choosing the language and Auto Tuning
To choose your language, press the MENU
button, and use the V + button to select
Tuning from the top bar.
Picture Sound] 1 Timer Setup
D
MJ*
Now press the P - button to highlight
language in the Tuning menu options.
CD Press the V - or V + button to view the
language options available. As you view each
language, the words on the menus will
automatically change for you.
Now press the P - button to highlight Auto
Tuning.
Language
◄ English ►
Auto Tuning
◄ AUTO
►
Manual Tuning ►
Sort ►
(Exit )
to Exit
+
CL
f
CL
to Select
V+ to Enter
ID Then the V+ button to go to the Auto Tuning
screen.
c§j Press V+ button to select your country.
Warning!
All channel settings
will be changed!
Sound system
Start
( Exit )
to Exit
[Menu]
to Previous menu
CzJ
Press the P- button highlight Start and then
press the V+ button.
CD The search will begin for all available stations.
► ►►► will flash.
9J When the search is complete the TV will
automatically return to programme positionl.
This may not be a clear picture, so you may
wish to change the station order, using Sort ,
on page 8.
6

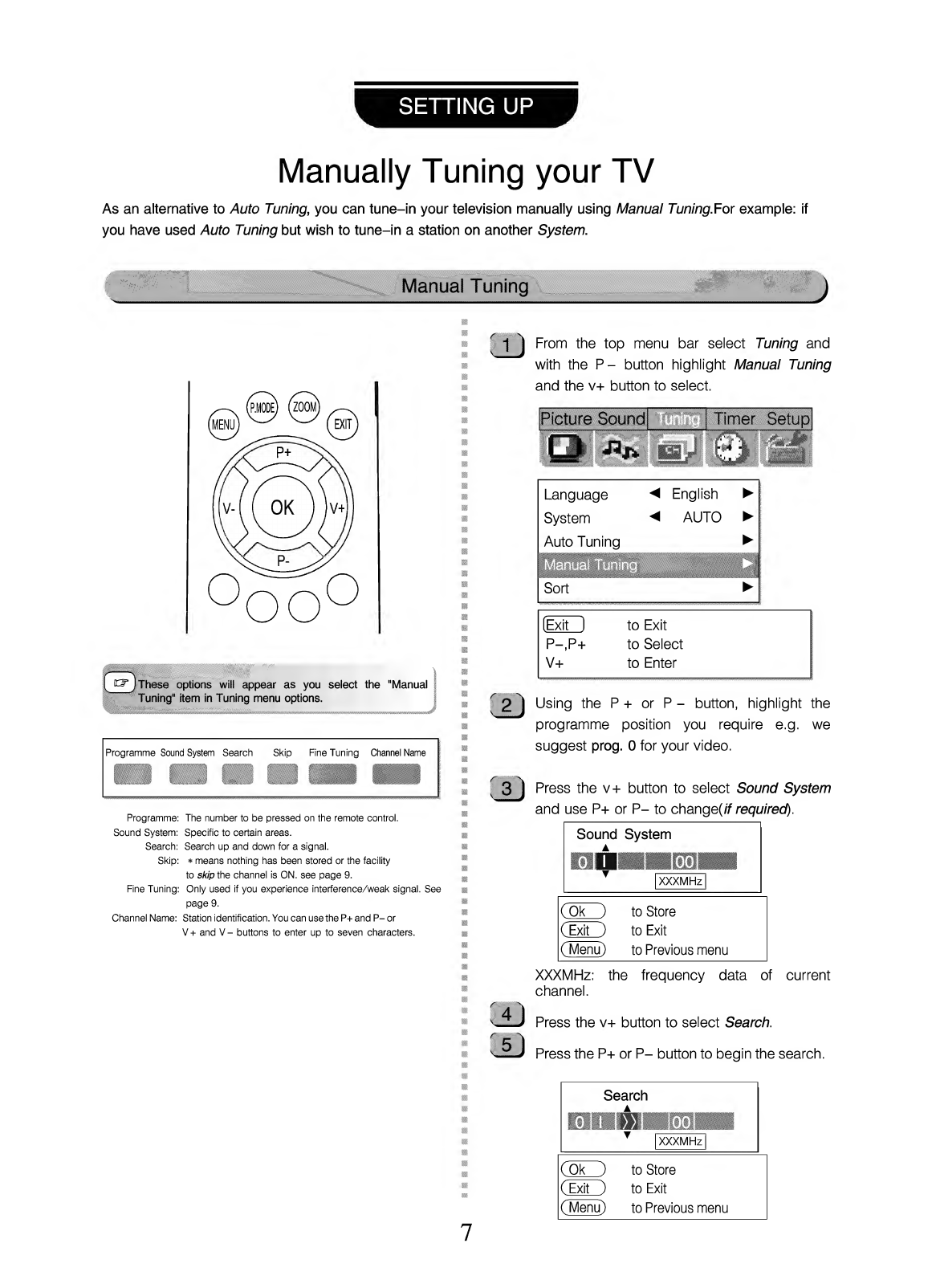

Manually Tuning your TV
As an alternative to Auto Tuning, you can tune-in your television manually using Manual Tuning. F or example: if
you have used Auto Tuning but wish to tune-in a station on another System.
Manual Tuning
These options will appear as you select the "Manual
Tuning" item in Tuning menu options.
Programme Sound System
Search Skip Fine Tuning
Channel Name
Programme: The number to be pressed on the remote control.
Sound System: Specific to certain areas.
Search: Search up and down for a signal.
Skip: * means nothing has been stored or the facility
to s/c/p the channel is ON. see page 9.
Fine Tuning: Only used if you experience interference/weak signal. See
page 9.
Channel Name: Station identification. You can use the P+ and P- or
V + and V - buttons to enter up to seven characters.
•
m
m
m
m
m
m
From the top menu bar select Tuning and
with the P- button highlight Manual Tuning
and the v+ button to select.
programme position you require e.g. we
suggest prog. 0 for your video.
Press the v+ button to select Sound System
and use P+ or P- to chang e (if required).
XXXMHz: the frequency data of current
channel.
Press the v+ button to select Search.
Press the P+ or P- button to begin the search.

SETTING UP
Manually Tuning your TV continued
Sorting programme positions
Press P- to highlight Sort.
On finding a signal it will show on the
television, if it is not your desire, press the P +
or P- button again to restart the search.
When the signal is found, press the v+ button
to move along to Channel Name. With the v+,
v-,P+ and P-buttons, put in the required
characters, e.g. VCR.
Channel Name |
A
IXXXMHzl
COk ) to Store
(Exit ) to Exit
C Menu) to Previous menu
Now press OK to store.
(U Repeat for each programme position you want
to tune, e.g. to tune to Programme Position 6
press the p+ or p- button repeatedly to select
6 then repeat from step 3. Or, press MENU to
return to and select the next number to tune.
Oo) Press EXIT when you have finished tuning in.
To sort programme positions
LJ
After tuning, if you want to change the position
of certain programmes you can. Sort is an
easy way of storing each channel on the
programme position of your choice.
Press the MENU button and then the V- or V+
button to select the Tuning option from the top
bar.
Tun
ing
f mm
Pla F
Language <
English
►
System <
AUTO
► 1
Auto Tuning
►
Manual Tuning
►
_i
(Exit ]
to Exit
+
CL
f
CL
to Select
V+ to Enter
Lsj
Press V + to enter, the list of stations is now
showing. With the P- or P+ button highlihgt the
station you want to move and press OK to
select.
Sort
30
376M
32 400M
33
425M
34
432M
(Exit )
to Exit
(OK )
to Select
P-, P +
Up/Down
(Menu) to Previous menu
(U Use the P- or P+ button to move through the
list to your preferred position. As you do so the
other stations will move to make room.
Now press the OK button to set your move.
cd Repeat as necessity and then press EXIT.
8

SETTING UP
Fine Tuning and skip
This TV doesn't have Microsearch functions, If
you aren't satisfied with the picture quality after
Auto Search, please use Fine Tuning under
Manual Tuning to get better picture.
Fine Tuning
j
Fine Tuning should not be required unless
you experience interference or a weak sig¬
nal.
UU Select Manual Tuning from the Tuning
menu.
(l) Press V+ button to enter. Use P- or P +
button to select a programme position for
fine tuning.
CD Press the V + button repeatedly until the
words Fine Tuning are showing.
Skip
J
To prevent certain programmes from being
viewed, for example, a certain film by your chil¬
dren whilst you are out for the evening, you can
skip the programme position and take the re¬
mote control with you. The television will still
function as normal using the controls on the front
of it, but the set will not show the skipped pro¬
gramme position.
CD Press the MENU button and from the top
menu bar select Tuning.
• With the P- button highlight Manual Tun¬
ing And press the V+ button to select the
Manual Tuning screen.
• Use the P- or P+ button to select pro¬
gramme position to be skipped.
C£> With the V+ button move along to skip.
m Use the P+ or P- button to turn skip:
On/Off, Press OK to store.
on the screen
555 ^
il
8
Fine Tuning
+02 BBC1
XXXMHz
(Ok )
to Store
(Exit )
to Exit
C Menu)
to Previous menu
CL)
(Ok )
to Store
(Exit )
to Exit
(Menu)
to Previous menu
^4^) With the P+ or P- button adjust to get the
best picture and sound.
CD Press OK to store and then EXIT.
(IT) Each programme
Then press the SfflSS-2£
MENU button and on or off.
either repeat from
Step 3 or press EXIT to finish.
The skipped programme positions cannot
now be selected by the P+ and P- buttons or
by the controls on the front of the TV, but can
still be accessed by the number buttons on
the remote control. To turn skip OFF, repeat
the procedure on the chosen channel.
9

General and sound controls
Enter the desired programme position number „
using the numbered buttons on the remote control.
m
m
For programme positions below 10 use 0 and the
m
required number e.g. 01 for programme position 1. ■
■
Using the latest technology this television's 100Hz
double scanning plus digital picture processing
produces a flicker reduced picture. In addition, a still
picture -similar to freeze frame on a VCR -can be
held on the screen.
Pressing the (STILL ) button will hold an image on the
screen.
Press (STILL) again to return to TV mode.
Volume
Press the V - or V + button
to adjust the volume.
Sound Mute
Press the (MUTE) button turn the sound off.
Press it again and the sound will return.
Press the MENU button on the remote control, and
the V + or V - button to select the Sound option
from the top bar.
You can also change the programme position by
using the P+ and P- buttons.
Use the (RECALL) button to revert to the previous
programme position.
Press the P- button to highlight Bass , Treble or
Balance from the Sound menu and the V + or V -
button to change the setting.
The programme position will be displayed
on the screen with the Stereo/Mono Steri
Indicator, described on page 15.
10
Select DBE MSS AVL from the Sound menu. Select
between ON and OFF to obtain the best sound .The
differences may not always be noticeable.

Picture controls
This television offers you the choice of personalising the picture style to suit your own preference.
Picture Preferences, Digital Noise Reduction and Zoom
( p. m ode ) zoom
v- OK v+
_ Picture preferences _ J
By pressing the ( ™ e ) button you can view the
different standard picture styles available:
STANDARD, SHARP, SOFT preset options and USER
is for your own settings:
aj So, to set your own, choose Picture from the
top menu bar.
[Picture Timer Setup
DNR-Digital Noise Reduction J
DNR enables you to 'soften' the screen repre¬
sentation of a weak signal.
Select DNR from the Picture menu.
Select between ON and OFF to ob¬
tain the best picture. The differences
may not always be noticeable.
Adjusting the aspect ratio J
If the picture you are watching is out of propor¬
tion it can be adjusted.
Press the ( ™ ) button to choose the propor¬
tions best suited to the picture on screen.
^ For 16:9 aspect model only.
Contrast
Brightness ◄ ii^— ►
Color ◄ lllllllllll ►
Tint ◄ lllllllllll ►
Sharpness ◄ lllllllllll ►
Color Temp ◄ Natural ►
DNR
◄ On
(Exit ) to Exit
P-,P +
to Select
v-,v+ to Change
c an
Within this Picture menu you have vj ° n a sig na ° n, y
the options to adjust the Co /oJ e/e w$/° 0 reco rae f r r oni a n
Contrast, Brightness, Colour, Tint rrri °cie. Is h A ^ n
and Sharpness.
aj Using the V+ or V- button alter to suit your
taste.
11

USING YOUR TV
Picture controls continued
The picture may blur because of magnetic field on the Earth if you change the location or direction of the
projection TV ( due to poor convergence of three projection tubes). You could adjust convergence AUTO or
MANUAL
Automatic Convergence Adjustment
J
CD From the setup menu select convergence (press "SMART FOCUS" button can also adjust convergence au¬
tomatically).
C*)
Press V+ button to select AUTO .
MANUAL
[Exit ) to Exit
P- P +
to Select
v+
to Enter
(Menu) to Previous Menu
Cl) Use the V+ button to change. The projection TV will auto return to normal viewing picture mode after adjusting.
12

Picture controls continued
Manual Convergence Adjustment
■
aj From the setup menu select Convergence. ■■ :a) After comp
C 2 J Press V+ button to enter and press P- button
to select MANUAL .
AUTO
► 1
MANUAL
(Exit )
to Exit
+
CL CL
to Select
V+ to Enter
(Menu) to Previous Menu
cd Press “5” to select the center point where you
wish to adjust shown as the right figure.
m m m
[RECALL]: Save
[0]: Restore
[MENU]: Red/Blue
[EXIT]: Exit
m go nn
cu Press MENU to select red or blue conver¬
gence.
m nn m
[RECALL]: Save
[0] : Restore
gd
[MENU]: Red/Blue
[EXIT]: Exit
m m m
After complete the above adjustment, press
“ 1 ”, “2”, “3”, “4”, “6”, “7”, “8” and “9” to ad¬
just convergence for the other areas.
m m
[RECALL] :Save
[0]: Restore
nn. t r-FH
IZhJ-DD
[MENU]: Red/Blue
[EXIT]: Exit
1 12 □□
a Repeat Step 4 and 5 to make the adjust¬
ing line up with the green reference line.
Lsl To save the adjusted data, press RECALL.
O \ To 9 i ve U P the ac| justed data by pressing
v - * EXIT directly.
Press P- or P+ and V- or V+ to make the
red/blue line at the cursor align up with the
green refe r ence line. _
Poor Convergence Line
Green Reference Line
Before Adjustment
^Convergence Line is aligned
with Green Line basically
After Adjustment
13

Picture controls continued
■
■
■
■
■
■
■
■
14

ADDITIONAL FEATURES
The timer, display, panel lock, stereo/bilingual
transmissions and sleep Timer
The Timer
Panel Lock
You can tell the TV to turn itself ON or OFF after
a certain time.
Select the Timer option from the top menu bar.
§MMBBM Timer
Setup
PI
r
Current Time — : —
Off Time
- ; -
On Time
p-; __ __
(Exit ) to Exit
TJ
1
“0
+
to Select
+
>
f
>
to Change
* P:PROGRAM
r n Press P+/P- to select settings.
v - * Press V+/V- to set the figure.
eg. On Time setting
Select the On Time option, a sub -menu will
appear on the screen,then you can set the TV
turn -on time and the program number you
want to watch using the button of P+/P- and
V+/V- on the remote control.
cu
Press "Exit" after setting done.
To cancel the On timer, enter zero in each posi¬
tion including the programme position.
The Display
J
The display facility allows you to see programme
No. and Stereo/Mono on the TV screen.
If you press the (DISPLAY) button on the remote control
while watching a normal TV broadcast you will see
some informations.
It will remain on the screen for about 6 seconds.
j
Panel lock allows you to disable the buttons on the
front of the TV set. You can though, still use all of
the buttons on the remote control.
From the Setup menu select Panel lock and
choose On or OFF with the V- or V+ buttons.
Panel Lock
◄ ON ►
Blue screen
◄
►
Convergence
►
Teletext
◄ AUTO ►
Scan mode
◄
100Hz
►
(Exit ) to Exit
P-,P +
to Select
v-,v+ to Change
When Panel lock is ON, you will be reminded on the
screen when you press any of the front panel buttons.
Once the set has been switched off it can ONLY be
brought out of standby using the remote control.
If RC lost , P anel lock is on,Please press EXIT button on the
pannel of TV 10 seconds, Panel lock will be off.
Stereo and Bilingual transmissions J
If stereo or dual language broadcasts are transmitted the
word Stereo or Dual will appear on the screen,
disappearing after a few seconds. The display will
reappear each time you change programme positions,
provided that the broadcast is in stereo. If the broadcast is
not in stereo the word Mono will appear.
Stereo... Choose the required programme number.
Press the || button repeatedly,
stereo and Mono.
to select between
Bilingual ... Bilingual transmissions are rare. If they
are transmitted the word Dual will display. Choose
the required programme number and if the word Dual
does appear press the
Dual 1, Dual 2 or Mono.
button to select between
Sleep Timer
J
The sleep timer facility allows you tell the TV to itself
OFF after a certain time.
Press (SLEEP) button repeat to select sleep timer OFF ,
15 min to 180 min.
15

ADDITIONAL FEATURES
AV connections and input selection
adearvtewoUheoa
Defining your INPUT and OUTPUT sockets so that your television recognises connected equipment.
© © ®
® ©
Input Selection
J
LO
uj
Press the (av) button to bring up AVI on the
screen. This will display the CVBS or Y/C sig¬
nal coming in through AVI.
Press the (av) button again to select the e-
quipment connected to AV2.This will display
the CVBS signal coming in through AV2.
And press the (AV) button again for AV3, it will
display the CVBS or Y/C signal coming in
through AV3, and again for YPbPr and again
for VGA.
To return to TV mode simply press one of the
numbered buttons on the remote control. To
view the external equipment once again, sim¬
ply press the(AV) button until you see your ex¬
ternal source.
Output signal
j
Video out jack can output the video image signal
from TV, AVI, AV2, AV3.
■
«
■
■
■
■
■
■
■
■
16

T eletext
-Auto and List modes
Moving around the teletext pages in AUTO and LIST modes and selecting favourite pages
Moving around
■
■
From the SETUP select Teletext and with the V+ or
2 V- button select either Auto or List
Press the GB button to access teletext.
In AUTO mode, if FASTEXT, is available, you will
see four coloured titles at the base of the screen.
To access one of the four given subjects, press the
relevant coloured button on the remote control,
corresponding to the title.
For further information on your particular text
system(s), see the broadcast teletext index page .
In LIST mode, the four choices at the bottom of the
screen are now numbers - 100, 101,102 and 899,
which have been programmed into the TV's
■ memory.
m
To view these pages use the coloured prompt
buttons e.g. press the GREEN button to view page
■ 200 .
There are two Modes: AUTO will display FASTEXT, 5
if available. LIST will display your four favourite
pages. In either mode, as an alternative to the
coloured buttons you can access a page by ■
entering a 3-digit number, using the buttons on the 5
remote control, or to advance to the next page of J
teletext, press the P+ button, to go back to the ■
previous page press the P- button. S
If you want to change these stored pages press the
coloured button for the colour you want to change,
e.g. GREEN and enter the 3 digit number.
This number will change in the top left of the screen
and in the coloured highlight.
The rest of the text control buttons are
explained on the next page...
17

□
bD
Teletext continued
-control buttons
Using the buttons on the remote control
Teletext key
moves to the teletext broadcast in the channel you
view.
Reveal/Conceal (answering) key
When in the teletext position, it enables display or
hiding of some information hidden in the text
broadcast.
Teletext timer (calling sub pages) key
In the teletext mode, it is used for accessing the sub
pages directly.
For example:you are in the 500th teletext page. If 1/2
is observed at the bottom of the screen, 1 denotes
the sub page that we are in, 2 denotes the total
amount of the remaining sub pages. At this state,
when the teletext timer key is pressed,_signs
are displayed instead of the teletext page number.
Using the 0..9 numerals on the remote control, the
sub page number that you want to go is entered. For
example, if you want to go to sub page number that
you want to go is entered. For example, if you want to
go to sub page 2, the 0, 0, 0, 2 keys are pressed
consecutively.
Cancel (updating) key
If you press this button while in teletext mode, TV
broadcast will be displayed. But teletext is still active
and if you enter a page number, it continues to
search for it. When the page is found, a message to
show that is displayed. If you press this button again,
teletext will be displayed.
Size (page expanding) key
This button enables you to view the teletext page in 3
different formats. Normal size, upper part enlarged
two times, down part enlarged two times.
18
