Changhong Electric DLP5131W User manual

^ Changhong
DLP ™ REAR PROjECTION TELEVISION
OPERATION MANUAL
DLP5131W
Read this manual carefully before operation.

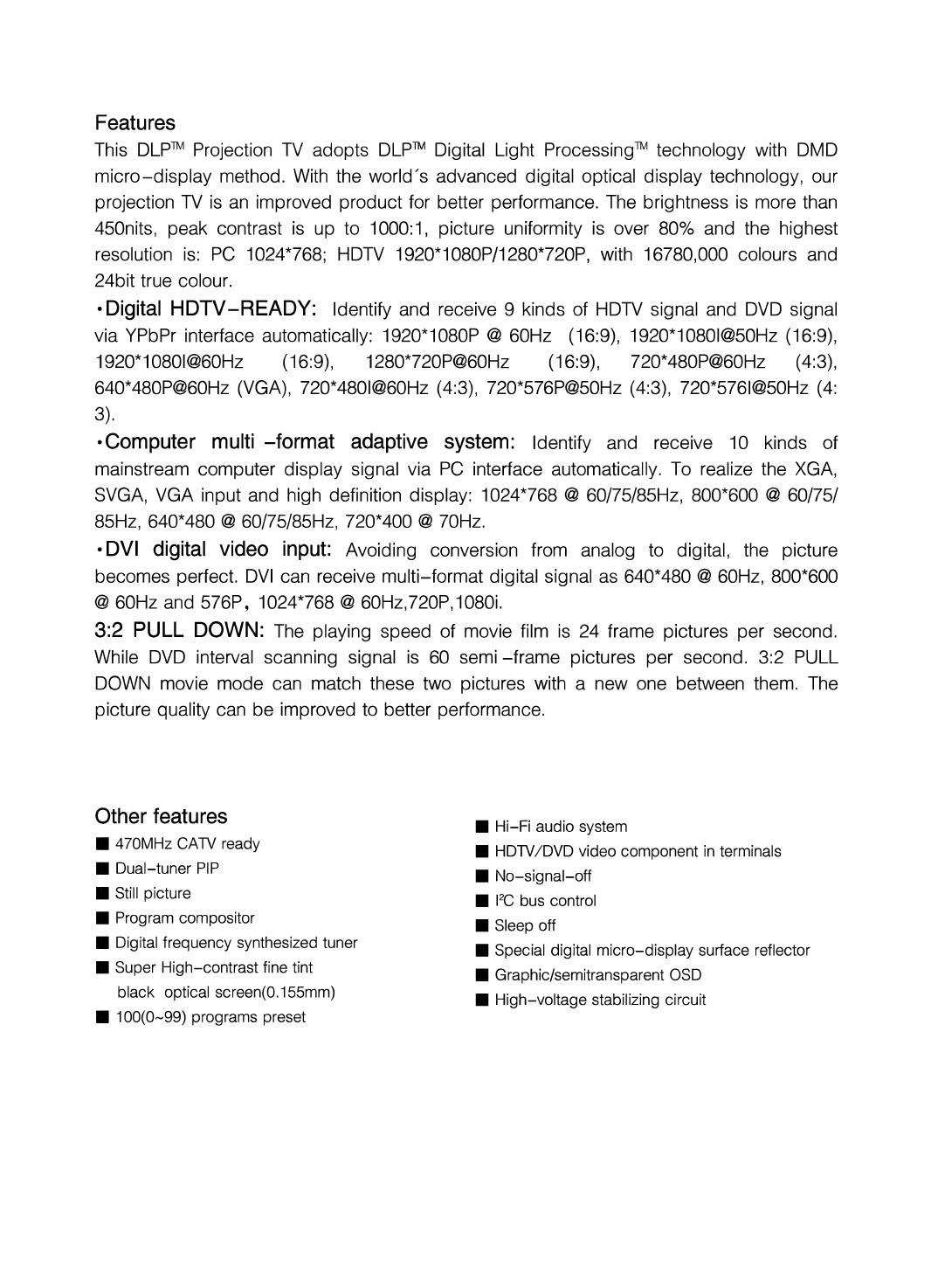

Features
This DLP ™ Projection TV adopts DLP ™ Digital Light Processing ™ technology with DMD
micro-display method. With the world's advanced digital optical display technology, our
projection TV is an improved product for better performance. The brightness is more than
450nits, peak contrast is up to 1000:1, picture uniformity is over 80% and the highest
resolution is: PC 1024*768; HDTV 1920*1080P/1280*720P, with 16780,000 colours and
24bit true colour.
•Digital HDTV-READY: Identify and receive 9 kinds of HDTV signal and DVD signal
via YPbPr interface automatically: 1920*1080P @ 60Hz (16:9), 1920*1080l@50Hz (16:9),
1920*1080l@60Hz (16:9), 1280*720P@60Hz (16:9), 720*480P@60Hz (4:3),
640*480P@60Hz (VGA), 720*480l@60Hz (4:3), 720*576P@50Hz (4:3), 720*576l@50Hz (4:
3).
•Computer multi -format adaptive system: identify and receive 10 kinds of
mainstream computer display signal via PC interface automatically. To realize the XGA,
SVGA, VGA input and high definition display: 1024*768 @ 60/75/85Hz, 800*600 @ 60/75/
85Hz, 640*480 @ 60/75/85Hz, 720*400 @ 70Hz.
•DVI digital video input: Avoiding conversion from analog to digital, the picture
becomes perfect. DVI can receive multi-format digital signal as 640*480 @ 60Hz, 800*600
@ 60Hz and 576P, 1024*768 @ 60Hz,720P,1080i.
3:2 PULL DOWN: The playing speed of movie film is 24 frame pictures per second.
While DVD interval scanning signal is 60 semi -frame pictures per second. 3:2 PULL
DOWN movie mode can match these two pictures with a new one between them. The
picture quality can be improved to better performance.
Other features
■ 470IVIHZ CATV ready
■ Dual-tuner PIP
■ Still picture
■ Program compositor
■ Digital frequency synthesized tuner
■ Super High-contrast fine tint
black optical screen(0.155mm)
■ 100(0-99) programs preset
■ Hi-Fi audio system
■ HDTV/DVD video component in terminals
■ No-signal-off
■ PC bus control
■ Sleep off
■ Special digital micro-display surface reflector
■ Graphic/semitransparent OSD
■ High-voltage stabilizing circuit

CONTENTS
PRECAUTIONS. 1
INTRODUCTION
♦ Control Buttons . 2
INSTALLATION
To install the Projection TV. 4
To connect the Antenna . 5
Replacing the lamp. 6
To install Remote Batteries . 7
POWER ON/OFF. 8
BASIC BUTTONS
► Power, Numeric buttons, P-/+ V-/+, DISPLAY. 9
► RECALL, MUTE, STILL, EXIT, ZOOM. 10
...TUNING IN
♦ Main menu . 11
♦ A uto Search . 12
♦ Search . 13
♦ Frequency Fine Tuning . 14
♦ Other Functions of Search Menu . 14
rjPICTURE SELECTION
♦ Picture Mode Selection . 15
♦ Picture Adjustment . 15
■ S OUND SELECTION
♦ Storeo and Bilingual . 16
♦ Sound Adjustment . 16
■ S E TUP MENU
♦ Setup Menu . 17
♦ Language Menu . 17
♦ Teletext . 18
■ PIP OPERATIONS. 20
■ EXTERNAL EQUIPMENT OPERATION. 22
■ EXTERNAL EQUIPMENT CONNECTION
♦ A /V OUTPUT . 23
A/V INPUT . 24
SCART INPUT . 27
PC Input . 28
DVI Input . 30
TROUBLESHOOTING. 31
SPECIFICATIONS AND ACCESSORIES. 32
^The OSD and figures shown in this manual may be somewhat different from the actual situation.

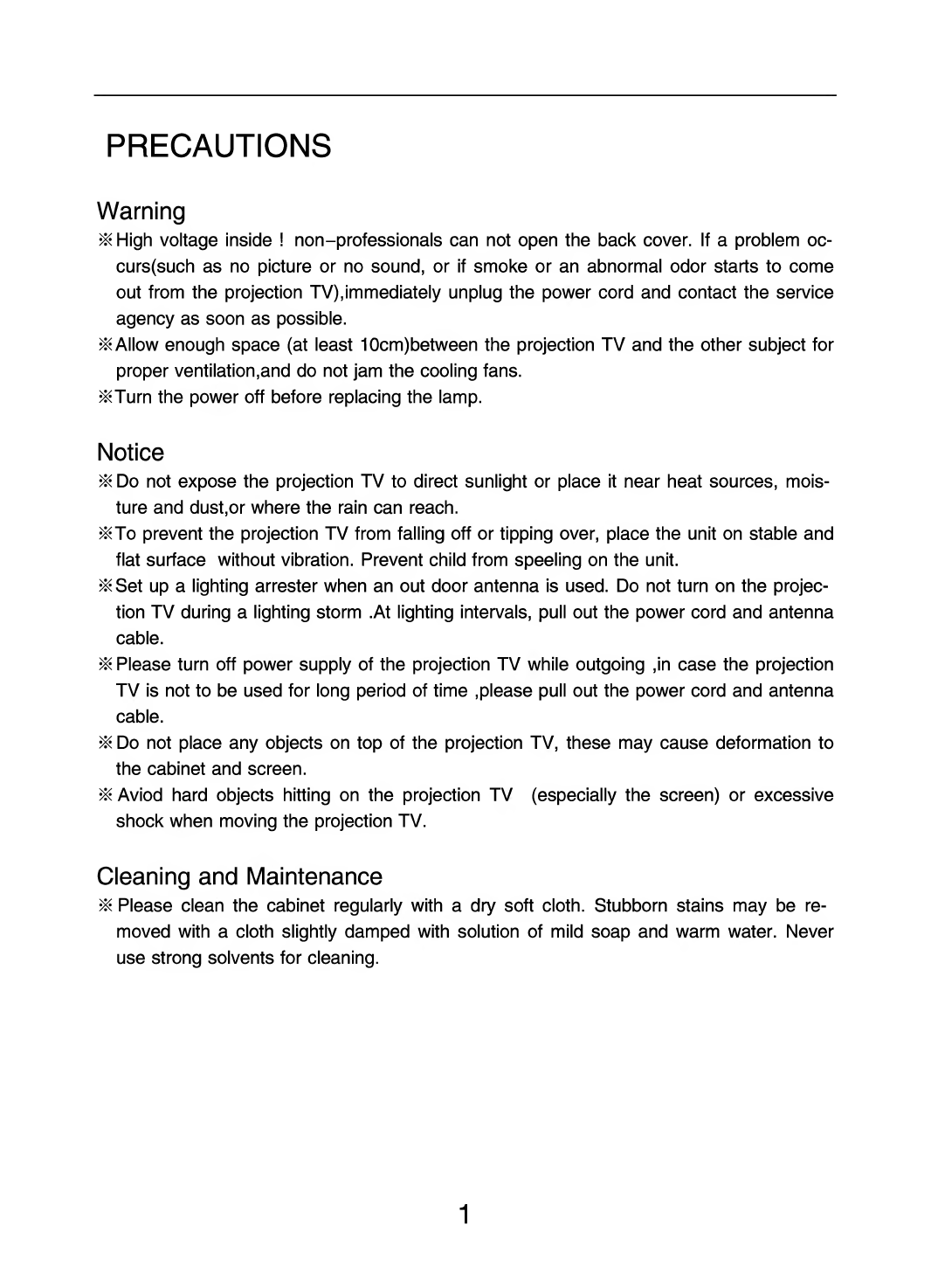

PRECAUTIONS
Warning
^ High voltage inside ! non-professionals can not open the back cover. If a problem oc-
curs(such as no picture or no sound, or if smoke or an abnormal odor starts to come
out from the projection TV),immediately unplug the power cord and contact the service
agency as soon as possible.
^ Allow enough space (at least 10cm)between the projection TV and the other subject for
proper ventilation,and do not jam the cooling fans.
^Turn the power off before replacing the lamp.
Notice
^ Do not expose the projection TV to direct sunlight or place it near heat sources, mois¬
ture and dust,or where the rain can reach.
^To prevent the projection TV from falling off or tipping over, place the unit on stable and
flat surface without vibration. Prevent child from speeling on the unit.
^Set up a lighting arrester when an out door antenna is used. Do not turn on the projec¬
tion TV during a lighting storm .At lighting intervals, pull out the power cord and antenna
cable.
^ Please turn off power supply of the projection TV while outgoing ,in case the projection
TV is not to be used for long period of time ,please pull out the power cord and antenna
cable.
^ Do not place any objects on top of the projection TV, these may cause deformation to
the cabinet and screen.
^ Aviod hard objects hitting on the projection TV (especially the screen) or excessive
shock when moving the projection TV.
Cleaning and Maintenance
^ Please clean the cabinet regularly with a dry soft cloth. Stubborn stains may be re¬
moved with a cloth slightly damped with solution of mild soap and warm water. Never
use strong solvents for cleaning.
1

INTRODUCTION
Control Buttons
Front panel
Rear panel
Notes:
®The buttons of the same name on the remote control or the projection TV's front panel share the
same function. The following section of this manual will focus on operation method of the remote
control.
(2)The figures shown in this manual may be somewhat different from the actual situation, please
reference to the practicality.
2

INTRODUCTION (continued)
Control Buttons (continued)
remote control
Note:
The button design and specifications of the remote control are subject to change without notice.
3

INSTALLATION
To Install the projection TV
• Please read the PRECAUTIONS completely before installation.
• It is recommended to watch projection TV in soft and indirect light and face center of the screen for
optimum viewing effect.
• Allow enough space (at least 10cm) between the projection TV and the other subject for proper
ventilation.
• Avoid excessively warm or wet locations to prevent possible damage to the cabinet or components.
U_PlP)_U
UTJUU
Keep proper watching distance.
lOcm
J[
After installation, plug the projection TV in the supply socket.
4

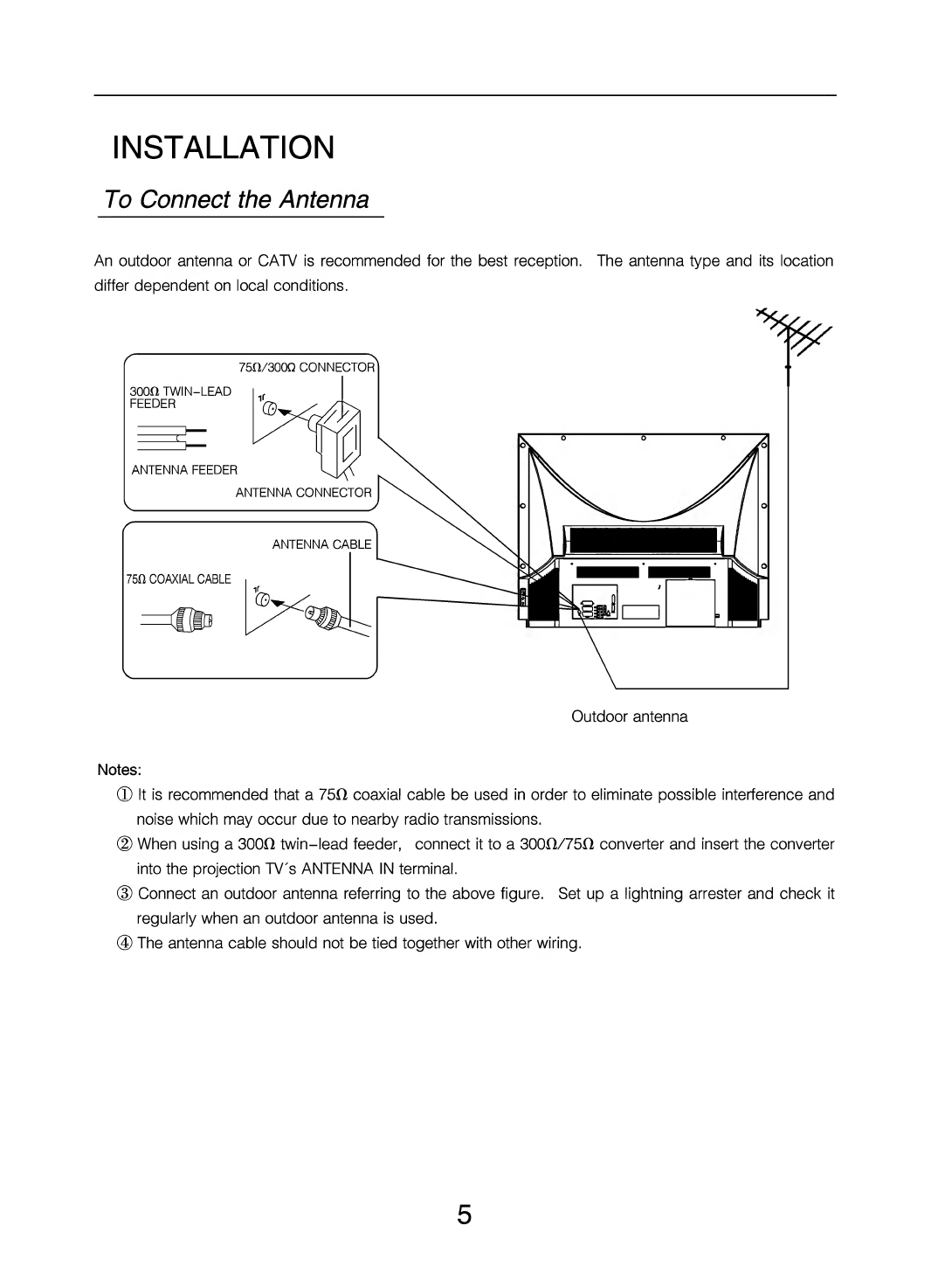

INSTALLATION
To Connect the Antenna
An outdoor antenna or CATV is recommended for the best reception. The antenna type and its location
differ dependent on local conditions.
Outdoor antenna
Notes:
® It is recommended that a 7511 coaxial cable be used in order to eliminate possible interference and
noise which may occur due to nearby radio transmissions.
(2) When using a 30011 twin-lead feeder, connect it to a 30011/7511 converter and insert the converter
into the projection TV's ANTENNA IN terminal.
® Connect an outdoor antenna referring to the above figure. Set up a lightning arrester and check it
regularly when an outdoor antenna is used.
(D The antenna cable should not be tied together with other wiring.
5

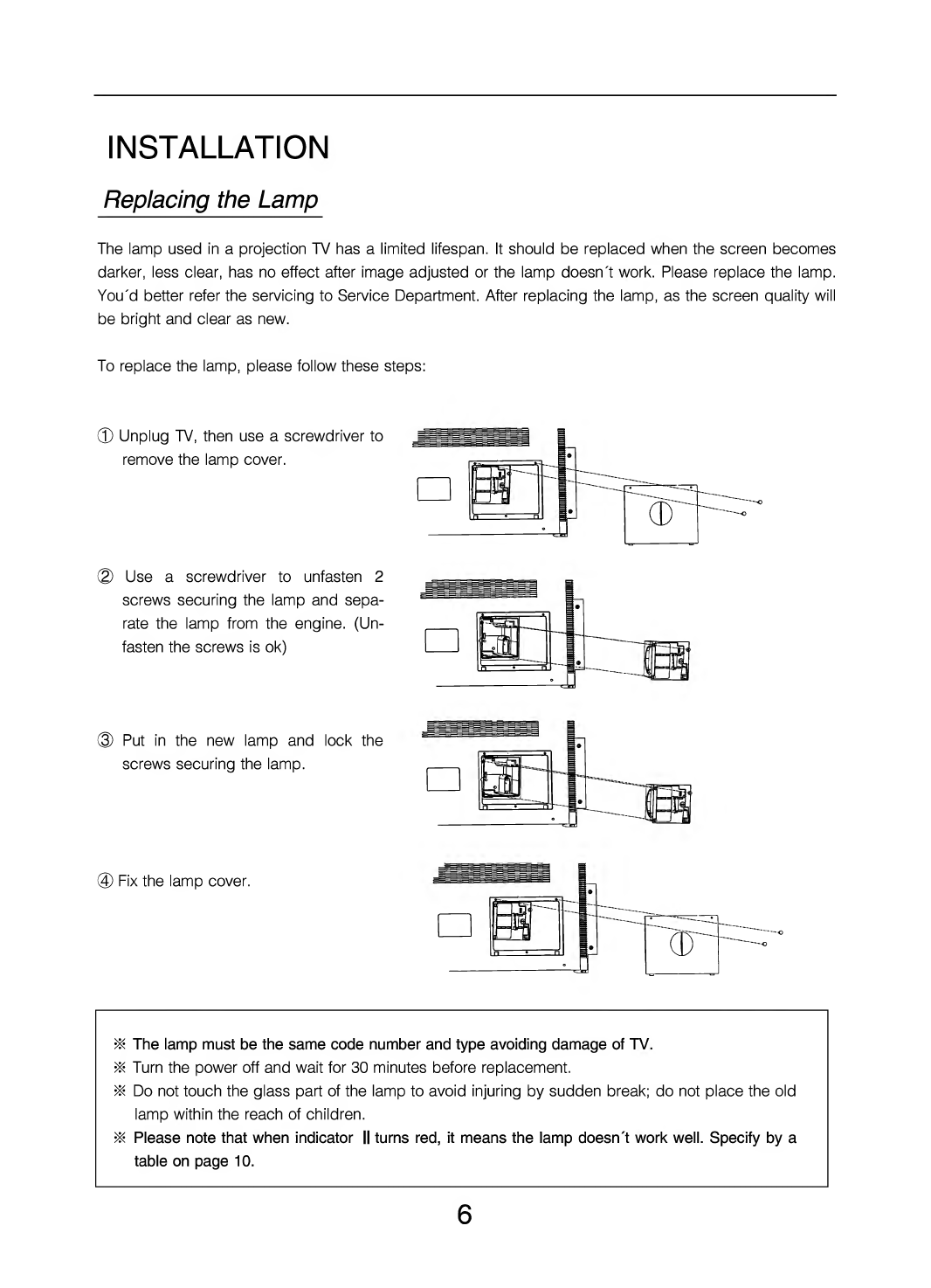

INSTALLATION
Replacing the Lamp
The lamp used in a projection TV has a limited lifespan. It should be replaced when the screen becomes
darker, less clear, has no effect after image adjusted or the lamp doesn't work. Please replace the lamp.
You'd better refer the servicing to Service Department. After replacing the lamp, as the screen quality will
be bright and clear as new.
To replace the lamp, please follow these steps:
0 Unplug TV, then use a screwdriver to
remove the lamp cover.
( 2 ) Use a screwdriver to unfasten 2
screws securing the lamp and sepa¬
rate the lamp from the engine. (Un¬
fasten the screws is ok)
@ Put in the new lamp and lock the
screws securing the lamp.
® Fix the lamp cover.
^ The lamp must be the same code number and type avoiding damage of TV.
^ Turn the power off and wait for 30 minutes before replacement.
^ Do not touch the glass part of the lamp to avoid injuring by sudden break; do not place the old
lamp within the reach of children.
^ Please note that when indicator II turns red, it means the lamp doesn't work well. Specify by a
table on page 10.
6

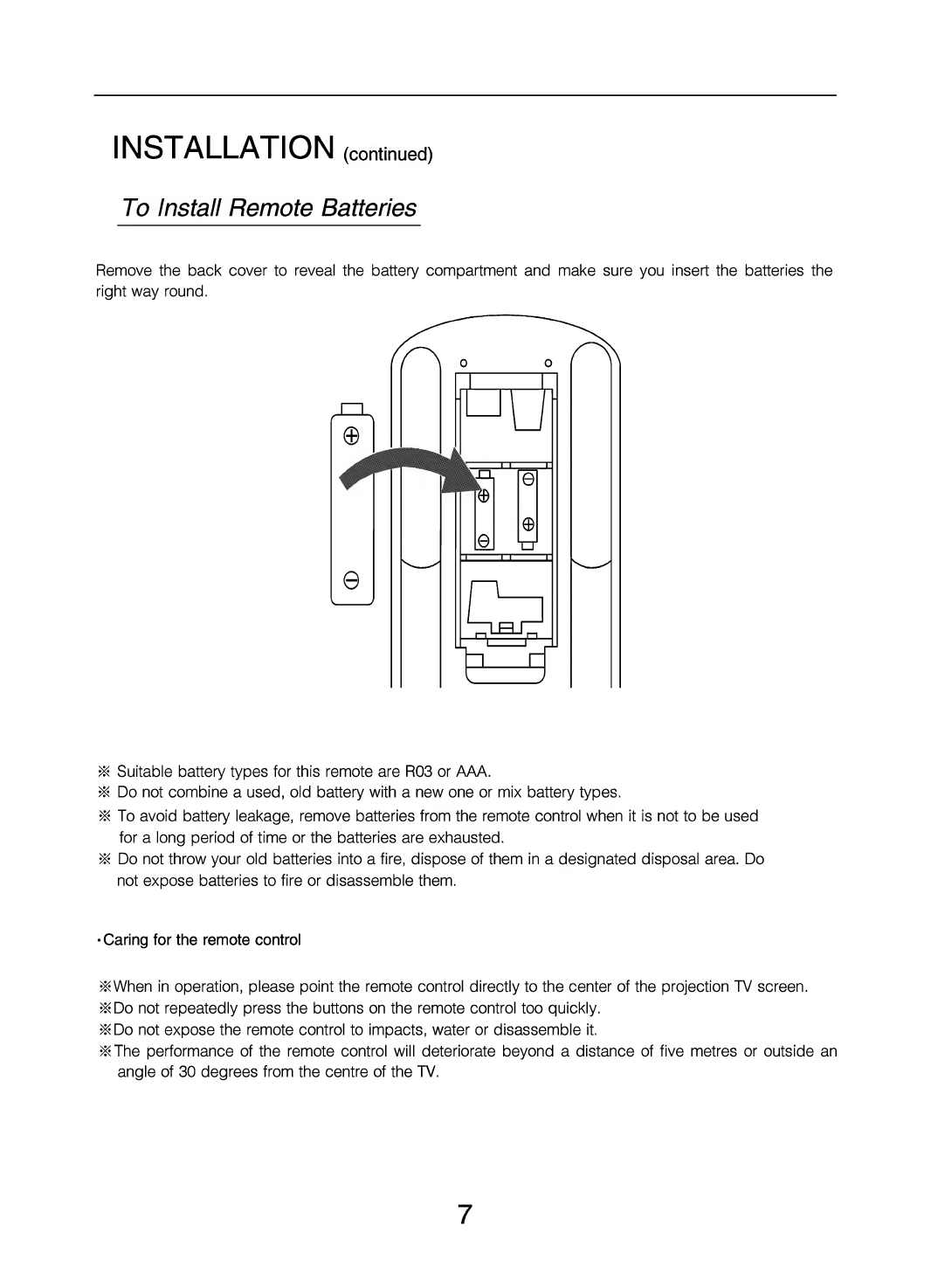

INSTALLATION (continued)
To Install Remote Batteries
Remove the back cover to reveal the battery compartment and make sure you insert the batteries the
right way roun(j.
^ Suitable battery types for this remote are R03 or AAA.
^ Do not combine a used, ol(d battery with a new one or mix battery types.
^ To avoid battery leakage, remove batteries from the remote control when it is not to be used
for a long periocd of time or the batteries are exhausted.
^ Do not throw your old batteries into a fire, dispose of them in a designated disposal area. Do
not expose batteries to fire or disassemble them.
•Caring for the remote control
^ When in operation, please point the remote control directly to the center of the projection TV screen.
^Do not repeatedly press the buttons on the remote control too quickly.
^Do not expose the remote control to impacts, water or disassemble it.
^The performance of the remote control will deteriorate beyond a distance of five metres or outside an
angle of 30 degrees from the centre of the TV.
7

POWER ON/OFF
1
2
3
©
O Press I I on the projection TV. The power indicator will light up and the
—I projection TV enters the STANDBY mode.
6
6
In the STANDBY mode, press the
on the panel to turn on the projection TV.
P-/+ on the remote control or POWER
(b
Press
6
again on the remote control or on the pront panel and the projection
TV enters STANDBY mode.
4
To turn off the projection TV completely, press
©
n ■
^ The TV is a top grade exact appliance. Do not ON/OFF the power in high frequency to avoid damage
the lifespan of lamp.
^ Do not unplug TV before yellow indicator is off when presses power off.
^ Different status of indicator tells you how's TV going.
Indicator I Indicator n TV working status
OFF OFF
Unplug TV
Blue Red Standby state
Ficker Green Operating
OFF Green
Normal working status
Blue Flicker Green Receiving the operation order
Blue
Yellow
Lamp doesn't work well (temperature is too high).
Turn off the TV for a while or replace the lamp.
Blue
Yellow
Ventilation hole is blocked, Turn off the TV
Blue
Yellow
The lamp cover doesn't fix well.
Blue Flicker Yellow Flicker Updating
^ Screen will display "please check flow system" when the fan doesn't work well or the inner temper¬
ature is too high. The red indicator will blinking and TV will automatically be turned off. Please
check Ventilation fan and environmental temperature of TV after unplug the set.
•Auto off without signal reception
When a channel has no signal (e.g. the TV station fails to send signals) , the projection TV will
automatically turn off when no button is pressed within 5 min.
(The function only works in the TV mode.)
•Sleep auto off
Press f sleep'
repeatly to set the function that can auto off after a certain time.
8

BASIC BUTTONS
Power
To enter or exit standby mode, press [ O J on the remote control.
STANDBY function enables you to reduce power consumption and damaging to
the lamp.
^Don't leave your projection TV in standby mode for a long time, turn the power off when left unat¬
tended for a long period of time.
Numeric buttons
Press the Numeric buttons to enter position number respectively.
^TV will switch to the channel number you chose without pressing on other numeric buttons in 3
seconds.
^The set has 0-99 programs preset.
P-/+.V-/+
Press P-/+ to select a lower or upper position number.
5
6
Press V-/+ to decrease or increase volume.
^P-/+ and V-/+ buttons can be used for adjusting menu.
DISPLAY
DISPLAY
Press DISPLAY to display the current position
number and time settings or other information.
2
00:00
^Time display is available only after you adjust the Timer.
9

BASIC BUTTONS (continued)
RECALL
RECALL
MUTE
Press RECALL repeatecdly to switch the projection TV be¬
tween the current program position and previous program
position.
5
MUTE
Use the MUTE function to (disable the soun(d.
Press it again to exit.
^Pressing V+ can also cancel the MUTE function.
^Pressing V- can decrease the volume in the MUTE mode, but can not cancel the MUTE mode.
STILL
STILL
Press STILL to make the current picture stillness. There is a prompt on the lower
screen. Press it again to exit.
EXIT
Press EXIT to exit operation from the menu etc.
ZOOM
The following four modes are available by pressing ZOOM button repeatedly.
4:3^ MOVIE ^ PANAROMA ^16:9
10

TUNING IN
Main menu
1
Press MENU to call up the Main menu.
Press P-/P+ to select sub-menu item, then
press OK button to enter.
11

TUNING IN (continued)
Auto Search
4
Call up the CHANNEL menu.
Press P-/+ to highlight "Auto Search".
Press V -/+ and auto search begins. All
receive(d programs can be searche(d.
It returns to PCS 1 after auto search.
1
2
3
4
5 6
7
8
9
VHL
search
^Pressing EXIT or MENU stops auto-searching and stop in the previous searched program.
^Auto searching begins from PCS 1. Users are recommended to use PCS “0” for external equipment
connections like tape recorder.
^The colour system is set to AUTO, sound system to D/K for the searched program. Adjust colour and
sound systems if the picture is not in its best position.
12

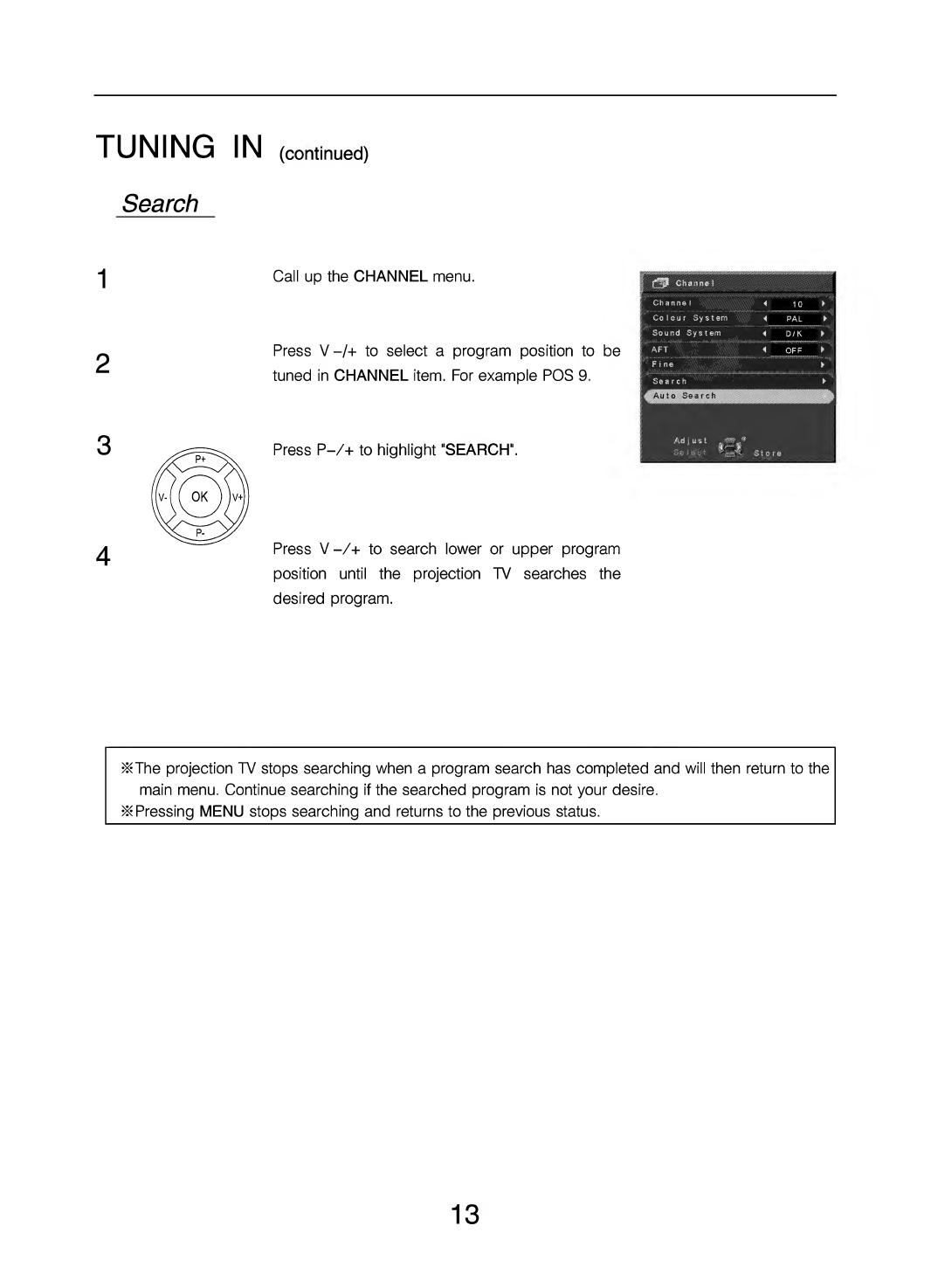

TUNING IN (continued)
Search
1
2
3
4
Call up the CHANNEL menu.
Press V-/+ to select a program position to be
tuned in CHANNEL item. For example PCS 9.
Press P-/+ to highlight "SEARCH".
Press V-/+ to search lower or upper program
position until the projection TV searches the
(desire(d program.
^The projection TV stops searching when a program search has complete(j and will then return to the
main menu. Continue searching if the searched program is not your desire.
^Pressing MENU stops searching and returns to the previous status.
13

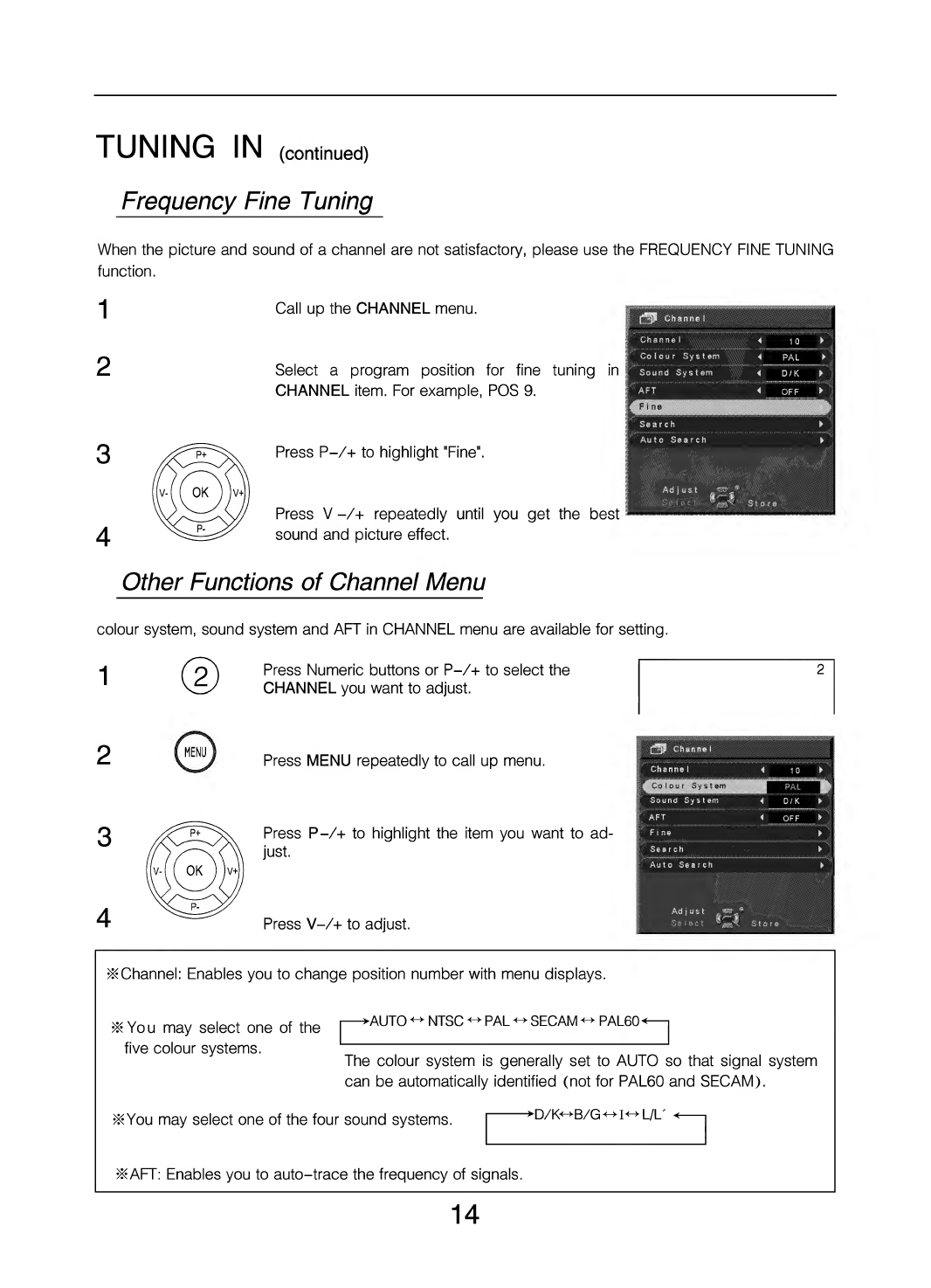

TUNING IN (continued)
Frequency Fine Tuning
When the picture and sound of a channel are not satisfactory, please use the FREQUENCY FINE TUNING
function.
“I Call up the CHANNEL menu.
Select a program position for fine tuning in
CHANNEL item. For example, PCS 9.
Channel
Colour System
Sound System
AFT
I;:; 10
I PAL
D/K >
OFF
W:
3 Press P-/+ to highlight "Fine".
vYT OK j ]v+
Press V -/+ repeatedly until you get the best ^
4 sound and picture effect.
Other Functions of Channel Menu
colour system, sound system and AFT in CHANNEL menu are available for setting.
-i [0^ Press Numeric buttons or P-/+ to select the
CHANNEL you want to adjust.
Press MENU repeatedly to call up menu.
Search
Auto Search
V- OK vt
Press P-/+ to highlight the item you want to ad¬
just.
Press V-/+ to adjust.
ChanneI
4
10
Sound System
4
PAL
D/K
!'' AFT
4
OE-F
> ■
' Fine
Search
* 1
Auto Searcn
4 ■ - f
W&iM
^Channel: Enables you to change position number with menu displays.
^You may select one of the
five colour systems.
>AUTO ^ NTSC ^ PAL ^ SECAM ^ PAL60^
The colour system is generally set to AUTO so that signal system
can be automatically identified (not for PAL60 and SECAM).
^You may select one of the four sound systems.
^AFT: Enables you to auto-trace the frequency of signals.
^D/K^B/G ^ L/L"
14

PICTURE SELECTION
Picture Mode Selection
The following five modes are available
by pressing P.MODE repeatedly.
SUSESHISOHi
—*^User—)-Normal^Soft-^Rich^Vivid
^Improve picture quality for your projection TV by using PICTURE menu when you aren't satisfied with
the above-mentioned modes. See “Picture Adjustment” for details.
Picture Adjustment
1
2
Item
Adjustment Effect
- +
Mode
5 Choices
Brightness
Darker Brighter
Contrast
Lower Higher
Sharpness
Lighter Deeper
Colour
Lower Higher
Tint
More Purple More Green
^TINT adjustment is only available for NTSC signal.
^The adjustable TINT range is -50~+50 while other adjustments are 0-100.
^TFNR(Dynamic noise decrease) can improve picture quality. You can choose from "Strong", "Weak"
and "Off"
^Colour temperature can choose from "Cool" , "Warm" and "Normal".
^Recommend value of "Sharphess" TV/AV signal 20-40, YPbPr/PC/DVI Signal is 50-100.
^The Advance menu can help you to change the HA/ center of picture with P-/+ and V-/+ buttons.
15

SOUND SELECTION
Stereo and Bilingual
If Stereo or dual language broadcasts are transmitted the word "Stereo" or "Dual" will appear on the screen,
disappearing after a few seconds. The display will reappear each time you change programme positions, provided
that the broadcast is in stereo. If the broadcast is not in stereo the word Mono will appear.
®]/E
Stereo... Choose the required programme number. Press the [p button repeatedly, to select between
stereo and Mono.
Bilingual ... Bilingual transmissions are rare. If they are transmitted the word Dual wlW display. Choose the
required programme number and if the word Dual does appear press the ^ button to select between
Dual 1, Dual 2 or Mono.
Sound Adjustment
1
Call up the SOUND menu.
2
Press P-/+ to select an adjustment. Then
press V-/+ to adjust.
Item
Adjustment effect
+
Mode 5 choices
Treble
Lower Higher
Bass
Lower Higher
Balance
Lower Higher
DBE ON/OFF
Mss
ON/OFF
AVL ON/OFF
^The range of items:
Sound Mode:Normal, News, Movie, Music, User
BASS and TREBLE: 0-100
BALANCE: -50- +50
16

SETUP MENU
SETUP Menu
Call up the SETUP menu.
Press P-/+ to highlight an adjustment, then
press V-/+ to adjust.
BI ue Sc r een 4 OFF n.
:fe i A uto j/
Panel lock i OFF ^
C j • e !i t ^ me
^With Blue Screen on, the projection TV will display a blue background and mute automatically when
no signal received. With Blue Screen off, the projection TV will display noise dots on the screen in the
TV mode or the screen becomes dark in the AV mode when no signal is present.
Lanauaae Menu
1
2
Press P-/+ to highlight the LANGUAGE item,
then press V-/+ to enter language menu.
Press P-/+ to highlight the item you desire, the
press OK to select.
17
