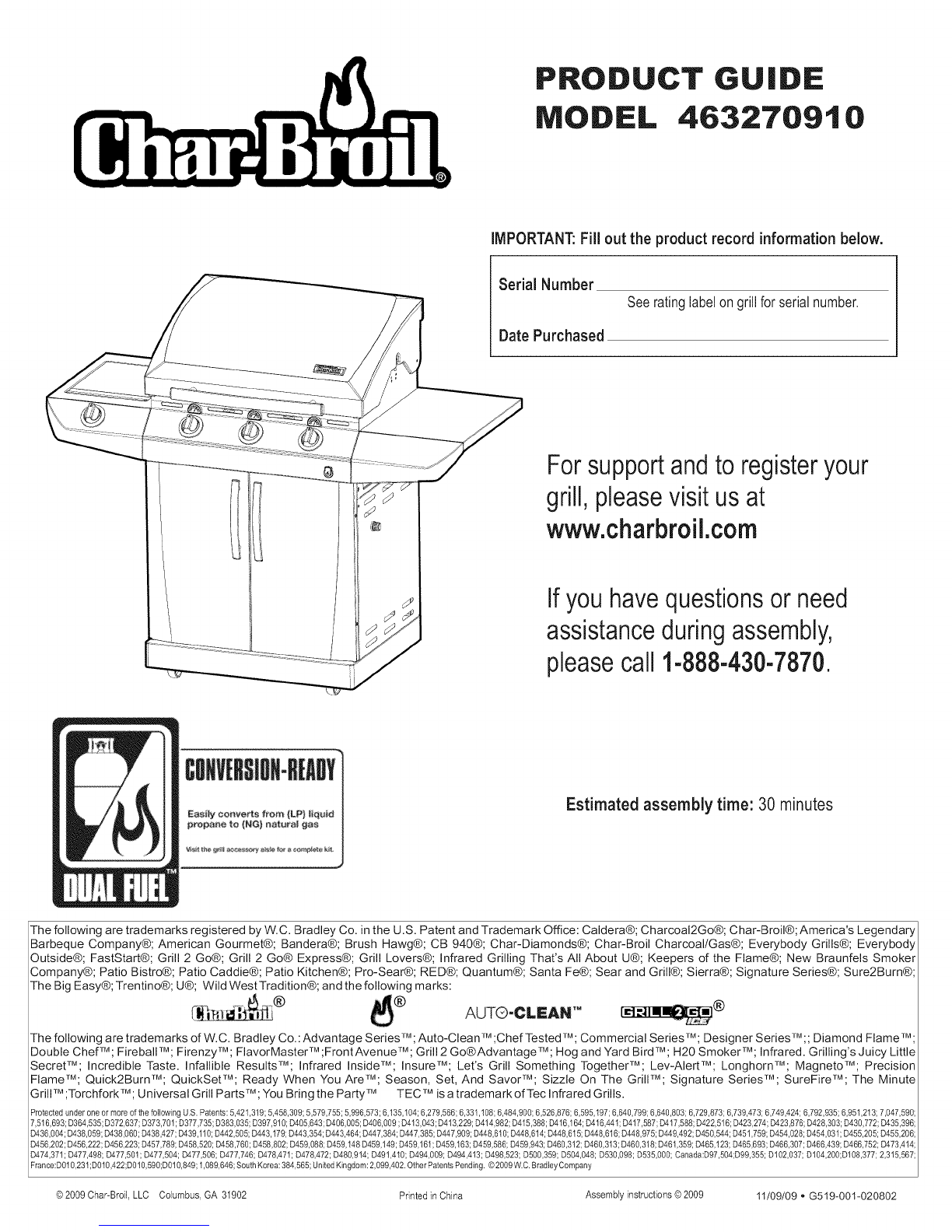

Char-Broil 463270910 User manual

PRODUCT GUIDE
MODEL 463270910
IMPORTANT: Fill out the product record information below.
Serial Number
Date Purchased
Seeratinglabelongrillforserialnumber.
Forsupportandto registeryour
grill,pleasevisit usat
www.charbroil.com
Ifyouhavequestionsorneed
assistanceduringassembly,
pleasecall1-888-430-7870.
Estimated assembly time: 30 minutes
The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Caldera®; Charcoal2Go®; Char-Broil@; America's Legendary
Barbeque Company®; American Gourmet®; Bandera®; Brush Hawg®; CB 940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; Everybody Grills@; Everybody
Outside®; FastStart®; Grill 2 Go®; Grill 2 Go® Express@; Grill Lovers@; Infrared Grilling That's All About U®; Keepers of the Flame®; New Braunfels Smoker
Company®; Patio Bistro®; Patio Caddie®; Patio Kitchen®; Pro-SeatO; RED®; Quantum@; Santa Fe@; Sear and Grill@; Sierra@; Signature Series@; Sure2Burn@;
The Big Easy@; Trentino@; U@; Wild West Tradition@; and the following marks:
The following are trademarks of W.C. Bradley Co.; Advantage Series TM;Auto-Clean TM;Chef Tested TM;Corn mercial Series TM; Designer Series TM;; Diamond Flame TM;
Double ChefTM; Fireball TM;FirenzyTM ;FlavorMasterTM ;FrontAvenueTM; Grill 2 Go@AdvantageTM; Hog and Yard BirdTM;H20 SmokerTM; Infrared. Grilling's Juicy Little
SecretTM; Incredible Taste. Infallible ResulIsTM; Infrared InsideTM; InsureTM; Let's Grill Something TogetherTM; Lev-AlerITM; LonghornTM; MagnetoTM; Precision
FlameTM; Quick2BurnTM; QuickSetTM; Ready When You AreTM; Season, Set, And SavorTM; Sizzle On The GrilITM; Signature SeriesTM; SureFireTM; The Minute
Grill TM ;TorchforkTM; Universal Grill ParIsTM;YOUBring the Party TM TEC TM is a trademark of Tec Infrared Grills.
Protected underone or moreofthefollowing U.S. Patents:5,421,3t9; 5,458,309;5,579,755; 5,996,573; 6,135,104;6,279,566; 6,33t,108; 6,484,900; 6,526,876;6,595,197; 6,640,799;6,640,803; 6,729,873; 6,739,473;6,749,424; 6,792,935;6,951,213; 7,047,590;
7,516,693;D364,535;D372,637;D373,701;D377,735; D383,035;D397,9t0; D405,643;D406,OO5;D486,009; D413,043;D413,229;D414,982;D415,388;I}416,164; D4t6,441; D4t7,587; I}417,588; D422,516;D423,274;I}423,876; D428,303;D430,772;I}435,396;
D436,004;D438,059;D438,060;D438,427;D439,110; D442,505;D443,179;D443,354; D443,464;D447,384;D447,385; D447,909;D448,6t0; D448,614;D448,615;D448,616;D448,975;D449,492;D450,544;D451,759;D454,028; D454,03t; D455,205;D455,206;
D456,202;D456,222;D456,223;D457,789;D458,520; D458,760; D458,802;D459,088;D459,148D459,149;D459,161;D459,163;D459,586; D459,943;D460,3t2; D460,3t3; D460,3t8; D46t,359; D465,123;D465,693; D466,307; D466,439;D466,752;D473,4t4;
D474,371;D477,498; I}477,50t; D477,504; I}477,506; D477,746;D478,471; D478,472;D480,914;D49t,410; D494,009;D494,4t3; D498,523; D500,359; D504,048;D530,098; D535,OOO;Canada:D97,504;D99,355;D102,037; D104,2OO;DtOS,377;2,315,567;
France:D010,231;DOt0,422;D010,590;D0t0,849; 1,089,646;South Korea:384,565;United Kingdom:2,099,402.OtherPatentsPending. @2009W.C.Bradley Company
@2009Char-Broil,LLC Columbus,GA 31902 Printedin China Assemblyinstructions@2009 11/09/09 QG51%001-020802

For Your Safety .................................... 2-3
Use and Care ..................................... 4-9
Limited Warranty.................................... 10
Parts List .......................................... 11
Parts Diagram...................................... 12
Assembly ....................................... 13-23
Troubleshooting.................................. 24-26
Registration Card ................................... 27
Safety Symbols
The symbols and boxesshown below explain what each heading
means. Read and follow all ofthe messages found throughout
the manual.
WARNING: Indicates an potentiallyhazardoussituation
which, if not avoided, could result in death or serious injury.
CAUTioN
CAUTION: Indicatesa potentiallyhazardoussituationor
unsafe practicewhich, if not avoided, may result in minor
or moderateinjury,
DANGER: Indicatesan imminentlyhazardous situation
which, if not avoided,will resultin death or serious injury.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
CAUTION
For residential use only. Do not use for commercial
cooking.
CAUTION-
Read and follow all safety statements,assembly
instructions,and use and care directions beforeattempting
to assemble and cook.
|NSTALLER/ASSEMBLER:
Leavethis manualwith consumer.
CONSUMER"
Keepthis manualfor future reference.
WARNING=
Failureto follow all manufacturer's instructionscould result
in serious personal injuryand/or property damage.
CAUTION:
Some partsmay containsharpedges- especially as noted
in the manual!Wear protectivegloves if necessary.

CALIFORNIAPROPOSITION65
1.Combustionby-productsproducedwhenusing
thisproductcontainchemicalsknowntotheStateof
Californiatocausecancer,birthdefects,andother
reproductiveharm.
2.Thisproductcontainschemicals,including lead
and lead compounds, known to the State of
California to cause cancer, birth defects or other
reproductive harm.
Wash your hands after handling this product.
Installation Safety Precautions
*Use grill, as purchased, only with LP (propane) gas and the
regulator/valve assembly supplied. Ifyour grill is Dual Fuel ready,
a conversion kit must be purchased for usewith naturalgas.
,Grill installation must conform with local codes, or in their
absence of local codes, with either the National Fuel Gas
Code,ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSAB149.1, or Propane Storage and
Handling Code, B149.2, or the Standard for Recreational
Vehicles,ANSI A 119.2/NFPA1192,and CSA Z240 RV Series,
Recreational Vehicle Code,as applicable.
, All electrical accessories (such as rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code,ANSI/NFPA 70 or Canadian
Electrical Code, CSAC22.1. Keep any electrical cords and/or
fuel supply hoses away from any hotsurfaces.
o This grill issafety certified for use in the United States and/or
Canada only. Donot modifyfor use in any other location.
Modification will result in a safety hazard.
CAUTION
Using pots larger than 6 quarts in capacity could
exceed weight limit of the
side burner shelf
or side shelf,
resulting in failure
of grill cart
components.
Do not attempt to repair or alter the
hoseNalve/regulator for any "assumed" defect. Any
modification to this assembly will void your warranty
and create the risk of a gas leak and fire. Use only
authorized replacement parts supplied by
manufacturer.

• NEVERstore aspare LP cylinder under or near
the appliance or in an enclosed area.
•Never fill a cylinder beyond 80% full.
•An over filled or improperlystored cylinder is a
hazard due to possible gas release from the
safety relief valve. This could cause an intense
fire with risk of property damage, serious injury or
death.
If you see, smell or hear gas escaping,
immediatelyget away from the LP
cylindedappliance and call your fire department.
LP Cylinder Removal, Transport and Storage
•Turn OFFall control knobs and LP cylinder valve. Turn coupling
nutcounterclockwise by hand only - do notuse tools to
disconnect. Loosen cylinder screw beneathbottom shelf, then
lift LP cylinder up and out of cart. Installsafety cap onto LP
cylinder valve.Always use capand strap supplied with valve.
Failure to use safety cap as directed may result in serious
personal injuryand/or property damage.
•Adisconnected LP cylinder in LPCylinder
storage or being transported
must havea safety cap installed (as shown).
Do not store an LP cylinder in enclosed spaces
such as a carport, garage, porch, covered
patio or other building. Never leavean LP cylinder Safety
inside a vehicle which may become overheated Cap
by the sun. RetainerStrap
•Do notstore an LP cylinder in an area where children play.
LP Cylinder
•The LP cylinder used with your grill must meet the
following requirements:
•Use LPcylinders only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
capacity maximum.
•LP cylinders must be constructed and marked in accordance
with specifications for LP cylinders of the U.S. Department of
Transportation (DOT) or for Canada, CAN/CSA-B339,
cylinders, spheres and tubes for transportation of dangerous
goods. Transport Canada (TC). See LP cylinder collar for
marking.
•LP cylinder valve must have:
•Type 1 outlet compatible with
regulatoror grill.
•Safety reliefvalve.
•ULlisted Overfill Protection OPDHandWheel
Device (OPD). This OPD safety
feature is identified by a unique triangular hand wheel. Use
only LPcylinders equipped with this type of valve.
•LPcylinder must be arranged for vapor withdrawal and include
collar to protect LP cylinder valve.Always keep LP cylinders in
upright position during use, transit or storage.
LP cylinder in upright position for vapor withdrawal
LP (Liquefied Petroleum Gas)
•LP gas is nontoxic, odorless and colorless when produced. For
Your Safety, LP gas has been given an odor (similar to rotten
cabbage) so that it can be smelled.
•LPgas is highly flammableand may ignite unexpectedly when
mixedwith air.
LP Cylinder Filling
•Use only licensed and experienced dealers.
•LP dealer must purge new cylinder before filling.
•Dealer should NEVER fill LP cylinder more than 80% of LP
cylinder volume. Volumeof propane in cylinder will vary by
temperature.
•Afrosty regulator indicates gas overfill. Immediately close LP
cylinder valve and call local LP gas dealer for assistance.
•Do not releaseliquid propane (LP) gas into the atmosphere.
This is a hazardous practice.
•Toremove gas from LP cylinder,contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under "Gas Companies" for nearest certified LP
dealers.

LP Cylinder Exchange Connecting Regulator to the LP Cylinder
•Many retailers that sell grills offer you the option of replacing
your empty LP cylinder through an exchange service. Use only
those reputable exchange companiesthat inspect, precision fill,
test and certify their cylinders. Exchange your cylinder only
for an OPD safety feature-equipped cylinder as described
in the "LP Cylinder" section of this manual.
•Always keep newand exchanged LP cylinders in upright
position during use, transit or storage.
•Leak test new and exchanged LP cylinders BEFORE
connecting to grill.
•Place dust cap on cylinder valve outlet whenever the cylinder is
notin use. Only install the type ofdust cap on the cylinder valve
outlet that is providedwith the cylinder valve. Other types of caps
or plugs may result in leakage of propane.
LP Cylinder Leak Test
For your safety
•Leak test must be repeated each time LP cylinder isexchanged
or refilled.
•Do notsmoke during leak test.
•Do not use an open flame to check for gas leaks.
•Grill must be leak tested outdoors in a well-ventilated area,
away from ignitionsources such as gas fired or electrical
appliances. Duringleak test, keep grill away from open flames
or sparks.
•Use a clean paintbrush and a 50/50 mild soap and water
solution. Brush soapy solution onto areas indicated byarrows
in figure below.
ADo not use householdcleaning agents. Damage to gas
train components can result.
1.LP cylinder mustbe properly secured onto grill. (Refer to
assembly section.)
2.Turn all control knobs to the OFF position.
3.TurnLP cylinder OFF by turning hand-wheel clockwise to a
full stop.
4.Remove the protective cap from LP cylinder valve.Always use
cap and strap supplied with valve.
OPDHandWheel
j Type1 outlet with
threadon outside
SafetyReliefValve
!
Strapand Cap
Do not use a POLtransport plug
(plastic part with external threads)!
It will defeat the safety feature of
the valve.
5.Hold regulatorand insert nipple into LP
cylinder valve. Hand-tightenthe
coupling nut, holding regulator in a
straight line with LP cylinder valve so
as not to cross-thread the connection.
Nipplehasto be centered
intothe LP cylinder valve.
If"growing"bubblesappear do notuseor move the LP
cylinder.Contact an LPgas supplier or your fire
department!

Holdcoupling nut and regulator
asshown for properconnection
to LP cylinder valve.
6.Turn the coupling nut clockwiseand tighten to a full stop. The
regulatorwill seal on the back-checkfeature in the LP cylinder
valve, resulting in some resistance.An additional one-half to
three-quarters turn is required to complete the
connection. Tighten by hand only - do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulatorand
repeat steps 5 and 6. If you are still unable to completethe
connection, do not use this regulator!
Leak Testing Valves, Hose and Regulator
1.Turn all grill control knobs to OFF.
2.Be sure regulator istightly connected to LP cylinder.
3.Completely open LP cylinder valve by turning hand wheel
counterclockwise. If you hear a rushing sound, turn gas off
immediately.There is a major leak at the connection. Correct
before proceeding.
4.Brush soapy solution onto areas circled below,or other similar
fittings on your grill.
Do not insertany tool or foreignobject into thevalve
outlet or safety relief valve. You maydamage thevalve
and cause a leak. Leakingpropane may result in
explosion,fire, severepersonal injury,ordeath.
Outdoorgas appliance is not intendedto beinstalled
in or on a boat.
Outdoorgas appliance is not intendedto beinstalled
in or on an RV.
, Never attemptto attach this grill to theself-contained
LPgas system of a campertrailer or motorhome.
, Do not use grill until leak-tested.
, If a leak is detectedat any time, STOPand callthe fire
department.
, If you cannot stopa gas leak,immediately close
LPcylindervalve and call LPgas supplieror yourfire
department!
5.If "growing" bubbles appear, there is a leak. Close LP
cylinder valve immediately and retighten connections. If leaks
cannot be stopped do not try to repair. Call for replacement
parts.
6.Always close LPcylinder valve after performing leak test by
turning hand wheel clockwise.

For Safe Use of YourGrill and to Avoid Serious
injury:
•Do not letchildren operateor play near grill.
• Keepgrill area clear and freefrom materials that burn.
• Do not blockholes in sidesor back of grill.
• Check burnerflames regularly.
• Use grill only inwell-ventilated space. NEVERuse in
enclosedspace such as carport,garage, porch,
covered patio,or under anoverhead structure of any
kind.
Do not use charcoal orceramic briquetsin a gas grill.
(Unlessbriquets aresupplied with your grill.)
Usegrill at least 3ft. from any wall or surface.
Maintain 10ft. clearanceto objects that cancatch fire
or sourcesof ignition such as pilot lightsonwater
heaters,liveelectrical appliances,etc.
•Apartment Dwellers:
Checkwith managementto learnthe requirements
and fire codes for using an LPgasgrill in your
apartmentcomplex. If allowed, useoutside on the
ground floorwith a three (3)foot clearance from walls
or rails. Donot useonor under balconies.
• NEVERattempt to light burner with lid closed.A
buildup of non-ignited gas inside aclosed grill is
hazardous.
• Never operategrillwith LP cylinder out of correct
positionspecified in assembly instructions.
• Always close LP cylindervalve and remove
coupling nut before moving LP cylinderfrom
specified operation position.
Safety Tips
A Beforeopening LP cylinder valve, check the coupling nutfor
tightness.
A When grill is not in use, turn off all control knobs and LP
cylinder valve.
A Never move grill while in operation or still hot.
A Use long-handled barbecue utensils and oven mitts to avoid
burnsand splatters.
A Maximum load for sideburner and side shelf is 10 Ibs.
A The grease tray must be inserted into grill and emptied after
each use. Do not remove grease tray until grill has
completely cooled.
A Clean grill often, preferably after each cookout. If a bristle
brush is used to clean any of the grill cooking surfaces,
ensure no loose bristles remain on cooking surfaces prior to
grilling. It is not recommendedto clean cooking surfaces
while grill is hot.
A If you notice grease or other hot material dripping from grill
onto valve, hoseor regulator, turn off gas supply at once.
Determinethe cause, correct it, then clean and inspect valve,
hoseand regulator before continuing. Perform a leak test.
A Keep ventilation openings in cylinder enclosure (grill cart) free
and clear of debris.
A Donot store objects or materials inside the grill cart
enclosure that would block the flow of combustion air to the
undersideof either the control panel or the firebox bowl.
A The regulator may make a humming or whistling noise during
operation. This will notaffect safety or use of grill.
A If you have a grill problem see the "Troubleshooting Section".
A If the regulator frosts, turn off grill and LP cylinder valve
immediately.This indicates a problemwith the cylinder and it
should notbe used on any product. Return to supplier!
CAUT'O.
•Putting out grease fires by closing the lid is not possible.
Grills are well ventilated for safety reasons.
• Do not use water on a grease fire. Personal injury may
result, if a grease fire develops, turn knobs and LP
cylinder off.
• Do not leave grill unattended while preheating or burning
off food residue on HI. ifgrill has not been regularly
cleaned, a grease fire can occur that may damage the
product.
ignitor Lighting
ADo not lean over grill while lighting.
1. Turn OFF gas burner control valves.
2. Turn ONgas at LP cylinder.
3. Open lid during lighting.
4. To ignite, push and turn ignition burner knob to HI.
5. Push and hold ELECTRONIC IGNITION button until the burner
lights.
6. If ignitiondoes NOT occur in 5 seconds, turn the burner
controls OFF, wait 5 minutes and repeatthe lighting
procedure.
7. Toignite remaining burners, turn knob to the HI position
starting with the burners closest to IGNITION BURNERS first.
If ignitordoes notwork, follow match lighting instructions.
Lighting instructions are continued on the next page 7

Ignitor Lighting (continued)
8. For grills equipped with ELECTRONIC IGNITION at
each burner:
Repeat steps 4 through 6 to lighteach burner.
9. Once each burner has ignited, turn knobs to desired setting.
Turn controls and gas source or tank OFF when not
in use. cAuT,o.
if ignition does NOT occur in 5 seconds, turn the
burner controls OFF, wait 5 minutes and repeat the
lighting procedure. If the burner does not ignite with
the valve open, gas will continue to flow out of the
burner and could accidently ignite with risk of injury.
Match-Lighting
,& Do not lean over grill while lighting.
1. Open lid. Turn ON gas at LP cylinder.
2. Place match into match holder (hanging from side panel of
grill). Light match; then light burner by placingmatch through
the match light hole on right or left side of grill.
3. Push in and turn far right or far left burner knob to the Hi
position, depending on match light hole selected. Be sure
burner lights and stays lit.
4. Light adjacent burners in sequence by pushing knobs in and
turning to the HI position.
Sideburner ignitor Lighting
ADo not lean over grill while lighting.
1. Open sideburner lid. Turn ON gas at LP cylinder.
2. Turnsideburner knob to the Hi position, pushand hold
ELECTRONIC IGNITOR button.
3. Ifsideburner does NOT light within 5 seconds, turn knob to OFF,
wait 5 minutes, then
repeat lighting procedure.
Sideburner Match Lighting
1. Open sideburner lid. Turn ON
gas at LP cylinder.
2. Place lit match near burner.
3. Turnsideburner knob to the
HI position.
Be sure burner lights and
stays lit.
8
Burner Flame Check
• Remove cooking grates and flame tamers. Light burners, rotate
knobs from Hi to LOW. Youshould see a smaller flame in
LOW position than seen on Hi. Perform burner flame check
on sideburner, also.Always check flame prior to each use. If
only low flame is seen refer to "Suddendrop or low flame" in
the TroubleshootingSection.
Turning Grill Off
•Turn all knobs to the OFFposition. Turn LP cylinder OFF by turning
hand-wheel clockwise to a full stop.
Ignitor Check
•Turn gas off at LP cylinder. Press and hold electronic ignitor
button. "Click" should be heard and spark seen each time
between each collector box or burner and electrode. See
"Troubleshooting" if no click or spark.
Valve Check
• important: Makesure gas is off at LPcylinder before
checking valves. Knobs lock in OFF position.To check
valves, first push in knobs and release, knobs should spring
back. If knobs do not spring back, replace valve assembly
beforeusing grill. Turn knobs to LOW position then turn back to
OFF position.Valves should turn smoothly.
Hose Check
•Beforeeach use, check to see ifhoses are cut or worn.
Replace damaged hoses before usinggrill. Use only
valve/hose/regulator specified by manufacturer.
General Grill Cleaning
• Do not mistake brown or black accumulation of grease and
smoke for paint. Interiorsof gas grills are not painted at the
factory (and should never be painted). Apply a strong solution
of detergent and water or usea grill cleanerwith scrub brush
on insides of grill lid and bottom. Rinse and allow to completely
air dry. Do not apply a caustic grill/oven cleaner to painted
surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry.
A Do not use citrisol, abrasive cleaners, degreasers or a
concentrated grill cleaner on plastic parts. Damage to and
failure of parts can result.
•Porcelain surfaces: Because of glass-like composition, most
residuecan be wiped away with baking soda/water solution or
specially formulated cleaner. Use nonabrasive scouring powder
for stubborn stains.
• Paintedsurfaces: Wash with mild detergent or nonabrasive
cleaner and warm soapy water. Wipe dry with a soft
nonabrasive cloth.
•Stainless steel surfaces: Tomaintain your grill's high quality
appearance, wash with mild detergent and warm soapy water
and wipe dry with a soft cloth after each use. Baked-on grease
deposits may require the use of an abrasive plastic cleaning
pad. Use only in direction of brushed finish to avoid damage.
Do not use abrasive pad on areas with graphics.
•Cooking surfaces: If a bristle brushis usedto clean any of
the grill cooking surfaces, ensure no loose bristles remain on
cooking surfaces prior to grilling. It isnot recommendedto
clean cooking surfaces while grill is hot.

cAuTioN
fSPIDER ALERT!
If you notice thatyour grill is getting hard tolight or thatthe
flame isn't asstrong as it should be, takethe time to checkand
clean theventud's.
CONTROLPANEL
iiiiiiiil
SPIDERWEBS
INSIDE VENTURI
Insomeareasofthecountry,spidersor smallinsectshavebeen
knowntocreate"flashback"problems.Thespidersspinwebs,build
nestsand layeggsinthegrill'sventuritube(s)obstructingtheflowof
gastotheburner.Thebacked-upgascanigniteintheventuribehind
thecontrolpanel.Thisisknownasa flashbackandit candamage
yourgrillandevencauseinjury.
Topreventflashbacksandensuregoodperformancetheburnerand
venturiassemblyshouldbe removedfromthegrillandcleaned
foreusewheneverthegrill hasbeenidleforanextendedperiod.)
J
Storing Your Grill
•Clean cooking grates.
•Store in dry location.
•When LP cylinder is connected to grill, store outdoors in a well-
ventilated space and out of reachof children.
•Cover grill ifstored outdoors. Choose from a variety of grill
covers offered by manufacturers.
•Store grill indoorsONLY if LP cylinder isturned off and
disconnected, removed from grill and stored outdoors.
•When removing grill from storage, follow "Cleaning the Burner
Assembly" instructions before starting grill.
Cleaning the Burner Assembly
Follow these instructionsto cleanand/or replace parts of burner
assembly or ifyou have trouble ignitinggrill.
1. Turn gas OFF at control knobs and LP cylinder,
2. Remove cooking grates and flame tamers.
3. Remove carryover tubes and burners.
4. Detach electrode from burner.
NOTE: Removal/Detachment method will depend on the
burner configuration, See different configurations in
illustrations below.
5. Carefully lift each burner up and away from valve openings,
We suggest three ways to clean the burner tubes, Use the one
easiest for you.
(A) Bend a stiff wire (a light weight coat hangerworks well)
into a small hook, Run the hook through each burner
tube several times,
(B) Use a narrow bottle brushwith a flexible handle (do not
use a brass wire brush), run the brush through each
burner tube several times.
(C) Wear eye protection: Use an air hose to force air into
the burner tube and out the burner ports. Check each
port to make sure air comes out each hole.
6. Wire brush entire outer surface of burner to remove food
residue and dirt.
7. Clean any blocked ports with a stiff wire such as an open
paper clip.
8. Check burner fordamage, due to normal wear and corrosion
some holes may become enlarged. If any large cracks or
holes are found replace burner.
VERY IMPORTANT:Burner tubes must reengage valve
openings. See illustrations at right.
9. Attach electrode to burner. Correct
burner-to-valve
10. Carefully replace burners, engagement
11. Attach burners to brackets on firebox.
12. Reposition carryover tubes and attach
to burners. Replace flame tamers and
cooking grates.
pit
ii" ::i::"" " Electrode
bracket
bracket screwdriver

This warranty only applies to units purchased fiom an authorized retailer. ManuPacturer warrants to the original cunsumer-purchaser only that this
product shall be fiec from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods
indicated below beginning on the date of purchase*. The manuPacturer reserves the right to require that defective parts be returned, postage and or
freight pre-paid by the consumer for review and examination.
SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE
Stainless Burner
Firebox and Lid
All Other Parts
Limited Lifetime
2 years from date of purchase*
l year from date of prochase*
PERFORATION, MANUFACTURING,
AND MATERIAL DEFECTS ONLY
*Note: A dated sales reciept WILL be required for wananty service.
The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty.
This limited warranty is applicable in the United States and Canada only; is only available to the original owner of the product and is not transferable.
Manufacturer requires proof of your date of purchase. Theretbre, you should retain your sales slip or invoice. Registering your product is not a
substitute for proof of purchase and the manuPacturer is not responsible for or required to retain proof of purchase records.
This limited wananty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or
discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surt:ace rust, or the
discoloration of stainless steel surfiaces. RUST is not considered a manufacturing or materials defect.
This limRed warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage.
ITEMS MAN UFACTURER WILL NOT PAY FOR:
1. Shipping cost, standard or expedited, for warranty and replacement parts
2. Service calls to your home.
3. Repairs when your product is used for other than normal, single-family household or residential use.
4. Damage, failures, or operating difficulties resulting from accident, alteration, careless handling, misuse, abuse, fire, flood,
acts of God, improper installation or maintenance, installation not in accordance with electrical or plmnbing codes, or use
of products not approved by the manufacturer.
5. Any food loss due to product failures or operating difficulties.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery of your product.
8. Repairs to parts or systems resulting from unauthorized modifications made to the product.
9. The removal and/or reinstallation of your product.
DISCLAIMER OF IMPLIED WARRANTIES and LIMITATION OF REMEDIES
Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. In the event of parts availability issues,
the manufacturer reserves the right to substitute like or similar parts that are equally functional.
Manufacturer will not be responsible for any consequential or incidental damages arising IYomthe breach of either this limited warranty or any
applicable implied warranty; or for failure or damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration,
replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather,
acts of nature, animal tampering), improper installation or installation not in accordance with local codes or printed manufacturer instructions.
THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE
SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET
FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY S'IWFE,
INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PAt_FICULAR PURPOSE OR USE, IS HEREBY
LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.
Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies
in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the purchase price of the
product paid by the original consumer.
NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions
may not apply to you. This limited warranty gives you specific legal rights as set foth herein. You may also have other rights which vary from state
to state. In the state of California only; if refinishing or replacement of the product is not commercially practicable, the retailer selling this product or
the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer-purchaser
prior to discovery of the nonconformity. In addition, in the state of California only; you may take the product to the retail establishment selling this
product in order to obtain performance under this limited wananty.
If you wish to obtain performance of any obligation under this limited warranty, you should
write to:
Consumer Relations
P. O. Box 124t)
Columbus, GA 3191)2-1241)
Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of
the package with an RA number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be
refused.
