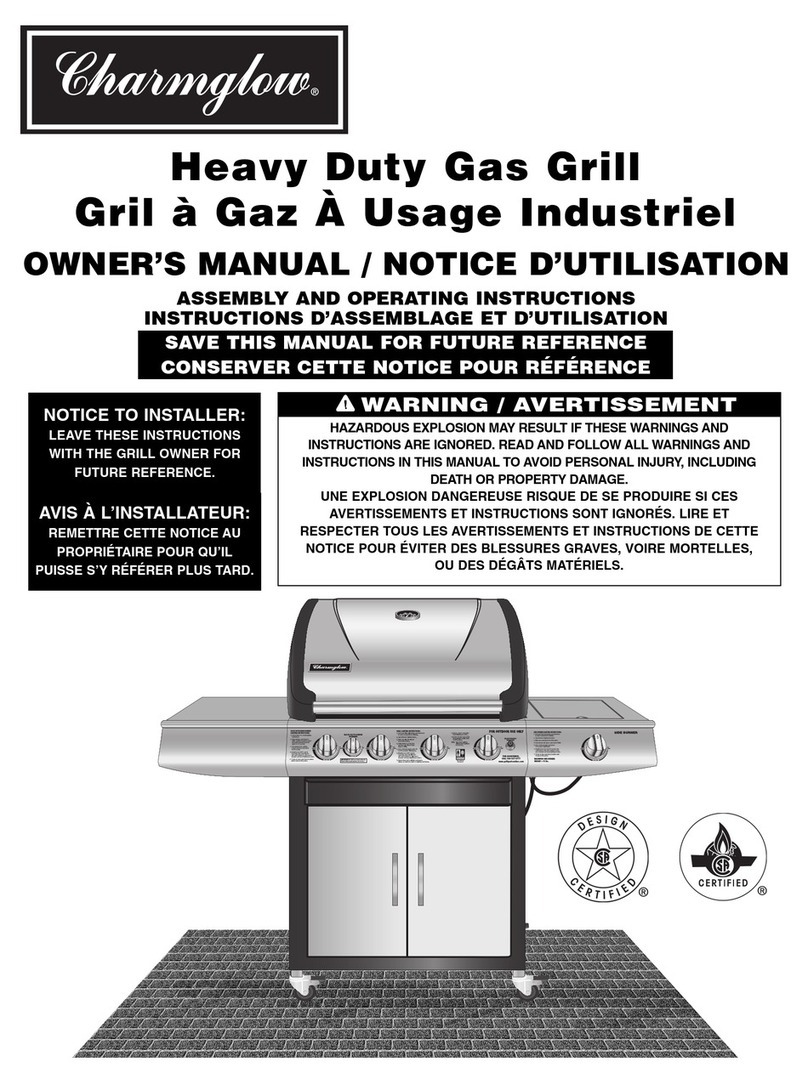

Charmglow CHEF'S ISLAND GRILL User manual

CHEF’S ISLAND GRILL™
OWNER’S MANUAL / NOTICE D’UTILISATION
ASSEMBLY AND OPERATING INSTRUCTIONS
INSTRUCTIONS D’ASSEMBLAGE ET D’UTILISATION
SAVE THIS MANUAL FOR FUTURE REFERENCE
CONSERVER CETTE NOTICE POUR RÉFÉRENCE
Stainless Steel Gas Grill
Gril à Gaz en Acier Inoxydable
NOTICE TO INSTALLER:
LEAVE THESE INSTRUCTIONS
WITH THE GRILL OWNER FOR
FUTURE REFERENCE.
AVIS À L’INSTALLATEUR:
REMETTRE CETTE NOTICE AU
PROPRIÉTAIRE POUR QU’IL
PUISSE S’Y RÉFÉRER PLUS TARD.
WARNING / AVERTISSEMENT
HAZARDOUS EXPLOSION MAY RESULT IF THESE WARNINGS AND
INSTRUCTIONS ARE IGNORED. READ AND FOLLOW ALL WARNINGS AND
INSTRUCTIONS IN THIS MANUAL TO AVOID PERSONAL INJURY, INCLUDING
DEATH OR PROPERTY DAMAGE.
UNE EXPLOSION DANGEREUSE RISQUE DE SE PRODUIRE SI CES
AVERTISSEMENTS ET INSTRUCTIONS SONT IGNORÉS. LIRE ET
RESPECTER TOUS LES AVERTISSEMENTS ET INSTRUCTIONS DE CETTE
NOTICE POUR ÉVITER DES BLESSURES GRAVES, VOIRE MORTELLES,
OU DES DÉGÂTS MATÉRIELS.

1
WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE.
THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR
ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL.
WHEN YOU SEE THE SAFETY ALERT SYMBOL
PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS!
READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING AND OPERATING YOUR GRILL.
DANGER
IMPORTANT SAFETY
WARNINGS
IF YOU SMELL GAS:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open Lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your
fire department.
1. DO NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any
other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
• DO NOT store a spare LP gas cylinder under or near this appliance.
• Never fill the cylinder beyond 80% full.
• A fire causing death or serious injury may occur if the above is not followed exactly.
WARNING
DANGER

2
General Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation and LP Cylinder Specifications and Safe Use. . . . . . . . . . . . . . 4–6
Connecting LP Cylinder and Hose / Regulator to Grill . . . . . . . . . . . . . . . . 6–7
Leak Testing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–9
Pre-start Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Lighting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–12
Operating Grill and Helpful Hints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–15
Proper Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–17
Transporting and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19–20
Parts List and Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 21–26
Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Be alert to the possibility of serious bodily injury if the instructions are not followed. Be sure to read and
carefully follow all of the messages.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

3
WARNING
• Never use natural gas in a unit designed for liquid propane gas.
• Never use charcoal or wood briquets in a gas grill. Flavoring chips must be contained in a metal
smoking box to contain ash and prevent fires.
• Leak test all connections before first use, even if grill was purchased fully assembled and after
each tank refill.
• Never check for leaks using a match or open flame.
CAUTION: Strong odors, colds, sinus congestion, etc. may prevent the detection of
propane. Use caution and common sense when testing for leaks.
• Always keep your gas grill free and clear of gasoline, lighter fluid, paint thinner, or other
flammable vapors and liquids or combustible materials.
• Always check the grill prior to each use as indicated in the "Pre-Start Check List" section of this
manual.
•DO NOT use back rotisserie burner when main burners are in use.
• DO NOT obstruct the flow of combustion or ventilation air.
• Keep children and pets away from hot grill. DO NOT allow children to use or play near this grill.
• DO NOT leave the grill unattended while in use.
• DO NOT allow the gas hose to come in contact with hot surfaces.
• DO NOT allow grease from drain hole to fall on hose or valve regulator assembly.
• Keep any electrical supply cords away from water or heated surfaces.
• Keep a fire extinguisher on hand acceptable for use with gas products. Refer to your local
authority to determine proper size and type.
• For household use only. DO NOT use this grill for anything other than its intended purpose.
• DO NOT use while under the influence of drugs or alcohol.
• Grill is hot when in use. To avoid burns:
• DO NOT attempt to move the grill.
• Lock the wheels so the unit does not accidentally move.
• Wear protective gloves or oven mitts.
• DO NOT touch any hot grill surfaces.
• DO NOT wear loose clothing or allow hair to come in contact with grill.
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR GAS GRILL.
FAILURE TO ADHERE TO THE SAFETY WARNINGS AND GUIDELINES IN THIS
MANUAL COULD RESULT IN SEVERE BODILY INJURY OR PROPERTY DAMAGE.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
GENERAL WARNINGS

4
WARNING
WARNING
LP GAS CYLINDER (NOT SUPPLIED WITH THIS GRILL)
The LP cylinder is available for purchase at the same location the grill was purchased.
The LP (Liquid Propane) gas cylinder specifically designed to be used with this grill must have
a 20 lb. (9.1 kg) capacity incorporating a Type 1 cylinder valve and an over-filling protection
device (OPD).
• DO NOT connect this grill to an existing #510 POL cylinder valve with Left Hand threads. The
Type 1 valve can be identified with the large external threads on the valve outlet.
• DO NOT connect to a propane cylinder exceeding this capacity.
• DO NOT connect to a cylinder that uses any other type of valve connection device.
INSTALLATION INFORMATION:
The installation of this appliance must be in accordance with:
All applicable local codes, or in the absence of local codes, either:
• National Fuel Gas Code ANSI Z223.1 NFPA 54
• Natural Gas and Propane Installation Code: CAN/CGA B149.1
• Natural Gas Installation Code: CAN/CGA B149.1 (Canada)
• Propane Installation Code: CAN/CGA B149.2 (Canada)
To check your local codes, see your local LP gas dealer or natural gas company. This grill was not
intended to be connected to a natural gas supply line. If an external electrical source is utilized, it
must be electrically grounded in accordance with local codes, or in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA 22.1.
• FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as a garage,
shed or breezeway.
• Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to
prevent dangers associated with gas accumulation and toxic vapors. We recommend your grill
be situated at least 10 feet (3.1 m) from buildings.
• Maintain a minimum clearance of 36 inches (91 cm) between all sides of grill and walls or other
combustible material. DO NOT use grill under overhead unprotected combustible construction.
• DO NOT use or install this grill in or on a recreational vehicle and/or boat.

5
The cylinder must also be equipped with:
• A shut-off valve terminating in a Type 1 gas cylinder valve outlet.
• A Type 1 valve that prevents gas flow until a positive seal is obtained.
• An arrangement for vapor withdrawal.
• A collar to protect the cylinder shut-off valve.
• A safety relief device having direct communication with the vapor space of the cylinder.
• A listed over-filling prevention device (OPD).
• Turn off the cylinder valve when your grill is not in use.
• Handle the tank with care.
• Always secure the cylinder in an upright position.
• Never connect an unregulated LP gas cylinder to your grill.
• DO NOT expose LP gas cylinders to excessive heat or ignition sources.
• DO NOT store a spare LP gas cylinder under or near your grill.
• Allow only qualified LP gas dealers to fill or repair your LP gas cylinder.
• DO NOT allow the cylinder to be filled beyond 80% capacity.
• Read and follow all warnings and instructions that are on the cylinder and that accompany this
product.
• Never store a spare LP gas cylinder under or near your grill. This could cause excess pressure
to be expelled through the vapor relief valve resulting in fire, explosion, or severe personal
injury including death.
Note: PROPANE GAS IS HEAVIER THAN AIR AND WILL COLLECT IN LOW AREAS.
PROPER VENTILATION IS EXTREMELY IMPORTANT.
• Keep the ventilation opening(s) of the LP gas cylinder enclosure free and clear from
obstructions and debris.
• DO NOT insert any foreign objects into the valve outlet. Damage to the back-check could
result. A damaged back-check can cause a leak, possibly resulting in explosion, fire, severe
bodily harm, or death.
WARNING
DANGER
CYLINDER SPECIFICATIONS:
When purchasing or exchanging a cylinder for your gas grill, it must be constructed and marked in
accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation
(DOT) or the National Standard of Canada, CAN/CSA-B339 Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods; and Commission, as applicable; and provided with a listed
over-filling prevention device (OPD), and provided with a cylinder connection device compatible with
the connection for outdoor cooking appliances.

FILLING THE LP GAS CYLINDER:
• Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder.
• New tanks should be purged prior to filling; inform LP gas dealer if you are using a new tank.
• DO NOT allow the cylinder to be filled beyond 80% capacity. Over-filled tanks can create a
dangerous condition. Over-filled tanks can build-up pressure and cause the relief valve to expel
propane gas vapors. The vapor is combustible and if it comes in contact with a spark source or
flame an explosion causing severe burns, bodily harm, or death could occur.
• Always use a protective cylinder cap when grill is not connected to cylinder.
• If you exchange a cylinder with a qualified exchange program, be sure the cylinder has
a Type 1 valve and an over-filling prevention device (OPD).
INSTALLING THE LP GAS CYLINDER ONTO THE GRILL:
1. Check that the cylinder valve is closed by turning the knob
clockwise.
2. Place the cylinder into the tank holder in the bottom
of cabinet.
3. Orient the cylinder such that the valve opening faces the
side burner, and so that the hose is not kinked or damaged.
4. Fully tighten the cylinder clamp underneath tank holder to
secure tank.
5. Attach or detach regulator to the LP gas cylinder only
when cylinder is at rest in tank holder.
HOSE AND REGULATOR:
Your grill is equipped with a Type 1 connection device with
the following features:
1. The system will not allow gas flow from the cylinder until
a positive connection to the valve has been made.
Note: The cylinder valve must be turned off before any
connection is made or removed.
2. A thermal device that will shut off the gas flow if the device is
subject to temperatures above 240°F to 300°F (115°C to
150°C). If this should happen, remove the entire regulator
assembly and dispose of properly. A replacement regulator
assembly can be purchased by contacting customer service
at 800-527-0717. The cause of the excessive heat should be
determined and corrected before using your grill again.
3. A regulator flow limiting device, when activated, restricts the
flow of gas to 10 cubic feet per hour. If the flow limiting device
is activated, perform Regulator Resetting Procedure.
WARNING
6
Tank Holder
Cylinder Clamp
REGULATOR RESETTING PROCEDURE
1. Turn burner control knobs to “OFF”, turn off the cylinder valve and disconnect regulator from LP gas
tank. Wait approximately two minutes.
2. Reattach regulator and slowly turn cylinder valve back on. The flow limiting device will now be reset.

7
WARNING
• Never use your grill without leak testing all gas connections and hoses. See the section on
"Leak Testing" in this manual for proper procedures.
The pressure regulator and hose assembly supplied with your gas grill must be used.
• DO NOT attempt to connect it to any other fuel supply source such as a natural gas line.
• DO NOT use any other pressure regulator/hose assembly other than the one supplied with your grill.
Replacement pressure regulator/hose assembly must be part No 155-7600-0, which can be obtained
by contacting customer service at 800-527-0717.
• DO NOT attempt to adjust or repair the regulator. The regulator is designed to operate at a
maximum output pressure of 11 inches of water column (2.74 kPa).
During assembly and/or replacement of the gas cylinder, keep the gas supply hose free of kinks and/or
damage.
Visually inspect the hose assembly prior to each use for evidence of damage, excess wear, or
deterioration. If found, replace the assembly before using your grill. Only the manufacturer's supplied
replacement should be used.
CONNECTING HOSE AND REGULATOR TO AN LP GAS CYLINDER
• Ensure the tank valve is CLOSED prior to connecting the LP gas cylinder to your grill. Turn the
valve knob clockwise to properly close the valve. Read and follow all instructions and warnings
on the supply hose safety tags. Read and follow all warnings in this manual concerning the safe
use of LP gas cylinders and the hose and regulator before connecting cylinder to grill. Read
and follow all warnings on the LP cylinder.
CONNECTING HOSE AND REGULATOR
1. Check that the cylinder valve is closed by turning the knob clockwise.
2. Check that the grill’s burner control knobs are in the “OFF” positions.
3. Remove the protective plastic cap from the cylinder valve and the connection device.
4. Hold regulator and insert the nipple of connection device into the LP cylinder valve outlet. Ensure that
the device is centered properly.
5. Turn the large coupling nut clockwise by hand and tighten to a full stop. Take care not to cross thread
the coupling nut onto the cylinder valve. Do not over-tighten the knob onto the valve. Do not use tools
to tighten connection.
Note: If you are unable to make the connection, repeat Steps 4 and 5.
6. Check that the hose does not contain kinks, does not contact sharp edges, and does not contact
surfaces that may become hot during use.
7. Leak check all fittings before lighting your grill. See section on "Leak Testing" in this manual.
WARNING
WARNING

LEAK TESTING:
To prevent fire or explosion hazard:
• DO NOT smoke or permit ignition sources in the area while conducting a leak test.
• Perform test OUTDOORS only in a well ventilated area.
• Never perform a leak test with a match or open flame.
• Never perform a leak test while the grill is in use or while grill is still hot.
WHEN TO PERFORM A LEAK TEST:
• After assembling your grill and before lighting for the first time, even if purchased fully assembled.
• Every time the LP gas cylinder is refilled or if any of the gas components are replaced.
• Any time your grill has been moved.
• At least once per year or if your grill has not been used for more than 60 days.
CHECKING FOR LEAKS:
1. Create a mixture of 50% water and 50% liquid dishwashing soap.
2. Open the lid.
3. Ensure all control knobs are set to the “OFF” position.
4. Turn on the fuel supply at the cylinder valve. Turn the
cylinder valve knob one turn counter-clockwise.
5. Apply the soap water mixture to the following:
Supply tank (cylinder) weld.
Connection nut to tank valve.
Back side of connection nut to brass nipple.
Brass nipple connection into regulator.
Regulator connections to gas supply hoses.
Hose connection to gas manifold.
The full length of gas supply hose.
Tank valve to cylinder.
H
G
F
E
D
C
B
A
8
WARNING
Watch For Bubbles
DANGER
IMPORTANTSAFEGUARD
•DONOTREMOVETHISTAG•
TURNGASONANDOFF
USINGVALVEONL.P.GAS
TANK.USETHISRED
CONTROLVALVEFOR
FLAMEADJUSTMENTONLY.
A
B
C
D
E
F
G
H

WARNING
9
6. Check each place listed (A–H) for growing bubbles which indicates a leak.
7. Turn off gas supply at cylinder valve.
8. Turn on control knobs to release gas pressure in hose.
9. Turn control knobs to “OFF” position.
10. Tighten any leaking connections.
11. Repeat soapy water test until no leaks are detected.
12. Turn off gas supply at cylinder valve until you are ready to use your grill.
13. Wash off soapy residue with cold water and towel dry.
14. Wait 5 minutes to allow all gas to evacuate the area before lighting grill.
CAUTION: DO NOT use the grill if leaks cannot be stopped. Contact a qualified gas appliance
repair service.
Note: The leak test must be performed in an area that has adequate lighting in order to see if
bubbles are developing.
PRE-START CHECK LIST:
Property damage, bodily harm, severe burns, and death could result from failure to follow these
safety steps. These steps should be performed after the grill has been assembled and prior to each
use. DO NOT operate this grill until you have read and understand ALL of the warnings and
instructions in this manual.
PRE-START CHECK LIST:
•Ensure that the grill is properly assembled.
•Inspect the gas supply hose for burns, chaffing, kinks, and proper routing before each use. If it is
evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior the grill being
used. Replace with hose and regulator, Model No. 155-7600-0, which can be obtained by contacting
customer service at 800-527-0717.
•Leak check all gas connections and hose. See section on "Leak Testing".
•Ensure that all electrical supply cords are properly grounded. Keep any electrical supply cord and the
fuel supply hose away from any heated surfaces. Hose should be at least 3 inches from hot surfaces.
•Position your grill on level ground in a well ventilated location, a safe distance from combustible
materials, buildings and overhangs.
•Properly place the empty grease tray under the grease drain hole in the bottom of the grill to catch
grease during use.
• DO NOT obstruct the flow of combustion and ventilation air.

LIGHTING INSTRUCTIONS:
Follow the instructions exactly.
1. OPEN THE GRILL LID before attempting to light a burner so that fumes do not accumulate inside
the grill. An explosion could occur if grill lid is down.
2. Check that all burner control knobs and the cylinder valve are turned to the “OFF” position.
3. Turn on the fuel supply by rotating the cylinder valve knob counter-clockwise to full open.
4. DO NOT stand with head, body, or arms over the grill when lighting.
LIGHTING THE MAIN AND SEAR BURNERS:
1. Open lid before lighting burner.
2. Make sure all control knobs are in the “OFF” position.
3. Select the burner to be lit. Push and turn the control knob of that
burner to the “HIGH” position.
4. Press the electronic igniter and hold for 3–5 seconds to light burner.
5. If ignition does NOT occur in 5 seconds, turn control knob to “OFF”,
wait 5 minutes to allow gas to dissipate and repeat lighting procedure.
6. Repeat steps 3–5 for lighting each burner. Always use electronic
igniter for lighting each burner. If burner does not ignite using the
push-button igniter, wait 5 minutes, see "Match Lighting the Main Burners" section.
7. To turn off, turn each control knob clockwise until it locks in the “OFF” position. This does not turn off
the gas flow from the cylinder.
Note: If burner does not light or flame is too low, you may have spider or other insect blockage in
burner, or the flow limiting device has been activated. See "Burner Assembly/Maintenance"
under Proper Care and Maintenance, or "Regulator Resetting Procedure" under Connecting LP
Cylinder and Hose/Regulator to Grill.
MATCH LIGHTING THE MAIN BURNERS:
1. Open lid before lighting.
2. Turn the burner control knobs to “OFF”.
3. Place a paper match in the end of the matchlighter. Strike the match
and place through lighting hole in the left hand side of the grill
(inside trash bin compartment) to approximately 1/2" (1 to 2 cm)
from the burner.
4. Turn on the FAR LEFT burner control knob to the “HIGH” position.
The burner should light within 5 seconds.
5. If the burner does not light, turn the control knob to “OFF” and wait
5 minutes for gas to dissipate and repeat lighting procedure.
6. Once lit, light adjacent burners in sequence by pressing in and rotating the control knob to the “HIGH”
position.
7. If the burner does not light within the first few attempts of match lighting, there is a problem with the
gas supply. Turn off the gas at the burner and cylinder. DO NOT attempt to operate the grill until the
problem is found and corrected. See "Trouble Shooting" section of this manual.
WARNING
10
Lighting Hole
Matchlighter
WARNING
Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip
any of the warnings and instructions contained in the preceding sections of this manual.

11
MATCH LIGHTING THE SEAR BURNER:
1. Open the lid of your grill before lighting.
2. Make sure control knob is in the “OFF” position.
3. Strike and carefully place a match approximately 1/2"
(1 to 2 cm) from the sear burner element.
4. Turn the sear burner control knob to the “HIGH”
position. The burner should light within 5 seconds.
5. If the burner does not light, turn the control knob to
“OFF” and wait 5 minutes for gas to dissipate and
repeat lighting procedure.
6. If the burner does not light within the first few
attempts of match lighting, there is a problem with the
gas supply. Turn off the gas at the burner and cylinder. DO NOT attempt to operate the sear burner
until the problem is found and corrected. See "Trouble Shooting" section of this manual.
Match
LIGHTING THE ROTISSERIE BURNER:
1. Open grill hood before lighting rotisserie burner.
2. Make sure control knob is in the “OFF” position.
3. Push and turn the control knob to the “HIGH”
position. Continue to push in control knob while
pressing electronic igniter for 3–5 seconds.
4. Once burner is lit, continue to push and hold control
knob for 30 seconds.
5. If ignition does NOT occur in 5 seconds, turn control
knob to “OFF”, wait 5 minutes to allow gas to dissipate and repeat lighting procedure.
6. To turn off, turn control knob clockwise until it locks in the “OFF” position.
IMPORTANT: DO NOT use back rotisserie burner when main burners are in use.
Note: If burner does not light or flame is too low, you may have spider or other insect blockage in
burner, or the flow limiting device has been activated. See "Burner Assembly/Maintenance"
under Proper Care and Maintenance, or "Regulator Resetting Procedure" under Connecting LP
Cylinder and Hose/Regulator to Grill.
MATCH LIGHTING THE ROTISSERIE BURNER:
1. Open grill hood before lighting rotisserie burner.
2. Make sure control knob is in the “OFF” position.
3. Strike and carefully place a match approximately 1/2"
(1 to 2 cm) from the lower edge of burner.
4. Push and turn the control knob to the “HIGH”
position. Continue to push in control knob for 3–5
seconds while holding a match under burner. The
burner should light within 5 seconds.
5. Once burner is lit, continue to push and hold control
knob for 30 seconds.
6. If the burner does not light, turn the control knob to “OFF” and wait 5 minutes for gas to dissipate and
repeat lighting procedure.
7. If the burner does not light within the first few attempts of match lighting, there is a problem with the
gas supply. Turn off the gas at the burner and cylinder. DO NOT attempt to operate the grill until the
problem is found and corrected. See "Trouble Shooting" section of this manual.

12
LIGHTING THE SIDE BURNER:
1. Open lid before lighting side burner.
2. Make sure control knob is in the “OFF” position.
3. Push and turn side burner control knob to the “HIGH”
position.
4. Press the electronic igniter on the main control panel and
hold for 3–5 seconds to light burner.
5. If ignition does NOT occur in 5 seconds, turn control knob to
“OFF”, wait 5 minutes to allow gas to dissipate and repeat
lighting procedure.
6. To turn off, turn each control knob clockwise until it locks in
the “OFF” position.
Note: If burner does not light or flame is too low, you may have spider or other insect blockage in
burner, or the flow limiting device has been activated. See "Burner Assembly/Maintenance" under
Proper Care and Maintenance, or "Regulator Resetting Procedure" under Connecting LP
Cylinder and Hose/Regulator to Grill.
MATCH LIGHTING THE SIDE BURNER:
1. Open the lid to the side burner before lighting.
2. Make sure control knob is in the “OFF” position.
3. Strike and carefully place a match approximately 1/2" (1 to 2
cm) from the burner.
4. Turn the side burner control knob to the “HIGH” position. The
burner should light within 5 seconds.
5. If the burner does not light, turn the control knob to “OFF”
and wait 5 minutes for gas to dissipate and repeat lighting
procedure.
6. If the burner does not light within the first few attempts of match lighting, there is a problem with the gas
supply. Turn off the gas at the burner and cylinder. DO NOT attempt to operate the grill until the problem
is found and corrected. See "Trouble Shooting" section of this manual.
CAUTION:
•The cylinder valve should always be in the off,
or closed, position when grill is not in use.
To turn off the cylinder valve,
turn knob clockwise until it stops.
TURNING OFF THE GRILL:
1. Turn off the cylinder valve.
2. Turn all burner control knobs to the “OFF” position.
Note: Turn off LP cylinder first to prevent gas from being left in the system under pressure.
Note: Observe burners when lit:
Main Burners: Flame should be a Blue/Yellow color
between 1"–2" when burner is on “HIGH”.
Sear Burner: Burner should glow red after several minutes
of operation.

13
OPERATING THE GRILL:
Never use charcoal or wood briquets in a gas grill. Flavoring chips must be contained in a metal
smoking box to contain ash and prevent fires. Read and follow all warnings and instructions
contained in the preceding sections of this manual.
BREAKING IN YOUR GRILL:
•In manufacturing and preserving the components of your grill, oil residue may be present on the
burner and cooking surfaces of your grill.
•Before cooking on your grill for the first time you should preheat it for 15 minutes on “HIGH” to burn
off these residual oils.
PREHEATING THE GRILL:
•Prior to use, it is recommended that you preheat your grill. This ensures that the grilling surfaces are
at the desired temperatures to sear the food sugars when cooking. After lighting your grill, set the
main burner control knobs to the “HIGH” position for 10 to 15 minutes. Close the cover during the
preheat period.
CONTROLLING FLARE-UPS:
•Flare-ups are a part of cooking meats on a gas grill. This adds to the unique flavor of cooking on a
gas grill. Excessive flare-ups can over-cook your food and cause a dangerous situation for you and
your grill. Excessive flare-ups result from the build-up of grease in the bottom of your grill. If this
should occur, DO NOT pour water onto the flames. This can cause the grease to splatter and could
result in serious burns or bodily harm. If grease fire occurs close the lid and turn off the main burners
until the grease burns out. Use caution when opening the lid as sudden flare-ups may occur.
• DO NOT leave your grill unattended while in use.
• DO NOT move grill when in use. Lock wheels in place to stabilize grill.
• DO NOT use water to extinguish flare-ups.
• Have fire extinguisher readily accessible suitable for use with gas appliances.
TO MINIMIZE FLARE-UPS:
•Trim excess fat from meats prior to cooking.
•Cook meats with high fat contents (chicken or pork) on Low settings or indirectly.
•Ensure that your grill is on level ground and the grease is allowed to evacuate the grill through the
drain hole in the bottom and into grease cup.
INDIRECT COOKING:
•Indirect cooking is the process of cooking your food without the heat source being directly under your
food. You can sear meats over a high flame on one side of the grill while slow cooking a roast on the
other (unlit) side of the grill.
WARNING
WARNING

ROTISSERIE COOKING:
•This grill has pre-drilled mounting holes for a rotisserie. Do not use a rotisserie not specifically
manufactured for this grill.
•Read and follow all warnings and instructions in the owner’s manual provided with the rotisserie. Save
instructions for future reference.
•Do not use the side burner when using a rotisserie.
•DO NOT use back rotisserie burner when main burners are in use.
• When using an AC current rotisserie, it must be electrically grounded in accordance with local
codes, or in the absence of local codes:
• In the US: The National Electrical Code – ANSI-NFPA No. 70 – Latest Edition
• In Canada: the Canadian Electrical Code – CSA C22.1
• The Rotisserie is equipped with a three pronged plug for your protection against electrical
shock. This plug should be plugged directly into a properly grounded 3 prong receptacle. Never
cut or remove the grounding plug. Any extension cord must also have a 3 prong receptacle.
• All electrical supply cords should be kept away from water and any hot surfaces of the grill.
USING OTHER FEATURES OF THE GRILL:
THE SIDE BURNER:
•The side burner can be used to prepare side dishes such as beans, potatoes, corn, or to warm
sauces.
•The burner valve can be adjusted from high to low depending upon your cooking demands.
• Read instructions on lighting your grill to light the side burner.
• Never close the side burner cover when the burner is lit.
• Use a 10" diameter pot or smaller that does NOT have an extended handle when cooking on the
side burner. Center pot over burner.
• Use caution to avoid bumping grill, side burner or pot to prevent pot from spilling contents
possibly leading to severe burns.
• DO NOT use side burner to deep fry food in oil to avoid dangers associated with oil igniting
creating a very dangerous situation.
THE TRASH BIN:
•A trash bin holder is located inside the left side panel door. Push in to release the magnetic latch to
open the side panel. (Trash bin is not included)
WARNING
14
WARNING

GRILL COOKING TIPS
CLEANLINESS
• Always wash hands thoroughly with soap and hot water prior to handling food and after handling raw meat, uncooked
poultry or seafood.
• When using a platter to carry raw meat, uncooked poultry or seafood to the grill, make sure to wash the platter
thoroughly with soap and hot water before placing cooked foods back on the platter or use different platters for raw
and cooked foods.
• Never use the same utensils when handling raw meat, uncooked poultry or seafood unless you wash the utensils
thoroughly with soap and hot water.
• Never re-use marinade from raw meat or uncooked poultry on foods that have been cooked and are ready to be
served.
GRILLING TO PROPER TEMPERATURE
• Use a meat thermometer to be sure food has reached a safe internal temperature. You may order a Commer-
cial-quality thermometer from Brinkmann. For more information on this product and other Brinkmann
accessories, please refer to the accessory pages at the end of this manual.
• The US Department of Agriculture recommends the minimum temperature be reached for the following food items:
HELPFUL HINTS
• If you pre-cook meat or poultry, do so immediately before grilling.
• Never defrost meat at room temperature or on a countertop.
• Refrigerate leftovers within 2 hours of taking food off the grill.
• For additional information, please phone the USDA’s toll free Meat & Poultry Hotline at 800-535-4555.
• To protect your grill from excessive rust, the unit must be kept clean and covered at all times when not
in use. A grill cover may be ordered directly from Brinkmann by calling 800-468-5252 or 800-527-0717.
• Wash cooking grills with hot, soapy water, rinse well and dry. Lightly coat cooking grill with vegetable oil or
vegetable oil spray.
• Clean inside and outside of grill by wiping off with a damp cloth. Apply a light coat of vegetable oil or vegetable
oil spray to the interior surface to prevent rusting.
• The exterior surface of your grill, can be cleaned with stainless steel cleaner.
• Never apply paint to the interior surface. Rust spots on the interior surface can be buffed, cleaned, then lightly coated
with vegetable oil or vegetable oil spray to minimize rusting.
• To protect granite countertops against stains and discoloration, use a high quality penetrating sealant made
specifically for granite. The sealant should be applied periodically throughout the year.
• For standard maintenance on granite countertops, wipe with warm water or mild soapy water. Cleaners made
specifically for cleaning granite may be used as necessary. Do not use vinegar, cleaners that contain acid, abrasive
cleaners, or furniture polish. We suggest the following routine care:
• Clean up spills immediately;
• Dust with an untreated cloth;
• Use coasters;
• Keep planters off the surface;
• Always keep covered when not in use.
• For standard maintenance on fiberglass walls, wipe with warm water or mild soapy water. Do not use vinegar,
cleaners that contain acid, abrasive cleaners, or furniture polish. Keep covered when not in use.
PROPER CARE & MAINTENANCE
Chops . . . . . . . . . . . . . . . . . . . . .145° F (62.8° C)
Ground Meat . . . . . . . . . . . . . . .160° F (71° C)
Pork . . . . . . . . . . . . . . . . . . . . . . .160° F (71° C)
Poultry . . . . . . . . . . . . . . . . . . . . .180° F (82° C)
Roasts . . . . . . . . . . . . . . . . . . . . .145° F (62.8° C)
Seafood . . . . . . . . . . . . . . . . . . . .140° F (60° C)
Vegetables . . . . . . . . . . . . . . . . .145° F (62.8° C)
15

16
BURNER ASSEMBLY/MAINTENANCE
• Although your burners are constructed of stainless steel, they may corrode as a result of the extreme
heat and acids from cooking foods. Regularly inspect the burners for cracks, abnormal holes, and other
signs of corrosion damage. If found, replace the burner.
•DO NOT obstruct the flow of combustion and ventilation air. Burner tubes can become blocked by
spiders and other insects building their nests. Blocked burner tubes can prevent gas flow to the burners
and could result in a burner tube fire or fire beneath the grill. To clean the Burner Assembly follow these
instructions to clean and/or replace parts of burner assembly or if you have trouble igniting the grill.
1. Turn gas off at control knobs and LP cylinder tank valve.
2. Remove cooking grills and heat distribution plates.
3. Remove screw from each burner "foot" using a screwdriver.
4. Carefully lift each burner up and away from valve openings.
5. Use a narrow bottle brush or a stiff wire bent into a small hook to
run through each burner tube and flame port several times.
Note: Wear eye protection when performing procedure 6.
6. Use compressed air to blow into burner tube and out the flame
ports. Check each port to make sure air comes out each hole.
7. Wire brush entire outer surface of burner to remove food residue
and dirt.
8. Check burner for damage, if any large cracks or holes are found
replace burner.
IMPORTANT: Burner opening must slide over valve nozzle.
9. Orient burners CORRECTLY by aligning screw hole in burner to the left as shown.
Note: Make sure burner tubes align evenly between
crossover channels.
10. Replace screw on each burner and follow the "Gas Leak
Testing" section of this manual. Relight burners to verify
proper operation.
11. Replace heat distribution plates and cooking grills. PROPER BURNER OPERATION
Debris
CLEANING AND MAINTENANCE:
• Keep the appliance free and clear of combustible materials, gasoline and other flammable vapors
and liquids.
• Keep the ventilation openings of the cylinder enclosure free and clear of debris.
• Visually check burner flames for proper operation (see pictorial in "Burner Assembly/Maintenance" under
Proper Care and Maintenance). Spiders or other insects can nest in the burner causing gas blockage.
• For safe grilling and peak performance of your grill, perform these checks at least twice per year or
after extended periods of storage.
• Be sure to tighten up all hardware (nuts, bolts, screws, etc.) at least twice per year.
CAUTION: Some parts may contain sharp edges. Wear protective gloves if necessary.
• Remove the cooking grills, heat distribution plates, and burners from inside your grill. Use a brush with
hot water and detergent to remove excess residue. NEVER use a commercial oven cleaner. Rinse
completely with water. Towel dry and replace all components as described in the assembly instructions.
Valve Nozzle
Burner Opening
Crossover Channel
Burner Screw
Aligned Left

17
TRANSPORTING AND STORAGE:
• Never move a grill when it is hot or when objects are on the cooking surfaces.
• Make sure that cylinder valve is shut off. After moving the grill check that all gas connections
are free of leaks. Refer to instructions for Leak Testing.
• DO NOT store a spare LP gas cylinder (filled or empty) under or near the grill.
• Never store flammable liquids or spray canisters under or near the grill.
• DO NOT extinguish grease fires using water.
• If the outdoor cooking gas appliance is not in use, the gas must be turned off at the supply
cylinder.
• Storage of an outdoor cooking gas appliance indoors is permissible only if the cylinder is
disconnected and removed from the outdoor cooking gas appliance.
• Cylinders must be stored outdoors out of reach of children and must not be stored in a
building, garage or any other enclosed area.
• When removing the grill from storage, spider webs or other debris may be blocking the burner.
See "Burner Assembly/Maintenance" under Proper Care and Maintenance.
BEFORE STORING YOUR GRILL:
• Ensure that the cylinder valve is fully closed.
• Clean all surfaces.
• Lightly coat the burners with cooking oil to prevent excess rusting.
• If storing the grill indoors, disconnect the LP tank and leave the LP tank OUTDOORS.
• Place a protective cap cover on the LP tank and store the tank outdoors in a well ventilated area out
of direct sunlight.
• Clean burner prior to use after storing, at the beginning of grilling season or after a period of one
month not being used. Spiders and insects like to build nests in burner tubes (especially during colder
months). These nests can cause fires in burner tubes or under grill.
• If storing the grill outdoors, cover the grill with a grill cover for protection from the weather.
WARNING
COOKING GRILLS
•Clean with mild soap detergent and water. A brass bristled brush or a nylon cleaning pad can be used
to remove residue from the stainless steel surfaces. Do not use steel wire bristles to clean the cooking
grills. Steel can cause the finish to chip or crack. DO NOT use a commercial oven cleaner.
HEAT DISTRIBUTION PLATES
•Periodically, it may be necessary to inspect and clean the heat distribution plate to prevent excess
grease build-up. When the grill is cold, remove the cooking grills. Inspect the heat distribution plates
and replace if broken or damaged. Do not allow heat distribution plates to become damaged to the
extent that they may fall through onto the burners. Replace the heat distribution plates and cooking
grills and light the burners. Operate the grill on “HIGH” for 10 minutes to remove the excess grease.

18
TROUBLE SHOOTING
Problem: Possible Causes:
1. Check LP cylinder fuel level.
2. Bad electrode spark.
Check to see if the grill will match light.
Electrode or collector may need adjustment.
3. Burner may not be properly seated.
4. Burner may be obstructed.
5. The cylinder valve may be closed.
6. Regulator is not properly seated on cylinder valve.
1. Burner holes may be obstructed. See section on
"Burner Assembly/Maintenance" under Proper Care
and Maintenance.
2. Burner is improperly seated on control valve.
3. Gas connections may be loose.
Leak Check and tighten all connections.
1. Burner is obstructed. See section on
"Burner Assembly/Maintenance" under Proper Care
and Maintenance.
1. Burner holes may be obstructed. See section on
"Burner Assembly/Maintenance" under Proper Care
and Maintenance.
2. Grill is not sufficiently preheated.
3. Burner is improperly seated on control valve.
1. Flow control device has been activated in regulator.
See Regulator Resetting Procedure under
Connecting LP Cylinder and Hose/Regulator to Grill.
1. Excess grease build-up causing grease fires.
2. Damaged or faulty regulator.
Replace with factory authorized parts.
3. Cook on a lower temperature setting.
• Burner will not light
• Fire at control knob
• Yellow Flames at burner
• Flame blows out on "LOW"
• Burner does not get hot enough
• Grill is Too Hot

19
Your grill's serial number and model number, and the contact information for Brinkmann Customer Service, are
listed on a silver label found beneath the control panel, on the back of the grill or on the side of the grill body,
under the side shelf.
These questions and answers are for your general knowledge, and may not be applicable to your model grill.
Question: Why does my grill not light properly?
Answer: Always follow lighting instructions as listed on the control panel or in this manual. Also check these
causes:
• Check LP gas supply.
• Check to ensure all gas connections are secure.
• The igniter AA battery may need replacing.
• Ignition wires may be loose. Remove the battery, inspect the igniter junction box found behind the control
panel and connect any loose wires.
• Spark electrode tips may need repositioning. With the gas supply closed and control knob set to the “OFF”
position, press the igniter button and have another person watch for the presence of a spark at the
electrode tips. The gap between the spark electrode tip and spark receiver should be about 3/16". If the
electrode tip needs to be adjusted, bend it to the appropriate gap distance.
• Check that the end of each burner venturi tube is properly located over its gas valve orifice fitting.
• There may be an obstruction in the gas line. To correct this, remove LP gas hose / regulator or natural gas
fuel line from your grill. Open gas supply for one second to test for obstruction. If no obstruction is present,
reconnect fuel line. If the fuel line is blocked, replace with a new hose / regulator assembly.
• If an obstruction is suspected in the hose / regulator assembly, orifice or gas valves call Brinkmann
Customer Service at 800-527-0717.
Question: Why does my LP gas grill have a low flame or a flame with orange / yellow color?
Answer: You need to purge air from the gas line or reset the regulator's flow limiting device. Opening the
cylinder valve all the way or too quickly triggers the regulator’s flow limiting device to shut down the gas flow,
which prevents excessive gas flow to your grill. Note: This procedure should be done every time a new LP gas
tank is connected to your grill:
RESETTING THE REGULATOR FLOW LIMITING DEVICE
• Turn control knob to the “OFF” position.
• Turn off the LP gas tank at the cylinder valve.
• Disconnect regulator from LP gas tank.
• Let tank stand for two minutes.
• Reconnect regulator to the LP gas tank.
• Open grill lid or side burner lid. Turn the cylinder valve on slowly until 1/4 or 1/2 open.
• Light the grill by following the instructions on your control panel or in this owner's manual.
Question: How and when do I clean the interior cooking components of my grill?
Answer: Use a fiber or brass cleaning brush to clean the interior of the grill, cooking grills, heat distribution
plates and grease containers. Never use a wire brush or metal scraper on porcelain-finished parts, as they can
scratch or chip the porcelain finish and promote rusting.
FREQUENTLY ASKED QUESTIONS
