PLATINUM™1200 Series
LP Gas Barbecue
Serial Number
Please use this number in registering your warranty and
any correspondence with the factory.
Owner's Manual
National Association PROPANE GAS
®

2
 DANGER
Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual
may result in serious bodily injury or death, or in a fire or an explosion causing damage
to property.
 WARNINGS
Do not store a spare or disconnected LP tank under or near this barbecue.
Improper assembly may be dangerous. Please carefully follow the assembly instructions in this manual.
After a period of storage, and/or nonuse, the Weber Gas Barbecue should be checked for gas leaks
and burner obstructions before using. See instructions in this manual for correct procedures.
Do not operate the Weber Gas Barbecue if there is a gas leak present.
Do not use a flame to check for gas leaks.
Combustible materials should never be within 24 inches of the top, bottom, back or sides of your
Weber Gas Barbecue.
Do not put a barbecue cover or anything flammable on or in the storage area under the cooking box.
Your Weber Gas Barbecue should never be used by children.
You should exercise reasonable care when operating your Weber Gas Barbecue. It will be hot during
cooking or cleaning, and should never be left unattended.
Should the burners go out during operation, turn all gas valves off. Open the lid and wait five minutes
before attempting to relight, using the lighting instructions.
Do not use charcoal or lava rock in your Weber Gas Barbecue.
Never lean over open grill or place hands or fingers on the front edge of the cooking box.
Should a grease fire occur, turn off all burners and leave lid closed until fire is out.
Do not enlarge valve orifices or burner ports when cleaning the valves or burners.
The Weber Gas Barbecue should be thoroughly cleaned on a regular basis.
LP gas is not natural gas. The conversion or attempted use of natural gas in an LP unit or LP gas in a
natural gas unit is dangerous and will void your warranty.
Do not attempt to disconnect any gas fitting while your barbecue is in operation.
Use heat-resistant barbecue mitts or gloves when operating barbecue.
LP GAS UNITS ONLY:
Use the regulator that is supplied with your Weber Gas Barbecue.
Do not attempt to disconnect the gas regulator or any gas fitting while your barbecue is in operation.
A dented or rusty LP tank may be hazardous and should be checked by your liquid propane supplier.
Do not use an LP tank with a damaged valve.
Although your LP tank may appear to be empty, gas may still be present, and the tank should be
transported and stored accordingly.
If you see, smell or hear the hiss of escaping gas from the LP tank:
1. Get away from LP tank.
2. Do not attempt to correct the problem yourself.
3. Call your fire department.

3
Weber-Stephen Products Co. (Weber) hereby
warrants to the ORIGINAL PURCHASER of
this Weber Gas Barbecue that it will be free of
defects in material and workmanship from the
date of purchase as follows:
Aluminum Castings, 10 years,
Cooking Grates and Flavorizer Bars, 3 years,
All Remaining Parts, 5 years,
when assembled and operated in accordance
with the printed instructions accompanying it.
Weber may require reasonable proof of your
date of purchase. THEREFORE, YOU SHOULD
RETAIN YOUR SALES SLIP OR INVOICE.
This Limited Warranty shall be limited to the repair
or replacement of parts which prove defective
under normal use and service and which on
examination shall indicate, to Weber's satisfaction,
they are defective. Before returning any parts,
contact your local dealer. If your dealer confirms
the defect and approves the claim, Weber will
repair or replace such part without charge and
return it to you freight or postage prepaid.
This Limited Warranty does not cover any failures
or operating difficulties due to accident, abuse,
misuse, alteration, misapplication, vandalism,
improper installation or improper maintenance or
service, or failure to perform normal and routine
maintenance, including but not limited to damage
caused by insects within the burner tubes, as set
out in this owner's manual.
Deterioration or damage due to severe weather
conditions such as hail, hurricanes, earthquakes
or tornadoes, discoloration due to exposure to
chemicals either directly or in the atmosphere, is
not covered by this Limited Warranty.
There are no other express warrants except as
set forth herein and any applicable implied
warranties of merchantability and fitness are
limited in duration to the period of coverage of
this express written Limited Warranty. Some
states do not allow limitation on how long an
implied warranty lasts, so this limitation may not
apply to you.
Weber is not liable for any special, indirect or
consequential damages. Some states do not
allow the exclusion or limitation of incidental or
consequential damages, so this limitation or
exclusion may not apply to you.
Weber does not authorize any person or
company to assume for it any other obligation or
liability in connection with the sale, installation,
use, removal, return, or replacement of its
equipment; and no such representations are
binding on Weber.
This Warranty applies only to products sold at
retail.
WEBER-STEPHEN PRODUCTS CO.
Customer Service Center
250 South Hicks Road
Palatine, IL 60067-6241
[phone]
LP Tank
The LP tank manufacturer is responsible for the
materials, workmanship and performance of the tank. If
the tank has a defect, malfunctions, or you have a
question regarding the tank, call the tank manufac-
turer's customer service center. The phone number is
on the warning decal which is permanently attached to
the tank. If the tank manufacturer has not resolved the
issue to your satisfaction, then call your dealer.
WARRANTY

© 1997 Weber. Weber, , Flavorizer and Crossover are registered
U.S. trademarks; Platinum, Perma-Mount, Gas Catcher,
FlameCheck, Steam-N-Chips, Spider Stopper, and Warm-Up are
U.S. trademarks of Weber-Stephen Products Co., 200 East Daniels
Road, Palatine, IL 60067-6266. U.S.A. Genesis Gas Barbecues are
covered under the following patent nos.: U.S.A. #4,677,964;
4,727,853; #4,777,927; #4,829,978; #4,860,724; #4,941,817;
#4,966,125; #5,070,776; #D293,067; #D316,355; Canada: Rd
1987 Reg. #58,034; #1,279,540; #1,283,586; #1,300,994;
#1,300,995.Printed in the U.S.A.
4
PATENTS AND TRADEMARKS

5
Contents
WARNINGS................................................................ 2
Warranty & Patents.................................................. 3-4
General Instructions.................................................... 6
Assembly............................................................... 7-22
Operating Instructions
Lighting........................................................ 23-24
Cooking............................................................ 25
Storage and/or Nonuse.................................... 25
Cleaning .......................................................... 25
LP Tank Information.....................................26-28
Troubleshooting & Maintenance
Annual Maintenance......................................... 29
General Maintenance.................................. 30-32
Troubleshooting................................................ 33
Parts Listing.............................................................. 35
FEATURES:
a) Convenient tables and racks.
b) Heavy gauge porcelain-on-steel lid seals in heat.
c) Rapid read thermometer for precision cooking
measures grill temperature, and can be removed and
inserted into the food.
d) Heavy gauge steel Flavorizer Bars distribute heat
within the grill. Flavorizer Bars heat just the right
amount of drippings for flavoring, letting excess fat
drip past to help prevent flare-ups.
e) Weber Warm-Up Basket for additional cooking or
warming space.
f) Separate burners for temperature control.
g) Crossover Ignition System with Gas Catcher Ignition
Chamber.
h) Fuel scale indicates LP gas supply.
i) Catch pan catches excess grease.
j) Locking casters for additional portability.
IMPORTANT NEW FEATURES:
Your Weber Gas Barbecue is equipped with a new and
improved LP tank connection, that has additional
safety features. They are:
1. The connection of the barbecue to the LP tank can be
made without the use of tools.
2. The new connection will not permit the flow of gas
until a positive gas connection is made.
3. If an accidental fire occurs at the LP tank connection,
the flow of gas is stopped by a temperature activated
shutoff.
4. If the LP supply hose becomes damaged, cut,
punctured, or accidentally fire damaged, the barbecue
connection is equipped with an excess flow control
that will limit the flow of gas if leakage or a fire occurs.
a
b
c
d
f
g
h
a
i
e
j

6
General Instructions
Your Weber Gas Barbecue is a portable outdoor cooking
appliance. With the Weber Gas Barbecue you can grill,
barbecue, roast and bake with results that are difficult to
duplicate with indoor kitchen appliances. The closed lid and
Flavorizer Bars produce that "outdoor" flavor in the food.
The Weber Gas Barbecue is portable so you can easily
change its location in your yard or on your patio. Portability
means you can take your Weber Gas Barbecue with you if
you move.
Liquid Propane (LP) gas supply is easy to use and gives
you more cooking control than charcoal fuel.
■These instructions will give you the minimum
requirements for assembling your Weber Gas
Barbecue. Please read the instructions carefully
before using your Weber Gas Barbecue. Improper
assembly can be dangerous.
■Not for use by children.
■If there are local codes that apply to portable gas
grills, you will have to conform to them. If there are no
local codes, you must conform to the latest edition of
the National Fuel Gas Code: ANSI Z 223.1.
■The pressure regulator supplied with the Weber
Gas Barbecue must be used. This regulator is set for
10.5 inches of water column (pressure).
■This Weber Gas Barbecue is designed for use with
liquid propane (LP) gas only. Do not use with natural
(piped in city) gas. The valves, orifices, hose and
regulator are for LP gas only.
■Do not use with charcoal fuel.
■Check that the area under the control panel and the
bottom tray are free from debris that might obstruct
the flow of combustion or ventilation air.
■The area around the LP tank must be free and clear
from debris.
For Installation in Canada
These instructions, while generally acceptable, do not
necessarily comply with the Canadian Installation codes,
particularly with piping above and below ground. In Canada
the installation of this appliance must comply with local
codes and/or Standard CAN/CGA-B149.2 (Installation
Code for Propane Burning Appliances and Equipment).
Storage
■The gas must be turned OFF at the LP tank when the
Weber Gas Barbecue is not in use.
■When the Weber Gas Barbecue is stored indoors, the
gas supply must be disconnected and the LP tank
stored outdoors in a well-ventilated space.
■LP tanks must be stored outdoors in a well-ventilated
area out of the reach of children. Disconnected LP
tanks must not be stored in a building, garage or any
other enclosed area.
■When the LP tank is not disconnected from the Weber
Gas Barbecue, the appliance and LP tank must be
kept outdoors in a well-ventilated space.
Operating area
몇WARNING: Onlyuse this barbecue outdoors in a
well ventilated area. Do not use in a garage, building,
breezeway or any other enclosed area.
■Never use your Weber Gas Barbecue under an
unprotected combustible roof or overhang.
■Your Weber Gas Barbecue is not intended to be
installed in or on recreational vehicles and/or boats.
■Do not use combustible materials within 24 inches of
the top, bottom, back or sides of the grill.
■The entire cooking box gets hot when in use. Do not
leave unattended.
■Keep any electrical supply cord and the fuel supply
hose away from any heated surface.
■Keep the cooking area clear of flammable vapors and
liquids, such as gasoline, alcohol, etc., and
combustible materials.
■Never store an extra (spare) LP tank under or near the
Weber Gas Barbecue.

Assembly
Tools needed
Regular screwdriver
Phillips screwdriver
Hammer
7/16 inch open-end or an adjustable wrench
Pliers
Block of wood
Supplies needed
Your LP tank is shipped empty for safety. After setting the
LP fuel scale you will need to fill it. (See Step "Fill LP tank.")
You will need a soap and water solution to check for gas
leaks. (See Step "Check for gas leaks.")
Note - The hardware size of nuts, bolts and screws is given.
For example "1/4-20 x 2 inch bolt" means a bolt 1/4 inch in
diameter with 20 threads to the inch, 2 inches long. On a
small screw for example, "6-32 x 1/2 inch screw" means a
number 6 screw, with 32 threads to the inch, 1/2 inch long.
7
Step 1

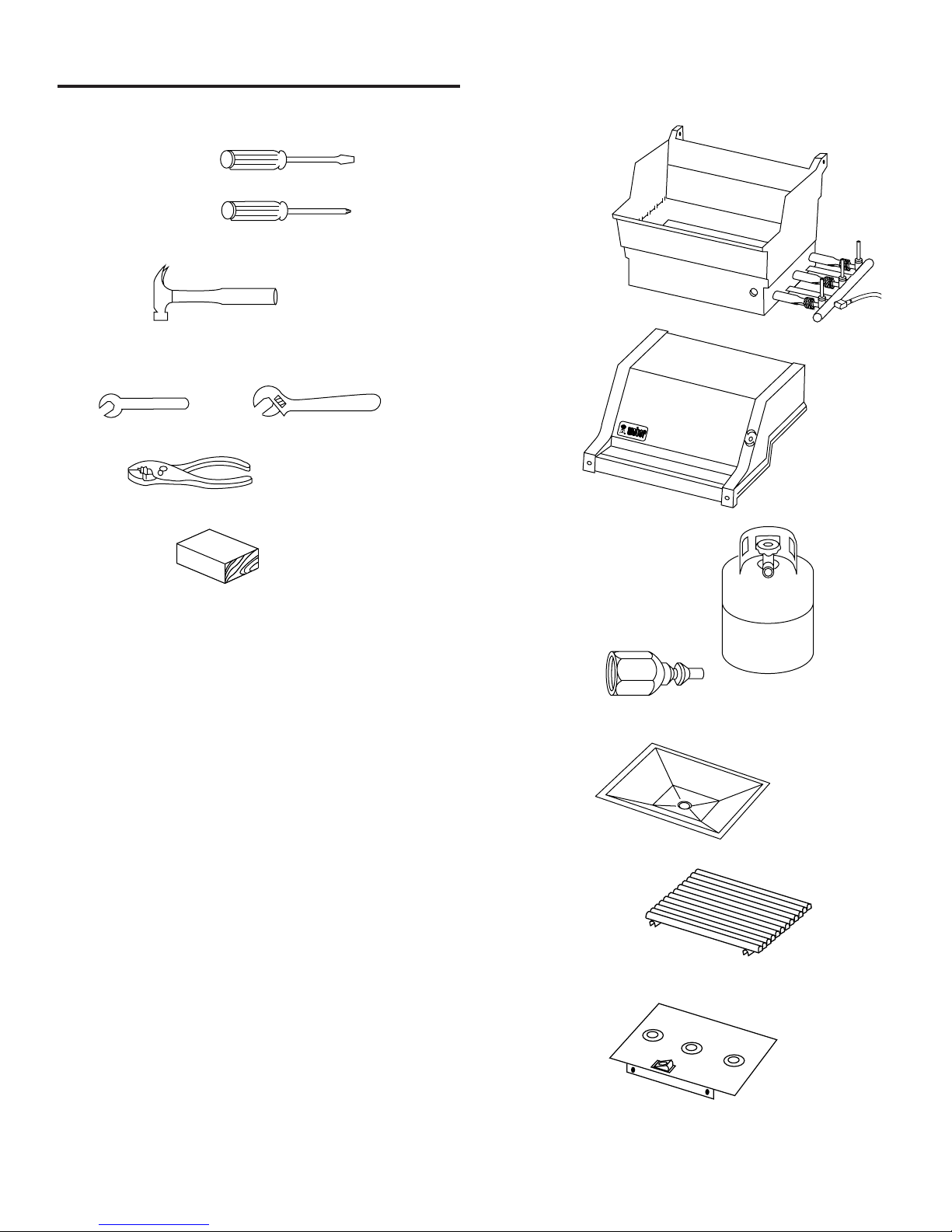

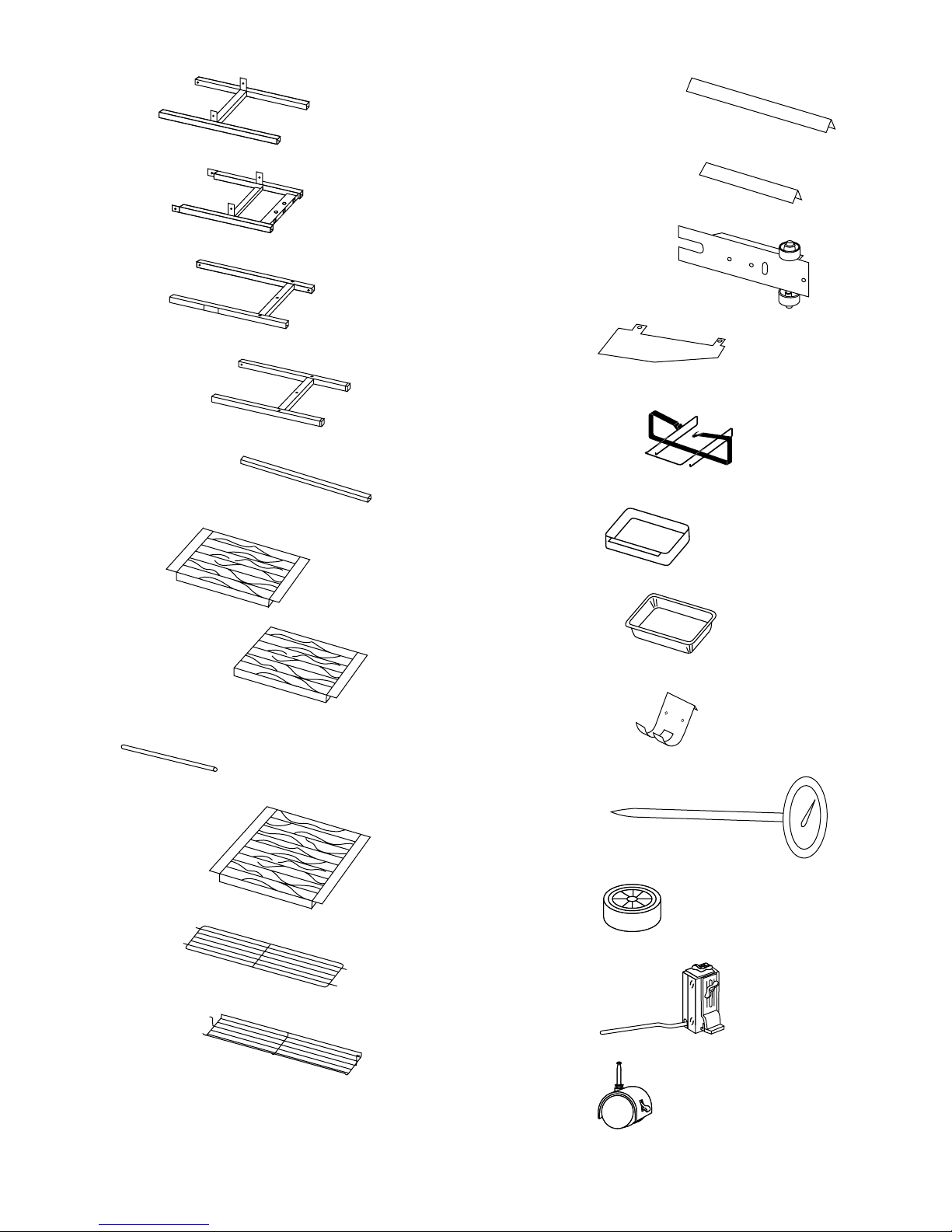

Check package contents
Cooking box
(assembly)
Lid
(assembly)
LP tank
WARNING: Use only the
LP tank supplied with your
Weber Gas Barbecue
Filler adapter
Bottom tray
Two cooking grates
Control panel
®® ®® ®® ®®

Left frame
Right frame
Wheel frame
Caster frame
Two frame connectors
Work table
Swing table assembly
Axle
Two accessory trays
Warming rack
Warm-Up Basket
Five long Flavorizer Bars
Eight short Flavorizer Bars
Tank panel assembly
Front panel
Catch pan holder
Catch pan
Two drip pans
Manifold bracket
Thermometer
Two wheels
Fuel scale assembly
Two casters
8
W
E
B
E
R
W
E
B
E
R
W
E
B
E
R
W
E
B
E
R

Two 10-24 1 3⁄4 inch machine screws
Two 10-24 hex nuts
Two hinge pins
(hardware size: 1/4 x 1 1/2 inch clevis pin)
(actual size)
Five 1/4-20 x 2 inch bolts
(actual size)
1/4-20 x 1 1/4 inch bolt
(actual size)
Six 1/4-20 x 1/2 inch bolts
(actual size)
1/4-20 hex nut
(actual size)
Two plastic buttons
(actual size)
1/4-20 keps nut
Two 1/4-20 wing nuts
(actual size)
Eighteen 1/4 inch nylon washers
Two hair pin cotters
Two wheel hubcaps
Spacer bracket
Left hand slide bar assembly
Assembly consists of :
Left hand slide bar
Support rod
Slide
Check contents of hardware packs
Three burner control knobs
Three tool holders
Five tubing plugs
(two are spares)
Swing table end bracket
Two Phillips screws/washers
9

10
Figure 1
Step 2

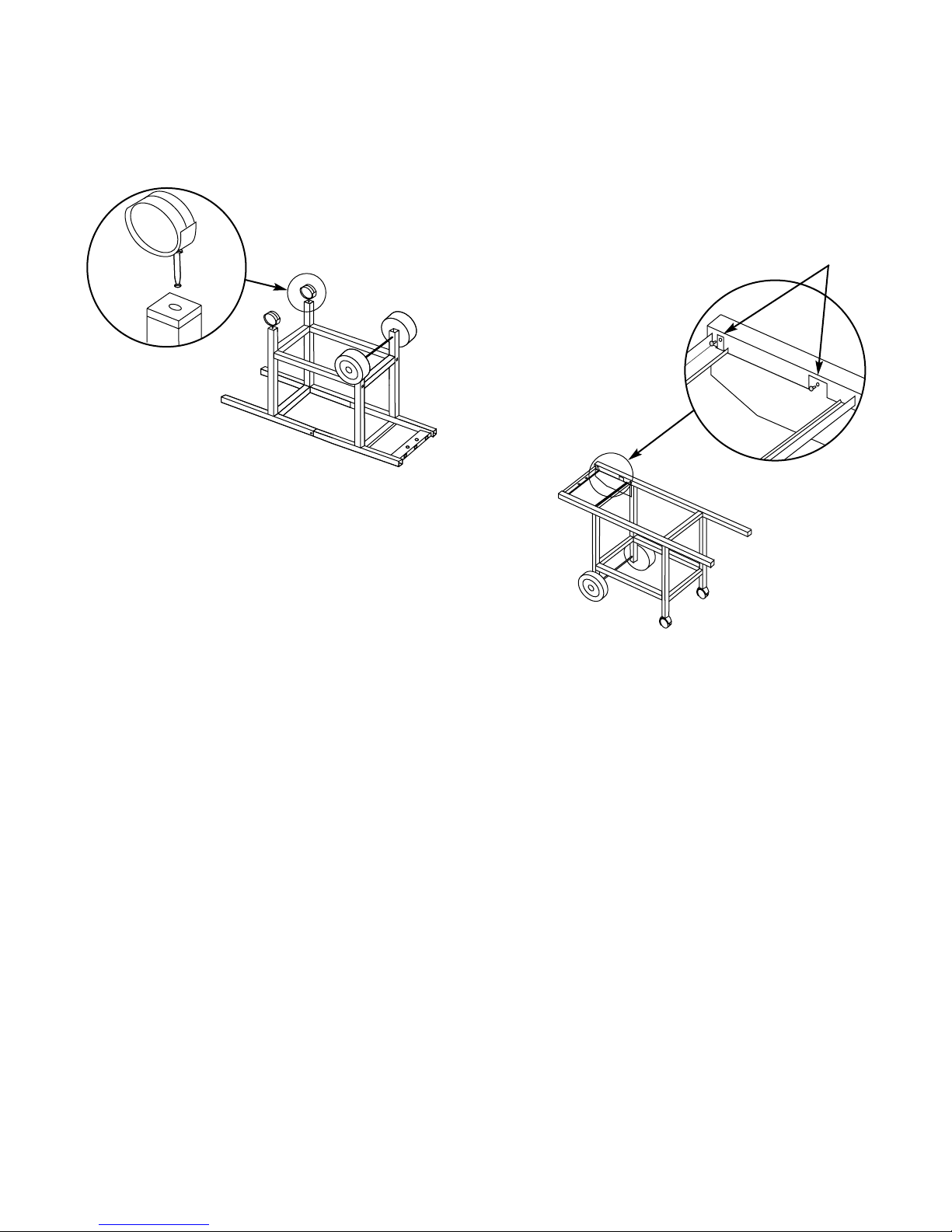

Assemble wheels
You will need: axle, two wheel hubcaps, two wheels, wheel
frame, hammer and a block of wood.
Place one end of the axle on the block of wood (or other
protected surface). Tap on one hubcap.
Put one wheel on the axle, WEBER side toward the
hubcap. Slide the axle through the frame. Add the other
wheel, WEBER side out. Tap on the hubcap. Figure 1.
W
E
B
E
R
W
E
B
E
R
Figure 2
Step 3
Assemble top frame
You will need: left frame, right frame, two 1/4-20 x 1/2 inch
bolts, two nylon washers and a 7/16 inch wrench.
Note - Work on carpeted area (on grass or one of the
boxes) to protect the finish during frame assembly.
Lay the leg pieces as shown so the leg tabs point up.
Figure 2.
Slip the two frame pieces together with the tabs inside.
Figure 2 (a). Slip washers on bolts, insert bolts as shown
and tighten. Figure 2 (b). (If you try to insert a bolt and
there are no holes, you have the left frame turned the
wrong way. Turn the left frame around.)
Leg tabs
Frame tabs
(a)
(b)
Right frame
Left frame

11
Figure 3
Step 4
Continue frame assembly
You will need: caster frame, wheel frame, four 1/4-20 x 1/2
inch bolts, four nylon washers and a 7/16 inch wrench.
Place the caster frame onto the tabs of the left frame with
the dimple to the inside. Figure 3. Place the wheel frame
onto the tabs of the right frame with the dimple to the
inside. The fuel scale decal should face away as shown.
Figure 3.
The leg tabs must be on the inside of the frames.
Add the washers to the bolts, insert in the holes as shown
and tighten with the wrench. Figure 3.
Dimples to
the inside
Fuel scale
decal
Step 5
Complete frame assembly
You will need: partial frame assembly, two frame
connectors, four 1/4-20 x 2 inch bolts, four nylon washers
and a 7/16 inch wrench.

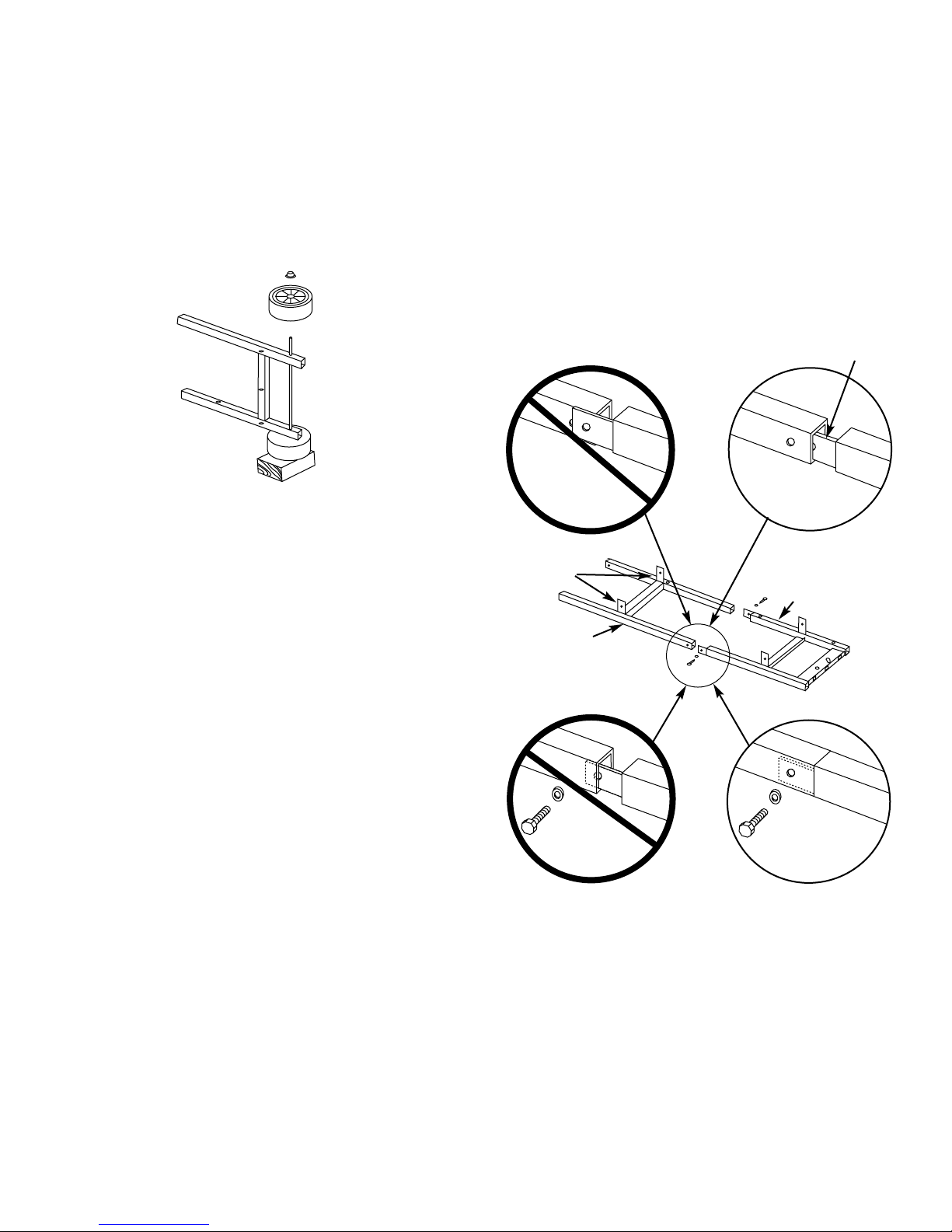

Hold one frame connector between the caster and wheel
frame. Add the nylon washer to the bolt. Put the bolt
through the frame and screw into frame connector. Tighten.
Repeat procedure with the other frame connector. Figure 4.
Figure 4

12
Figure 6
Step 7
Add front panel
You will need: front panel and two plastic buttons.
Turn frame assembly right side up.
Insert the tab on the narrow end of the front panel up
through the slot in the frame brace as shown in figure 6.
Align the panel with the holes in the frame and insert the
plastic buttons through the front panel and frame. Figure 6.
View from rear
of barbecue
Plastic buttons
Step 6
Insert casters
You will need: frame assembly and two casters.
Push the casters firmly into the inserts in the ends of the
caster legs. Figure 5.
Figure 5

13
Your Weber Gas Barbecue burner assembly has been
factory assembled, pressure and flame tested. As a safety
precaution we recommend you check the burner alignment:
a) Do the valves fit into the ends of the burners?
Figure 9 (a).
b) Are the ends of the burners under the washers at the
left rear and left front of the cooking box? The screws
are only guides. Do not tighten. Figure 9 (b).
c) Are the wing nuts under the burner assembly hand
tight? Do not tighten with pliers. Figure 9 (c).
If you answered YES to a, b and c, the burners are
correctly aligned. If you answered NO, the burners are
misaligned. Contact your dealer. Do not use barbecue.
Guide screw
(a)
(b)
(c)
Wing nuts
View from
behind
cooking
box
Figure 9
Figure 7

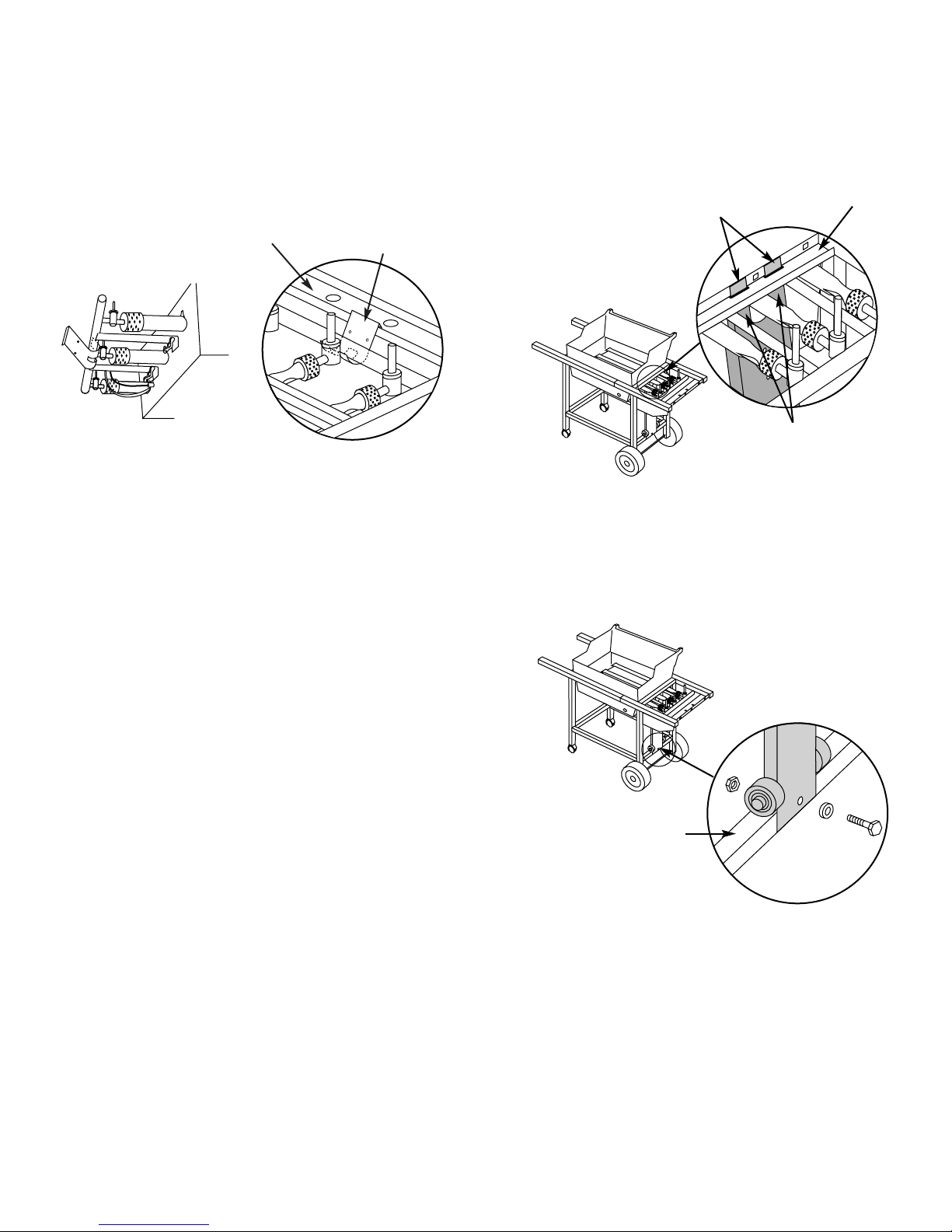

Step 8
Add cooking box
You will need: frame assembly, cooking box (assembly),
spacer bracket, 1/4-20 x 2 inch bolt, nylon washer,
1/4-20 keps nut, pliers and a 7/16 inch wrench.
Uncoil the hose.
Set the cooking box in the frame so the burner tubes are
under the frame brace. Figure 7. Burner tubes
Frame brace
Frame cross piece
Spacer bracket
Keps nut
Bolt Nylon washer
(a)
(b)
Slide the cooking box to the left within the frame. Put the
washer on the bolt. Take the spacer bracket and hold it up
to the frame making sure both tabs fit underneath the
frame cross piece. Figure 8 (a). Insert the bolt through the
center hole in the spacer bracket, frame and cooking box
with the head of the bolt outside the spacer bracket.
Figure 8 (b). Add the keps nut. Figure 8. Tighten by holding
the bolt with pliers while you tighten the nut with a wrench.
Figure 8

14
Frame brace Manifold bracket
Figure 10
Step 9
Install manifold bracket
You will need: manifold bracket
Hook the bracket onto the manifold at the center burner
valve. Place your hand underneath the bracket. Lift the
manifold, bracket and cooking box slightly and hook the
tab of the bracket onto the frame brace. Figure 10.
Step 10
Install tank panel assembly
You will need: tank panel assembly, 1/4-20 x 1 1/4 inch bolt,
1/4-20 hex nut, nylon washer and a 7/16 inch wrench.
Insert the tank panel tabs into the slots in the frame brace.
Figure 11.
Slide tank panel up until notch at bottom of panel fits over
the cross brace. Insert one bolt with washer through the
hole in the bottom of the tank panel and through the wheel
frame. Add hex nut and tighten with the 7/16 inch wrench.
Figure 12.
Figure 11
Figure 12
Cross brace
Tank panel tabs
Slots in frame brace Frame brace

15
Step 11
Add fuel scale assembly
You will need: fuel scale assembly, two 1/4-20 wing nuts
and two nylon washers.
Slip the bolts on the back of the fuel scale assembly through
the two small holes in the tank panel. Make sure indicator
rod of fuel scale is on the left side of the wheel frame.
Add washers then wing nuts and tighten. Figure 13.
Figure 13
View from front left View from front right
F
E
F
E
Step 12
Install igniter
Note - The igniter wires are already attached to the Gas
Catcher Ignition Chamber and the igniter. This was done to
factory test the ignition system.
The igniter lock nut is on the igniter.

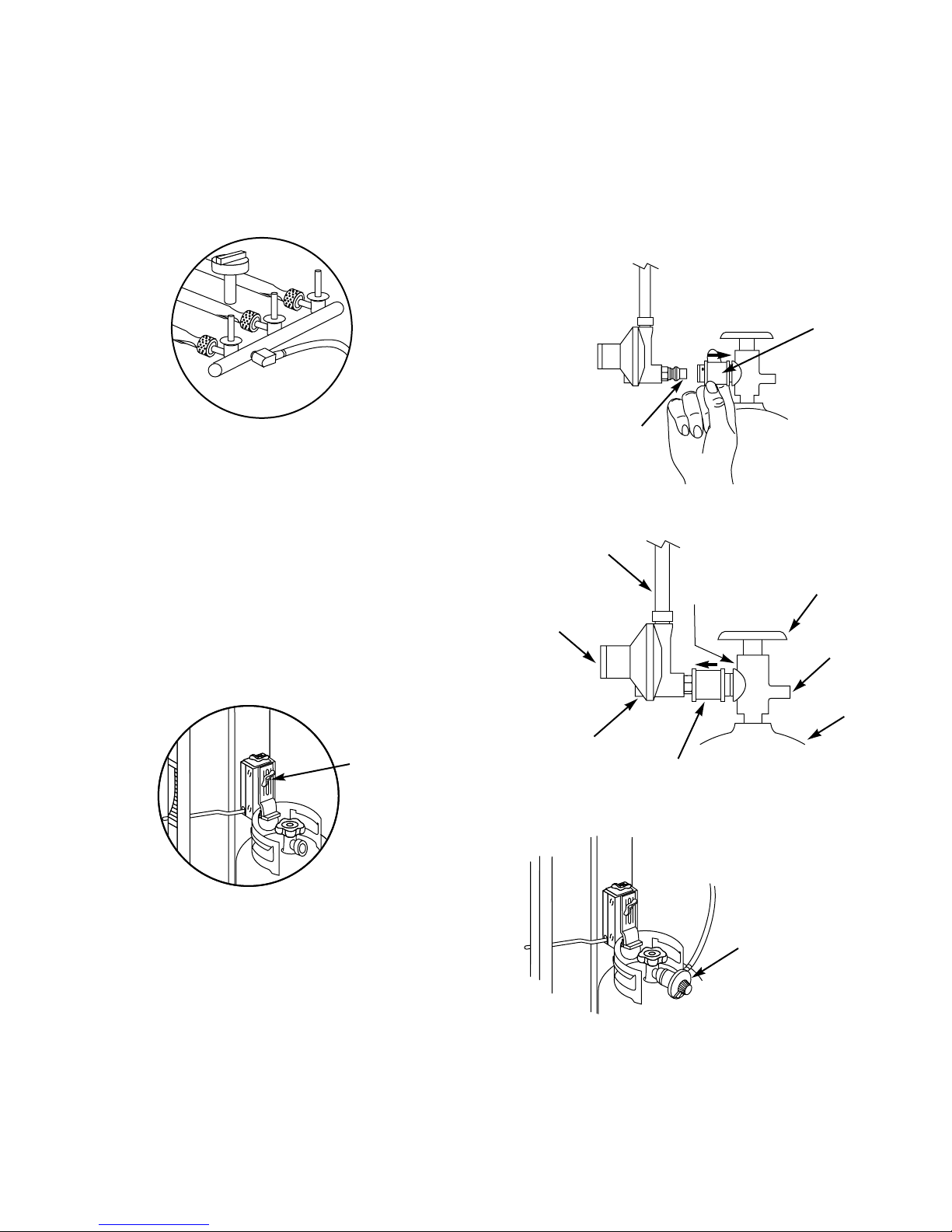

Route the igniter and wires as shown. Figure 14 (a). Insert
the top of the igniter up through the large part of the keyhole
in the frame brace. Figure 14 (b). Loosen the igniter lock
nut and slide the igniter to the small part of the keyhole.
Figure 14 (c). Tighten the igniter lock nut.
Note - If the igniter works loose, carefully tighten the igniter
lock nut with an adjustable wrench or pliers.
Figure 14
Igniter lock nut
Keyhole in
frame brace
Frame brace Small part of keyhole
in frame brace
(a)
(b)
(c)

16
Step 13
Set LP fuel scale
You will need: LP tank (empty).
Note - For accuracy, the fuel scale must be set with an
empty tank.
We utilize various LP tank manufacturers. Some of the
tanks we receive have differing top collar assemblies. (The
top collar is the metal protective ring around the valve.)
One series of tanks mounts with the valve facing front.
The other tanks mount with the valve facing away from the
fuel scale. These types of tanks are illustrated in Figure
15.
Loosen the tank lock wing nut. Tighten so the lock is held
up out of the way. Figure 15 (a). Lift and hook the tank
onto the fuel scale. With an empty LP tank, adjust the
fuel scale setting to E with scale setting (top) wing nut.
Figure 15 (b).
CAUTION: Do not remove adjustment wing nut from
tank scale.
After adjusting tank scale, push tank down a couple of
times to check that the tank scale is set on “E”.
F
E
F
E
F
E
Figure 15
Tank lock
wing nut
(a) (b)
Scale setting
wing nut
Step 14
Fill LP tank
Note - The LP tank manufacturer is responsible for the
materials, workmanship and performance of the tank. If
the tank has a defect, malfunctions, or you have a
question regarding the tank, call the tank manufacturer's
customer service center. The phone number is on the
warning decal which is permanently attached to the tank.
If the tank manufacturer has not resolved the issue to your
satisfaction, then call Weber-Stephen Products Co.,
Customer Service Center.
To fill, take the LP tank and filler adapter to an RV center
or look gas-propane in the phone book for other sources of
LP gas.
WARNING: We recommend that your LP tank be
filled at an authorized LP gas dealer by a qualified
attendant, who fills the tank by weight.
IMPROPER FILLING IS DANGEROUS.
Tell your LP dealer that this is a new LP tank. The air must
be removed from a new LP tank before the initial filling.
Your LP gas dealer is equipped to do this.
WARNING: If you exchange your LP tank, make
sure you get a similar tank in return. Your LP tank is
equipped with a quick-disconnect valve and an OPD
(Overfilling Prevention Device). Other LP tanks are not
compatible with your barbecue connection.
The LP tank must be installed, transported and stored in
an upright position. LP tank should not be dropped or
handled roughly.
Never store or transport the LP tank where temperatures
can reach 125° Fahrenheit (too hot to hold by hand – for
example: do not leave the LP tank in a car on a hot day).
For full instructions for safe handling of LP tanks see
section "Operating Instructions".
Note - Remove LP tank filler adapter before connecting
the regulator to the tank.

17
Figure 16
Step 15
Check that all burner valves are off
You will need: one burner control knob.
Valves are shipped in the OFF position, but you should
check to be sure. Put the knob on each valve. Check by
pushing down and turning clockwise. If they do not turn,
they are off, proceed to the next step. Figure 16.
The hose and regulator are connected in the
following manner:
Slide back the collar of the quick disconnect on the tank
valve. Push the male fitting of the regulator into the quick
disconnect, and maintain pressure. Slide the collar closed.
Figure 18 (a). Figure 18 (b) shows the quick disconnect
engaged and various components of the tank and
regulator. Regulator vent hole should be at 3, 6, or 9
o'clock. It should not be pointed up. Figure 18 (c).
Figure 18
Turn so regulator vent
does not collect water
Hose
Tank lock
wing nut Quick disconnect
engaged
Valve handwheel
close clockwise
Tank valve
Collar
Male
fitting
Pressure
relief valve
Tank
Regulator
Regulator
vent
(a)
(b)
(c)
Step 16
Connect LP tank
WARNING: Make sure that the LP tank valve is
closed. Close by turning clockwise.
Hook the LP tank onto the fuel scale. Loosen the tank lock
wing nut. Swing the tank lock down. Tighten the wing nut.
Figure 17.
Figure 17
F
E

18
Step 17
Check for gas leaks
WARNING: You should check for gas leaks every
time you disconnect and reconnect a gas fitting.
Note - All factory made connections have been thoroughly
checked for gas leaks. The burners have been flame
tested. As a safety precaution you should recheck all
fittings for leaks before using your Weber Gas Barbecue.
Shipping and handling may have loosened or damaged a
gas fitting.
WARNING: Perform these leak checks even if your
barbecue was dealer or store assembled.
You will need: a soap and water solution and a rag or
brush to apply it.
To perform leak checks: open tank valve by turning the
tank valve handwheel counterclockwise. Figure 19.
Figure 19
 DANGER
Do not use an open flame to check for
gas leaks. Be sure there are no sparks or
open flames in the area while you check
for leaks. This will result in a fire or
explosion which can cause serious
bodily injury or death and damage
to property.
Check:
a) Hose to manifold connection. Figure 20 (a).
b) Regulator to tank connection. Figure 20 (b).
WARNING: If there is a leak at a or b, retighten the
fitting and recheck for leaks with soap and water
solution.
If a leak persists after retightening the fitting, turn OFF
the gas. DO NOT OPERATE THE BARBECUE. Contact
your dealer.
c) Valves to manifold connections. Figure 20 (c).
d) The hose to regulator connection. Figure 20 (d).
WARNING: If there is a leak at c or d, turn OFF the
gas. DO NOT OPERATE THE BARBECUE. Contact
your dealer.
When leak checks are complete, turn gas supply OFF at
the source and rinse connections with water.
Check for leaks by wetting the connections with the soap
and water solution and watching for bubbles. If bubbles
form or if a bubble grows there is a leak.
Note - Since some leak test solutions, including soap and
water, may be slightly corrosive, all connections should be
rinsed with water after checking for leaks.
WARNING: Do not ignite burners when leak checking.
(a)
Figure 20
(c)
(d)
(b)

19
Step 19
Install the bottom tray
You will need: bottom tray, catch pan holder, catch pan and
one drip pan.
Hook the ends of the catch pan holder into the hole in the
bottom tray. Figure 24. The front of the catch pan holder
must be on the same side as the finger grip of the
bottom tray.
Slide the bottom tray onto the mounting rails under the
cooking box with finger grip toward you. Figure 25.
CAUTION: Do not line bottom tray with aluminum foil.
It can cause grease fires by trapping the grease and not
allowing grease to flow into the catch pan.
Put the foil drip pan into the catch pan.
Slide the catch pan into the catch pan holder with its finger
grip towards you.
Figure 24
Figure 23
Figure 25
Bottom tray
Finger grip on front
edge of bottom tray
Finger grip
Front side of catch
pan holder
Step 18
Install Flavorizer Bars and Cooking Grates
You will need: five long Flavorizer Bars, eight short
Flavorizer Bars and two cooking grates.
Set the long Flavorizer Bars side to side in the lower
position, then set the short Flavorizer Bars front to back in
the upper position in the cooking box. Figure 21.
Figure 21
The open "U" of the cooking grates goes down. Set the
cooking grates onto the ledges in the cooking box.
Figure 22.
Figure 22

20
Step 20
Install Lid
You will need: lid, two hinge pins and two hair pin cotters.
Set the lid in place. Align the hinges at the rear of the
barbecue. Insert hinge pins from the outside. Insert hair pin
cotters into the small holes in the hinge pins. Figure 26.
Hair pin cotter
Hinge pin
Figure 26
Figure 27
Tool holders
(a)
(b)
Control panel
Phillips screws/
washers
Insert in
frame brace
Crossover
Ignition Button
Step 21
Add tool holders, control panel and burner
control knobs
You will need: three tool holders, control panel, two Phillips
screws/washers, a Phillips screwdriver, and three burner
control knobs.
Hook the tool holders over the frame rail. Figure 27.
Set the control panel in place over both frame braces.
(Hold the Crossover Ignition button up while setting the
control panel in place.) Line up the holes in the control
panel with the holes in the inserts in the frame brace.
Insert screws and tighten with a Phillips screwdriver until
snug. Do not overtighten. Figure 27 (a).
Push on the burner control knobs. Figure 27 (b).
