Charnwood W685 User manual
GENERAL SAFETY RULES
WARNING: Do not attempt to operate the machine until you have read thoroughly
and understood completely all instructions, rules, etc. contained in this manual.
Failure to comply may result in accidents involving fire, electric shock, or serious
personal injury. Keep this owner's manual and review frequently for continuous safe
operation.
1. Know your machine. For your own safety, read the owner's manual
carefully. Learn its application and limitations, as well as specific
potential hazards pertinent to this machine.
2. Make sure all tools are properly earthed.
3. Keep guards in place and in working order. If a guard must be
removed for maintenance or cleaning, make sure it is properly
replaced before using the machine again.
4. Remove adjusting keys and spanners. Form a habit of checking to
see that the keys and adjusting spanners are removed from the
machine before switched it on.
5. Keep your work area clean. Cluttered areas and workbenches
increase the chance of an accident.'
6. Do not use in dangerous environments. Do not use power tools in
damp or wet locations, or expose them to rain. Keep work areas well
illuminated.
7. Keep children away. All visitors should be kept a safe distance
8. from the work area.
9. Make workshop childproof. Use padlocks, master switches
and remove starter keys.
10.Do not force the machine. It will do the job better and be safer at
the rate for which it is designed.
11.Use the right tools. Do not force the machine or attachments to do a job
for which they are not designed. Contact the manufacturer or distributor
if there is any question about the machine's suitability for a particular
task.
12.Wear proper apparel. Avoid loose clothing, gloves, ties, rings, bracelets,
and jewellery which could get caught in moving parts. Non-slip footwear is
recommended. Wear protective hair covering to contain long hair.
13.Always use safety glasses. Normal spectacles only have impact resistant
lenses. They are not safety glasses.
14.Do not over-reach. Keep proper footing and balance at all times.
15.Maintain the machine in good condition. Keep the machine clean for best and
safest performance. Follow instructions for lubrication and changing
accessories.
16.Disconnect the machine from power source before servicing and when
changing the blade.
17.Never leave the machine running unattended. Turn the power off. Do not
leave the machine until it comes to a complete stop.
18.Do not use any power tools while under the effects of drugs, alcohol or
medication.
19.Always wear a face or dust mask if operation creates a lot of dust and/or
chips. Always operate the tool in a well ventilated area and provide for proper
dust removal. Use a suitable dust extractor.
ADDITIONAL RULES FOR DUST
EXTRACTORS
1. Dust extractors are frequently moved around the workshop. Make sure that
mains cables and extractor hoses are positioned in such a way that they do
not present a trip hazard.
2. Do not pick up pieces of metal or chunks of wood.
3. Switch off and unplug the extractor before removing the collection bag and/or
filter.
4. Do not allow the collection bag to become over full.
5. When necessary, wash, thoroughly rinse and completely dry the filter bag.
Using a wet or damp filter bag will reduce its efficiency as it will quickly
become clogged.
6. Dispose of waste in accordance with local regulations.
Specification
Motor (Induction) 750W (1hp) 240V
Flow Rate 850 cubic metres per hour
Inlet Diameter 100mm
Bag Capacity 60 litres
Filtration Level 5 microns
Maximum Recommended Hose Length 3 metres
Maxumu Continuous Run Time 2 hours
Weight 27kg
Rating Hobby
Warranty 1 Year
Hobby Rating –Suitable for weekend DIY’ers and woodworking enthusiasts. Refers to
generally lighter weight machines with lower power ratings and smaller tooling capacities.
Typically only ever used by one person for short periods of time or longer periods
infrequently. Machinery should be well maintained in a clean, dry environment such as a
home workshop, garage or timber shed. Expected maximum use of 100 hours annually.
Please Note: Using a product in excess of its rating will void the manufacturer’s free
warranty.
Unpacking

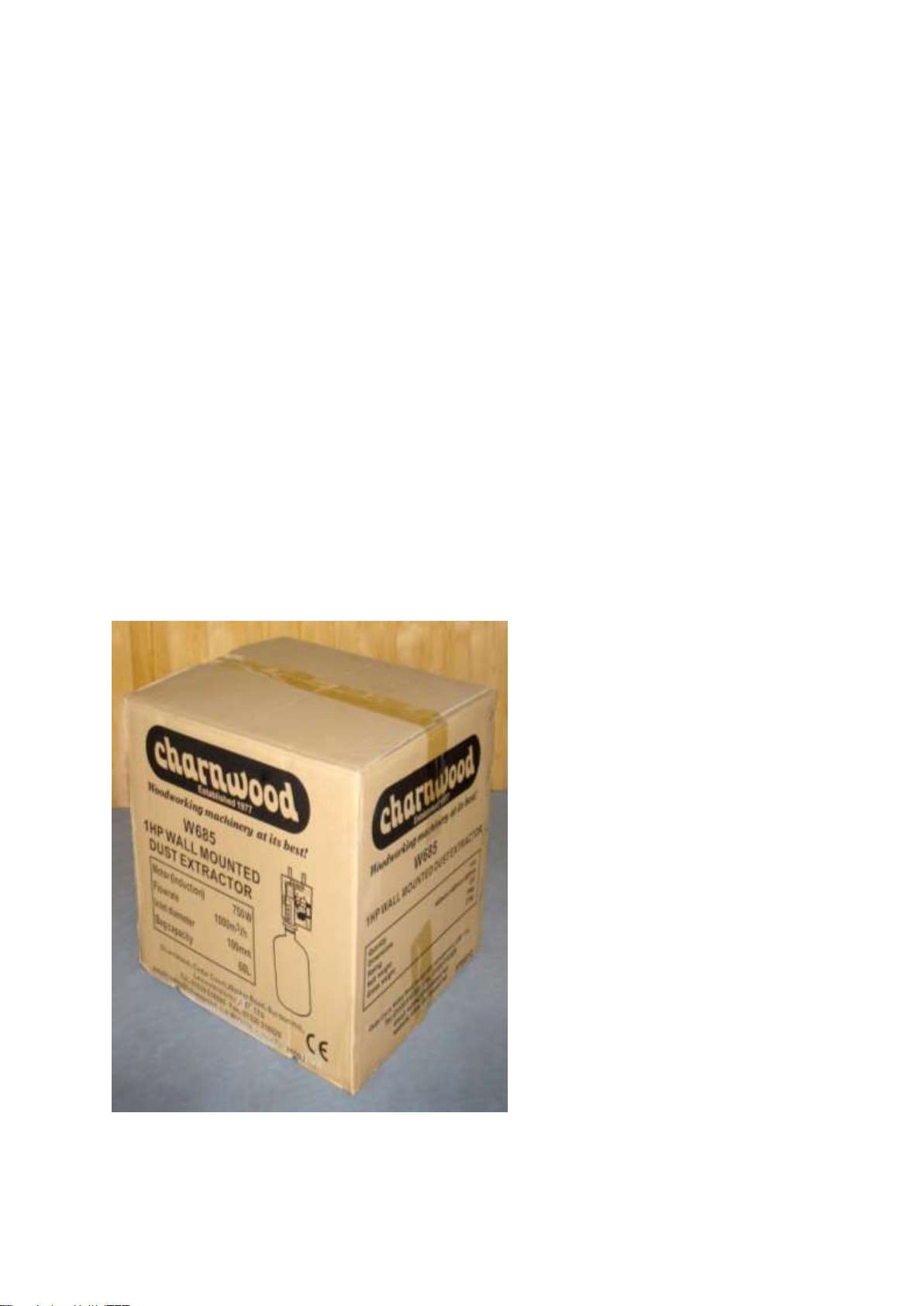

All parts are contained in one
carton

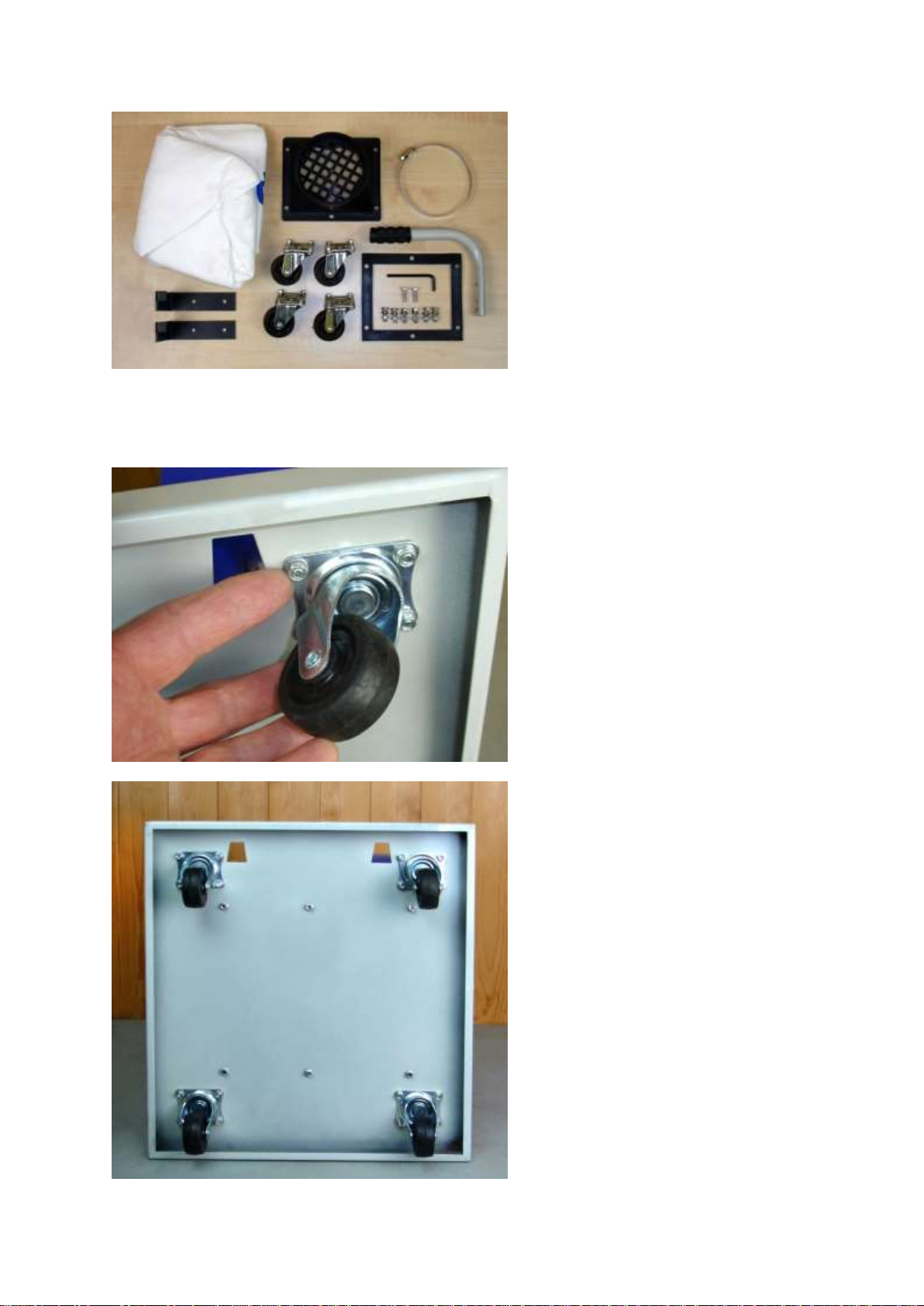

Unpack the parts carefully and
check that everything is present as
shown.
If anything is missing contact your
retailer immediately.
Assembly
Leave all bolts finger tight until
each castor is fitted.
Place the machine on its back and
bolt one of the castors to the
baseplate using four dome head
M5 bolts with washers and nuts on
the underside. Note that the longer
edge of the fixing plate should be
horizontal.
Continue with the remaining three
castors.
Stand the extractor on its castors.
Insert two M6 bolts into the top
holes of the square extractor outlet
and slip the rubber gasket onto
them.
Fit the plastic adapter over the
bolts and secure with washers and
nuts. Add the remaining four bolts.
Tighten the nuts when all six bolts
are in position.
Fix the handle to the fan casing
using the two M6 bolts supplied.
Fit the dust collection bag over the
round outlet and secure it in place
with the jubilee clip supplied.
The dust bag is emptied through
the inlet after first removing it from
the extractor. Always ensure that
the machine is isolated before
removing the bag or connecting a
hose.
The extractor is now ready for use
in the horizontal mode after
connecting to the hose attached to
your woodworking machine.
170mm 50mm
Two wall brackets are supplied in
case you wish to wall mount the
extractor. Attach these to a
suitably strong wall using
appropriate fixings.
The extractor can now be wall
mounted by hooking the two cut
outs in the base over the wall
brackets. The castors can be left
in place, allowing the unit to be
quickly dismounted and moved
when required.
W685KIT Hose & Dust Hood Kit (Optional Accessory)
The Kit consists of a 3m length of 100mm diameter flexible hose, a dust hood and a support
arm that can be positioned in a convenient place to collect from bench top machinery, most
notably a woodturning lathe.
Two hose clamps securely attach the hose to the extractor and the hood. The hose can also
be used without the hood to connect to any woodworking machine with a 100mm diameter
dust outlet.
When fitted to the support arm the centre of the hood is at a height of 920mm.
Dust Hood opening size 240mm x 120mm.
Assembly

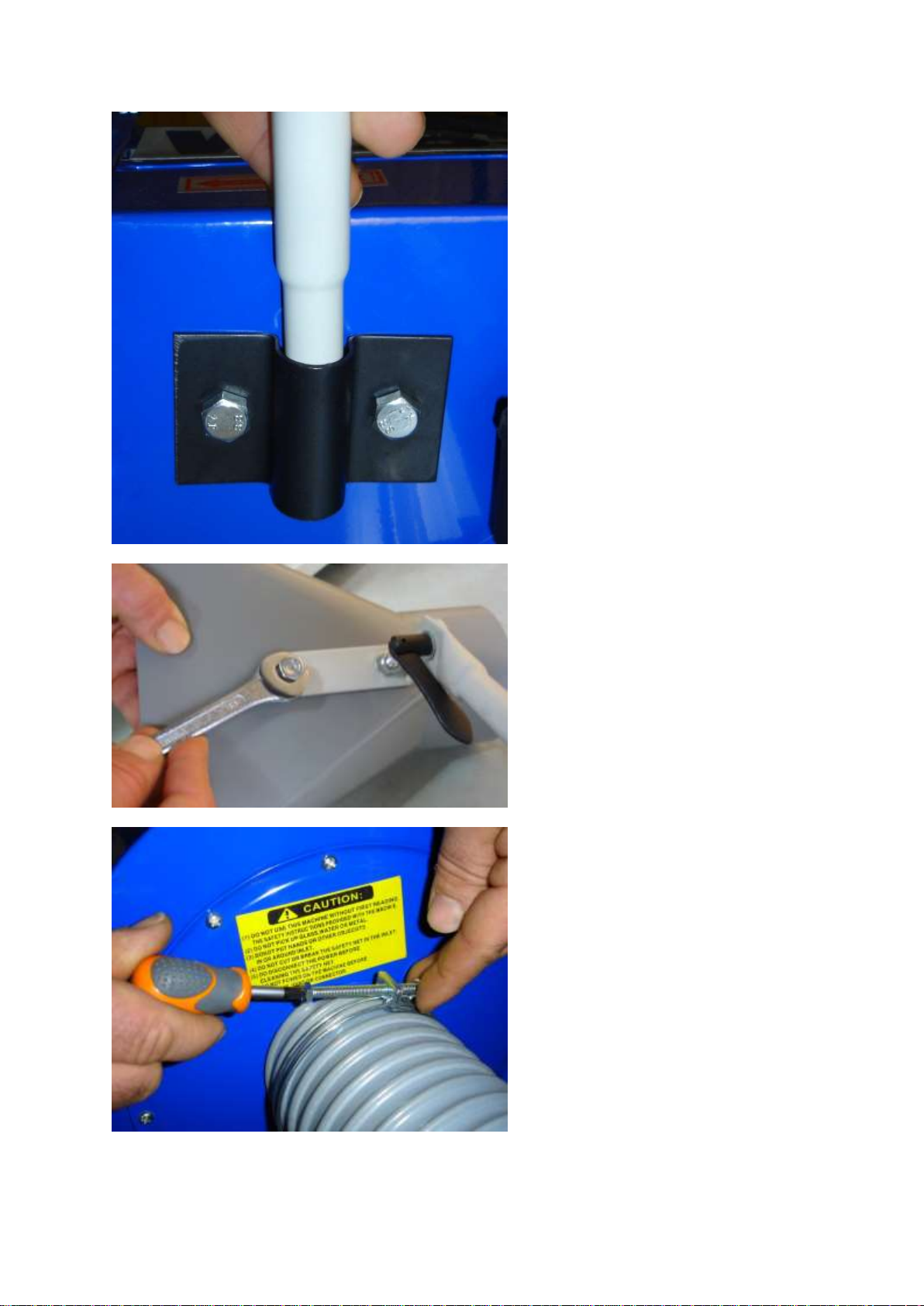

Attach the mounting bracket to the
extractor fan housing using the
two bolts provided.
Insert the reduced end of the
support arm into the mounting
bracket.
Attach the adjustable bracket
assembly to the dust hood using
the bolts, nuts and washers fitted
to the hood. Ensure that the heads
of the bolts are inside the hood
and the nuts/washers outside.
Insert the end of the adjustable
bracket into the support arm and
tighten the jubilee clip to fix in the
desired position.
Connect the flexible hose to the
dust hood and the extractor using
the hose clips supplied.
Adjust & lock the bracket and arm
assembly to position the hood as
required.
Using the Extractor
The W685 extractor is designed to collect wood dust, chips and shavings from the
woodworking machine, transport it into the collection bag and filter the clean air out.
Because this is a single bag machine, the same bag acts as collector and filter. The bag
should therefore be emptied when 50% full, otherwise there will not be enough surface area
to act as a filtration medium and performance will be impaired.
A 100mm diameter hose should be connected to the extractor inlet and secured with a
suitable hose clamp. Maximum recommended hose length is 3m. Many woodworking
machines are fitted with 100mm diameter dust outlets. When collecting from bench top
machines it may be necessary to use a reducer to connect to a smaller diameter outlet. Any
reducer should be fitted as close as possible to the woodworking machine in order to
maintain maximum performance –suction is reduced whenever airflow is restricted on this
type of extractor. Charnwood stock a large range of hoses, connectors and reducers, details
of which can be found on their website.
Always switch on the extractor before starting the woodworking machine. Allow it to continue
running for a few moments after the other machine is switched off in order to clear the hose.
Troubleshooting
Problem
Possible Cause
Remedy
Motor fails to start
Blown fuse
Replace fuse
Motor buzzes but fails to run
Failed start capacitor
Replace capacitor
Motor starts but fails to run.
Will run if green button held.
Failed NVR Switch
Replace Switch
Sudden drop in performance
Blockage in hose or extractor
inlet/outlet grills.
Remove filter bag and hose,
clean grills and clear any
blockages.
Sudden drop in performance
Filter bag full / too full.
Empty filter bag
Gradual drop in performance
Filter bag clogged with dust
Turn bag inside out and
scrape clean
General lack of performance
Hose length greater than
recommended maximum.
Reduce length to 3m
maximum
Lack of performance
Airflow restricted by narrow
diameter hose.
Increase hose diameter to
100mm and use a reducer at
woodworking machine.
Declaration of Conformity for CE Marking
Charnwood Declare that Woodworking Dust Collector, Model W696
Conforms with the following Directives: Machinery Directive 2006/42/EC
EMC Directive 2004/108/EC
And further conforms to the machinery example for which the EC type examination
Certificate No. AM 50187475 and AE 50220617 have been issued by TUV
Rheinland LGA Products GmbH, Tillystrasse 2, 90431, Nurnberg, Germany.
I hereby declare that equipment named above has been tested and found to comply
with the relevant sections of the above referenced specifications. The machinery
complies with all essential requirements of the directive.
Signed: Dated: 30/09/2016 Location: Leicestershire
Richard Cook, Director
Please dispose of packaging for the product in a responsible
manner. It is suitable for recycling. Help to protect the
environment, take the packaging to the local amenity tip and
place into the appropriate recycling bin.
Only for EU countries
Do not dispose of electric tools together with household waste
material!
In observance of European Directive 2002/96/EC on waste
electrical and electronic equipment (EEE) and its implementation
in accordance with national law, electric tools that have reached
the end of their life must be collected separately and returned to
an environmentally compatible recycling facility.
Your local refuse amenity will have a separate collection area for EEE goods
Charnwood W685 Parts List
Part No.
Description
Part No.
Description
01
Castor
02
Pan Head Screw
02-1
Hex Nut
03
Washer
04
Base
05
Pan Head Screw
06
Inlet Cover
07
Left Hand Cap Screw
08
Set Screw
09
Washer
10
Impeller
11
Impeller Housing
12
Washer
12-1
Hex Nut
13
Hex Bolt
14
Hex Bolt
15
Hex Nut
15-1
Hex Bolt
15-2
Washer
16
Switch
17
Dust Bag Clamp
18
Motor
19
Gasket
20
Motor Support Plate
21
Key
22
Gasket
23
Outlet
24
Dust Bag 5 Micron
25
Handle
26
Power Cord
27
Hook
28
Screw
Charnwood W685KIT Parts Drawing
1 2 3 4 5 6 7
8 9 10 11 12 13 14
W685KIT Parts List
Part No.
Description
Part No.
Description
01
Dust Hood
02
Support Bracket
03
Washer
04
Dust Hood Bracket
05
Bracket Adapter
06
Locking Lever
07
Hose 100mm x 3m
08
Hose Clip 100mm
09
Coach Bolt M8 x 20mm
10
Washer M8
11
Nut M8
12
Small Jubilee Clip
13
Hex Bolt M8 x 16mm
14
Support Arm
This manual suits for next models
1
Table of contents
Other Charnwood Vacuum Cleaner manuals
