Chauvet Synapse 4 User manual

User Manual

Edition Notes
Synapse 4 User Manual Rev. 2
Edition
Notes
The Synapse 4 User Manual Rev. 2 covers the description, safety precautions, installation,
programming, operation, and maintenance of the Synapse 4. Chauvet
released this edition of
the Synapse 4 User Manual in November 2015.
Trademarks
CHAUVET is a registered trademark of CHAUVET & Sons LLC. (d/b/a CHAUVET or Chauvet).
The CHAUVET logo in its entirety including the CHAUVET name and the dotted triangle, and all
other trademarks in this manual pertaining to services, products, or marketing statements are
owned or licensed by Chauvet. Any other
product names, logos, brands, company names, and
other trademarks featured or referred to within this document are the property of their respective
trademark holders.
Copyright Notice
Chauvet owns the content of this User Manual in its entirety, including but not limited to
pictures, logos, trademarks, and resources.
© Copyright 2015 Chauvet. All rights reserved.
Electronically published by Chauvet in the United States of America.
Manual Use
Chauvet authorizes its customers to download and print this manual for professional information
purposes only. Chauvet expressly prohibits the u
sage, copy, storage, distribution, modification,
or printing of this manual or its content for any other purpose
without written consent from
Chauvet.
Document
Printing
For better results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If
using A4 paper (210 x 297 mm), configure your printer to scale the content accordingly.
Intended
Audience
Any person in charge of installing, operating, and/or maintaining this product should completely
read through the guide that shipped with the product, as well as this manual, before installing,
operating, or maintaining this product.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects.
However, Chauvet
assumes no responsibility for any errors or omissions in this document.
Chauvet reserves the right to revise and make changes to the content of this document without
obligation that Chauvet notify any person or company of such revision or changes. This does
not in any way constitute a commitment by Chauvet to make such changes. Chauvet may issue
a revision of this manual or a new edition to incorporate such changes.
Document
Revision
The Synapse 4 User Manual Rev. 2 is the first edition of this manual. Go to
www.chauvetprofessional.com for the latest version.

Table of Contents
Synapse 4 User Manual Rev. 2 -i-
Table of Contents
1. Before You Begin......................................................................................................................................1
What Is Included...........................................................................................................................................................1
Claims..........................................................................................................................................................................................1
Manual Conventions ....................................................................................................................................................................1
Symbols.......................................................................................................................................................................................1
Product At A Glance .....................................................................................................................................................2
Safety Notes .................................................................................................................................................................2
Personal Safety............................................................................................................................................................................2
Mounting And Rigging..................................................................................................................................................................2
Power And Wiring ........................................................................................................................................................................2
Operation.....................................................................................................................................................................................2
2. Introduction...............................................................................................................................................3
Description....................................................................................................................................................................3
Features........................................................................................................................................................................3
Overview.......................................................................................................................................................................4
Dimensions...................................................................................................................................................................5
3. Setup..........................................................................................................................................................6
AC Power......................................................................................................................................................................6
AC Plug........................................................................................................................................................................................6
Resetting the Breaker ..................................................................................................................................................................6
DMX Linking..................................................................................................................................................................6
DMX Personalities........................................................................................................................................................................6

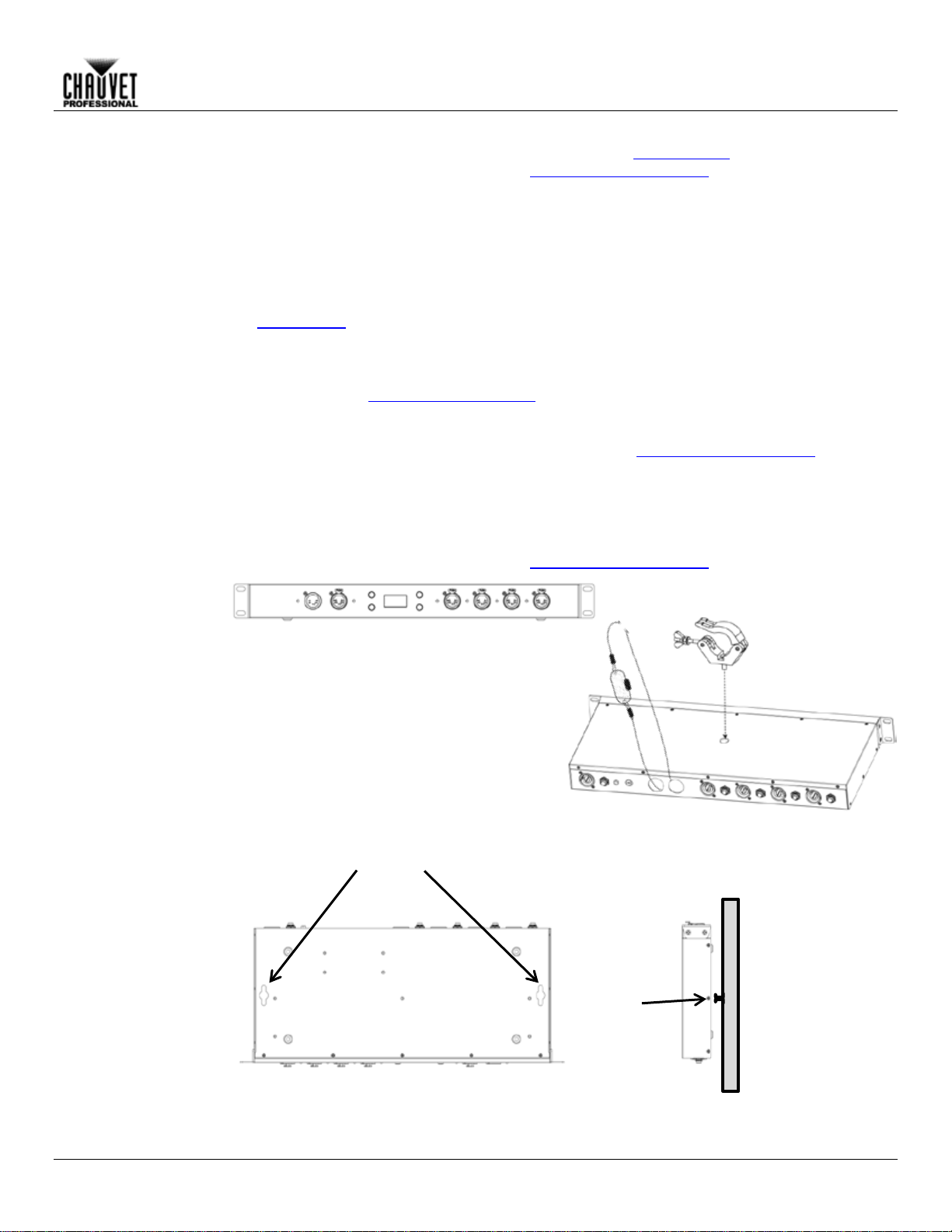

Mounting.......................................................................................................................................................................7
Orientation ...................................................................................................................................................................................7
Rigging.........................................................................................................................................................................................7
Procedure ....................................................................................................................................................................................7
4. Operation...................................................................................................................................................8
Control Panel Description.............................................................................................................................................8
Control Options.............................................................................................................................................................8
Programming ................................................................................................................................................................8
Menu Map.....................................................................................................................................................................9
Menu Map (Cont.).......................................................................................................................................................10
Configuration ..............................................................................................................................................................11
Power Setup...............................................................................................................................................................................11
Output Delay Setting..................................................................................................................................................................11
Date and Time Setting ...............................................................................................................................................................11
Schedule Setup..........................................................................................................................................................................12
Backlight ....................................................................................................................................................................................12
Software Information..................................................................................................................................................................12
Fixture Hours..............................................................................................................................................................................12
DMX Control...............................................................................................................................................................................12
DMX Personality ........................................................................................................................................................................12
DMX Values................................................................................................................................................................13
5. Technical Information.............................................................................................................................14
Product Maintenance..................................................................................................................................................14
6. Technical Specifications.........................................................................................................................15
Returns .......................................................................................................................................................................15
Contact Us...................................................................................................................................................16

Before You Begin
Synapse 4 User Manual Rev. 2 -1-
1. Before You Begin
What Is
Included
•Synapse 4
•Neutrik powerCON power cord
•Warranty Card
•Quick Reference Guide
Claims
Carefully unpack the product immediately and check the box to make sure all the parts are in
the package and are in good condition.
If the box or the contents (the product and included access
ories) appear damaged from
shipping or show signs of mishandling, notify the carrier immediately, not Chauvet
. Failure to
report damage to the carrier immediately may invalidate your claim. In addition, keep the box
and contents for inspection.
For other i
ssues, such as missing components or parts, damage not related to shipping, or
concealed damage, file a claim with Chauvet within 7 days of delivery.
Manual
Conventions
Convention Meaning
1–512
A range of values in the text
50/60
A set of mutually exclusive values in the text
<SET>
A button on the product’s control panel
Settings
A product function or a menu option
MENU>Settings
A sequence of menu options
1–10
A range of menu values from which to choose in a menu
Yes/No
A set of two mutually exclusive menu options in a menu
ON
A unique value to be entered or selected in a menu
Symbols
Symbols
Meaning
Critical installation, configuration, or operation information. Failure to
comply with this information may cause the product not to work,
damage third-party equipment, or cause harm to the operator.
Important installation or configuration information. Failure to comply
with this information may keep the product from working.
Useful information.
The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data
transmission protocol.

Before You Begin
-2- Synapse 4 User Manual Rev. 2
Product At A
Glance
Use on Dimmer
x
Auto Programs
x
Outdoor Use
x
Auto-Ranging Power
Supply
P
Master/Slave
x
Replaceable Breaker
P
DMX
P
User-Serviceable
x
Safety Notes
Read all the following Safety Notes before working with this product. These notes include
important information about the installation, usage, and maintenance of this product.
This product contains no user-serviceable parts. Any reference to servicing in this User
Manual will only apply to properly trained Chauvet certified technicians. Do not open the
housing or attempt any repairs.
All applicable local codes and regulations apply to proper installation of this product.
Personal Safety
•Always disconnect this product from its power source before servicing.
•Always connect this product to a grounded circuit to avoid the risk of electrocution.
Mounting And
Rigging
•The product is not intended for permanent installation.
•This product is for indoor use only! To prevent risk of fire or shock, do not expose this
product to rain or moisture. (IP20)
•CAUTION: When transferring product from extreme temperature environments, (e.g. cold
truck to warm humid ballroom) condensation may form on the internal electronics of the
product. To avoid causing a failure, allow product to fully acclimate to the surrounding
environment before connecting it to power.
•Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from
adjacent surfaces.
•Make sure there are no flammable materials close to this product while it is operating.
•When hanging this product, always secure to a fastening device using a safety cable.
Power And
Wiring
•Always make sure you are connecting this product to the proper voltage in accordance with
the specifications in this manual or on the product’s specification label.
•Never connect this product to a dimmer pack or rheostat.
•Never disconnect this product by pulling or tugging on the power cable.
Operation
•Do not operate this product if you see damage on the housing, or cables. Have the
damaged parts replaced by an authorized technician at once.
•Do not cover the ventilation slots when operating to avoid internal overheating.
•The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at a
higher temperature.
•In case of a serious operating problem, stop using this product immediately!
In the unlikely event that your Chauvet product may require service, contact Chauvet
Technical Support.

Introduction
Synapse 4 User Manual Rev. 2 -3-
2. Introduction
Description
The Synapse 4 functions as a relay pack to control the power sent to individual lighting products.
This product
takes one powerCON input and branches it into four outputs, each of which can be
powered off individually via DMX or an internal timer/scheduler. The product may be r
ack, truss
or wall mounted. The Synapse 4 also includes a 4-port DMX opto-
iso, allowing users to easily
branch their DMX universe in multiple directions and amplify the signal after a long run.
Features
•1 or 4-channel power output control
•Operating modes:
•1-channel: All Power Output On/Off
•4-channel: Power Output 1–4 On/Off
•Controllable powerCON relay pack and DMX optically isolated splitter/amplifier
•Compounds the savings of LED fixtures by completely removing power when not in use
•Indiv
idually control all 4 relays via DMX, DMX sensing or internal scheduler for specific on/off
times every day
•Optically isolated 5-pin DMX splitter provides an easy hub for running DMX to multiple
locations
•Convenient mounting options; rack mount, wall mount or clamped to truss

Introduction
-4- Synapse 4 User Manual Rev. 2
Overview
Bottom View
Front View
Rear View
Side View
Feet
Top View
Breakers
DMX Output
DMX Input
Control Panel
Rack
Mounting
Tab
Wall
Mounting
Keyhole
Fuse
Safety Loop
Power In
M12 Clamp
Mounting
Point
Power Out

Introduction
Synapse 4 User Manual Rev. 2 -5-
Dimensions
1.26 in
32 mm
1.77 in
45 mm
19.02 in
483 mm
17.40 in
442 mm
16.10 in
409 mm
16.10 in
409 mm

Setup
-6- Synapse 4 User Manual Rev. 2
3. Setup
AC Power
Each Synapse 4 has an auto-ranging power supply that works with an input voltage range of
100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Synapse 4
, refer to
the label affixed to the product. You can also refer to the Technical Specifications
chart in this
manual.
The listed current r
ating indicates the maximum current draw during normal operation. For more
information, you may download Sizing Circuit Breakers from the Chauvet website
:
www.chauvetprofessional.com.
Always connect this product to a protected circuit with an appropriate electrical ground
to avoid the risk of electrocution or fire.
Never connect this product to a rheostat (variable resistor) or dimmer circuit, even if the
rheostat or dimmer channel serves only as a 0 to 100% switch.
AC Plug
The Synapse 4 comes with a power input cord terminated with a Neutrik powerCON A
connector on one end and an Edison plug on the other end (U.S. market). If the power input
cord that came with your product has no plug, or if you need to change the Edison plug, use the
table below to wire the new plug.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live
Black
Brown
Yellow or Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
Resetting the
Breaker
This product is equipped with a resettable circuit breaker on the power input circuit.
If the breaker trips, all sections of this product will lose power. Refer to the following instructions
for resetting the breaker.
This product is equipped with a resettable circuit breaker. If the breaker trips, all sections of this
product will lose power.
1. Disconnect the product from power.
2. Allow the product to cool for 15 minutes.
3. After 15 minutes, try to reset the breaker by pressing the button until it latches in the
operation position.
4. Connect the product to power and continue using as recommended.
Disconnect this product from the power outlet before resetting the breaker.
If the breaker does not reset (the breaker button/lever will not remain inserted/latched),
contact Chauvet immediately. This indicates a possible internal malfunction.
DMX Linking
You can link the Synapse 4 to a DMX controller using a 5-pin DMX connection. If using other
DMX-compatible products with the Synapse 4
, you can control each individually with a single
DMX controller.
DMX
Personalities
The Synapse 4 uses a 5-pin DMX data connection for the 1- and 4-channel DMX personalities.
•Refer to the Introduction chapter for a brief description of each DMX personality.
•Refer to the Operation chapter to learn how to configure the Synapse 4 to work in these
personalities.
•The DMX Values section provides you with detailed information regarding the DMX
personalities.
If you are not familiar with or need more information about DMX standards, or the DMX
cables needed to link this product to a DMX controller,
download the DMX Primer from
the Chauvet website: www.chauvetprofessional.com.
