Checkpoint Smart-1 525 User manual

Classification [Protected] P/N:707548
© 2018 Check Point Software Technologies Ltd. All rights reserved.
For a list of our trademarks, please refer to: www.checkpoint.com/copyright.html.
For a list of our Third Party Copyright notices, please refer to: www.checkpoint.com/3rd_party_copyright.html
Smart-1 Installing and Removing
Transceivers
707548
Protected
2018
This document is for appliance models Smart-1 525, Smart-1 5050, and
Smart-1 5150.
Important
•Read the Health and Safety Information in the Getting Started guide for
your appliance. For a list of all Appliances Getting Started guides, see
sk96246 http://supportcontent.checkpoint.com/solutions?id=sk96246.
•To protect the appliance and transceivers from electrostatic discharge,
make sure that you are grounded.
•We recommend that you use an ESD grounding wrist strap. Connect the
grounding plug on the wrist strap to the chassis grounding point.
Line cards with fiber optic ports use transceivers.

2
Replacing a Transceiver
If your expansion line card contains removable transceivers, you can install and
replace these transceivers.
For a list of supported transceivers, see:
Smart-1 525, Smart-1 5050, and Smart-1 5150 Security Management
Appliances
https://www.checkpoint.com/downloads/product-related/datasheets/ds-smart-
1-appliances.pdf

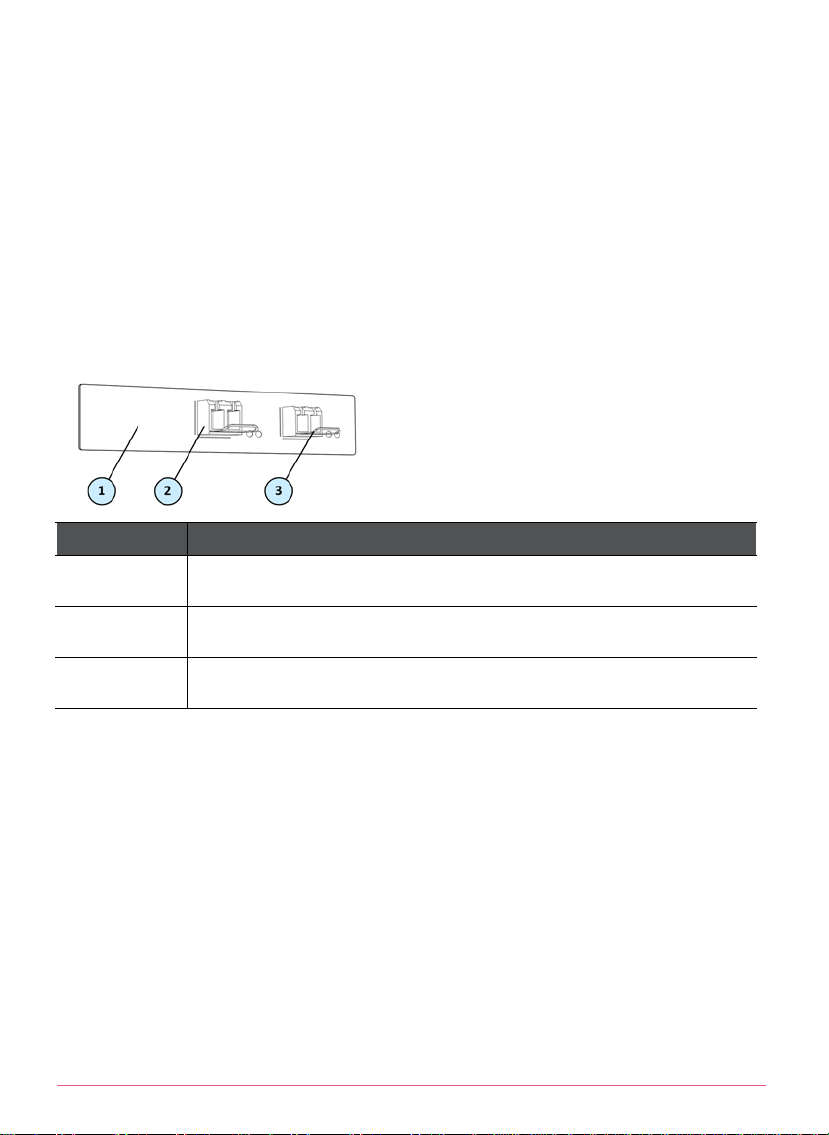

Item Description
1 Expansion line card with fiber optic ports
2 Transceiver
3 Transceiver latch
To install a transceiver:
1. Push the transceiver into an expansion line card port until it snaps into
position.
2. Turn the transceiver latch lever up to lock into the expansion line card.
3. Connect the fiber optic cable to the transceiver.
To remove a transceiver:
1. Disconnect the fiber optic cables from the transceiver.
2. Pull the latch lever down to release the transceiver.
3. Gently, pull the transceiver out of the expansion line card.
