Chevrolet 2007 Avalanche Parts list manual

Overview ......................................................... 3
Overview ................................................... 4
Features and Controls ................................. 15
Features and Controls ............................. 16
Navigation Audio System ............................ 59
Navigation Audio System ......................... 60
Voice Recognition ........................................ 85
Voice Recognition .................................... 86
Index ............................................................. 91
2007 Chevrolet Avalanche, Tahoe, Suburban and GMC Yukon,
Yukon XL, Yukon Denali, Yukon XL Denali
Navigation Manual M
1

GENERAL MOTORS, GM, the GM Emblem,
CHEVROLET, the CHEVROLET Emblem, and the
names TAHOE, SUBURBAN, and AVALANCHE,
GMC, the GMC Truck Emblem, and the names
YUKON and DENALI are registered trademarks of
General Motors Corporation.
The information in this manual supplements the
owner manual. This manual includes the latest
information available at the time it was printed. We
reserve the right to make changes in the product
after that time without notice. For vehicles first sold
in Canada, substitute the name General Motors
of Canada Limited for Chevrolet Motor Division or
GMC whenever it appears in this manual.
Keep this manual with the owner manual in the
vehicle, so it will be there if it is needed. If
the vehicle is sold, leave this manual in the
vehicle.
Canadian Owners
For Canadian owners that would like to obtain a
French language manual, see “Canadian Owners”
in the Index of your vehicle’s owner manual.
Litho in U.S.A.
Part No. 15825631 A First Printing
©
2005 General Motors Corporation. All Rights Reserved.
2

Overview ..........................................................4
Navigation System Overview ..........................4
Getting Started ...............................................6
Cleaning the Video Screen ...........................13
Section 1 Overview
3

Overview

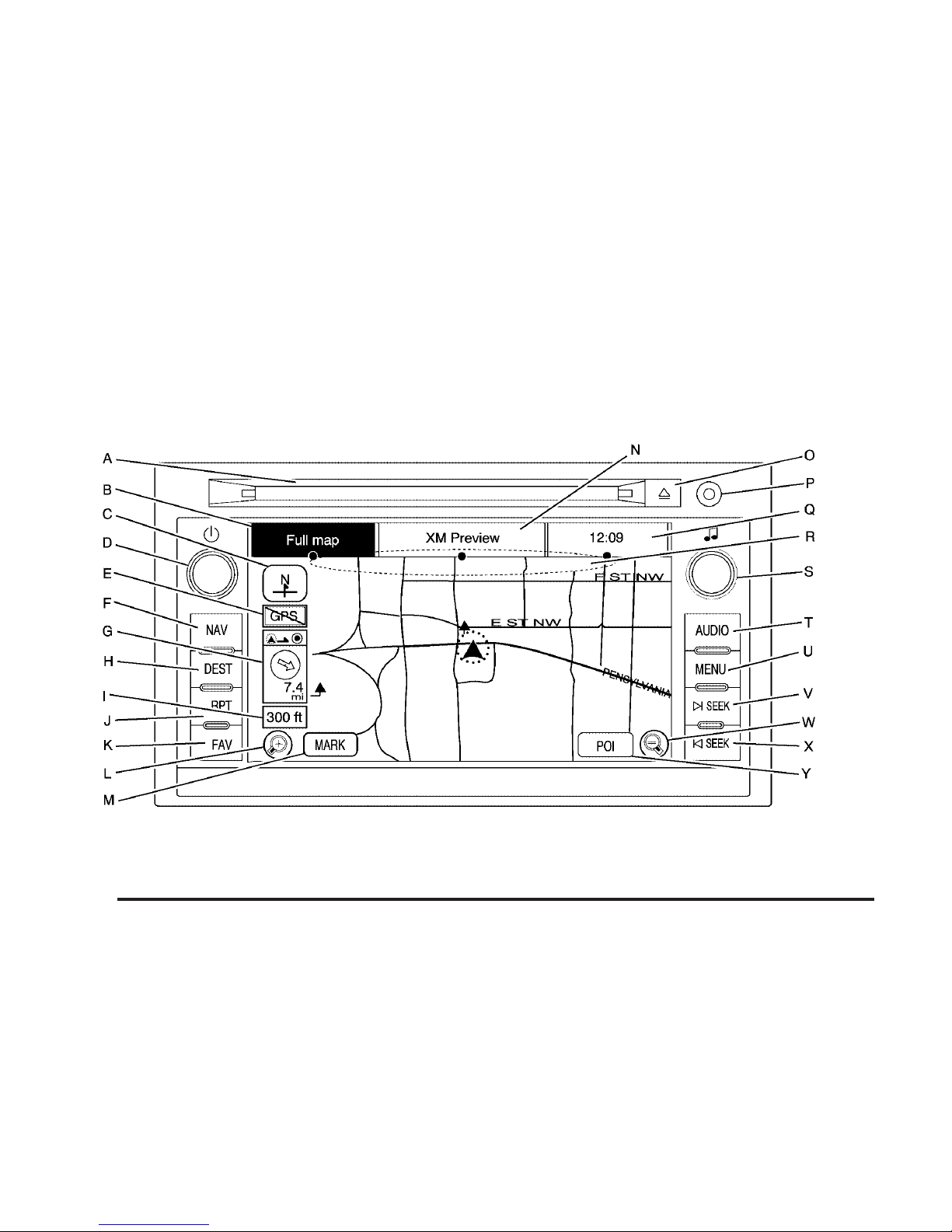

Navigation System Overview
Screen Shown with Map Disc Inserted
4

A. CD/DVD Slot. See CD Player on page 70 and
DVD Player on page 77 for more information.
B. FULL MAP Touch Screen Button. See
“NAV” under “Hard Keys” under Using the
Navigation System on page 16 for more
information.
C. North Up/Heading Up Symbol. See Symbols on
page 20 for more information.
D. O(Power/Volume) Knob. See Navigation
Audio System on page 60 for more information.
E. No GPS Symbol. See Symbols on page 20
for more information.
F. NAV (Navigation) Key. See “Hard Keys” under
Using the Navigation System on page 16
for more information.
G. Straight Line to Distance Symbol. See Symbols
on page 20 for more information.
H. DEST (Destination) Key. See Destination on
page 27 for more information.
I. Map Scale. See “Map Scales” under Maps on
page 18 for more information.
J. RPT (Repeat) Key. See “Hard Keys” under
Using the Navigation System on page 16
for more information.
K. FAV (Favorite) Key. See “Storing Preset
Stations” under Navigation Audio System on
page 60 for more information.
L. V(Zoom In) Touch Screen Button. See “Map
Scales” under Maps on page 18 for more
information.
M. Mark Touch Screen Button. See “Adding
Destinations to the Address Book” under
Destination on page 27 for more information.
N. Source (AM, FM, XM, CD, etc.) Touch
Screen Button. See Navigation Audio System
on page 60 for more information.
O. Z(CD/DVD Video/Audio Eject) Key. See CD
Player on page 70 and DVD Player on
page 77 for more information.
P. Auxiliary Jack. See Auxiliary Devices on
page 84 for more information.
Q. Clock Touch Screen Button. See Configure
Menu on page 43 for more information.
R. Map DVD Slot. See “Installing the Map DVD”
under Maps on page 18 for more information.
S. f(Tune/Sound) knob. See Navigation
Audio System on page 60 for more information.
5

T. AUDIO Key. See Navigation Audio System on
page 60 for more information.
U. MENU Key. See Configure Menu on page 43
for more information.
V. ¨SEEK Key (Next). See Navigation Audio
System on page 60 for more information.
W. U(Zoom Out) Touch Screen Button. See
“Map Scales” under Maps on page 18 for
more information.
X. ©SEEK Key (Previous). See Navigation Audio
System on page 60 for more information.
Y. POI (Point of Interest) Touch Screen Button.
See “Displaying Points of Interest (POI) on the
Map Screen” under Symbols on page 20 for
more information.
Getting Started
Before you begin to operate the navigation system,
read this manual thoroughly to become familiar with
it and to understand how the system works.
Keeping your mind on the drive is important for safe
driving. See “Defensive Driving” in the Index of your
vehicle’s owner manual for more information. Get
familiar with your vehicle’s navigation system so
you can use it with less effort and take full
advantage of its features. Your navigation system
includes not only navigation, but also audio
functions. While your vehicle is parked:
•Familiarize yourself with all of its controls: hard
keys on the faceplate and touch-sensitive
screen buttons.
•Familiarize yourself with its operation.
•Set up your audio by presetting your favorite
stations, setting the tone, and adjusting the
speakers. Then, when driving conditions
permit, you can tune to your favorite stations
using the presets and steering wheel controls
(if equipped).
•Set up the navigation features that can only be
done before you begin driving, such as entering
an address or a preset destination.
Entering a destination or alphanumeric text
requires many steps, so you can only perform
these operations when the vehicle is in PARK (P).
6

You will notice that touch-sensitive screen buttons
leading to the alphanumeric keyboard are
dimmed out while driving.
Other functions may also be locked out while
driving and they too will appear grayed out on the
screen — but all functions are available when
parked. Some functions can be performed while
driving, as long as you can do so without diverting
too much of your attention from your driving.
{CAUTION:
This system provides you with a far
greater access to audio stations and
song listings. Giving extended attention
to entertainment tasks while driving can
cause a crash and you or others can
be injured or killed. Always keep your
eyes on the road and your mind on the
drive — avoid engaging in extended
searching while driving.
{CAUTION:
Looking at the moving map on the
navigation screen frequently or for too
long while driving can cause a crash and
you or others can be injured or killed.
Keep your eyes and mind on the road and
avoid looking too long or too often at the
moving map on the navigation screen.
Use the voice guidance directions
whenever possible.
The navigation system allows you to do the
following:
•Plan a route with provided turn-by-turn route
and map guidance with voice prompts.
•Select a destination using various methods
and choices.
•Receive RDS broadcast announcements.
The information in the system may not always be
complete. Road conditions such as prohibited
turns, detours, and construction zones, change
frequently.
7

It is important to consider whether you can follow
the directions given by the system for the
current conditions.
Each time the vehicle is started and the navigation
system is turned on, the Caution screen or the
previous active screen will appear dependent
on system power off time. If the Caution
screen appears, touch OK to load the map
DVD information. If OK is not selected, all hard
keys except for NAV (Navigation) and DEST
(Destination) can be accessed. Once the NAV or
DEST hard keys are pressed, this Caution
screen will appear and OK must be pressed to
load the map DVD information from the map disc.
When getting started you may set the navigation
system to your preference using various
options. To do so, reference the following topics:
Language — English/Metric
To change the language of the navigation screens,
see “Driver Information Center, DIC Vehicle
Customization” in the Index of your vehicles
owner manual.
To change the navigation screens from English
or metric, see “Driver Information Center, DIC
Operation and Displays” in the Index of your
vehicles owner manual.
Storing Radio Station Presets
To set preset radio stations, do the following:
1. Press the O(power) knob to turn the
system on.
2. Press the AUDIO hard key and select the
desired band (AM, FM1, FM2, XM1, or
XM2 (if equipped)).
3. Use the f(tune) knob or the SEEK arrows
to tune to the desired station.
8

4. Press and hold one of the five preset screen
buttons, at the bottom of the screen, until you
hear a beep or see the station displayed
on the selected preset button.
5. Repeat the steps for each preset.
See “Storing Preset Stations” under Navigation
Audio System on page 60 for more information.
Setting the Time
To set the time, do the following:
1. Press the clock touch screen button located
in the upper right corner of the screen.
2. Press the SET screen button.
3. Press the Hours and Minutes −(minus) and
+ (plus) signs to decrease and to increase
the time. See “Setting the Time” under
Configure Menu on page 43 for more
information.
Setting the Search Area, Entering an
Address and Point of Interest, and
Storing Preset Destinations
Before entering an Address, Point of Interest,
Home, or Preset Destination, select the
appropriate region that contains the final
destination. Your vehicle must be in PARK (P)
to perform this operation.
Setting the Search Area
To set the search area, do the following:
1. Press the O(power) knob to turn the
system on.

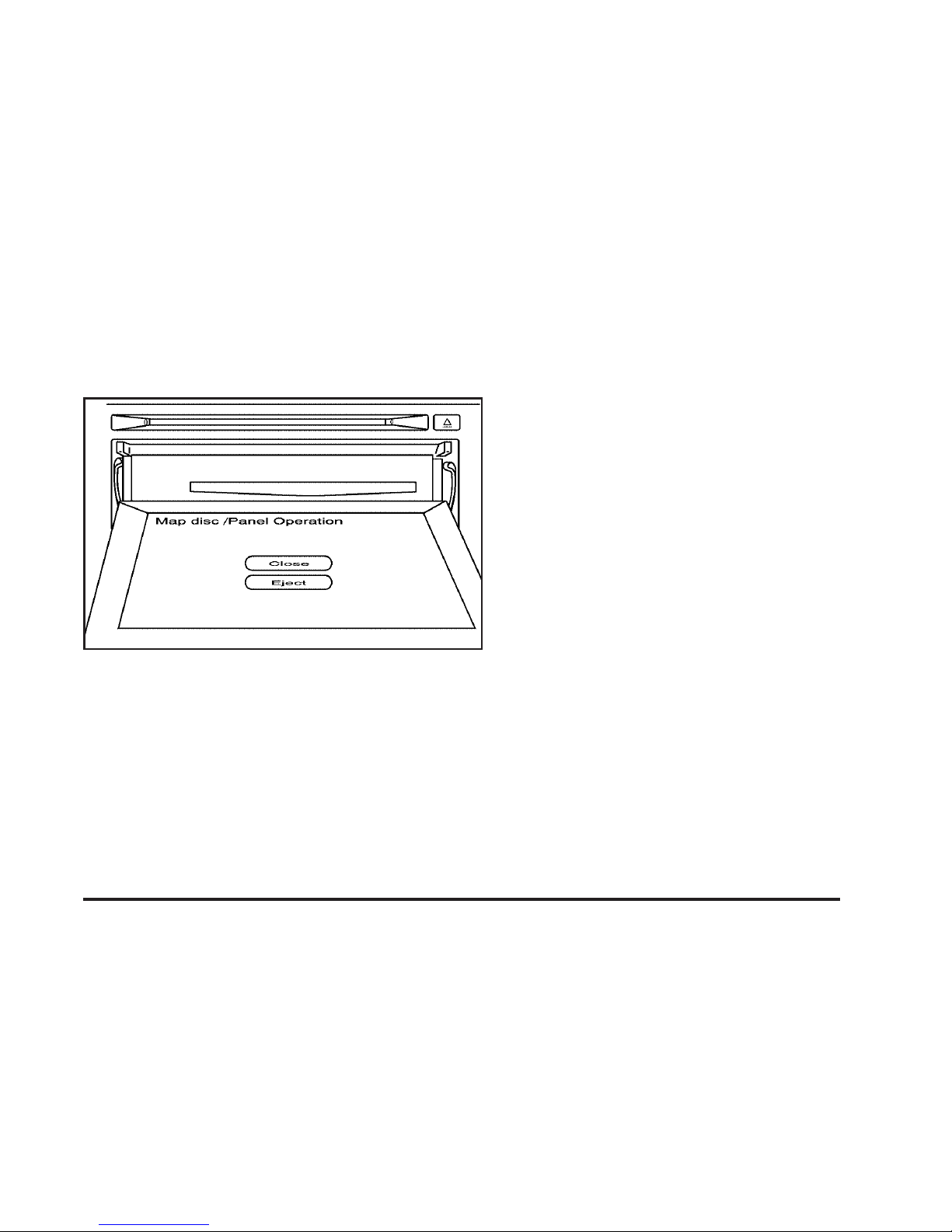

2. Insert the DVD map disc. See “Installing the
Map DVD” under Maps on page 18 for more
information.
3. A caution may appear. Touch the OK screen
button to proceed.
If the radio is already on with a map disc
inserted, press the DEST hard key.
4. Press the Change Search Area screen button.
5. Select the appropriate region numbered
screen button that contains your final
destination.
9

The system will return to the Destination Entry
menu. See Destination on page 27 for more
information.
Entering an Address
To set a destination by entering a street address,
do the following:
1. Press the O(power) knob to turn the
system on.
2. Insert the DVD map disc. See “Installing the
Map DVD” under Maps on page 18 for more
information.
3. A caution may appear. Touch the OK screen
button to proceed.
If the radio is already on with a map disc
inserted, press the DEST hard key.
4. Press the 6Address Entry screen button.
5. Select the street screen button and start
entering the street name.
Do not enter directional information or street
type, and use the space symbol screen button
(U) between street or city names. For
example, the street name N. Royal Oak Rd.
should be entered as royal Uoak. Use the
backspace ( V) screen button if an incorrect
character has been entered.
If five or less names are available, a list will
display. If more than five are available,
there will be a screen button with a number in
it, it represents the number of available
streets. Select this button to view the list.
6. Select the street name with the correct prefix
from the list (Dr., Ln., St., etc.).
7. Once a street has been selected the City
name category will automatically be selected
for entry.
If five or less cities are available for the selected
street, the system will display the list of cities.
If more than five cities are available the system
will display the alpha keyboard. Start entering
the city name. If five or less names are
available, a list will display. If more than five are
available, there will be a screen button with a
number in it, it represents the number of
available cities. Select this button to view the
list and select a city.
10

8. Once a city has been selected, the numeric
keyboard will display, allowing you to enter
the house number. The system will display the
house number range that is available for
the street.
9. Select the Go screen button. A map screen,
with the destination marked, will appear.
10. Select the route preference (Fastest, Shortest,
or Other). The system will calculate and
highlight the route.
11. Select the Start Guidance screen button.
You are now ready to start your route.
See “Address Entry ” under Destination on
page 27 for more information.
Entering a Point of Interest (POI)
To set a destination by entering a Point of
Interest (POI), do the following:
1. Press the O(power) knob to turn the
system on.
2. Insert the DVD map disc. See “Installing the
Map DVD” under Maps on page 18 for more
information.
3. A caution may appear. Touch the OK screen
button to proceed.
If the radio is already on with a map disc
inserted, press the DEST hard key.
4. Press the iPoint of Interest screen button.
5. Enter the specific title of the POI in the
POI name space (i.e. Washington Monument).
If five or less names are available, a list will
display. If more than five are available,
there will be a screen button with a number
in it, it represents the number of available
POIs. Select this button to view the list.
6. Select the Go screen button. A map screen,
with the destination marked, will appear.
7. Select the route preference (Fastest, Shortest,
or Other). The system will calculate and
highlight the route.
8. Select the Start Guidance screen button.
You are now ready to start your route.
See “Point of Interest (POI)” under Destination
on page 27 for more information.
11

Storing Preset Destinations
1. Press the O(power) knob to turn the
system on.
2. Insert the DVD map disc. See “Installing the
Map DVD” under Maps on page 18 for more
information.
3. A caution may appear. Touch the OK screen
button to proceed.
If the radio is already on with a map disc
inserted, press the DEST hard key.
4. Enter a destination. See Destination on
page 27 for information on how to enter
a destination.
5. Press the Mark screen button from the map
screen to add the current final destination as
a preset destination.
The address book screen will appear.
6. Select the Name screen button. An
alpha-keyboard will display. Enter the name.
7. Press and hold one of the screen buttons
at the bottom of the screen until a pop-up
confirmation displays.
The name will appear in that preset destination
screen button and is now available to select
from the Destination Entry screen. See “Using
Your Stored Preset Destinations” next in
this section to select it as a destination.
See “Adding or Changing Preset Destinations”
under Destination on page 27 for information
on how to add preset destinations.
Using Your Stored Preset Destinations
These destinations are available for selection
while driving.
1. Press the O(power) knob to turn the
system on.
2. Insert the DVD map disc. See “Installing the
Map DVD” under Maps on page 18 for more
information.
3. A caution may appear. Touch the OK screen
button to proceed.
If the radio is already on with a map disc
inserted, press the DEST hard key.
4. Select one of the available preset destination
screen buttons. A map, screen with the
destination marked, will appear.
12

5. Select the route preference (Fastest, Shortest,
or Other). The system will calculate and
highlight the route.
6. Select the Start Guidance screen button.
You are now ready to start your route.
See “Preset Destination” under Destination on
page 27 for more information.
Canceling Guidance
Guidance will be canceled once you arrive at your
final destination. To cancel guidance prior to
arrival at the final destination, do the following:
1. Press the DEST hard key.
2. Press the Cancel Guidance screen button.
Guidance Volume
To adjust the volume of voice guidance prompts,
do the following:
1. Press the MENU hard key to enter the menu
options, then press the MENU key repeatedly
until Nav is highlighted.
2. Press the >Voice Prompt screen button.
3. Press the + (plus) or – (minus) screen buttons
to increase or to decrease the volume of the
voice prompts.
See “Voice Prompt ” under Configure Menu on
page 43 for more information.
Cleaning the Video Screen
When cleaning the video screen, use only a soft
clean cotton cloth dampened with clean water.
13

✍NOTES
14

Features and Controls ...................................16
Using the Navigation System .......................16
Maps ...........................................................18
Symbols .......................................................20
Destination ...................................................27
Configure Menu ...........................................43
Rear Vision Camera .....................................51
Global Positioning System (GPS) .................56
Vehicle Positioning .......................................56
Problems with Route Guidance ....................57
If the System Needs Service ........................58
Ordering Map DVDs .....................................58
Database Coverage Explanations .................58
Section 2 Features and Controls
15

Features and Controls
Using the Navigation System
This section presents basic information needed to
operate the navigation system.
Use the hard keys located on the navigation
system along with the available touch-sensitive
screen buttons on the navigation screen to operate
the system. See Navigation System Overview
on page 4 for more information.
Once the vehicle is moving, various functions will
be disabled to reduce driver distractions.
Hard Keys
The following hard keys are located on the
navigation system:
O(Power/Volume): Press this knob to turn the
system on and off. Turn the knob to increase
or decrease the volume to the audio system.
If your vehicle has the Rear Seat Entertainment
(RSE) and Rear Seat Audio (RSA), press and hold
this knob for more than two seconds to turn off
the navigation system, the RSE, and RSA.
f(Tune/Speaker Adjustment): Press this knob
to access the Sound screen to adjust bass,
midrange, treble, and equalization or Digital Signal
Processing (DSP), if the vehicle has the Bose
®
sound system. Turn the tune knob to go to the next
or previous radio station. See Navigation Audio
System on page 60 for more information.
Z(CD/DVD Eject): Press the eject button to
eject CDs or DVDs.
NAV (Navigation): Press this key to view your
vehicle’s current position on the map screen. Each
press of this key will cycle through Full Map and
the tab that displays the current audio source (AM,
FM, CD, etc.). Full Map displays the screen in
full map view. Selecting the audio tab will split the
screen between the map screen and the current
audio source screen menu. See “Audio” under
Navigation Audio System on page 60 for
more information.
DEST (Destination): Press this key to access
the Destination Entry screen to plan a destination
or to change the search area. See Destination
on page 27 for more information.
16

RPT (Navigation Repeat): Press this key to
repeat the last voice guidance prompt.
FAV (Favorite): Press this key to access the
preset stations. See “Storing Preset Stations”
under Navigation Audio System on page 60 for
more information.
AUDIO: Press this key to access the full Audio
screen to change AM, FM, XM™ Satellite
Radio Service (if equipped), CD, DVD
(if equipped), and auxiliary input. See “Audio”
under Navigation Audio System on page 60
for more information.
MENU: Press this key to adjust features for
sound, radio, navigation, and the display. See
Configure Menu on page 43 for more information.
¨SEEK / ©SEEK: Press the seek arrows
to seek and scan radio stations, to seek tracks
on a CD, and to seek chapters on a DVD.
See Navigation Audio System on page 60,
CD Player on page 70, and DVD Player on
page 77 for more information.
Touch-Sensitive Screen Buttons
Touch-sensitive screen buttons, or screen buttons,
are located on the screen. When a screen
button has been selected, a beep will sound.
Screen buttons are highlighted when a feature
is available.
Alpha-Numeric Keyboard
Letters of the alphabet, symbols, punctuation,
and numbers, when available, will display on the
navigation screen as an alpha or numeric
keyboard. The alpha keyboard will display when
the system requires entry of a city or street name.
All characters are touch-sensitive screen
buttons. Touch a character to select it.
A-Y (Accent Alphabet): Select this screen button
to select letters with accent symbols. This button
may toggle to A-Z.
A-Z (Alphabet): Select this screen button to
select letters from the alphabet. This button may
toggle to A-Y.
0-9 (Numbers): Select this screen button to
select numbers.
17

U(Space): Select the space screen button to
enter a space between characters or the words
of a name.
q(Backspace): Select the backspace screen
button if an incorrect character has been selected.
To make name selections easier, the system
will only highlight the characters that can follow
the last one entered. For example, if a Z is
entered, a T may not be available for selection.
If a name does not display after entry, it may need
to be entered differently, the map DVD disc may
not contain that information, or the correct
search area has not been selected. See Database
Coverage Explanations on page 58 for more
information or Destination on page 27 to change
the search area.
Maps
This section includes basic information needed
to know about the map database.
Regional Maps
The maps are stored on a DVD. The 48 contiguous
United States and portions of Canada are
contained on one disc.
If a regional map does not contain a specific city,
the map DVD may not contain the city or it
may have been misspelled when entered.
Refer to the Navigation System Map Disc manual
to view a detailed explanation of map coverage
and detailed city lists in each region. This manual
will be inside the map DVD case when the
vehicle is delivered from the factory.
Installing the Map DVD
When your vehicle is delivered from the factory,
the dealer may have installed the map DVD. If the
map DVD was not installed, use the following
directions to load it:
Read the following steps completely before
operating this feature.
1. Turn the ignition on.
2. Press the O(power) knob to turn the
navigation system on.
18

3. Touch the OK screen button to agree to the
Caution screen.
4. Touch the Insert Map Disc screen button. The
screen will tilt to access the map DVD slot.
5. Load the map DVD partway into the slot. The
system will pull it in.
6. Once the map DVD is loaded, touch the
Close screen button. The screen will close.
Map Adjustments
The system allows you to adjust the scale of
view on the map. Also, as you drive, the map
will scroll automatically based on the direction
of travel.
Map Scales
V/U(Zoom In/Zoom Out): Touch the zoom in
or out screen buttons or the scale on the bar to
change the level of map detail. The scale will
appear on the screen once the zoom in or zoom
out screen buttons are selected. The system
will adjust the map accordingly. The scale of a
map can range from 150 ft. (45 m) to 250 mi.
(402 km). To change from English or metric, see
“Driver Information Center, DIC Operation and
Displays” in the Index of your vehicle’s owner
manual.
19

Scrolling the Map
Touch anywhere on the
map screen and the
scroll symbol will
appear. Use this feature
to scroll across the map.
Move your finger in any direction on the map
screen and the map will continue to scroll in
that direction until you remove your finger.
If scrolling while your vehicle is in PARK (P),
the system will scroll initially at a slower rate.
It will increase if you continue touching the
map screen.
If scrolling while your vehicle is in motion, you
have one scroll speed and a limited distance to
scroll. You have to keep touching the map screen
to scroll for a longer distance.
If you have used the scroll feature to scroll the
map and your vehicle icon becomes lost, press
the NAV (Navigation) key to return to the current
vehicle location on the map.
You can use the scroll feature on the map to
set a destination. See “Pick from Map” under
Destination on page 27 for more information.
When scrolling on the map without a planned route,
press the GO screen button to calculate the route
from your current position to the destination mark.
Symbols
The following symbols are the most common
symbols that will appear on a map screen.
Your vehicle is shown
as this symbol. It
indicates the current
position and heading
direction of your vehicle
on the map.
20
