Chevrolet 2008 Optra User manual

Seats and Restraint Systems ........................... 1-1
Front Seats ............................................... 1-2
Rear Seats ............................................... 1-8
Safety Belts ............................................. 1-10
Child Restraints ....................................... 1-27
Airbag System ......................................... 1-51
Restraint System Check ............................ 1-66
Features and Controls ..................................... 2-1
Keys ........................................................ 2-2
Doors and Locks ....................................... 2-6
Windows ................................................. 2-11
Theft-Deterrent Systems ............................ 2-14
Starting and Operating Your Vehicle ........... 2-17
Mirrors .................................................... 2-34
Storage Areas ......................................... 2-36
Sunroof .................................................. 2-39
Instrument Panel ............................................. 3-1
Instrument Panel Overview .......................... 3-4
Climate Controls ...................................... 3-19
Warning Lights, Gages, and Indicators ........ 3-24
Audio System(s) ....................................... 3-41
Driving Your Vehicle ....................................... 4-1
Your Driving, the Road, and Your Vehicle ..... 4-2
Towing ................................................... 4-23
Service and Appearance Care .......................... 5-1
Service ..................................................... 5-4
Fuel ......................................................... 5-6
Checking Things Under the Hood ............... 5-10
Headlamp Aiming ..................................... 5-40
Bulb Replacement .................................... 5-40
Windshield Wiper Blade Replacement ......... 5-48
Tires ...................................................... 5-49
Appearance Care ..................................... 5-79
Vehicle Identification ................................. 5-87
Electrical System ...................................... 5-88
Capacities and Specifications ..................... 5-94
Maintenance Replacement Parts ................. 5-95
Maintenance Schedule ..................................... 6-1
Maintenance Schedule ................................ 6-2
Customer Assistance Information .................... 7-1
Customer Assistance and Information ........... 7-2
Reporting Safety Defects ........................... 7-13
Vehicle Data Recording and Privacy ........... 7-16
Index ................................................................ 1
2008 Chevrolet Optra Owner Manual M

GENERAL MOTORS, GM, the GM Emblem,
CHEVROLET, the CHEVROLET Emblem, and the
name OPTRA are registered trademarks of General
Motors Corporation.
This manual includes the latest information at the time it
was printed. We reserve the right to make changes
after that time without further notice. For vehicles first
sold in Canada, substitute the name “General Motors of
Canada Limited” for Chevrolet Motor Division whenever
it appears in this manual.
This manual describes features that may be available in
this model, but your vehicle may not have all of them.
For example, more than one entertainment system may
be offered or your vehicle may have been ordered
without a front passenger or rear seats.
Keep this manual in the vehicle for quick reference.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer/retailer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Propriétaires Canadiens
On peut obtenir un exemplaire de ce guide en français
auprès de concessionnaire ou à l’adresse suivante:
Helm Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Litho in U.S.A.
Part No. 25810495 A First Print
©
2007 General Motors Corporation. All Rights Reserved.
ii

Using this Manual
Many people read the owner manual from beginning
to end when they first receive their new vehicle to
learn about the vehicle’s features and controls.
Pictures and words work together to explain things.
Index
A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is
an alphabetical list of what is in the manual and
the page number where it can be found.
Safety Warnings and Symbols
There are a number of safety cautions in this book.
A box with the word CAUTION is used to tell about
things that could hurt you or others if you were to ignore
the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.
We tell you what the hazard is and what to do to help
avoid or reduce the hazard. Please read these cautions.
If you do not, you or others could be hurt.
A circle with a slash
through it is a safety
symbol which means
“Do Not,” “Do Not do
this” or “Do Not let this
happen.”
iii

Vehicle Damage Warnings
You will also find notices in this manual.
Notice: These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly.
The notice tells what to do to help avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors or
in different words.
There are also warning labels on the vehicle which use
the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along with
the text describing the operation or information
relating to a specific component, control, message,
gage, or indicator.
iv

Front Seats ......................................................1-2
Manual Seats (With Sliding Storage Tray) ..........1-2
Manual Seats (Without Sliding Storage Tray) ......1-3
Driver Seat Tilt Adjuster ..................................1-4
Manual Lumbar ..............................................1-4
Reclining Seatbacks ........................................1-5
Head Restraints .............................................1-7
Rear Seats .......................................................1-8
Rear Seat Operation .......................................1-8
Safety Belts ...................................................1-10
Safety Belts: They Are for Everyone ................1-10
How to Wear Safety Belts Properly .................1-15
Lap-Shoulder Belt .........................................1-23
Safety Belt Use During Pregnancy ..................1-26
Safety Belt Extender .....................................1-26
Child Restraints .............................................1-27
Older Children ..............................................1-27
Infants and Young Children ............................1-30
Child Restraint Systems .................................1-33
Where to Put the Restraint .............................1-36
Lower Anchors and Tethers for Children
(LATCH) ..................................................1-37
Securing a Child Restraint in a Rear
Seat Position ............................................1-45
Securing a Child Restraint in the Right Front
Seat Position ............................................1-48
Airbag System ...............................................1-51
Where Are the Airbags? ................................1-54
When Should an Airbag Inflate? .....................1-56
What Makes an Airbag Inflate? .......................1-57
How Does an Airbag Restrain? .......................1-57
What Will You See After an Airbag Inflates? .....1-58
Passenger Sensing System ............................1-59
Servicing Your Airbag-Equipped Vehicle ...........1-64
Adding Equipment to Your Airbag-Equipped
Vehicle ....................................................1-64
Restraint System Check ..................................1-66
Checking the Restraint Systems ......................1-66
Replacing Restraint System Parts After
a Crash ...................................................1-67
Section 1 Seats and Restraint Systems
1-1

Front Seats
Manual Seats
(With Sliding Storage Tray)
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
If your vehicle has a sliding storage tray under the front
seat, the manual seat lever looks like this.
Pull up and hold the lever
located under the front of
the seat to unlock it.
Slide the seat to where you want it and release the
lever. Then try to move the seat with your body, to make
sure the seat is locked into place.
1-2

Manual Seats
(Without Sliding Storage Tray)
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
If your vehicle does not have a sliding storage tray
under the front seat, the manual seat bar looks like this.
Pull up and hold the bar
located under the front of
the seat to unlock it.
Slide the seat to where you want it and release the bar.
Then try to move the seat with your body, to make
sure the seat is locked into place.
1-3

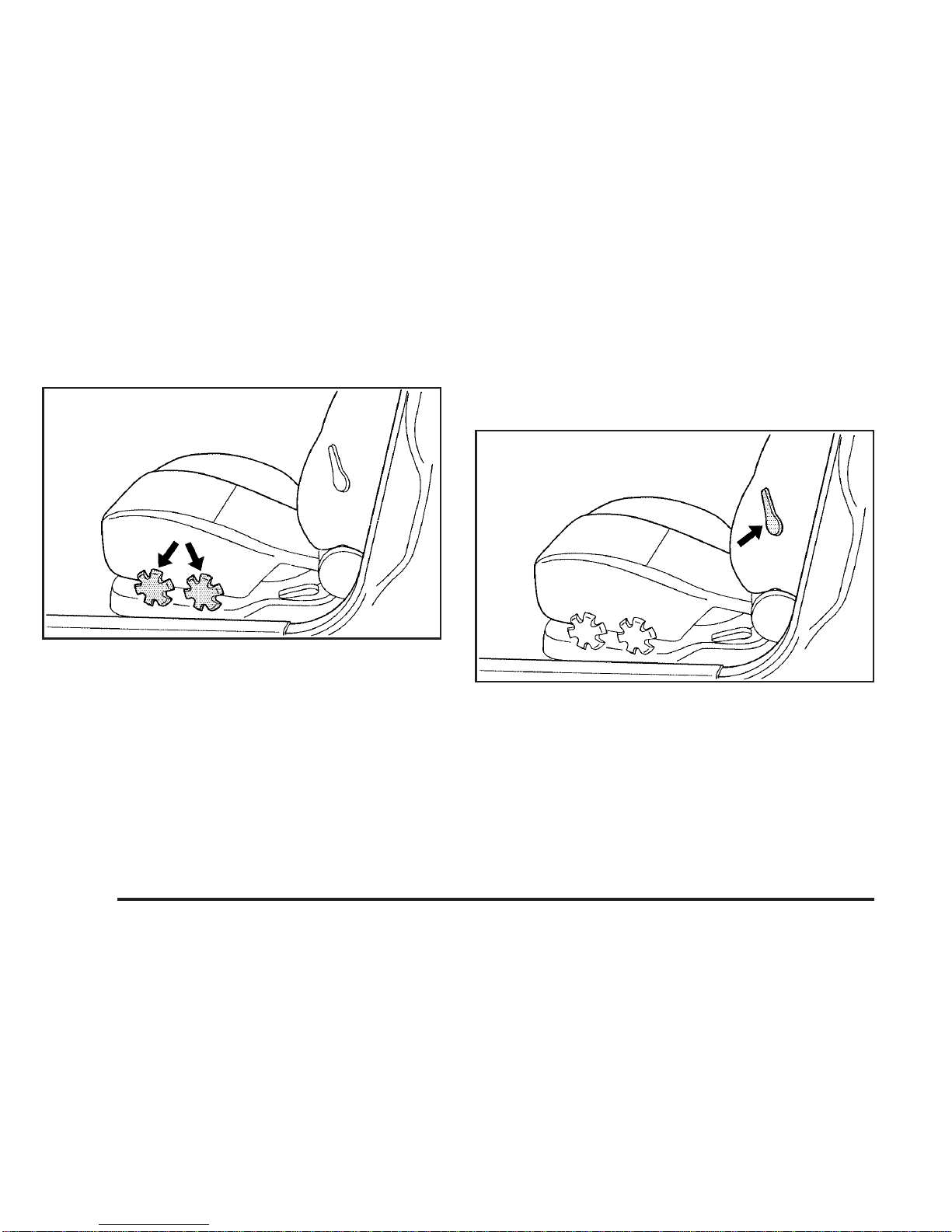

Driver Seat Tilt Adjuster
The manual drivers seat tilt adjuster knobs are located
on the outboard side of the seat cushion.
Turn the front knob to adjust the tilt of the front portion
of the seat cushion. Turn the rear knob to adjust the
tilt of the rear portion of the seat cushion.
Manual Lumbar
Your vehicle may have manually operated lumbar
support for the driver’s seat.
To adjust the front seat lumbar support, use the lever
located on the outboard side of the seatback.
Push the lever down to adjust the support for the lower
part of the seatback. Pull the lever up to return the
support to its original position.
1-4

Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
The seats have manual reclining seatbacks. The lever
used to operate them is located on the outboard side of
the seats.
To recline the seatback:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it
is locked.
1-5

To return the seatback to an upright position:
1. Lift the lever fully without applying pressure to the
seatback and the seatback will return to the upright
position.
2. Push and pull on the seatback to make sure it
is locked.
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash, you could go into it,
receiving neck or other injuries.
The lap belt cannot do its job either. In a
crash, the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
Do not have a seatback reclined if your vehicle is moving.
1-6

Head Restraints
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chances of a neck injury
in a crash.
Pull the head restraint up to raise it. To lower the
restraint, press the button, located on the top of the
seatback, and push the restraint down.
The rear seat head restraints may be adjustable and
work the same as the front head restraints.
The head restraints are removable. To remove a
restraint, press the button, located on the top of the
seatback, and lift the head restraint from the guide
sleeve. Replace the head restraint before driving.
1-7

Rear Seats
Rear Seat Operation
Your vehicle has rear seatbacks that can be folded
down to provide an extended cargo area.
To fold down the seatback, do the following:
Notice: Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1. Push the rear head restraints down completely.
2. Detach the safety belt in the rear center seat
position. Press the button in the buckle to release
the latch plate from the buckle.

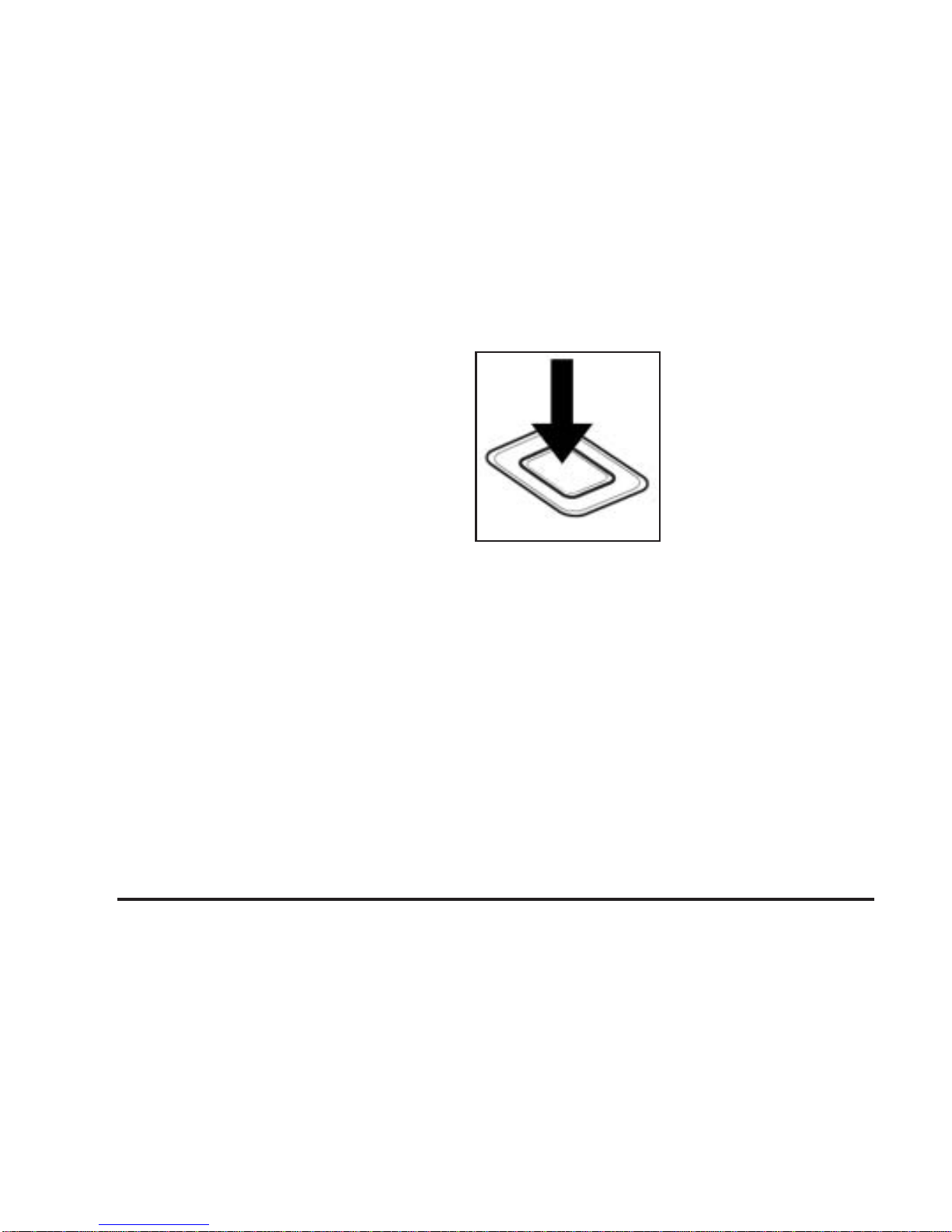

3. Press the release
button located on top
of the rear seatback.
4. Fold the rear seatback forward and down.
1-8

To return the seatback to the upright position, do the
following:
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
1. Lift the seatback up and push firmly on the top of
the seatback until it latches securely in the fully
upright position.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
2. Make sure that the safety belts are not twisted or
caught under the seatback.
3. Re-attach the rear center safety belt. Push the
latch plate at the end of the safety belt strap
into the buckle with the release button until the
mechanism clicks. Make sure the strap is not
twisted. The sliding latch plate should face the
front of the vehicle.
1-9

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle harder or be ejected
from it and be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passenger(s) are
restrained properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has indicators as a reminder to buckle your
safety belts. See Safety Belt Reminders on page 3-27.
In most states and in all Canadian provinces, the
law requires wearing safety belts. Here is why:
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a serious one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
After more than 40 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter... a lot!
1-10

Why Safety Belts Work
When you ride in or on anything, you go as fast as it goes.
Take the simplest vehicle. Suppose it is just a seat on
wheels.
Put someone on it.
1-11

Get it up to speed. Then stop the vehicle. The rider
does not stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield...
1-12

or the instrument panel... or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That is why
safety belts make such good sense.
1-13

Questions and Answers About
Safety Belts
Q: Will I be trapped in the vehicle after a crash if I
am wearing a safety belt?
A: You could be — whether you are wearing a safety
belt or not. But your chance of being conscious
during and after an accident, so you can unbuckle
and get out, is much greater if you are belted.
And you can unbuckle a safety belt, even if you are
upside down.
Q: If my vehicle has airbags, why should I have to
wear safety belts?
A: Airbags are supplemental systems only; so they
work with safety belts — not instead of them.
Whether or not an airbag is provided, all occupants
still have to buckle up to get the most protection.
That is true not only in frontal collisions, but
especially in side and other collisions.
Q: If I am a good driver, and I never drive far from
home, why should I wear safety belts?
A: You may be an excellent driver, but if you are in a
crash — even one that is not your fault — you and
your passenger(s) can be hurt. Being a good
driver does not protect you from things beyond your
control, such as bad drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of serious
injuries and deaths occur at speeds of less than
40 mph (65 km/h).
Safety belts are for everyone.
1-14

How to Wear Safety Belts Properly
This section is only for people of adult size.
Be aware that there are special things to know about
safety belts and children. And there are different
rules for smaller children and babies. If a child will be
riding in your vehicle, see Older Children on page 1-27
or Infants and Young Children on page 1-30. Follow
those rules for everyone’s protection.
It is very important for all occupants to buckle up.
Statistics show that unbelted people are hurt more often
in crashes than those who are wearing safety belts.
Occupants who are not buckled up can be thrown out of
the vehicle in a crash. And they can strike others in
the vehicle who are wearing safety belts.
First, before you or your passenger(s) wear a safety
belt, there is important information you should know. Sit up straight and always keep your feet on the floor in
front of you. The lap part of the belt should be worn
low and snug on the hips, just touching the thighs. In a
crash, this applies force to the strong pelvic bones
and you would be less likely to slide under the lap belt.
If you slid under it, the belt would apply force on your
abdomen. This could cause serious or even fatal
injuries. The shoulder belt should go over the shoulder
and across the chest. These parts of the body are
best able to take belt restraining forces.
The shoulder belt locks if there is a sudden stop or crash.
1-15

Q: What is wrong with this?
A: The shoulder belt is too loose. It will not give as
much protection this way.
{CAUTION:
You can be seriously hurt if your shoulder belt
is too loose. In a crash, you would move
forward too much, which could increase injury.
The shoulder belt should fit snugly against
your body.
1-16
