Supplement to the 1997 Chevrolet Lumina and Monte Carlo Owner’s Manuals
This is a correction toinformationfound onpage 2-34and 2-35 (Lumina)and page 2-34 (Monte Carlo).
Daytime Running Lamps / Automatic
Headlamp Control
Daytime Running Lamps (DRL)can make it easier
for others to see the front of your vehicle during the
day. DRL can be helpful in many different driving
conditions,but they can be especially helpful in the
shortperiods after dawn and before sunset.
A light sensor
on top of the instrumentpanelmakes
the DRL work,
so be sureit isn’t covered.
The DRL system will make your high-beam headlamps
come on at
a reduced brightness when:
The ignitionis on,
The headlamp switchis off and
The parking brake is released.
When the DRL areon, only your reduced intensity
high-beam headlampswill be on. The taillamps,
sidemarkerand otherlampswon’t be on.Your
instrument panelwon’tbe lit up either.
When it’sdark enough outside, yourDRL will turnoff
and yourlow-beam headlamps will turn on.The other
lamps that come on withyour headlampswill also
comeon.
When it’s brightenough outside, the low-beam
headlamps willgo out and DRLturns on your
high-beam headlampsat reduced intensity.
To idle your vehicle with the DRL
off, set theparking
brake whilethe ignitionis in
OFF or LOCK. Then start
your vehicle.The DRL will stay off until you release
the parking brake.
As with any vehicle, youshould turn on the regular
headlampsystem whenyou need it.
97LUMWCARL0001
1

e
/ This is a correction to information found on page 6-58 and 6-59 for Lumina and Monte Carlo.
1
I Instrument Panel Fuse Block
Circuit
BreakerDescription
B
C
D
E
Fuse
1
Not Used
Power Windows
Power Seats
Not Used
Rating Description
Cigar Lighter--InstrumentPanel and
Console Cigar Lighters
Not Used
Not Used
HVAC
-- HVAC Control Assembly
Solenoid
Box, Mix Motor, DRL Module,
HVAC Control Head, Defogger Relay,
(S.E.O.) Digital Speedometer
5
6
Hazard Flasher
R.H. Spot Lamp
(S.E.O.)
A
2
Not Used

This is a correction to informution found onpage 6-58 and 6-59 for Lumina and Monte Carlo.
Fuse Rating Description
Fuse
7
8
9
10
Rating Description
StarterRelay 17 Not Used
18
Not Used
Not Used
19
Power Accessory #1 -- Door Lock
Switches, Trunk Courtesy Lamp,
O/S
Mirror Switch, (S.E.O.) Emergency
Vehicle-RearCompartmentLid Lamp or
Window Panel Lamps
Not Used
YP Electronics Battery
-- Chime
Module, Electronic Brake Control
Module (EBCM),Theft-Deterrent
Module, Radio DLC
11 20 Steering Wheel Control#2
-- Steering
Wheel Radio Controls
Power Accessory
##2 -- Sunroof Control
Unit,
(S.E.O.) Accessory Feed 21
22
Air Bag
-- Air BagSystem
12 Anti-Theft/PCM
-- Theft-Deterrent
Module, Powertrain Control Module,
(PCM) IGNSyst.Relay Cruise Control
-- Cruise Control Cut-Out
Switch, Cruise Control Module, Turn
SignalCruise ControlSwitches
13 ABS
-- Electronic Brake Control Module
(EBCM),ABS Relay 23 Stoplamps
-- Stoplamp Switch (Brake)
14 HVAC BlowerMotor
-- Blower Motor
Relay 24 Not Used
25 EnglisWMetric (S.E.O.)
Not Used
15
16
L.H. SpotLamp (S.E.O.)
SteeringWheel Control
#1 -- Steering
Wheel Radio Control Lighting
26
27 Not Used

: This is a correctionto information found on page 6-58 and 6-59 forMinaand Monte Carlo.
1 Fuse
28
29
30
31
32
33
34
35
36
37
Rating Description FuseRatingDescription
CTSY Lamps -- Vanity Mirrors,UP
CompartmentLamp,
US Lighted
Rearview Mirror, Dome Lamp
Wiper
-- Wiper Switch
Turn Signal
-- Turn SignalFlasher
Not Used
Power Locks
-- Door Lock Relay,
Remote KeylessEntry Receiver
DRL MDL
-- Daytime Running Lamp
Module, (S.E.O.) AccessorySwitch
Not Used
Not Used
Not Used
Rear Defog
-- Rear Window Defogger
SwitchRelay
38
39
Radio -- Radio, Power Drop
I/P Electronics Ignition Feed
--
Headlamp Switch,InstrumentCluster,
Chime Module, Keyless Entry Receiver,
Stoplampswitch(TCC and BTSI)
(S.E.O.) Accessory Switch
40
41
42
43
44
45
Not Used
Power Drop
Evap.
Sol. -- Evaporation Emissions
(EVAP) Canister Vent SolenoidValve
Not Used
Not Used
Not Used
4

0 The 1997 Chevrolet Lumina Owner’s Manual
1-1
2-1
3- 1
4-1
5-1
6-1
7-1
8-1
9- 1
Seats and Restraint Systems
This section tellsyou how to use yourseats and safety belts properly. It also explains the “air bag” system.
Features and Controls
This section explains how to start and operate your Chevrolet.
Comfort Controls and Audio Systems
This section tells you how to adjust the ventilation and comfort controls and how to operate your audio system.
Your Driving and the Road
Here you’llfindhelpful information and tips about the road and how to drive under different conditions.
Problems on the Road
This section tells what todo if you have a problem while driving, suchas a flat tire or overheated engine, etc.
Service and Appearance Care
Here the manual tells youhow to keep your Chevrolet running properly and looking good.
Maintenance Schedule
This section tells you when to perform vehicle maintenance and what fluids and lubricants to use.
Customer Assistance Information
This section tells you how to contact Chevrolet for assistance andhow to get service and owner publications.
It also gives you information on “Reporting Safety Defects” on page
8-10.
Index
Here’s an alphabetical listing of almost every subject in this manual.You can useit to quickly find
something you want to read.
i

GENERAL MOTORS, GM, the GM Emblem,
CHEVROLET, the CHEVROLET Emblem and the
name LUMINAare registered trademarksof
GeneralMotors Corporation.
Thismanual includesthe latest information atthe time it
was printed.We reserve the right
to make changes in the
product after thattime without further notice.For
vehicles first sold
in Canada,substitute the name
“GeneralMotors of CanadaLimited” forChevrolet
Motor Division wheneverit appears in this manual.
Pleasekeep
this manual in your Chevrolet, so it will be
there if you ever needit when you’re on the road.If you
sell the vehicle, please leave this manual init
so the new
owner can use it.
WE SUPPORT
VOLUNTARY TECHNICIAN
CERTIFICATION THROUGH
National Institute for
AUTOMOTIVE
SERVICE
EXCELLENCE
We support voluntary
technician certification.
For Canadian Owners Who Prefera
French Language
Manual:
Aux proprigtaires canadiens: Vous pouvez vous
procurer
un exemplairede ce guideen frangais chez
votre concessionaireou au:
DGN Marketing Services Ltd.
1500 Bonhill Rd.
Mississauga, Ontario
L5T 1C7
Litho in U.S.A. @CopyrightGeneralMotors Corporation
1996
Part No. 10292306 C First Edition All Rights Reserved
ii
11

The dynamic William C. “Billy”
Durant shifiedgearsfrom making
carriages to making cars,
forming half the team thatgave
birth to Chevrolet.
Louis Chevrolet, the other half
of the team,
at the wheel
of his experimental “Classic
Six, ” which enteredproduction in I91 2.
That year 2999 vehicles wereproduced.

, -.
1
iv
I
\
I I
I The legacy of America'sfavoritesportscar ;
I began in 1953, when31 9 hand-assembled I
In 1932 Chevrolet
introducedthewhite Corvettes
;
Synchro-Mesh launched the I
transmissionand first use of a
oflered
a host of
fiberglassbody in I
accessories -- including a productioncar:
such niceties asa clock!
I
I
t
I
- - - - - - - - - - - -1

r""'-"--'-"""
I
I
I
I
I
I I .
:, ..:: ~
I
public -- and was powered by an availablefuel-injected V8.
I I
I
I
The 1957 Chevystarted a romance with the American
60's automotive excitement
included Chevrolet landmarks
like the Corvette Sting Ray,
the sporty Camaro,and
powerplants like the
legendary
327 V8.
I
I
Your new Chevrolet continues a tradition of quality and value.
V

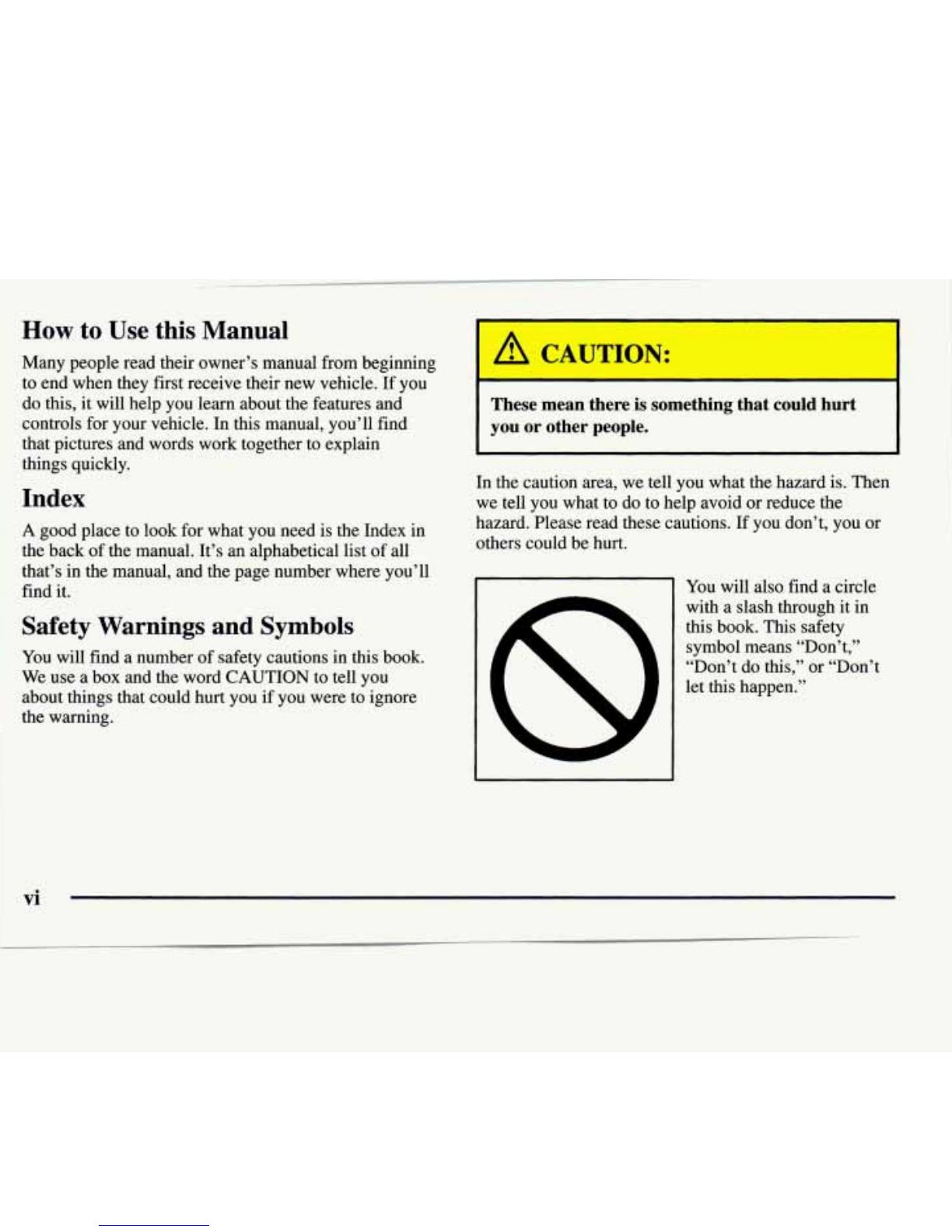

How to Use this Manual
Many people read their owner’s manualfrombeginning
to end when theyfirst receive theirnew vehicle.
If you
do this, it will help you learnaboutthe features and
controls for your vehicle. In this manual, you’ll find
that pictures and words work togetherto explain
things quickly.
Index
A good place to lookfor what you need is the Index in
the backof the manual. It’s an alphabetical listof all
that’s in the manual, andthe page number where you’ll
find it.
Safety Warnings and Symbols
You will find a numberof safety cautions in this book.
We use a box and the word CAUTION to tell you
about things that could hurtyou if youwere to ignore
the warning.
vi
I
I
’
A CAUTION:
These mean there is something that could hurt
you or other people.
In the caution area,we tell you what the hazard is. Then
we tell you what to
do to help avoid or reduce the
hazard. Please read these cautions.If you don’t, you or
others could be hurt.
A You will also find a circle
with a slash throughit in
this book.This safety
symbol means “Don’t,”
“Don’t
do this,” or “Don’t
let thishappen.’’

Vehicle Damage Warnings
Also, in this book you will find these notices:
I NOTICE:
These mean thereissomething that could
damage your vehicle.
In the notice area, we tell youabout somethingthat
can damageyour vehicle. Many times, thisdamage
would not becoveredby your warranty, andit could
be costly.But the notice will tell you what todo to help
avoidthe damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or in different words.
You’ll alsosee warning labels on your vehicle. They use
the same words, CAUTION
or NOTICE.
vii

Vehicle Symbols
These are some of the symbols you may find on your vehicle.
For example,
these symbols
areused on an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT
EYES BY
SHIELDING
Q
CAUSTIC
BURNS
AVOID
SPARKS
OR
FLAMES
FLAME
EXPLODE
BATTERY
These symbols
are important
foryou and
your passengers
whenever your
vehicle is
driven:
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
‘tl
These symbols
have
to do with
your lamps:
SIGNALS e e
TURN
FOG LAMPS # 0
These symbols
are on some
of
your controls:
WDSHIELD
WIPER
WINDSHIELD
DEFROSTER
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE k
CHARGING I-1
BATTERY
SYSTEM
BRAKE (a)
COOLANT
a
ENGINE OIL e,
PRESSURE
ANTI-LOCK
(a)
BRAKES
Here are some
other symbols
you may see:
FUSE -%-
P
LIGHTER m
HORN )a
SPEAKER
b
FUEL p3
viii

0 Sectio-- 1
Seats and Restraint Systems
Here you’ll find information about the seats in your Chevrolet and how to use your safety belts properly. You can also
learn about some things you should
not do with air bags and safety belts.
1-2
1-6
1-10
1-11
1-12
1-19
1-20
1-20
1-26
1-27
Seats and Seat Controls
Safety Belts: They’re for Everyone
Here Are Questions Many People Ask About
Safety Belts
-- and the Answers
How to Wear Safety Belts Properly
Driver Position
Safety Belt Use During Pregnancy
Right Front Passenger Position
Air Bag System
Center Passenger Position
Rear Seat Passengers
1-30
1-32
1-34
1-48
1-56
1-59
1-59
1-60
Rear Safety Belt Comfort Guides for Children
and Small Adults
Children
Built-in Child Restraint (Option)
Child Restraints
Larger Children
Safety Belt Extender
Checking Your Restraint Systems
Replacing Restraint System Parts After
a Crash
1-1

Seats and Seat Controls
This section tellsyou how to adjust the seatsand
explains reclining seatbacks and head restraints.
2-Way Manual Front Seat
I A CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is
moving. The sudden movement could startle and
confuse you,
or make you push a pedal when you
don’t want to. Adjust the driver’s seat only when
the vehicle
is not moving.
Lift the bar under the frontof the seat to unlock it.Slide
the seat to where you
want it and release the bar. Try to
move the seat with your body to be sure the seat is
locked into place.
1-2

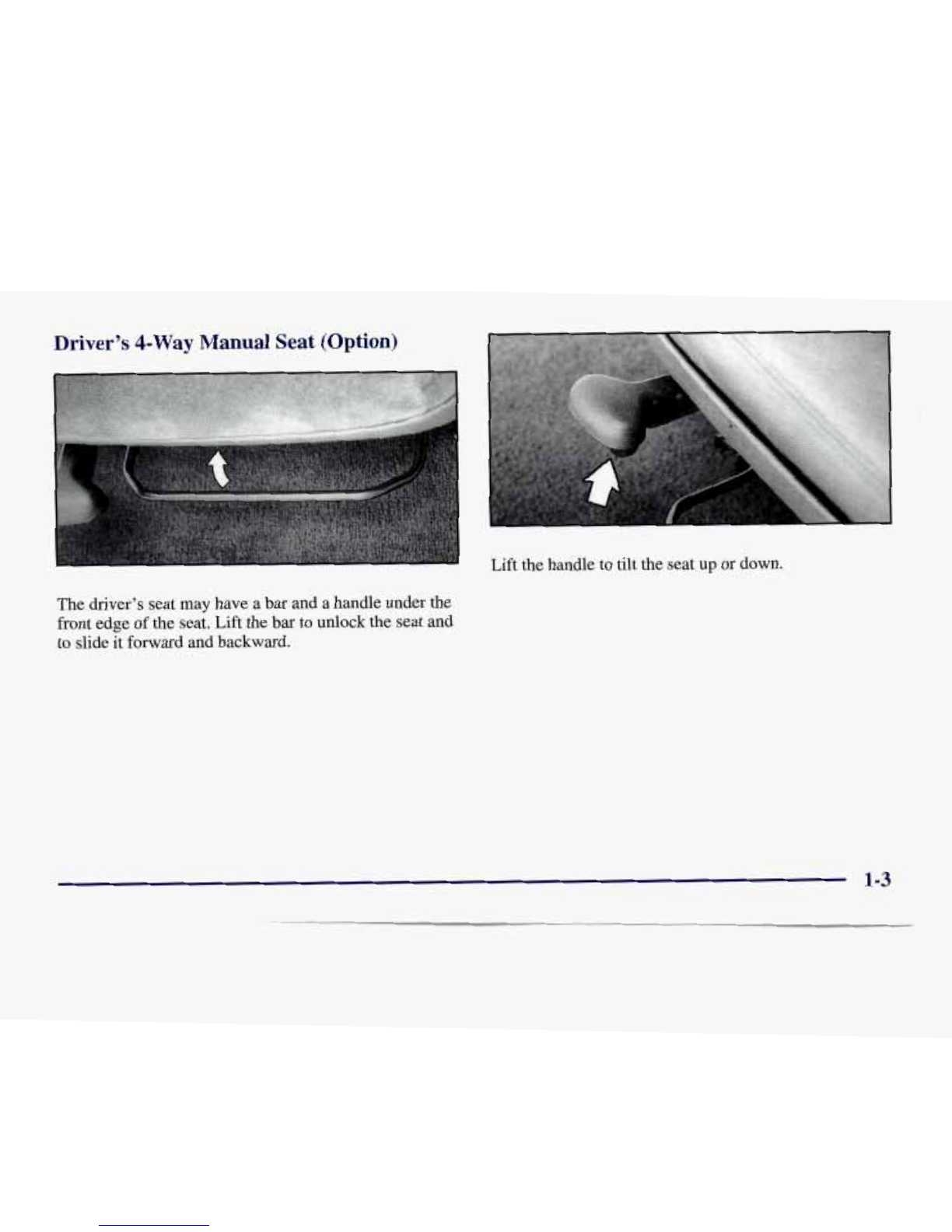

Driver’s 4-Way Manual Seat (Option)
The driver’s seatmay have a bar anda handle underthe
front edge of the seat.Lift the bar
to unlock the seat and
to slideit forward and backward.
1-3

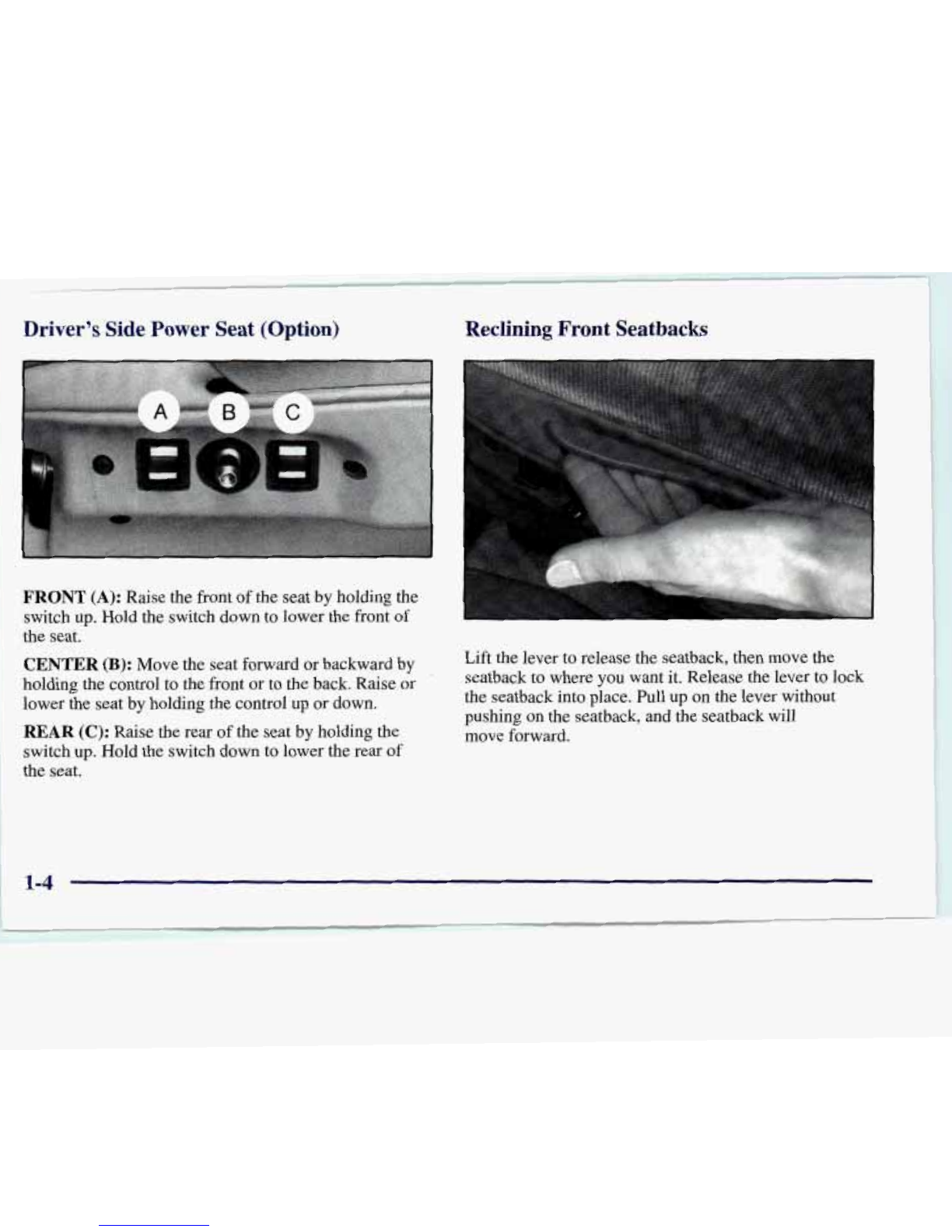

Driver’s Side Power Seat (Option) Reclining Front Seatbacks
FRONT (A): Raise the front of the seat by holding the
switch up. Hold the switch downto lower the front
of
the seat.
CENTER (B): Move theseatforward or backward by
holding the control to the frontor to the back. Raiseor
lower the seat by holding the controlup
or down.
REAR (C): Raise the rear of the seat by holding the
switch up. Hold the switch down to lower the rear
of
the seat.
1-4
Lift the lever to release the seatback, then move the
seatback to whereyou want it. Release the lever to lock
the seatbackinto place. Pull
up on the lever without
pushing on the seatback, and the seatback will
move forward.

But don’t have a seatback reclined if your vehicle is moving.
I
Sitting ina reclined position whenyour vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can’t do theirjob when
you’re reclined like this.
Theshoulder beltcan’t
do its job because it
won’t beagainst yourbody. Instead,it will be in
front
of you. In a crash you could gointoit,
receiving neckor other injuries.
The
lap belt can’t do its job either. In a crashthe
belt could
go up over your abdomen. The belt
forces would be there, notatyour pelvic bones.
This could cause serious internalinjuries.
For
proper protection when the vehicle is in
motion, have the seatback upright. Then sitwell
back
in the seat and wear your safety belt properly.
Head Restraints
Slide the head restraint upor down so that the top of the
restraint
is closest to the top of your ears. Thisposition
reduces
the chance of a neck injury in a crash.

Safety Belts: They’refor Everyone
Thispart of the manual tells you how to use safety belts
properly. It also tells yousomethings you should not
do
with safety belts.
And it explains the air bag system.
Don’t let anyoneride where heorshe can’t wear
a safety belt properly.
If you arein a crashand
you’re not wearing
a safety belt, your injuries
can be much worse.You canhit things inside the
vehicle or be ejected from it.You can be seriously
injured orkilled.
In the same crash,you might
not be if youarebuckled up. Always fasten your
safety belt,and check that your passengers’ belts
arefastened properlytoo.
Itis extremely dangerous toridein
a cargoarea,
inside
or outside of a vehicle. Ina collision,
people ridingin theseareasaremore likely to be
seriouslyinjured orkilled. Donot allow peopleto
ridein anyarea of your vehicle that is not
equippedwith seatsand safety belts.Be sure
everyone in your vehicle is ina seatand using a
safety belt properly.
1-6
