2014 Chevrolet Corvette Infotainment System M
Infotainment System . . . . . . 3
Introduction ................. 3
Overview . . . . . . . . . . . . . . . . . . . . . . . 4
Steering Wheel Controls . . . . . . . 7
Using the System . . . . . . . . . . . . . . 8
Software Updates . . . . . . . . . . . . . 11
Radio ....................... 11
AM-FM Radio . . . . . . . . . . . . . . . . . 11
HD Radio Technology . . . . . . . . . 14
Satellite Radio . . . . . . . . . . . . . . . . 15
Radio Reception . . . . . . . . . . . . . . 16
Diversity Antenna System . . . . . 17
Satellite Radio Antenna . . . . . . . 17
Pandora Internet Radio . . . . . . . 17
Audio Players ............. 21
USB Port . . . . . . . . . . . . . . . . . . . . . . 21
SD Card Reader . . . . . . . . . . . . . . 25
Auxiliary Jack . . . . . . . . . . . . . . . . . 25
Bluetooth Audio . . . . . . . . . . . . . . . 26
Navigation ................. 27
Using the Navigation
System . . . . . . . . . . . . . . . . . . . . . . 27
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Navigation Symbols . . . . . . . . . . . 35
Destination .................... 37
OnStar
®
System . . . . . . . . . . . . . . 54
Settings . . . . . . . . . . . . . . . . . . . . . . . 56
Global Positioning
System (GPS) . . . . . . . . . . . . . . . 57
Vehicle Positioning . . . . . . . . . . . . 58
Problems with Route
Guidance . . . . . . . . . . . . . . . . . . . . 59
If the System Needs
Service . . . . . . . . . . . . . . . . . . . . . . 59
Map Data Updates . . . . . . . . . . . . 59
Database Coverage
Explanations . . . . . . . . . . . . . . . . . 60
Voice Recognition . . . . . . . . 60
Settings . . . . . . . . . . . . . . . . . . . . 68
Bluetooth Phone/
Devices ................... 71
Bluetooth (Overview) . . . . . . . . . . 71
Bluetooth (Infotainment
Controls) . . . . . . . . . . . . . . . . . . . . 72
Bluetooth (Voice
Recognition) . . . . . . . . . . . . . . . . . 76
Text Messaging . . . . . . . . . . . . . . . 77
Trademarks and License
Agreements .............. 79
Index ..................... i-1

Black plate (2,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13

Black plate (3,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
Infotainment System 3
Introduction
The names, logos, emblems,
slogans, vehicle model names, and
vehicle body designs appearing in
this manual including but not limited
to CHEVROLET, the CHEVROLET
Emblem, and CORVETTE are
trademarks and/or service marks of
General Motors LLC, its
subsidiaries, affiliates, or licensors.
The information in this manual
supplements the owner manual.
This manual describes features that
may or may not be on your specific
vehicle either because they are
options that you did not purchase or
due to changes subsequent to the
printing of this owner manual.
Please refer to the purchase
documentation relating to your
specific vehicle to confirm each of
the features found on your vehicle.
For vehicles first sold in Canada,
substitute the name “General
Motors of Canada Limited”for
Chevrolet Motor Divisions wherever
it appears in this manual.
Keep this manual with the owner
manual in the vehicle, so it will be
there if it is needed. If the vehicle is
sold, leave this manual in the
vehicle.
Canadian Vehicle Owners
(Propriétaires des Véhicules
Canadiens)
A French language copy of this
manual can be obtained from your
dealer or from:
On peut obtenir un exemplaire de
ce guide en français auprès du
concessionnaire ou à l'adresse
suivante:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
Numéro de poste 6438 de langue
française
www.helminc.com
Litho in U.S.A.
Part No. 23127539 A First Printing ©2013 General Motors LLC. All Rights Reserved.

Black plate (4,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
4 Infotainment System
Overview
Read the following pages to
become familiar with the
infotainment system features.
The infotainment system has built-in
features intended to help with this
by disabling some functions when
driving. A grayed out function is not
available when the vehicle is
moving.
All functions are available when the
vehicle is parked. Before driving:
.Become familiar with the
infotainment system operation,
buttons on the faceplate, and
touch-sensitive screen buttons.
.Set up the audio by presetting
favorite stations, setting the
tone, and adjusting the
speakers.
.Set up phone numbers in
advance so they can be called
easily by pressing a single
button or by using a single voice
command for vehicles equipped
with phone capability.
{Warning
Taking your eyes off the road
for too long or too often while
using the infotainment or
navigation system could cause
a crash.
You or others could be injured
or killed. Do not give extended
attention to these tasks while
driving. Limit glances at the
vehicle displays and focus your
attention on driving. Use voice
commands whenever possible.
See “Defensive Driving”in the
owner manual.
Automatic Switch-Off
If the infotainment system has been
turned on after the ignition is turned
off, the system will turn off
automatically after 10 minutes.
Infotainment System
The infotainment system is
controlled by using the touchscreen,
the buttons below the touchscreen,
steering wheel controls, and voice
recognition.

Black plate (5,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
Infotainment System 5
1. O/VOL (Power/Volume)
2. ySCREEN z
3. RADIO (AM/FM/XM)
4. MEDIA (iPod/USB Port/
SD Card)
5. {(Home Page)
6. MENU
7. gor d(Seek or Track)
8. oBACK
Power (On/Off/Mute)
.When off, press O/VOL to turn
the system on. Press and hold to
turn off.
.When on, press O/VOL to mute
the system. Press O/VOL again
to unmute the system.
Retained Accessory Power (RAP)
The vehicle has RAP. When in RAP
the audio system can be played
even after the ignition is turned off.
See “Retained Accessory Power
(RAP)”in the owner manual.
Volume
Turn O/VOL to increase or
decrease the volume.

Black plate (6,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
6 Infotainment System

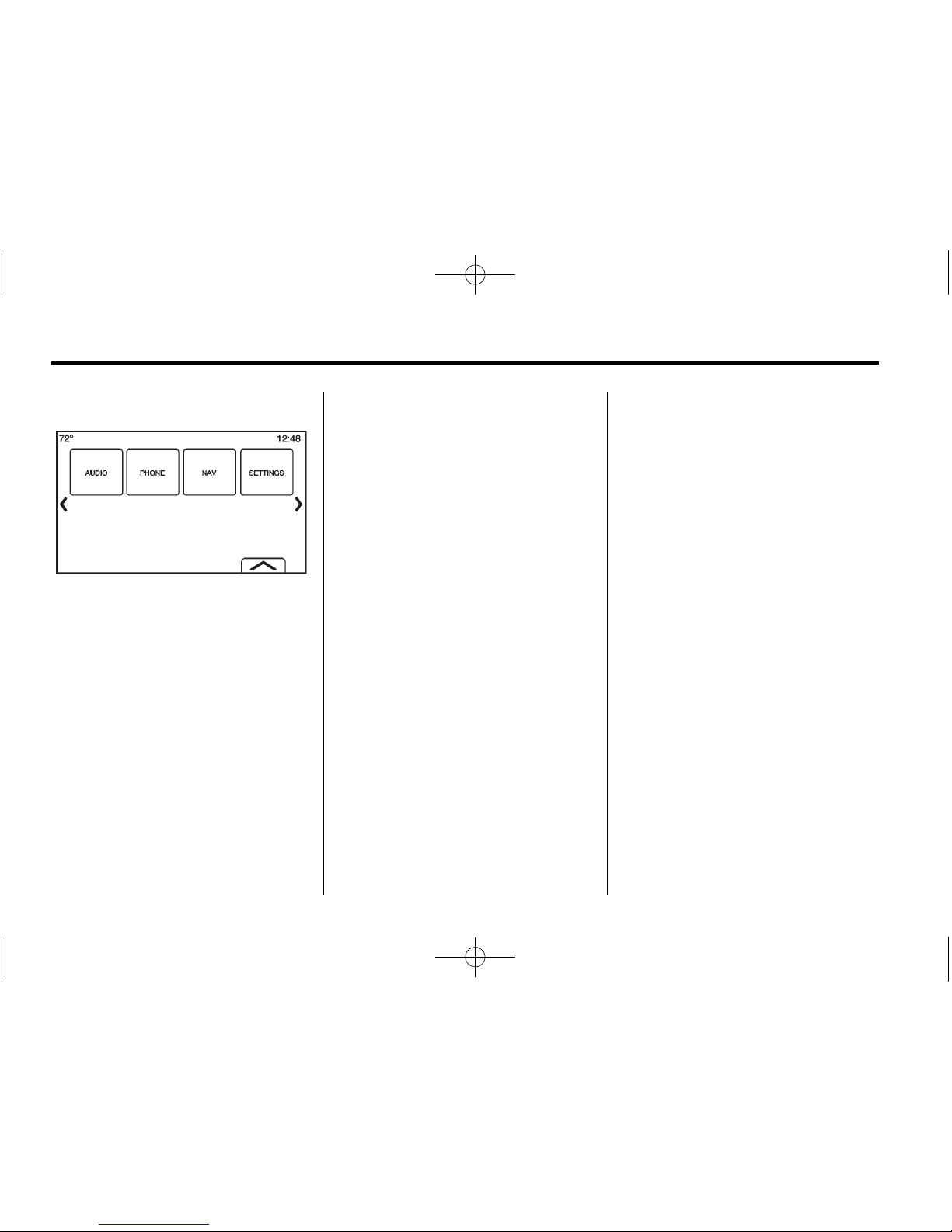

Home Page
The Home Page is where vehicle
feature icons are accessed. Some
features are disabled when the
vehicle is moving.
The Home Page can be set up to
have up to five pages with eight
icons per page.
Press the left hor right kor slide a
finger left/right across the screen to
access the pages of icons.
h(Previous): Press to go to the
previous Home Page.
k(Next): Press to go to the next
Home Page.
l(Interaction Selector): Press to
display the favorites list.
Press and hold a location within the
favorites area to begin the process
of saving a favorite application.
Press the application icon to store
as a favorite. The name of the
application will be shown in
favorites.
Managing Home Page Icons
1. Press and hold any of the Home
Page icons to edit that icon.
2. Drag the icon to a new location
on the Home Page or to save it
to the applications tray.
3. Press {to exit edit mode.

Black plate (7,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
Infotainment System 7
Steering Wheel Controls Some audio controls can be
adjusted at the steering wheel.
g(1) (Push to Talk): Press to
answer an incoming call or to start a
voice recognition session. See
Bluetooth (Overview) on page 71 or
Bluetooth (Infotainment Controls) on
page 72 or Bluetooth (Voice
Recognition) on page 76 or “OnStar
Overview”in the owner manual.
R(1) (Phone/Mute): Press to
decline an incoming call, or end a
current call. Press to mute or
unmute the infotainment system
when not on a call.
wor x(1) (Next or Previous):
Press to change radio stations in
audio mode or to go up or down in
a list.
oor p(1) (Previous or Next):
Press to go to the previous or next
area in the display or the previous
or next menu.
SEL (1) (Select): Press to select a
highlighted menu option.

Black plate (8,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
8 Infotainment System
v+ or v−(2) (Volume): Press to
increase or decrease volume.
lFAV or FAV g(3) (Next or
Previous Favorite): Press to
display a list of favorites. Press
again to select the next or previous
favorite when listening to the radio.
Using the System
Touchscreen Buttons
Touchscreen buttons show on the
screen when available. When a
function is unavailable, the button
may gray out. When a function is
selected, the button may highlight.
Home Page Features
Press the icons on the Home Page
screen to launch an application.
Audio
Press the AUDIO icon to display the
active audio source page. Available
sources are AM, FM, XM (if
equipped), My Media, USB, SD,
Bluetooth, and AUX Input.
Phone
Press the PHONE icon to display
the Phone main page. See
Bluetooth (Overview) on page 71 or
Bluetooth (Infotainment Controls) on
page 72 or Bluetooth (Voice
Recognition) on page 76.
NAV (Navigation, If Equipped)
Press the NAV icon to display the
navigation map or OnStar
Turn-by-Turn Navigation. See Using
the Navigation System on page 27
or “OnStar Navigation”in the owner
manual.
Apps
If equipped, this feature is available
through the Apps icon on the radio
Home Page. Downloading and
using Apps requires
a Bluetooth Internet connection as
part of a smartphone or other mobile
device data service plan. On most
smartphones, activation is in the
Settings menu under Mobile
Network Sharing, Personal Hotspot,
Mobile Hotspot, Bluetooth Tethering,
or similar. After activation of the
hotspot on the smartphone,
complete the Bluetooth pairing
process using the Phone icon on
the radio Home Page. After pairing
the phone, press the Apps icon on
the radio Home Page. Follow the
prompts to configure the Internet
connection and set up an account.
See www.chevrolet.com/mylink
(U.S.) or www.mylink.chevrolet.ca
(Canada).
Settings
Press the SETTINGS icon to display
the Settings menu. See Settings on
page 68.
Phone (Voice Recognition)
Press the PHONE microphone icon
on Home Page to access the
Bluetooth Speech Recognition main
page. See Voice Recognition on
page 60.

Black plate (9,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
Infotainment System 9

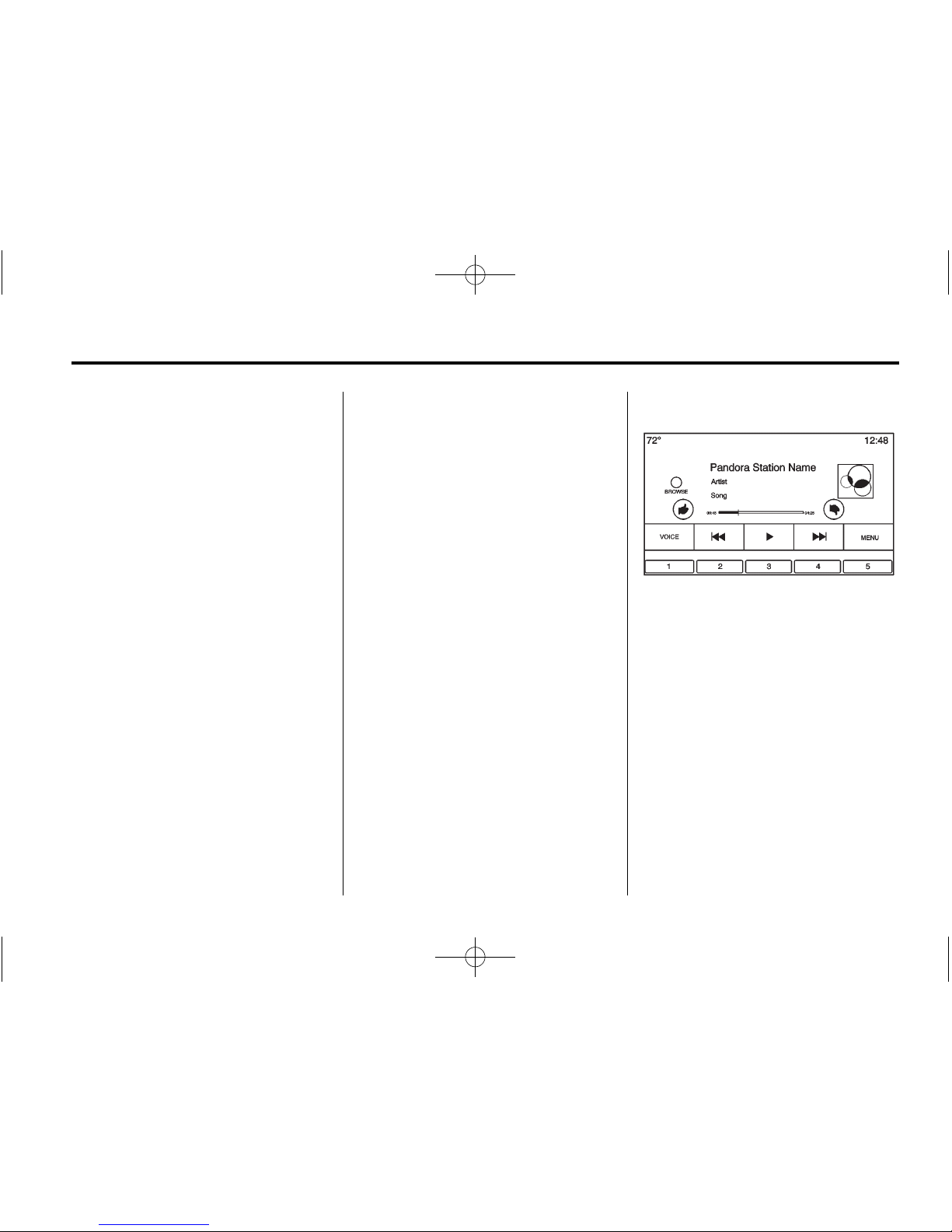

Pandora (If Equipped)
Press the PANDORA icon to begin
Pandora
®
. See Pandora Internet
Radio on page 17.
Weather (If Equipped)
Press the WEATHER icon to display
the Weather main page. See
“SiriusXM Travel Link Weather (If
Equipped)”under Destination on
page 37.
OnStar
Press the ONSTAR icon to display
the OnStar main page and start
OnStar voice recognition. See
“OnStar Overview”in the owner
manual.
Applications Tray
The applications tray is at the top
center of the screen. The
applications tray can have three to
five applications.
To add an application from the
Home Page to the applications tray:
1. Press and hold any icon on the
Home Page to enter edit mode.
2. Drag the icon to the
applications tray.
To remove an item from the
applications tray, drag the icon
from the applications tray back
to the Home Page.
Adding or removing applications
from the applications tray will not
remove them from the Home Page.
Infotainment Gestures
Use the following finger gestures to
control the infotainment system.
Press/Tap
Press/tap is used to select a button
or option, activate an application,
or change the location inside a map.
Many times the function is
performed upon removal of the
finger from the touch screen; not on
the initial press.

Black plate (10,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
10 Infotainment System
Press and Hold
Press and hold can be used to start
another gesture, move, or delete an
application.
Drag
Drag is used to move applications
on the Home Page, or to pan the
map. To drag the item, it must be
held and moved along the screen to
the new location. This can be done
up, down, right, or left.
Nudge
Nudge is used to move items a
short distance on a list or a map. To
nudge, hold and move the selected
item up or down to a new location.
Fling or Swipe
Fling or swipe is used to scroll
through a list, pan the map,
or change page views. Do this by
placing a finger on the screen then
moving it rapidly up and down or
right and left and releasing the
finger from the screen.
Turn
Turn the MENU knob or O/VOL
(Volume) knob on the faceplate to
perform functions such as tuning the
radio or scrolling lists.

Black plate (11,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
Infotainment System 11
Cleaning High Gloss Surfaces
and Vehicle Information and
Radio Displays
For vehicles with high gloss
surfaces or vehicle displays, use a
microfiber cloth to wipe surfaces.
Before wiping the surface with the
microfiber cloth, use a soft bristle
brush to remove dirt that could
scratch the surface. Then use the
microfiber cloth by gently rubbing to
clean. Never use window cleaners
or solvents. Periodically hand wash
the microfiber cloth separately,
using mild soap. Do not use bleach
or fabric softener. Rinse thoroughly
and air dry before next use.
Software Updates
See the website for more
information.
Website Information
In the U.S., see www.chevrolet.com
In Canada, see
www.chevrolet.gm.ca
Radio
AM-FM Radio
Playing the Radio
While on the audio main page the
available sources are: AM, FM, XM
(if equipped), My Media, USB, SD,
Bluetooth, and AUX Input.
.Press the RADIO screen button
or on the faceplate to scroll
through AM, FM, or SiriusXM (if
equipped).
.Press the MEDIA screen button
or on the faceplate to scroll
through My Media, USB, SD,
Bluetooth, and AUX Input.
Infotainment System Settings
Press the RADIO screen button or
on the faceplate to access
broadcast sources.
Press the MENU screen button or
menu knob to display the following
menus:
Tone Settings:
.Bass, Midrange, Treble,
Surround (if equipped): Press +
or −to adjust. Surround adjusts
the headrest speaker
volume only.
.Balance: Press Sor Tfor more
sound from the left or right
speakers. The middle position
balances the sound between the
left and right speakers.
.Fade: Press yor zfor more
sound from the front or rear
speakers. The middle position
balances the sound between the
front and rear speakers.
Tag Song: Press to bookmark a
song on an Apple device for later
purchase using iTunes
®
.

Black plate (12,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/16/13
12 Infotainment System
Timeshift: Timeshift is the
recording of a radio station for up to
25 minutes. See “Timeshifting”later
in this section.
DSP Modes:
.If equipped with Bose Surround
®
sound system, it will have three
DSP modes including:
‐Normal: Adjusts the audio to
provide the best sound for all
seating positions.
‐Driver: Adjusts the audio to
provide the best sound for the
driver.
‐Centerpoint: Creates a
surround sound from nearly
any audio source.
Auto Volume: If equipped, this
feature adjusts the volume based on
vehicle speed. The options are OFF,
Low, Medium - Low, Medium,
Medium - High, or High. Press o
BACK on the faceplate or press the
Back screen button to go back to
the previous menu.
Bose AudioPilot
®
Noise
Compensation Technology (If
Equipped): This feature adjusts
the volume based on the noise in
the vehicle. When turned on,
AudioPilot detects noise and vehicle
speed to continuously adjust the
audio signal so that music will
sound the same at a set volume
level. This feature is most effective
at lower radio volume settings
where background noise can affect
how well the music is being played.
See www.bose.com/audiopilot. This
feature can be turned on or off.
Press oBACK on the faceplate or
press the Back screen button to go
back to the previous menu.
EQ (Equalizer): If equipped with a
Bose Sound System, the available
choices are Manual and Talk.
HD Radio: If equipped, for AM and
FM only, press to turn HD Radio
®
reception on or off. Press oBACK
on the faceplate or press the Back
screen button to go back to the
previous menu.
Update Station List: For AM and
FM only, press to update the station
list. Press oBACK on the
faceplate or press the Back screen
button to go back to the
previous menu.
Finding a Station
Seeking a Station
Press gor don the faceplate to
search for the previous or next
strongest station.
Tuning a Station
Turn the MENU knob to manually
search for a station.

Black plate (13,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
Infotainment System 13

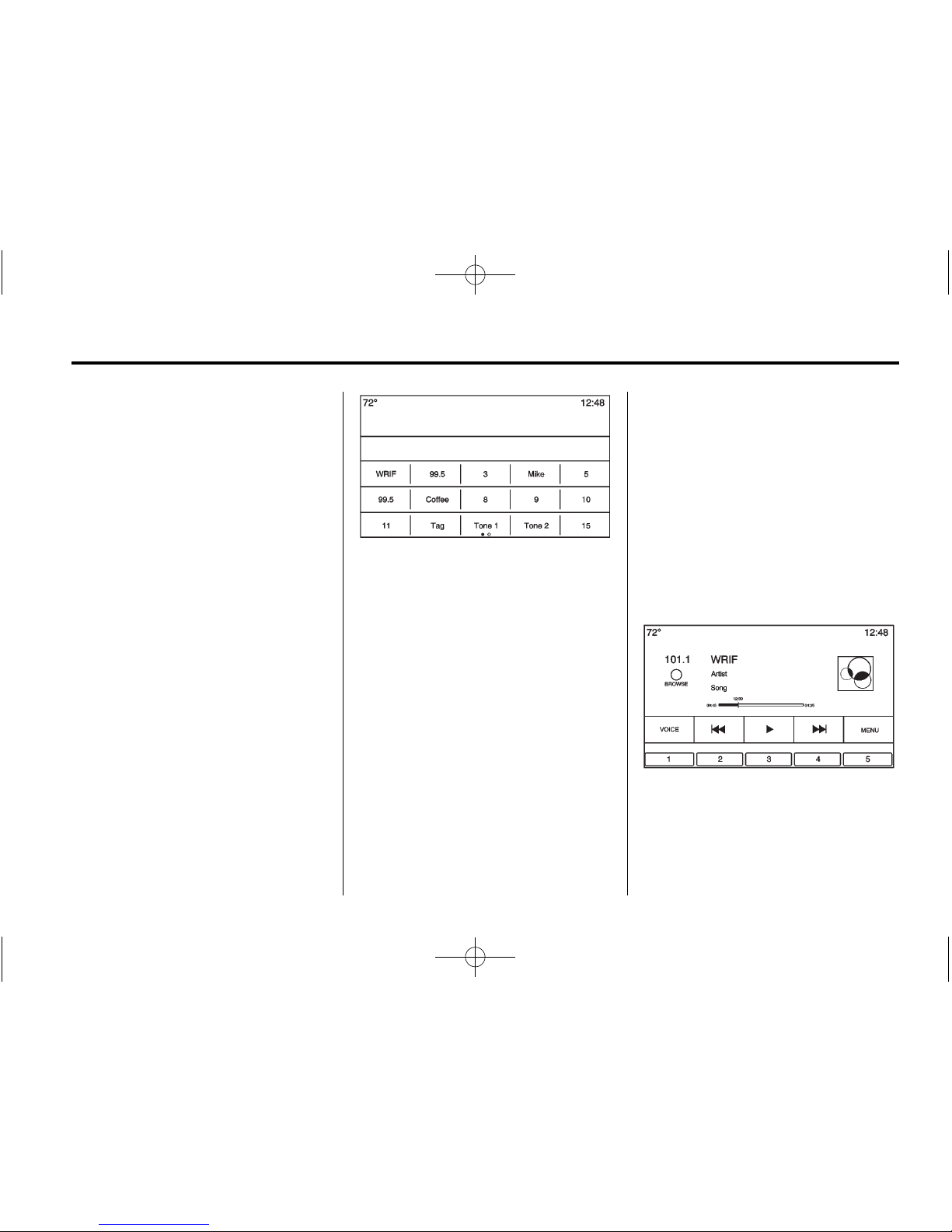

Storing Radio Station Presets
Favorites are stored in the area at
the bottom of the screen.
Up to 60 preset stations can be
stored:
AM, FM, XM (if equipped), HD
Radio Stations: Press and hold a
screen button to save the current
station as a favorite. Press a screen
button in the favorite area to recall a
favorite station.
Mixed-Audio Favorites
Favorites that can be stored include
radio stations, navigation,
applications, contacts, tone settings,
artists, songs, albums,
podcasts, etc.
To scroll through the favorites:
.Drag on the top line of the
screen buttons along the bottom
to raise up the favorites. To
close the favorites, drag
them down.
.Slide a finger to the right or left
to scroll through each page of
favorites. A Vindicates which
page is being viewed.
Tone Settings: Press and hold a
screen button to save the current
tone settings as a favorite in the
tone settings screen. Press Qon
the bottom of the screen to display
Favorites. Press a screen button in
the favorite area to recall a favorite
tone setting.
Pandora Radio Stations: Press
and hold a screen button to store
the Pandora application. Pandora
favorite stations work when Pandora
is launched.
The number of favorites displayed is
automatically adjusted by default,
but can be manually adjusted in the
Settings menu under Radio and
then Manage Favorites.
Timeshifting
The audio system can record live
radio for up to 25 minutes. When
tuned to a station, the system
automatically begins recording the
audio along with the associated
metadata.

Black plate (14,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
14 Infotainment System
Press jto pause playback of the
audio and to initiate timeshift mode.
Press rto resume playback of the
live audio.
When timeshifting begins, a time is
indicated on the right of the play/
pause indicator. This time initially
indicates the time of day at which
playback is paused. This time
continues to show as long as the
system is in a paused mode and the
buffer continues to fill.
Buffer Reset
The buffer will reset anytime the
broadcast band or stations/channels
are changed. Changing to a media
source when the pause button is
pressed will not reset the buffer.
Rewinding or Fast Forwarding a
Timeshifted Broadcast
.Press and hold the rewind
indicator to reverse playback at
a rate of 15 times the rate of
normal playback.
.Press and hold the fast forward
indicator to advance playback at
a rate of 15 times the rate of
normal playback. The timeshift
buffer can be advanced up to
the end of the timeshift buffer
and return to live mode.
Returning to Live Broadcast
If listening to timeshifted radio,
press uto fast forward back to live
radio.
Timeshifting and Station/Channel
Lists
If browsing a station/channel list is
started while listening to the
timeshift content, the list content is
shown in live time, not
buffered time.
Skipping Back in a Broadcast
For programs with metadata,
pressing the previous button less
than five seconds into a program
will make the system skip to the
beginning of the previous program.
If more than five seconds into the
current song/program, the system
starts at the beginning of the current
program. If no metadata is available,
the system skips back 30 seconds.
Reaching the End of the Buffer
If the audio is paused and the
25-minute buffer is reached, the
buffer continues recording the latest
content and will erase the oldest
content. When playback is started,
the content played will be the last
25 minutes in the buffer.
HD Radio Technology
If equipped, HD Radio Technology
is a free service with features such
as static-free sound; more
programming choices on local FM
HD2, HD3, and higher; and
on-screen information such as artist
and song title.
Channel Access
To access HD Radio channels:
1. Tune the radio to the channel.
HD Radio must be turned on in
the Menu. If the channel is
broadcasting HD Radio

Black plate (15,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
Infotainment System 15
Technology, the radio will
automatically switch to digital
audio, indicated with an HD
Radio Technology logo.
2. Press gor don the faceplate,
or turn the MENU knob to tune
to the previous or next HD Radio
channel.
There may be a delay before the
channel starts playing.
The HD Radio channel number is
indicated next to the logo.
HD Radio channels can be saved
as favorites. Songs can be tagged
for download to a connected iPod
touch
®
.
When connected to iTunes
®
, the
Sync button on the device may
need to be pressed to transfer the
tags to iTunes.
See AM-FM Radio on page 11 or
USB Port on page 21.
For a list of all channels, see
www.hdradio.com.
Troubleshooting
Digital Audio Delay: Wait for the
signal to process. This can take
several seconds.
Volume Change, Audio Skip,
Echo, Digital Audio Lost: Channel
signal strength may be weak or the
channel is out of range. Verify
proper reception on another
channel.
If the HD Radio signal loses
reception while listening to channel
HD1, the radio will go back to the
main non-HD Radio channel.
If the HD Radio signal loses
reception while listening to channels
HD2 to HD8, the radio mutes until
the signal can be recovered or until
the channel is changed.
HD can be disabled if driving in a
weak signal area. Press Menu from
the AM/FM screens, then press HD
Radio to toggle HD on or off.
Satellite Radio
SiriusXM
®
Satellite Radio
Service (If Equipped)
Vehicles with a valid SiriusXM
satellite radio subscription can
receive SiriusXM programming.
SiriusXM satellite radio has a wide
variety of programming and
commercial-free music, coast to
coast, and in digital-quality sound.
See www.siriusxm.com or call
1-866-635-2349 in the U.S. In
Canada, see www.xmradio.ca or call
1-877-209-0079.

Black plate (16,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
16 Infotainment System
When SiriusXM is active, the station
name, number, category name,
song title, and artist display on the
screen.
SiriusXM Menu
Pressing the MENU screen button
may display the following:
Tone Settings: Press + or −to
adjust the tone settings. See AM-FM
Radio on page 11.
Tag Song: Press the Tag Song
button to tag the current artist and
song information.
When connected to iTunes
®
, the
Sync button on iTunes may need to
be pressed to transfer the
song tags.
TuneSelect: For SiriusXM only, this
feature allows for alerts to be set for
artists or songs that are played on
any channel. Press TuneSelect on
the menu during playback of a
desired song or artist to set an alert.
Press Manage TuneSelect to turn
the alerts On and Off or manage the
saved selection of Artists or Songs.
To unselect an alert, press the Song
or Artist. To delete an alert, press −.
Press oBACK on the faceplate or
press the Back screen button to go
back to the previous menu.
Auto Volume: If equipped, this
feature adjusts the volume based on
the vehicle speed. See AM-FM
Radio on page 11.
Bose AudioPilot Noise
Compensation Technology:
If equipped, this feature adjusts the
volume based on the noise in the
vehicle. See AM-FM Radio on
page 11.
Radio Reception
Unplug electronic devices from the
accessory power outlets if there is
interference or static in the radio.
FM
FM signals only reach about 16 to
65 km (10 to 40 mi). Although the
radio has a built-in electronic circuit
that automatically works to reduce
interference, some static can occur,
especially around tall buildings or
hills, causing the sound to fade in
and out.
AM
The range for most AM stations is
greater than for FM, especially at
night. The longer range can cause
station frequencies to interfere with
each other. Static can also occur
when things like storms and power
lines interfere with radio reception.
When this happens, try reducing the
treble on the radio.
SiriusXM
®
Satellite Radio
Service
If equipped, SiriusXM Satellite
Radio Service provides digital radio
reception. Tall buildings or hills can
interfere with satellite radio signals,
causing the sound to fade in and
out. In addition, traveling or standing
under heavy foliage, bridges,
garages, or tunnels may cause loss
of the SiriusXM signal for a period
of time.

Black plate (17,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
Infotainment System 17
Cell Phone Usage
Cell phone usage, such as making
or receiving phone calls, charging,
or just having the phone on may
cause static interference in the
radio. Unplug the phone or turn it off
if this happens.
Diversity Antenna System
The AM-FM antenna is a hidden
self-tuning system. It optimizes the
AM and FM signals relative to the
vehicle's position and radio station
source. No maintenance or
adjustments are needed.
Satellite Radio Antenna
If equipped with SiriusXM Satellite
Radio, the antenna is under the left
front fender. The antenna is hidden
from view and not adjustable.
Pandora Internet Radio
Pandora
®
is a free Internet radio
service that streams personalized
radio stations based on artists,
tracks, genres, and comedians.
Create stations using the Pandora
website or Smartphone application,
then use -(thumbs up) or ,
(thumbs down) to personalize
stations. To set up an account, or for
more information, go to
www.pandora.com. Pandora may
not be available in Canada.
A phone or tablet with Internet
connection and the Pandora
application installed is required.
Personal cell phone data plans are
used. Make sure the latest version
is installed on the device.
Launching Pandora
Connect the iPhone to the USB
port, or connect Android™or
BlackBerry
®
through Bluetooth. See
Auxiliary Jack on page 25 or
Bluetooth (Overview) on page 71 or
Bluetooth (Infotainment Controls) on
page 72 or Bluetooth (Voice
Recognition) on page 76. For first
time use, set up the stations before
connecting to the vehicle.
Using the iPhone
1. Plug the device into the USB
port. The phone screen must be
unlocked.

Black plate (18,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
18 Infotainment System
2. Launch Pandora directly from
the Home Page by pressing the
Pandora icon.
If nothing happens when the
available Pandora screen button is
pressed, download the latest
Pandora application and retry.
The login screen may display on the
device.
Using an Android or BlackBerry
Phone
The BlackBerry phone must be
unlocked to launch Pandora service.
1. Pair the phone using Bluetooth.
2. Press Pandora on the Home
Page to launch the service.
3. If nothing happens when the
available Pandora screen button
is pressed, download the latest
Pandora application and retry.
The login screen may display on the
device.

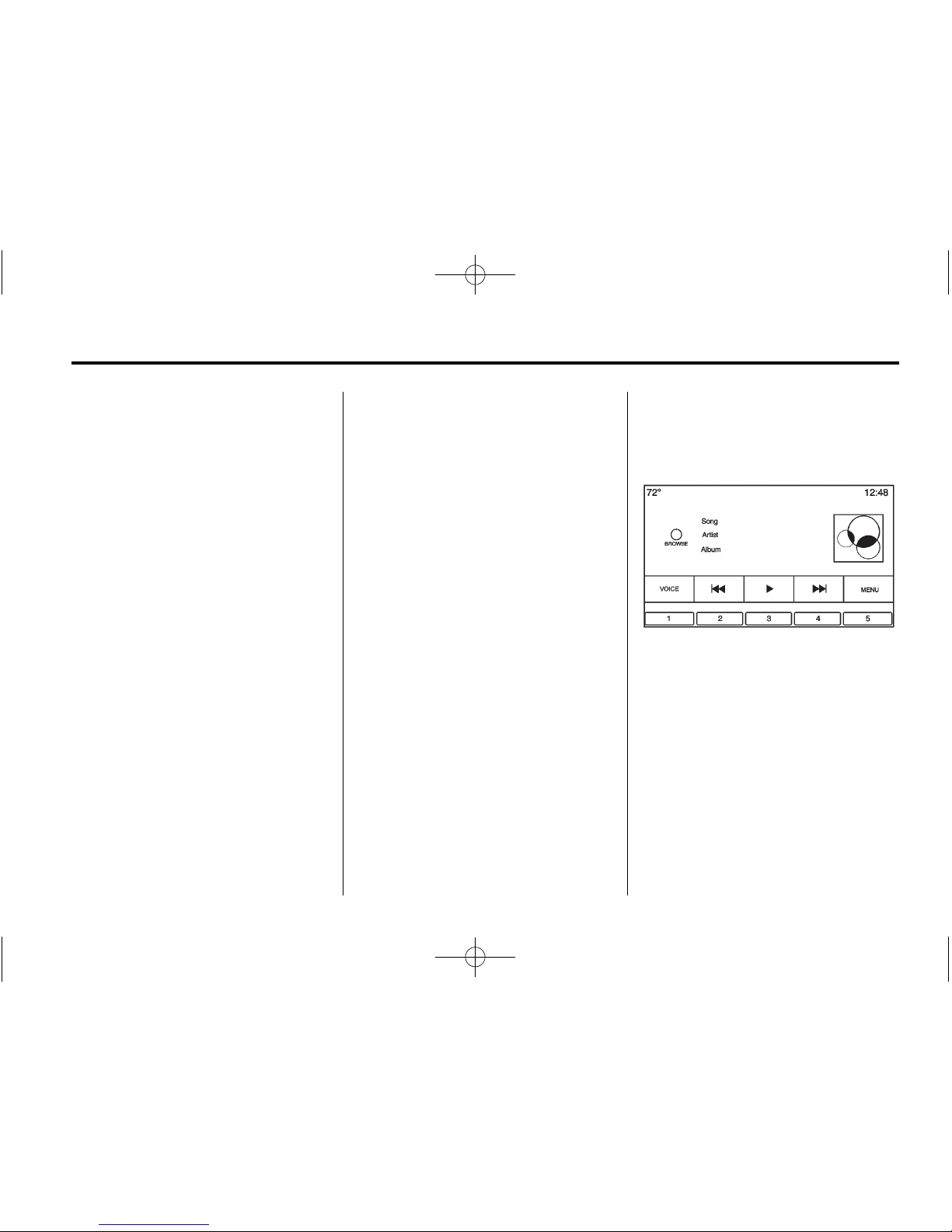

Pandora Menus
Press Menu on the Pandora
main page.
Pandora has a menu system with
the following:
Tone Settings: Press to adjust the
tone settings. See AM-FM Radio on
page 11.
Bookmark Artist: Press to
bookmark the artist.
Bookmark Song: Press to
bookmark the song.
Auto Volume: This feature sets the
auto volume based on the speed of
the vehicle and noise in the vehicle.
See AM-FM Radio on page 11.
Bose AudioPilot: If equipped, this
feature adjusts the volume based on
the noise in the vehicle. See AM-FM
Radio on page 11.
Pandora Features
Pandora service has features to rate
tracks, skip tracks, or change
stations.
,(Thumbs Down): When
pressed, Pandora stores this
information, changes to the next
track, and does not play this track
on this station again. This helps
Pandora choose which tracks
should not play on this station. This
feature is only available on user
created stations.

Black plate (19,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
Infotainment System 19
-(Thumbs Up): When pressed,
Pandora stores this information and
-is highlighted for the remainder of
the track. This helps Pandora
choose which tracks should play on
this station.
d(Next Track): When pressed,
Pandora changes to the next track.
ror j(Play/Pause): Press to play
or pause playback.
Pandora Skip Limit
Pandora limits the number of skips
allowed on their service to five skips
including thumbs down. ,or next
track will not work when skip limit is
reached, but the ,feedback will be
recorded.
Advertisements on Pandora
Pandora may display
advertisements. The artist name
and track title will not be displayed
and the skip track button will not be
available.
Pandora Troubleshooting
Unable to Connect Device to
Vehicle
If the device is unable to connect to
the USB or Bluetooth:
1. Turn the vehicle off.
2. Take the Remote Keyless Entry
(RKE) transmitter at least 6 m
(20 ft) away from the vehicle.
3. Wait about 30 seconds, and try
to connect the device again. See
Bluetooth (Overview) on page 71
or Bluetooth (Infotainment
Controls) on page 72 or
Bluetooth (Voice Recognition) on
page 76.
Unable to Start Pandora
If the device is unable to launch
Pandora:
.Check that the latest version of
Pandora is installed.
.Check that there is an active
account logged into Pandora.
Pandora will not work during an
active call.
.Have at least one station
created.
.For Android and BlackBerry
devices, check that the device is
paired with the vehicle, and
whether the device displays in
the Connected phone sources
list under the Phone icon from
the Home Page.
.For an iPhone, check that the
USB cable is connected to the
USB port and the screen is
unlocked.
.Close Pandora on the device
and launch again. Devices that
allow multitasking may require
an extra step to quit the Pandora
application. See the cell phone
manufacturer's user guide.

Black plate (20,1)
Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S./Canada/
Mexico-6007199) - 2014 - CRC 1st Edition - 5/13/13
20 Infotainment System
Thumbs Up or Thumbs Down
Error
If there is an error trying to rate a
track with the ,or -buttons, the
message “Thumbs Down Error”or
“Thumbs Up Error”will display.
Press OK to dismiss.
Loss of Audio
Loss of Pandora audio can happen
in different ways:
.Weak or lost data connection.
.Device needs to be charged.
.Application needs to be
relaunched.
.Connection between phone and
radio lost.
.An iPhone is connected to both
Bluetooth and the USB port.
If there is a loss of audio, playback
can be resumed by changing the
audio flow from Bluetooth to USB
cable.
To change the audio flow:
1. While the iPhone is connected,
double tap the phone’s home
button.
2. Swipe a finger to the left on the
phone’s screen display. A box
with a triangle on the lower line
of the box that is highlighted,
displays. Press this box to
display the dock connector
option.
3. Select “Dock Connector.”
Common Pandora Messages
Pandora Error/Please Check
Connected Device: Not signed in
or Pandora is down for
maintenance.
No Stations Available: No stations
are available on the Pandora server
through the connected device.
Action Unavailable Please Check
Device: A few conditions for loss of
Internet connection are:
.The connected device loses its
cellular connection.
.The device does not support
Internet connectivity.
.The device is not in the vehicle.
.No Bluetooth signal.
No Skips Remaining for This
Station or Permitted During
Advertisements:
.The maximum Pandora skip limit
has been reached according to
the plan that was obtained.
.Skipping an advertisement was
tried.
See www.pandora.com/help. If the
service will not work, see your
dealer for assistance.
